Automatic-Pour-Point-Tester--52

SCM serves as the primary control system throughout the construction of the Automatic Pour Point Tester 52-LTT110. Additionally, it has a colored touchscreen, a sensor for detection, and semiconductor refrigeration technology for more visit www.labexpo.com.

labexpo
Download Presentation

Automatic-Pour-Point-Tester--52

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

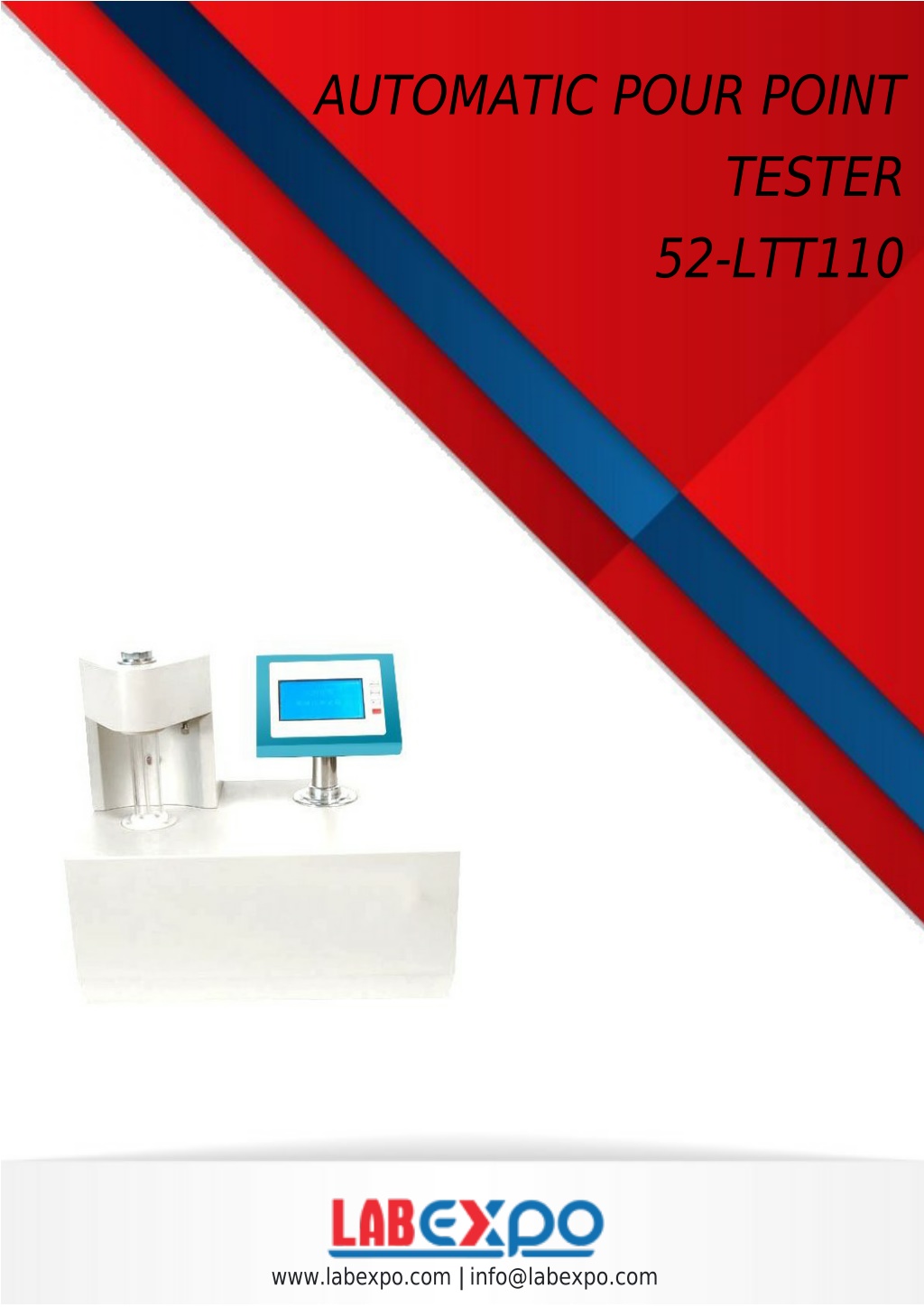

  1. AUTOMATIC POUR POINT TESTER 52-LTT110 www.labexpo.com info@labexpo.com |

  2. AUTOMATIC POUR POINT TESTER 52-LTT110 52-LTT110 is manufactured with SCM as the core control system. It is also deliberately fabricated with colored touch screen, detecting sensor and semiconductor refrigeration technology. It is designed and made as per ASTM D2386 Standard Test Method for Solidifying Point of Petroleum Products, ASTM D97 Standard Test Method for Pour Point of Petroleum Products. FEATURES ◇ Test procedures are fully automatic ◇ Data automation ◇ Semiconductor for refrigeration, makes determination rapid ◇ Solidifying point and pour point determination ◇ LCD and graphic display ◇ It can track and display the real-time temperature, and simulate the test status intelligently SPECIFICATIONS Ambient temperature Refrigeration speed Repeatability for solidifying point Repeatability for pour point Reproducibility Pressure of cooling water The lowest temperature Dimensions Power supply ≤ 30 ℃ > 40 °C / 10 min ≤ 2 °C ≤ 3 °C ± 4 °C 0.5 kg / cm2 (-60) °C 610 x 450 x 580 mm AC 220 V ± 10 %, 50 Hz

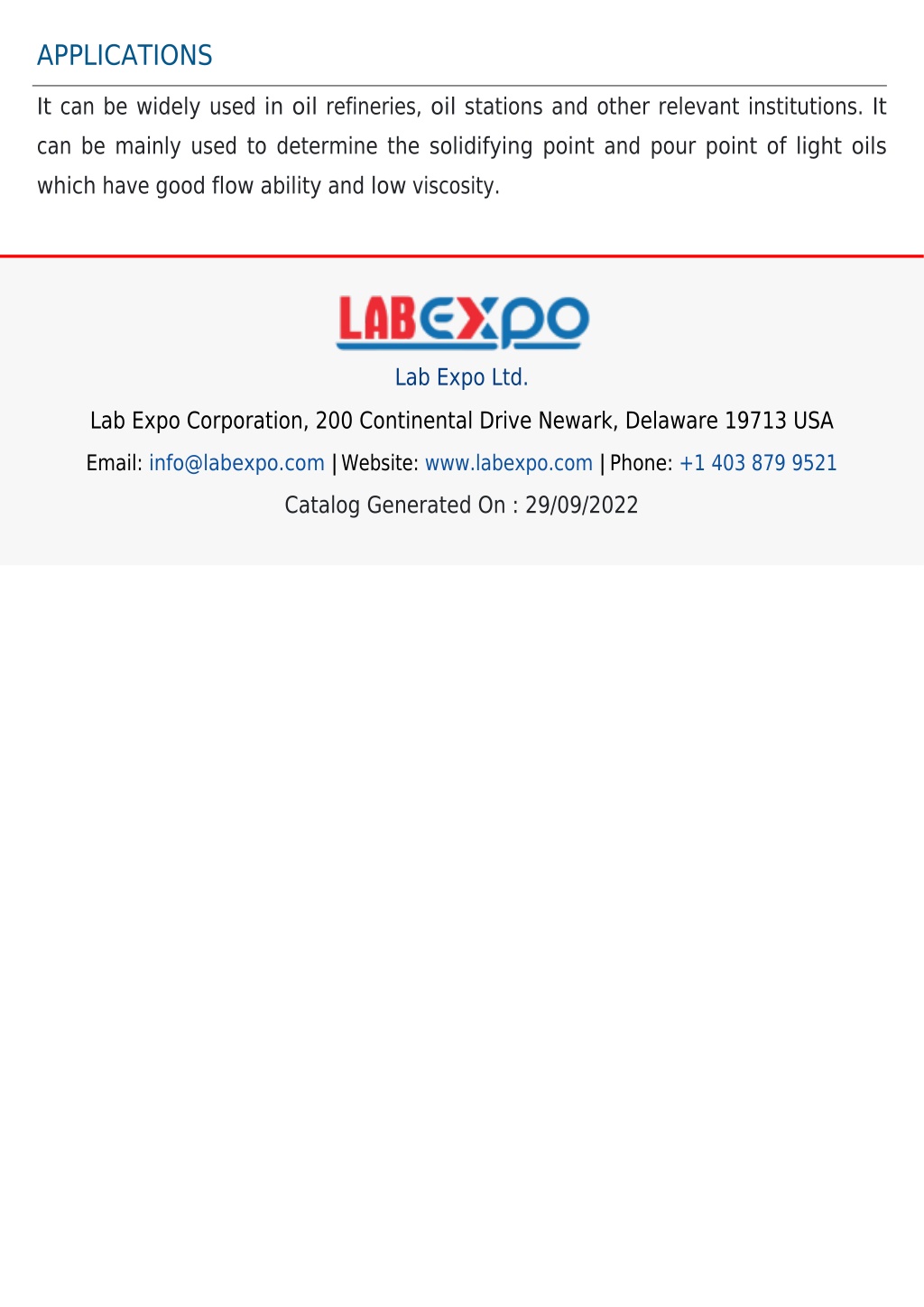

  3. APPLICATIONS It can be widely used in oil refineries, oil stations and other relevant institutions. It can be mainly used to determine the solidifying point and pour point of light oils which have good flow ability and low viscosity. Lab Expo Ltd. Lab Expo Corporation, 200 Continental Drive Newark, Delaware 19713 USA Email: info@labexpo.com Website: www.labexpo.com Phone: +1 403 879 9521 | | Catalog Generated On : 29/09/2022
