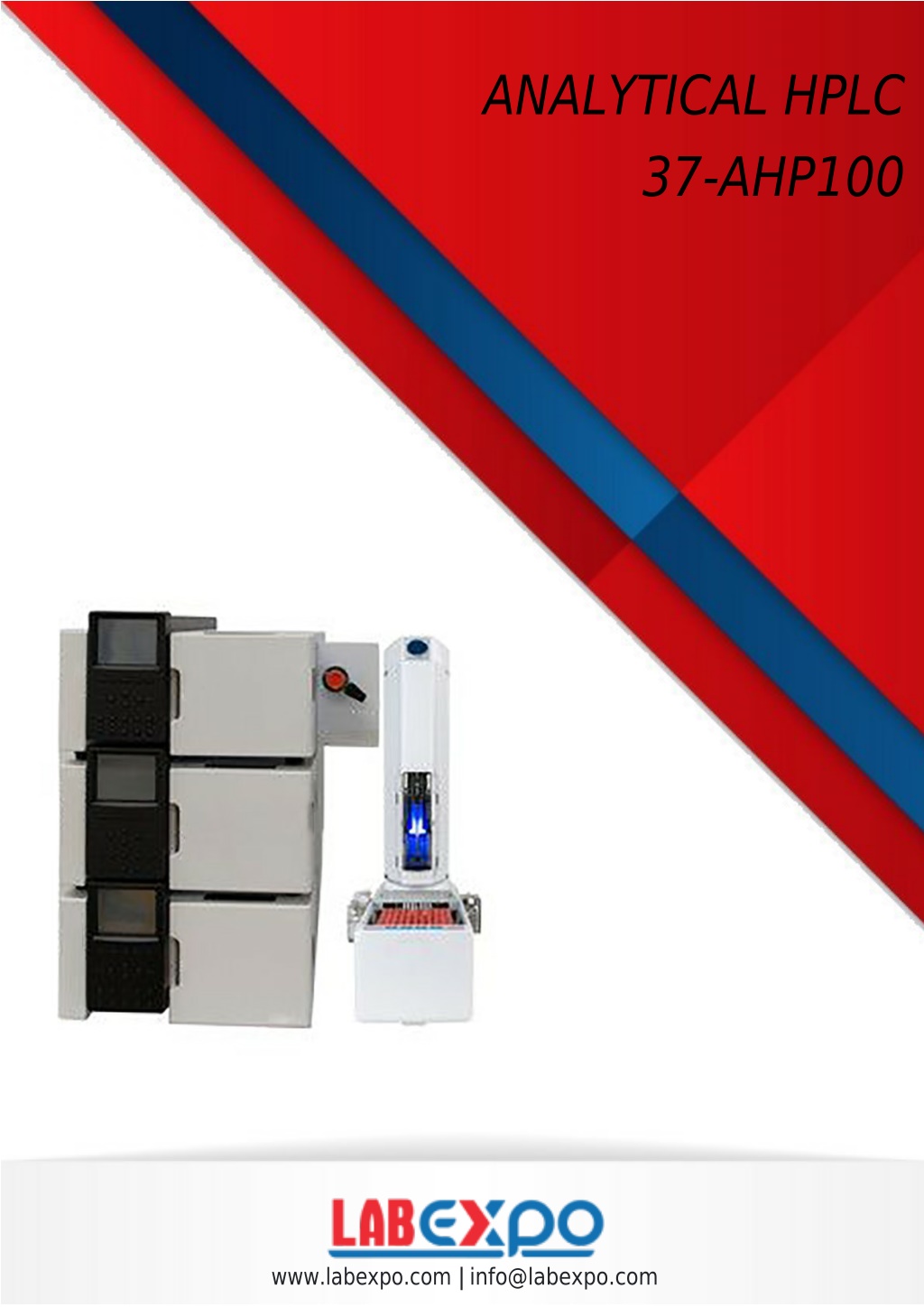

  1. ANALYTICAL HPLC 37-AHP100 www.labexpo.com info@labexpo.com |

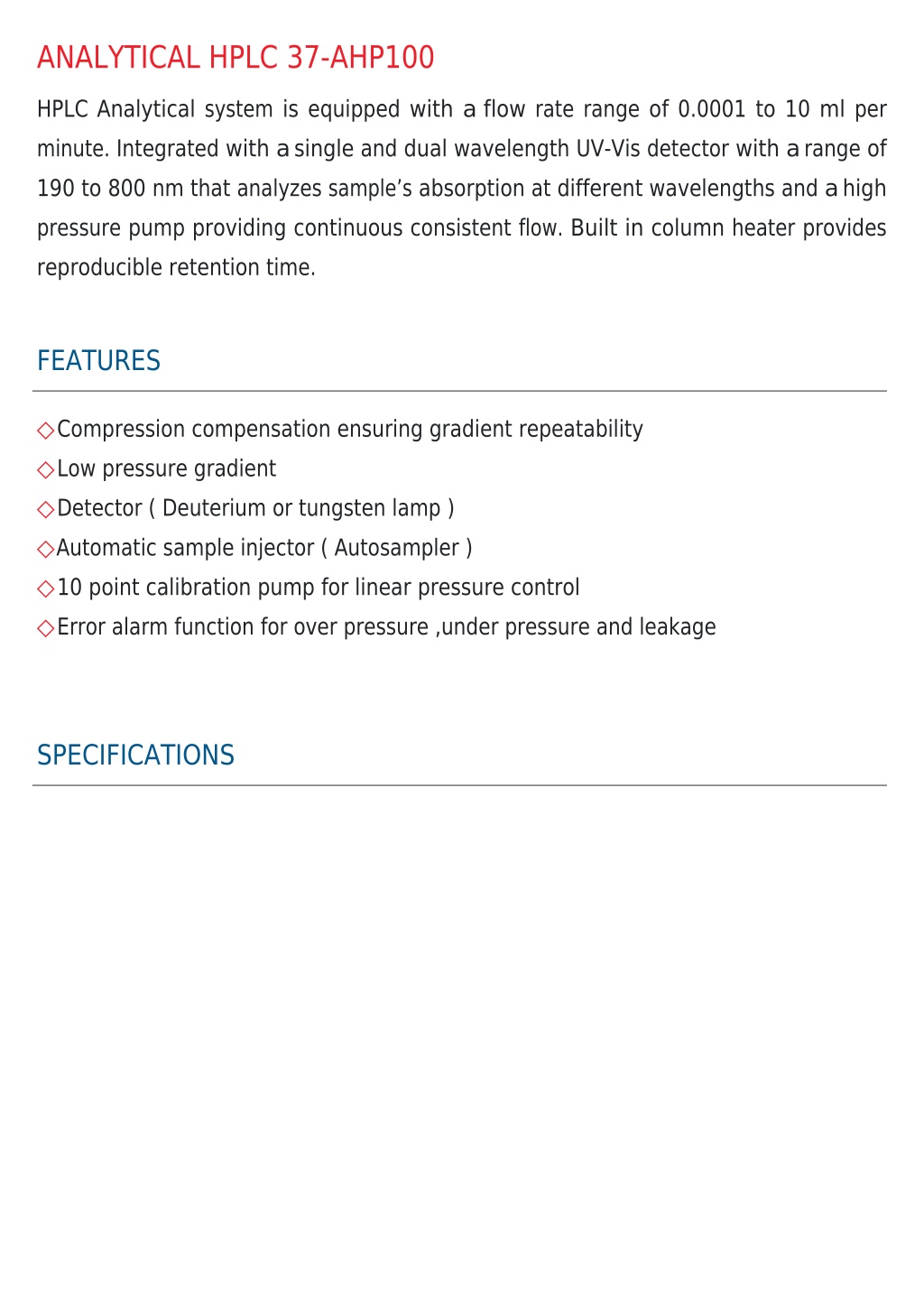

  2. ANALYTICAL HPLC 37-AHP100 HPLC Analytical system is equipped with a flow rate range of 0.0001 to 10 ml per minute. Integrated with asingle and dual wavelength UV-Vis detector with arange of 190 to 800 nm that analyzes sample’s absorption at different wavelengths and ahigh pressure pump providing continuous consistent flow. Built in column heater provides reproducible retention time. FEATURES ◇ Compression compensation ensuring gradient repeatability ◇ Low pressure gradient ◇ Detector ( Deuterium or tungsten lamp ) ◇ Automatic sample injector ( Autosampler ) ◇ 10 point calibration pump for linear pressure control ◇ Error alarm function for over pressure ,under pressure and leakage SPECIFICATIONS

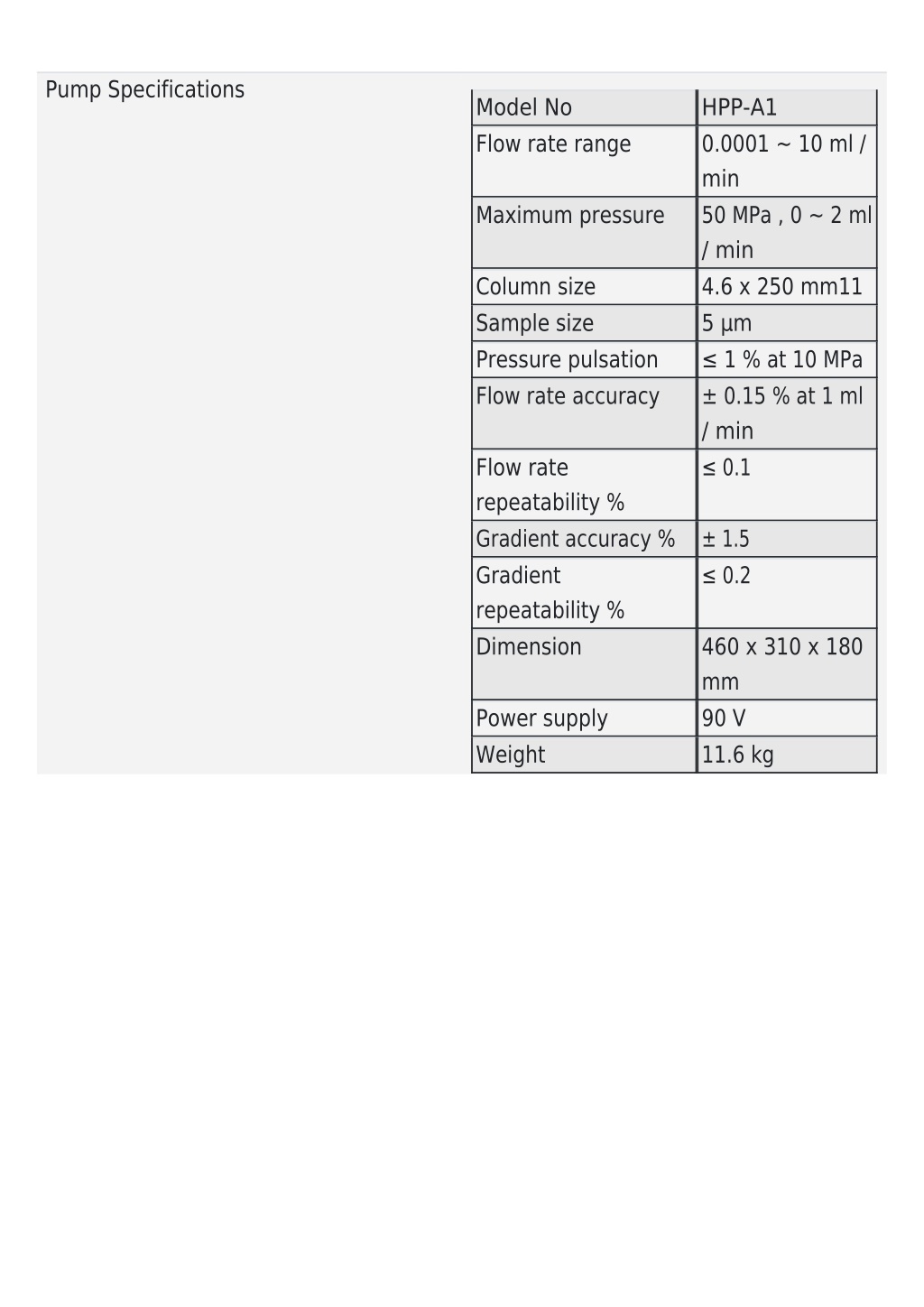

  3. Pump Specifications Model No Flow rate range HPP-A1 0.0001 ~ 10 ml / min 50 MPa , 0 ~ 2 ml / min 4.6 x 250 mm11 5 µm ≤ 1 % at 10 MPa ± 0.15 % at 1 ml / min ≤ 0.1 Maximum pressure Column size Sample size Pressure pulsation Flow rate accuracy Flow rate repeatability % Gradient accuracy % Gradient repeatability % Dimension ± 1.5 ≤ 0.2 460 x 310 x 180 mm 90 V 11.6 kg Power supply Weight

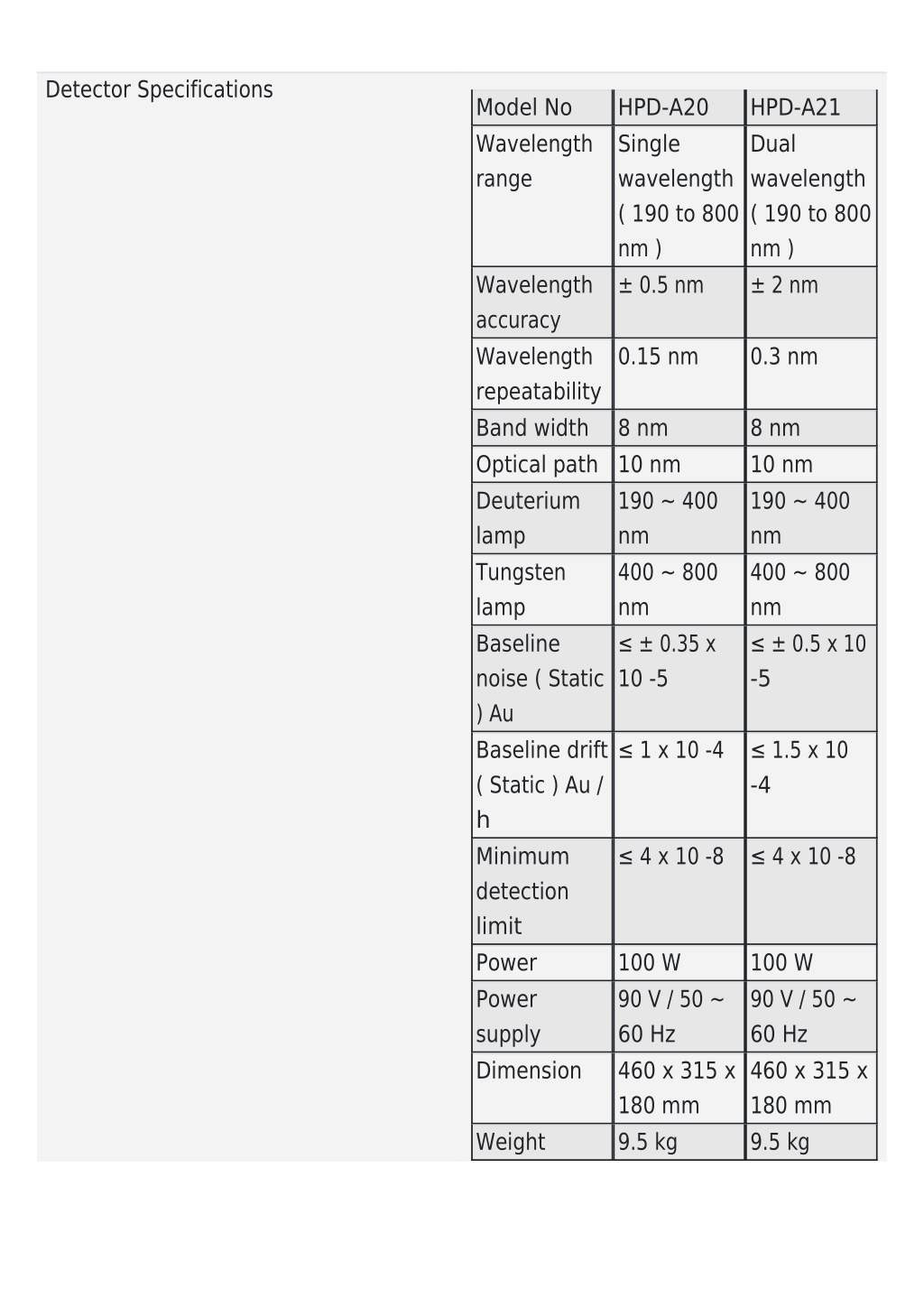

  4. Detector Specifications Model No Wavelength range HPD-A20 Single wavelength ( 190 to 800 nm ) ± 0.5 nm HPD-A21 Dual wavelength ( 190 to 800 nm ) ± 2 nm Wavelength accuracy Wavelength repeatability Band width Optical path Deuterium lamp Tungsten lamp Baseline noise ( Static ) Au Baseline drift ( Static ) Au / h Minimum detection limit Power Power supply Dimension 0.15 nm 0.3 nm 8 nm 10 nm 190 ~ 400 nm 400 ~ 800 nm ≤ ± 0.35 x 10 -5 8 nm 10 nm 190 ~ 400 nm 400 ~ 800 nm ≤ ± 0.5 x 10 -5 ≤ 1 x 10 -4 ≤ 1.5 x 10 -4 ≤ 4 x 10 -8 ≤ 4 x 10 -8 100 W 90 V / 50 ~ 60 Hz 460 x 315 x 180 mm 9.5 kg 100 W 90 V / 50 ~ 60 Hz 460 x 315 x 180 mm 9.5 kg Weight

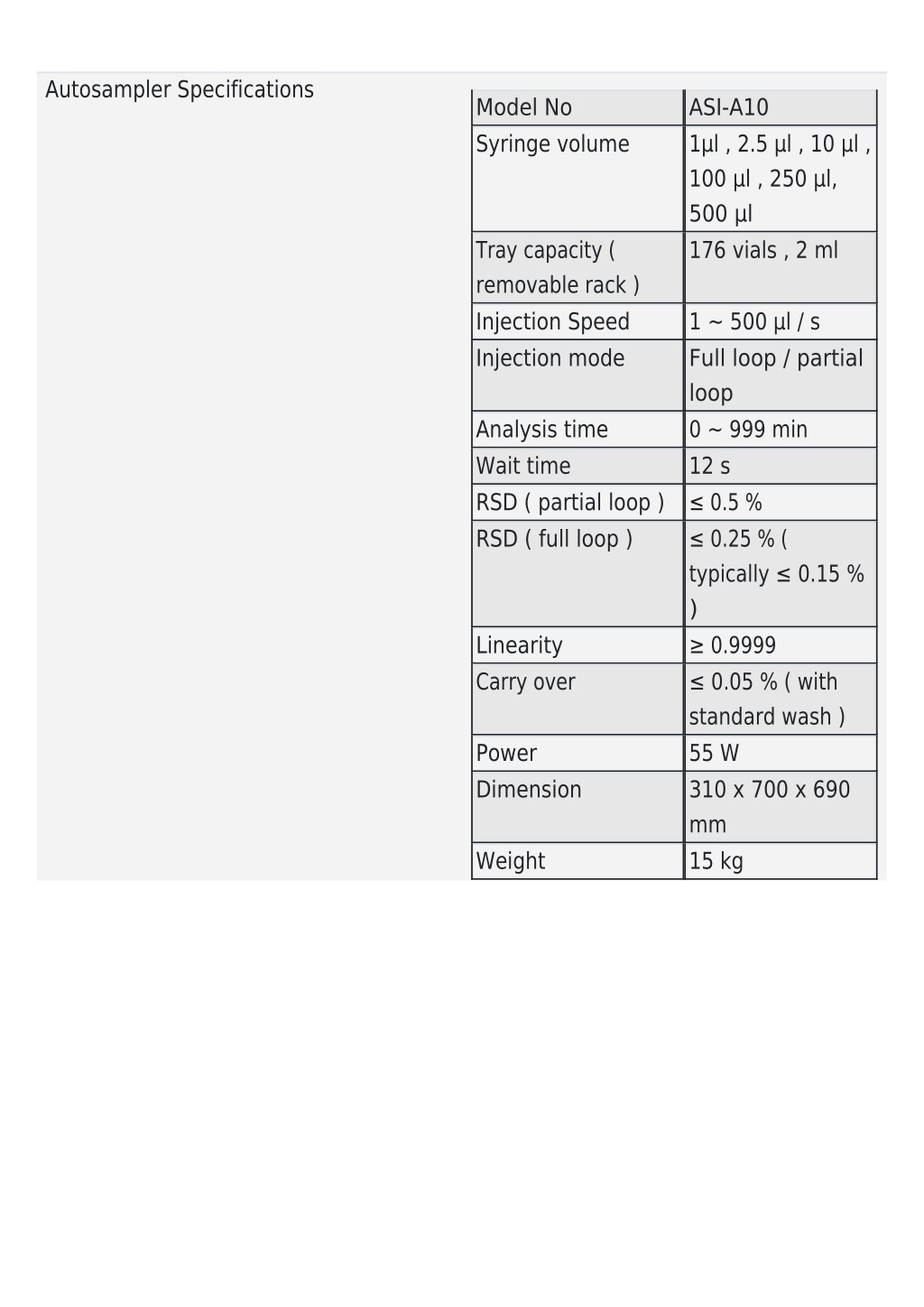

  5. Autosampler Specifications Model No Syringe volume ASI-A10 1µl , 2.5 µl , 10 µl , 100 µl , 250 µl, 500 µl 176 vials , 2 ml Tray capacity ( removable rack ) Injection Speed Injection mode 1 ~ 500 µl / s Full loop / partial loop 0 ~ 999 min 12 s ≤ 0.5 % ≤ 0.25 % ( typically ≤ 0.15 % ) ≥ 0.9999 ≤ 0.05 % ( with standard wash ) 55 W 310 x 700 x 690 mm 15 kg Analysis time Wait time RSD ( partial loop ) RSD ( full loop ) Linearity Carry over Power Dimension Weight

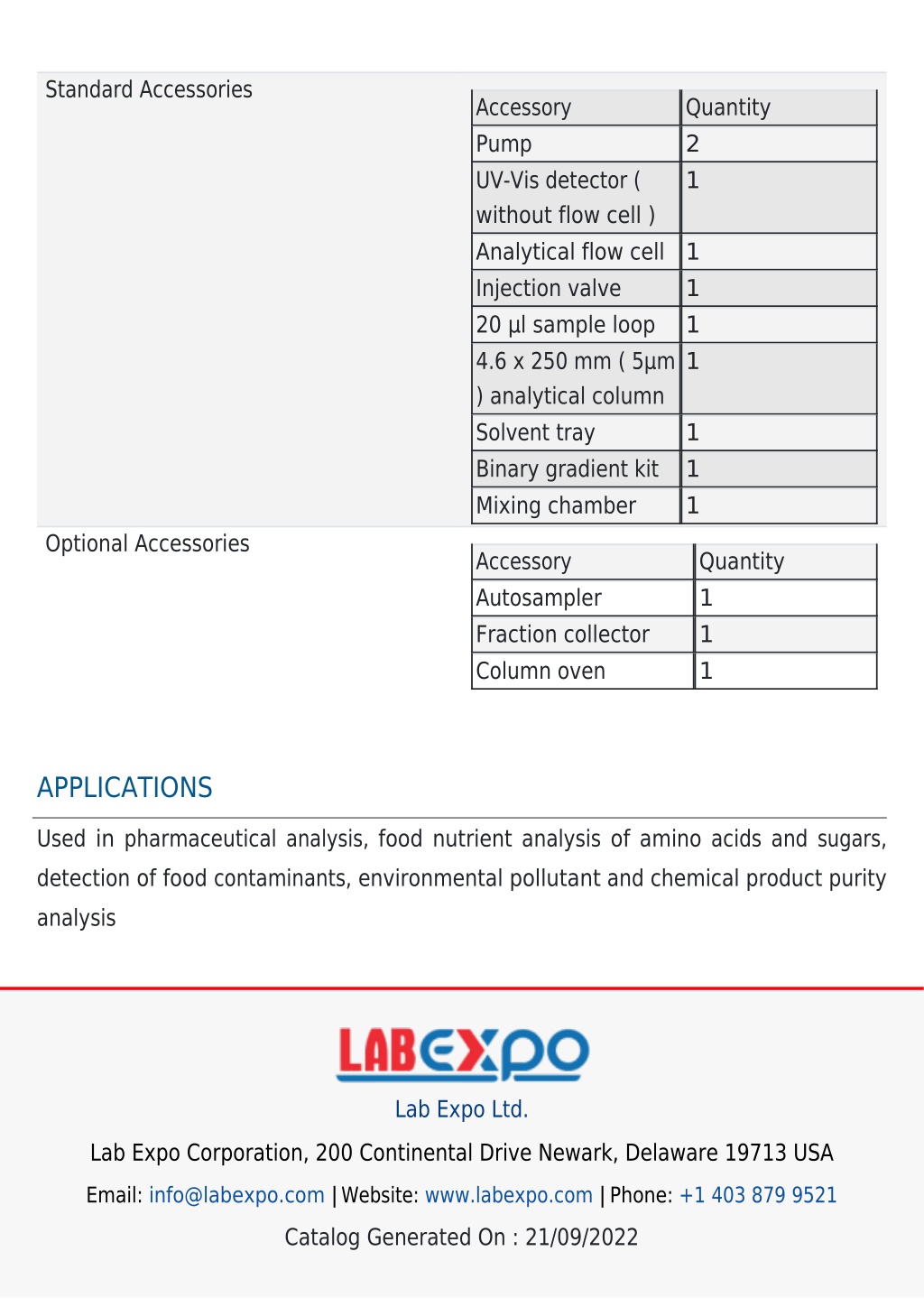

  6. Standard Accessories Accessory Pump UV-Vis detector ( without flow cell ) Analytical flow cell Injection valve 20 µl sample loop 4.6 x 250 mm ( 5µm ) analytical column Solvent tray Binary gradient kit Mixing chamber Quantity 2 1 1 1 1 1 1 1 1 Optional Accessories Accessory Autosampler Fraction collector Column oven Quantity 1 1 1 APPLICATIONS Used in pharmaceutical analysis, food nutrient analysis of amino acids and sugars, detection of food contaminants, environmental pollutant and chemical product purity analysis Lab Expo Ltd. Lab Expo Corporation, 200 Continental Drive Newark, Delaware 19713 USA Email: info@labexpo.com Website: www.labexpo.com Phone: +1 403 879 9521 | | Catalog Generated On : 21/09/2022
