Presentation Transcript
key points
Key points

Objectives for the method

Method description

Lessons learnt

Empirical results

eXPERT –Agile Method for Software Development

project objectives

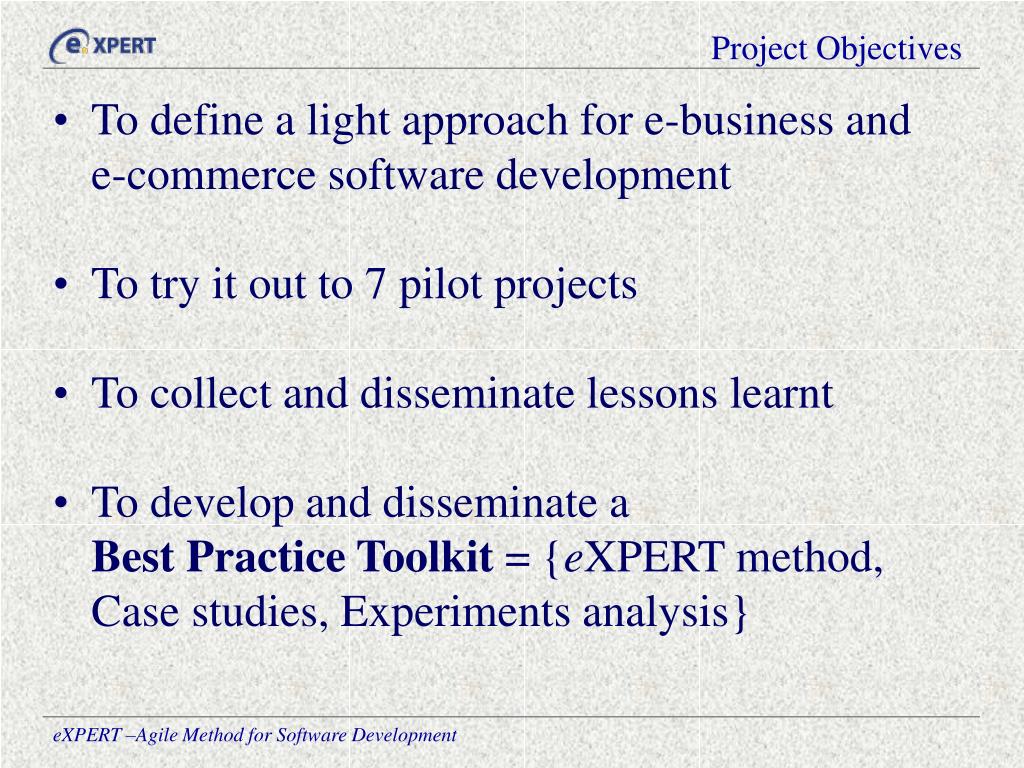

Project Objectives
  • To define a light approach for e-business and e-commerce software development
  • To try it out to 7 pilot projects
  • To collect and disseminate lessons learnt
  • To develop and disseminate a Best Practice Toolkit = {eXPERT method, Case studies, Experiments analysis}

eXPERT –Agile Method for Software Development

business objectives
Business Objectives
  • To increase the productivity of small teams by 20%
  • To reduce defect rates by 30%
  • To decrease project costs by 15%
  • To eliminate schedule delays and over costs

eXPERT –Agile Method for Software Development

target projects e projects
Target Projects: e-Projects
  • Must be delivered rapidly

have critical time constraints

  • Requirements evolve constantly

due to e.g. turbulence in the market, changing technologies, etc.

  • Mission critical

if unsuccessful, the business loses new opportunities

  • Have to be managed flexibly

and in a result-oriented manner

Example: e-commerce and e-business projects

eXPERT –Agile Method for Software Development

e project success factors
e-Project Success Factors
  • Easy and quick integration of people in a team
  • Abilities to quickly respond to required changes
  • Facilities to maintain good software quality
  • Practices easy to adopt and execute

eXPERT –Agile Method for Software Development

expert development approach
eXPERT Development Approach
  • Reports from the field
    • productivity and software quality increase by applying XP principles
    • even projects that have adopted several or all XP practices meet project management problems, related to estimating and planning

=> focus on XP and PSP practices

eXPERT –Agile Method for Software Development

expert development approach8
eXPERT Development Approach
  • Develop “Faster-Better-Cheaper “

eXPERT –Agile Method for Software Development

expert development approach9

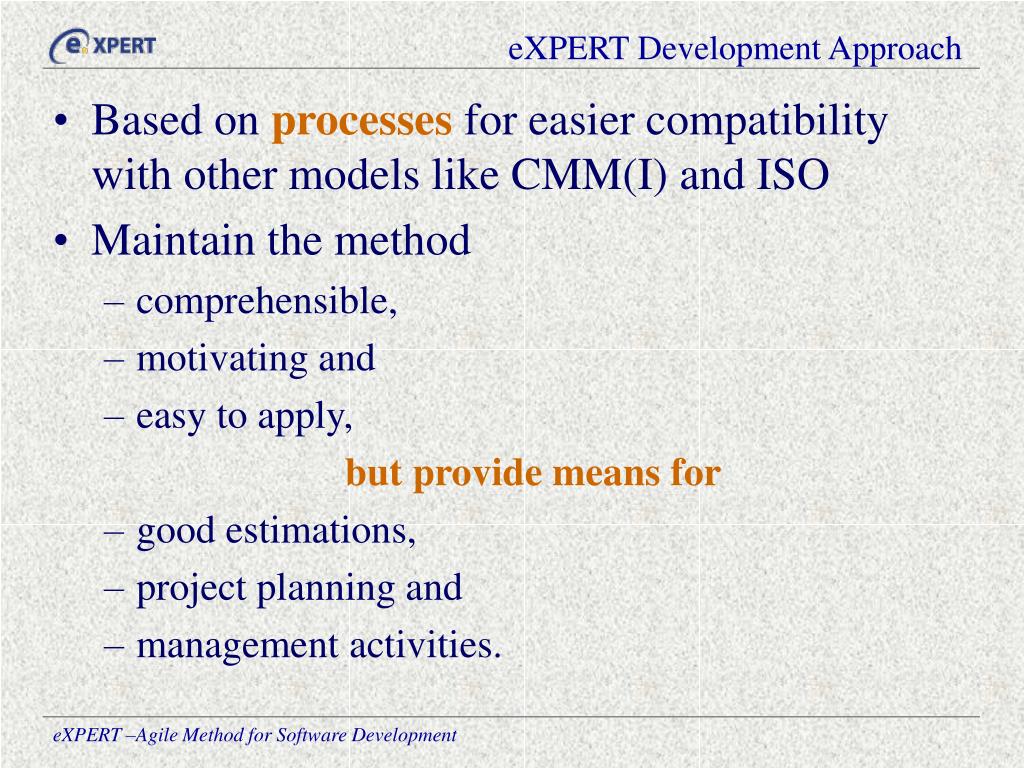

eXPERT Development Approach
  • Based on processes for easier compatibility with other models like CMM(I) and ISO
  • Maintain the method
    • comprehensible,
    • motivating and
    • easy to apply,

but provide means for

    • good estimations,
    • project planning and
    • management activities.

eXPERT –Agile Method for Software Development

key points10
Key points

Objectives for the method

  • Objectives: productivity, defects, schedule, costs
  • Target projects: e-projects
  • XP+PSP lightweight and manageable

Method description

Lessons learnt

Empirical results

eXPERT –Agile Method for Software Development

xp practices
XP Practices

Planning game:quickly determine the scope of the next release, combining business priorities and technical estimates

Small releases:put a simple system into production quickly, release new versions on a very short cycle

Metaphor:guide all development with a simple, shared story of how the whole system works

Simple design:design as simply as possible at any given moment

eXPERT –Agile Method for Software Development

xp practices12
XP Practices

Coding standards: rules emphasizing communication throughout the code

Testing: continually write unit tests which must run flawlessly; customers write tests to demonstrate functions are finished

Pair programming: all production code written by two programmers at one computer

Refactoring: restructure the system without changing behaviour to remove duplication, improve communication, simplify, or add flexibility

eXPERT –Agile Method for Software Development

xp practices13

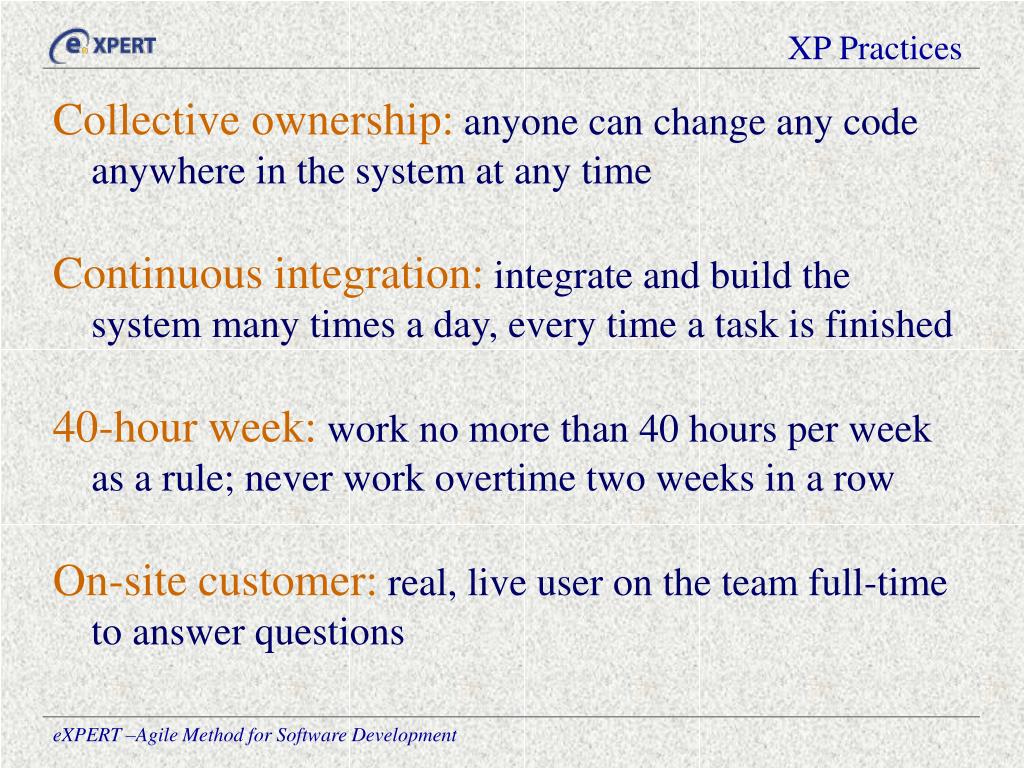

XP Practices

Collective ownership: anyone can change any code anywhere in the system at any time

Continuous integration: integrate and build the system many times a day, every time a task is finished

40-hour week: work no more than 40 hours per week as a rule; never work overtime two weeks in a row

On-site customer: real, live user on the team full-time to answer questions

eXPERT –Agile Method for Software Development

personal software process

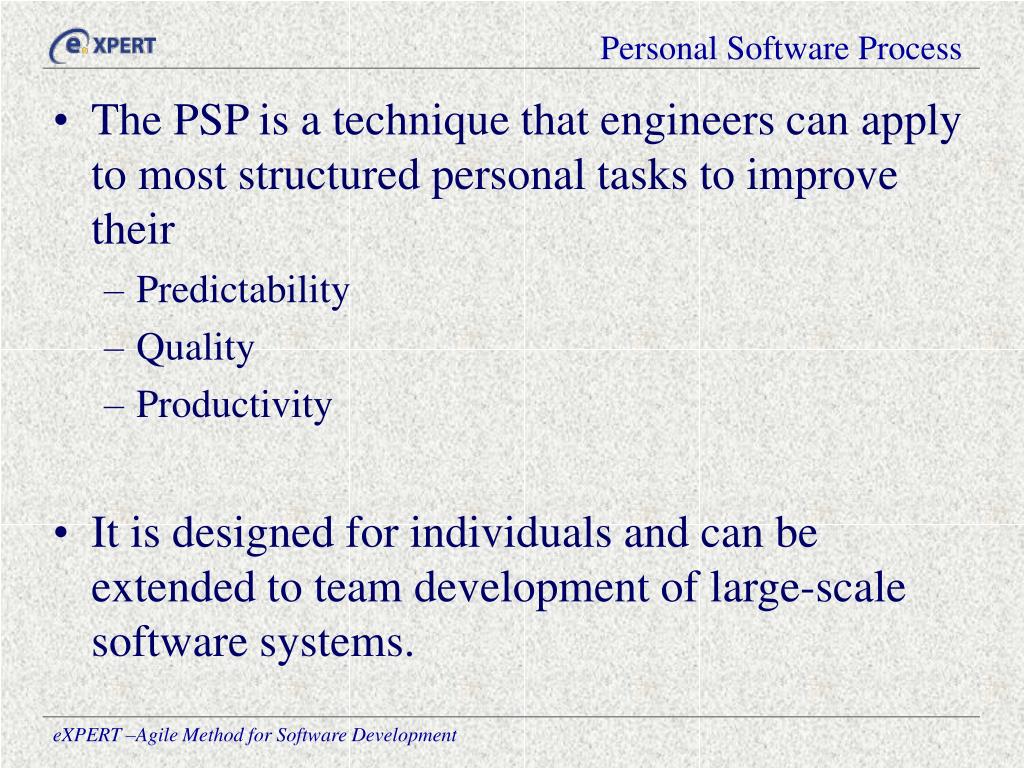

Personal Software Process
  • The PSP is a technique that engineers can apply to most structured personal tasks to improve their
    • Predictability
    • Quality
    • Productivity
  • It is designed for individuals and can be extended to team development of large-scale software systems.

eXPERT –Agile Method for Software Development

psp evolution
PSP Evolution

PSP3

Cyclic development

Team Software

Process

PSP2

Code reviews

Design reviews

defect management

PSP1

Size estimating

Test report

size, resource, and schedule plans

PSP0

Time recording

Defect recording

Defect type standard

establishing a measured performance baseline

eXPERT –Agile Method for Software Development

psp practices in e xpert
PSP Practices in eXPERT
  • PSP0: The baseline process – The process currently used to write software, but enhanced to provide measurements
  • PSP0.1: Enhances PSP0 by adding coding standard, size measurement and process improvement proposal
  • PSP1: The personal planning process – The initial increment adds test report and size and resource estimation

eXPERT –Agile Method for Software Development

psp practices in e xpert17
PSP Practices in eXPERT
  • PSP0: The baseline process
    • Time recording
    • Defect recording
  • PSP0.1
    • Coding standard
    • Software size measurement
    • Process improvement proposal
  • PSP1: The personal planning process
    • Size estimating with PROBE

eXPERT –Agile Method for Software Development

probe method used in e xpert
PROBE method used in eXPERT

Objective: estimate the time necessary to implement each Customer Requirement(CR)

Steps:

  • Gather historical data (CR type, complexity, implementation time)
  • For CR type calculate Average implementation time and Standard deviation
  • Calculate Range for implementing CR of particular type and complexity
  • Estimate new CR – exp(Range) for the respective type and complexity

eXPERT –Agile Method for Software Development

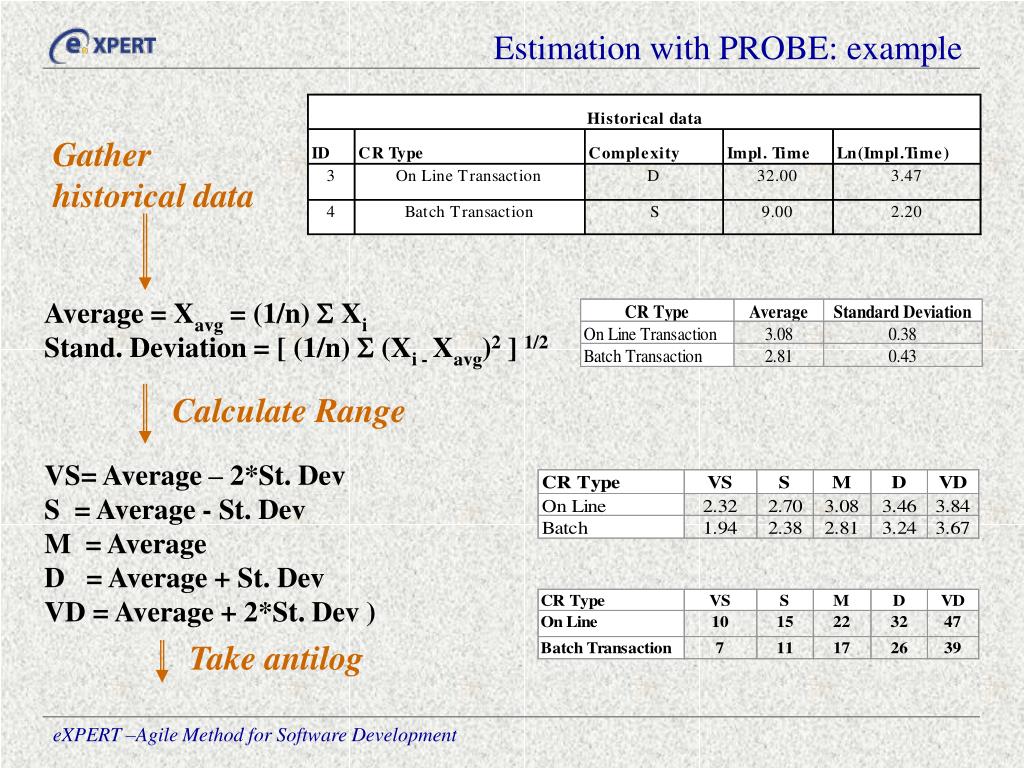

estimation with probe example

Gather historical data

Average = Xavg = (1/n)  Xi

Stand. Deviation = [ (1/n)  (Xi - Xavg)2 ] 1/2

Calculate Range

VS= Average – 2*St. Dev

S = Average - St. Dev

M = Average

D = Average + St. Dev

VD = Average + 2*St. Dev )

Take antilog

Estimation with PROBE: example

eXPERT –Agile Method for Software Development

software process

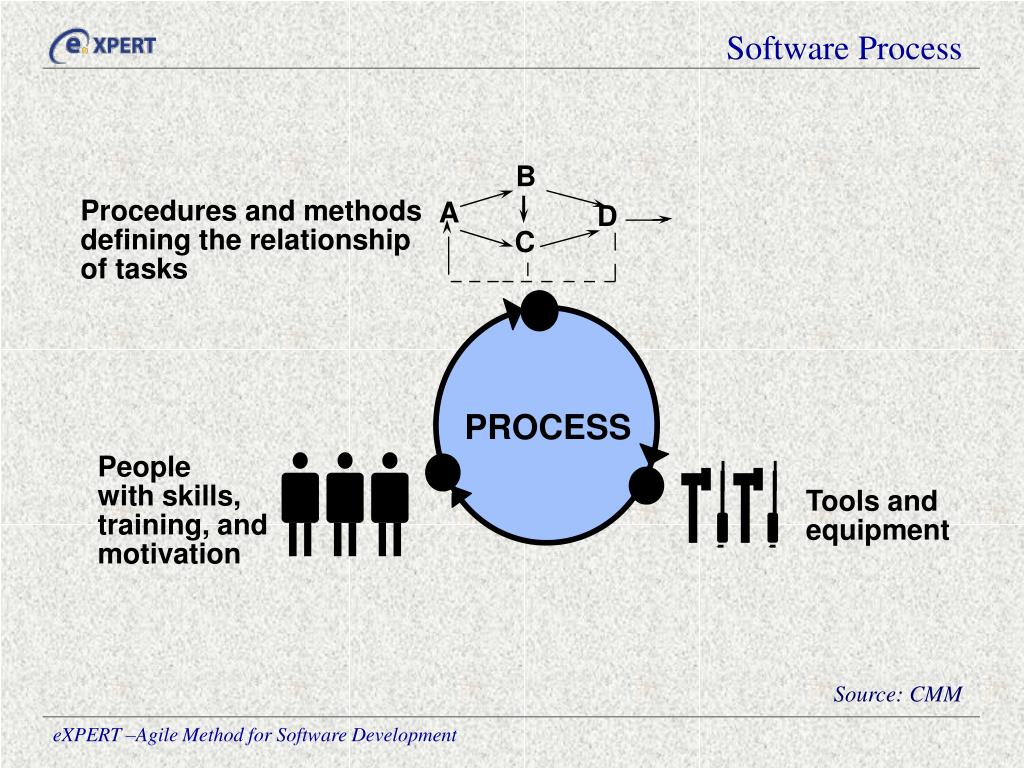

B

A

D

Procedures and methods

defining the relationship

of tasks

C

PROCESS

People

with skills,

training, and

motivation

Tools and

equipment

Software Process

Source: CMM

eXPERT –Agile Method for Software Development

expert architecture

Iteration plan

Customer requirements

Project Management

Estimated CR

Project planning

Testing scenarios

EstimationsCommunication

Design

Code

Test-before-codeCoding standard

Test

software product

eXPERT Architecture

Customer Requirements Management

eXPERT –Agile Method for Software Development

expert process components

Tasks

Activities

Tasks

eXPERT Process Components
  • Overview (objectives)
  • Inputs
  • Activities
  • Process outputs
  • Completion criteria
  • Measurements

Process

eXPERT –Agile Method for Software Development

examples

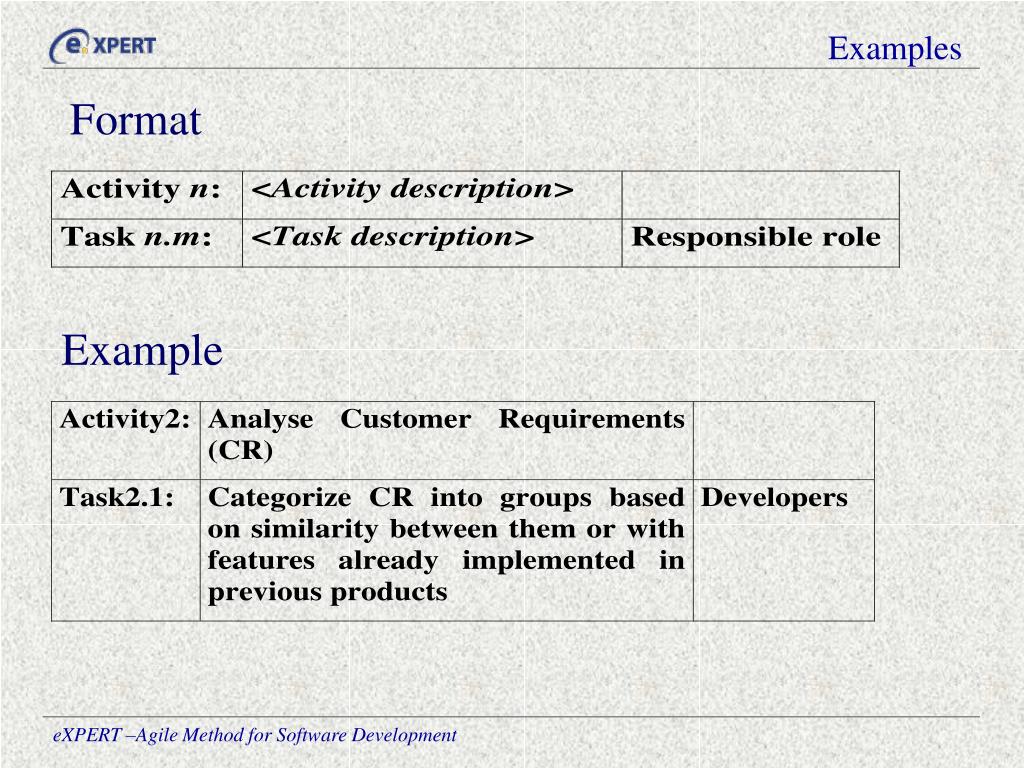

Examples

Format

Example

eXPERT –Agile Method for Software Development

roles
Roles
  • Customer – chooses what will deliver business values, prioritises requirements and defines the acceptance tests.
  • Project manager – leads everyday work, resolves schedule conflicts, communicates with stakeholders, collects data related to the project performance and analyses them
  • Developer – estimates requirements complexity and effort to implement them, builds the system, and keeps it integrated

eXPERT –Agile Method for Software Development

customer requirements management crm
Customer Requirements Management (CRM)

Overview:This process includes all activities related to eliciting, analysing and controlling the customer requirements for a software product. It builds on the XP practices related to handling user stories.

Input:Customer needs and expectation

Output:Prioritised CR with complexity and time estimations

eXPERT –Agile Method for Software Development

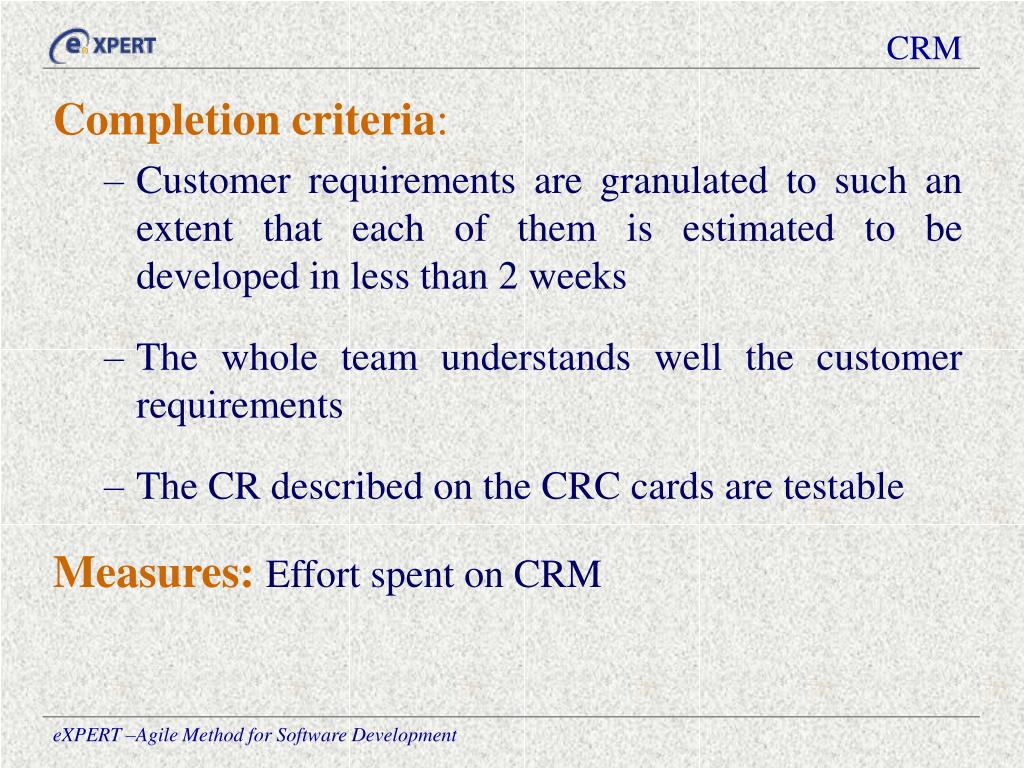

slide26
CRM

Completion criteria:

  • Customer requirements are granulated to such an extent that each of them is estimated to be developed in less than 2 weeks
  • The whole team understands well the customer requirements
  • The CR described on the CRC cards are testable

Measures:Effort spent on CRM

eXPERT –Agile Method for Software Development

slide27

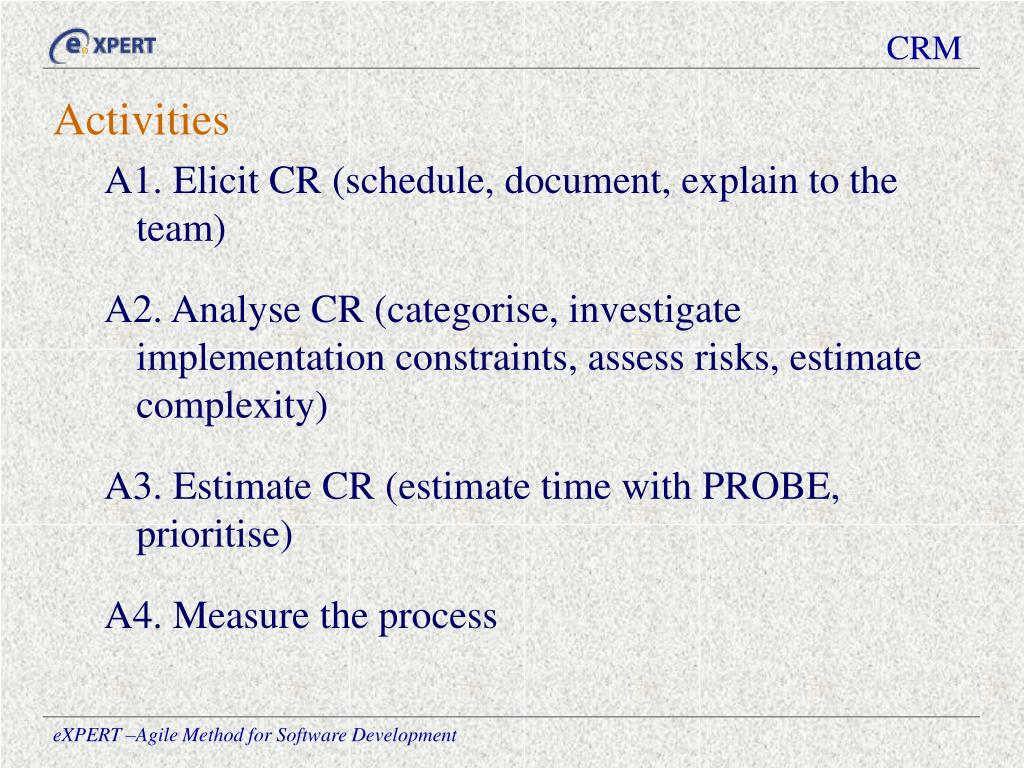

CRM

Activities

A1. Elicit CR (schedule, document, explain to the team)

A2. Analyse CR (categorise, investigate implementation constraints, assess risks, estimate complexity)

A3. Estimate CR (estimate time with PROBE, prioritise)

A4. Measure the process

eXPERT –Agile Method for Software Development

hints for crm

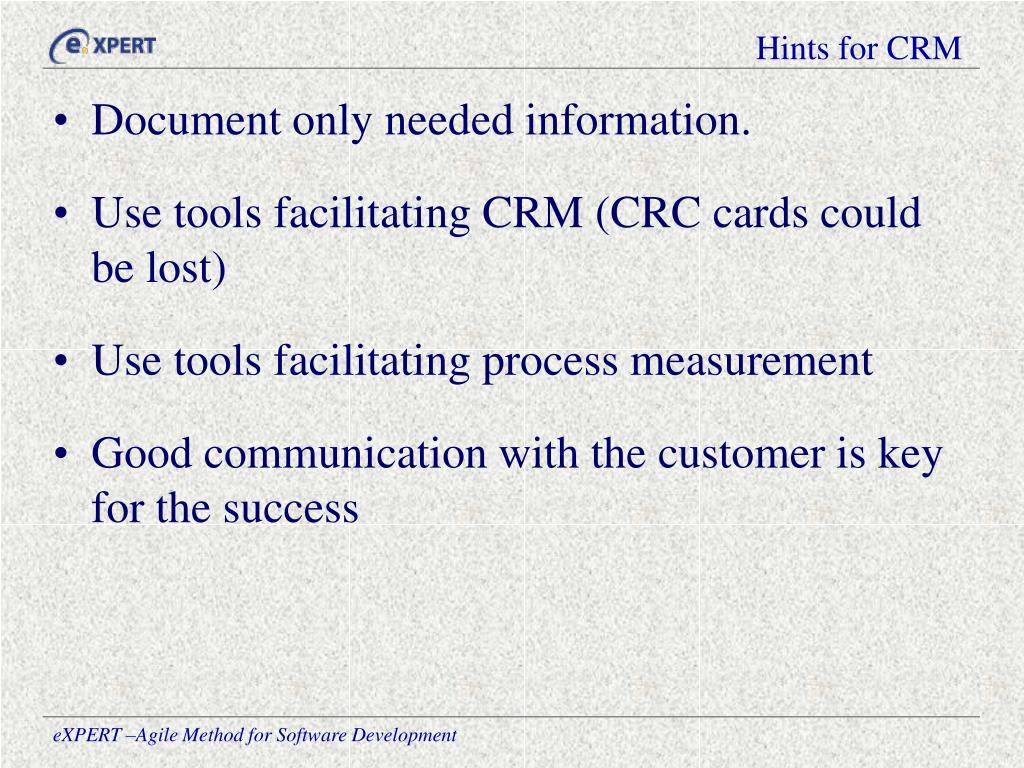

Hints for CRM
  • Document only needed information.
  • Use tools facilitating CRM (CRC cards could be lost)
  • Use tools facilitating process measurement
  • Good communication with the customer is key for the success

eXPERT –Agile Method for Software Development

tools supporting crm

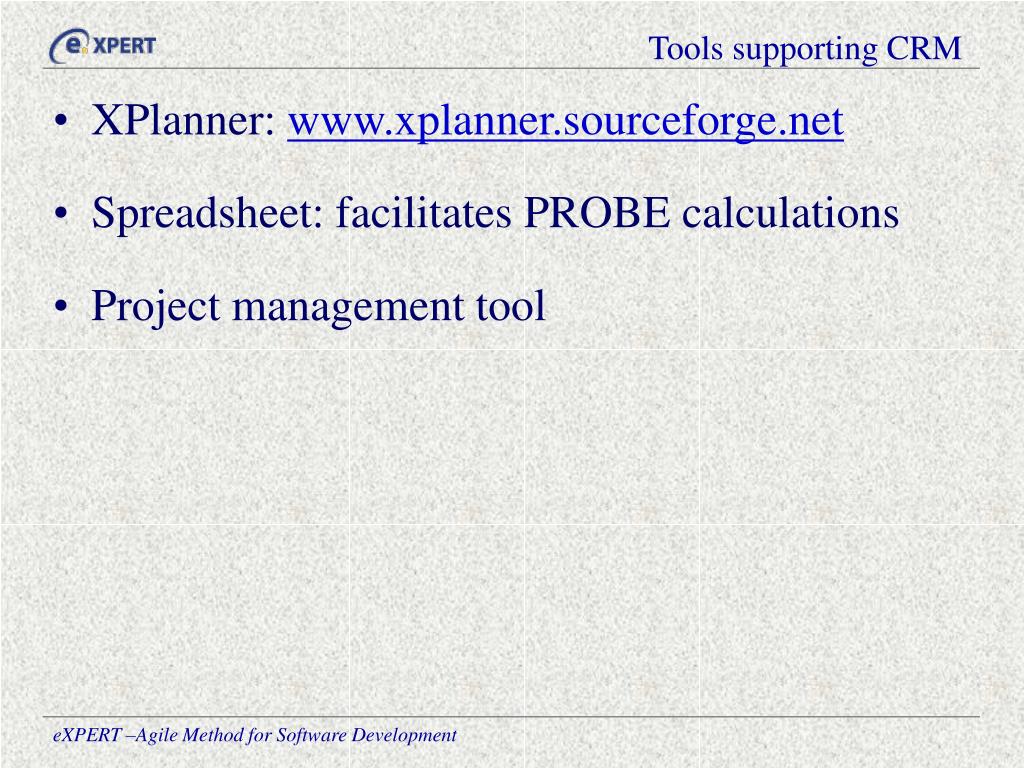

Tools supporting CRM
  • XPlanner: www.xplanner.sourceforge.net
  • Spreadsheet: facilitates PROBE calculations
  • Project management tool

eXPERT –Agile Method for Software Development

project management

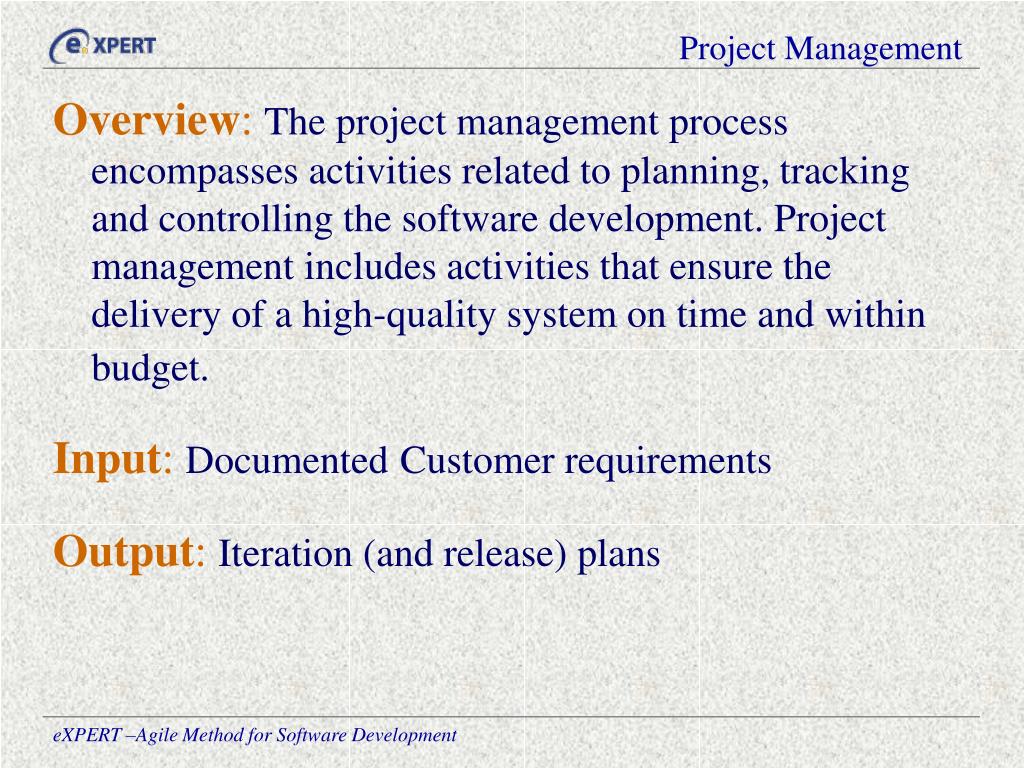

Project Management

Overview:The project management process encompasses activities related to planning, tracking and controlling the software development. Project management includes activities that ensure the delivery of a high-quality system on time and within budget.

Input:DocumentedCustomer requirements

Output:Iteration (and release) plans

eXPERT –Agile Method for Software Development

project management31
Project Management

Completion criteria:

  • Project maintained on track, i.e. iterations executed as planned

Measures:

  • Effort spent on PM
  • Project costs
  • Project velocity
  • Resource usage

eXPERT –Agile Method for Software Development

project management32
Project Management

Activities

A1. Define the Project (people and environment)

A2. Create Iteration and Release plans

A3. Monitor and control the project (daily meeting, track progress and costs, update plan, report to management)

A4. Conclude project

A5. Measure the process (resources, effort, scope, velocity)

eXPERT –Agile Method for Software Development

hints for pm

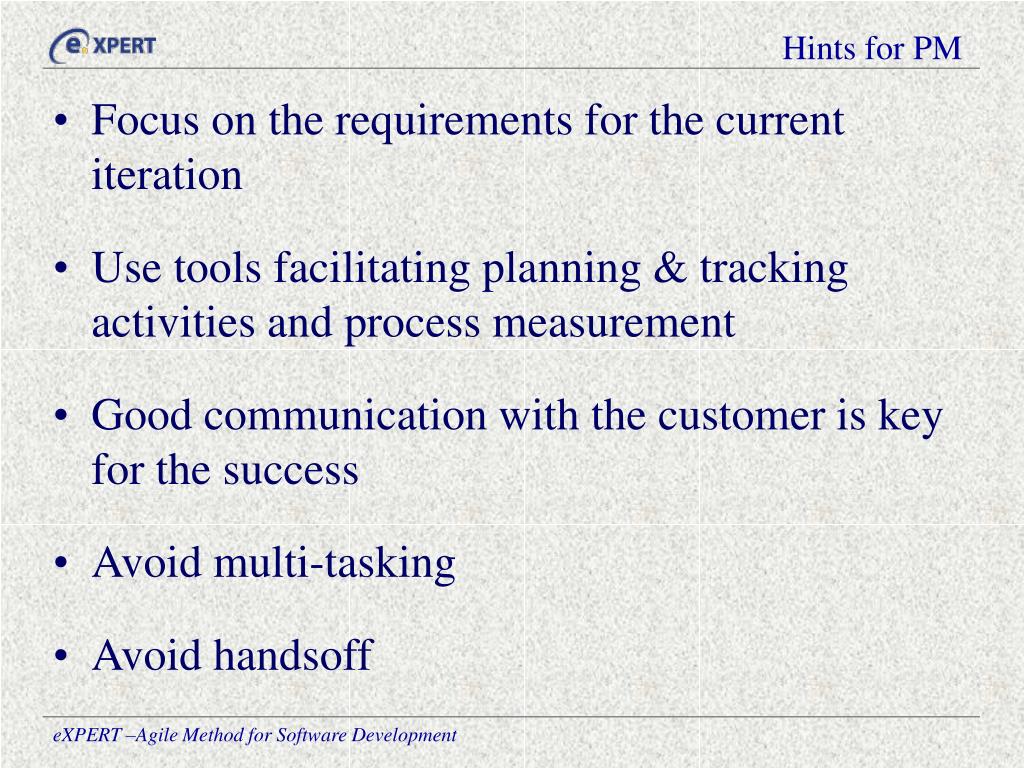

Hints for PM
  • Focus on the requirements for the current iteration
  • Use tools facilitating planning & tracking activities and process measurement
  • Good communication with the customer is key for the success
  • Avoid multi-tasking
  • Avoid handsoff

eXPERT –Agile Method for Software Development

tools supporting pm

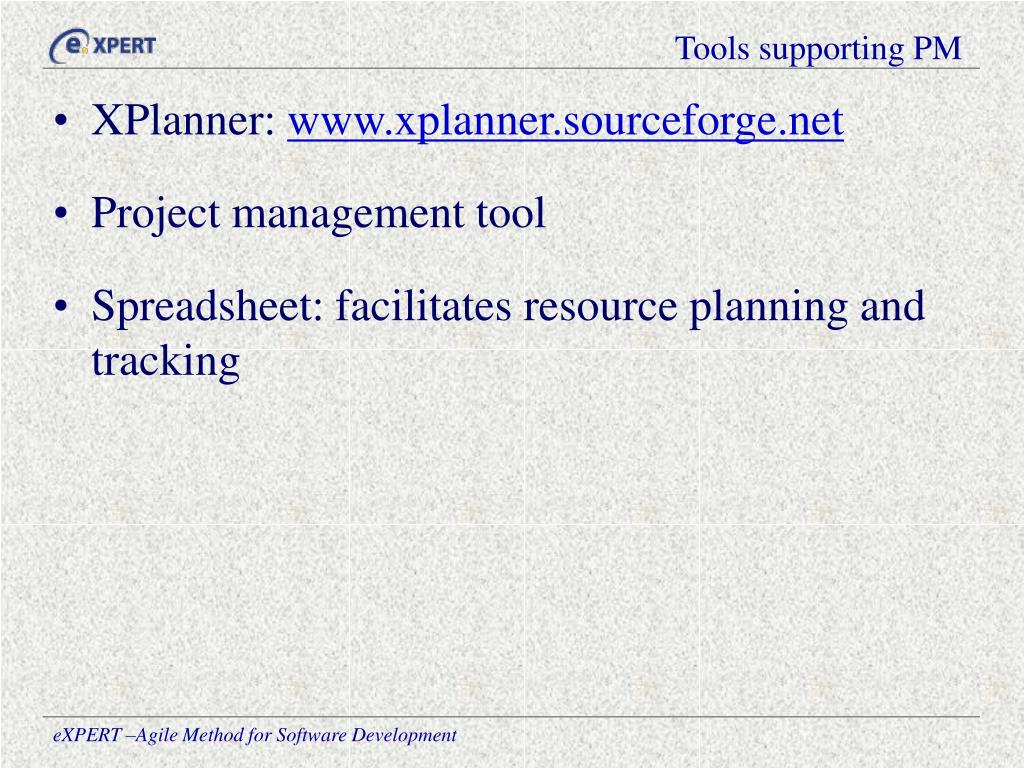

Tools supporting PM
  • XPlanner: www.xplanner.sourceforge.net
  • Project management tool
  • Spreadsheet: facilitates resource planning and tracking

eXPERT –Agile Method for Software Development

design

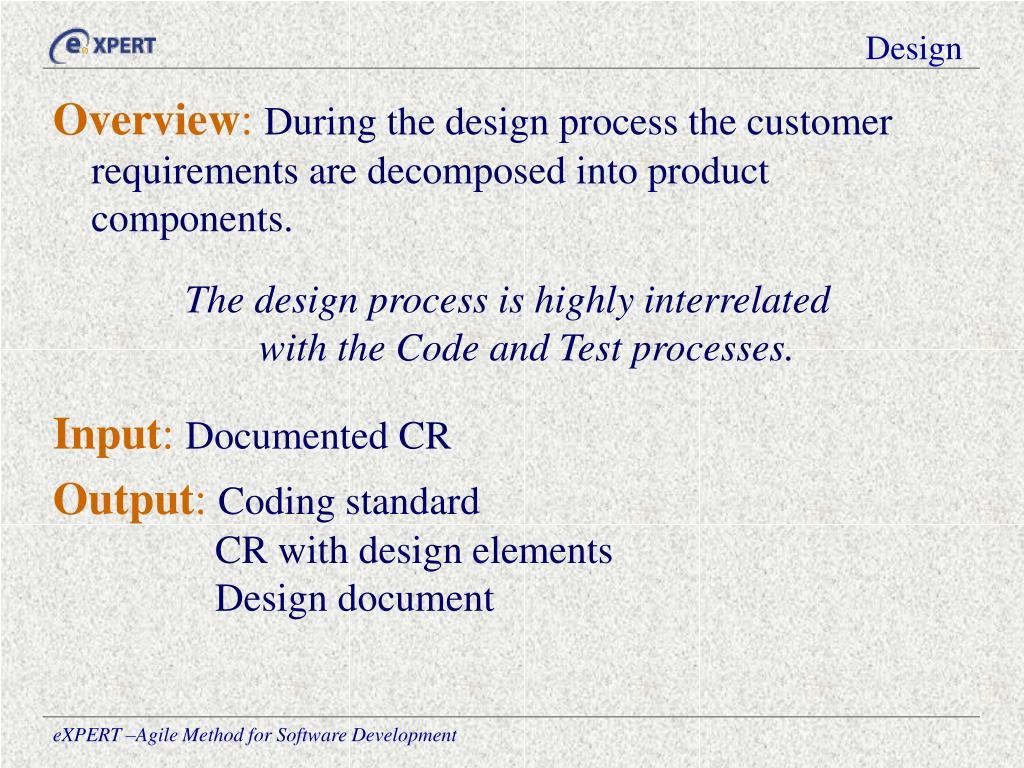

Design

Overview:During the design process the customer requirements are decomposed into product components.

The design process is highly interrelated with the Code and Test processes.

Input:Documented CR

Output:Coding standard CR with design elements Design document

eXPERT –Agile Method for Software Development

design36
Design

Completion criteria:

  • simple design well understood by the whole team

Measures:

  • Effort spent on overall design

eXPERT –Agile Method for Software Development

design37
Design

Activities

A1. Prepare for design (coding standard, etc.)

A2. Design

A3. Document design

A4. Measure the process

eXPERT –Agile Method for Software Development

hints for design
Hints for Design
  • Do simple design
  • Focus on the requirements for the current iteration (avoid extra features)
  • Consider refactoring in the beginning of a next iteration.
  • Create useful documents and do not spend time on making them look more beautiful

eXPERT –Agile Method for Software Development

slide39
Code

Overview:The objective of the Code process is to produce the code of the software product that satisfies the customer requirements. The code is permanently maintained in good condition, i.e. in reusable, testable and working state.

The coding process is highly interrelated with the Design and Test processes.

Input:DocumentedCR with design elements Coding standard

Output:Software product

eXPERT –Agile Method for Software Development

slide40
Code

Completion criteria:

  • Customer requirements and acceptance tests satisfied

Measures:

  • Implementation effort
  • Developer’s productivity
  • Pair’s productivity

eXPERT –Agile Method for Software Development

slide41
Code

Activities

A1. Implement product in a test-driven manner.

A2. Refactor code.

A3. Integrate often.

A4. Measure the process (implementation effort)

eXPERT –Agile Method for Software Development

test driven development
Test Driven Development
  • Brainstorm possible test cases
  • Implement the test cases using an incremental and iterative approach (1 at a time and implement it immediately)
  • Implement code. Do not write more code than the test requires (additions would be unspecified and not test-safe)
  • Run test cases and improve the code until all test cases pass

The cycle finishes when everything that could possibly break is tested.

eXPERT –Agile Method for Software Development

test driven development problems

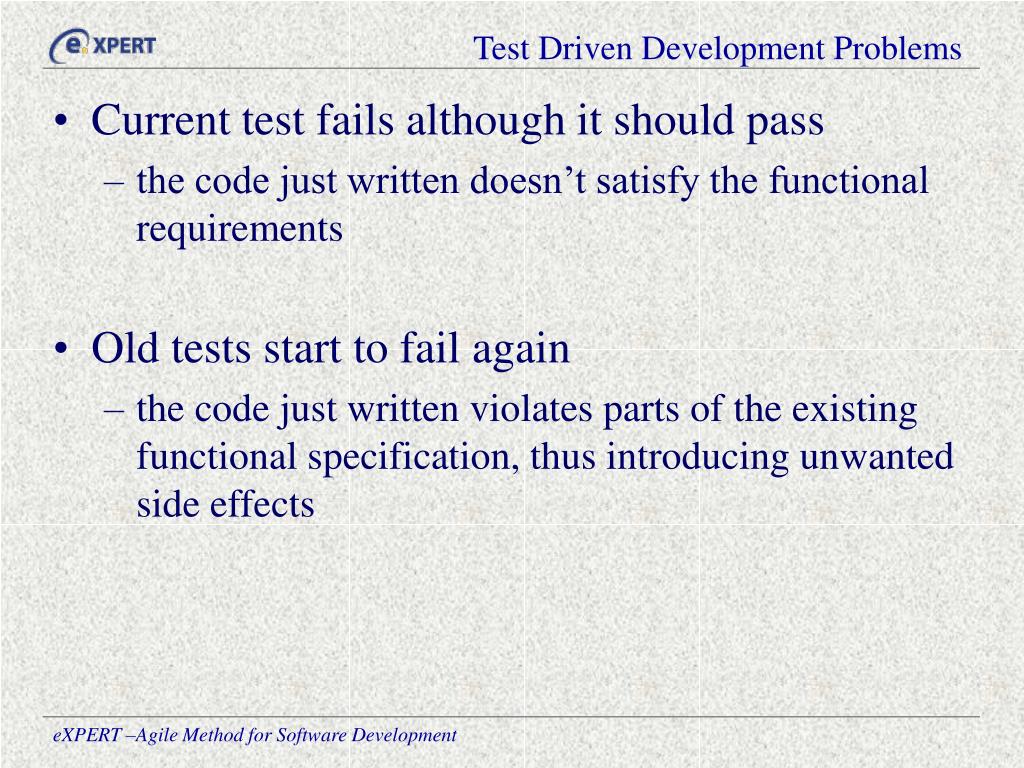

Test Driven Development Problems
  • Current test fails although it should pass
    • the code just written doesn’t satisfy the functional requirements
  • Old tests start to fail again
    • the code just written violates parts of the existing functional specification, thus introducing unwanted side effects

eXPERT –Agile Method for Software Development

test driven development problems44
Test Driven Development Problems
  • The test passes although it should fail
    • the functionality has been realized without a test
    • the functionality is already tested by another unit test
    • the test itself is wrong
    • the test is in an already tested equivalence class

eXPERT –Agile Method for Software Development

test driven development problems45

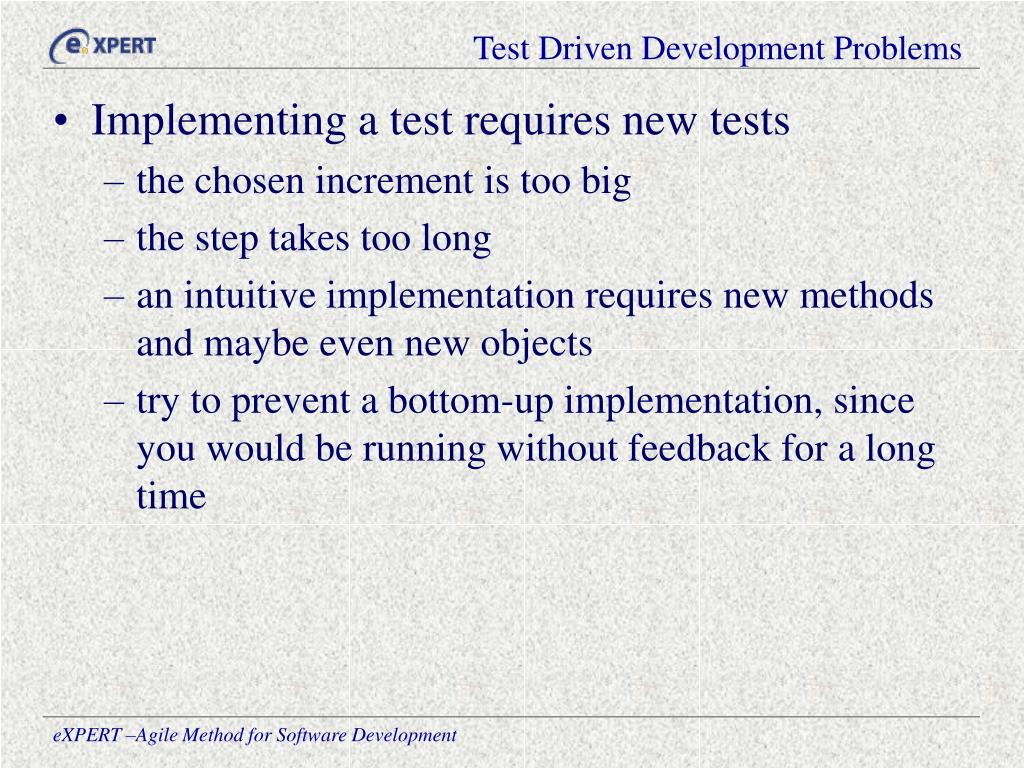

Test Driven Development Problems
  • Implementing a test requires new tests
    • the chosen increment is too big
    • the step takes too long
    • an intuitive implementation requires new methods and maybe even new objects
    • try to prevent a bottom-up implementation, since you would be running without feedback for a long time

eXPERT –Agile Method for Software Development

slide46
Test

Overview:The purpose of the Test process is to validate that software product produced meets the requirements and satisfy the acceptance criteria defined by the customer.

The Testing process is highly interrelated with the Code and Design processes.

Input:DocumentedCR with design elements Coding standard

Output:Code without defects

eXPERT –Agile Method for Software Development

slide47
Test

Completion criteria:

  • The test cases defined cover all typical, boundary, and specific cases described by the customer requirements

Measures:

  • Defects rate
  • Effort spent on acceptance testing
  • Defect removal efficiency

eXPERT –Agile Method for Software Development

slide48
Test

Activities

A1. Prepare for testing.

A2. Describe and implement acceptance testing.

A3. Perform unit testing in parallel with coding.

A4. Perform regression testing when integrating.

A5. Perform acceptance testing after integration, especially before delivery.

A6. Measure the process (effort, defects)

eXPERT –Agile Method for Software Development

hints for code test
Hints for Code&Test
  • Focus on the requirements for the current iteration
  • Use tools facilitating refactoring and testing
  • Integrate often
  • Refactor always when necessary, do not postpone it.
  • Good communication with the customer is key for the success

eXPERT –Agile Method for Software Development

tools supporting code test

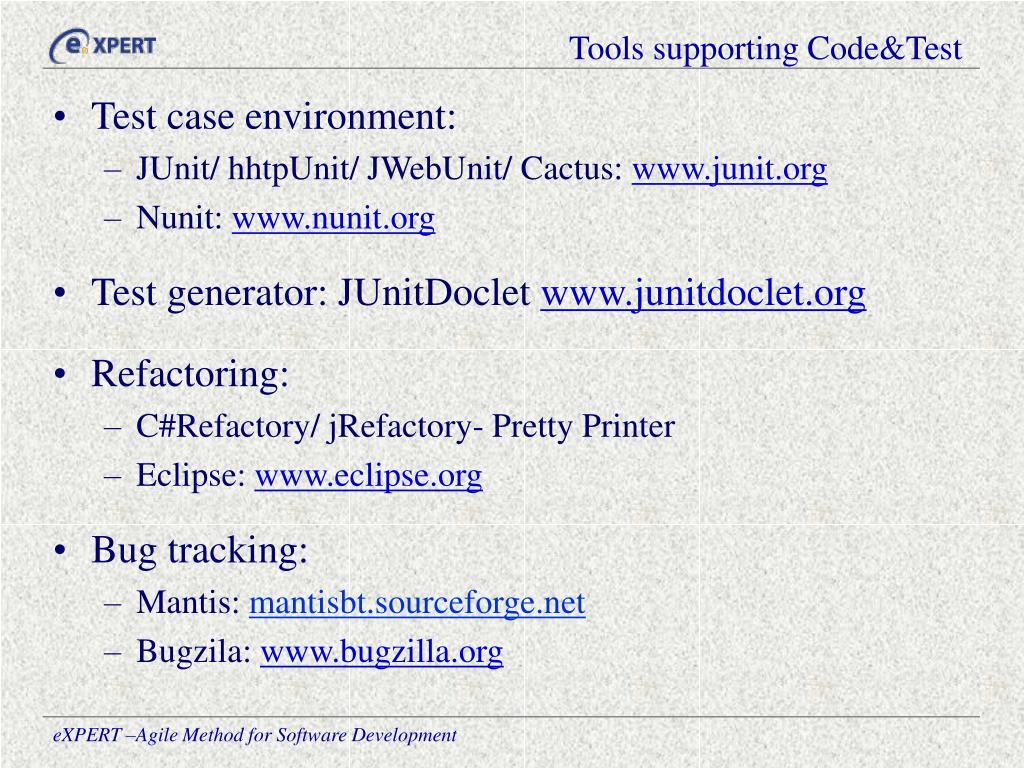

Tools supporting Code&Test
  • Test case environment:
    • JUnit/ hhtpUnit/ JWebUnit/ Cactus: www.junit.org
    • Nunit: www.nunit.org
  • Test generator: JUnitDoclet www.junitdoclet.org
  • Refactoring:
    • C#Refactory/ jRefactory- Pretty Printer
    • Eclipse: www.eclipse.org
  • Bug tracking:
    • Mantis: mantisbt.sourceforge.net
    • Bugzila:www.bugzilla.org

eXPERT –Agile Method for Software Development

key points51

Lessons learnt

Empirical results

Key points

Objectives for the method

  • Objectives: productivity, defects, schedule, costs
  • Target projects: e-projects
  • XP+PSP lightweight and manageable

Method description

  • Based on XP and PSP principles
  • eXPERT architecture
  • eXPERT processes

eXPERT –Agile Method for Software Development

lessons learnt
Lessons Learnt
  • Pair programming
    • Is not optimal when the tasks are too small
    • It is not util when the experience level of the developers is too different
    • Recommended for quick integration of new people (the integration time decreases with about 30%).
    • Increases the quality of the code
    • Problematic when a buddy works on more than one projects.
    • Increases the productivity of the team.
    • Does not descrease the costs automatically.

eXPERT –Agile Method for Software Development

lessons learnt53
Lessons Learnt
  • Test before code
    • Maintains the system in working state.
    • Increase the quality of the code and the product.
    • Takes time to get used to it
    • Apart from an common Unit Testing Framework other tools are necessary (test case generator, code formating)
  • Refactoring
    • It is difficult to change the manner of thinking of the developers.
    • Postponing it may result in complete redesign.
    • Has to be applied to the unit tests too.

eXPERT –Agile Method for Software Development

lessons learnt54
Lessons Learnt
  • On-site client
    • Well accepted by the development team, but it is preferable that the client has technical background.
    • How to prepare the client for his new role?
    • The client motivation is not enough.
  • Collective code ownership
    • Increases the code quality
    • Very well accepted by the developers.
    • It is an implicit code review

eXPERT –Agile Method for Software Development

lessons learnt55
Lessons Learnt
  • PSP time and effort estimations
    • It is difficult to [get used to] record all the data
    • The benefits in short term are little.
    • Is it better than the experience?
  • The method
    • Needs a period of adaptation
    • It is difficult to adopt all the practices at once.

eXPERT –Agile Method for Software Development

lessons learnt56
Lessons Learnt
  • Metrics
    • Useful for finding potential improvements of the development process.
    • Increase the precision of the time and effort estimations and reduce the delays.
    • Increase developers’ discipline.
    • Collecting data about time and effort facilitate the project management
    • Collecting data has to be automated
    • The PSP strictness contradicts XP

eXPERT –Agile Method for Software Development

key points57
Key points

Objectives for the method

  • Objectives: productivity, defects, schedule, costs
  • Target projects: e-projects
  • XP+PSP lightweight and manageable

Method description

 Lessons learnt

  • Based on XP and PSP principles
  • eXPERT architecture
  • eXPERT processes

Empirical results

eXPERT –Agile Method for Software Development

empirical results
Empirical results
  • If the schedule deviation increases, the cost deviation increases increses too.

eXPERT –Agile Method for Software Development

empirical results59
Empirical results
  • In the majority of the experiments the defect rate increased during the first 1 or 2 iterations, and decreased significantly afterwards.

eXPERT –Agile Method for Software Development

usage of practices
Usage of practices

Review 1

eXPERT –Agile Method for Software Development

usage of practices61
Usage of practices

Review 2

eXPERT –Agile Method for Software Development

slide62
Questions?

eXPERT –Agile Method for Software Development

slide63

Teodora Bozheva

Parque Tecnológico Edif. 204

E-48170 ZAMUDIO (Bizkaia)

SPAIN

Tel: +34-94-420-9519

Fax: +34-94-420-9420

e-mail: Teodora.Bozheva@esi.es

eXPERT –Agile Method for Software Development
