1. Buffer Overflow Attacks Adrian Norris

2. Overview • Buffer Overflow Attacks explained • What are they? • How are they accomplished? • Simple Example • Buffer Overflow Mitigations • Explanation • Pros and cons • Buffer Overflow Alternatives • History

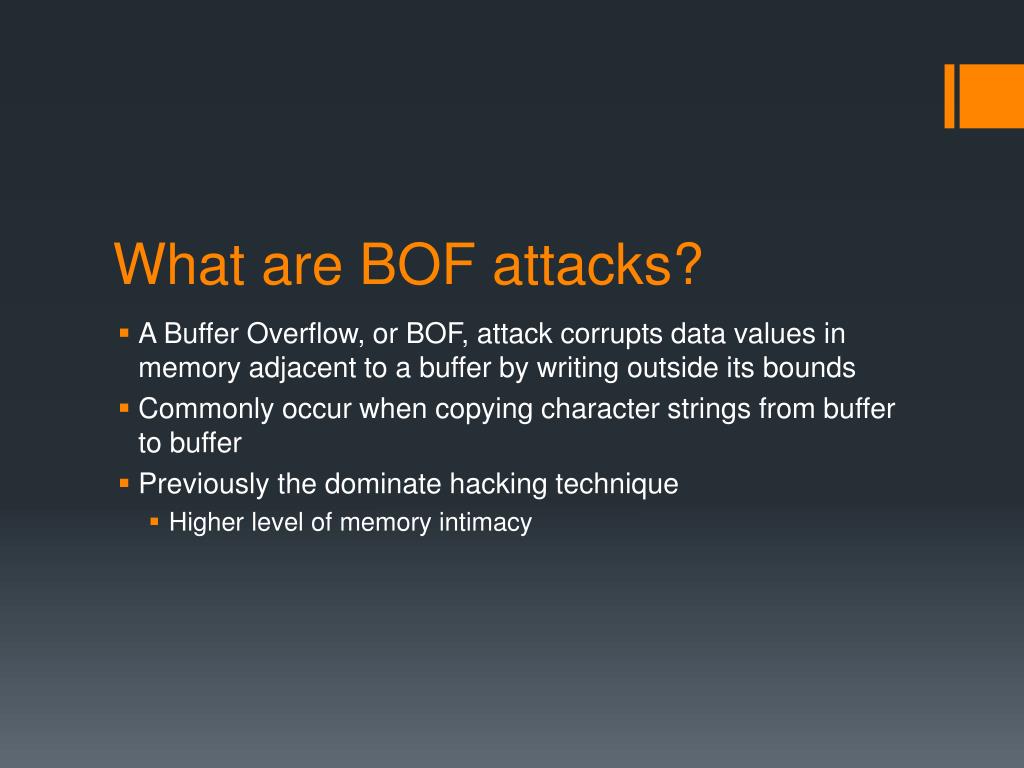

3. What are BOF attacks? • A Buffer Overflow, or BOF, attack corrupts data values in memory adjacent to a buffer by writing outside its bounds • Commonly occur when copying character strings from buffer to buffer • Previously the dominate hacking technique • Higher level of memory intimacy

4. Makeup of a BOF attack • Roughly put: • Discover vulnerable code • Overwrite the return address • New return address points to alternate code • Varies based on architecture, OS, and memory region

5. Stack Based Exploitation • Done in one of several ways: • Overwrite a local variable near the buffer • Overwrite the return address • Overwrite a function pointer or exception handler • Inject shellcode in to the stack • Platform suitable

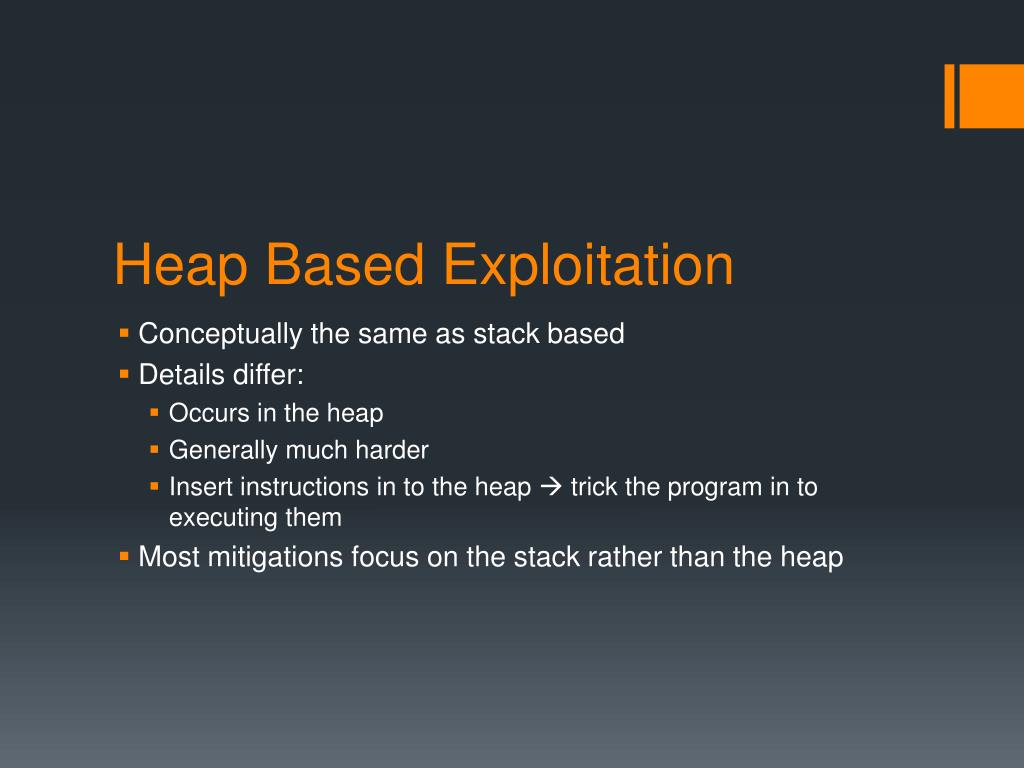

6. Heap Based Exploitation • Conceptually the same as stack based • Details differ: • Occurs in the heap • Generally much harder • Insert instructions in to the heap  trick the program in to executing them • Most mitigations focus on the stack rather than the heap

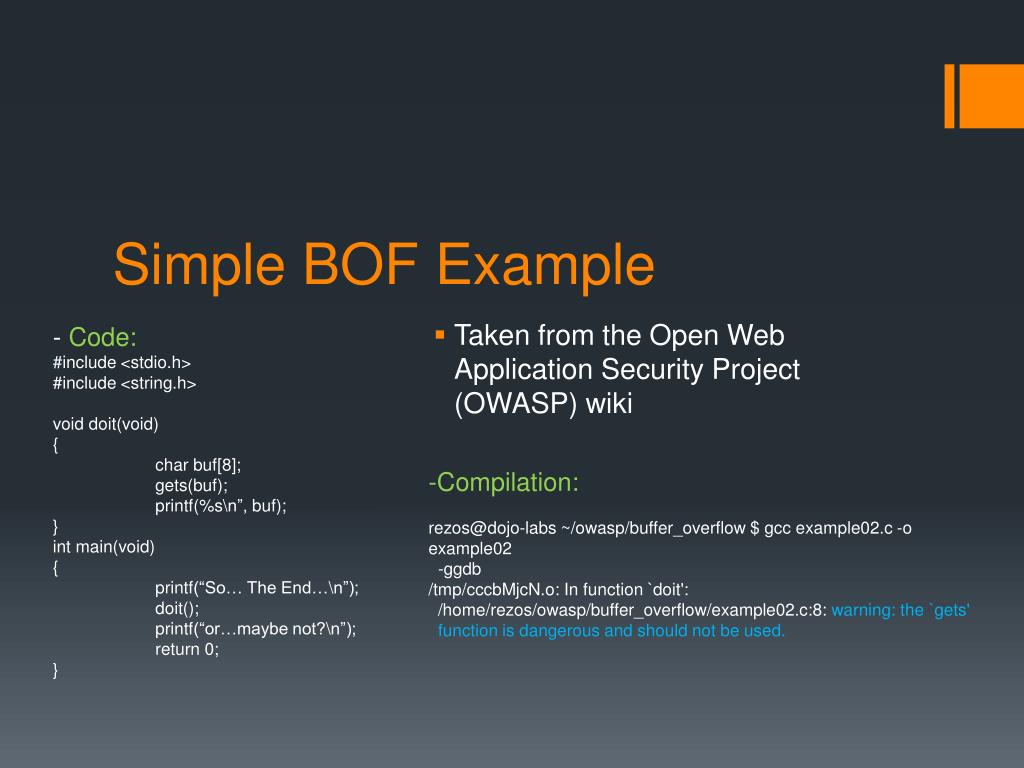

7. Simple BOF Example • Taken from the Open Web Application Security Project (OWASP) wiki - Code:#include <stdio.h>#include <string.h>void doit(void){ char buf[8]; gets(buf);printf(%s\n”, buf);} int main(void) { printf(“So… The End…\n”); doit(); printf(“or…maybe not?\n”); return 0; } -Compilation: rezos@dojo-labs~/owasp/buffer_overflow $ gcc example02.c -o example02 -ggdb /tmp/cccbMjcN.o: In function `doit': /home/rezos/owasp/buffer_overflow/example02.c:8: warning: the `gets' function is dangerous and should not be used.

8. Simple BOF Example - Output 1: rezos@dojo-labs ~/owasp/buffer_overflow $ ./example02 So... The End... TEST // user data on input TEST // print out stored user data or... maybe not? - Output 2: rezos@dojo-labs ~/owasp/buffer_overflow $ ./example02 So... The End... TEST123456789 TEST123456789 Segmentation fault

9. Simple BOF Example • Obtaining an objdump allows for the analysis of necessary information for further exploitation - objdump: 080483be <main>: … 80483cf: c7 04 24 bc 84 04 08 movl $0x80484bc,(%esp) 80483d6: e8 f5 feffff call 80482d0 <puts@plt> 80483db: e8 c0 ffffff call 80483a0 <doit> 80483e0: c7 04 24 cd 84 04 08 movl $0x80484cd,(%esp) 80483e7: e8 e4 feffff call 80482d0 <puts@plt> 80483ec: b8 00 00 00 00 mov $0x0,%eax 80483f1: 83 c4 04 add $0x4,%esp …

10. Simple BOF Example • Arbitrarily omit the second printf() call -Output 3: rezos@dojo-labs ~/owasp/buffer_overflow $ perl -e 'print "A"x12 ."\xf9\x83\x04\x08"' | ./example02 So... The End... AAAAAAAAAAAAu*. Segmentation fault

11. BOF Mitigations • Proper programming language application • Safe library usage • Executable Space Protection • Address Space Layout Randomization (ASLR) • Deep Packet Inspection (DPI) • Pointer Protection

12. Programming Languages • Be careful when settling on a programming language. • C/C++ have weak bounds checking when it comes to buffers • Other languages may raise a warning or exception: • E.g. Ada, Lisp, or D • Safety versus performance tradeoffs

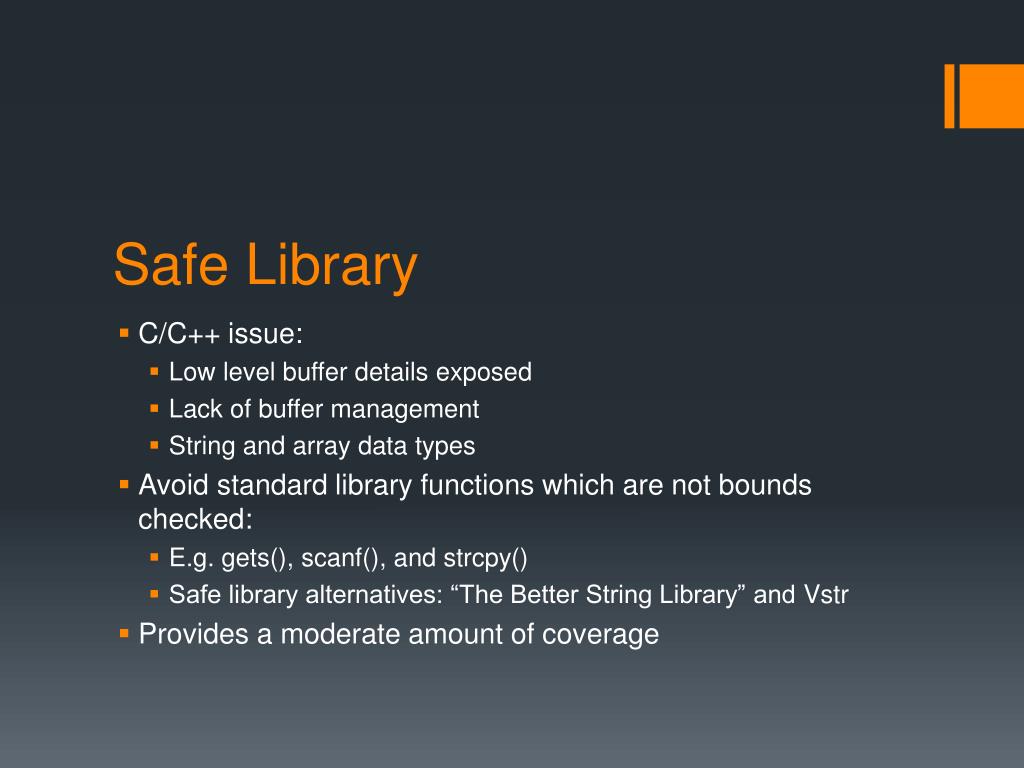

13. Safe Library • C/C++ issue: • Low level buffer details exposed • Lack of buffer management • String and array data types • Avoid standard library functions which are not bounds checked: • E.g. gets(), scanf(), and strcpy() • Safe library alternatives: “The Better String Library” and Vstr • Provides a moderate amount of coverage

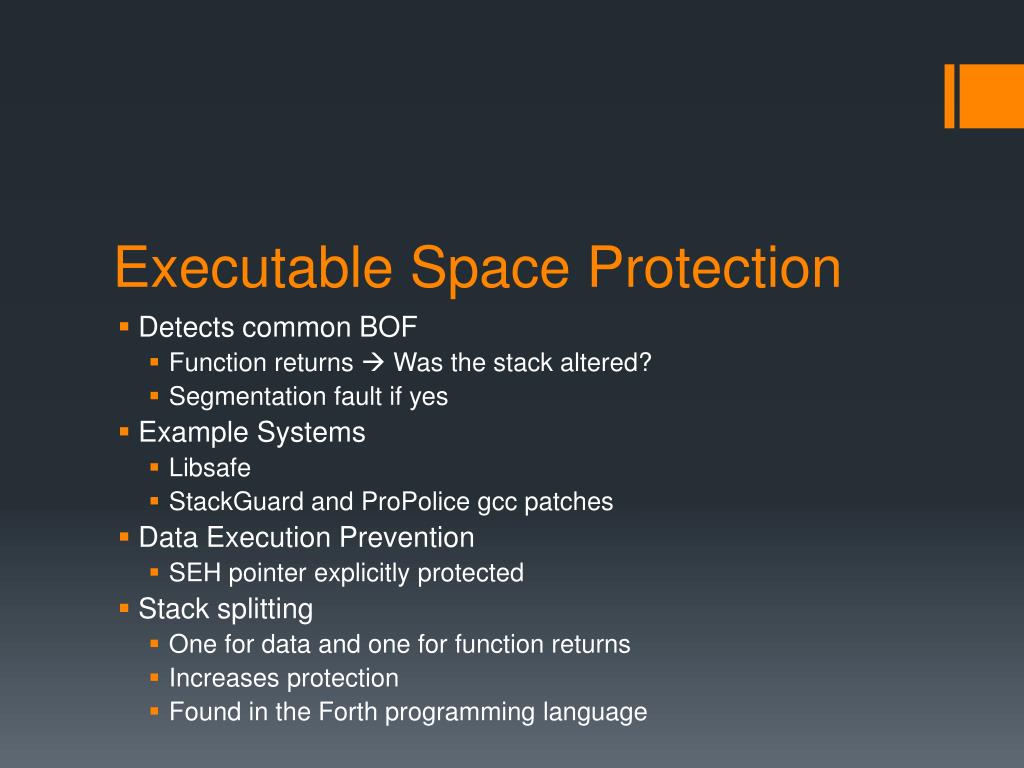

14. Executable Space Protection • Detects common BOF • Function returns  Was the stack altered? • Segmentation fault if yes • Example Systems • Libsafe • StackGuard and ProPolicegcc patches • Data Execution Prevention • SEH pointer explicitly protected • Stack splitting • One for data and one for function returns • Increases protection • Found in the Forth programming language

15. Executable Space Protection • Not a complete solution • Return-to-libc • Other attacks not reliant on executing the attacker’s code • Generally makes it more difficult

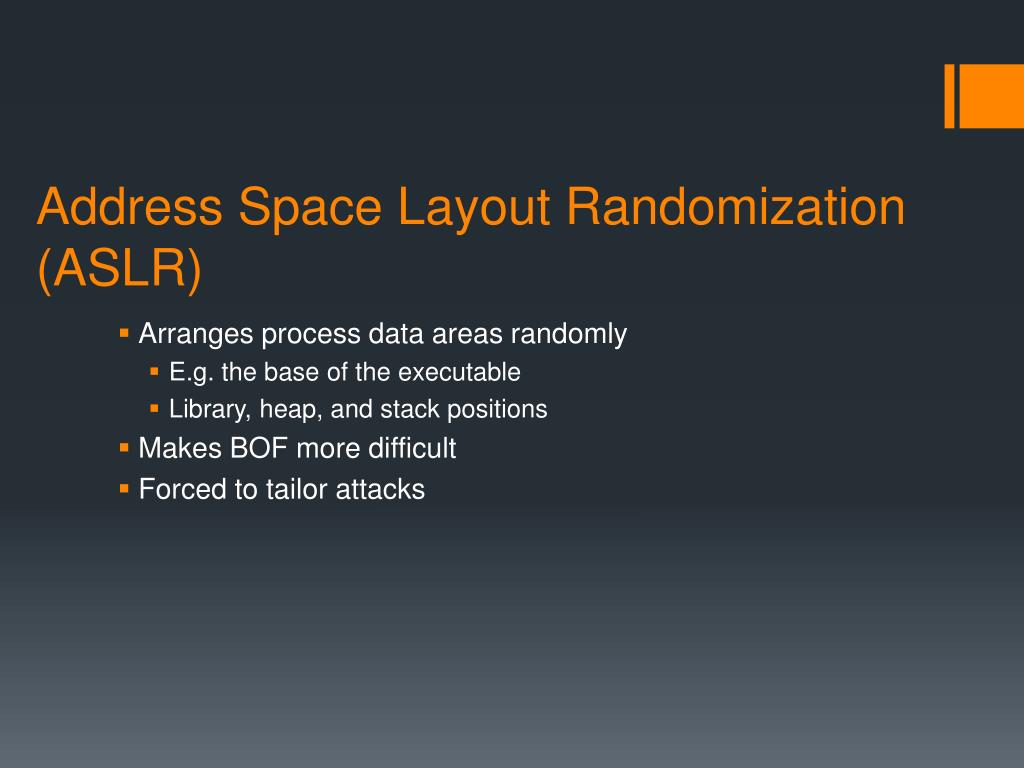

16. Address Space Layout Randomization (ASLR) • Arranges process data areas randomly • E.g. the base of the executable • Library, heap, and stack positions • Makes BOF more difficult • Forced to tailor attacks

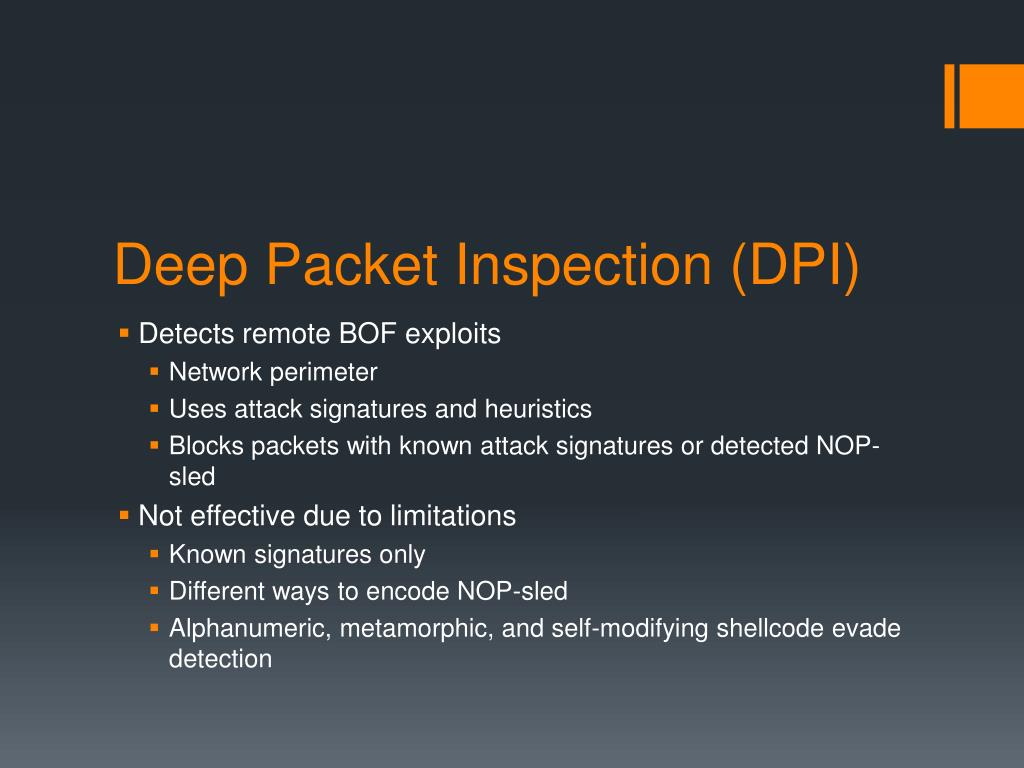

17. Deep Packet Inspection (DPI) • Detects remote BOF exploits • Network perimeter • Uses attack signatures and heuristics • Blocks packets with known attack signatures or detected NOP-sled • Not effective due to limitations • Known signatures only • Different ways to encode NOP-sled • Alphanumeric, metamorphic, and self-modifying shellcodeevade detection

18. Pointer Protection • PointGuard: Compiler adds code to XOR-encode pointers • Before and after usage • Attacker doesn’t know what a pointer points to after overwriting it • PointGuard never released • Microsoft’s Alternative • Similar approach to PointGuard • Windows XP SP2, Windows Server 2003 SP1 • API routinecalled by the programmer • Better performance, but requires additional programmer knowledge.

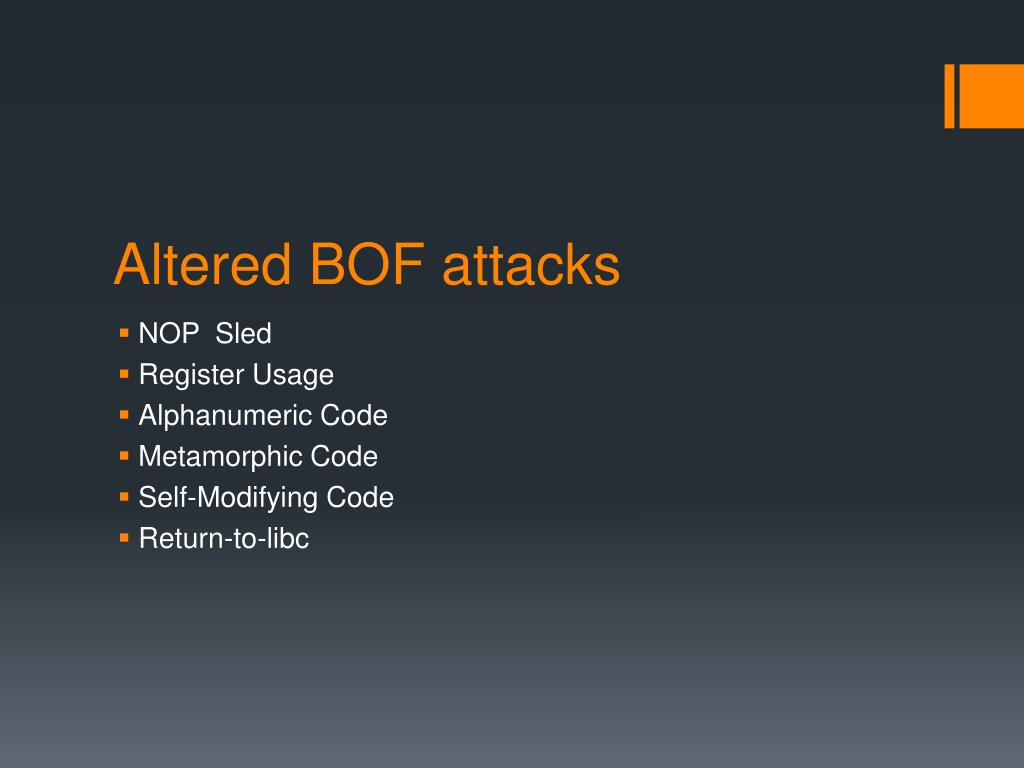

19. Altered BOF attacks • NOP Sled • Register Usage • Alphanumeric Code • Metamorphic Code • Self-Modifying Code • Return-to-libc

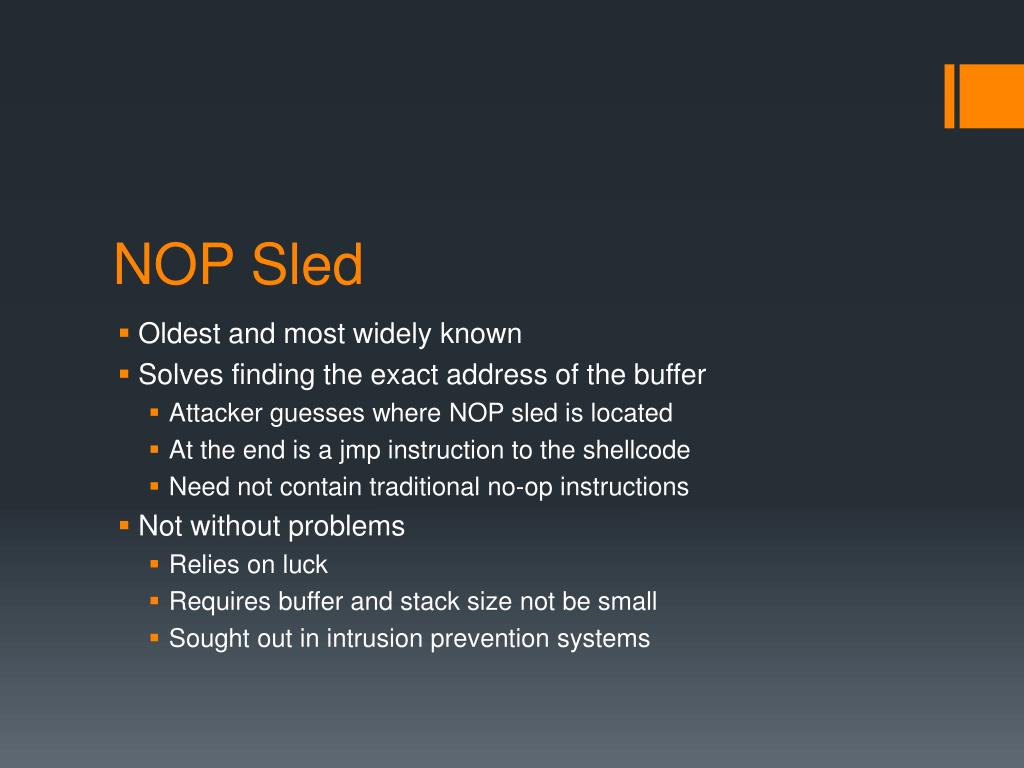

20. NOP Sled • Oldest and most widely known • Solves finding the exact address of the buffer • Attacker guesses where NOP sled is located • At the end is a jmp instruction to the shellcode • Need not contain traditional no-op instructions • Not without problems • Relies on luck • Requires buffer and stack size not be small • Sought out in intrusion prevention systems

21. Using Registers • Allows for exploitation without a NOP sled • No guessing stack offsets • Most common method for internet worms • Strategy: • Overwrite return address  • Jump to a known pointer within a register  • Points to shellcode

22. Example • I386 jmpespopcode = FF E4 • DbgPrint • Two byte sequence at one byte offset • Attack • Overwrite the return address with 0x7C941EED • Jump is executed  interpret opcode FF E4 • Jump to shellcode

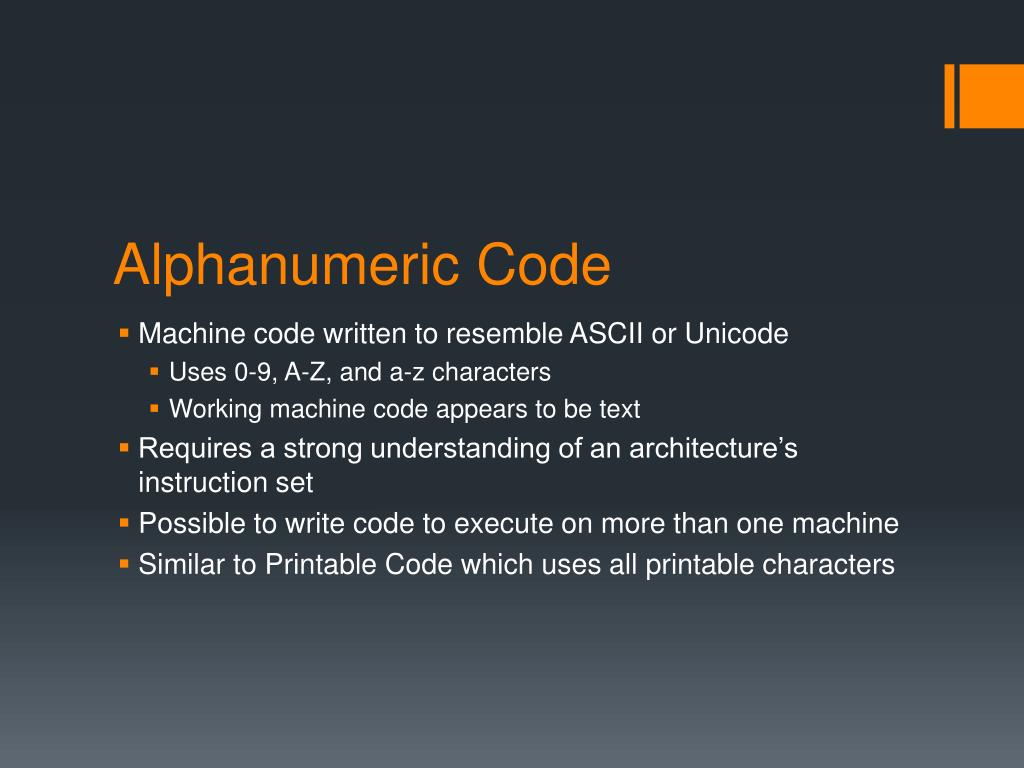

23. Alphanumeric Code • Machine code written to resemble ASCII or Unicode • Uses 0-9, A-Z, and a-z characters • Working machine code appears to be text • Requires a strong understanding of an architecture’s instruction set • Possible to write code to execute on more than one machine • Similar to Printable Code which uses all printable characters

24. Metamorphic Code • Code that outputs its own code under a new interpretation • Translates binary code into a new representation, then in to machine code • No part stays the same • Mutation performed one of several ways • Mutated code accomplishes the same thing • May give the capabilities to infect different OS or architectures • Differs from Polymorphic Code • Provides no protection against heuristic analysis

25. Self-Modifying Code • Code that alters its own instructions while executing. • Usually used to improve performance • Can be applied to make a BOF attack harder to detect

26. Return-to-libc • Usually starts with a BOF • Calls a preexisting function • Replaces call stack address • Overwrites stack portion with parameters • No need to inject malicious code • libc is the most likely target • Could return anywhere • libcusually linked • Provides many useful functions

27. Return-to-libc Mitigations • Resistant to non executable stacks • ASLR • Extremely unlikely on 64-bit machines • Little benefit on 32-bit machines

28. History behind BOF • Immense • Started in 1972: Computer Security Technology Planning Study • 1988: Morris Worm • 1996: Elias Levy (aka Aleph One) • Phrack Magazine – “Smashing the Stack for Fun and Profit” • 2000: Alexander Peslyak (aka Solar Designer) • Return-to-libc attack • 2001: Code Red Worm • 2003: SQL Slammer Worm • 2003+: Xbox Modchips, PS2 Independence Exploit, Wii Twilight Hack

29. Recap • Buffer Overflow Attacks explained • What are they? • How are they accomplished? • Simple Example • Buffer Overflow Mitigations • Explanation • Pros and cons • Buffer Overflow Alternatives • History

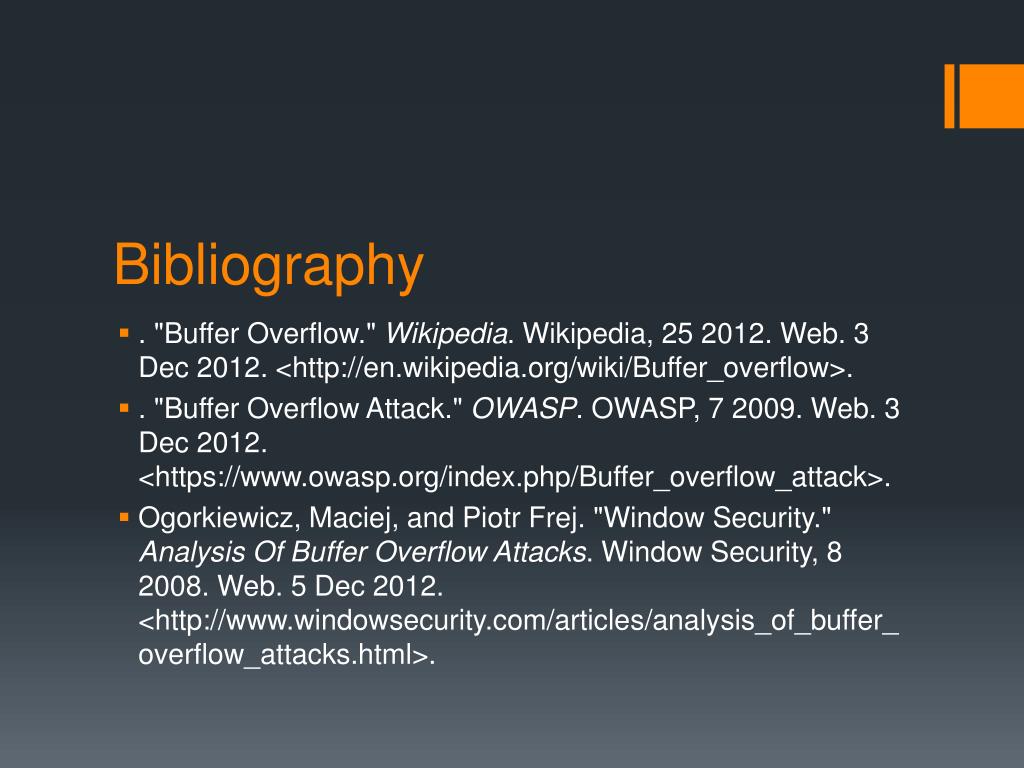

30. Bibliography • . "Buffer Overflow." Wikipedia. Wikipedia, 25 2012. Web. 3 Dec 2012. <http://en.wikipedia.org/wiki/Buffer_overflow>. • . "Buffer Overflow Attack." OWASP. OWASP, 7 2009. Web. 3 Dec 2012. <https://www.owasp.org/index.php/Buffer_overflow_attack>. • Ogorkiewicz, Maciej, and PiotrFrej. "Window Security." Analysis Of Buffer Overflow Attacks. Window Security, 8 2008. Web. 5 Dec 2012. <http://www.windowsecurity.com/articles/analysis_of_buffer_overflow_attacks.html>.
