Presentation Transcript

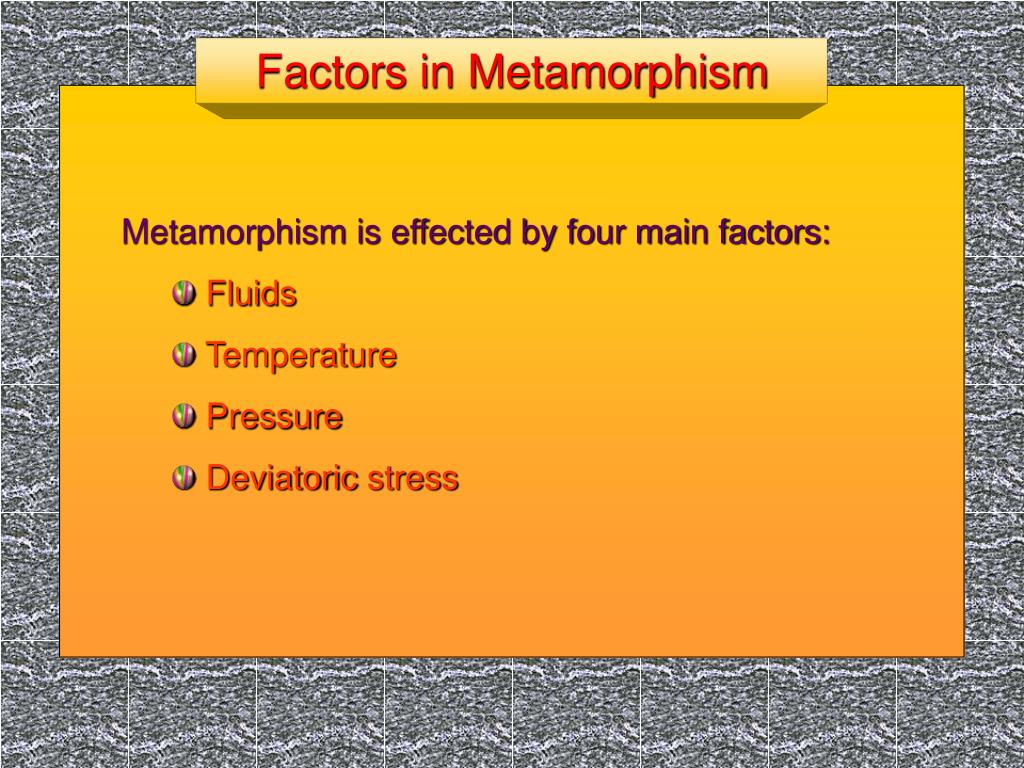

  1. Factors in Metamorphism • Metamorphism is effected by four main factors: • Fluids • Temperature • Pressure • Deviatoric stress

  2. Factors in Metamorphism Pressure • A uniform compressive stress created by • Load (weight of overlying rocks) • Fluid pressure Increases greatly deeper in the crust. With temperature, controls what minerals are stable.

  3. Factors in Metamorphism Deviatoric / Differential Stress • Regional Metamorphism: • Stress imbalance causes compression in some directions and expansion in others. Controls: • Foliation(orientation of minerals into layers) • Need to have either platey (micas) or elongate (hornblende) minerals • Non-Foliated rocks, with no platey or elongated minerals • (quartz, feldspar, calcite, dolomite, etc.)

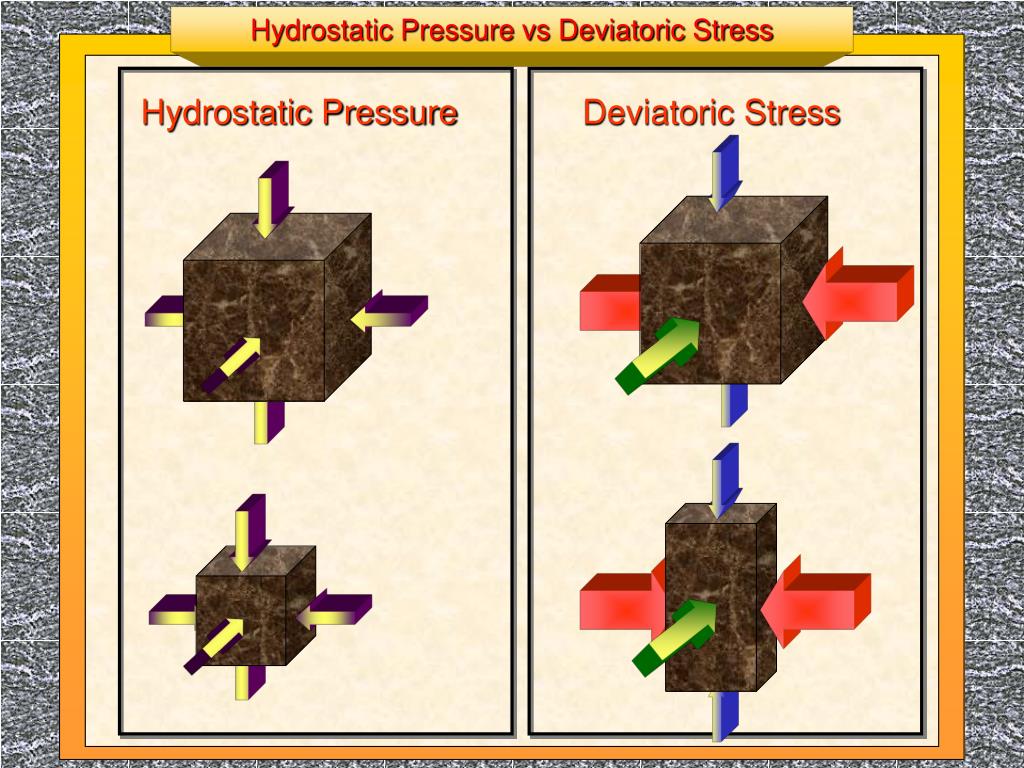

  4. Hydrostatic Pressure vs Deviatoric Stress Hydrostatic Pressure Deviatoric Stress

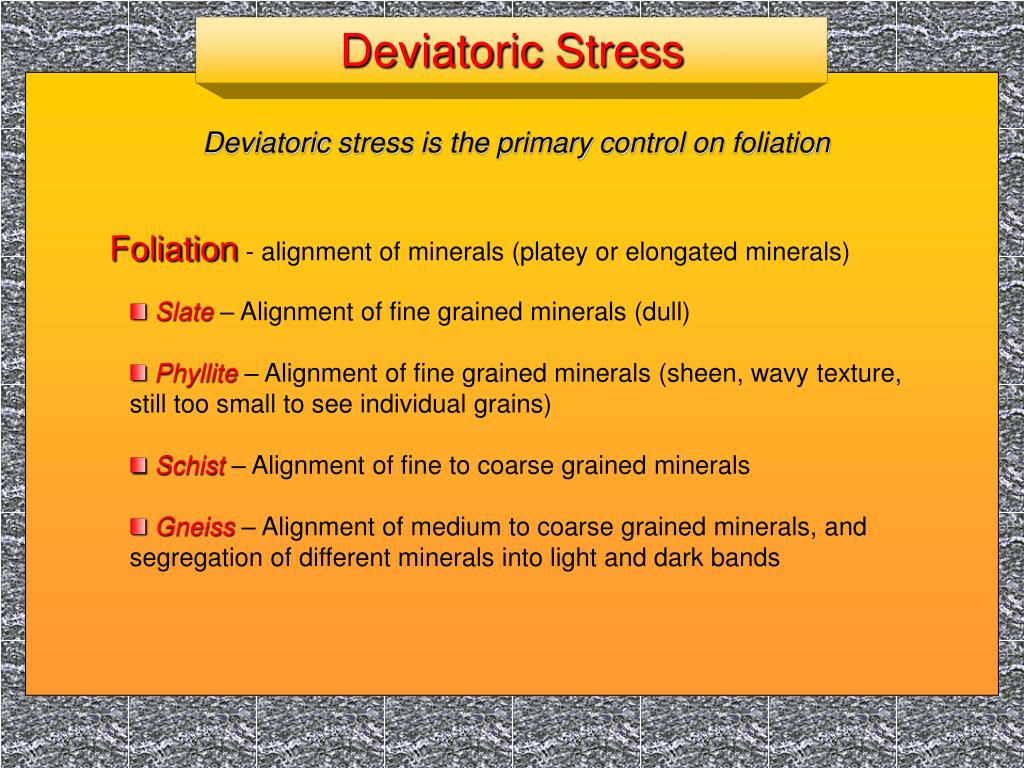

  5. Deviatoric Stress Deviatoric stress is the primary control on foliation Foliation - alignment of minerals (platey or elongated minerals) • Slate– Alignment of fine grained minerals (dull) • Phyllite– Alignment of fine grained minerals (sheen, wavy texture, still too small to see individual grains) • Schist– Alignment of fine to coarse grained minerals • Gneiss– Alignment of medium to coarse grained minerals, and segregation of different minerals into light and dark bands

  6. Foliation

  7. Foliation - Slaty Cleavage Slate slaty cleavage. Protolith– fine grained rock like shale, mudstone, or siltstone

  8. Arizona State University http://www.slu.edu Foliation - Gneissic Banding Gneiss shows gneissic banding

  9. Low Grade High Grade Foliated Metamorphic Rocks Metamorphic rock with aligned flat minerals http://hyperphysics.phy-astr.gsu.edu/hbase/geophys Slate Schist Gneiss Foliation perpendicular to direction of maximum differential stress Foliation,crystallization and differentiation perpendicular to direction of maximum differential stress Foliation andcrystallization perpendicular to direction of maximum differential stress http://www.tulane.edu/~sanelson/geol212/contactmeta.htm

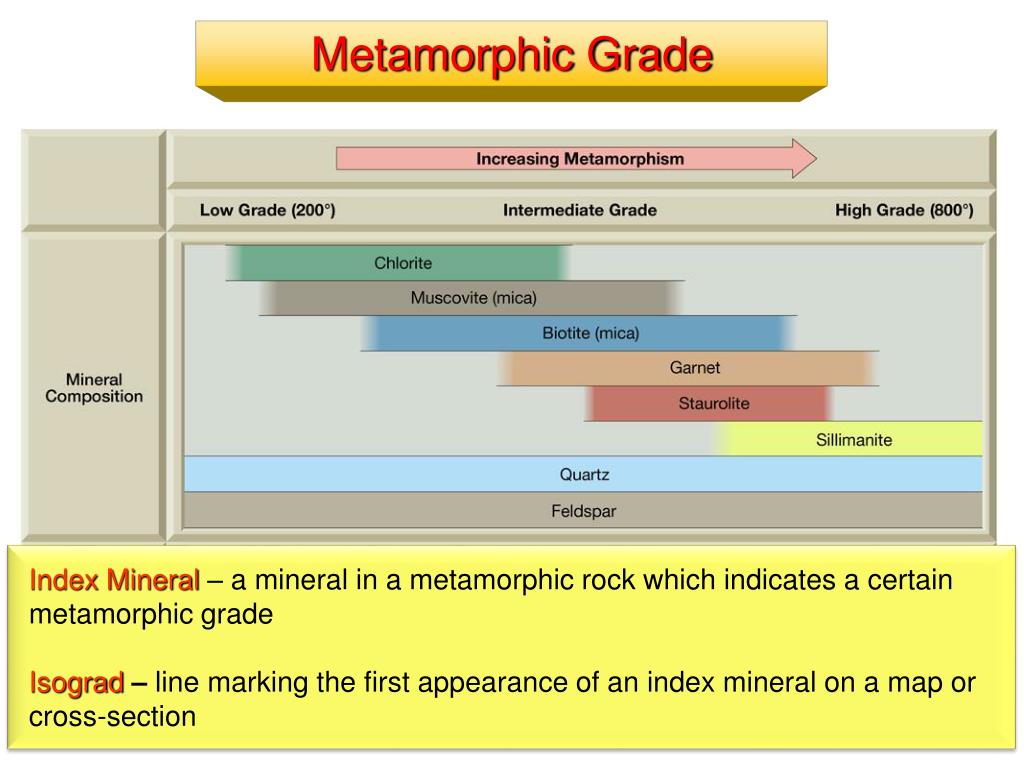

  10. Metamorphic Grade Index Mineral – a mineral in a metamorphic rock which indicates a certain metamorphic grade Isograd – line marking the first appearance of an index mineral on a map or cross-section

  11. Metamorphic rock without minerals that can be foliated (or from contact metamorphism) Non- Foliated Metamorphic Rocks Marble Amphibolite Quartzite Anthracite quartz sandstone Protolith limestone coal mafic rocks Mineralogy carbonates quartz none Amphiboles (i.e. hornblende) http://www.mii.org/ http://www.mii.org/ http://www.smccd.edu/ http://www.mii.org/ Marble Quartzite Anthracite Amphibolite Can be either
