Presentation Transcript
Ray intersections l.jpg

Ray Intersections

CS 319

Advanced Topics inComputer Graphics

John C. Hart


Intersection computation l.jpg

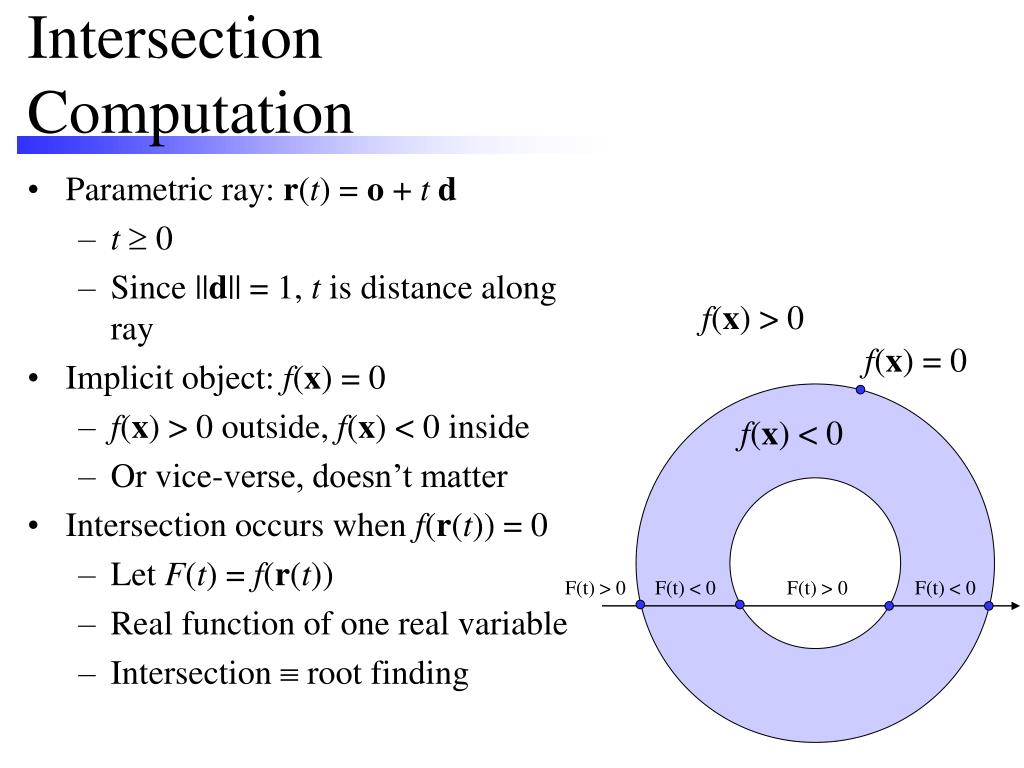

Intersection Computation

  • Parametric ray: r(t) = o + t d

    • t 0

    • Since ||d|| = 1, t is distance along ray

  • Implicit object: f(x) = 0

    • f(x) > 0 outside, f(x) < 0 inside

    • Or vice-verse, doesn’t matter

  • Intersection occurs when f(r(t)) = 0

    • Let F(t) = f(r(t))

    • Real function of one real variable

    • Intersection  root finding

f(x) > 0

f(x) = 0

f(x) < 0

F(t) > 0

F(t) < 0

F(t) > 0

F(t) < 0


Sphere intersection l.jpg
Sphere Intersection

c

r

f(x)=(x - c)(x - c) - r2

f(r(t)) = (o + td - c)(o + td - c) - r2

= ddt2 + 2 (o-c)dt + (o-c)(o-c) - r2

D > 0

D = 0

D < 0

D = B*B - 4*AC;

if (D < 0.0) return NULL;

rootD = sqrt(D);

t0 = 0.5*(-B - rootD)/A;

t1 = 0.5*(-B + rootD)/A;

if (t0 >= 0)

hit->t = t0, return hit;

if (t1 >= 0)

hit->t = t1, return hit;

return NULL;

A = dd (= 1 if d unit length)

B = 2 (o-c)d

C = (o-c)(o-c) - r2

Hit position x = o + td

Hit normal n = (x – c)/||x – c||


Ellipsoid intersection l.jpg

d

o

x

T-1x

Ellipsoid Intersection

f(T-1x)=0

  • Let T be a 4x4 transformation that distorts a sphere into the ellipsoid

  • Ellipsoid is implicit surface of f(T-1x)

    f(T-1r(t)) = f(T-1(o + td))

    = f(T-1o + tT-1d)

  • Hit point needs to be in world coords

    • t same in both coordinates

      x = o + td

T

T-1

Ellipsoid::Intersect(Ray r) {

Ray Tir = (Ti * r.o, Ti * r.d);

return Sphere::Intersect(Tir);

}

T-1d

f(x) = 0

T-1o


What about the normal l.jpg

n

n’

x

Tx

What about the normal?

f(T-1x)=0

  • Let n = [abcd] be a tangent plane

  • Let x = [xyz 1]Tbe a point

  • Plane-point duality

    • Planes are row vectors

    • Points are column vectors

  • Point x in plane nnx = 0

  • Need to find n’ such that n’ Tx = 0

  • Notice nT-1T x = 0

  • New normal n’ = n T-1 = (T-1)T nT

  • Could also use the adjoint n’ = nT*

    • n’ not necessarily unit length even if n is

    • But we’ll need the inverse anyway

T

f(x) = 0


Matrix inverse l.jpg

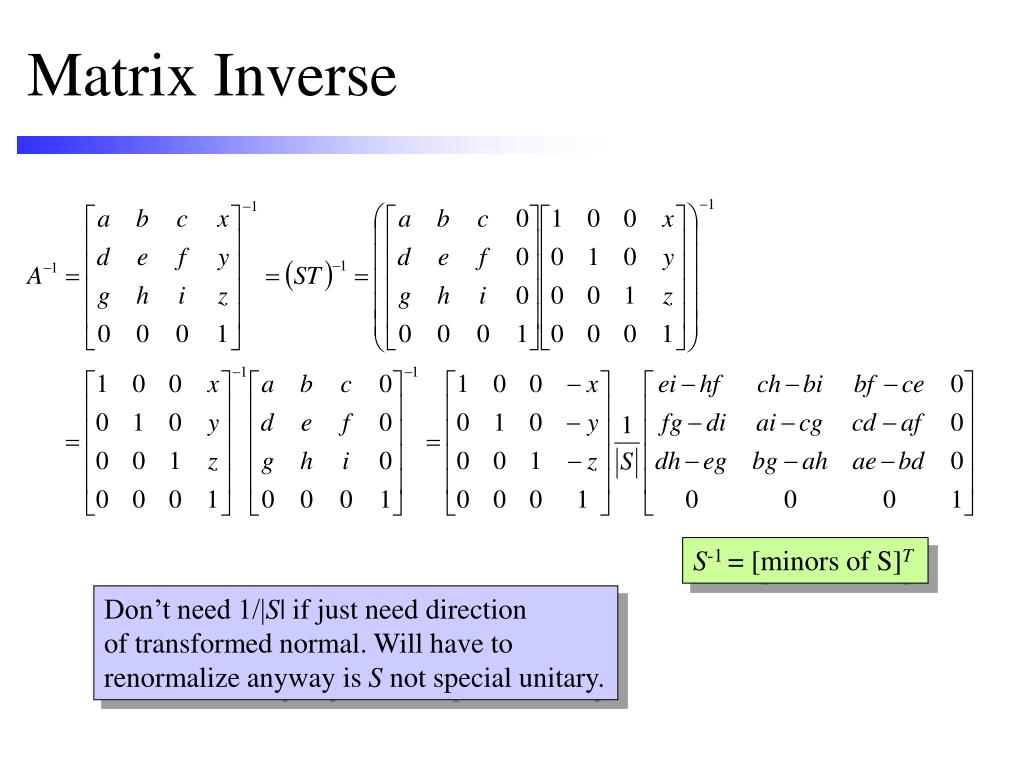

Matrix Inverse

S-1 = [minors of S]T

Don’t need 1/|S| if just need directionof transformed normal. Will have torenormalize anyway is S not special unitary.


Scene graph l.jpg

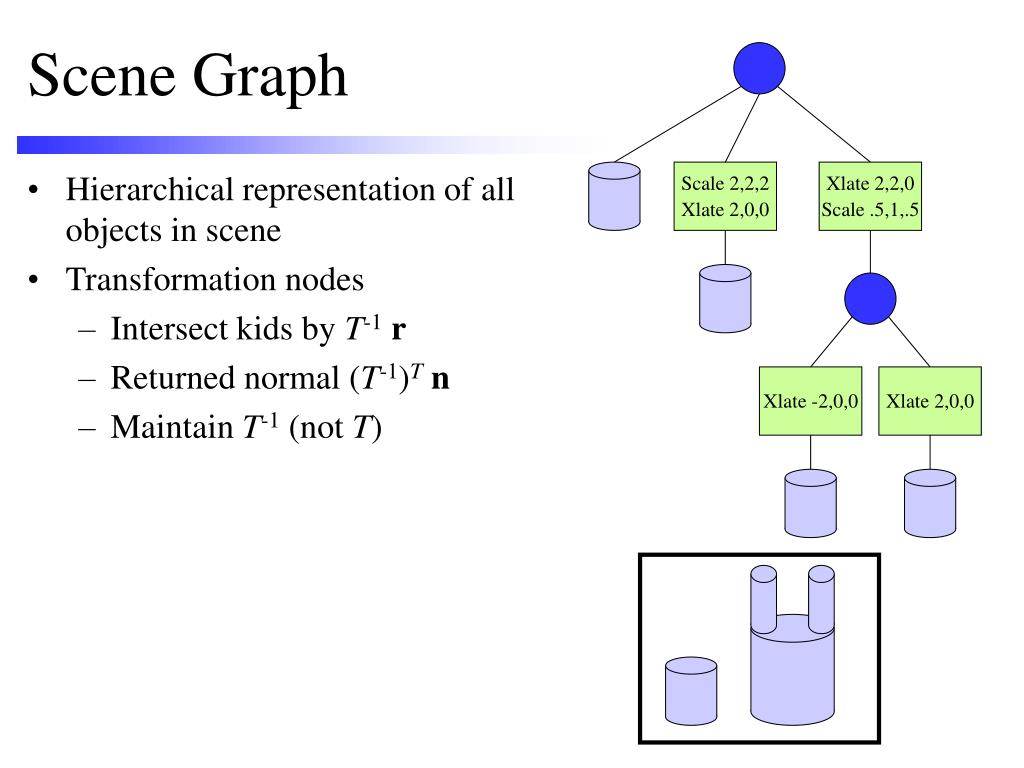

Scene Graph

  • Hierarchical representation of all objects in scene

  • Transformation nodes

    • Intersect kids by T-1r

    • Returned normal (T-1)Tn

    • Maintain T-1 (not T)

Scale 2,2,2Xlate 2,0,0

Xlate 2,2,0Scale .5,1,.5

Xlate -2,0,0

Xlate 2,0,0


Instancing l.jpg

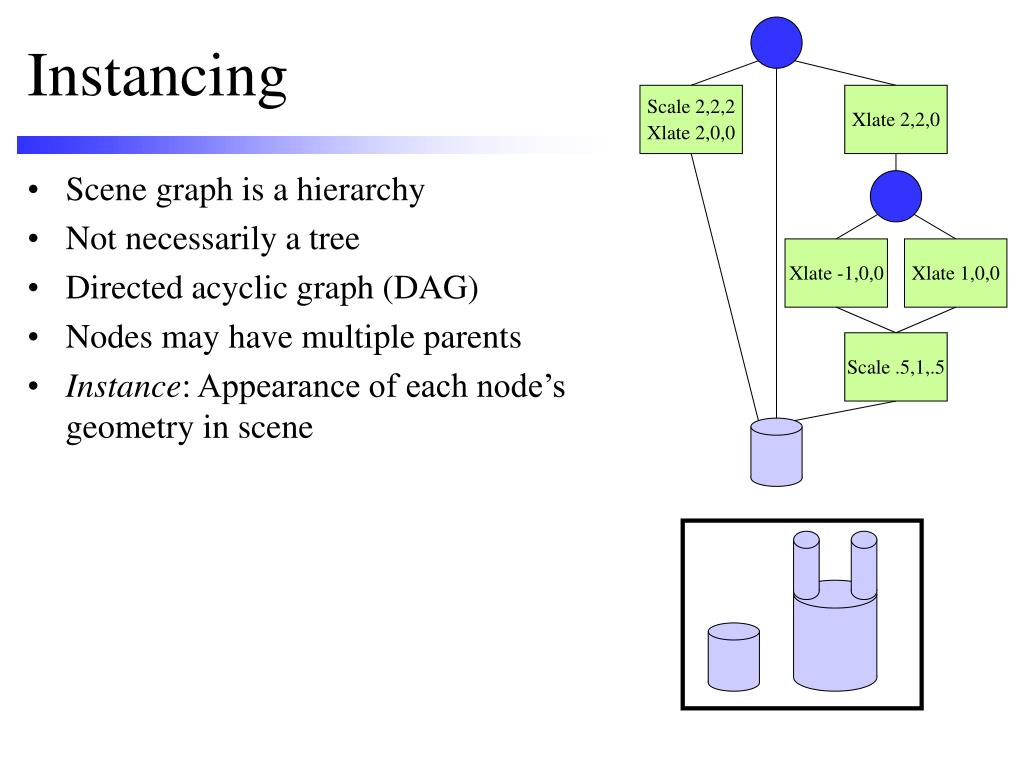

Instancing

Scale 2,2,2Xlate 2,0,0

Xlate 2,2,0

  • Scene graph is a hierarchy

  • Not necessarily a tree

  • Directed acyclic graph (DAG)

  • Nodes may have multiple parents

  • Instance: Appearance of each node’s geometry in scene

Xlate -1,0,0

Xlate 1,0,0

Scale .5,1,.5


Fun with instancing l.jpg
Fun with Instancing

ImagecourtesyJohnAmanatides


Quadrics l.jpg

z

x

y

z

z

z

z

x

x

x

x

y

y

y

y

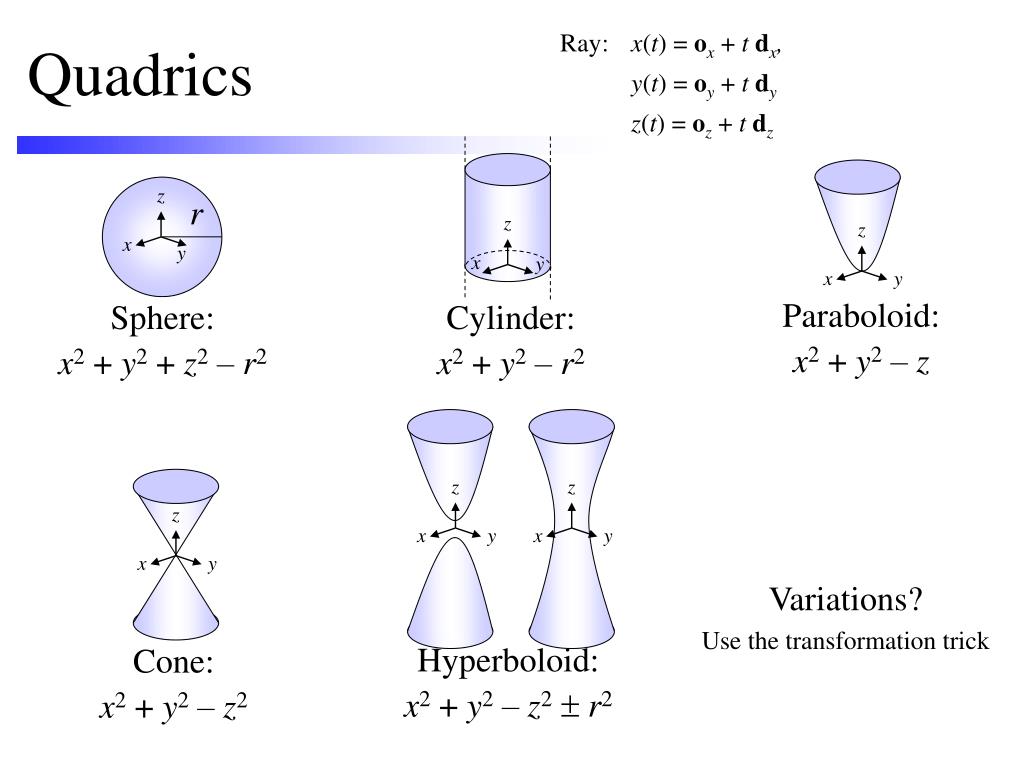

Quadrics

Ray: x(t) = ox + tdx,

y(t) = oy + tdy

z(t) = oz + tdz

z

r

x

y

Paraboloid:x2 + y2 – z

Sphere:x2 + y2 + z2 – r2

Cylinder:x2 + y2 – r2

Variations?

Use the transformation trick

Hyperboloid:x2 + y2– z2r2

Cone:x2 + y2 – z2


Torus l.jpg
Torus

z

r

x

R

  • Product of two implicit circles

    (x – R)2 + z2 – r2 = 0

    (x + R)2 + z2 – r2 = 0

    ((x – R)2 + z2 – r2)((x + R)2 + z2 – r2)

    = (x2 – 2Rx + R2 + z2 – r2) (x2 + 2Rx + R2 + z2 – r2)

    = x4 + 2x2z2 + z4 – 2x2r2 – 2z2r2 + r4 – 2x2R2 +

    2z2R2 – 2r2R2 + R4

    = (x2 + z2 – r2 – R2)2 + 4z2R2 – 4r2R2

  • Surface of rotation: replace x2 with x2 + y2

    f(x,y,z) = (x2 + y2 + z2 – r2 – R2)2 + 4R2(z2 – r2)

  • Quartic!!!

  • Up to four ray torus intersections


Finding roots l.jpg
Finding Roots

  • How do we find roots for degree > 2?

  • Newton’s Method

    • Converges fast

    • Might converge to wrong root

  • Root Isolation

    • Guarantees single root

    • Sturm Sequences



Sturm sequences l.jpg
Sturm Sequences

  • f(t) is a polynomial

  • Create a sequence

    f1 = f

    f2 = f’

    fk+1 = – rem fk-1 /fk

  • # of roots in [a,b] = difference in # of sign changes between fk(a) and fk(b)

f1(t) = t3 + 3t2 – 1

f2(t) = 3t2 + 6t

f3(t) = 2t + 1

f4(t) = 9/4

t f1 f2 f3 f4 #

- - + - + 3

-3 - + - + 3

-2 + 0 - + 2

-1 + - - + 2

0 - 0 + + 1

1 + + + + 0

2 + + + + 0


Ray object intersection l.jpg
Ray-Object Intersection

in

out

  • Returns intersection in a hit record

  • “Next” field enables hit record to hold a list of intersections

  • List only non-negative intersection parameters

  • Ray always originates outside

    • If first t = 0 then ray originated inside

  • Parity classifies ray segments

    • Odd segments “in”

    • Even segments “out”

in

out

in

in

out

out


Constructive solid geometry l.jpg
Constructive Solid Geometry

B

  • Construct shapes from primitives using boolean set operations

  • Union: AB, A + B, A or B

  • Intersection: AB, A*B, A and B

  • Difference: A\B, A–B, A and not B

A

B–A

AB

AB

A–B


Csg intersections l.jpg

A

B

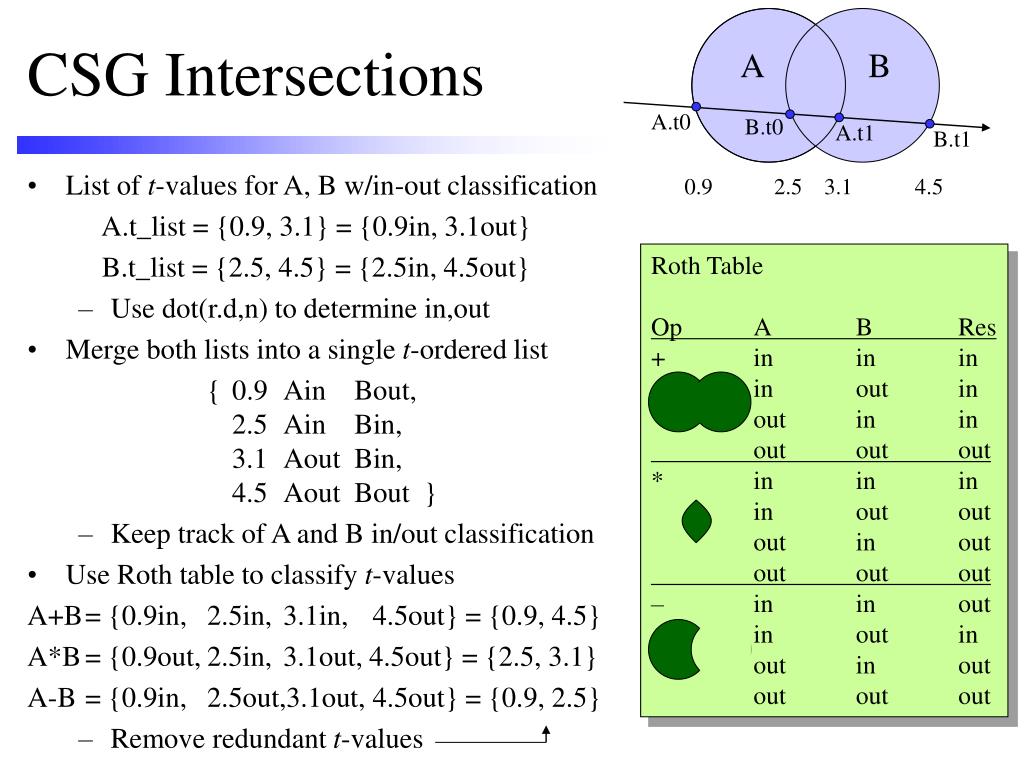

CSG Intersections

A.t0

B.t0

A.t1

B.t1

  • List of t-values for A, B w/in-out classification

    A.t_list = {0.9, 3.1} = {0.9in, 3.1out}

    B.t_list = {2.5, 4.5} = {2.5in, 4.5out}

    • Use dot(r.d,n) to determine in,out

  • Merge both lists into a single t-ordered list

    { 0.9 Ain Bout, 2.5 Ain Bin, 3.1 Aout Bin, 4.5 Aout Bout }

    • Keep track of A and B in/out classification

  • Use Roth table to classify t-values

    A+B = {0.9in, 2.5in, 3.1in, 4.5out} = {0.9, 4.5}

    A*B = {0.9out, 2.5in, 3.1out, 4.5out} = {2.5, 3.1}

    A-B = {0.9in, 2.5out,3.1out, 4.5out} = {0.9, 2.5}

    • Remove redundant t-values

0.9

2.5

3.1

4.5

Roth Table

Op A B Res

+ in in in

in out in

out in in

out out out

* in in in

in out out

out in out

out out out

– in in out

in out in

out in out

out out out


Accelerating ray intersections l.jpg
Accelerating Ray Intersections

  • Q: Why is basic ray tracing so slow?

  • A: It intersects every ray with every primitive in every object

  • Q: How can we make ray tracing faster?

  • A: Coherence

    Image coherence – neighboring pixels probably display same object

    Spatial coherence – neighboring points probably exhibit same appearance

    Temporal coherence– Pixels in neighboring frames probably display same object

Stanford Bunny~70K triangles

Do we need 70K ray-triangleintersections for each ray?


Shadow caching l.jpg
Shadow Caching

s

  • Any interloper between surface point x and the light source s will cast a shadow

    • Doesn’t matter how many

    • Doesn’t matter which is closest

    • Stop ray intersections once any intersection found

  • Neighboring shadowed surface points x and x’ probably shadowed by the same object

    • Start shadow ray intersection search with object intersected in last shadow search

C

A

B

x’

x


Bounding volume l.jpg
Bounding Volume

  • Ray-bunny intersection takes 70K ray-triangle intersections even if ray misses the bunny

  • Place a sphere around bunny

    • Ray A misses sphere so ray A misses bunny without checking 70K ray-triangle intersections

    • Ray B intersects sphere but still misses bunny after checking 70K intersections

    • Ray C intersects sphere and intersects bunny

  • Can also use axis-aligned bounding box

    • Easier to create for triangle mesh

A

B

C


Bounding volume hierarchy l.jpg

A

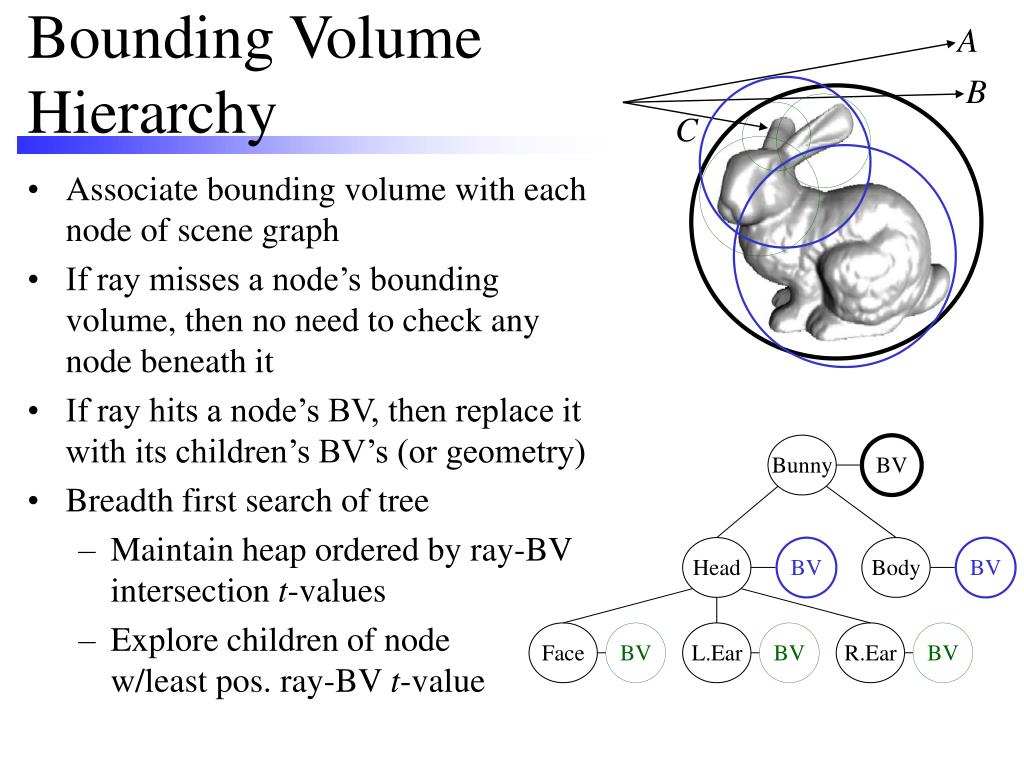

Bounding Volume Hierarchy

B

C

  • Associate bounding volume with each node of scene graph

  • If ray misses a node’s bounding volume, then no need to check any node beneath it

  • If ray hits a node’s BV, then replace it with its children’s BV’s (or geometry)

  • Breadth first search of tree

    • Maintain heap ordered by ray-BV intersection t-values

    • Explore children of nodew/least pos. ray-BV t-value

Bunny

BV

Head

BV

Body

BV

Face

BV

L.Ear

BV

R.Ear

BV


Grids l.jpg
Grids

  • Encase object in a 3-D array of cubic cells

  • Each cell contains list of all triangles it contains or intersects

  • Rasterize ray to find which cells it intersects

    • 3D Bresenham algorithm

    • All cells that contain any part of ray

  • Working from first ray-cell to last…

    • Find least positive intersect of ray with triangles in cell’s list

    • If no intersection, move on to next cell


Tagging l.jpg
Tagging

  • Ray-object intersection test valid for ray with entire object

    • not just portion of object inside current cell

  • Need only intersect object once for each ray

  • In cell A – list = {#1}

    • Intersect r with #1? Yes

      • Miss  Tag #1 with no-intersection

  • In cell B – list = {#2}

    • Intersect r with #2? Yes

      • ray r hits object #2 but later in cell C

      • Tag object #2 with intersection-at-C

  • In cell C – list = {#1,#2}

    • Intersect r with #1? No (no-intersection)

    • Intersect r with #2? No (intersection-at-D)

  • In cell D – list = {#2}

    • Intersect r with #2? No (intersection-at-D)

A

B

#2

C

D

#1

r


Other partitioning structures l.jpg
Other Partitioning Structures

  • Octree

    • Ray can parse through large empty areas

    • Requires less space than grid

    • Subdivision takes time

  • Binary Space Partition (BSP) Tree

    • Planes can divide models nearly in half

    • Trees better balanced, shallower

    • Added ray-plane intersections
