Presentation Transcript
example 5 pushbutton switches s1 and s2
slide2

2 pushbutton switches

Serial cable

A/D Pot

Run/Load switch

Reset button

7-segment display

Power plug

I/O headers

miniDragon+

slide4

Pushbutton Switches: S1 and S2

(PORTAD0 & 0x10) == 0

TRUE if S1 is closed

(PORTAD0 & 0x08) == 0

TRUE if S2 is closed

slide5

Example 5a

// Example 5a: Pushbutton Switches

#include <hidef.h> /* common defines and macros */

#include <mc9s12dp256.h> /* derivative information */

#include "main_asm.h" /* interface to the assembly module */

#pragma LINK_INFO DERIVATIVE "mc9s12dp256b"

void main(void) {

PLL_init(); // set system clock frequency to 24 MHz

seg7_enable(); // enable 7-segment display

ATD0DIEN = 0x18; // enable S1 and S2

while(1){

if((PORTAD0 & 0x10) == 0)

seg7dec(1);

else

seg7_off();

if((PORTAD0 & 0x08) == 0)

seg7dec(2);

else

seg7_off();

}

}

slide6

Example 5b

// Example 5b: Pushbutton Switches using C function calls

#include <hidef.h> /* common defines and macros */

#include <mc9s12dp256.h> /* derivative information */

#include "main_asm.h" /* interface to the assembly module */

#pragma LINK_INFO DERIVATIVE "mc9s12dp256b"

void main(void) {

PLL_init(); // set system clock frequency to 24 MHz

seg7_enable(); // enable 7-segment display

SW12_enable(); // enable S1 and S2

while(1){

if(SW1_down())

seg7dec(1);

else

seg7_off();

if(SW2_down())

seg7dec(2);

else

seg7_off();

}

}

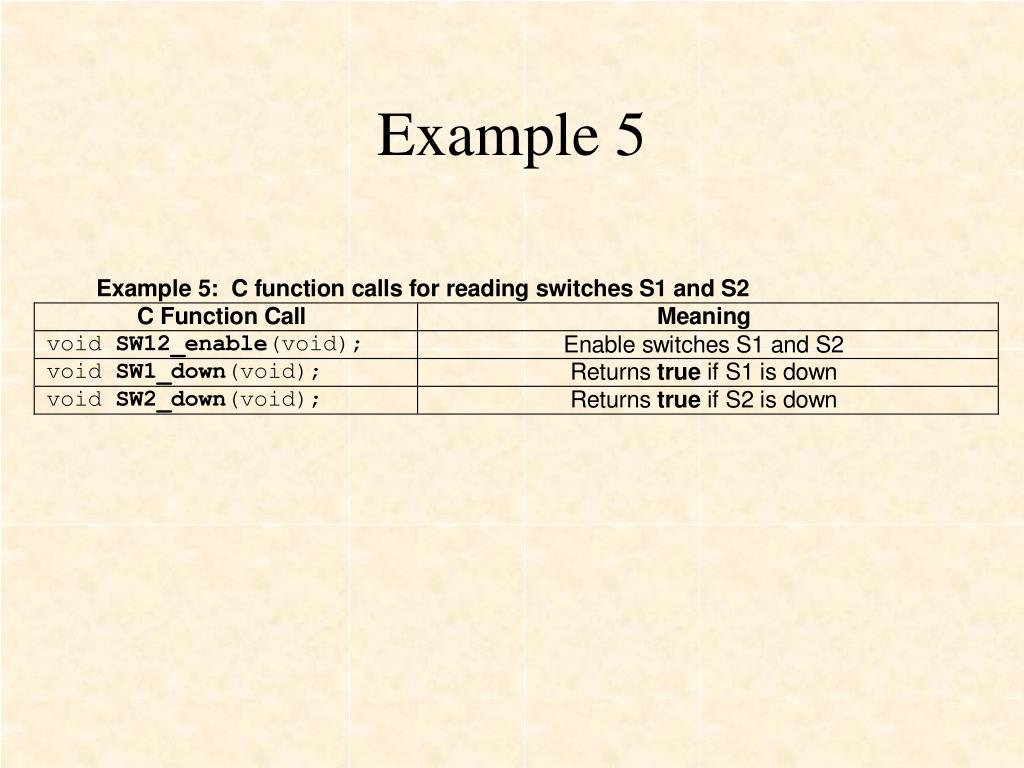

example 5
slide8

Example 5c

// Example 5c: Pushbutton Switches - Problem 5.3

#include <hidef.h> /* common defines and macros */

#include <mc9s12dp256.h> /* derivative information */

#include "main_asm.h" /* interface to the assembly module */

#pragma LINK_INFO DERIVATIVE "mc9s12dp256b"

void main(void) {

PLL_init(); // set system clock frequency to 24 MHz

seg7_enable(); // enable 7-segment display

SW12_enable(); // enable S1 and S2

while(1){

while(SW1_down()){

seg7dec(1);

}

seg7_off();

while(SW2_down()){

seg7dec(2);

}

seg7_off();

}

}
