  1. VLAN配置

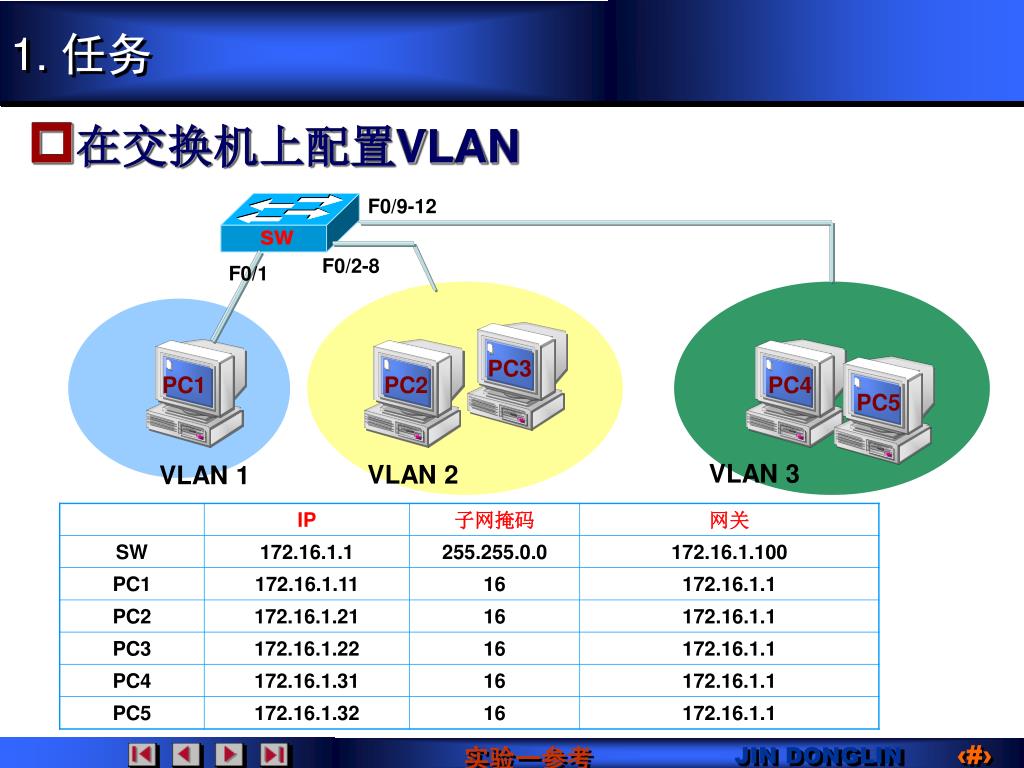

  2. 1. 任务 • 在交换机上配置VLAN F0/9-12 sw F0/2-8 F0/1 PC3 PC1 PC2 PC4 PC5 VLAN 3 VLAN 2 VLAN 1

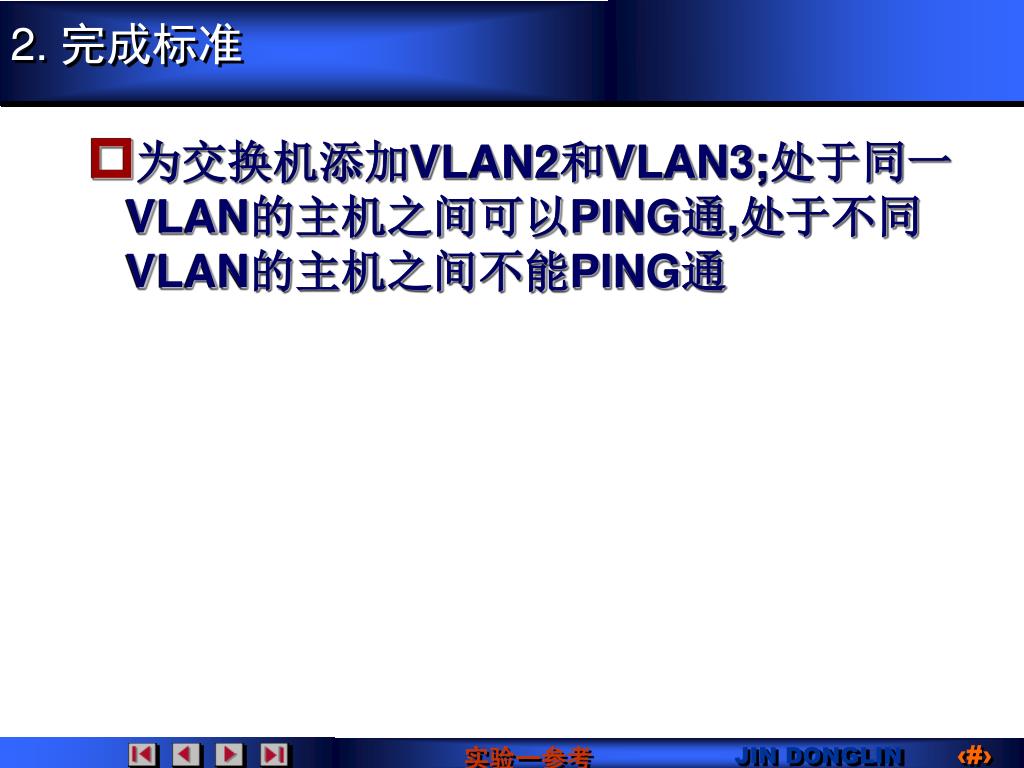

  3. 2. 完成标准 • 为交换机添加VLAN2和VLAN3;处于同一VLAN的主机之间可以PING通,处于不同VLAN的主机之间不能PING通

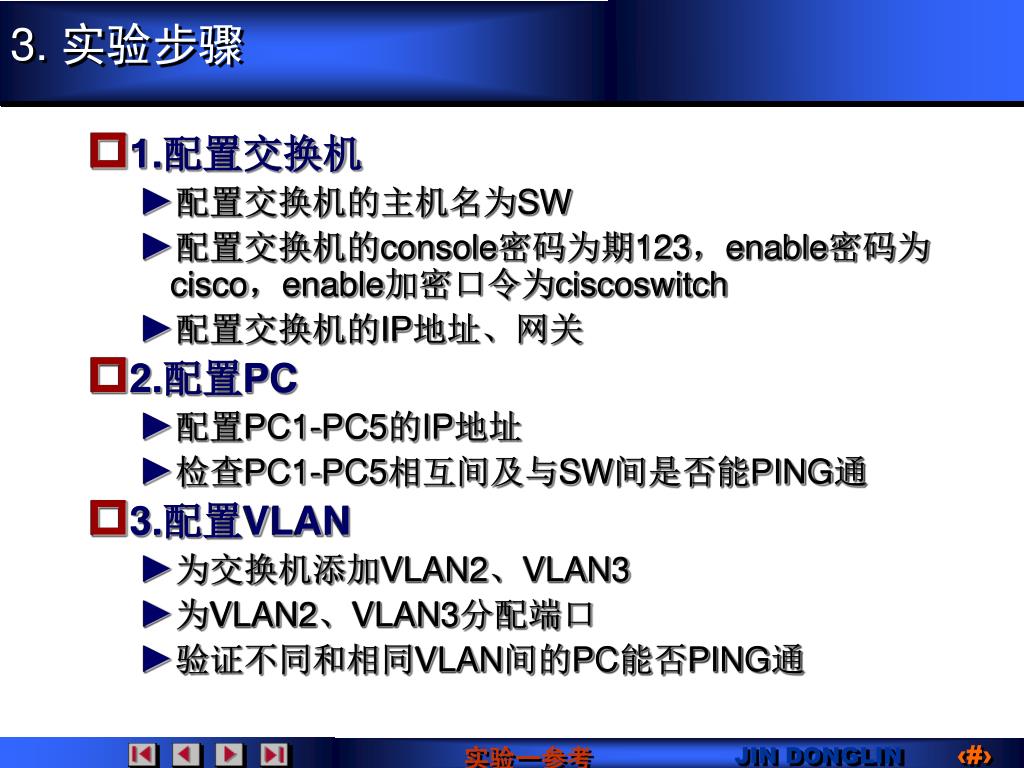

  4. 3. 实验步骤 • 1.配置交换机 • 配置交换机的主机名为SW • 配置交换机的console密码为期123，enable密码为cisco，enable加密口令为ciscoswitch • 配置交换机的IP地址、网关 • 2.配置PC • 配置PC1-PC5的IP地址 • 检查PC1-PC5相互间及与SW间是否能PING通 • 3.配置VLAN • 为交换机添加VLAN2、VLAN3 • 为VLAN2、VLAN3分配端口 • 验证不同和相同VLAN间的PC能否PING通
