Presentation Transcript

  1. draft-pentland-dna-protocol3-00.txt Brett Pentland

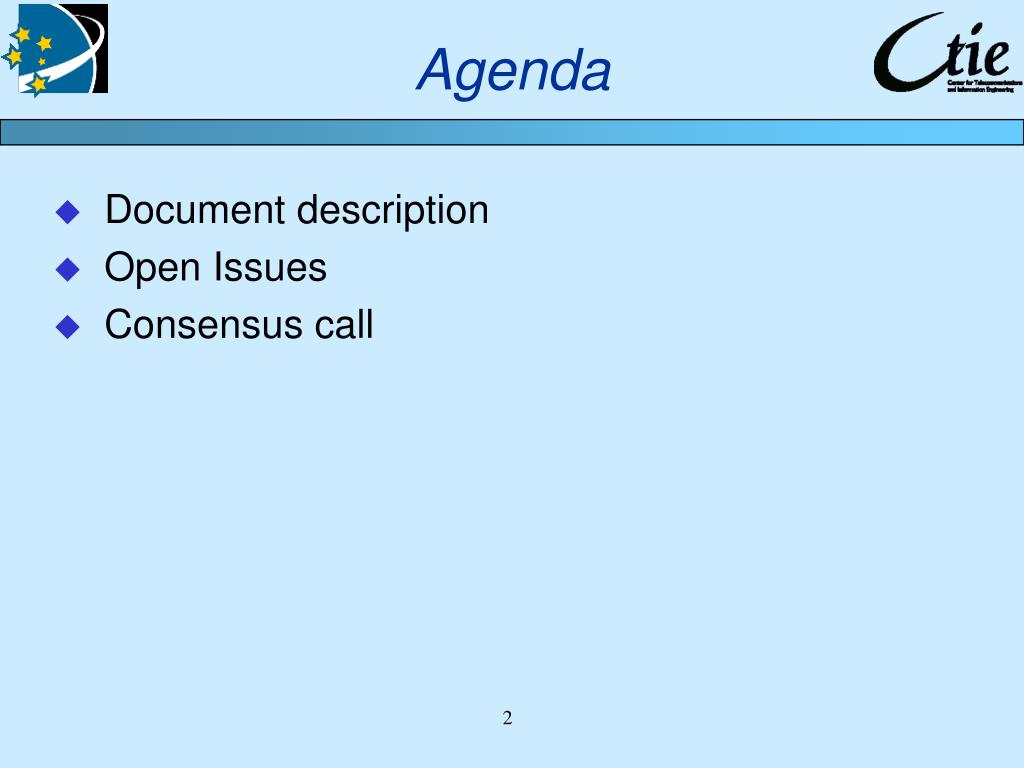

  2. Agenda • Document description • Open Issues • Consensus call

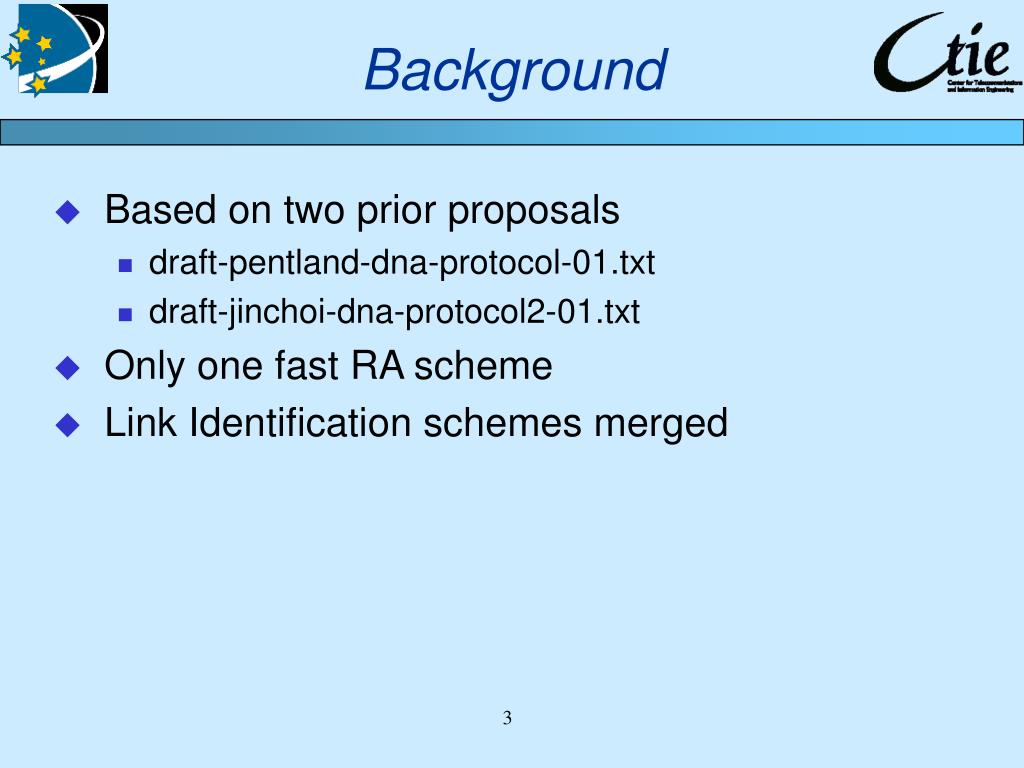

  3. Background • Based on two prior proposals • draft-pentland-dna-protocol-01.txt • draft-jinchoi-dna-protocol2-01.txt • Only one fast RA scheme • Link Identification schemes merged

  4. Fast RA • Taken directly from draft-pentland-dna-protocol-01.txt Token = A Token = B Token = C Access Routers RS Token = S Host Say that: B XOR S < A XOR S < C XOR S • B sends an RA immediately • A sends an RA after 20 ms • C sends an RA after 40 ms

  5. Link Identification • Routers listen for all prefixes on a link • In general, all prefixes included in RAs • New option for learned prefixes • One noted as LinkID prefix • MUST be included in RAs • Hosts SHOULD include a landmark in RSs • If the landmark is on the link, routers may send an abbreviated RA containing only the landmark • If the landmark is not on the link or there’s no landmark routers send a Complete RA • Unsolicited RAs MAY carry a subset of prefixes but MUST include the LinkID prefix

  6. RA(A) RA(A,B) RA(C,D) RA(C) RA(A-Yes) RA(A-Yes) RA(A-No,C,D) RA(A-No,C,D) A,B A,B C,D A,B Link Identification A B B A C D D C ARs RA(C) RA(D) RS(A?) APs RS(A?) Host

  7. Open Issues • Identification based on non-prefix information • No supporting emails on mailing list • Explicit link identifiers • Some other discussion suggests there is interest • TSLLAO • Needed for unicast RS/RA w/o NS/NA • Where does this belong? • Delivery of MLD packets during DNA? • presentation to follow

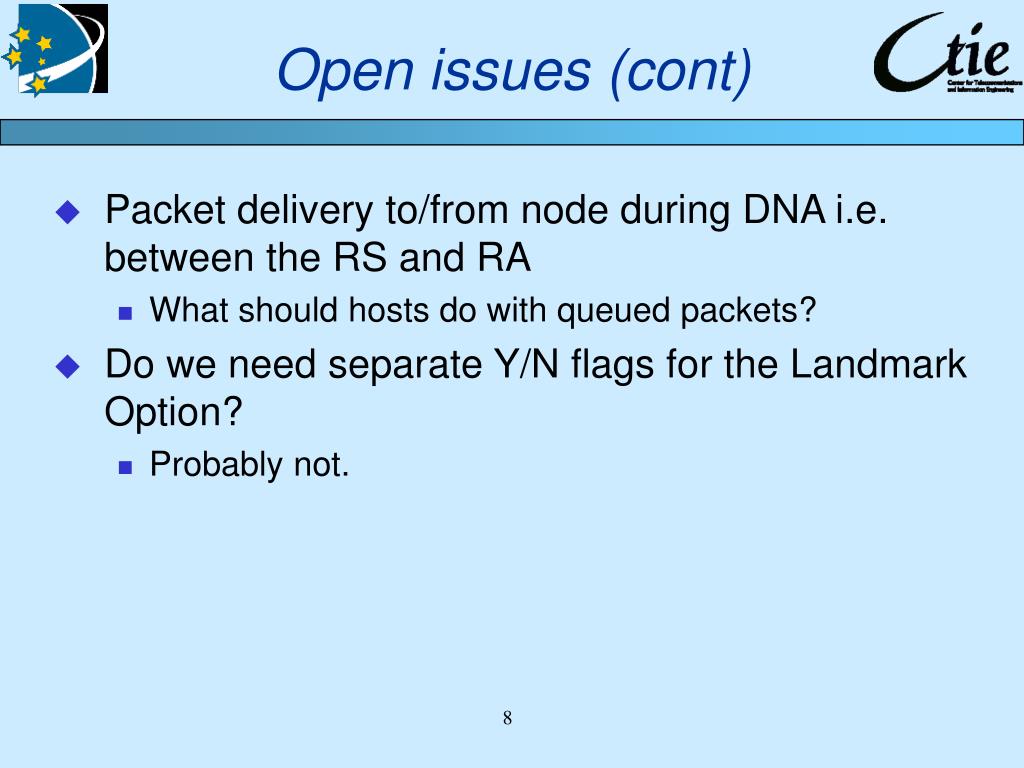

  8. Open issues (cont) • Packet delivery to/from node during DNA i.e. between the RS and RA • What should hosts do with queued packets? • Do we need separate Y/N flags for the Landmark Option? • Probably not.

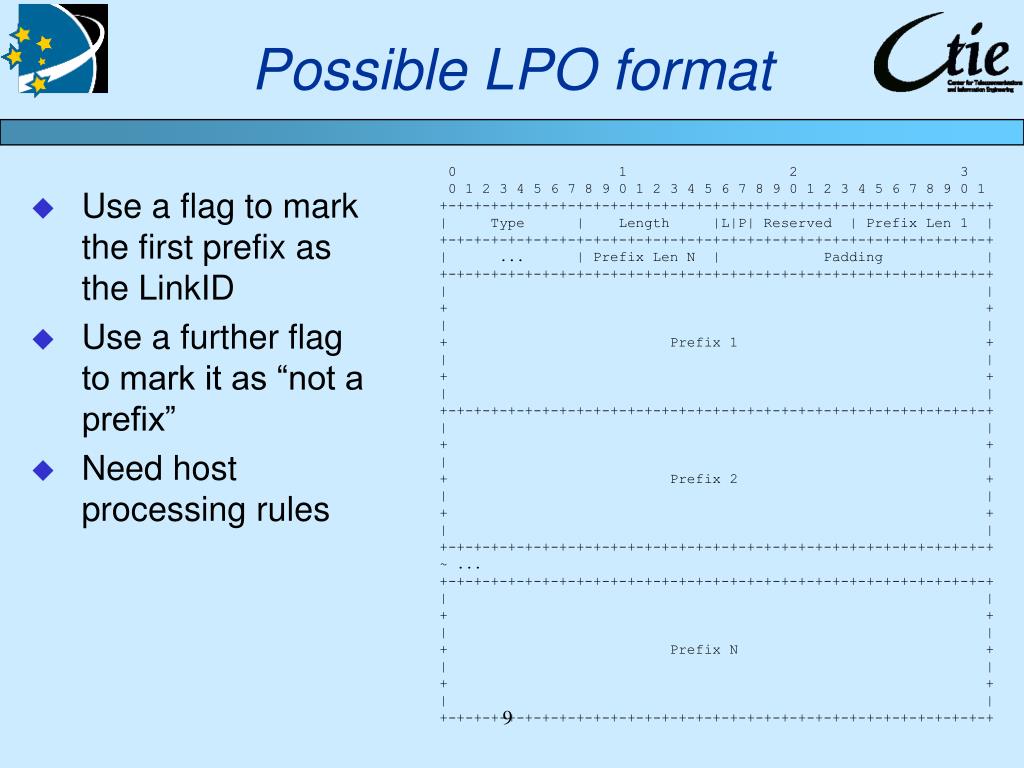

  9. Possible LPO format 0 1 2 3 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | Type | Length |L|P| Reserved | Prefix Len 1 | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | ... | Prefix Len N | Padding | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | | + + | | + Prefix 1 + | | + + | | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | | + + | | + Prefix 2 + | | + + | | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ ~ ... +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | | + + | | + Prefix N + | | + + | | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ • Use a flag to mark the first prefix as the LinkID • Use a further flag to mark it as “not a prefix” • Need host processing rules

  10. Where to now? • Is this close enough to the mark to accept as a WG draft?
