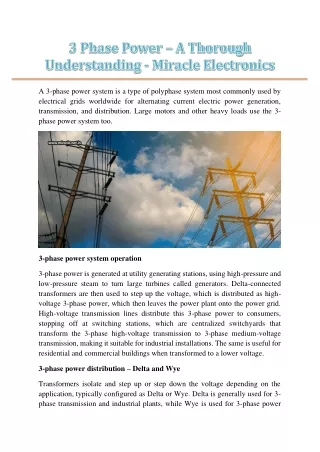

1. A 3-phase power system is a type of polyphase system most commonly used by electrical grids worldwide for alternating current electric power generation, transmission, and distribution. Large motors and other heavy loads use the 3- phase power system too. 3-phase power system operation 3-phase power is generated at utility generating stations, using high-pressure and low-pressure steam to turn large turbines called generators. Delta-connected transformers are then used to step up the voltage, which is distributed as high- voltage 3-phase power, which then leaves the power plant onto the power grid. High-voltage transmission lines distribute this 3-phase power to consumers, stopping off at switching stations, which are centralized switchyards that transform the 3-phase high-voltage transmission to 3-phase medium-voltage transmission, making it suitable for industrial installations. The same is useful for residential and commercial buildings when transformed to a lower voltage. 3-phase power distribution – Delta and Wye Transformers isolate and step up or step down the voltage depending on the application, typically configured as Delta or Wye. Delta is generally used for 3- phase transmission and industrial plants, while Wye is used for 3-phase power

2. supply commercial consumer services and single-phase supply residential consumer services. The Wye configuration branches out from a common neural with the three phases connecting head to toe, while Delta is typically ungrounded without any neutral. Delta-configured 3-phase power – Delta can be measured as 240, 208, and 120 volts, which can be desirable for commercial and industrial buildings. Generally, office equipment and tools operate at 120 volts, while more powerful appliances like industrial lighting fixtures operate at 240 or 208 volts. Wye-configured 3-phase power – Wye can be measured as 208 and 120 volts. 208 volts is measured phase to phase, while 120 volts is measured from each phase to neutral. This configuration is commonly used to supply 3-phase 4-wire service entrances like commercial buildings. Also, single-phase residential service entrances are derived from one of the three Wye-configured 3 phases. 3-phase power Vs. single-phase power 3-phase power has a higher power factor and greater efficiency than single-phase power. It requires lower current for the same amount of power and smaller wires, making it less expensive. 3-phase power delivers three times the power, with only one and a half times the copper. Three wires are used instead of two, which doubles the usefulness of each pound of copper or aluminium over longer distances, bringing significant cost savings. 3-phase power transforms into single-phase power at the pole top, transformers and pad-mount transformers for underground consumers service entrances near residences. 3-phase power requires immense understanding and practical experience before being used. And, manufacturing such 3-phase power transformers also needs immense knowledge and expertise, which is why you need to partner with an expert and professional 3 phase transformer manufacturer in India when you want one such transformer for your application. Miracle Electronics is one such manufacturer where you can get efficient 3-phase transformers that offer fault- free electrical power generation, transmission, and distribution. Every transformer manufactured here is RoHS and REACH compliant, thus proving to be made in accordance with international standards.
