Yuanyuan Sun Feiteng Yang

1. Using SIMD Registers and instructions to Enable Instruction-Level Parallelism in Sorting Algorithms Yuanyuan Sun Feiteng Yang

2. Source • Source ACM Symposium on Parallel Algorithms and Architectures Proceedings of the nineteenth annual ACM symposium on Parallel algorithms and architectures • Authors Timothy Furtak   José Nelson Amaral Robert Niewiadomski

3. Outline • Introduction • Sorting network • Sorting algorithms • Experimental evaluation • Contributions

4. Introduction • Use SIMD resources to improve the performance of sorting algorithms for short sequence. • Initial inspiration: need for Fast sorting of short sequences implementation of Graphics rendering in interactive video game • SIMD machineries

5. Introduction SIMD machineries • X86-64’s SSE2 (Streaming SIMD Extensions 2) • G5’s AltiVec AltiVec,SSE2: SIMD instruction sets, both feature 128-bit vector registers

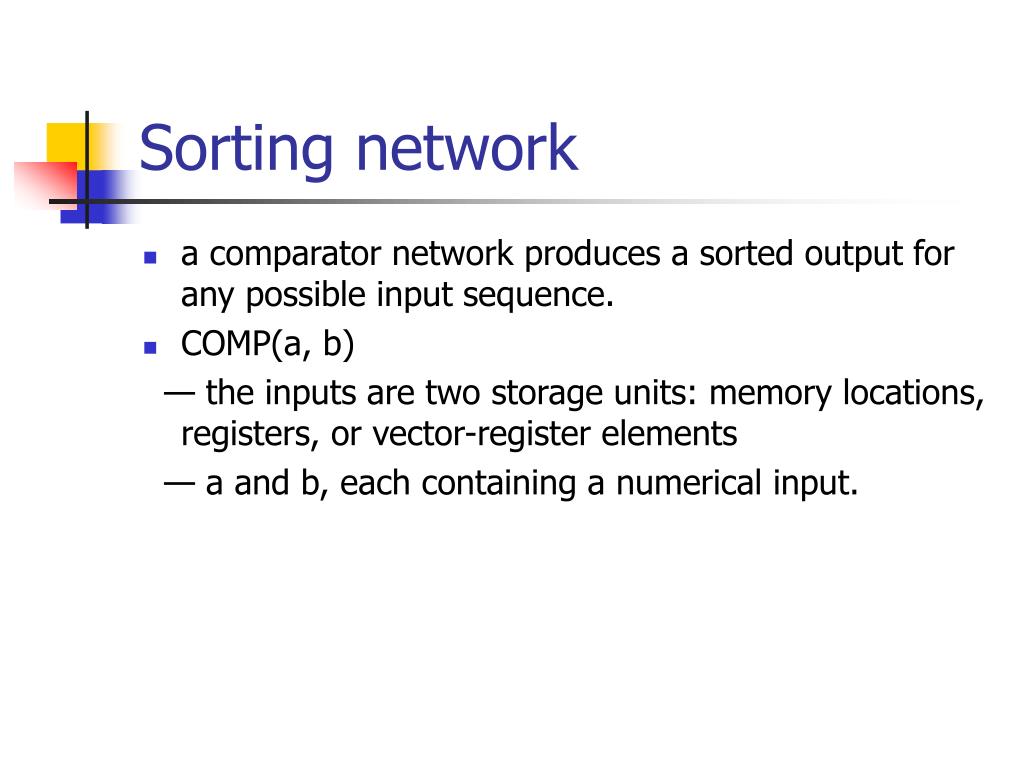

6. Sorting network • a comparator network produces a sorted output for any possible input sequence. • COMP(a, b) — the inputs are two storage units: memory locations, registers, or vector-register elements — a and b, each containing a numerical input.

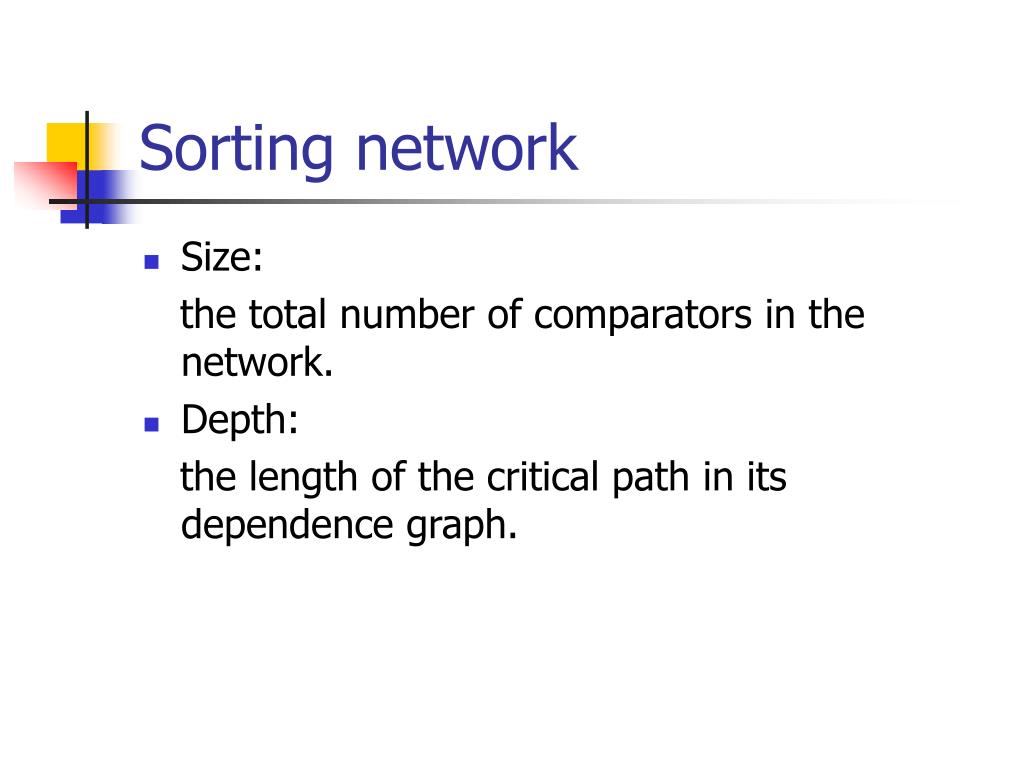

7. Sorting network • Size: the total number of comparators in the network. • Depth: the length of the critical path in its dependence graph.

8. Sorting network

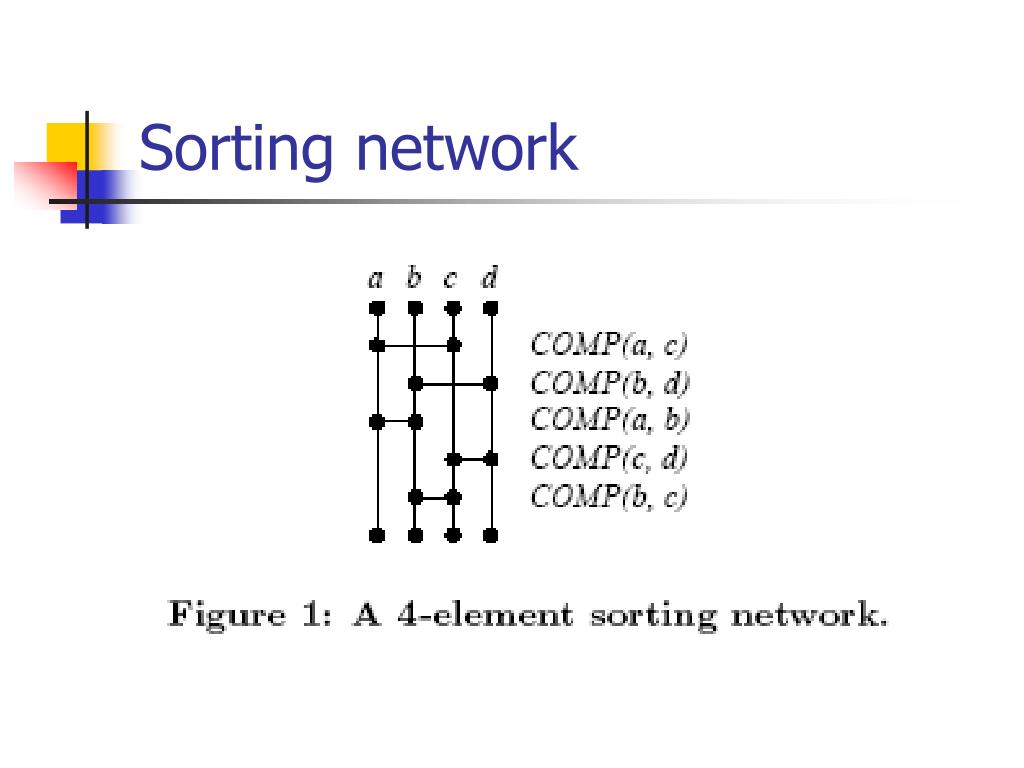

9. Sorting network • A comparator moves the larger value to the left, and the smaller value to the right. • For instance, Figure1 size=5,width=3; Inputs: a = 7, b = 2, c = 5, d = 9 Output: a = 9, b = 7, c = 5, d = 2.

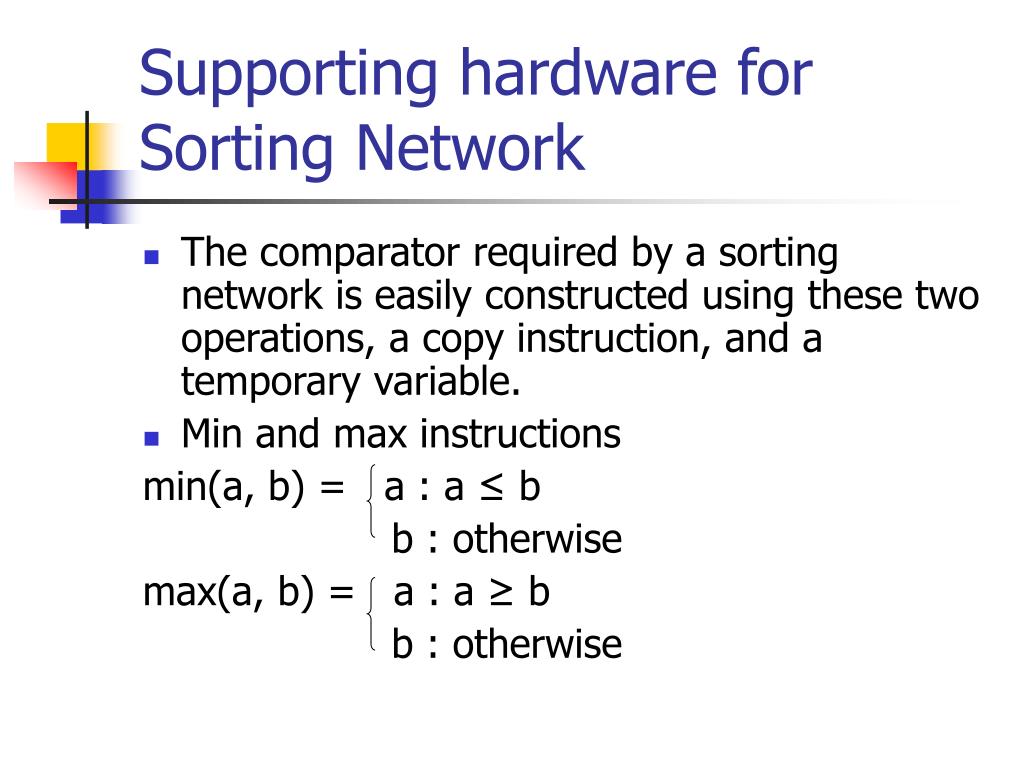

10. Supporting hardware for Sorting Network • The comparator required by a sorting network is easily constructed using these two operations, a copy instruction, and a temporary variable. • Min and max instructions min(a, b) = a : a ≤ b b : otherwise max(a, b) = a : a ≥ b b : otherwise

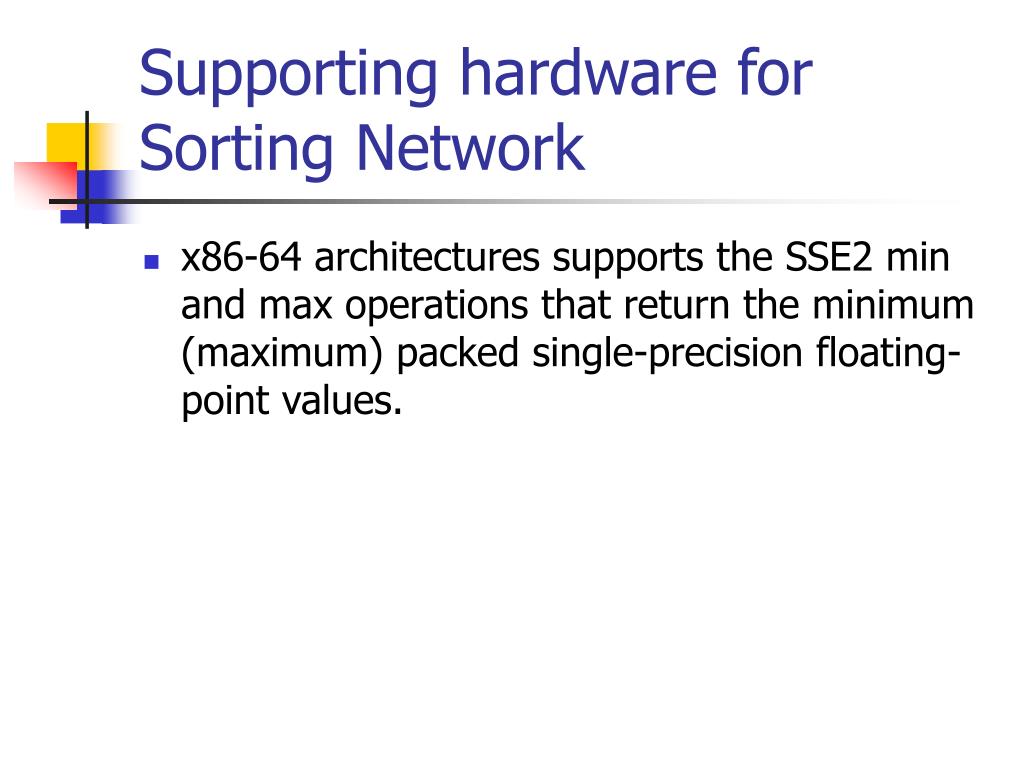

11. Supporting hardware for Sorting Network • x86-64 architectures supports the SSE2 min and max operations that return the minimum (maximum) packed single-precision floating-point values.

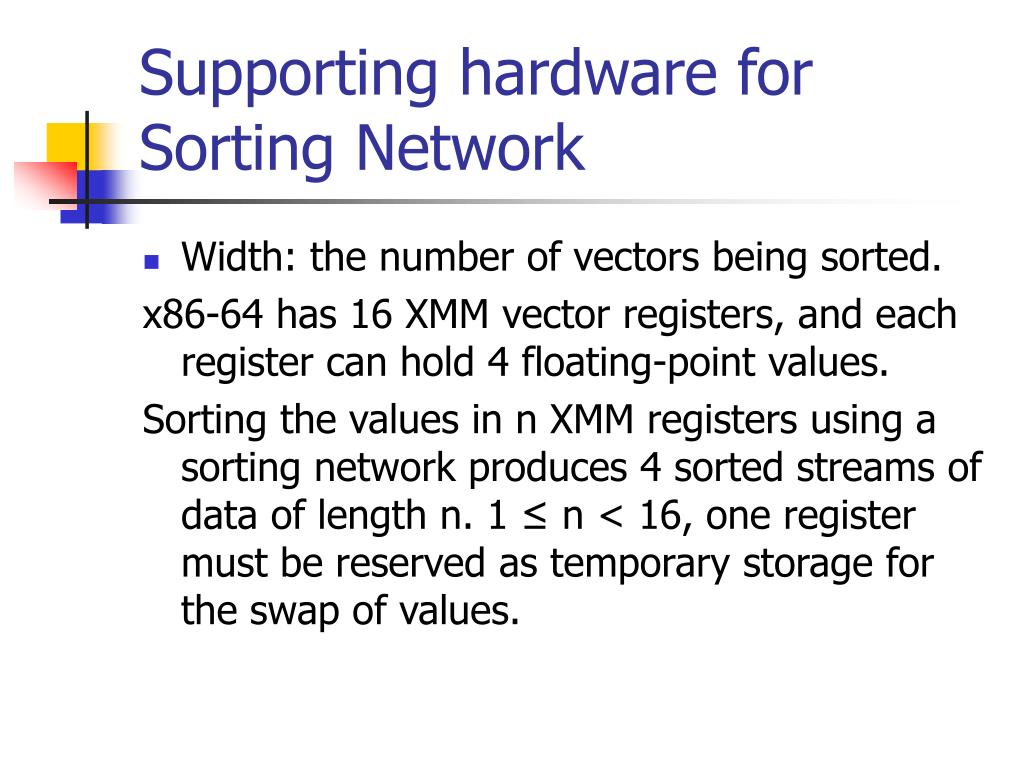

12. Supporting hardware for Sorting Network • Width: the number of vectors being sorted. x86-64 has 16 XMM vector registers, and each register can hold 4 floating-point values. Sorting the values in n XMM registers using a sorting network produces 4 sorted streams of data of length n. 1 ≤ n < 16, one register must be reserved as temporary storage for the swap of values.

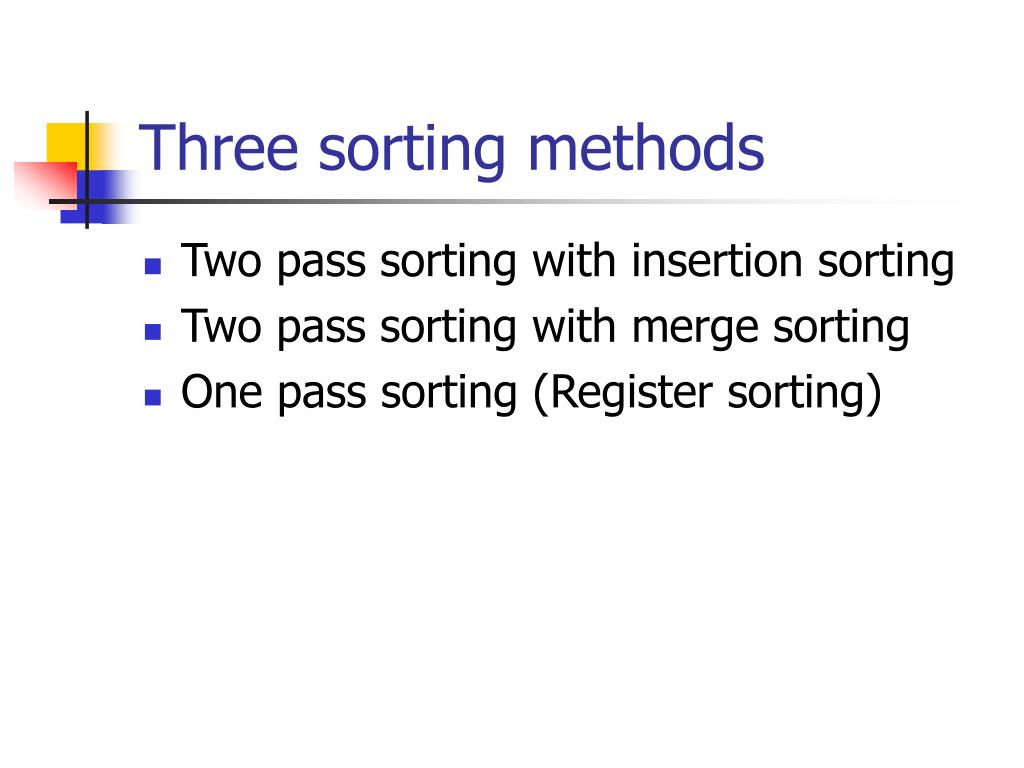

13. Three sorting methods • Two pass sorting with insertion sorting • Two pass sorting with merge sorting • One pass sorting (Register sorting)

14. Tow pass sorting • In the first phase the SIMD registers and instructions are used to generate a partially-sorted output. • In the second phase a standard sorting algorithm — insertion sort and mergesort are investigated in this paper — finishes the sorting.

15. First phase: SIMD sort Vector registers …… After SIMD sort:

16. Second phase • Insertion sort • Merge sort A1<A5<A9 A2<A6<A10 A3<A7<A11 A4<A8<A12 A1<A2<A3 A4<A5<A6 A7<A8<A9 A10<A11<A12

17. One pass sorting (Register sorting) • Algorithm input • Initial state • Align a set of comparators • Write values back to memory

18. 4-elements example • P1={comp(a,c) comp(b,d)} • P2={comp(a,b) comp(c,d)} • P3={comp(b,c)}

19. One concrete example

20. SSE2 instructions used

21. The method is also applied to sort Key-pointer pairs and D-heaps.

22. Evaluation

23. Contributions • Effectively use SIMD resources to improve performance of sorting short sequence through the reduction of memory references and increases in ILP.

24. Contributions • 1.three algorithms that use the SIMD machinery for efficient in-register sorting of short sequences • 2.a method to use iterative-deepening search to find fast instruction sequences to move data within the SIMD registers • 3.an extensive experimental study that indicates the elimination of loads, stores, branches correlates well with improvement performance.
