UNIVERSAL CUTTER GRINDER

KIP-U2 is the necessary machine to be equipped with the engraving milling machine.<br>It is applicable to grind and carve the end mill, engraver, and pins of various shapes and angles, which are used on engraving milling machines, engraving & marking machines, and pantograph machines.

kpoduct
Download Presentation

UNIVERSAL CUTTER GRINDER

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

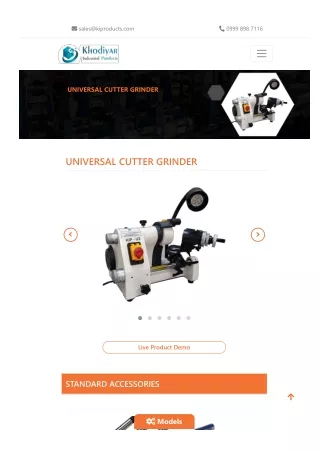

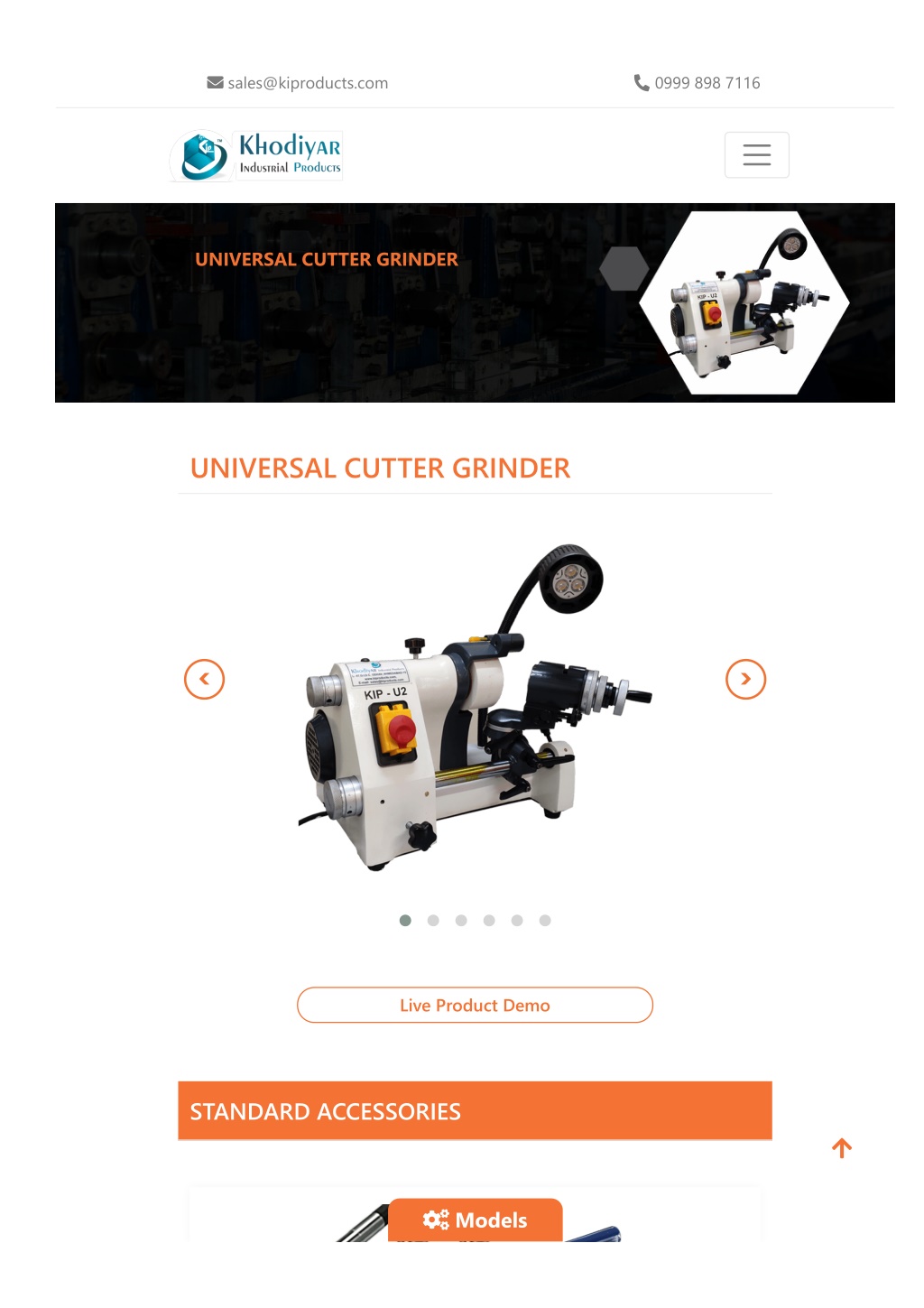

  1.  sales@kiproducts.com 0999 898 7116  UNIVERSAL CUTTER GRINDER UNIVERSAL CUTTER GRINDER ‹ › Live Product Demo STANDARD ACCESSORIES   Models

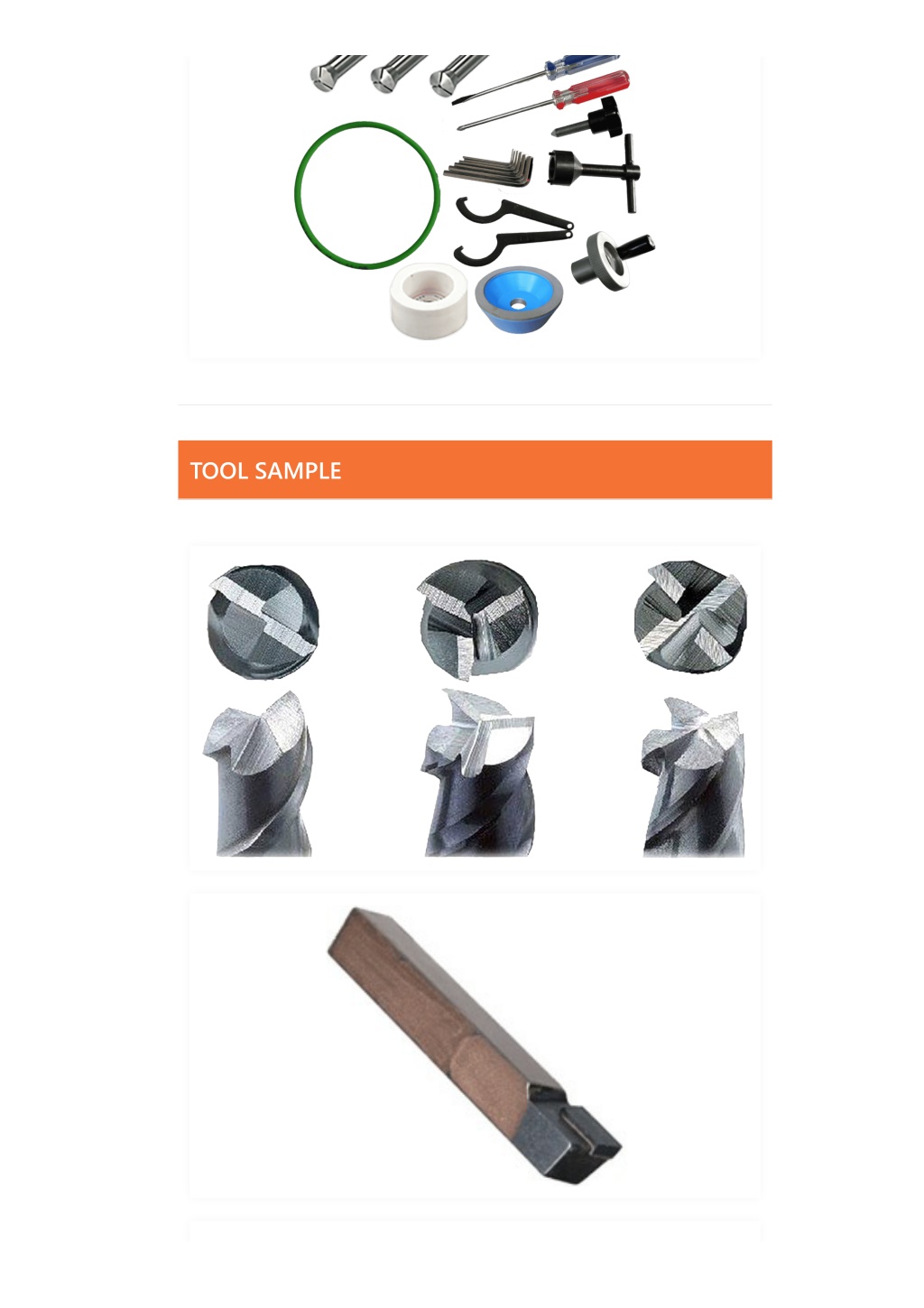

  2. TOOL SAMPLE

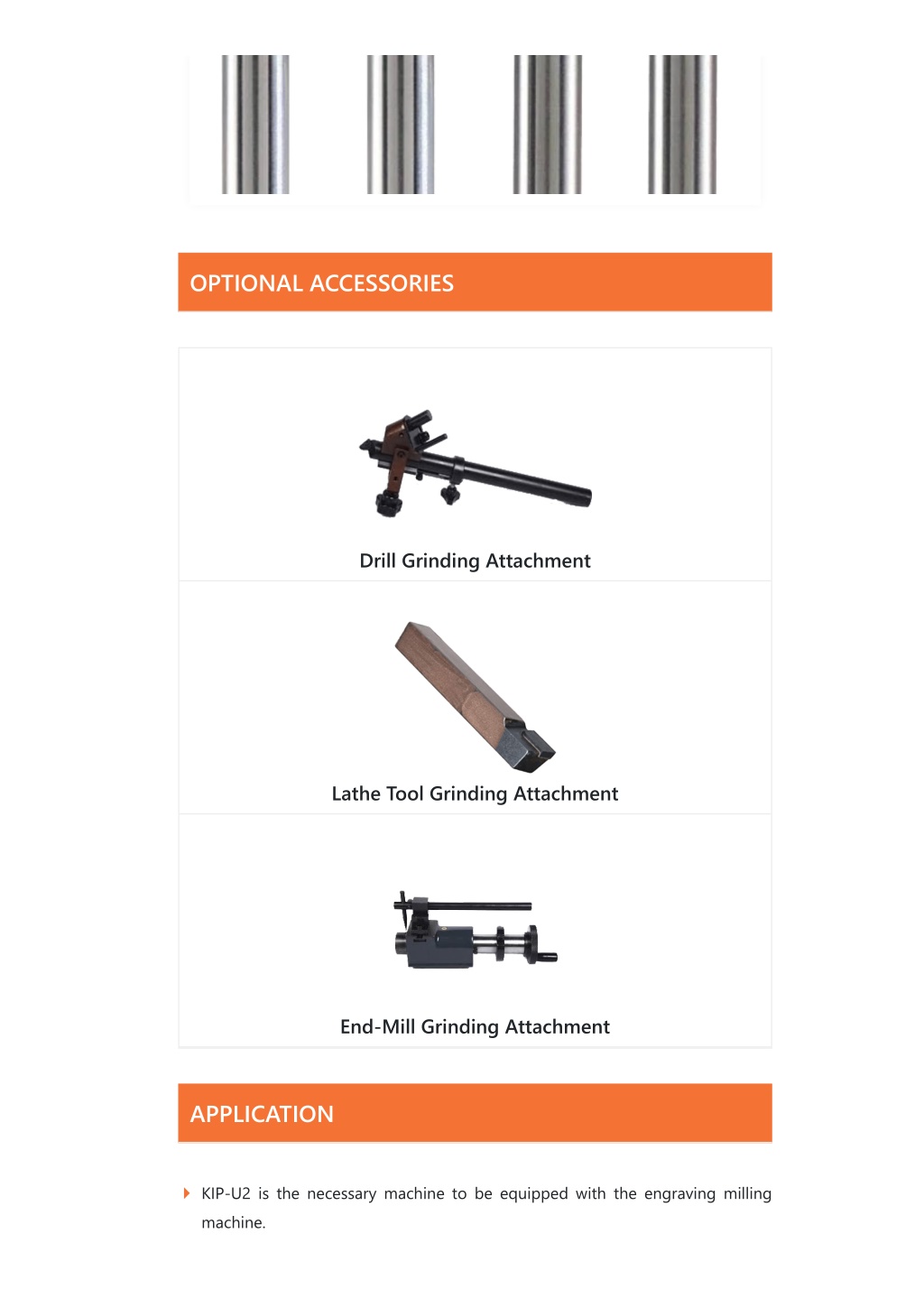

  3. OPTIONAL ACCESSORIES Drill Grinding Attachment Lathe Tool Grinding Attachment End-Mill Grinding Attachment APPLICATION KIP-U2 is the necessary machine to be equipped with the engraving milling machine.

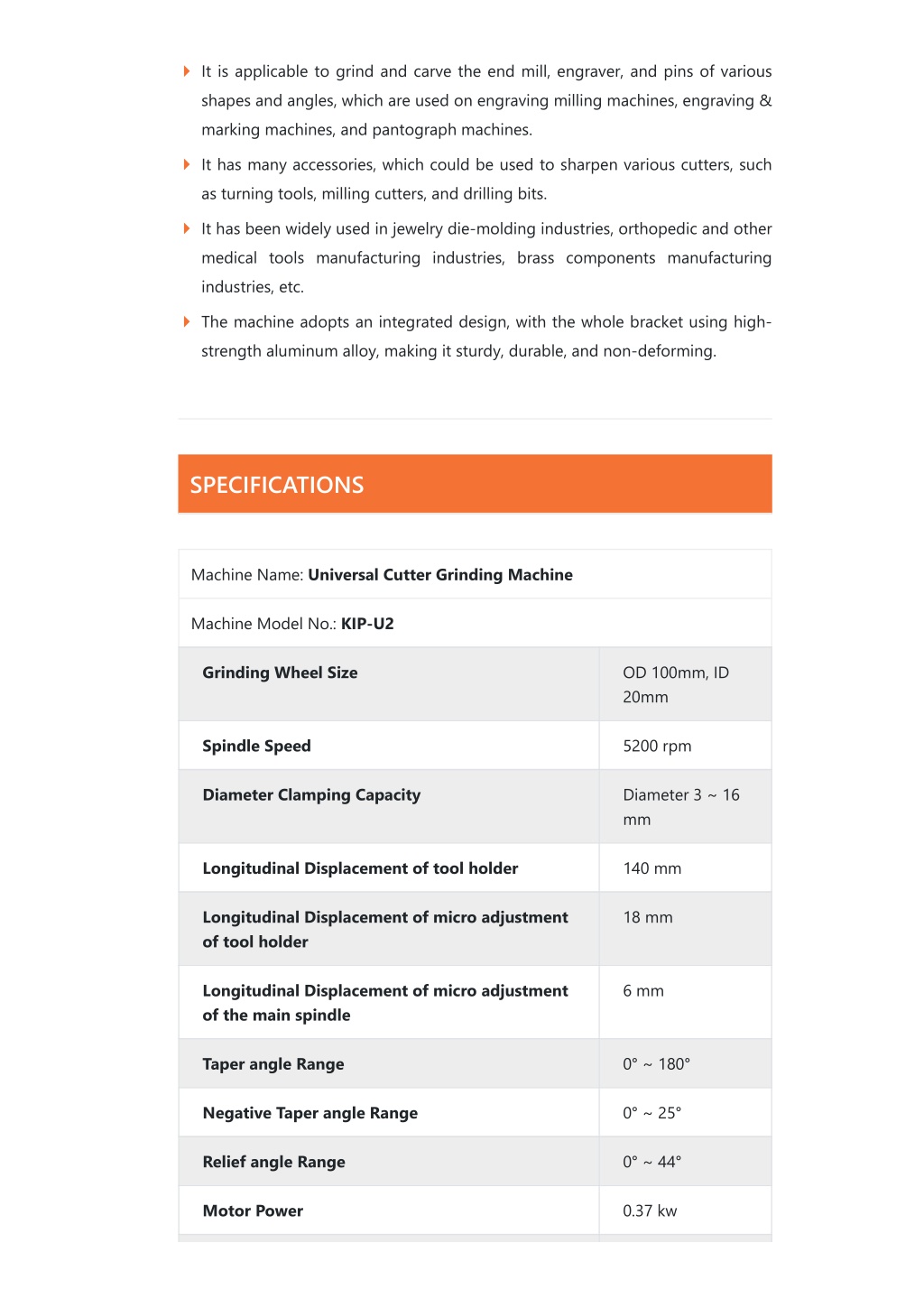

  4. It is applicable to grind and carve the end mill, engraver, and pins of various shapes and angles, which are used on engraving milling machines, engraving & marking machines, and pantograph machines. It has many accessories, which could be used to sharpen various cutters, such as turning tools, milling cutters, and drilling bits. It has been widely used in jewelry die-molding industries, orthopedic and other medical tools manufacturing industries, brass components manufacturing industries, etc. The machine adopts an integrated design, with the whole bracket using high- strength aluminum alloy, making it sturdy, durable, and non-deforming. SPECIFICATIONS Machine Name: Universal Cutter Grinding Machine Machine Model No.: KIP-U2 Grinding Wheel Size OD 100mm, ID 20mm Spindle Speed 5200 rpm Diameter Clamping Capacity Diameter 3 ~ 16 mm Longitudinal Displacement of tool holder 140 mm Longitudinal Displacement of micro adjustment of tool holder 18 mm Longitudinal Displacement of micro adjustment of the main spindle 6 mm Taper angle Range 0° ~ 180° Negative Taper angle Range 0° ~ 25° Relief angle Range 0° ~ 44° Motor Power 0.37 kw

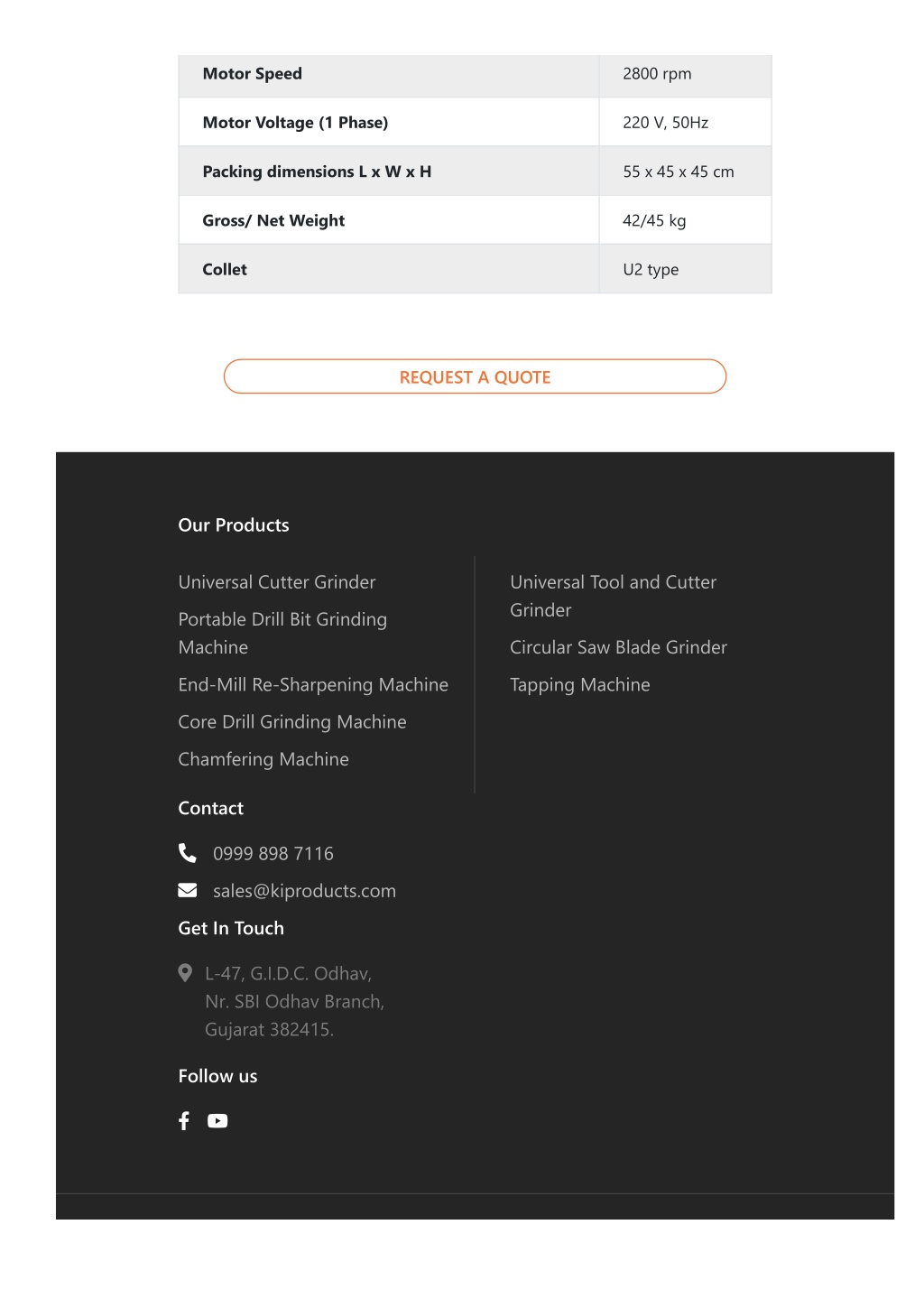

  5. Motor Speed 2800 rpm Motor Voltage (1 Phase) 220 V, 50Hz Packing dimensions L x W x H 55 x 45 x 45 cm Gross/ Net Weight 42/45 kg Collet U2 type REQUEST A QUOTE Our Products Universal Cutter Grinder Universal Tool and Cutter Grinder Portable Drill Bit Grinding Machine Circular Saw Blade Grinder End-Mill Re-Sharpening Machine Tapping Machine Core Drill Grinding Machine Chamfering Machine Contact 0999 898 7116   sales@kiproducts.com Get In Touch  L-47, G.I.D.C. Odhav, Nr. SBI Odhav Branch, Gujarat 382415. Follow us  

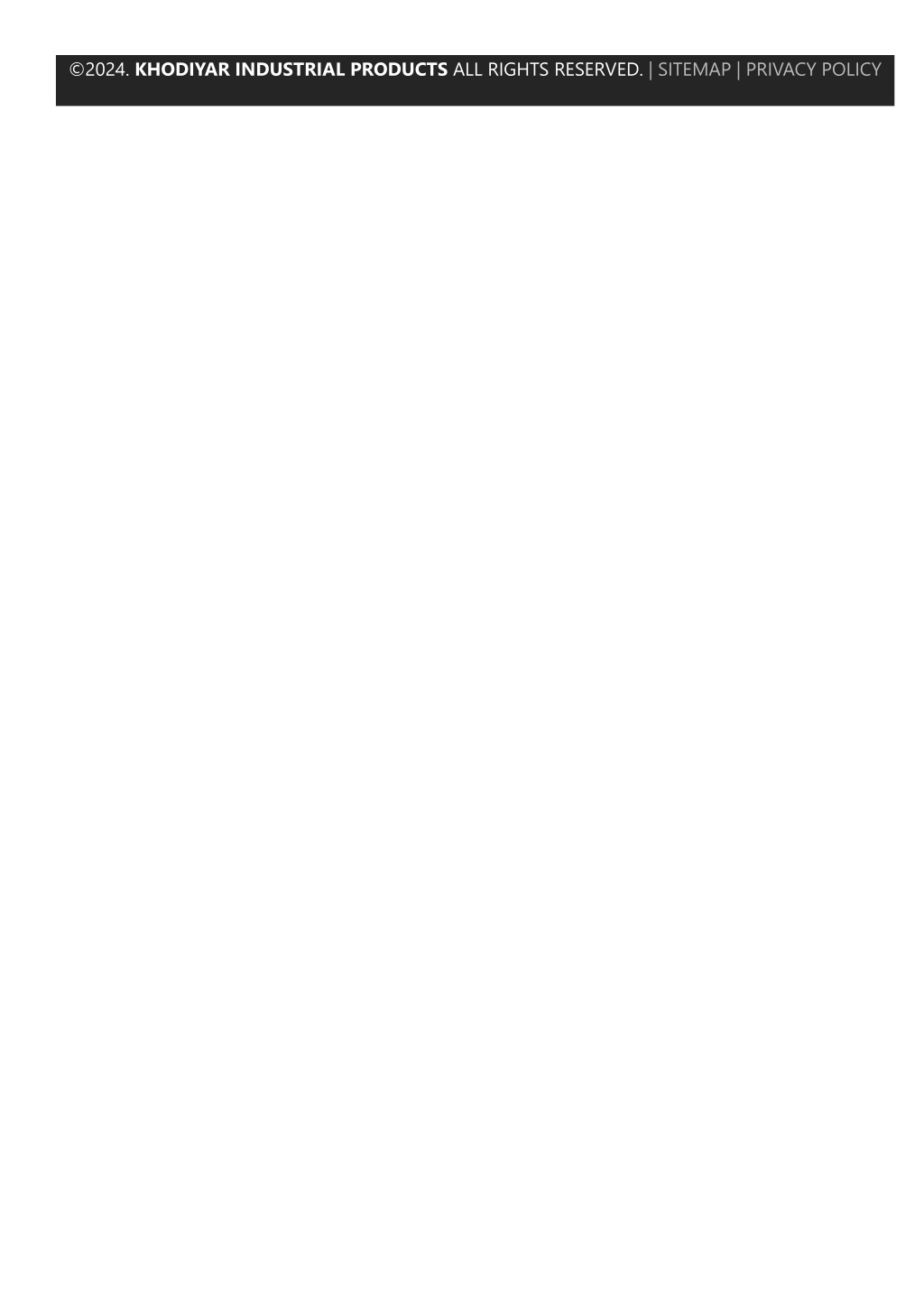

  6. ©2024. KHODIYAR INDUSTRIAL PRODUCTS ALL RIGHTS RESERVED. | SITEMAP | PRIVACY POLICY
