  1. Drinking Water in Barcelona Gabriela Cembrano IRI, CETAQUA

  2. Gabriela Cembrano Researcher at Institut de Robòtica i Informàtica Industrial (UPC-CSIC) Project Manager at CETAQUA

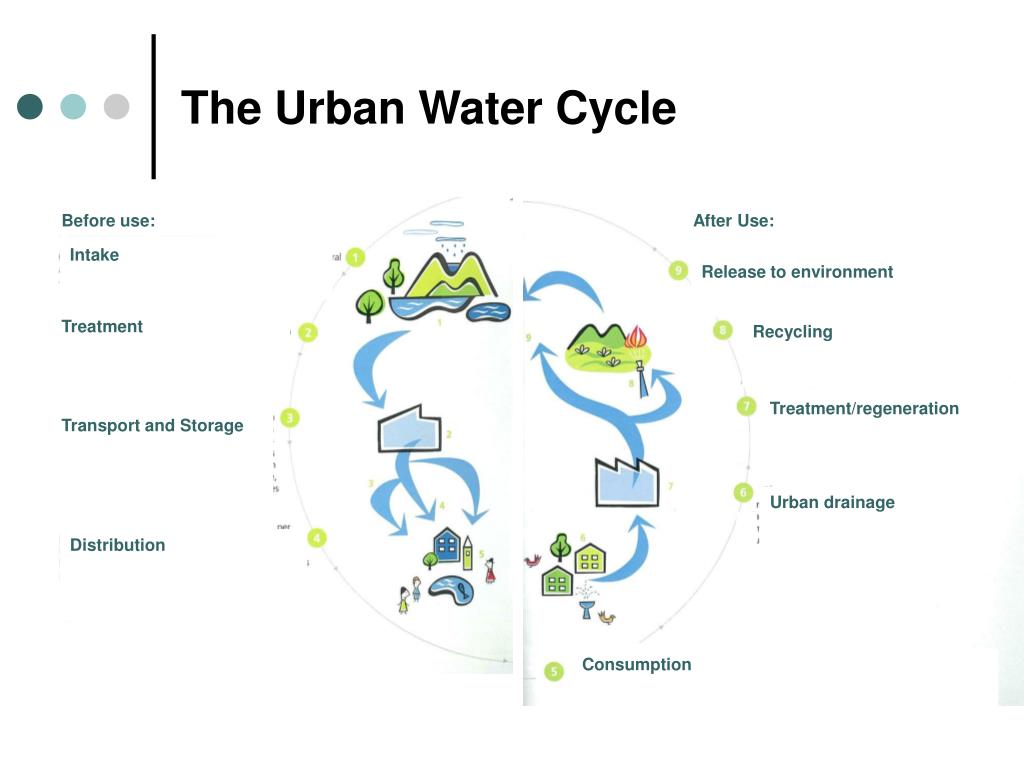

  3. Before use: After Use: Intake Release to environment Treatment Recycling Treatment/regeneration Transport and Storage Urban drainage Distribution Consumption The Urban Water Cycle

  4. 4 sources of supply Superficial water from Llobregat river Superficial water from Ter river Wells from Besòs river Underground water from Llobregat aquifer 2 WTP’s 1 WTP 1 WTP Desalinated sea water (2009) Water Supply in Barcelona

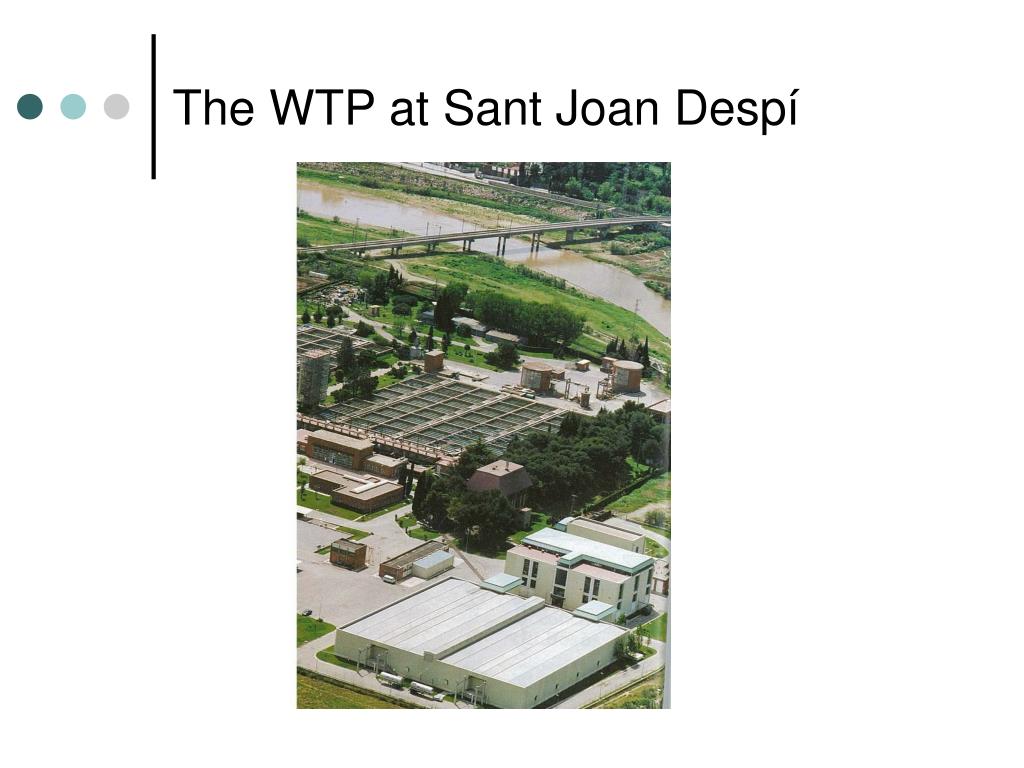

  5. The WTP at Sant Joan Despí

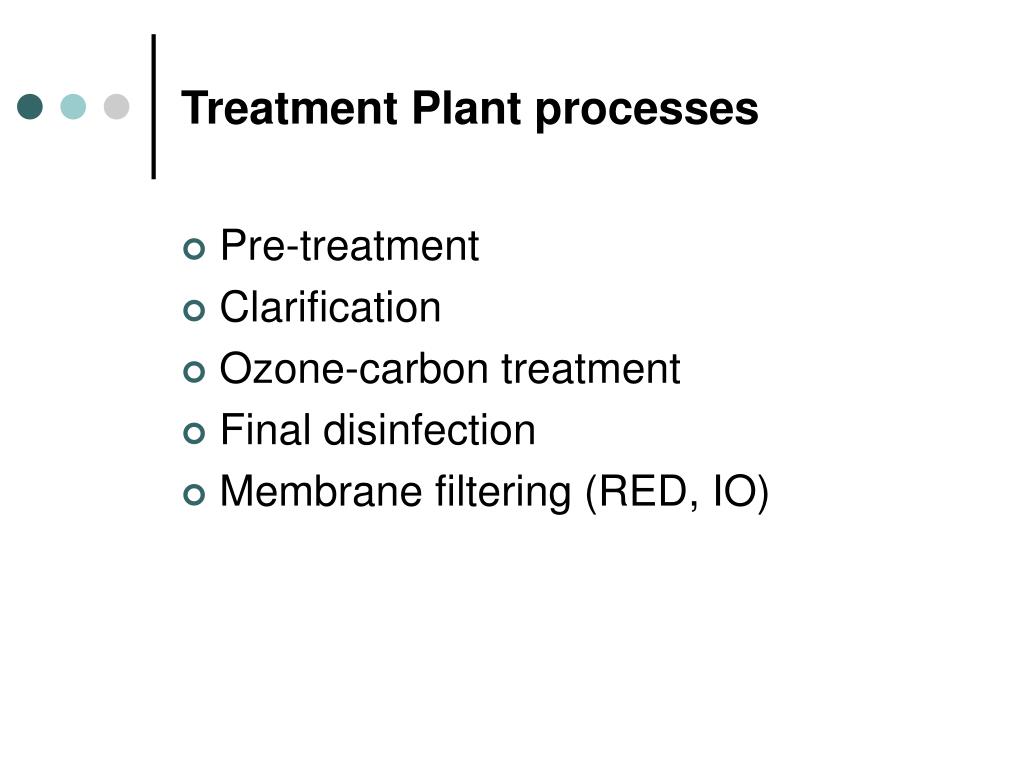

  6. Treatment Plant processes • Pre-treatment • Clarification • Ozone-carbon treatment • Final disinfection • Membrane filtering (RED, IO)

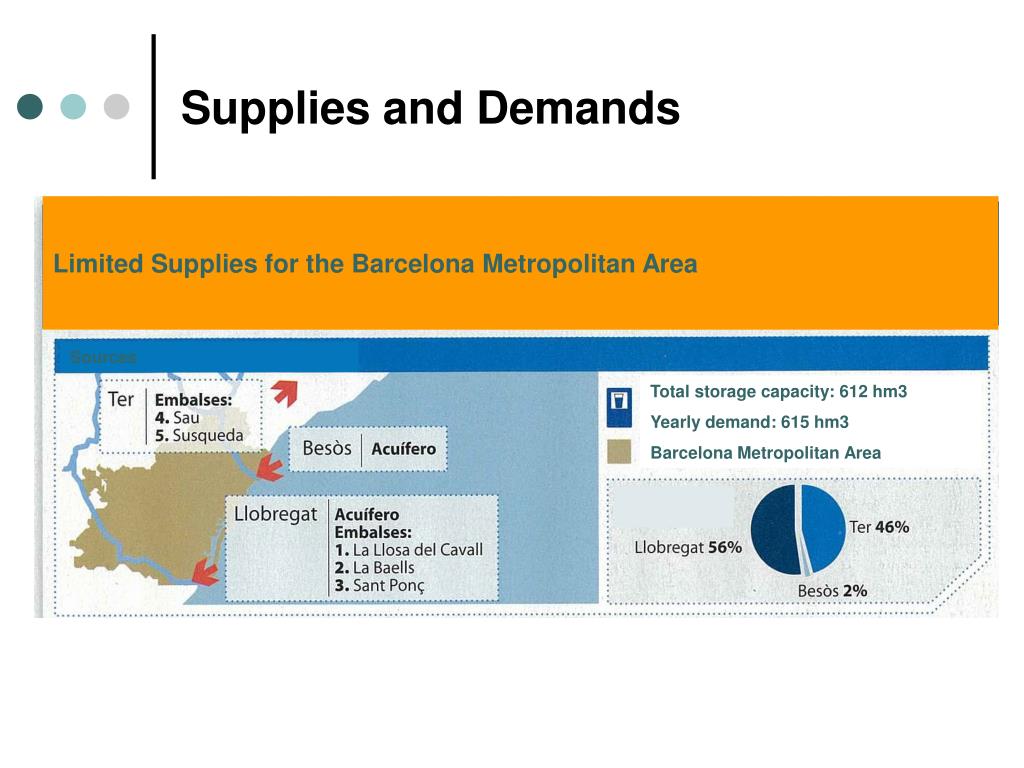

  7. Limited Supplies for the Barcelona Metropolitan Area Sources Total storage capacity: 612 hm3 Yearly demand: 615 hm3 Barcelona Metropolitan Area Supplies and Demands

  8. Reservoir Capacities Ratio yearly demand/ storage capacity approx 1!

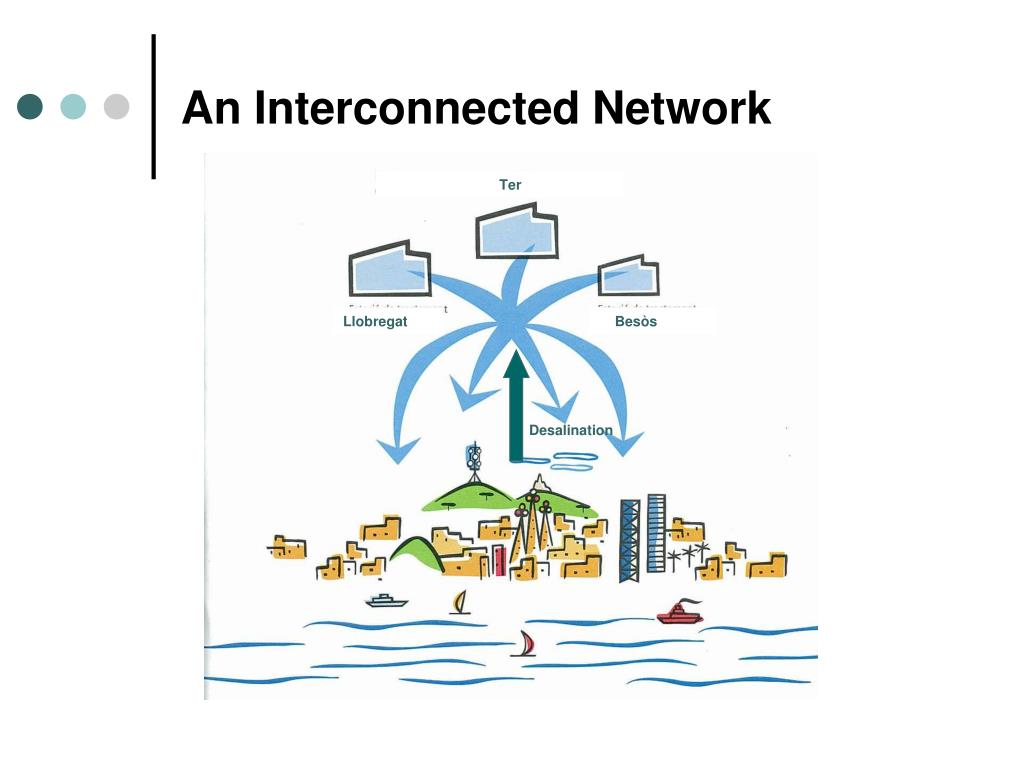

  9. Ter Llobregat Besòs Desalination An Interconnected Network

  10. A complex supply problem Problems of the Barcelona water system: • Semi-arid weather, limited availability • Limited infrastructure, no slackness • Poor water quality in one main supply • Low mineralization in desalinated water • Growing population and demand

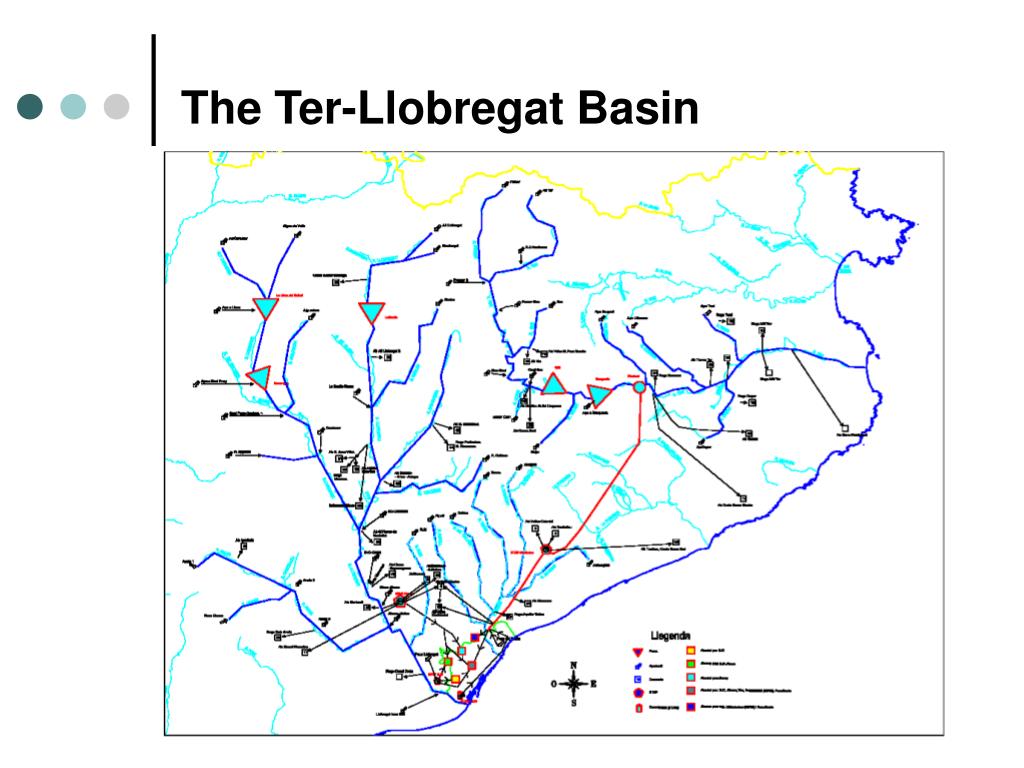

  11. The Ter-Llobregat Basin

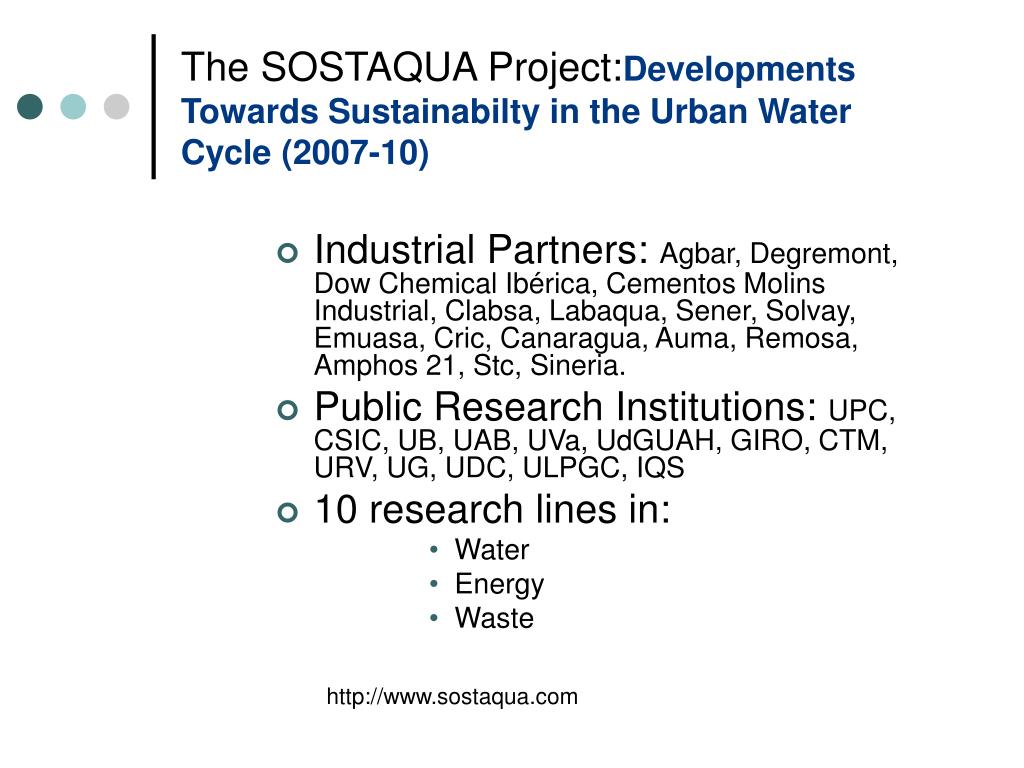

  12. The SOSTAQUA Project:Developments Towards Sustainabilty in the Urban Water Cycle (2007-10) • Industrial Partners: Agbar, Degremont, Dow Chemical Ibérica, Cementos Molins Industrial, Clabsa, Labaqua, Sener, Solvay, Emuasa, Cric, Canaragua, Auma, Remosa, Amphos 21, Stc, Sineria. • Public Research Institutions: UPC, CSIC, UB, UAB, UVa, UdGUAH, GIRO, CTM, URV, UG, UDC, ULPGC, IQS • 10 research lines in: • Water • Energy • Waste http://www.sostaqua.com

  13. Work lines in SOSTAQUA

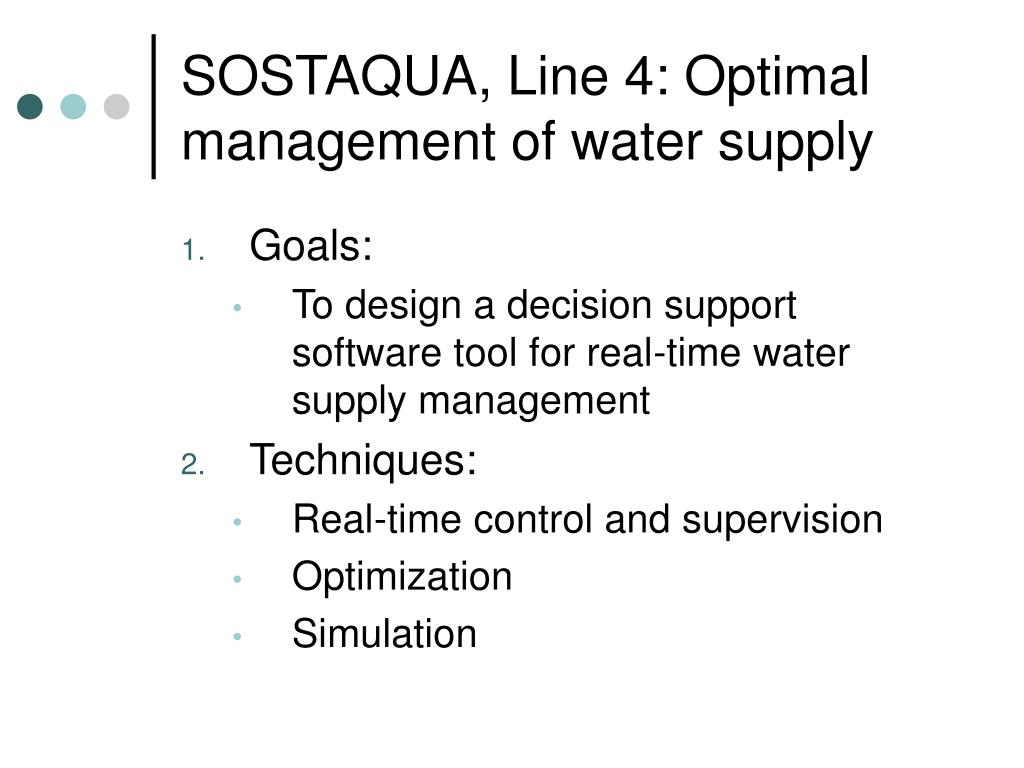

  14. SOSTAQUA, Line 4: Optimal management of water supply • Goals: • To design a decision support software tool for real-time water supply management • Techniques: • Real-time control and supervision • Optimization • Simulation

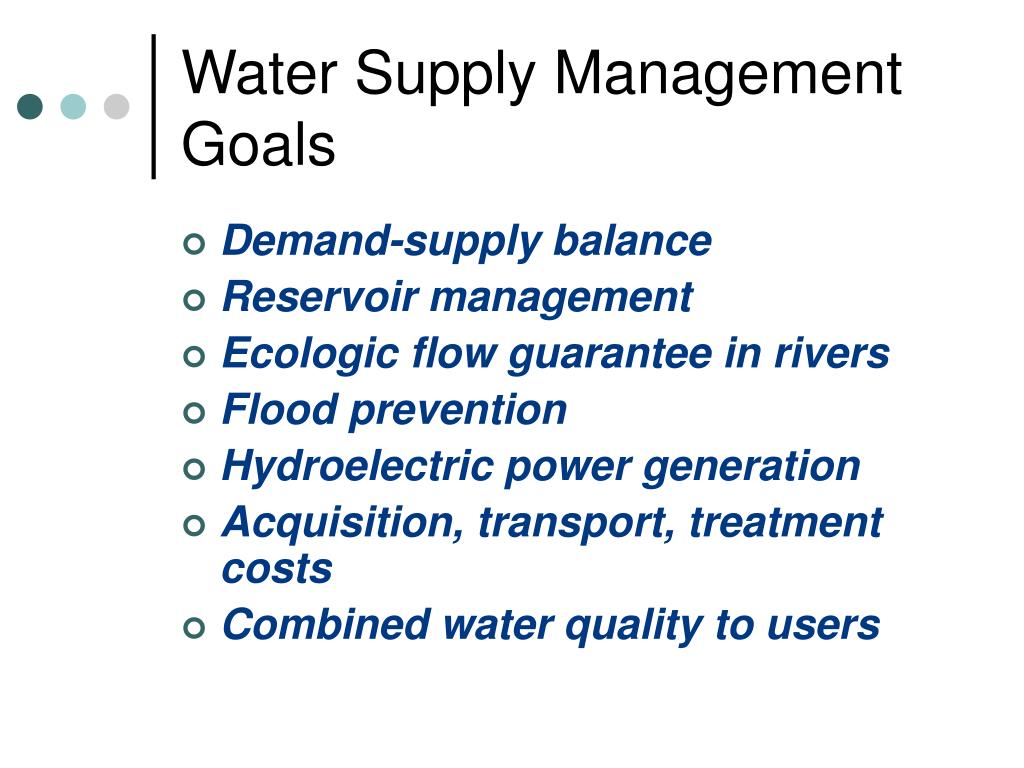

  15. Water Supply Management Goals • Demand-supply balance • Reservoir management • Ecologic flow guarantee in rivers • Flood prevention • Hydroelectric power generation • Acquisition, transport, treatment costs • Combined water quality to users

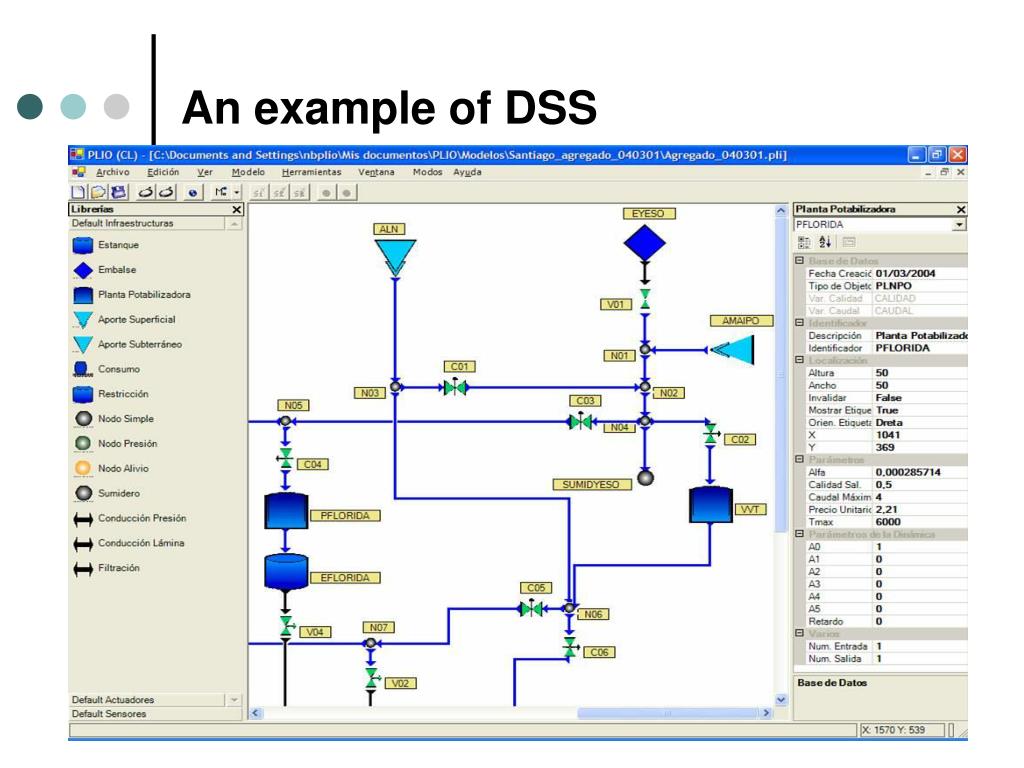

  16. An example of DSS

  17. Conclusions Water supply in Barcelona involves challenges: • Social • Quality-of-service • Economic • Energetic • Environmental
