  1. Random Numbers in GAUDI Requirements Interface Usage

  2. Requirements • Distinguish between generator and distribution • Flexibility • Change the random number generator if necessary • No need to change user code • Generate any distribution using a single generator • Reproducibility • Start simulation at any point • Initialization at each event • Set the seed necessary to restart GAUDI

  3. Architecture RndmGenSvc owns & initializes Distribution: Gauss owns uses RndmEngine RndmGen GAUDI

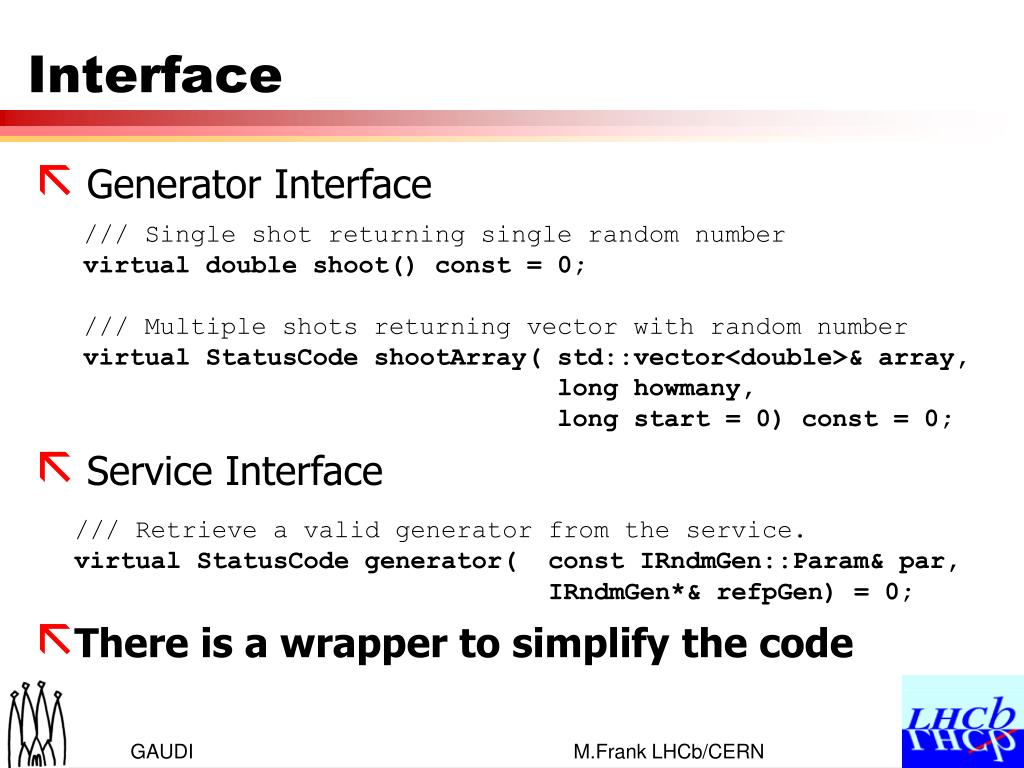

  4. Interface • Generator Interface • Service Interface • There is a wrapper to simplify the code /// Single shot returning single random number virtual double shoot() const = 0; /// Multiple shots returning vector with random number virtual StatusCode shootArray( std::vector<double>& array, long howmany, long start = 0) const = 0; /// Retrieve a valid generator from the service. virtual StatusCode generator( const IRndmGen::Param& par, IRndmGen*& refpGen) = 0; GAUDI

  5. IRndmGen::Param ???!!! • Defines the shape of the generated distribution • Rndm::Bit() • Rndm::Flat(double mi, double ma) • Rndm::Gauss(double mean, double sigma) • Rndm::Poisson(double mean) • Rndm::Binomial(long n, double p) • Rndm::Exponential(double mean) • Rndm::Chi2(long n_dof) • Rndm::BreitWigner(double mean, double gamma) • Rndm::BreitWignerCutOff (mean, gamma, cut-off) • Rndm::Landau(double mean, double sigma) • Rndm::DefinedPdf(const std::vector<double>& pdf, long intpol) See Gaudi/RandmGenSvc/RndmGenerators.h GAUDI

  6. Local Usage • I just need a number how do I get it quickly ? • Needs to be initialized for every event • There are some useful examples, but not always! #include “Gaudi/RandmGenSvc/RndmGenerators.h” Rndm::Numbers gauss(randSvc(), Rndm::Gauss(0.5,0.2)); if ( gauss ) { IHistogram1D* his = histoSvc()->book(); for ( long i = 0; i < 5000; i++ ) his->fill(gauss(), 1.0); } GAUDI

  7. Global Usage • Get the generator once, then keep it! • In the header file or your algorithm: • In myAlgorithm::initialize • In myAlgorithm::execute: use it! #include “Gaudi/RandmGenSvc/RndmGenerators.h” class myAlgorithm : public Algorithm { Rndm::Numbers m_gaussDist; StatusCode sc = m_gaussDist.initialize( randSvc(), Rndm::Gauss(0.5,0.2)); his->fill(m_gaussDist(), 1.0); GAUDI

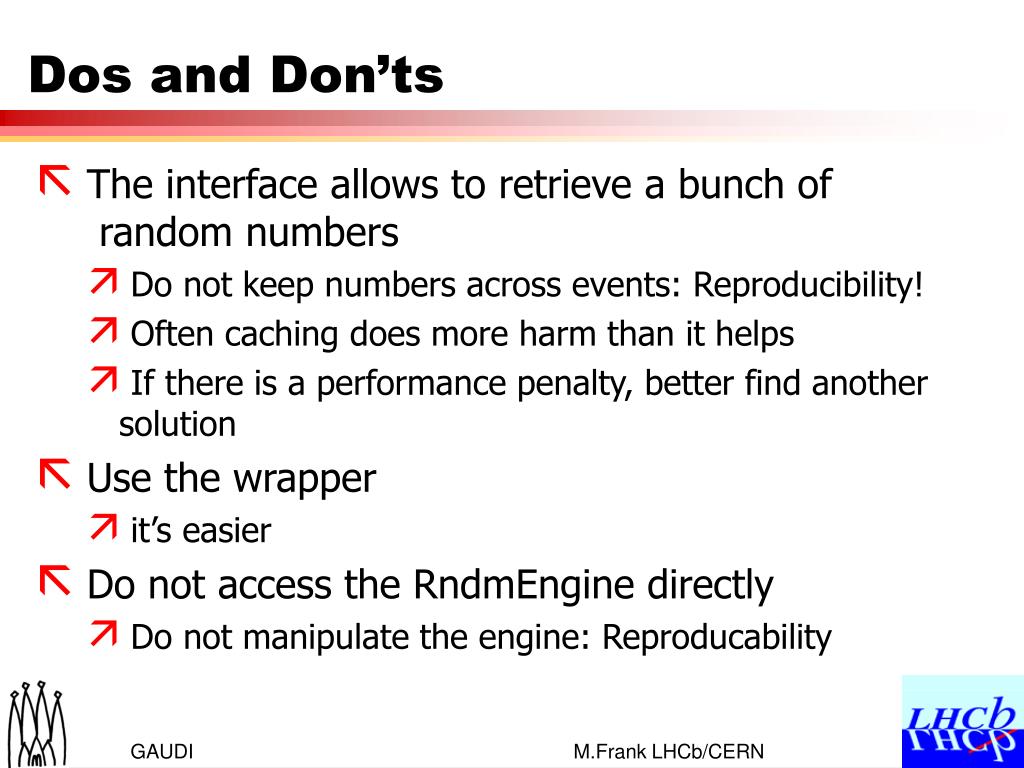

  8. Dos and Don’ts • The interface allows to retrieve a bunch of random numbers • Do not keep numbers across events: Reproducibility! • Often caching does more harm than it helps • If there is a performance penalty, better find another solution • Use the wrapper • it’s easier • Do not access the RndmEngine directly • Do not manipulate the engine: Reproducability GAUDI

  9. Summary • Random generator is flexible • Many distributions possible • Easy to use • Wrapper is straight forward • Wrapper can be used with STL: operator() • Allows to be initialized by the framework in a way to ensure reproducability • As long as everyone sticks to the rules GAUDI

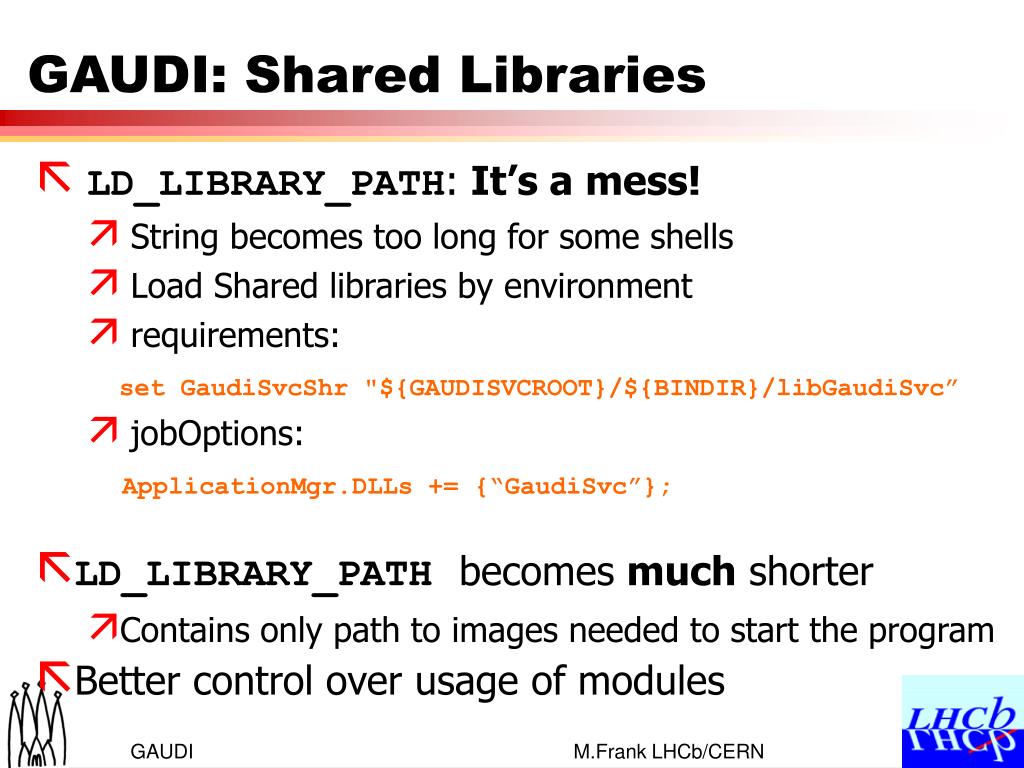

  10. GAUDI: Shared Libraries • LD_LIBRARY_PATH: It’s a mess! • String becomes too long for some shells • Load Shared libraries by environment • requirements: set GaudiSvcShr "${GAUDISVCROOT}/${BINDIR}/libGaudiSvc” • jobOptions: ApplicationMgr.DLLs += {“GaudiSvc”}; • LD_LIBRARY_PATHbecomes much shorter • Contains only path to images needed to start the program • Better control over usage of modules GAUDI

  11. GAUDI: CMT requirements • Include path • Instead of include_dirs $(GAUDISVCROOT) • Do the following for component libraries include_path none • Or for public libraries: include_path $(GAUDISVCROOT) • This shortens the compile statement(s) dramatically GAUDI
