Presentation Transcript

  1. Level of dye release

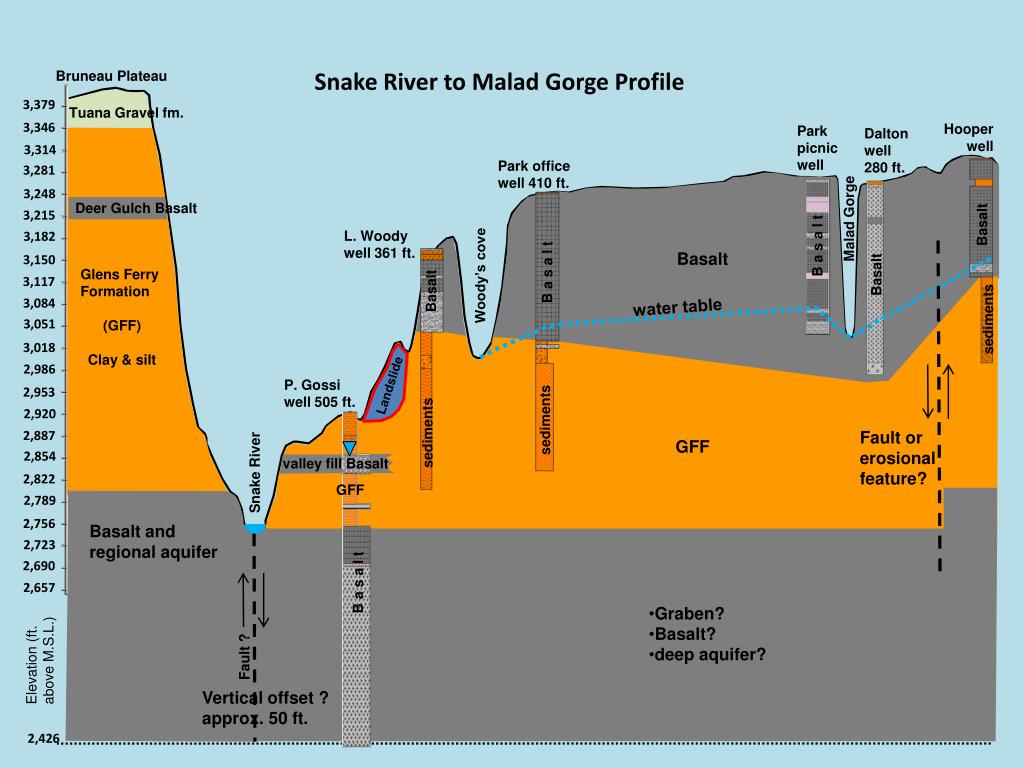

  2. Hooper well Dalton well L a n d s l I d e s Malad Gorge Pillow outcrop Park picnic well GFF outcrop landslides L a n d s l I d e s Park office well landslide Snake River Woody’s Cove Bruneau Plateau Gossi well Woody well L a n d s l I d e s landslide
