Presentation Transcript

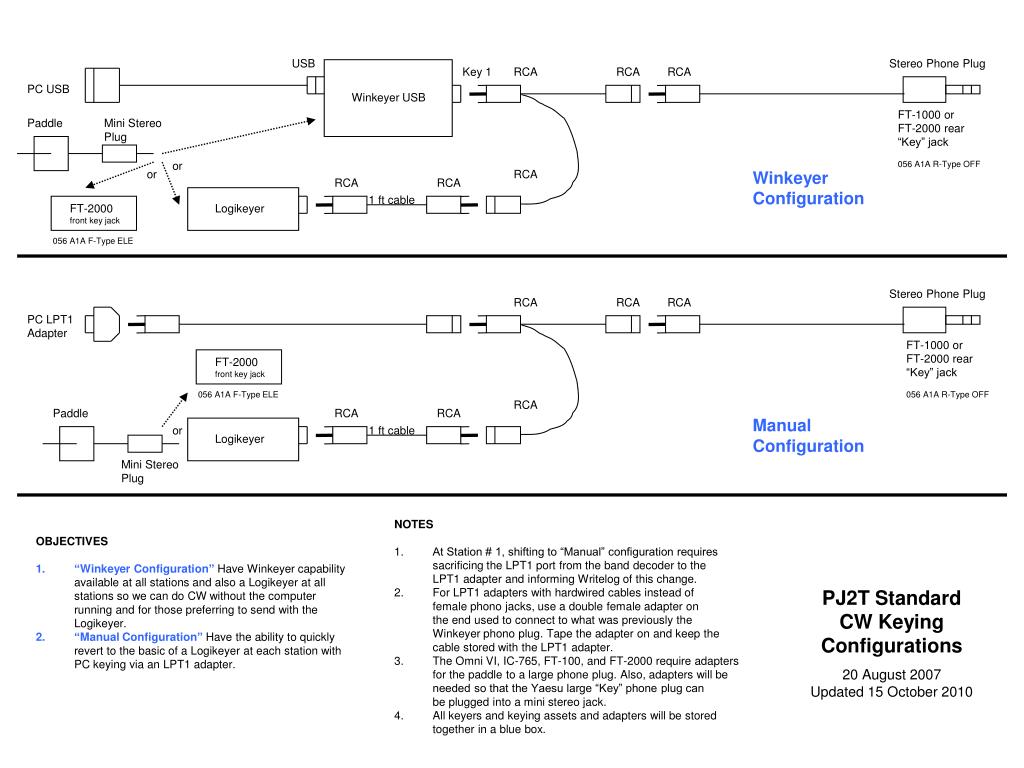

slide1
USB

Stereo Phone Plug

Key 1

RCA

RCA

RCA

PC USB

Winkeyer USB

FT-1000 or

FT-2000 rear

“Key” jack

Paddle

Mini StereoPlug

or

056 A1A R-Type OFF

or

RCA

WinkeyerConfiguration

RCA

RCA

1 ft cable

FT-2000front key jack

Logikeyer

056 A1A F-Type ELE

Stereo Phone Plug

RCA

RCA

RCA

PC LPT1Adapter

FT-1000 or

FT-2000 rear

“Key” jack

FT-2000front key jack

056 A1A F-Type ELE

056 A1A R-Type OFF

RCA

Paddle

RCA

RCA

ManualConfiguration

or

1 ft cable

Logikeyer

Mini StereoPlug

  • NOTES
  • At Station # 1, shifting to “Manual” configuration requiressacrificing the LPT1 port from the band decoder to the LPT1 adapter and informing Writelog of this change.
  • For LPT1 adapters with hardwired cables instead offemale phono jacks, use a double female adapter onthe end used to connect to what was previously theWinkeyer phono plug. Tape the adapter on and keep thecable stored with the LPT1 adapter.
  • The Omni VI, IC-765, FT-100, and FT-2000 require adaptersfor the paddle to a large phone plug. Also, adapters will beneeded so that the Yaesu large “Key” phone plug can be plugged into a mini stereo jack.
  • All keyers and keying assets and adapters will be stored together in a blue box.
  • OBJECTIVES
  • “Winkeyer Configuration” Have Winkeyer capabilityavailable at all stations and also a Logikeyer at allstations so we can do CW without the computerrunning and for those preferring to send with theLogikeyer.
  • “Manual Configuration” Have the ability to quickly revert to the basic of a Logikeyer at each station with PC keying via an LPT1 adapter.

PJ2T Standard CW Keying Configurations

20 August 2007Updated 15 October 2010
