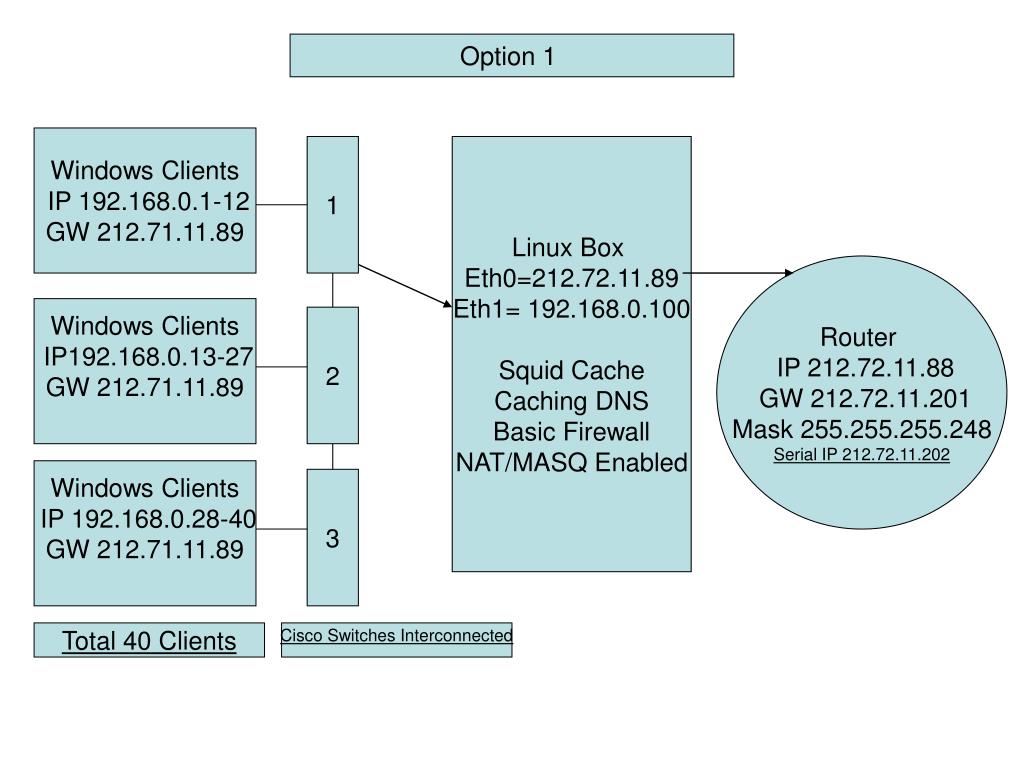

Option 1

Windows Clients

IP 192.168.0.1-12

GW 212.71.11.89

1

Linux Box

Eth0=212.72.11.89

Eth1= 192.168.0.100

Squid Cache

Caching DNS

Basic Firewall

NAT/MASQ Enabled

Router

IP 212.72.11.88

GW 212.72.11.201

Mask 255.255.255.248

Serial IP 212.72.11.202

Windows Clients

IP192.168.0.13-27

GW 212.71.11.89

2

Windows Clients

IP 192.168.0.28-40

GW 212.71.11.89

3

Total 40 Clients

Cisco Switches Interconnected

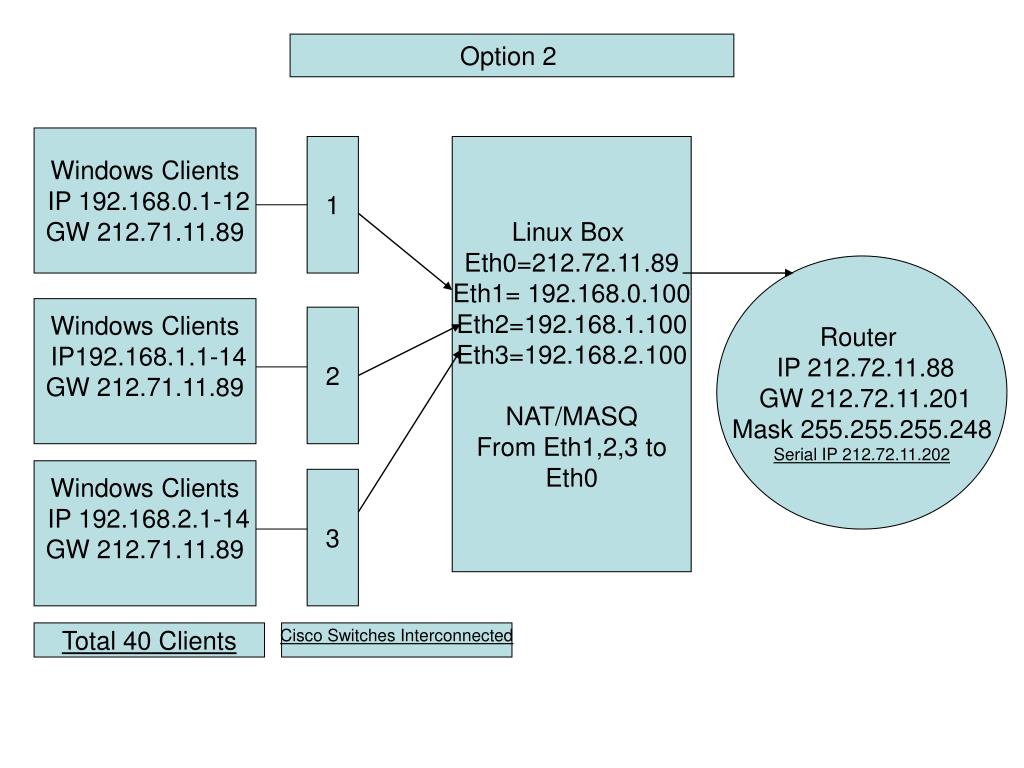

Option 2

Windows Clients

IP 192.168.0.1-12

GW 212.71.11.89

1

Linux Box

Eth0=212.72.11.89

Eth1= 192.168.0.100

Eth2=192.168.1.100

Eth3=192.168.2.100

NAT/MASQ

From Eth1,2,3 to

Eth0

Router

IP 212.72.11.88

GW 212.72.11.201

Mask 255.255.255.248

Serial IP 212.72.11.202

Windows Clients

IP192.168.1.1-14

GW 212.71.11.89

2

Windows Clients

IP 192.168.2.1-14

GW 212.71.11.89

3

Total 40 Clients

Cisco Switches Interconnected
