    1. Chapter 5 – AP Chemistry Gases

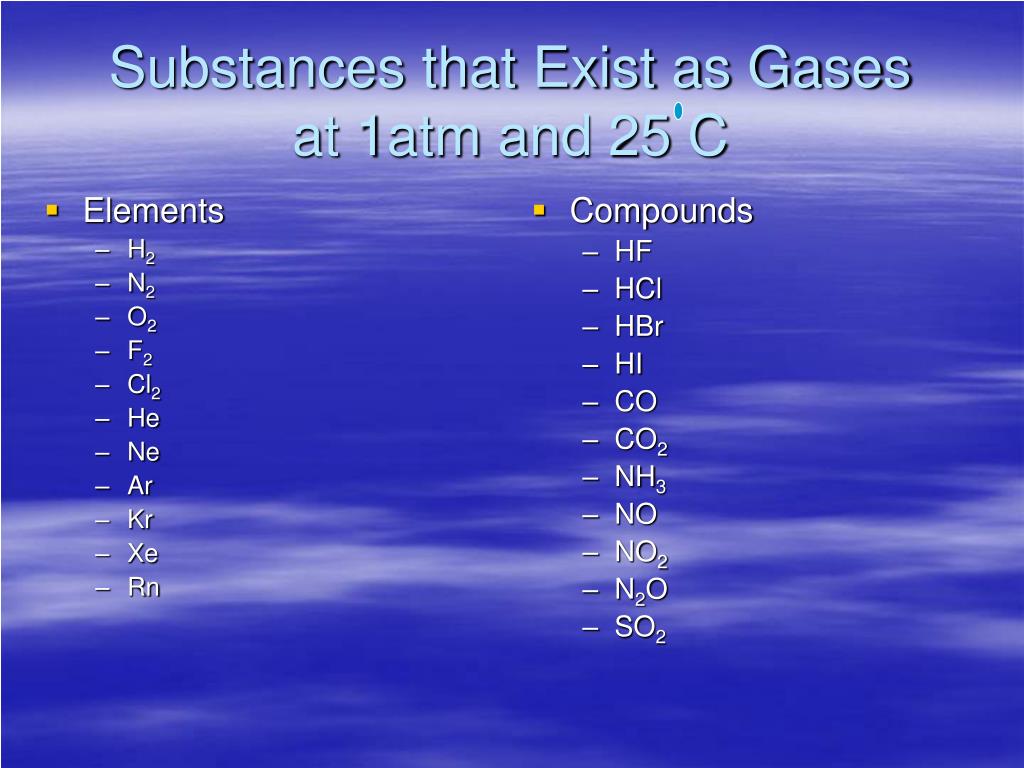

    2. Elements H2 N2 O2 F2 Cl2 He Ne Ar Kr Xe Rn Compounds HF HCl HBr HI CO CO2 NH3 NO NO2 N2O SO2 Substances that Exist as Gasesat 1atm and 25 C

    3. All Gases have the following Physical Properties • Assume the volume and shape of their containers • Are the most compressible of the states of matter • Will mix evenly and completely when confined to the same container • Have much lower densities than liquids and solids

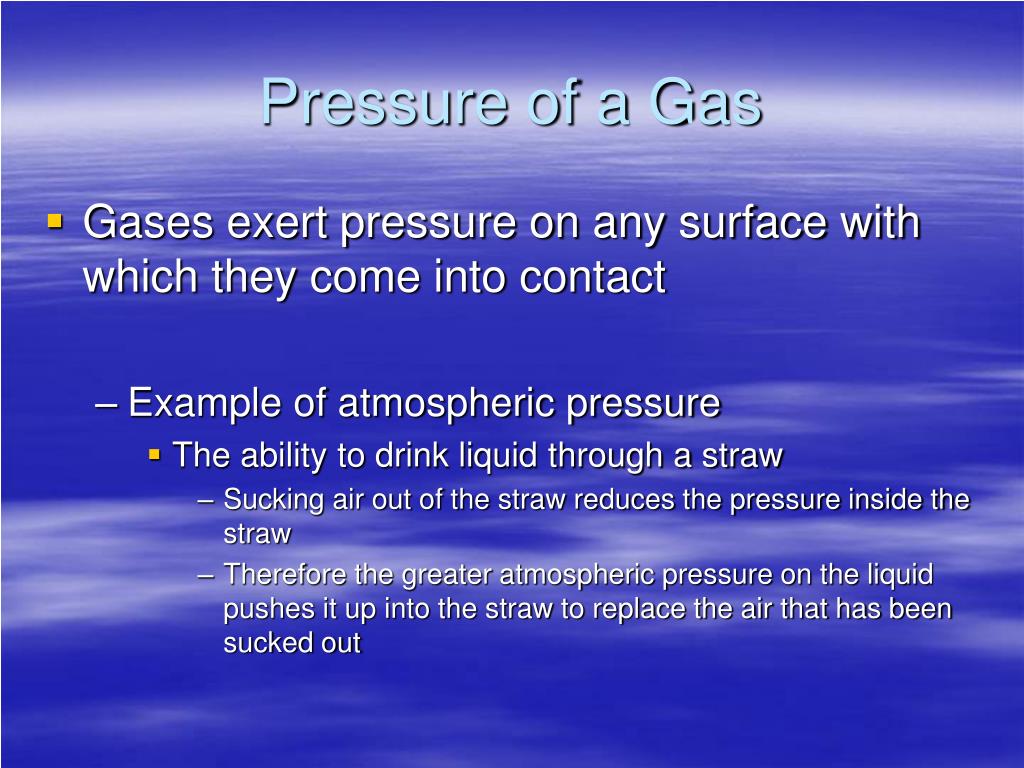

    4. Pressure of a Gas • Gases exert pressure on any surface with which they come into contact • Example of atmospheric pressure • The ability to drink liquid through a straw • Sucking air out of the straw reduces the pressure inside the straw • Therefore the greater atmospheric pressure on the liquid pushes it up into the straw to replace the air that has been sucked out

    5. Atmospheric PressureThe pressure exerted by Earth’s atmosphere • Atoms and molecules are subjected to earth’s gravitational pull • Therefore, the atmosphere is much denser near the surface of the earth • The denser the air is the greater the pressure

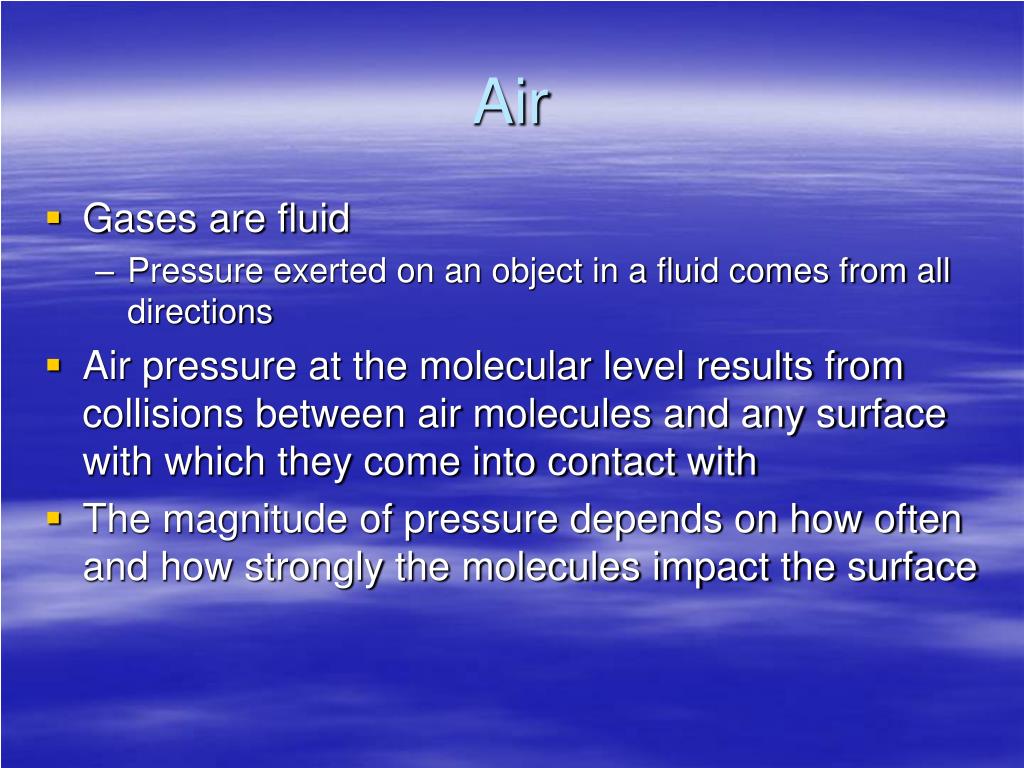

    6. Air • Gases are fluid • Pressure exerted on an object in a fluid comes from all directions • Air pressure at the molecular level results from collisions between air molecules and any surface with which they come into contact with • The magnitude of pressure depends on how often and how strongly the molecules impact the surface

    7. Gas Laws • Boyle’s Law • P1V1 = P2V2 • Charles’s Law • V1/T1 = V2/T2 • Gay – Lussac’s Law • P1/T1 = P2/T2 • Combined Gas Law • P1V1/T1 = P2V2/T2

    8. Combined Gas Law • A small bubble rises from the bottom of a lake, where the temperature and pressure are 8 degrees Celsius and 6.4atm, to the water’s surface, where the temperature is 25 degrees Celsius and pressure is 1.0 atm. Calculate the final volume of the bubble if its initial volume was 2.1ml.

    9. Ideal Gas Law • PV=nRT • R = .0821L*atm/K*mol • Volume in L • Pressure in atm • n in moles • Temperature in Kelvin • Sulfur hexafluoride is a colorless, odorless, very unreactive gas. Calculate the pressure exerted by 84g of the gas in a steel vessel of a volume 6.09L and 55 degrees Celcius.

    10. Ideal Gas Law • Calculate the volume occupied by 14.2g of NH3 atSTP. (Hint 22.4L = 1mol)

    11. Gas Stoichiometry • Same a basic reaction chemistry • Please note: 1mole = 22.4L can only be used when the chemical reaction is at STP • If the reaction is at STP, after moles of the unknown are calculated, then the moles can be converted to liters • If the reaction is NOT at STP then you must use ideal gas law to solve for volume

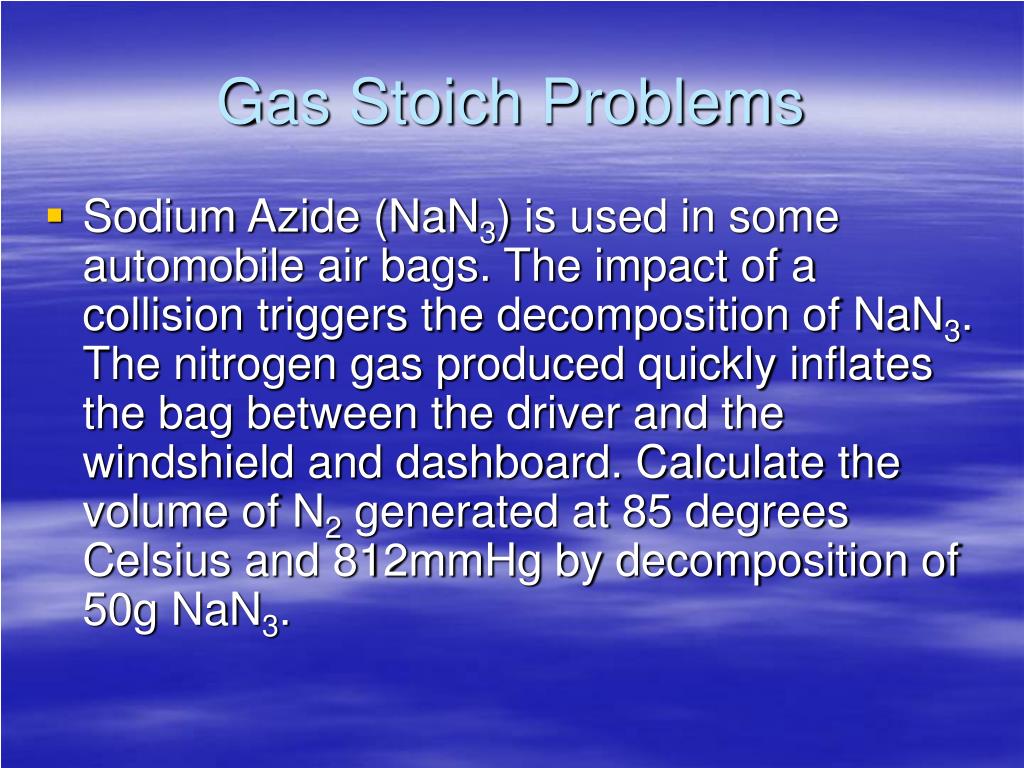

    12. Gas Stoich Problems • Sodium Azide (NaN3) is used in some automobile air bags. The impact of a collision triggers the decomposition of NaN3. The nitrogen gas produced quickly inflates the bag between the driver and the windshield and dashboard. Calculate the volume of N2 generated at 85 degrees Celsius and 812mmHg by decomposition of 50g NaN3.

    13. Gas Stoich The breakdown on glucose is below. Calculate the volume of CO2 produced at 37 degrees and .5atm when 5.6g of glucose is used to completion in this reaction C6H12O6 + O2 → CO2 + H2O

    14. Dalton’s Law of Partial Pressures • Dalton's lawof partial pressures states that the total pressure exerted by a gaseous mixture is equal to the sum of the partial pressures of each individual component in a gas mixture.

    15. Dalton’s Law of Partial Pressure • Calculation of the moles of each gas based on the partial pressures • For example two gases in a container (nitrogen and oxygen) • P = Pnitrogen + Poxygen • Then you can use ideal gas law to calculate the moles of each gas • Pnitrogen V = nnitrogen R T • Poxygen V = noxygen R T • Please note you can always use the equations backwards. Start with moles of each to find partial pressures, then find the total pressure

    16. Dalton’s Law ProblemsQuiz Problem • Oxygen gas is generated by the decomposition of potassium chlorate in wate vapor chamber. The volume of oxygen gas collected at 26 degrees Celsius is 752ml and the atmospheric pressure is 1841mmHg. The pressure of the water vapor at 26 degrees Celsius is 25.2 mmHg. Calculate the mass of oxygen obtained.

    17. Dalton’s Law of Partial PressuresMole Fraction • The mole fraction that express the ratio of the number of moles of one component to the number of moles of all components present • By using mole fraction you can calculate the partial pressure of each gas in a system • Pi = XiPT • Xi -Is the percent of each molar amount of each gas (part over whole)

    18. Dalton’s Law Problems • A mixture of gases contain 3.85 moles of Ne, 0.92 moles of argon and 2.59 moles of xenon. Calulate the partial pressure of each gas if the total pressure is 2.50atm.

    19. Kinetic Molecular Theory of Gases • A gas consists of a collection of small particles traveling in straight-line motion and obeying Newton's Laws. • The molecules in a gas occupy no volume (that is, they are points). • Collisions between molecules are perfectly elastic (that is, no energy is gained or lost during the collision). • There are no attractive or repulsive forces between the molecules. • The average kinetic energy of a molecule is 3kT/2. (T is the absolute temperature and k is the Boltzmann constant.)

    20. Root Mean Squared • To calculate how fast a molecule moves at any given temperature R = 8.314J/K*mol M = (molar mass in Kg/mol) U = calculated in meters per second

    21. Root Mean Squared Problem • Calculate the root-mean squared speeds of helium atoms and nitrogen molecules in m/s at 25 degrees Celsius

    22. Gas Diffusion and Effusion • Diffusion – the gradual mixing of molecules of one gas with molecules of another by virtue of their kinetic properties • Effusion – the process by which a gas under pressure escapes from one compartment of a container to another by passing through a small opening

    23. A flammable gas made up only of carbon and hydrogen is found to effuse through a porous barrier in 3.5min. Under the same conditions of temperature and pressure, it takes an equal volume of chlorine gas 7.34 min to effuse through the same barrier. Calculate the molar mass of the unknown gas and suggest what this gas might be. Graham’s law of Diffision

    24. Deviation from Ideal Behavior

    25. Van der Waals

    26. AP Questions • 2 H2O2(aq) → 2 H2O(l) + O2(g) • The mass of an aqueous solution of H2O2 is 6.951 g. The H2O2 in the solution decomposes completely according to the reaction represented above. The O2(g) produced is collected in an inverted graduated tube over water at 23.4°C and has a volume of 182.4 mL when the water levels inside and outside of the tube are the same. The atmospheric pressure in the lab is 762.6 torr, and the equilibrium vapor pressure of water at 23.4°C is 21.6 torr. • (a) Calculate the partial pressure, in torr, of O2(g) in the gas-collection tube. • (b) Calculate the number of moles of O2(g) produced in the reaction. • (c) Calculate the mass, in grams, of H2O2 that decomposed. • (d) Calculate the percent of H2O2 , by mass, in the original 6.951 g aqueous sample.

    27. AP Questions A rigid 5.00 L cylinder contains 24.5 g of N2(g) and 28.0 g of O2(g) • (a) Calculate the total pressure, in atm, of the gas mixture in the cylinder at 298 K. • (b) The temperature of the gas mixture in the cylinder is decreased to 280 K. Calculate each of the following. • (i) The mole fraction of N2(g) in the cylinder. • (ii) The partial pressure, in atm, of N2(g) in the cylinder. • (c) If the cylinder develops a pinhole-sized leak and some of the gaseous mixture escapes, would the ratio   in the cylinder increase, decrease, or remain the same? Justify your answer. A different rigid 5.00 L cylinder contains 0.176 mol of NO(g) at 298 K. A 0.176 mol sample of O2(g) is added to the cylinder, where a reaction occurs to produce NO2(g). • (d) Write the balanced equation for the reaction. • (e) Calculate the total pressure, in atm, in the cylinder at 298 K after the reaction is complete.

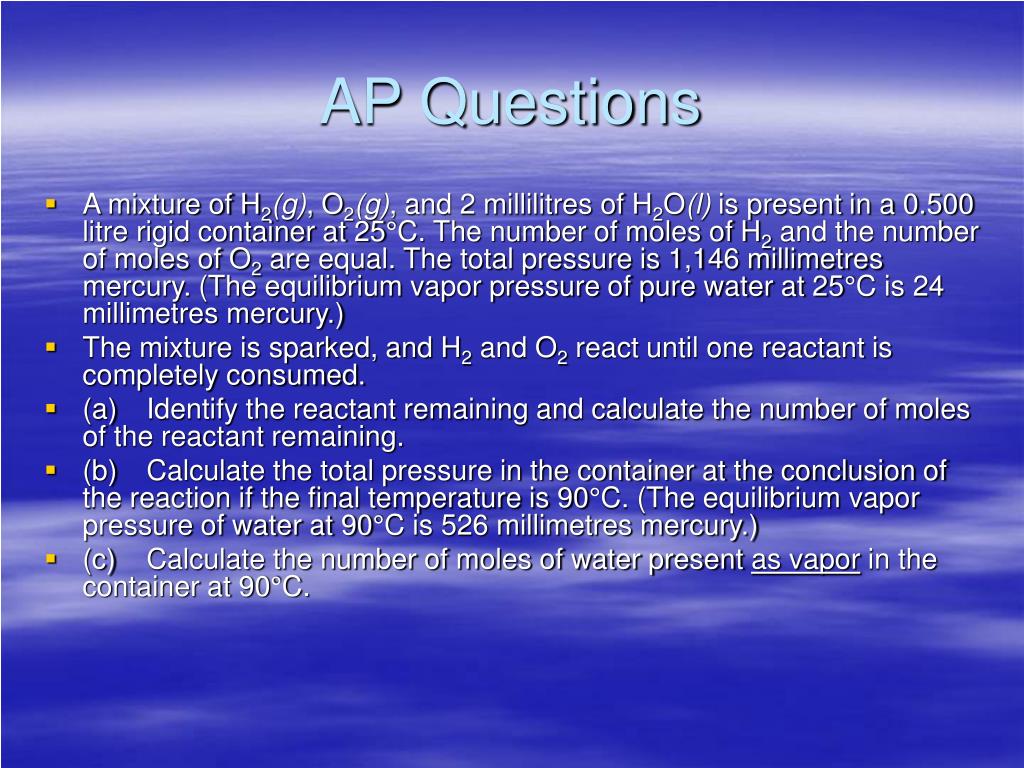

    28. AP Questions • A mixture of H2(g), O2(g), and 2 millilitres of H2O(l) is present in a 0.500 litre rigid container at 25°C. The number of moles of H2 and the number of moles of O2 are equal. The total pressure is 1,146 millimetres mercury. (The equilibrium vapor pressure of pure water at 25°C is 24 millimetres mercury.) • The mixture is sparked, and H2 and O2 react until one reactant is completely consumed. • (a) Identify the reactant remaining and calculate the number of moles of the reactant remaining. • (b) Calculate the total pressure in the container at the conclusion of the reaction if the final temperature is 90°C. (The equilibrium vapor pressure of water at 90°C is 526 millimetres mercury.) • (c) Calculate the number of moles of water present as vapor in the container at 90°C.
