geometric networks in arcgis

Geometric Networks in ArcGIS

Sewer, water, roads, etc..

GISC 6382 UT-Dallas Briggs

types of networks
Types of Networks

Networks are of two types

  • Directed flow (geometric networks)
    • utility networks such as sewer and water systems; rivers and streams
    • Elements on the network have no choice in travel decision. Flow direction is determined by the network characteristics alone.
    • Referred to as geometric or utility networks by ESRI
    • Available with ArcEditor level of ArcGIS
  • Undirected flow
    • Transportation networks such as streets
    • Elements on the network make their own travel decisions. Flow direction not determined solely by network.
    • Available thru Network Analyst extension

GISC 6382 UT-Dallas Briggs

geometric networks and network topology
Geometric Networks and Network Topology

Geometric Networks can also be useful for checking network topology

    • provide an alternative approach to applying topology rules
      • checking editing on a line file for connectivity and overlaps
      • Linking points and lines into a topological structure
  • Network Topology
    • a procedure for ensuring the integrity of data
    • applying topology rules for points and lines feature classes
    • examined in av9edit_topo.doc
  • Geometric (Utility) Network
    • a procedure for modeling flows thru a network
    • However, can also be helpful in editing network data and ensuing its integrity

My guess is that each was developed by separate teams with different primary goals, with overlap occurring in the process

Note 1: If a Topology relationship class exists in a feature dataset, you cannot build a geometric network.

Note 2: ArcEditor is required for either.

creating a network in arccatalog
Creating a Network in ArcCatalog
  • Geometric networks are created in ArcCatalog and stored as a relationshipclass within a geodatabase feature dataset
    • Right click on a feature dataset and select New/Geometric network to start the wizard for creating the network
    • The network (a relationship class) and its junctions (a point feature class) are listed along with the feature classes
  • Multiple point and line feature classes can participate in a network but they must all be in the same feature dataset
    • However, not all line or point feature classes in the feature dataset have to participate
    • The features within participating feature classes
      • May be moved if snapping is allowed
      • Have one or two new attribute fields: Enabled and Ancillary Role (if Source/Sink)
    • A feature class can only participate in one network
  • If desired, you can create a network with empty feature classes, and populate by editing in ArcMap, or loading data

GISC 6382 UT-Dallas Briggs

analyze network in arcmap what you can do with a network

source

Analyze Network in ArcMapwhat you can do with a network

sink

  • relate lines and points together so that when a move is performed in editing all points and lines move together
  • Establish flow direction in network using sources and sinks

downthe network to a sinkor down the network from a source

    • Intended for tracing paths through network
    • Also useful to find errors in edited files (lines not snapped together, etc..)
    • Sources and sinks are identified in the AncillaryRole field in the point feature class(es). A junction is either: source, sink, none, Usually have only sources or sinks
  • Restrict flow via barriers, and observe effect on trace(pipe clog, pipe break, etc..)
    • Temporary barriers applied to junction or edge with Barrier tool in map document (e.g pipe break now)
    • Semi-permanent barriers applied through the Enabled field in point or line feature classes in database (e.g pipe segment under construction)
  • Perform network analyses (e.g. find common ancestor, find connected segments)
    • Junction or edgeFlagsare the starting point for these various trace operations

All are implemented with the Utility Network Analyst toolbar

GISC 6382 UT-Dallas Briggs

key concepts

edges

junctions

Simple

edge

Complex

edge

Key Concepts
  • Networks are made up of:
    • Edges (derived from Line feature classes)
      • These have distance and direction
    • Junctions (derived from Point feature classes)
      • All edges end at a junction
      • Junctions may be end point of a line or intersections between lines
      • If a point from a point feature class is not available to serve as a junction, a point, called an orphan junction, is created in the junction feature class
  • Edges and Junctions may be simple or complex
    • Simple edges/junctions consist of a single feature
    • Complex edges allows edges to connect without separate segments
    • Complex junctions represent multiple features
      • A pump station complex junction may itself consist of multiple water lines (edges) and valves (junctions)
  • Weights may be associated with both edges and junctions
    • They represent the cost of traveling over that feature
    • They are calculated based upon an attribute of the feature (e.g. length of a pipe segment)

GISC 6382 UT-Dallas Briggs

type of network flow
Type of network flow
  • Uninitialized
    • Flow has not yet been set for this part of the network
  • Determined
    • Flow has been set for this part of the network
  • Undetermined
    • Flow cannot be determined for this part of the network given the sources and sinks that are established
    • Acts the same as uninitialized flow
    • Same symbol used as default,but can be changed via options

GISC 6382 UT-Dallas Briggs

building and using the geometric network

Building and Using the Geometric Network

Reference detail

GISC 6382 UT-Dallas Briggs

building the network
Building the network
  • Select a feature dataset
  • Name your network
  • Select feature classes to participate
  • Set snapping
    • Tolerance distance
    • Feature classes to snap to
  • Identify complex edge feature classes
  • Define Sources and Sinks
  • Set weights

GISC 6382 UT-Dallas Briggs

define source and sinks
Define Source and Sinks

GISC 6382 UT-Dallas Briggs

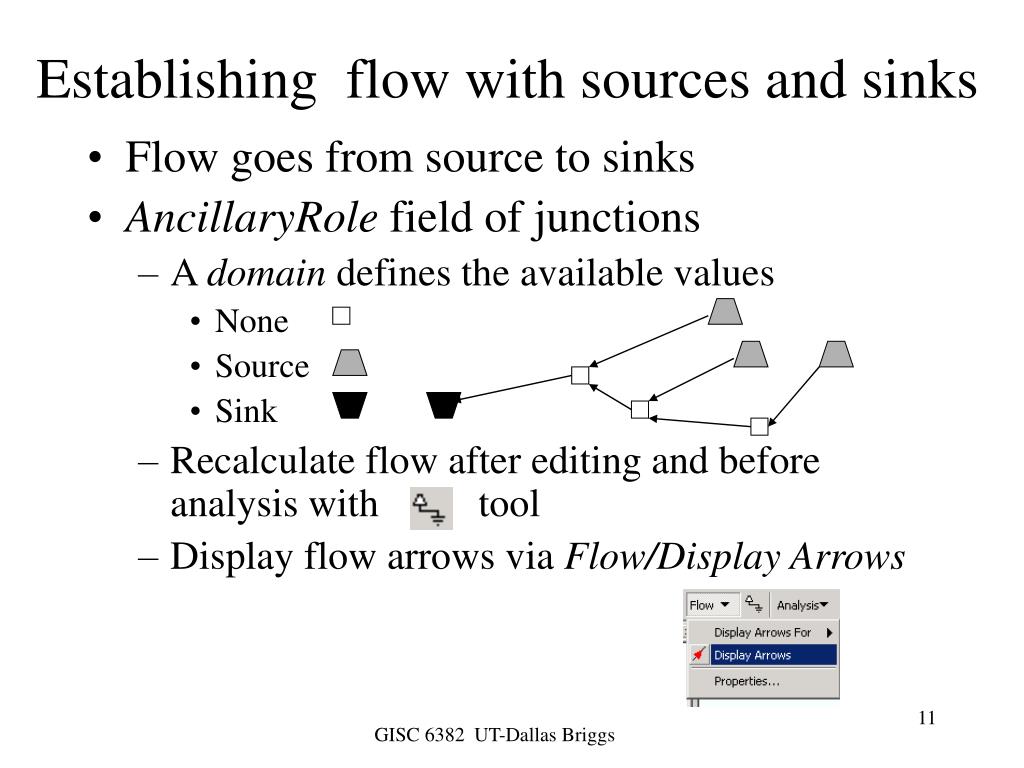

establishing flow with sources and sinks
Establishing flow with sources and sinks
  • Flow goes from source to sinks
  • AncillaryRole field of junctions
    • A domain defines the available values
      • None
      • Source
      • Sink
    • Recalculate flow after editing and before analysis with tool
    • Display flow arrows via Flow/Display Arrows

GISC 6382 UT-Dallas Briggs

network weights
Network Weights

Cost to traverse an edge or junction

  • Based on numeric field values
    • Lower numbers = lower resistance
    • Can be bidirectional (two way) by using two fields
  • Negative values are barriers
    • block flow down that segment
  • Define when the network is created
    • Name the weight
    • Apply it to a field in one or more feature classes

(process similar to using a domain: “define” then “apply”)

GISC 6382 UT-Dallas Briggs

add weights to a network
Add Weights to a network

GISC 6382 UT-Dallas Briggs

network analysis
Network Analysis
  • Network Traces
    • Tracing upstream and downstream
    • Finding path
    • Finding common ancestor
    • Find connected
  • Flags are use to define locations for tracing: 3 step process
    • Place the flags
    • Choose a trace task
    • Solve the trace

GISC 6382 UT-Dallas Briggs

tracing upstream and downstream
Tracing upstream and downstream
  • Upstream trace
  • Downstream trace

GISC 6382 UT-Dallas Briggs

finding path
Finding Path
  • Find the best path between two flags
    • Upstream, downstream, connected
    • From first flag to second flag
  • Flags are placed on any feature

GISC 6382 UT-Dallas Briggs

finding common ancestor
Finding common ancestor
  • Piece of upstream network common to all flags
    • Which electric line is common to all house?

GISC 6382 UT-Dallas Briggs

finding connected features
Finding connected features
  • Finding features connected to a flag
  • Commonly used for isolating features
    • Disable layer(s) (e.g. Valves)
    • Set Trace to Ends Property
    • Place a flag on the feature you want to isolate
    • Trace back to the disable layer

GISC 6382 UT-Dallas Briggs

finding indeterminate flow
Finding Indeterminate Flow
  • Use the Find Loops analysis

No Cycle (switch open)

Cycle (switch closed)

GISC 6382 UT-Dallas Briggs

connectivity rules for networks
Connectivity Rules for Networks
  • similar to domains for geodatabases
    • Domains control the values that variables can assume
      • Can apply at subtype level and also set default values
    • Connectivity rules allow you to control:
      • which edges may connect together
      • what junctions (points) must be used to connect these edges
      • Can apply at subtype level and also set default values
    • Two types
      • Edge to junction rules
      • Edge to edge rules
    • Cardinality
      • The number of features that can connect
      • Number of edges a junction can connect to
      • Number of junctions an edge can connect
setting connectivity rules
Setting Connectivity Rules
  • Connectivity rules are network versions of domains
    • “business rules” which you apply to connections between features
  • By default, all features can connect
    • Setting one rule means you have to set rules for everything you want to connect
    • This can be a lot of work!
  • Connectivity rules are set after the network is created by right clicking the network relationship class in ArcCatalog and going to Properties/Connectivity tab
    • Another option is to select Geometric Network Editor instead of going to Properties. (Probably easier once concept is understood)

GISC 6382 UT-Dallas Briggs

setting edge to junction rules and junction to edge
Setting Edge-to-Junction rules(and junction-to-edge)

This feature class

(edge, in this case)

With these

Cardinalities

With this subtype

Connects to

this junction

GISC 6382 UT-Dallas Briggs

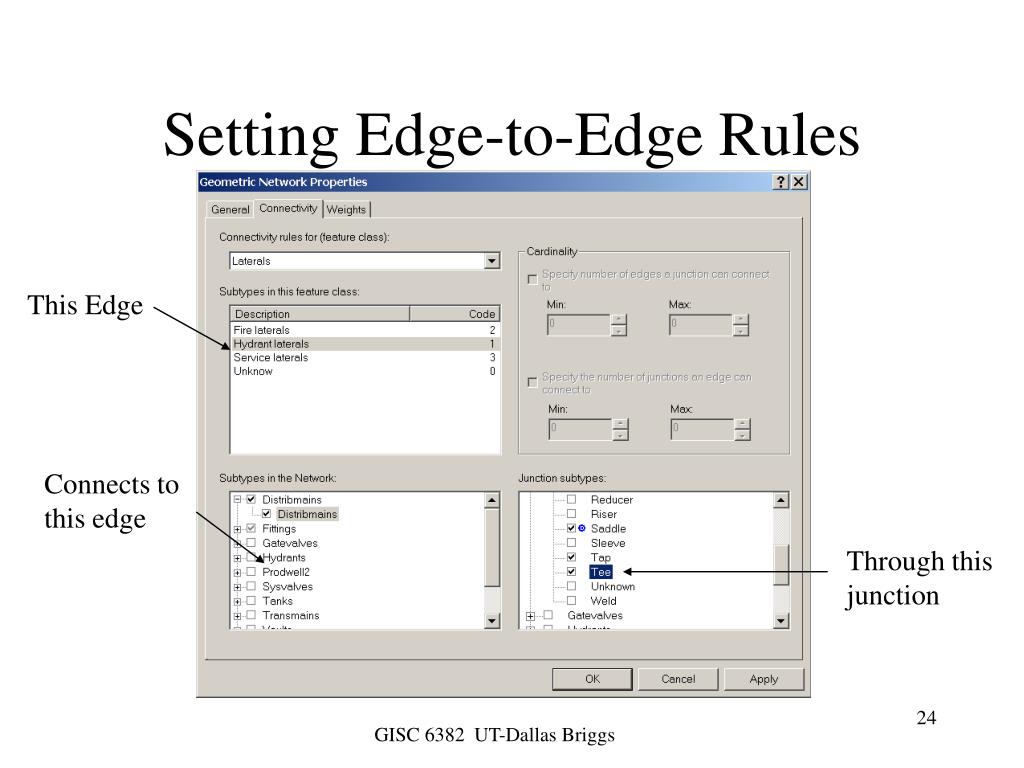

setting edge to edge rules
Setting Edge-to-Edge Rules

This Edge

Connects to

this edge

Through this

junction

GISC 6382 UT-Dallas Briggs
