Mechanical Properties. MFG 355. Forces and Responses. Tensile – applied loads “pull” the sample. Tensile Forces. Gripping Zone. Gripping Zone. Failure Zone. ¾ inch. ½ inch. 8 ½ inches. Forces and Responses. Compression – applied loads “squeeze” the sample. Forces and Responses.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Mechanical Properties' - koko


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
forces and responses
Forces and Responses
  • Tensile – applied loads “pull” the sample
tensile forces

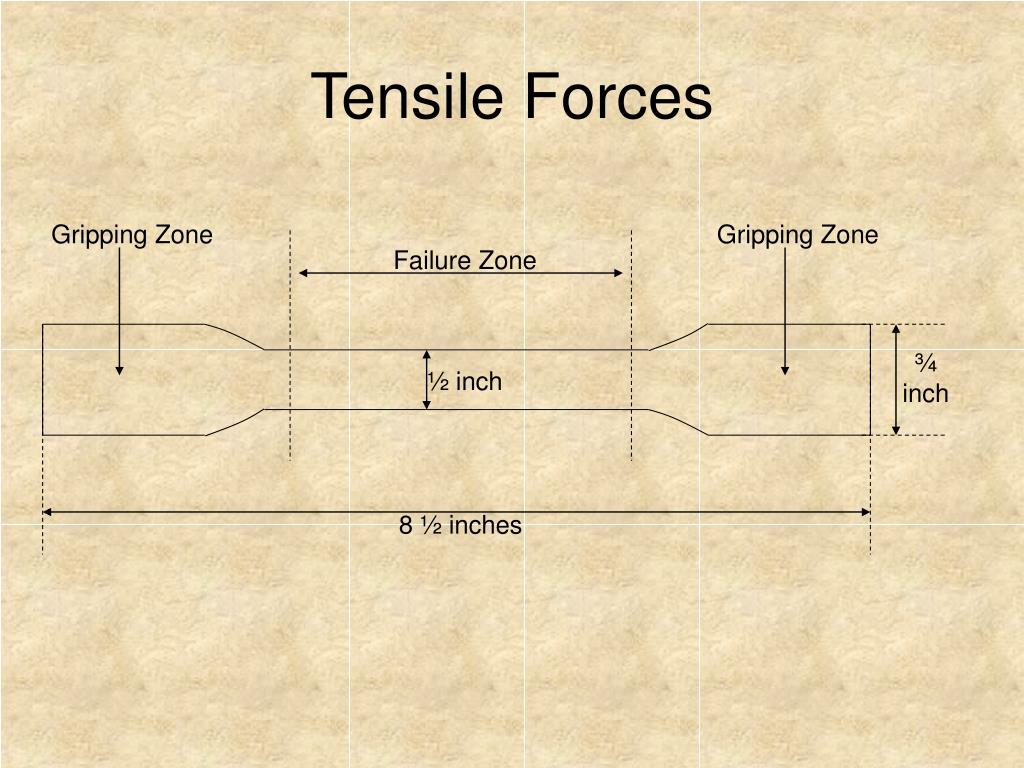

Tensile Forces

Gripping Zone

Gripping Zone

Failure Zone

¾ inch

½ inch

8 ½ inches

forces and responses4
Forces and Responses

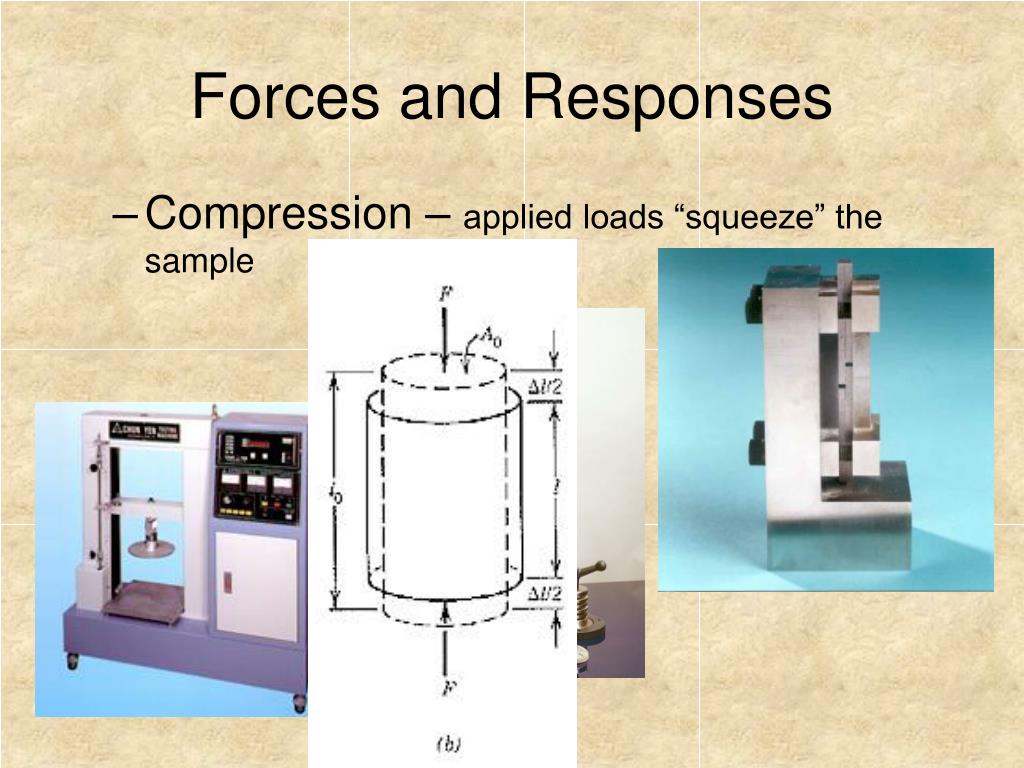

  • Compression – applied loads “squeeze” the sample
forces and responses5
Forces and Responses
  • Flexural – applied loads “bend” the sample
forces and responses6
Forces and Responses
  • Shear – applied loads are offset
forces and responses7
Forces and Responses
  • Torsion – applied loads “twist” the sample
mechanical behavior
Mechanical Behavior
  • Impact (toughness) – applied loads “hit” the sample
  • Impact (charpy, dart)
elastic solid

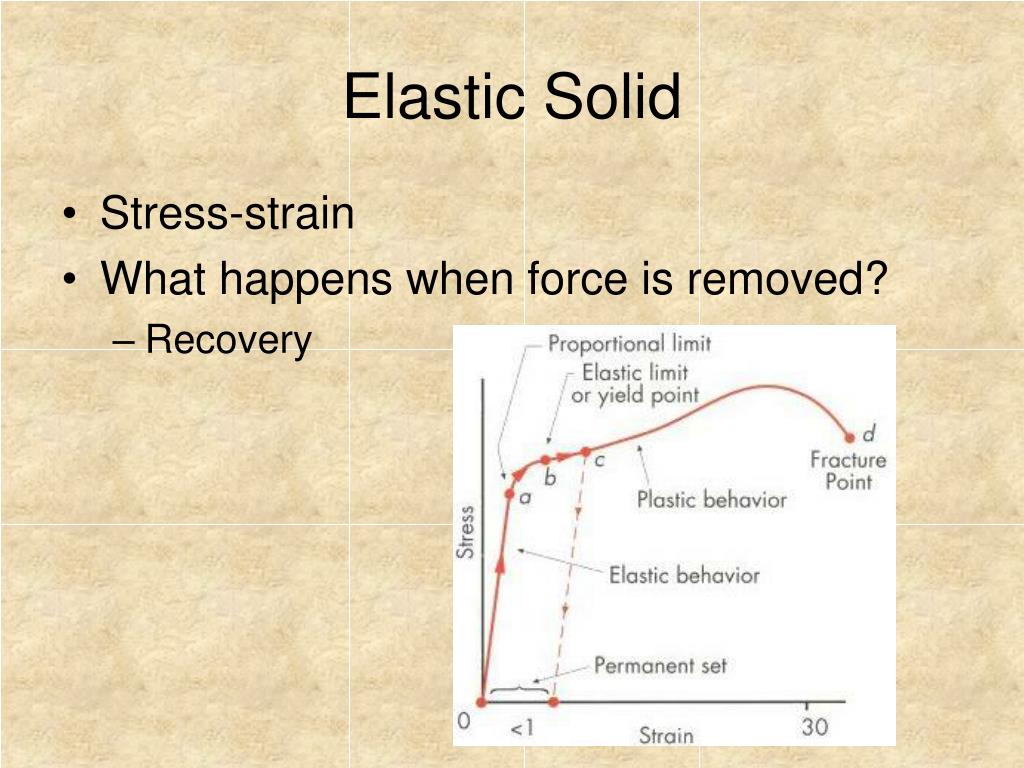

Elastic Solid
  • Stress-strain
  • What happens when force is removed?
    • Recovery
viscous liquid

F/A = ŋ dv/dx = ŋγ

Shear Thickening

Shear Thinning

Newtonian

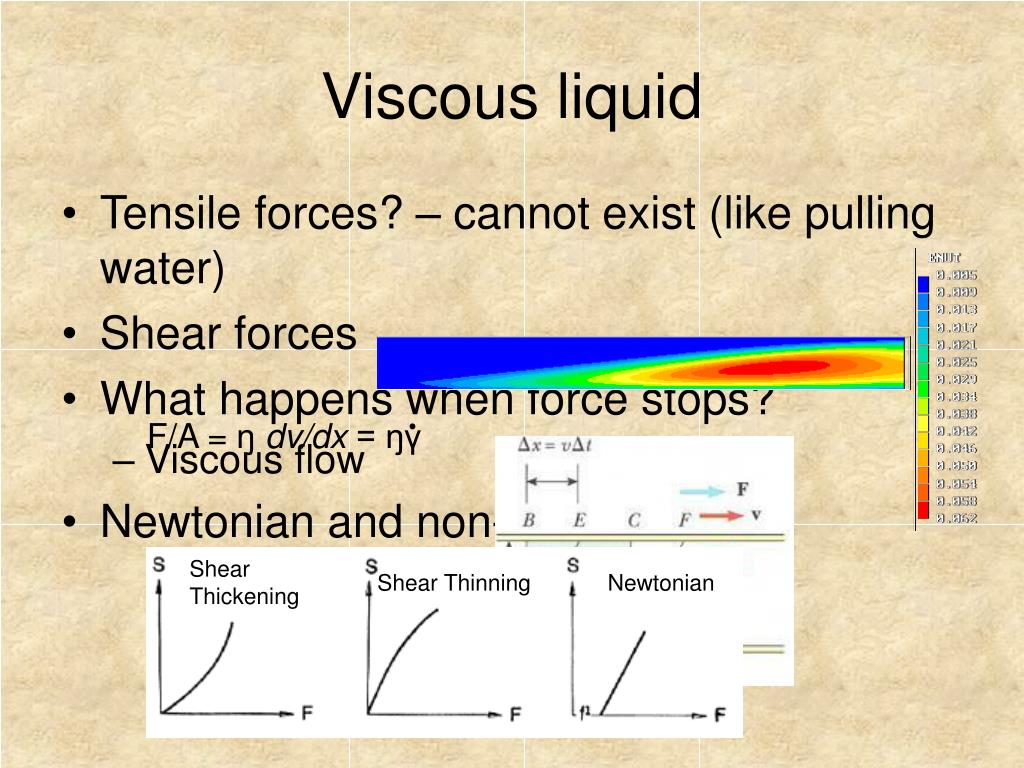

Viscous liquid
