1 / 8

ELECTRONIC LAB A BEFORE AND AFTER IMPROVMENT

ELECTRONIC LAB A BEFORE AND AFTER IMPROVMENT. Fire Extinguisher :. Before : - Fire Extinguiser is blocked of The Work Bench. After : - Fire Extinguisher hanged 3 feet from floor and placed on proper platform. ELECTRONIC LAB A BEFORE AND AFTER IMPROVMENT. Equipments : Re-Arrange. After :

kohana
Download Presentation

ELECTRONIC LAB A BEFORE AND AFTER IMPROVMENT

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

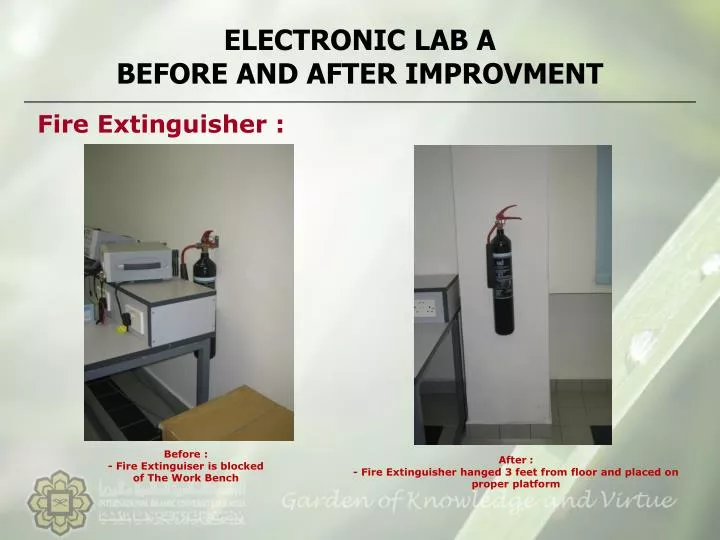

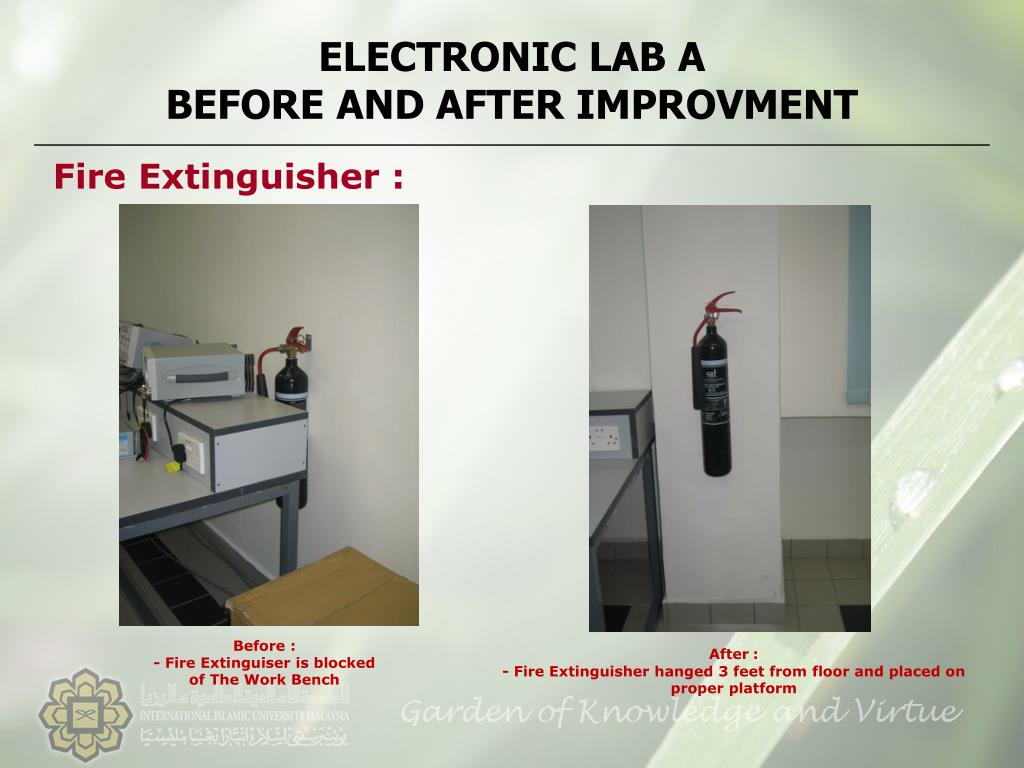

  1. ELECTRONIC LAB A BEFORE AND AFTER IMPROVMENT Fire Extinguisher : Before :- Fire Extinguiser is blocked of The Work Bench After: - Fire Extinguisher hanged 3 feet from floor and placed on proper platform

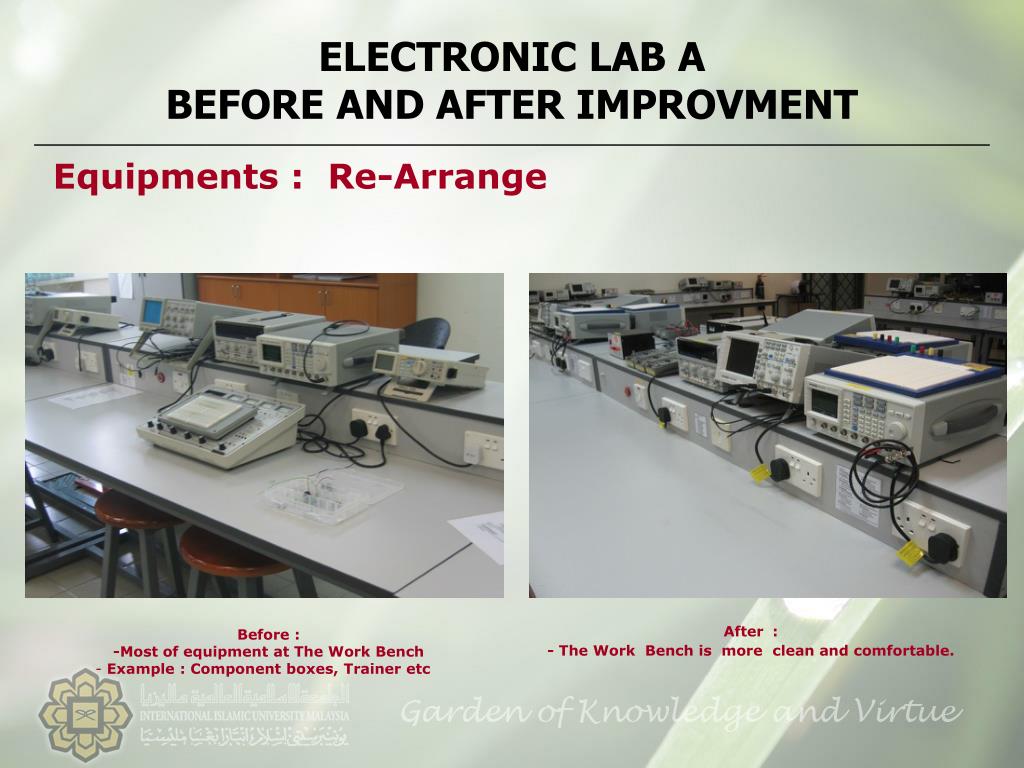

  2. ELECTRONIC LAB A BEFORE AND AFTER IMPROVMENT Equipments : Re-Arrange After: - The Work Bench is more clean and comfortable. • Before :-Most of equipment at The Work Bench • Example : Component boxes, Trainer etc

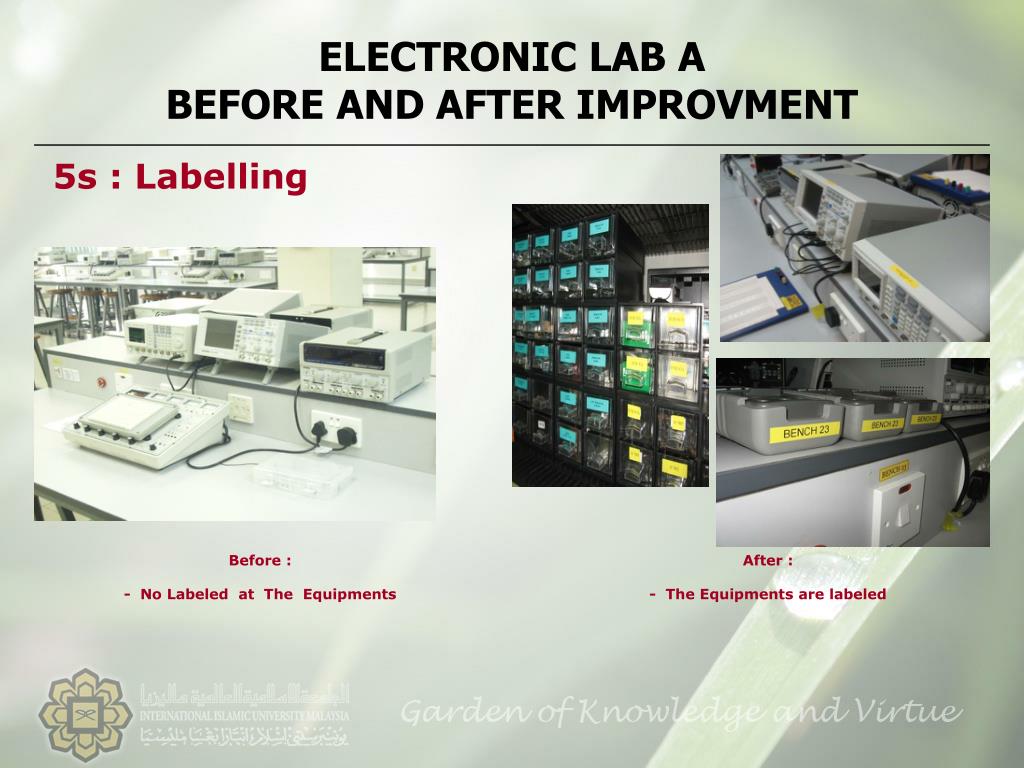

  3. ELECTRONIC LAB A BEFORE AND AFTER IMPROVMENT 5s : Labelling Before : - No Labeled at The Equipments After : - The Equipments are labeled

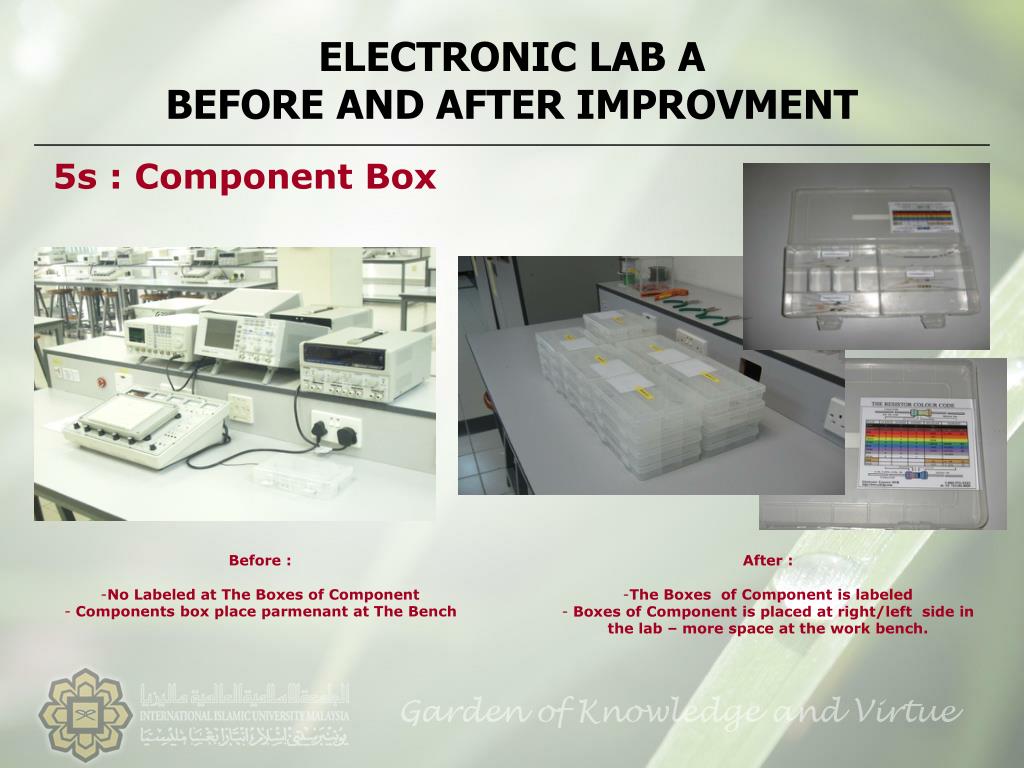

  4. ELECTRONIC LAB A BEFORE AND AFTER IMPROVMENT 5s : Component Box • Before : • No Labeled at The Boxes of Component • Components box place parmenant at The Bench • After : • The Boxes of Component is labeled • Boxes of Component is placed at right/left side in the lab – more space at the work bench.

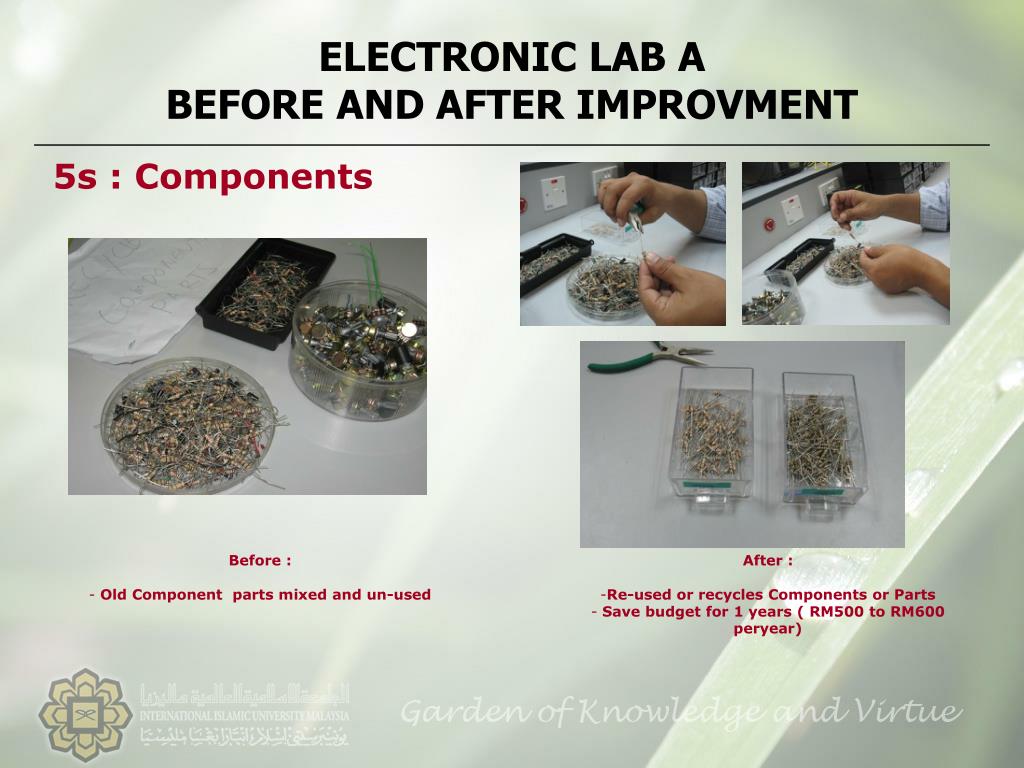

  5. ELECTRONIC LAB A BEFORE AND AFTER IMPROVMENT 5s : Components • Before : • Old Component parts mixed and un-used • After : • Re-used or recycles Components or Parts • Save budget for 1 years ( RM500 to RM600 peryear)

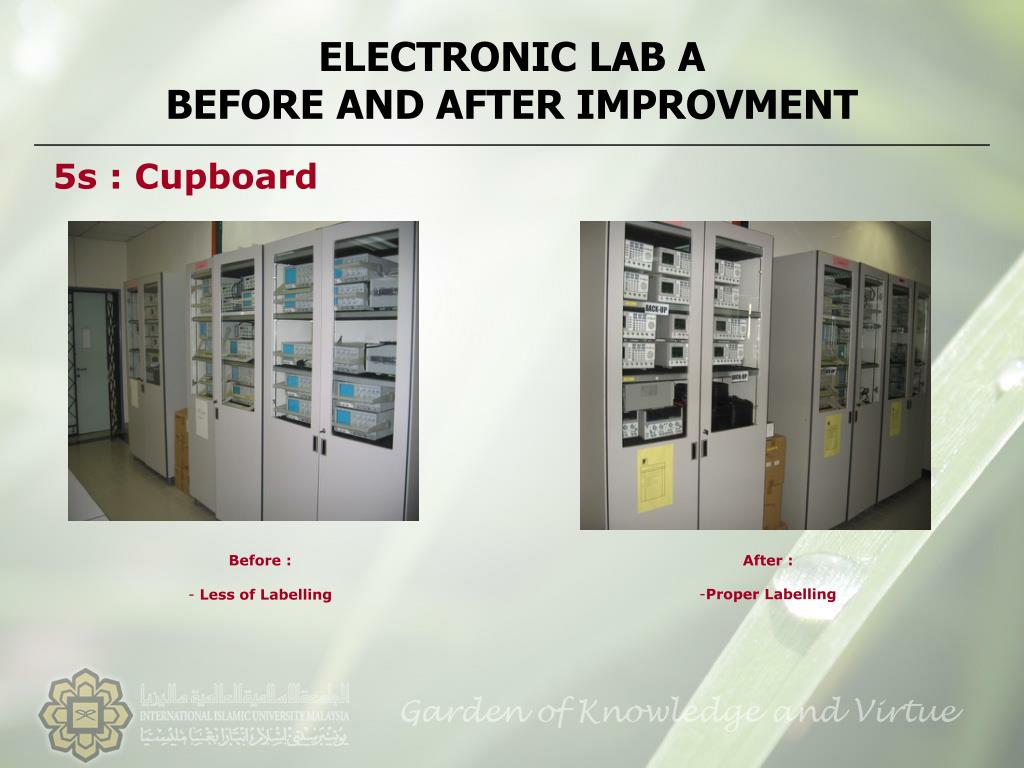

  6. ELECTRONIC LAB A BEFORE AND AFTER IMPROVMENT 5s : Cupboard • Before : • Less of Labelling • After : • Proper Labelling

  7. ELECTRONIC LAB A BEFORE AND AFTER IMPROVMENT 5s : Overall view • Before : • Trainer un-used at the work bench • After : • The Work bench is Clean and tidy

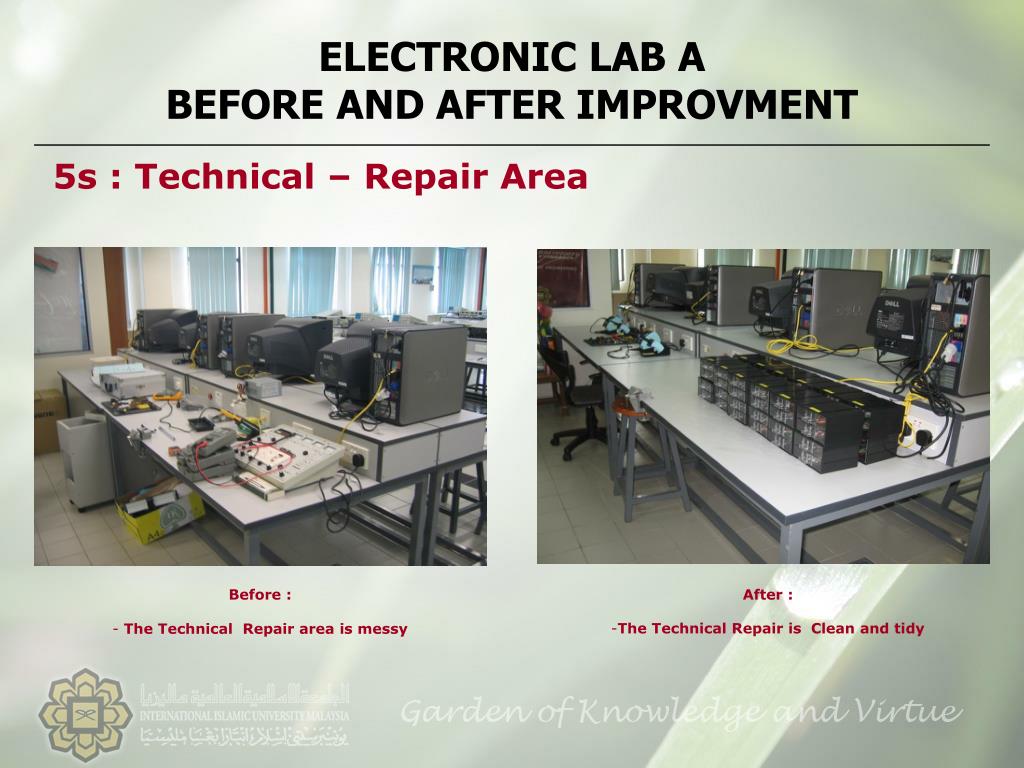

  8. ELECTRONIC LAB A BEFORE AND AFTER IMPROVMENT 5s : Technical – Repair Area • Before : • The Technical Repair area is messy • After : • The Technical Repair is Clean and tidy
