Presentation Transcript
outline
Outline
  • Introduction
  • Model and Approach
  • Further Discussion

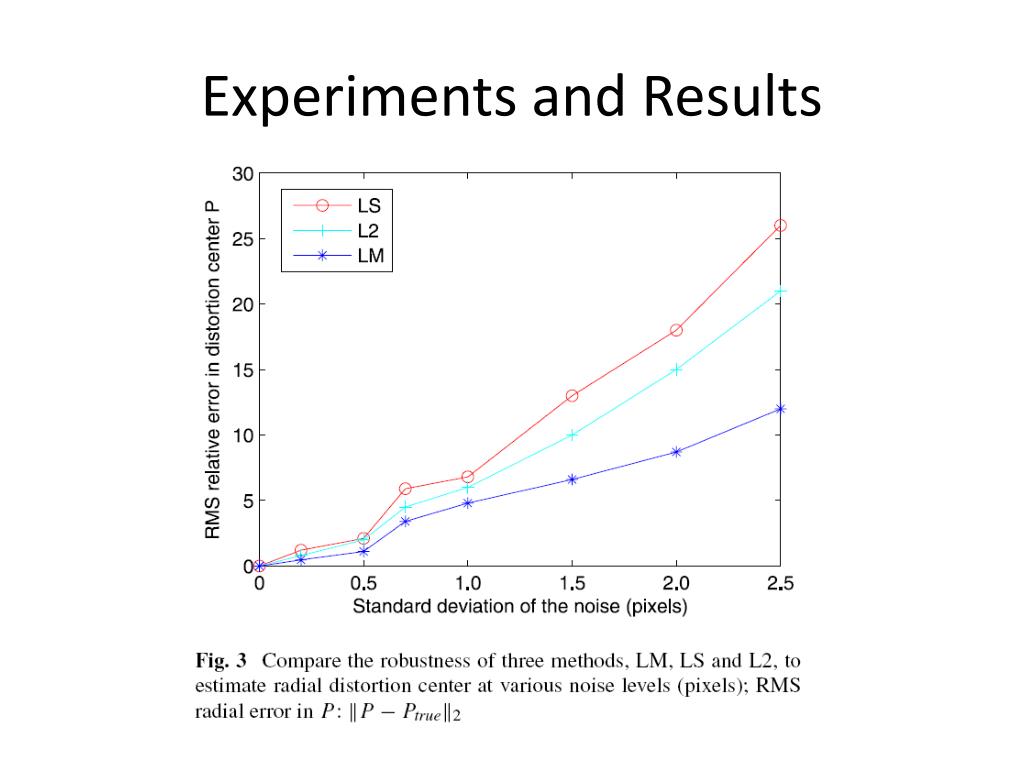

  • Experiments and Results
  • Conclusions
introduction

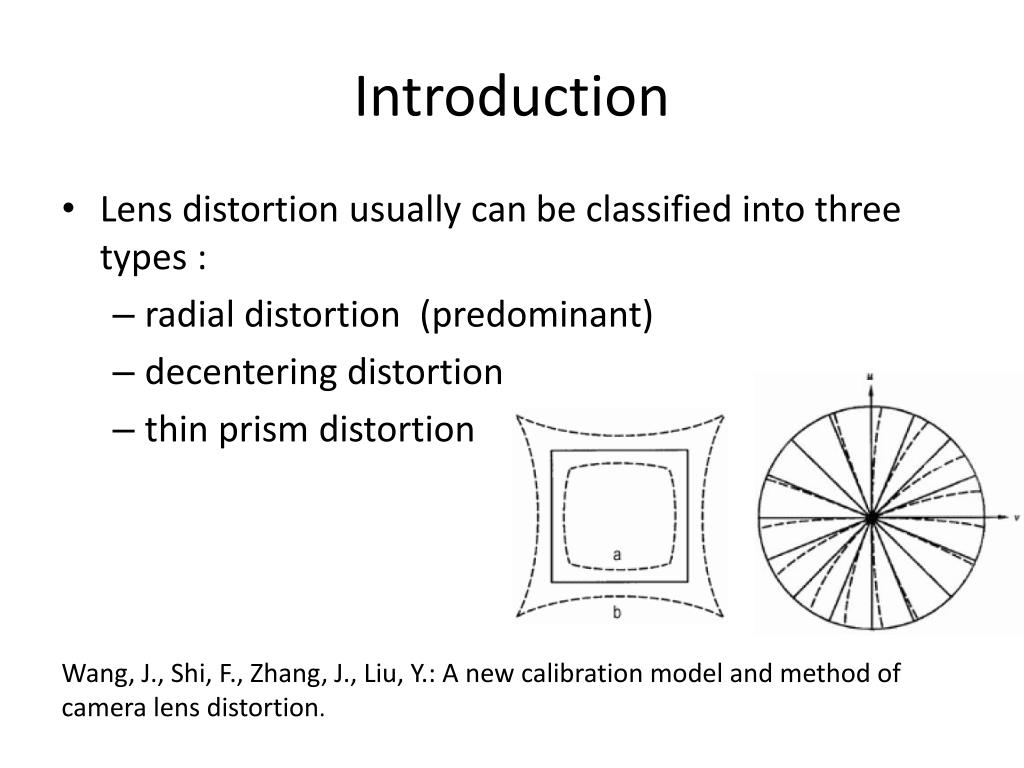

Introduction
  • Lens distortion usually can be classified into three types :
    • radial distortion (predominant)
    • decentering distortion
    • thin prism distortion

Wang, J., Shi, F., Zhang, J., Liu, Y.: A new calibration model and method of camera lens distortion.

introduction1
Introduction
  • Method of obtaining the parameters of the radial distortion function and correcting the images. These previous works can be divided roughly into two strategic approaches
    • multiple views method
    • Single view method
introduction2
Introduction

Correct the radial distortion

  • Former approach
    • based on the collinearity of undistorted points.
    • Need the camera intrinsic parameters and 3D-point correspondences.
  • This paper
    • based on single images and the conclusion that distorted points are concyclic and uses directly the distorted points.
    • uses the constraint, that straight lines in the 3D world project to circular arcs in the image plane, under the single parameter Division Model
model and approach

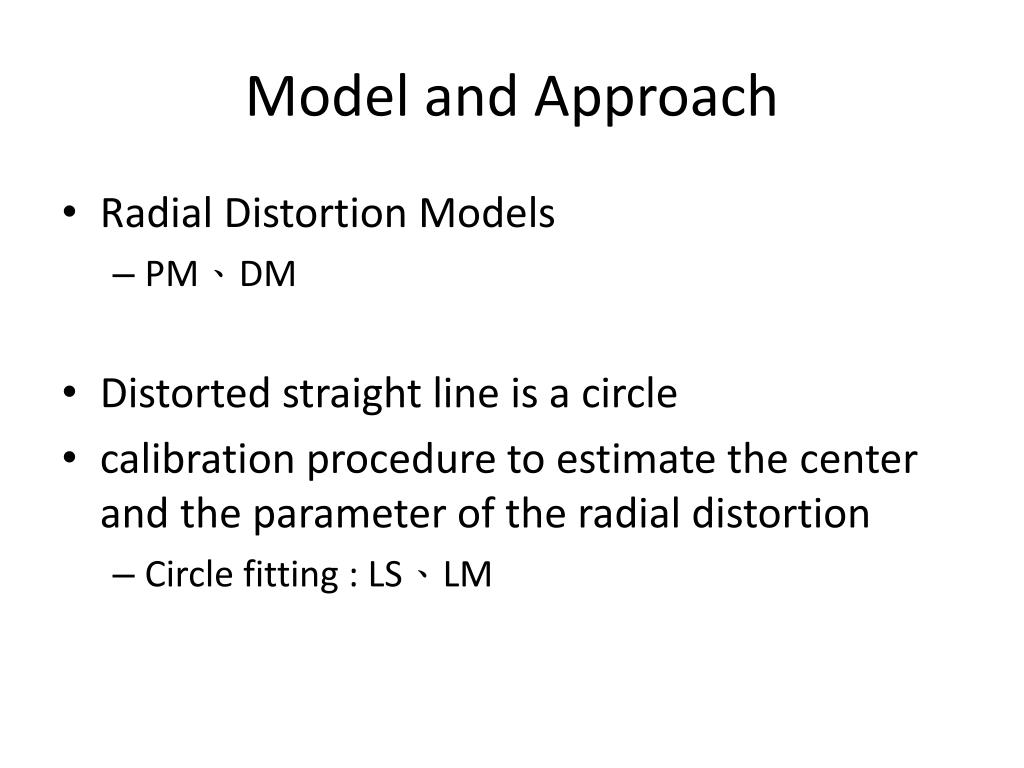

Model and Approach
  • Radial Distortion Models
    • PM、DM
  • Distorted straight line is a circle
  • calibration procedure to estimate the center and the parameter of the radial distortion
    • Circle fitting : LS、LM
radial distortion models
Radial Distortion Models
  • The Polynomial Model (PM) that describe radial distortion :

(1)

radial distortion models1
Radial Distortion Models
  • The Division Model (DM) that describe radial distortion :

(2)

  • we use single parameter Division Model as our distortion model :

(3)

radial distortion models2
Radial Distortion Models
  • To simplify equation, we suppose distorted center is the origin image coordinates system, thus :

, (4)

P (0,0)

the figure of distorted straight line
The Figure of Distorted Straight Line
  • We consider collinear points and their distorted images.
  • Let straight line equation

from (4) We have

(5)

(6)

(7)

the figure of distorted straight line1
The Figure of Distorted Straight Line

(7)

  • The graphics of distorted “straight line” is a circle under the condition of model (3)

we use single parameter Division Model as our

distortion model :

(3)

estimate the and
Estimate the and
  • Let be the coordinates of the distorted

center . From (7) , we have

(8)

(9)

estimate the and1

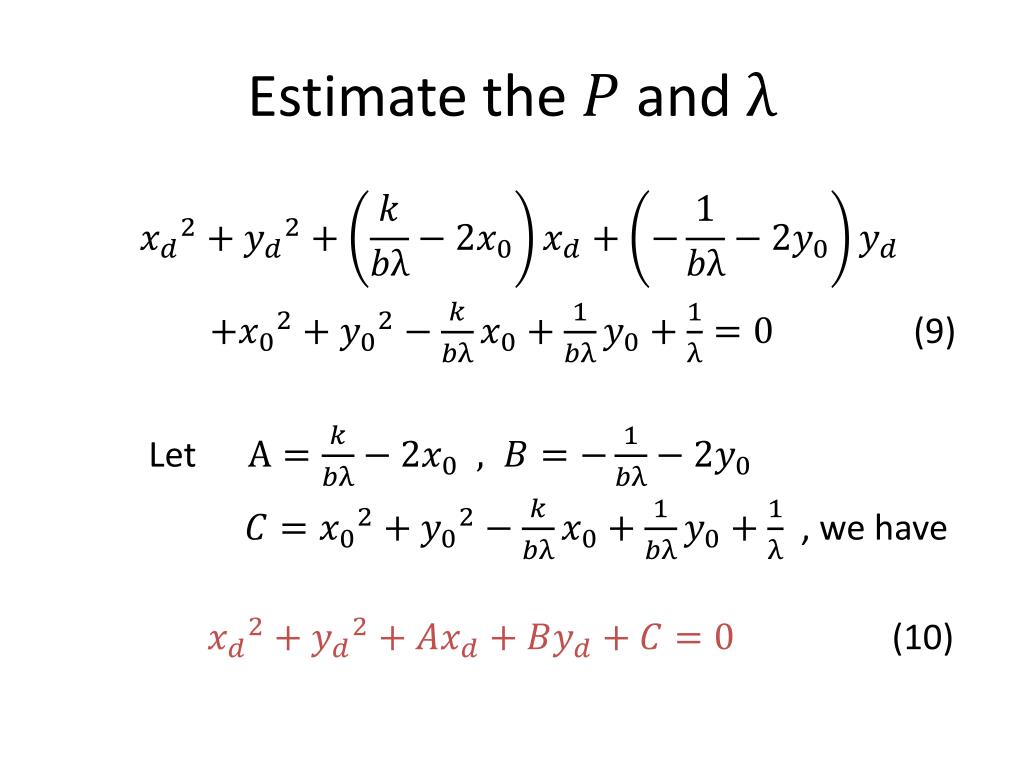

Estimate the and

(9)

Let

, we have

(10)

estimate the and2
Estimate the and

Let

, we have

(10)

Base on the relation of , we have

(圓方程式參數A、B、C 與 radial distortion 參數 P、 的關係式)

(11)

estimate the and3
Estimate the and

(10)

(11)

  • Obtain of distorted center
    • Extract three “straight line” from image , we can get by circle fitting from (10)

according to (11) , we have

(12)

(13)

sum up whole algorithm
Sum up whole algorithm
  • Extract “straight line” from the image
  • Determine parameter by fitting every “straight line” with a circle according to (10)
  • Calculate the center of the radial distortion according to (12)
  • Compute the parameter λ of radial distortion according to (13).
circle fitting
Circle fitting
  • It is a very important step to fit circle above algorithm.
    • data extracted from image are only short arcs, it is hard to reconstruct a circle from the incomplete data.
  • Method
    • Direct Least Squares Method of Circle Fitting (LS)
    • Levenberg-Marquardt Method of Circle Fitting (LM)

Distorted “straight line”

Circle to fit

Distorted center

circle fitting ls
Circle fitting - LS

(10)

  • For each point on the “straight line”, (10) gives

(14)

  • Stacking equations from N points together gives

b (15)

Where M is N3, b is N1 matrix

circle fitting ls1
Circle fitting - LS
  • Directly using linear least squares fit method,

we can get

(16)

circle fitting lm
Circle fitting - LM

Main ideas

  • Let the equation of a circle be

(17)

Subject to the constraint :

(18)

  • The distance from a point to the circle

(19)

Where (20)

circle fitting lm1
Circle fitting - LM
  • From (18) , we can define an angular coordinate by

, (21)

  • Apply the standard Levenberg-Marquardt scheme to minimize the sum of squared distance

in the three dimensional parameter space

further discussion
Further Discussion
  • In Algorithm1, we must have “straight lines”, we relax this constrain and discuss the conditions of
    • Only one straight line (L1)
    • Only two straight lines (L2)
    • Non-square pixels
only one straight line l1
Only One Straight Line (L1)
  • Suppose the distortion center is the image center and calculate the distortion parameter by (13)

(13)

only two straight lines l2
Only Two Straight Lines (L2)
  • Extract “straight line” from the image;
  • Determine parameter by fittingthe “straight line” with a circle according to(10);

(10)

(12) become

(22)

only two straight lines l21
Only Two Straight Lines (L2)
  • Select a suitable interval

is suggested, for any ,

calculating according to (22);

(22)

only two straight lines l22
Only Two Straight Lines (L2)
  • Calculate the distortion parameter according to (13), for any ;

(13)

only two straight lines l23
Only Two Straight Lines (L2)
  • Calculate the corresponding corrected points , for any , and all distorted points according to (4);

, (4)

  • Let [d, k] = min= min, then obtain the optimal estimation and .
non square pixels

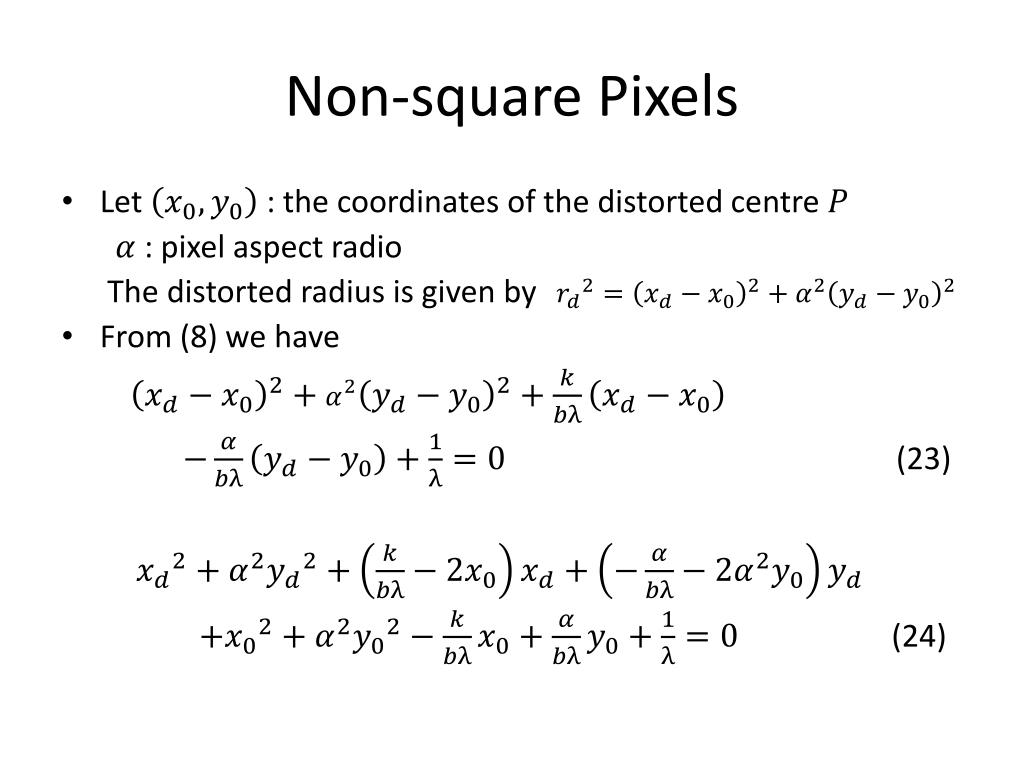

Non-square Pixels
  • Let : the coordinates of the distorted centre

: pixel aspect radio

The distorted radius is given by

  • From (8) we have

(23)

(24)

non square pixels1
Non-square Pixels

(24)

  • Equation (24) shows the graphics of distorted “straight line” is an ellipse under the condition of model (3).
  • Similarly let

, we have

(25)

and

(26)

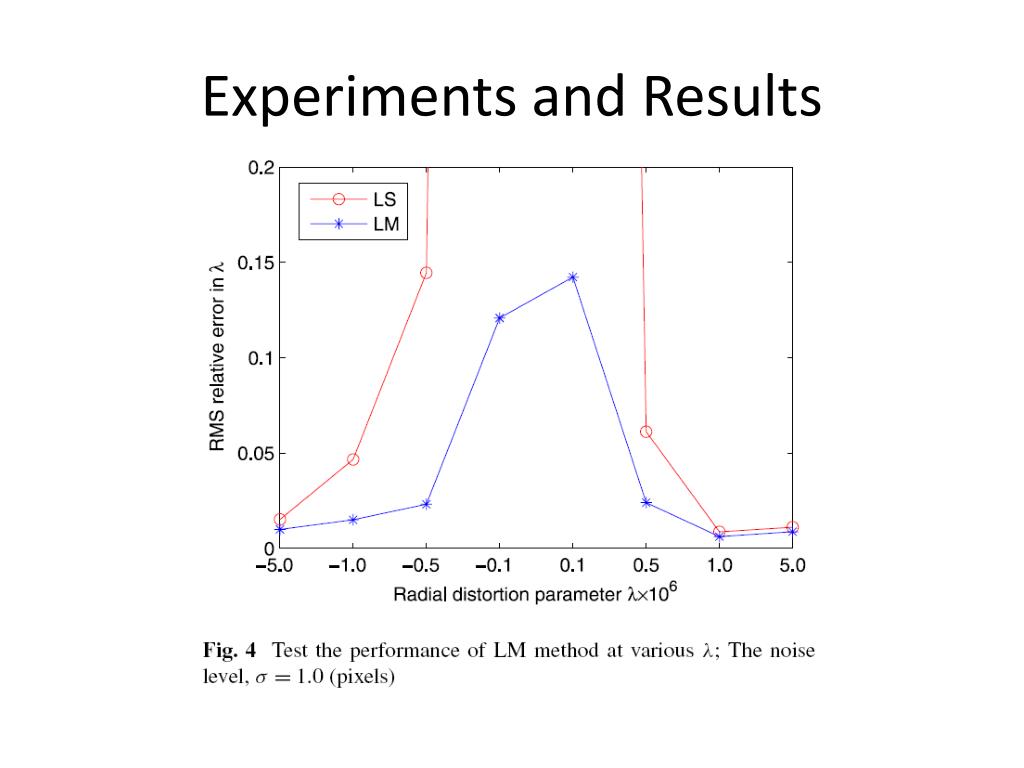

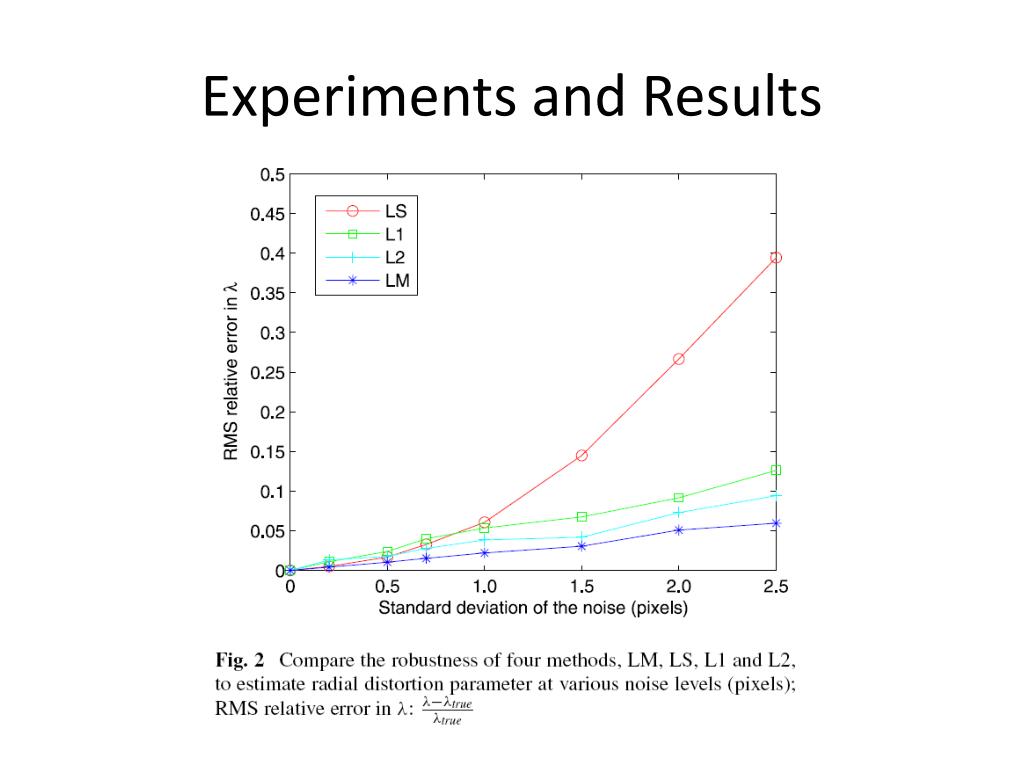

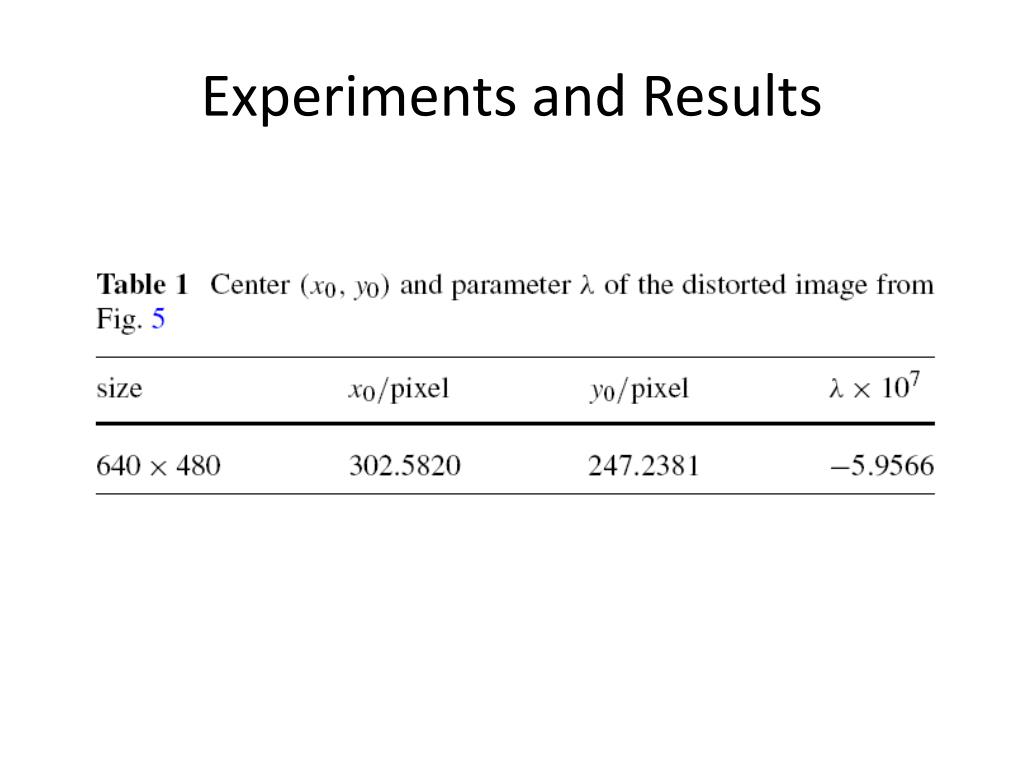

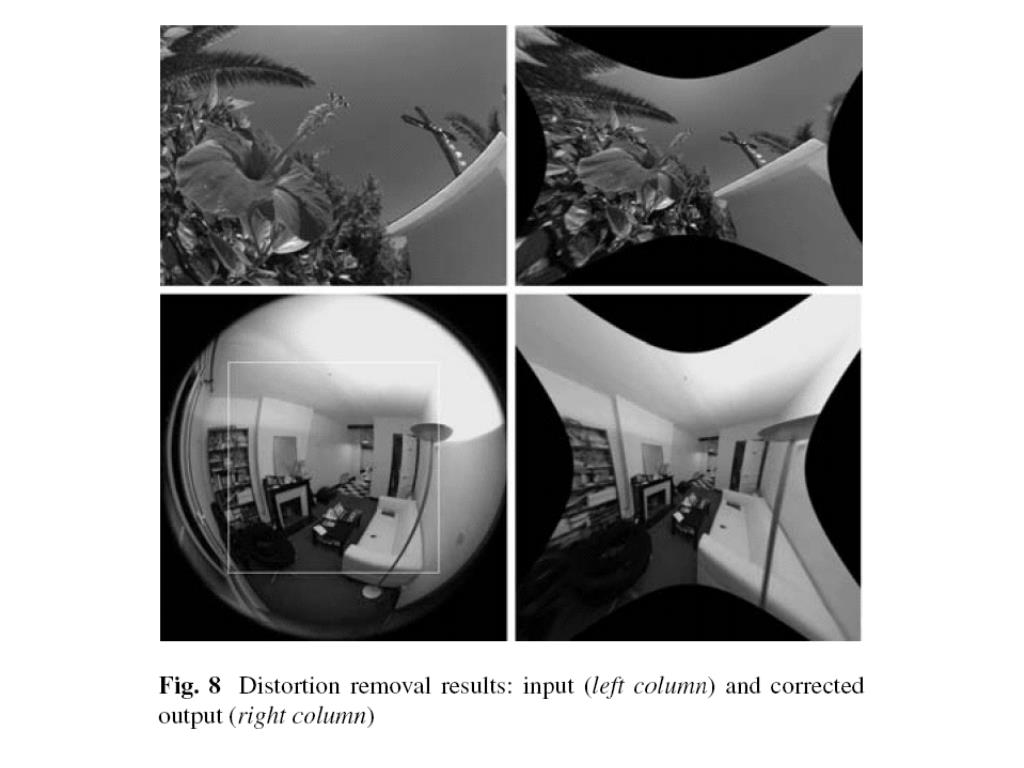

conclusions
Conclusions
  • Advantage
    • Neither information about the intrinsic camera parameters nor 3D-point correspondences are required.
    • based on single image and uses the distorted positions of collinear points.
    • Algorithm is simple, robust and non-iterative.
  • Disadvantage
    • It needs straight lines are available in the scene.
