Chapter 24. TCP/IP. Figure 24-1. An Internet According to TCP/IP. Figure 24-2. TCP/IP and the OSI Model. Figure 24-3. IP Datagram. Figure 24-4. Internet Address. Figure 24-5. Internet Classes. Figure 24-6. IP Addresses in Decimal Notation. Figure 24-7.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

Chapter 24


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide2

Figure 24-1

An Internet According to TCP/IP

slide3

Figure 24-2

TCP/IP and the OSI Model

slide4

Figure 24-3

IP Datagram

slide5

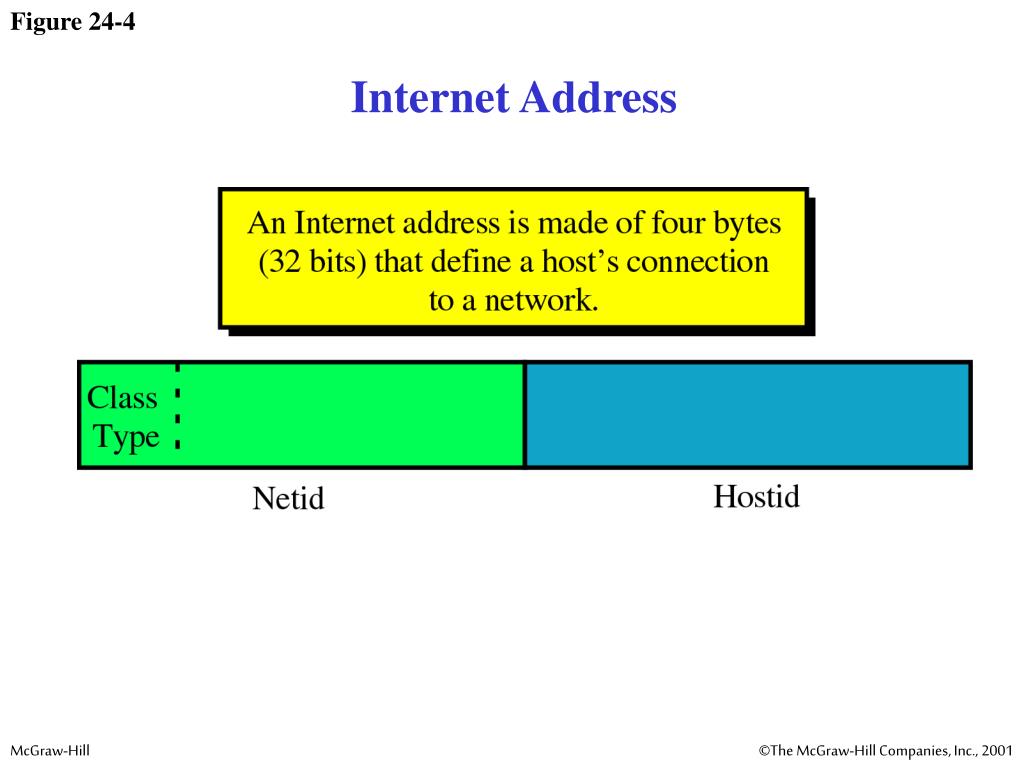

Figure 24-4

Internet Address

slide6

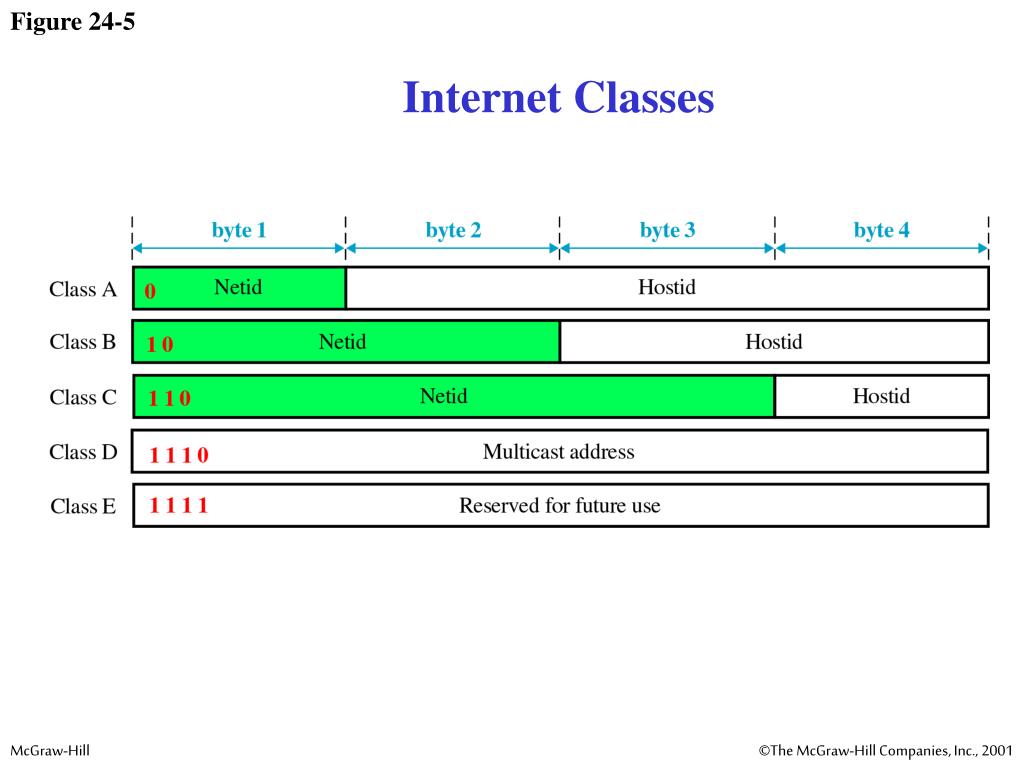

Figure 24-5

Internet Classes

slide7

Figure 24-6

IP Addresses in Decimal Notation

slide8

Figure 24-7

Class Ranges of Internet Addresses

slide9

Figure 24-8

Network and Host Addresses

slide10

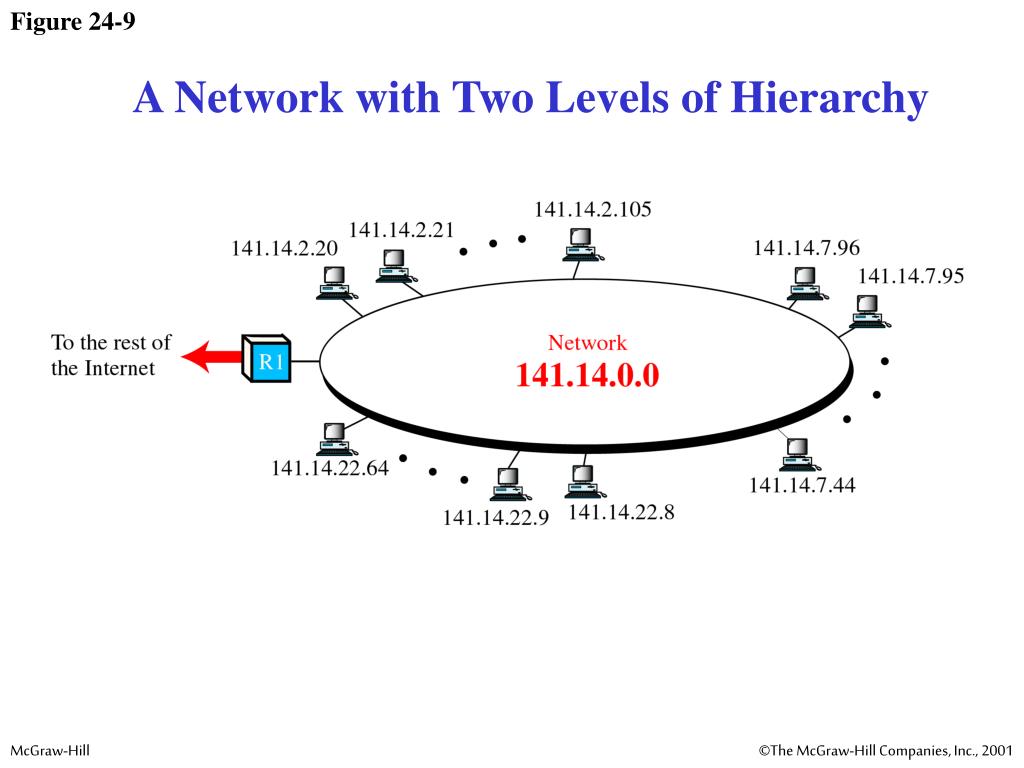

Figure 24-9

A Network with Two Levels of Hierarchy

slide11

Figure 24-10

A Network with Three Levels of Hierarchy

slide12

Figure 24-11

Addresses with and without Subnetting

slide15

Figure 24-14

Port Addresses

slide16

Figure 24-15

UDP Datagram Format

slide17

Figure 24-16

TCP Segment Format
