Quantum Simulation of arbitrary Hamiltonians with superconducting qubits

Quantum Simulation of arbitrary Hamiltonians with superconducting qubits. Colin Benjamin (NISER, Bhubaneswar) Collaborators: A. Galiautdinov, E. J. Pritchett, M. Geller, A. Sornborger and P. C. Stancil (UGA) J. M. Martinis (UCSB). Outline. Quantum Simulation

knut
Download Presentation

Quantum Simulation of arbitrary Hamiltonians with superconducting qubits

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

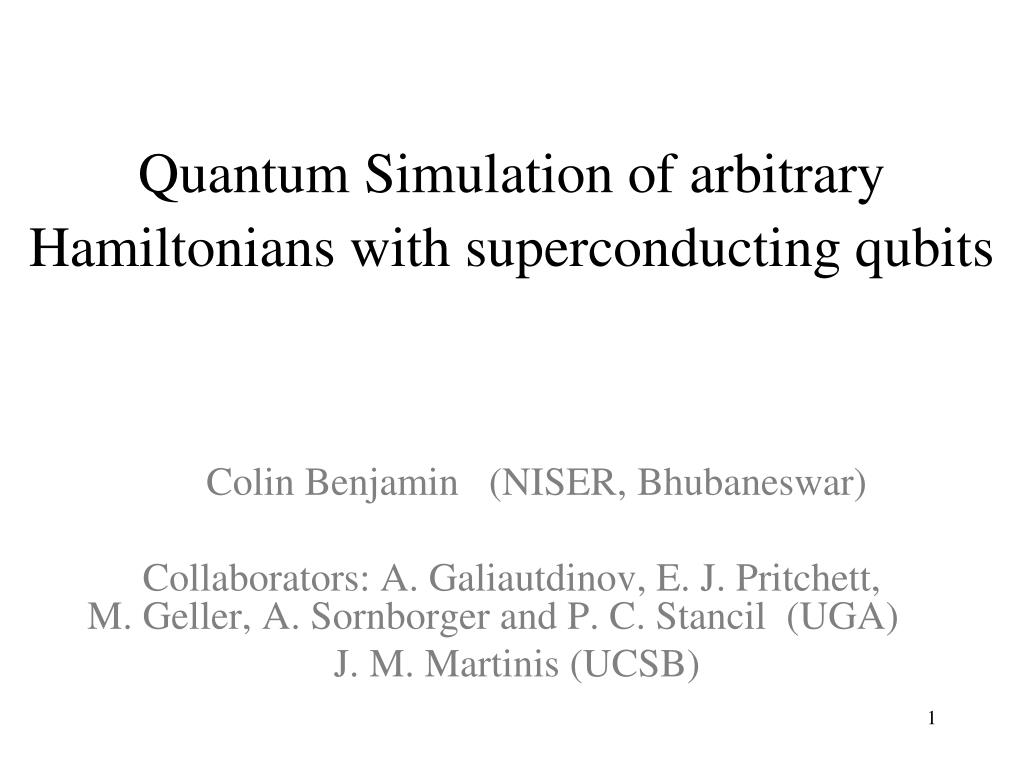

  1. Quantum Simulation of arbitrary Hamiltonians with superconducting qubits Colin Benjamin (NISER, Bhubaneswar) Collaborators: A. Galiautdinov, E. J. Pritchett, M. Geller, A. Sornborger and P. C. Stancil (UGA) J. M. Martinis (UCSB)

  2. Outline • Quantum Simulation • Superconducting simulator Quantum statics: Hamiltonian mapping Quantum dynamics • Application to-i. Random real Hamiltonian ii. Molecular collisions

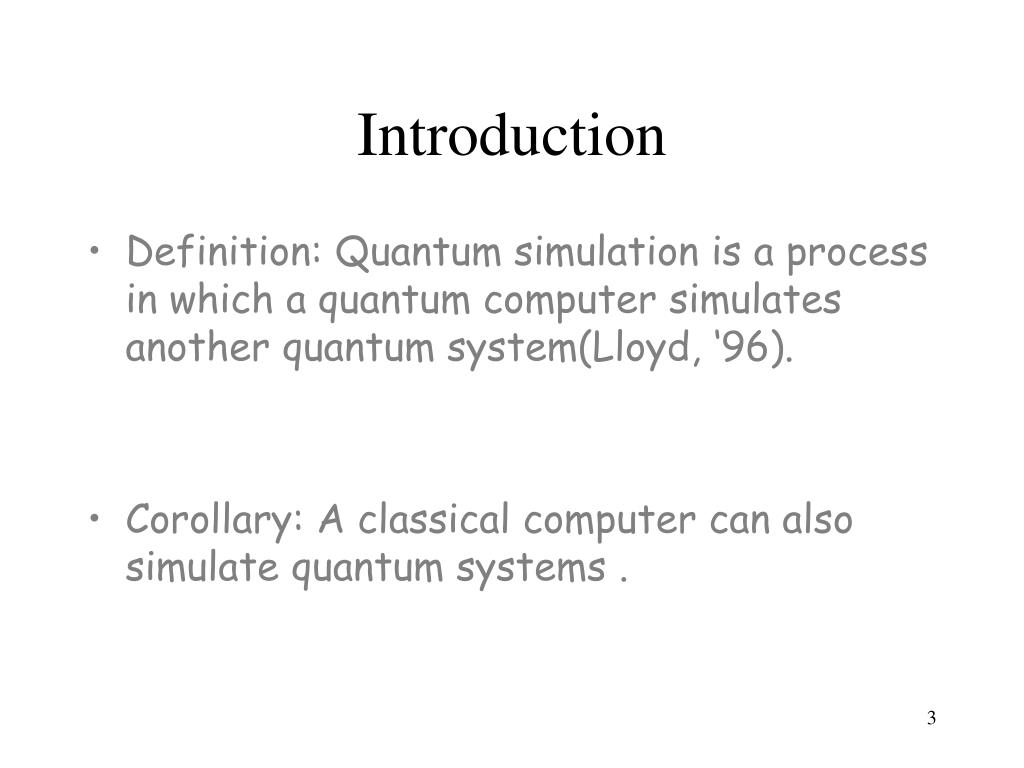

  3. Introduction • Definition: Quantum simulation is a process in which a quantum computer simulates another quantum system(Lloyd, ‘96). • Corollary: A classical computer can also simulate quantum systems .

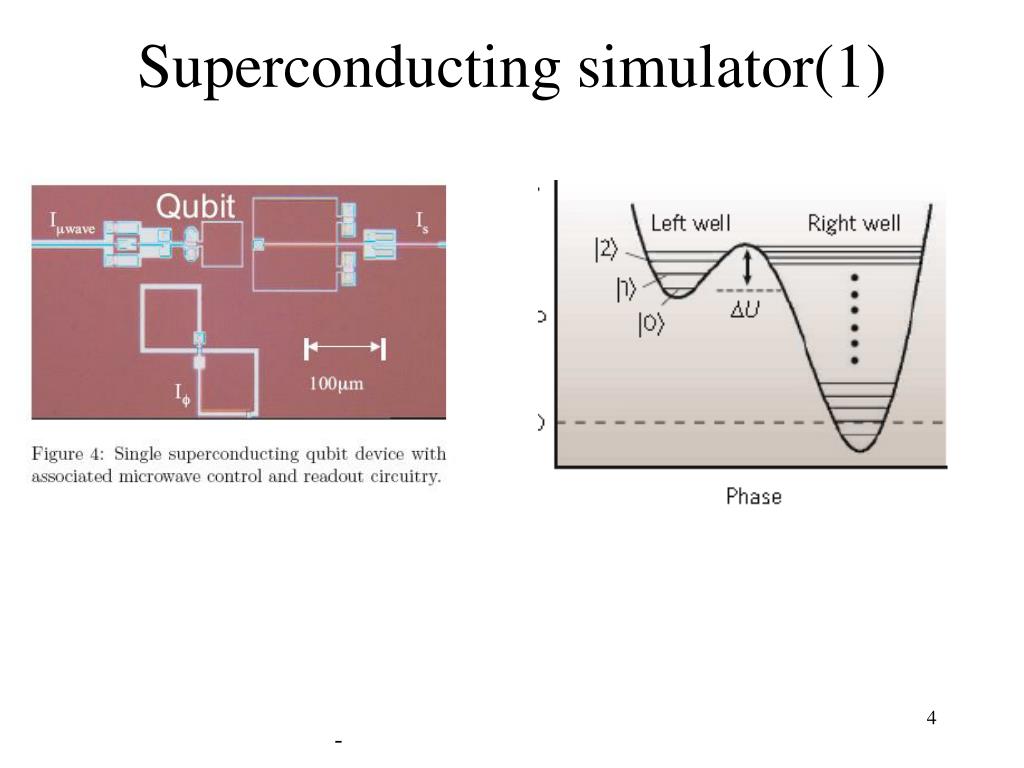

  4. Superconducting simulator(1) -

  5. Superconducting simulator(2) Hamiltonian Rescaled energies

  6. Superconducting simulator(3) The 1-excitation subspace Hqc= f’s are function of g’s

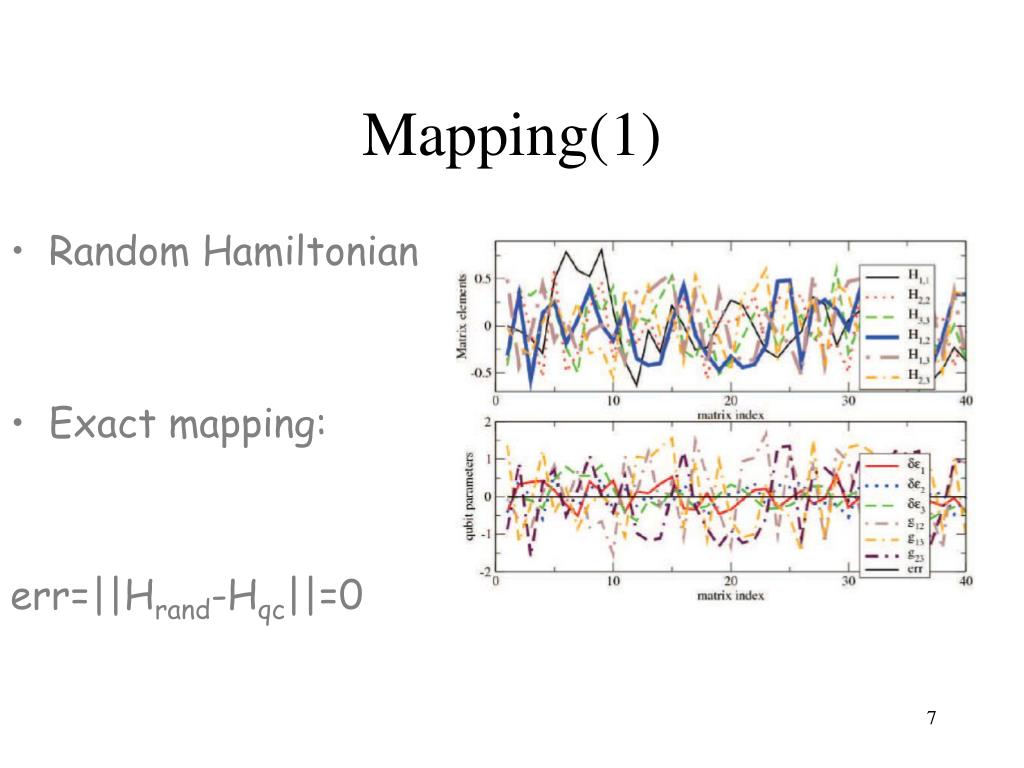

  7. Mapping(1) • Random Hamiltonian • Exact mapping: err=||Hrand-Hqc||=0

  8. Mapping (2) • Molecular collision • Na(3s)+HeNa(3p)+He • err=||H’/l- Hqc||=0 l=|| H’ (t)|| /[h0.1GHz]

  9. Quantum dynamics: Molecular Collision(1) Time dependent Hamiltonian • distance to • time transformation • R2 =b2+v2t2, v=1

  10. Quantum dynamics: Molecular Collision(2) Scattering Probabilities

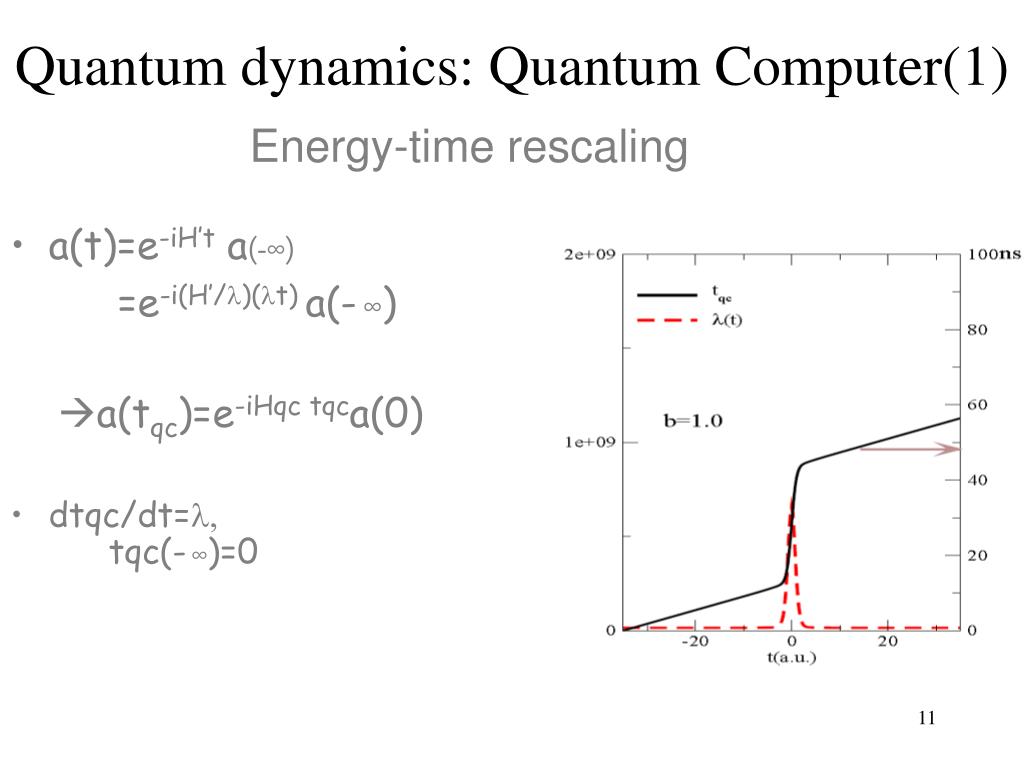

  11. Quantum dynamics: Quantum Computer(1) Energy-time rescaling • a(t)=e-iH’t a(-∞) =e-i(H’/l)(lt) a(- ∞) a(tqc)=e-iHqc tqca(0) • dtqc/dt=l, tqc(- ∞)=0

  12. Quantum dynamics: Quantum Computer(2) Scattering probabilities

  13. Quantum Computer: Fidelity and Leakage Simulation fidelity Leakage

  14. Conclusion • proposed a superconducting quantum simulator • can simulate any random Hamiltonian -mapping error: zero • example simulation of a molecular collision (electron orbital scattering) - 99% fidelity
