  1. WP7 -> D7.1 CARTIF MOCKUP Dr. Sergio Saludes Rodil, CARTIF Foundation, Spain

  2. Location • Located in the CartifFoundation, which is in Boecillo Technology Park. • The Boecillo Technology Park is in the municipality of Boecillo(Valladolid), connected by highway with Madrid (179km). • Cartif Foundation owns 3 buildings inside the Technology Park. • The mockup is located inside Building 2, in the second floor. Brussels

  3. Objectives • To have notonlya small SandS replica but a functional site that resembles a real kitchen. • Visibility: To contribute to project dissemination. • Glass walls. • Additional room: can be used as a meeting point. • Cameras. • Accesibility: complies with the recommended standards to guarantee that the mockup is accessible to people withdisabilities. Brussels

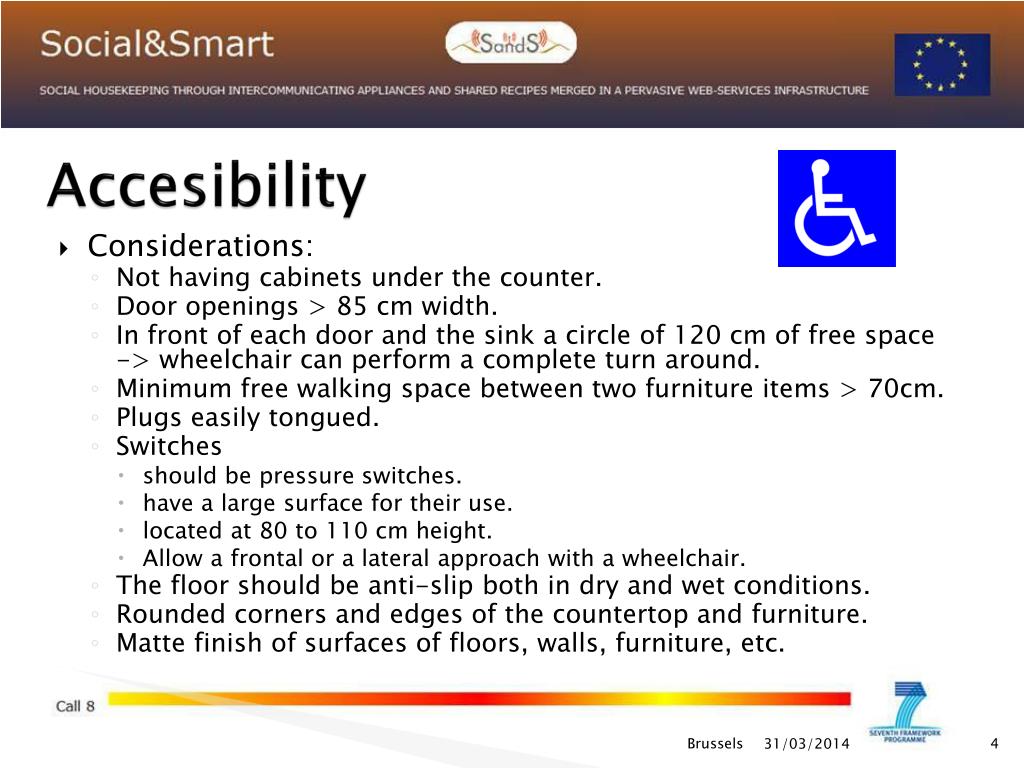

  4. Accesibility • Considerations: • Nothaving cabinets under the counter. • Door openings > 85 cm width. • In front of each door and the sink a circle of 120 cm of free space -> wheelchair can perform a complete turn around. • Minimum free walking space between two furniture items >70cm. • Plugs easily tongued. • Switches • should be pressure switches. • have a large surface for their use. • located at 80 to 110 cm height. • Allow a frontal or a lateral approachwith a wheelchair. • The floor should be anti-slip both in dry and wet conditions. • Rounded corners and edges of the countertop and furniture. • Matte finish of surfaces of floors, walls, furniture, etc. Brussels

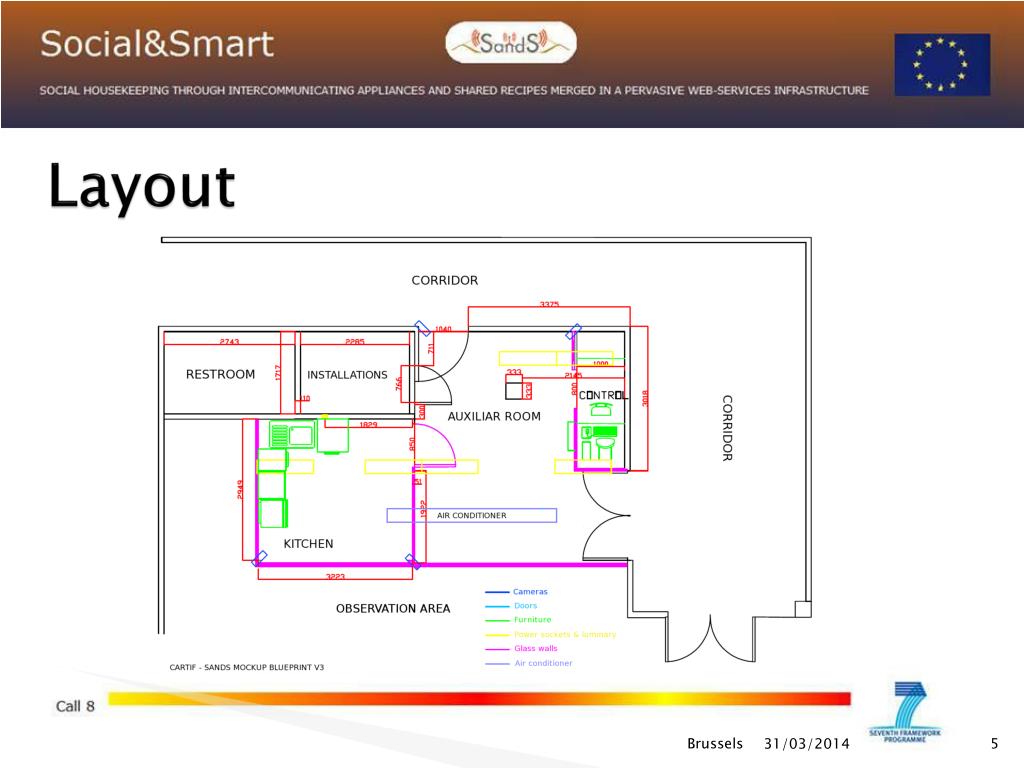

  5. Layout Brussels

  6. Glassenclosure Brussels

  7. Glassenclosure • Final viewfromtheobservationarea FIA Dublin

  8. Plumbing HOT COOL FIA Dublin

  9. Electric Layout Brussels

  10. Electric control panel • Located in the control room. • Transparentprotection box. (Visibility) • Components: • bipolar circuitbreaker (32A) • bipolar circuit breaker for 2-pin sockets (16A) • bipolar circuit breaker for lighting (10A ) • bipolar circuit breaker for washing machine and dishwasher (16A) • bipolar circuit breaker for the hob, extractor and oven (16A) • bipolar circuit breaker for kitchen plugs (16A) • bipolar circuit breaker for instrumentation and control (10A) • main bipolar dierential (40A, 30mA) • 3 Lighting bipolar Relays (10A) Brussels

  11. Kitchenlayout Fridge Washing Machine Dishwasher Sink Ceramic hob / range hood Oven Bread Machine 5 1 4 2 3 7 6 Brussels

  12. Kitchenlayout (observationarea) FIA Dublin

  13. Sandscompliantappliances FIA Dublin
