Area of Triangles

Area of Triangles. A. b. B. C. a. The area of a triangle can be found from two sides and the angle between them. Area of triangle = 1 / 2 absinC. Also. Area of triangle = 1 / 2 acsinB. Area of triangle = 1 / 2 bcsinA. Ex1. A. 2.5cm. 70 °. B. C. 4cm. M. 35m. 130 °. K.

knox
Download Presentation

Area of Triangles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Area of Triangles A b B C a The area of a triangle can be found from two sides and the angle between them. Area of triangle = 1/2absinC Also Area of triangle = 1/2acsinB Area of triangle = 1/2bcsinA

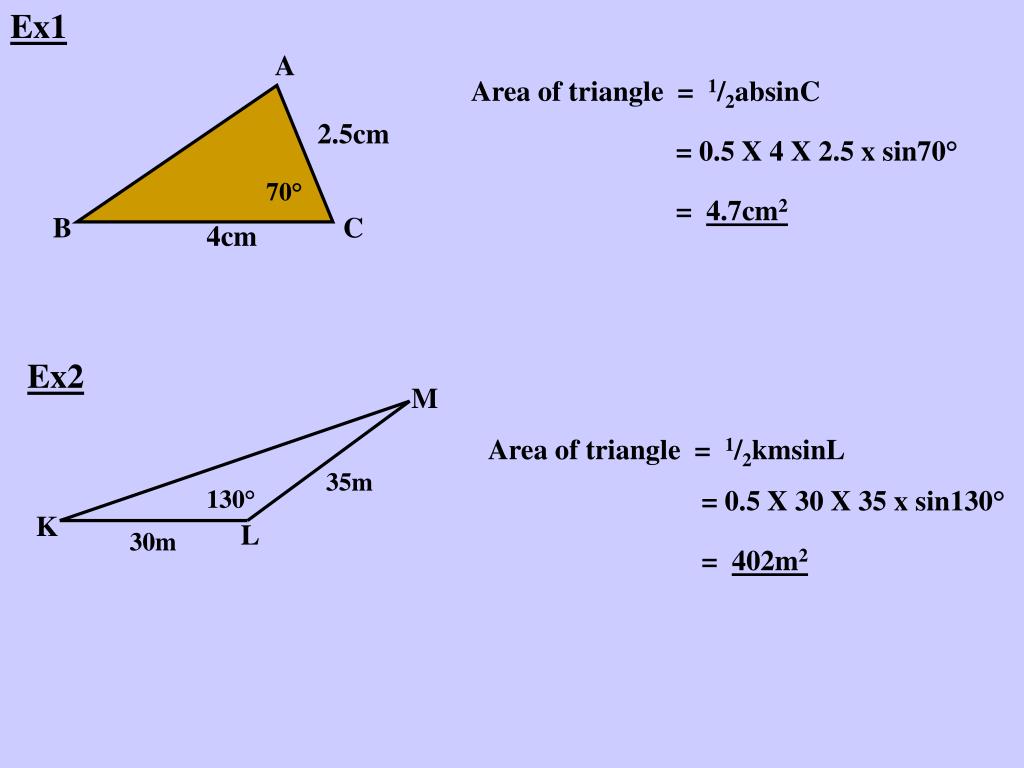

  2. Ex1 A 2.5cm 70° B C 4cm M 35m 130° K L 30m Area of triangle = 1/2absinC = 0.5 X 4 X 2.5 x sin70° = 4.7cm2 Ex2 Area of triangle = 1/2kmsinL = 0.5 X 30 X 35 x sin130° = 402m2

  3. Ex3 Find the area of this parallelogram. P Area  = 1/2pqsinR 22cm = 0.5 X 11 X 22 X sin66° = 110.5cm2 66° R Q 11cm So area of parallelogram = 2 X 110.5 = 221cm2

  4. Ex4 Find the area of this quadrilateral. 15cm 14cm 15cm 76.6° 76.6° 14cm Area = 0.5 X 14 X 15 x sin76.6° = 102cm2 20cm 21cm 52° 20cm 21cm 52° Area = 0.5 X 20 X 21 x sin52° Total area = 267cm2 = 165cm2

  5. Obtuse Angles A B A+B sinA° sinB° 20 160 180 0.342 0.342 35 145 180 0.574 0.574 70 110 180 0.940 0.940 43 137 180 0.682 0.682 CONCLUSION If A + B = 180 then sinA° = sinB° Ex4 sinx° = 0.643 so x = sin-10.643 = 40° or 140°
