  1. Lecture 12Part 1: Laser Guide Stars, continuedPart 2: Control Systems Intro Claire Max Astro 289, UC Santa Cruz February 14, 2013

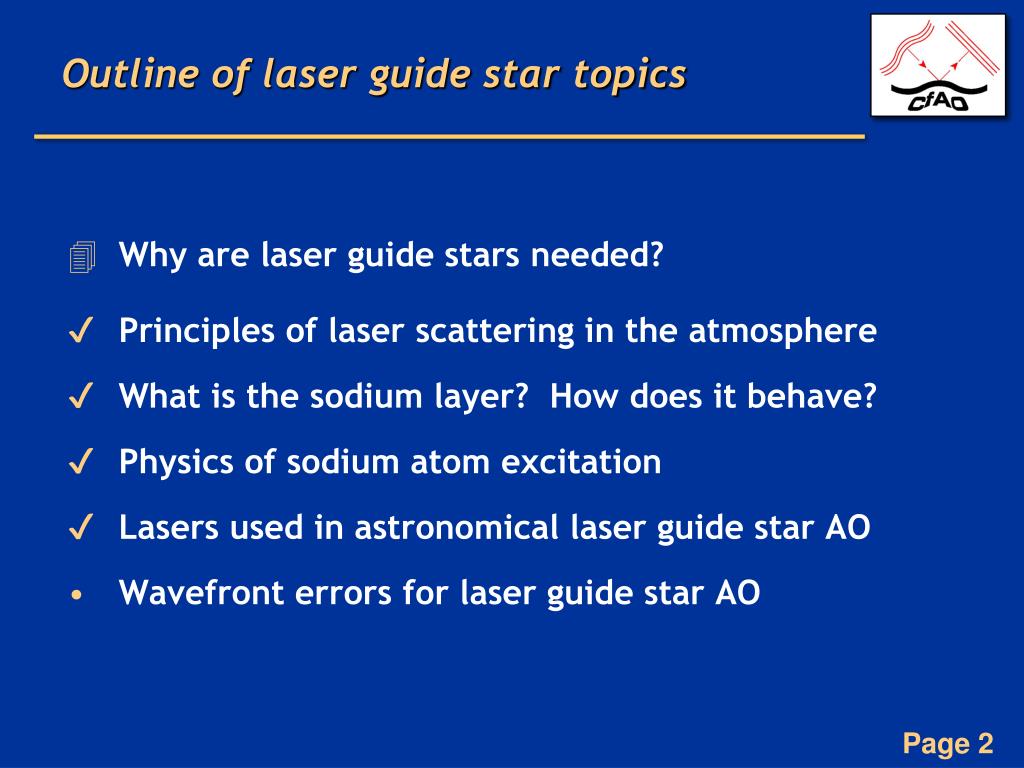

  2. Outline of laser guide star topics • Why are laser guide stars needed? • Principles of laser scattering in the atmosphere • What is the sodium layer? How does it behave? • Physics of sodium atom excitation • Lasers used in astronomical laser guide star AO • Wavefront errors for laser guide star AO

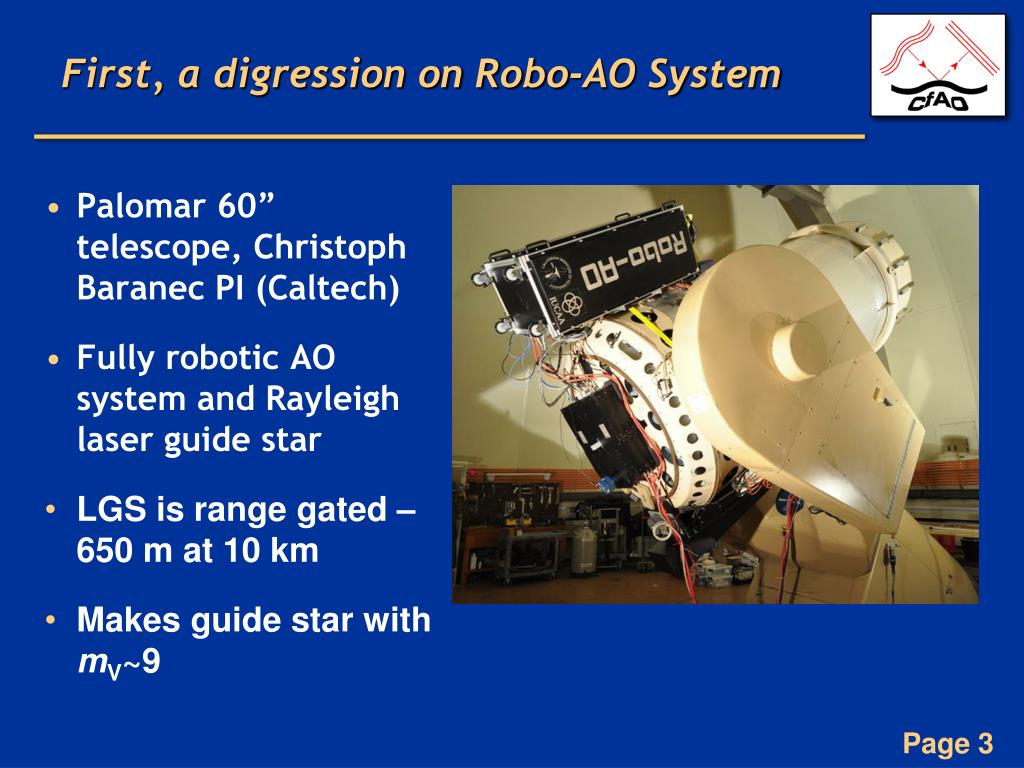

  3. First, a digression on Robo-AO System • Palomar 60” telescope, Christoph Baranec PI (Caltech) • Fully robotic AO system and Rayleigh laser guide star • LGS is range gated – 650 m at 10 km • Makes guide star with mV~9

  4. Small size: MEMS DM

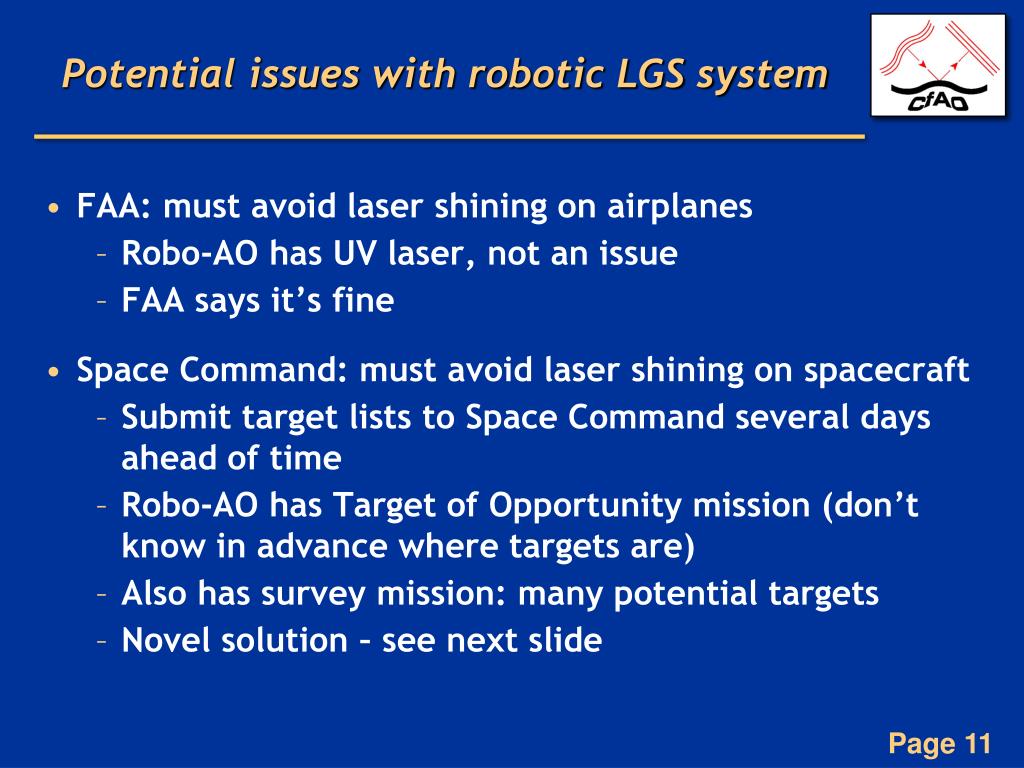

  5. Potential issues with robotic LGS system • FAA: must avoid laser shining on airplanes • Robo-AO has UV laser, not an issue • FAA says it’s fine • Space Command: must avoid laser shining on spacecraft • Submit target lists to Space Command several days ahead of time • Robo-AO has Target of Opportunity mission (don’t know in advance where targets are) • Also has survey mission: many potential targets • Novel solution – see next slide

  6. Laser guide star AO needs to use a faint tip-tilt star to stabilize laser spot on sky from A. Tokovinin

  7. Effective isoplanatic angle for image motion: “isokinetic angle” • Image motion is due to low order modes of turbulence • Measurement is integrated over whole telescope aperture, so only modes with the largest wavelengths contribute (others are averaged out) • Low order modes change more slowly in both time and in angle on the sky • “Isokinetic angle” • Analogue of isoplanatic angle, but for tip-tilt only • Typical values in infrared: of order 1 arc min

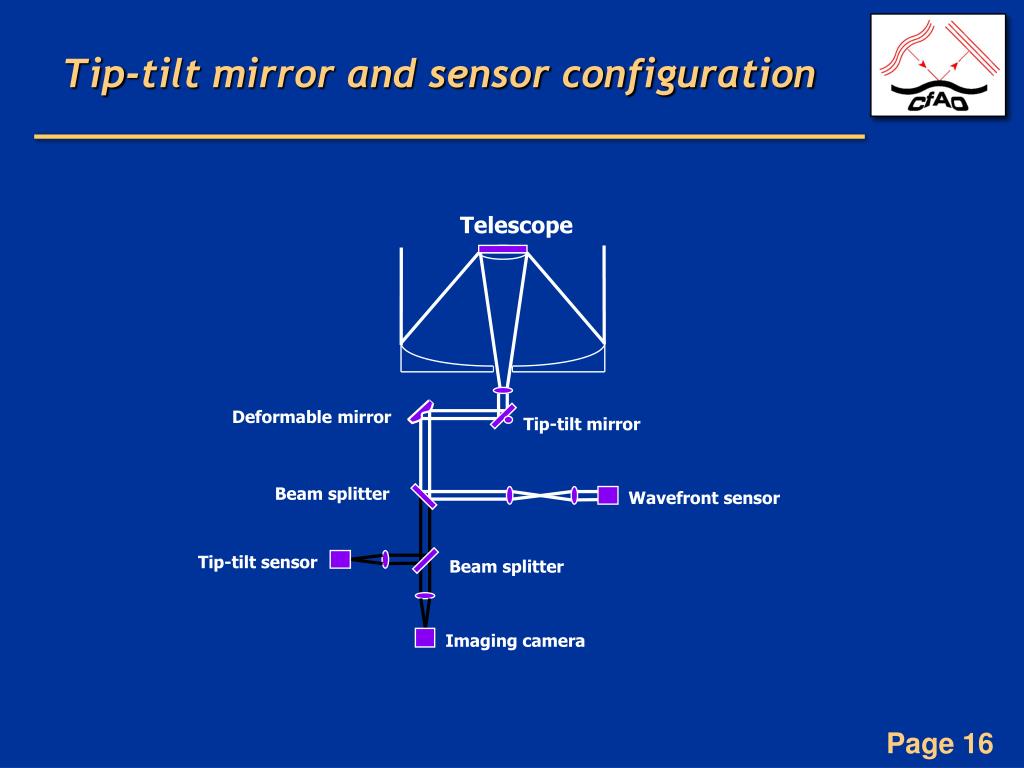

  8. Tip-tilt mirror and sensor configuration Telescope Deformable mirror Tip-tilt mirror Beam splitter Wavefront sensor Tip-tilt sensor Beam splitter Imaging camera

  9. Tip-tilt correction determines LGS sky coverage fraction • Trade-off between the low probability of high quality TT correction (bright nearby TT stars) and broad area coverage at lower performance (dimmer TT stars and farther away) • Use statistics on number of stars per square degree to determine whether a bright enough star will be within tilt anisoplanatic angle • There is no absolute “sky coverage fraction.” • Rather, you can ask “statistically, over what fraction of the sky am I likely to obtain a tip-tilt correction better than xxx milli-arc-sec?”

  10. Infrared versus optical tip-tilt sensing • Until now, all tip-tilt sensing has been done using visible light • Visible-light CCDs had lower read noise, read out faster than infrared arrays • This is changing rapidly: much better IR arrays • Keck NGAO, TMT NFIRAOS, other AO systems plan to use infrared tip-tilt sensing • Advantage: higher sky coverage • There are many more low-mass stars (faint, red) than high-mass stars (bright in visible wavelengths)

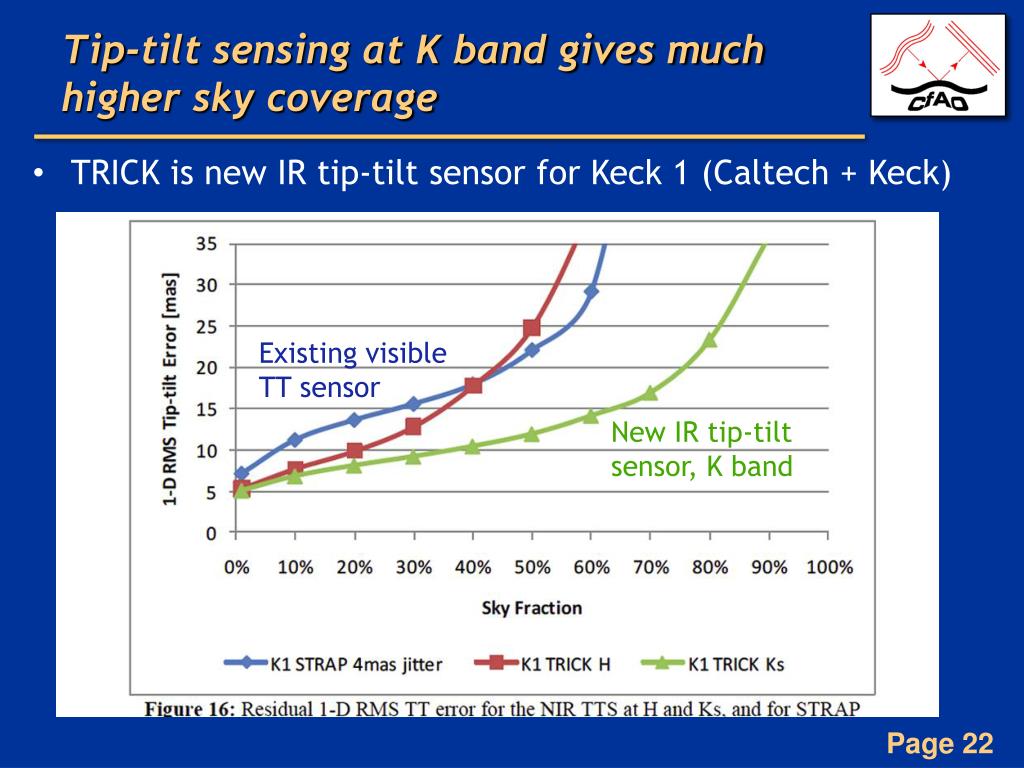

  11. Tip-tilt sensing at K band gives much higher sky coverage • TRICK is new IR tip-tilt sensor for Keck 1 (Caltech + Keck) Existing visible TT sensor New IR tip-tilt sensor, K band

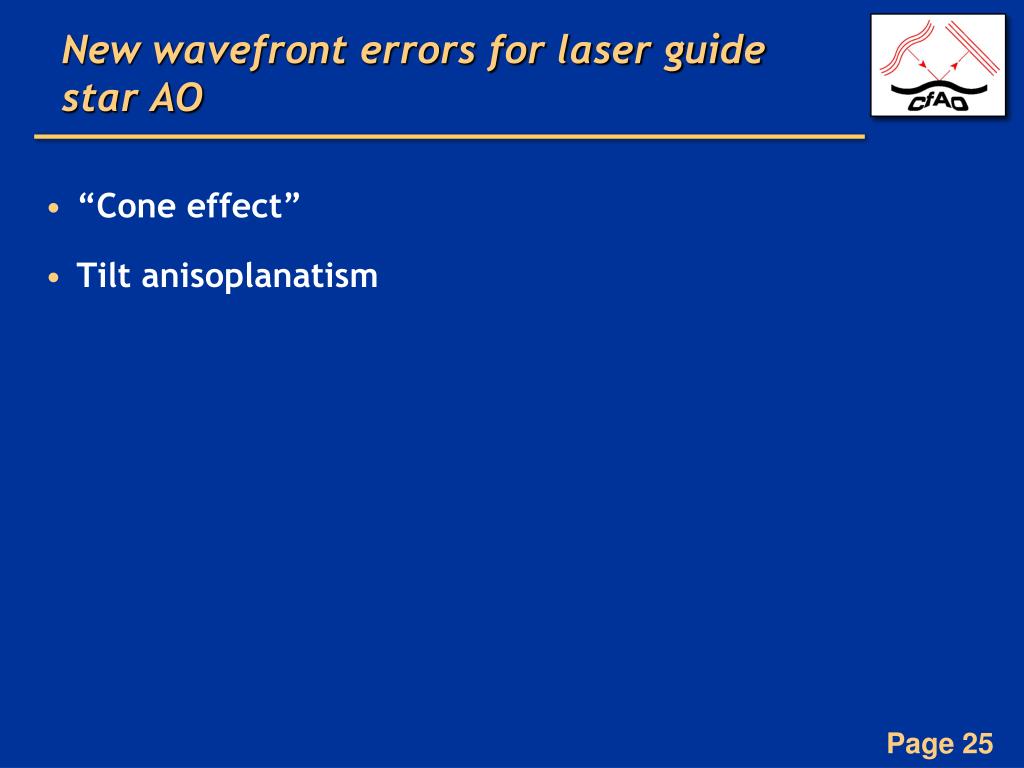

  12. New wavefront errors for laser guide star AO • “Cone effect” • Tilt anisoplanatism

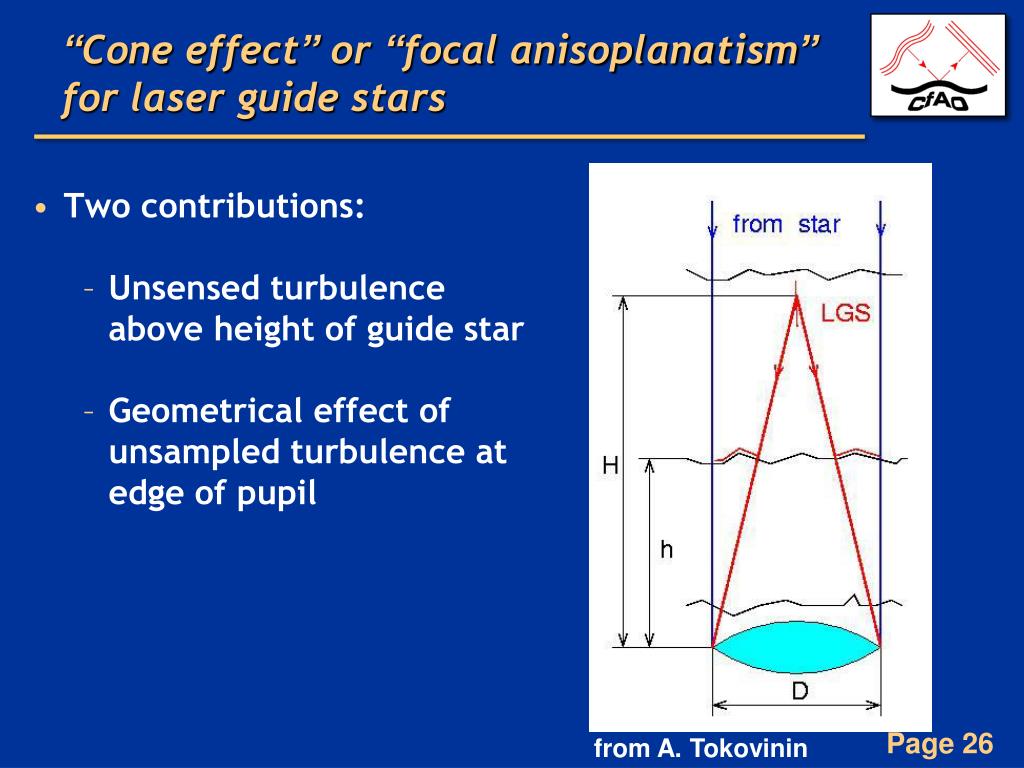

  13. “Cone effect” or “focal anisoplanatism” for laser guide stars • Two contributions: • Unsensed turbulence above height of guide star • Geometrical effect of unsampled turbulence at edge of pupil from A. Tokovinin

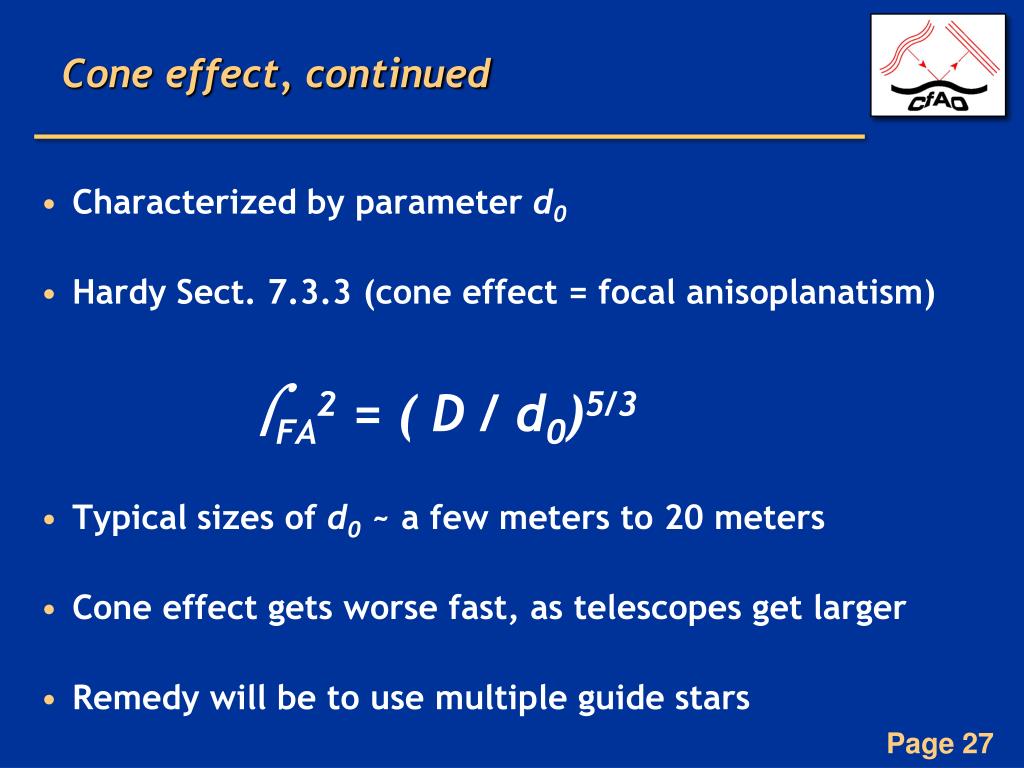

  14. Cone effect, continued • Characterized by parameter d0 • Hardy Sect. 7.3.3 (cone effect = focal anisoplanatism) σFA2= ( D / d0)5/3 • Typical sizes of d0 ~ a few meters to 20 meters • Cone effect gets worse fast, as telescopes get larger • Remedy will be to use multiple guide stars

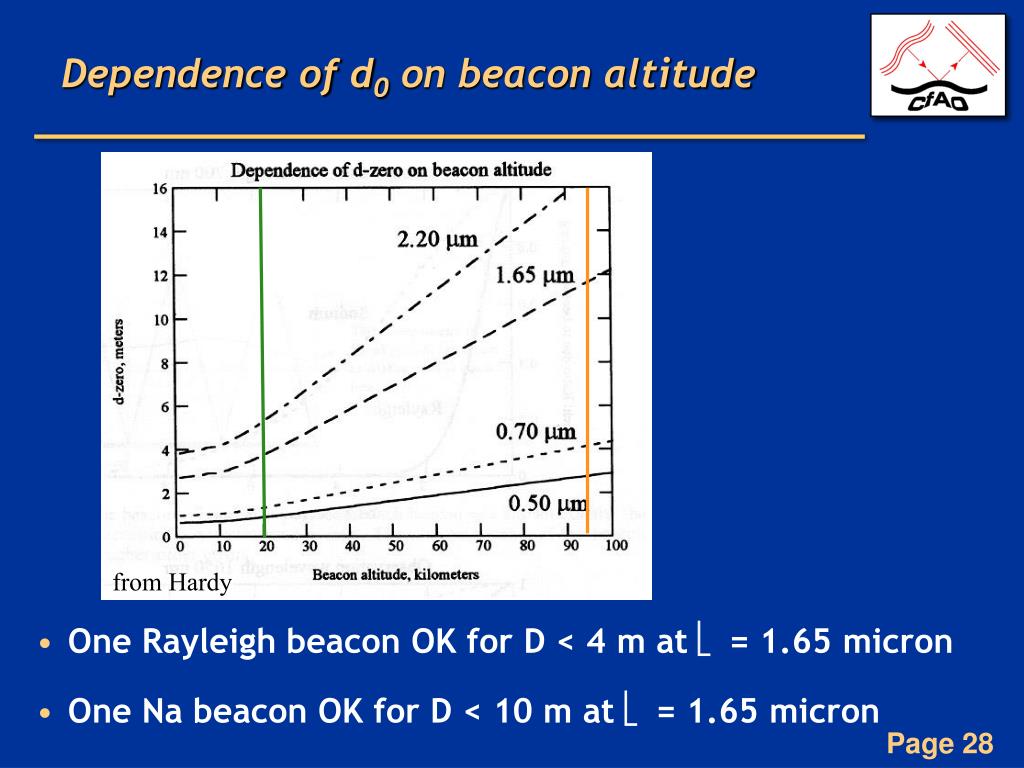

  15. Dependence of d0 on beacon altitude • One Rayleigh beacon OK for D < 4 m at λ = 1.65 micron • One Na beacon OK for D < 10 m at λ = 1.65 micron from Hardy

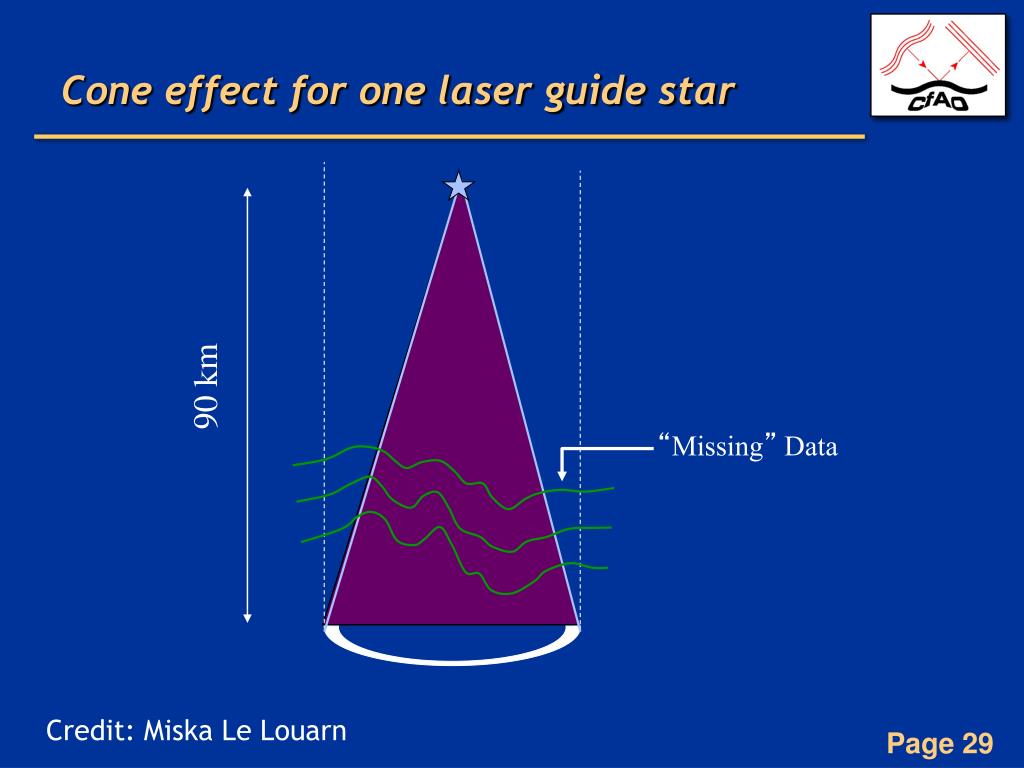

  16. Cone effect for one laser guide star 90 km “Missing” Data Credit: Miska Le Louarn

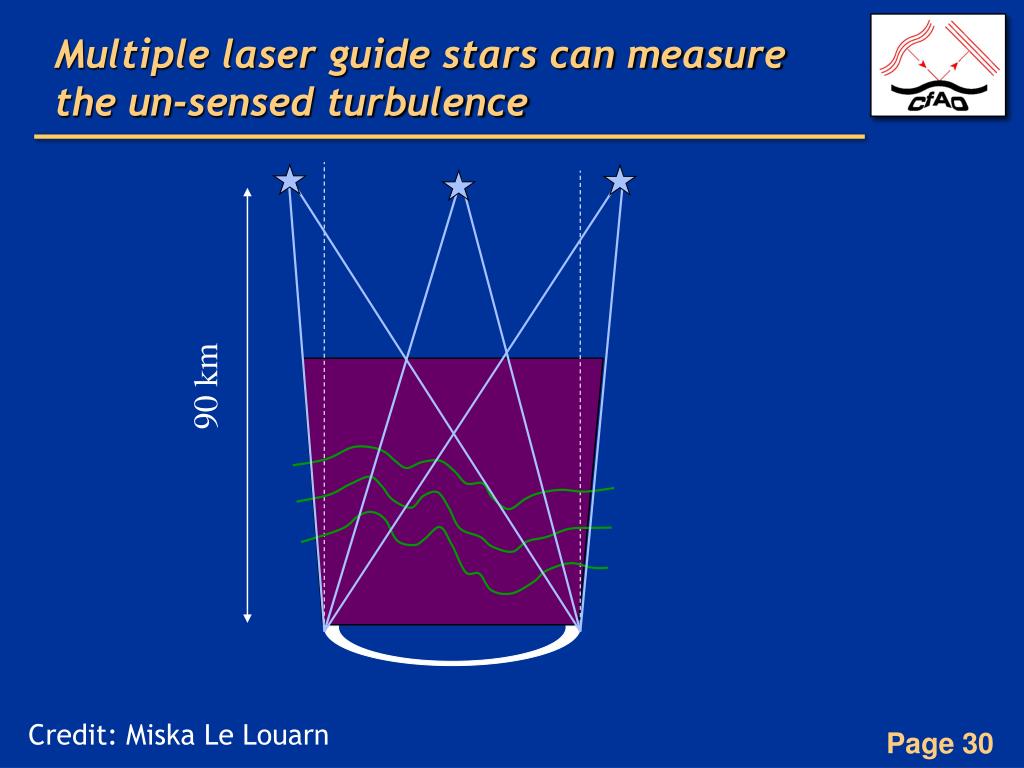

  17. Multiple laser guide stars can measure the un-sensed turbulence 90 km Credit: Miska Le Louarn

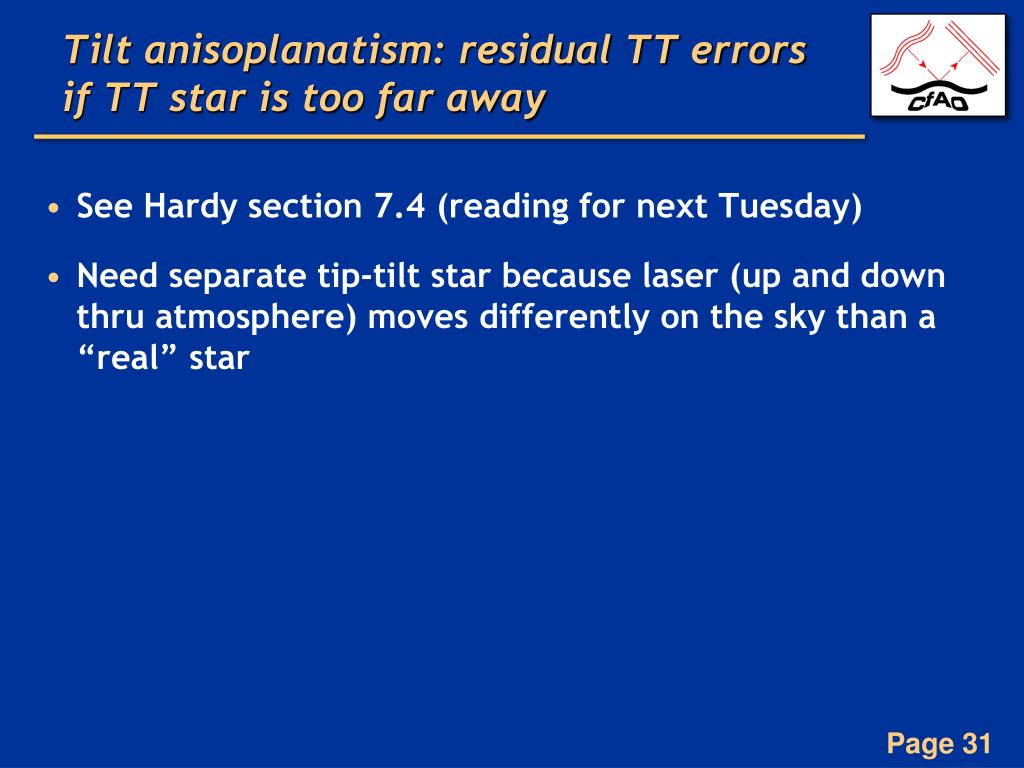

  18. Tilt anisoplanatism: residual TT errors if TT star is too far away • See Hardy section 7.4 (reading for next Tuesday) • Need separate tip-tilt star because laser (up and down thru atmosphere) moves differently on the sky than a “real” star

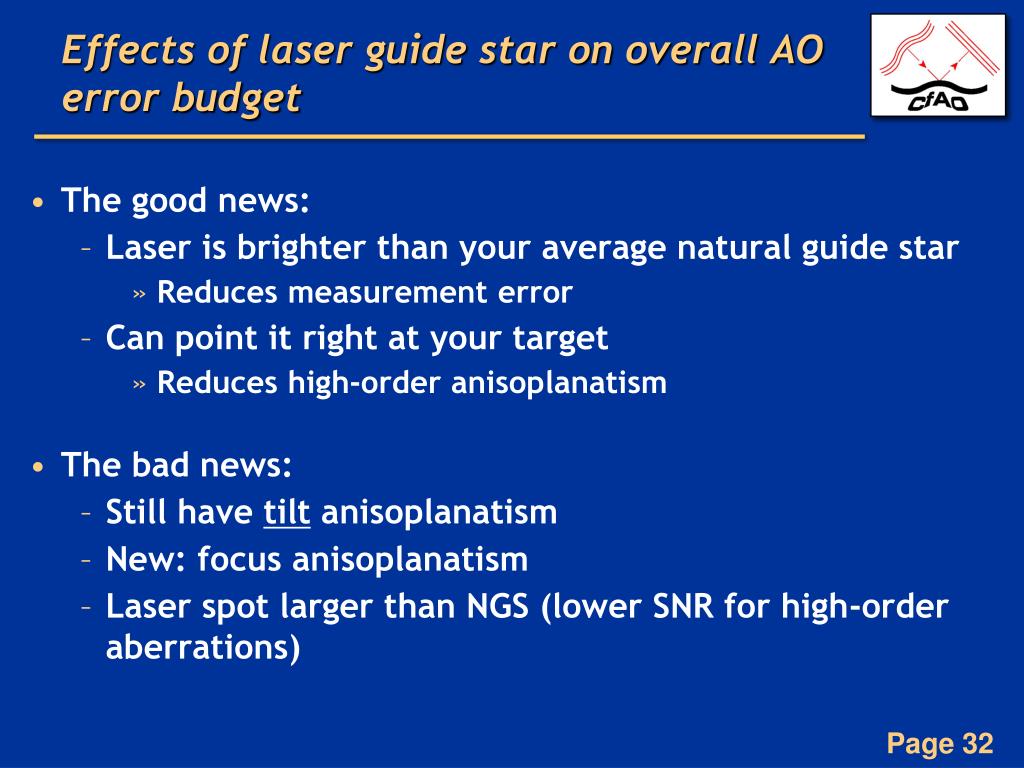

  19. Effects of laser guide star on overall AO error budget • The good news: • Laser is brighter than your average natural guide star • Reduces measurement error • Can point it right at your target • Reduces high-order anisoplanatism • The bad news: • Still have tilt anisoplanatism • New: focus anisoplanatism • Laser spot larger than NGS (lower SNR for high-order aberrations)

  20. Residual tip-tilt error due to tip-tilt anisoplanatism • Hardy sections 7.4.2 – 7.4.4 • Small angle approximation: for field angles < D/40,000 • Angle θTA is the angle between the target and the TT star such that the wavefront phase error due to tilt anisoplanatism is 1 radian and

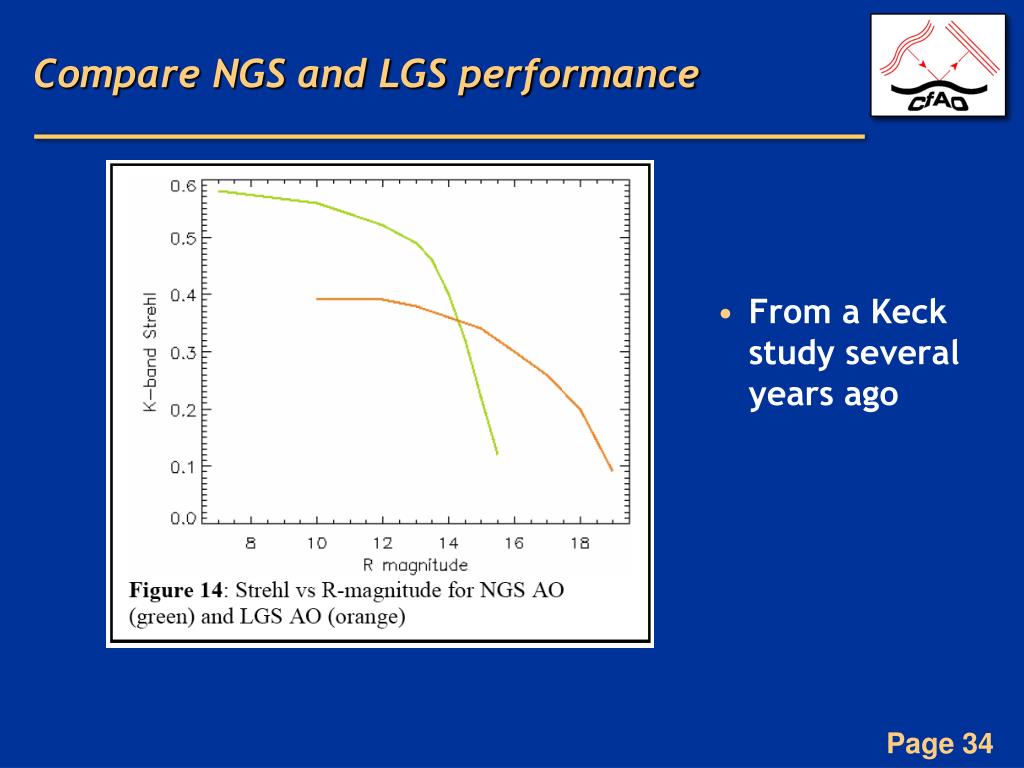

  21. Compare NGS and LGS performance • From a Keck study several years ago

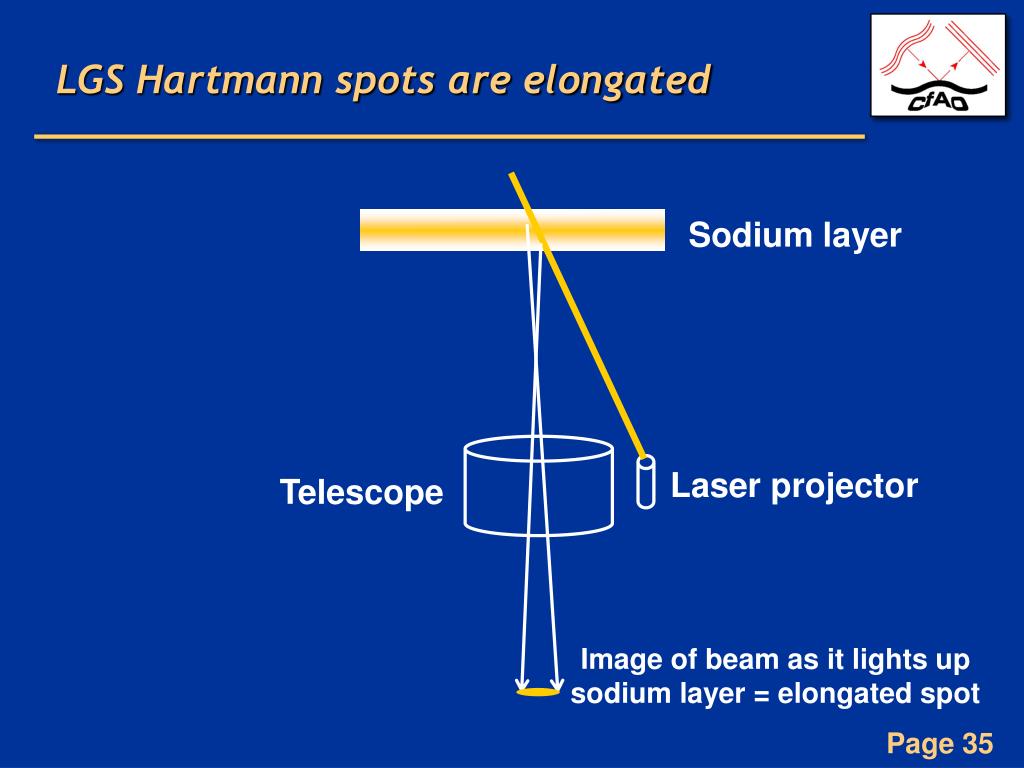

  22. LGS Hartmann spots are elongated Sodium layer Laser projector Telescope Image of beam as it lights up sodium layer = elongated spot

  23. Elongation in the shape of the LGS Hartmann spots Representative elongated Hartmann spots Off-axis laser projector Keck pupil

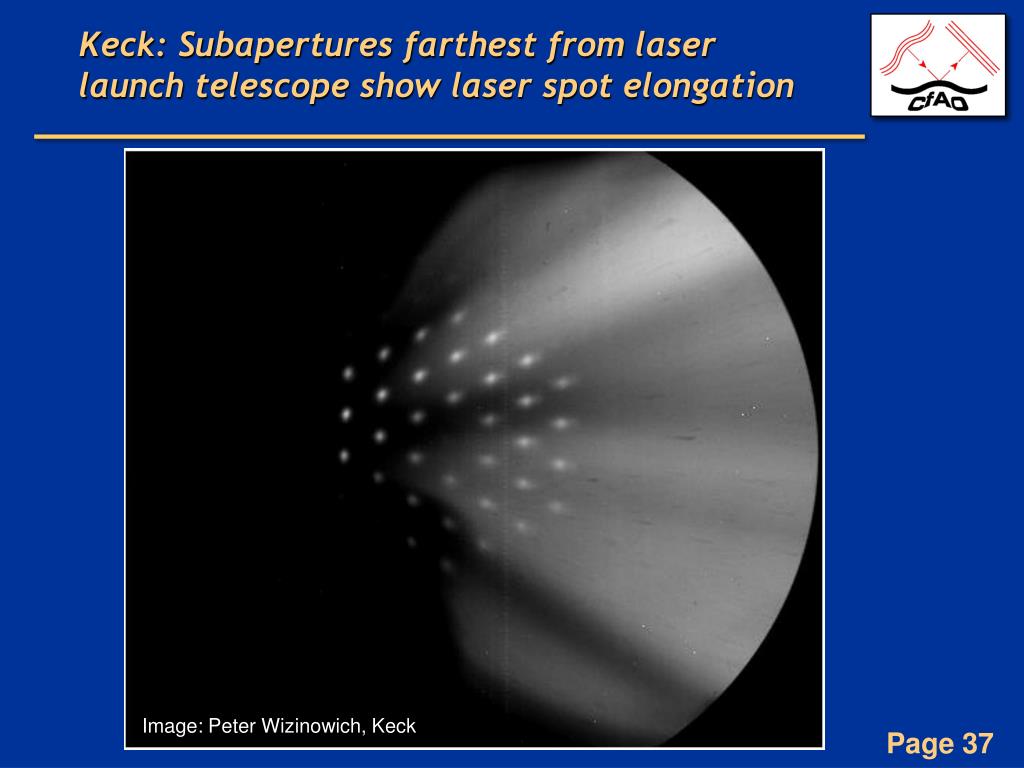

  24. Keck: Subapertures farthest from laser launch telescope show laser spot elongation Image: Peter Wizinowich, Keck

  25. New CCD geometry for WFS being developed to deal with spot elongation CW Laser Pulsed Laser Sean Adkins, Keck

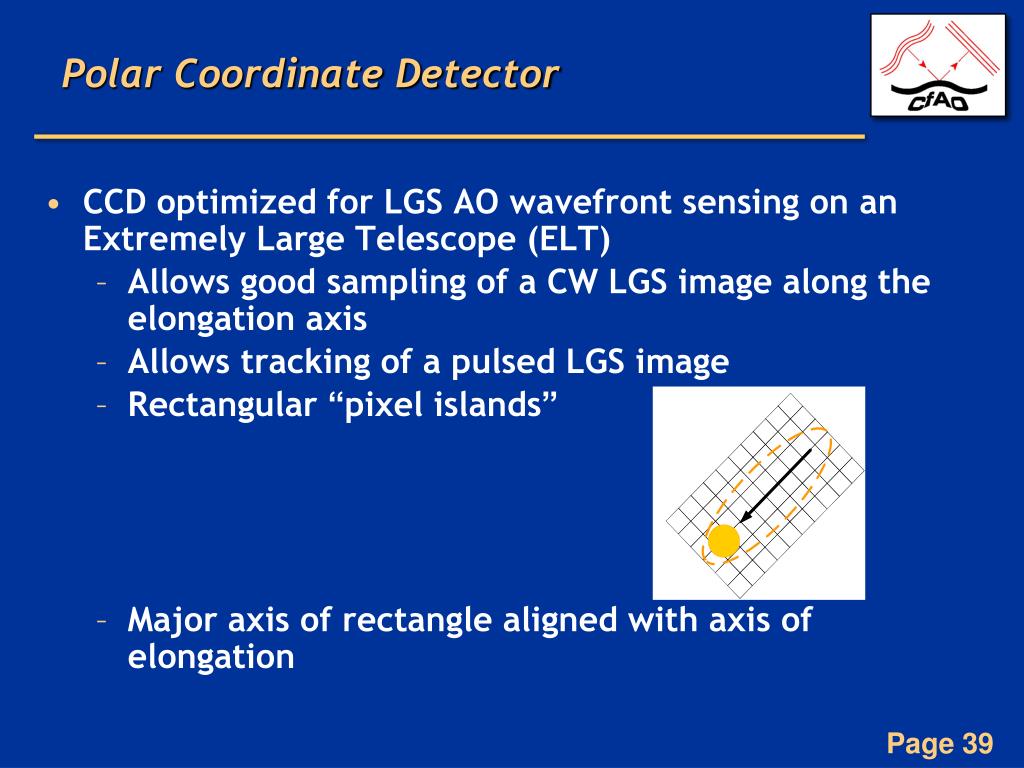

  26. Polar Coordinate Detector • CCD optimized for LGS AO wavefront sensing on an Extremely Large Telescope (ELT) • Allows good sampling of a CW LGS image along the elongation axis • Allows tracking of a pulsed LGS image • Rectangular “pixel islands” • Major axis of rectangle aligned with axis of elongation

  27. Laser guide star topics we’ve discussed • Why are laser guide stars needed? • Principles of laser scattering in the atmosphere • What is the sodium layer? How does it behave? • Physics of sodium atom excitation • Lasers used in astronomical laser guide star AO • Digression on Robo-AO system • Wavefront errors for laser guide star AO
