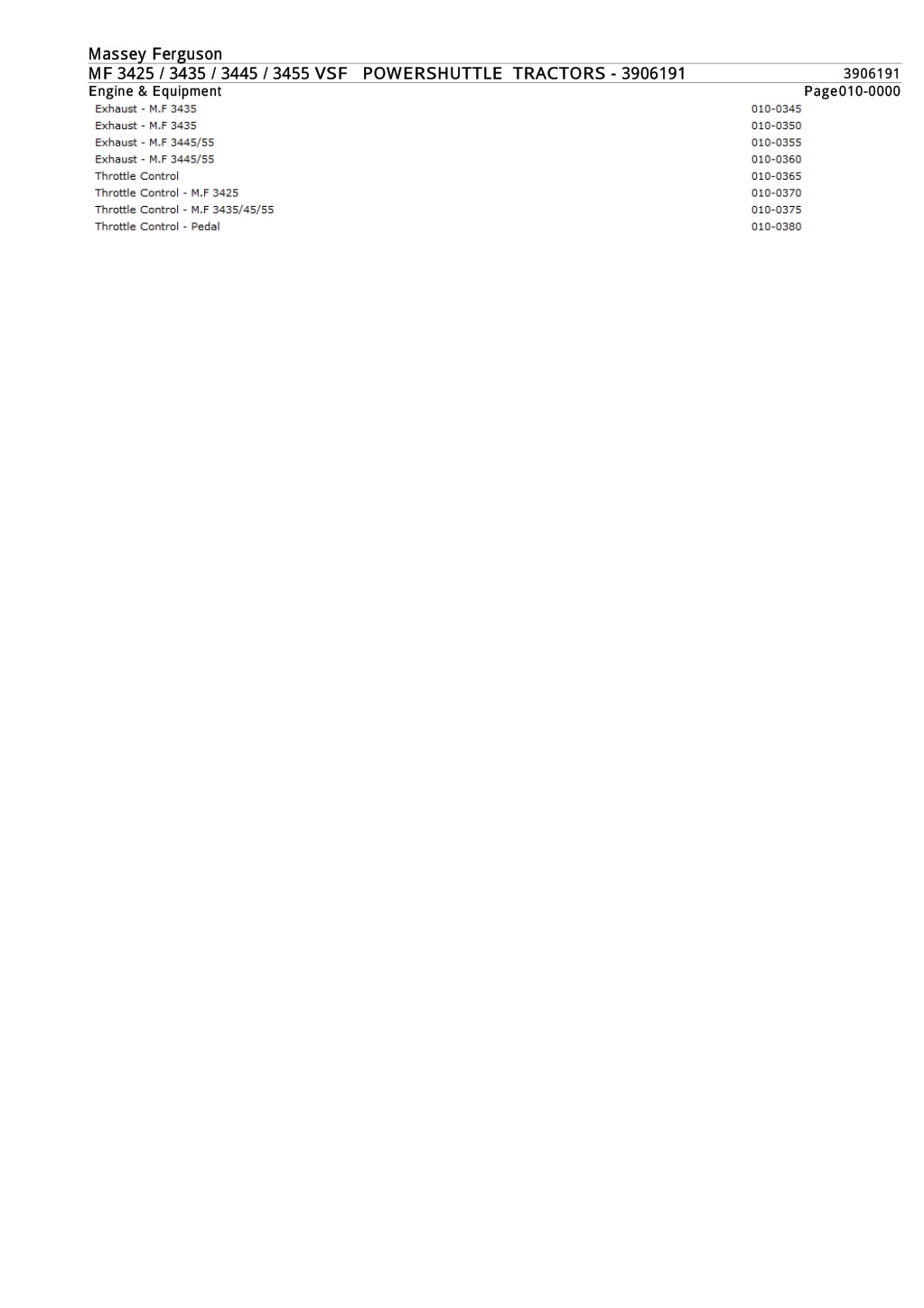

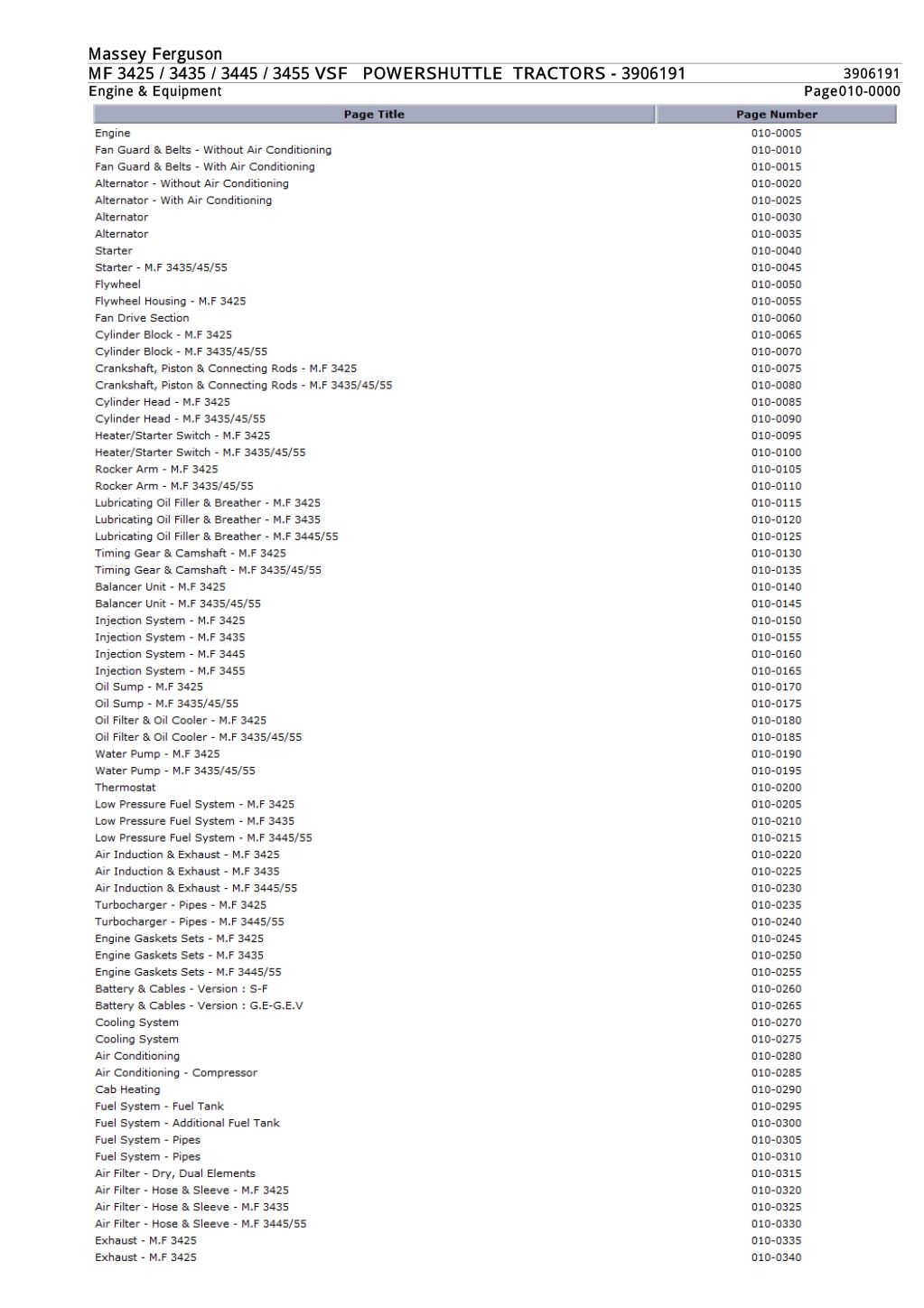

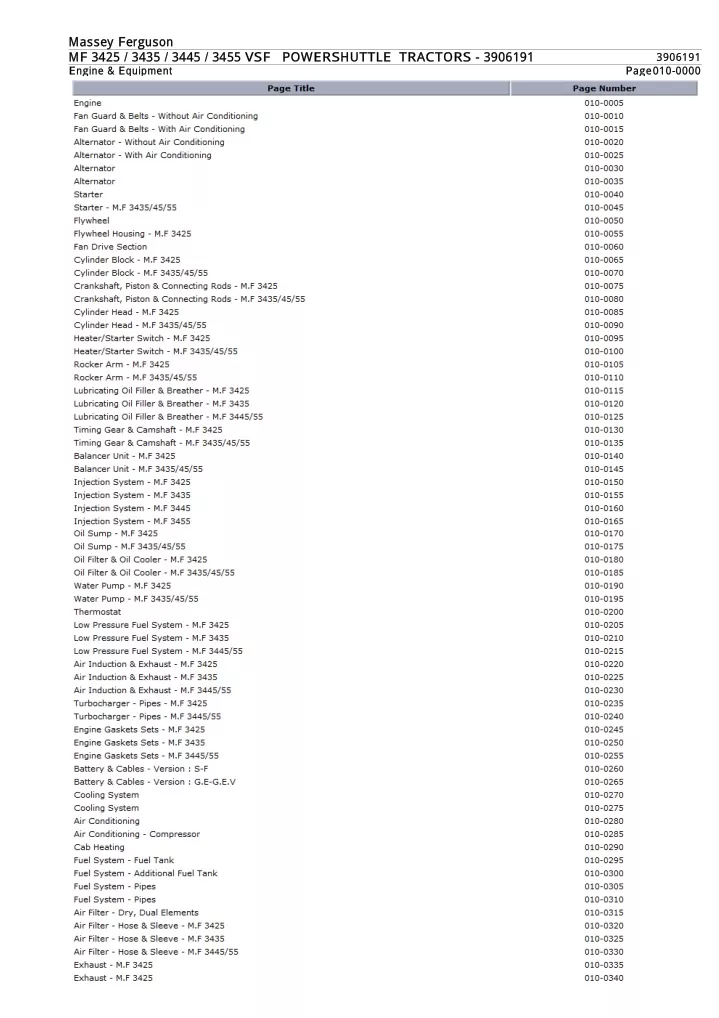

  1. Massey Ferguson Massey Ferguson MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 Engine & Equipment Engine & Equipment 3906191 3906191 Page010-0000 Page010-0000

  2. Massey Ferguson Massey Ferguson MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 Engine & Equipment Engine & Equipment 3906191 3906191 Page010-0000 Page010-0000

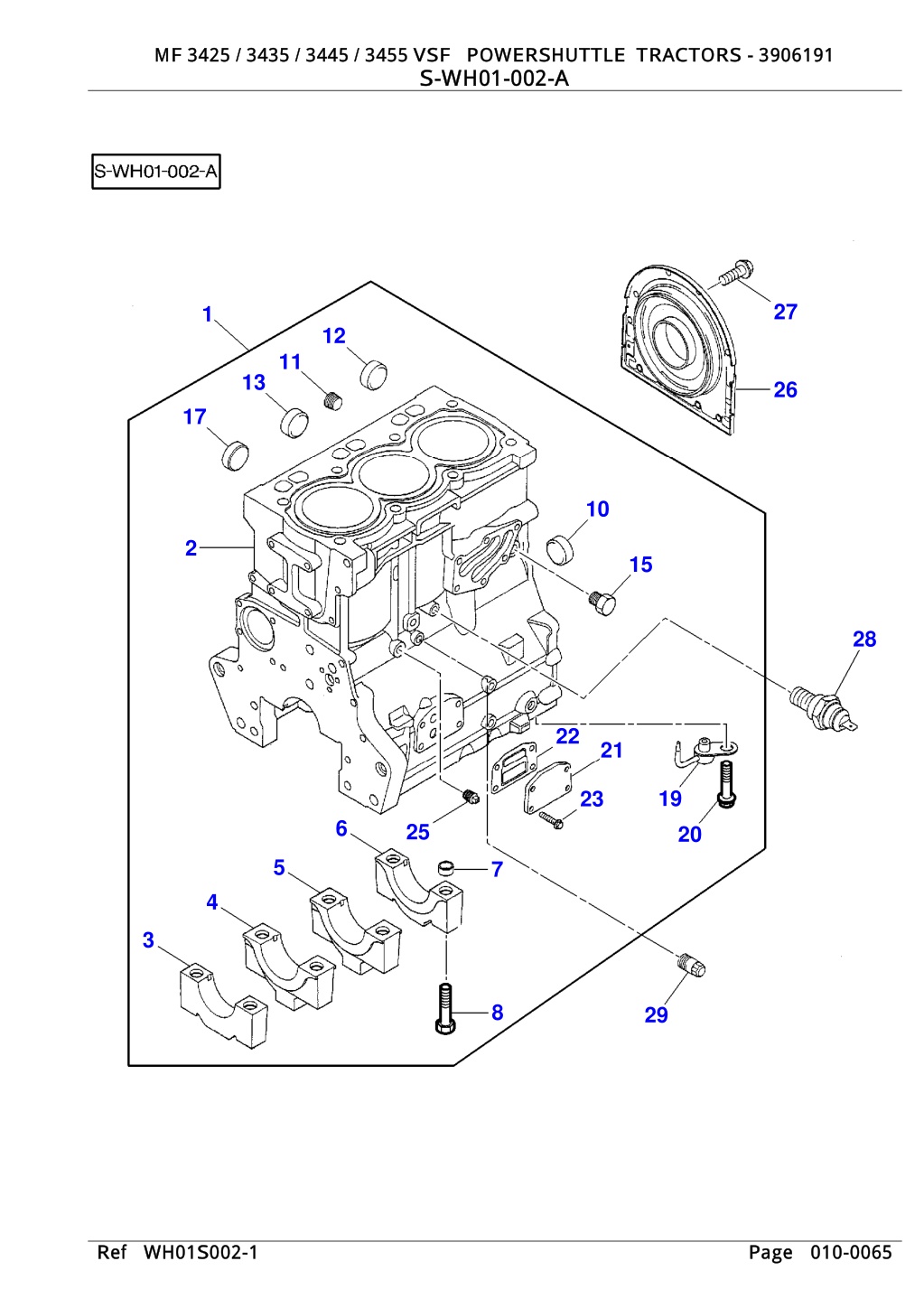

  3. MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 S-WH01-002-A S-WH01-002-A 27 1 12 11 13 26 17 10 2 15 28 22 21 19 23 6 25 20 5 7 4 3 8 29 Ref WH01S002-1 Ref WH01S002-1 Page Page 010-0065 010-0065

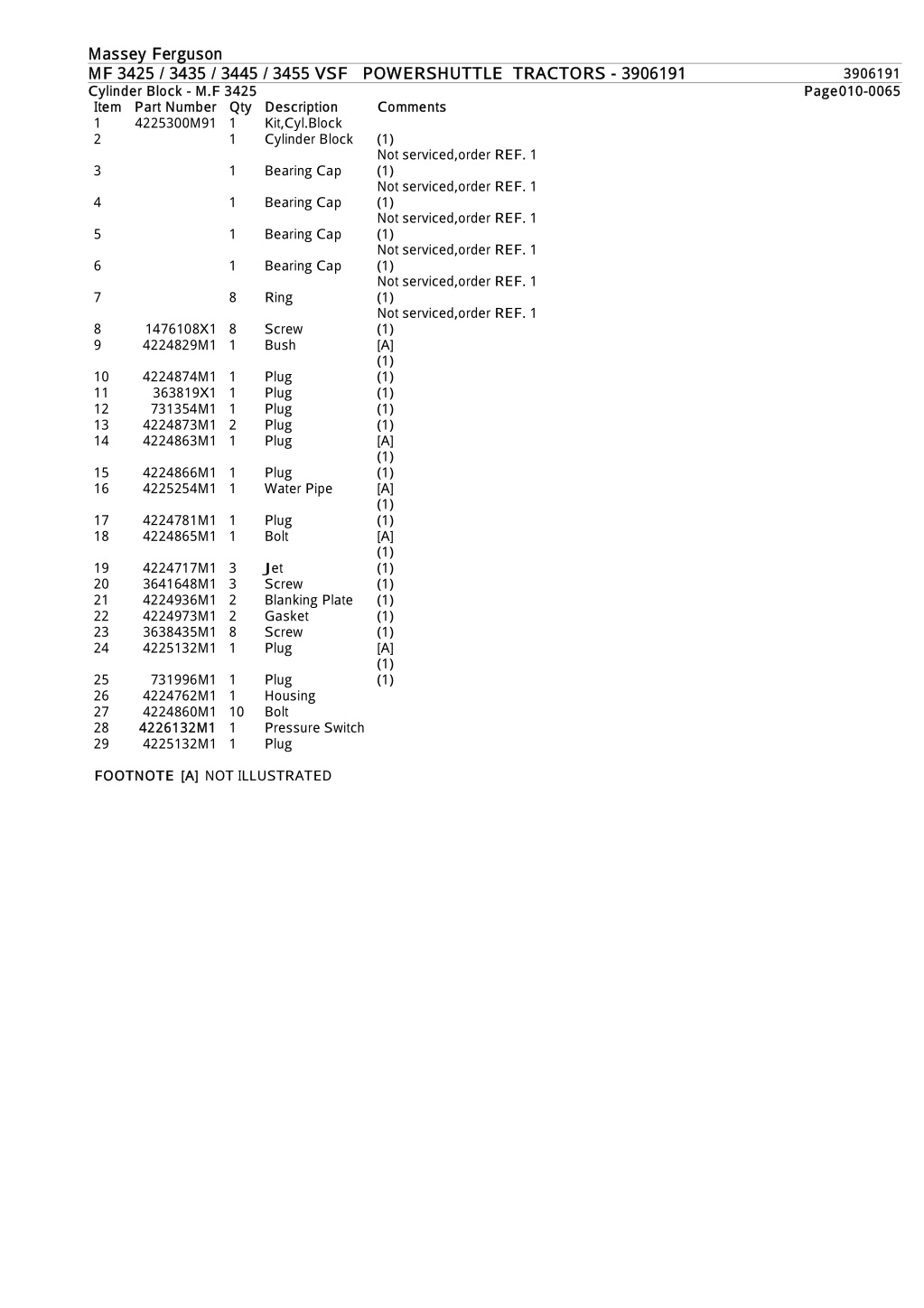

  4. Massey Ferguson Massey Ferguson MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 Cylinder Block - M.F 3425 Item Part Number Qty Description Comments Item Part Number Qty Description Comments 1 4225300M91 1 Kit,Cyl.Block 2 1 Cylinder Block (1) Not serviced,order REF. 1 3 1 Bearing Cap (1) Not serviced,order REF. 1 4 1 Bearing Cap (1) Not serviced,order REF. 1 5 1 Bearing Cap (1) Not serviced,order REF. 1 6 1 Bearing Cap (1) Not serviced,order REF. 1 7 8 Ring (1) Not serviced,order REF. 1 8 1476108X1 8 Screw (1) 9 4224829M1 1 Bush [A] (1) 10 4224874M1 1 Plug (1) 11 363819X1 1 Plug (1) 12 731354M1 1 Plug (1) 13 4224873M1 2 Plug (1) 14 4224863M1 1 Plug [A] (1) 15 4224866M1 1 Plug (1) 16 4225254M1 1 Water Pipe [A] (1) 17 4224781M1 1 Plug (1) 18 4224865M1 1 Bolt [A] (1) 19 4224717M1 3 J et (1) 20 3641648M1 3 Screw (1) 21 4224936M1 2 Blanking Plate (1) 22 4224973M1 2 Gasket (1) 23 3638435M1 8 Screw (1) 24 4225132M1 1 Plug [A] (1) 25 731996M1 1 Plug (1) 26 4224762M1 1 Housing 27 4224860M1 10 Bolt 28 4226132M1 4226132M1 1 Pressure Switch 29 4225132M1 1 Plug 3906191 3906191 Cylinder Block - M.F 3425 Page010-0065 Page010-0065 FOOTNOTE [A] FOOTNOTE [A] NOT ILLUSTRATED

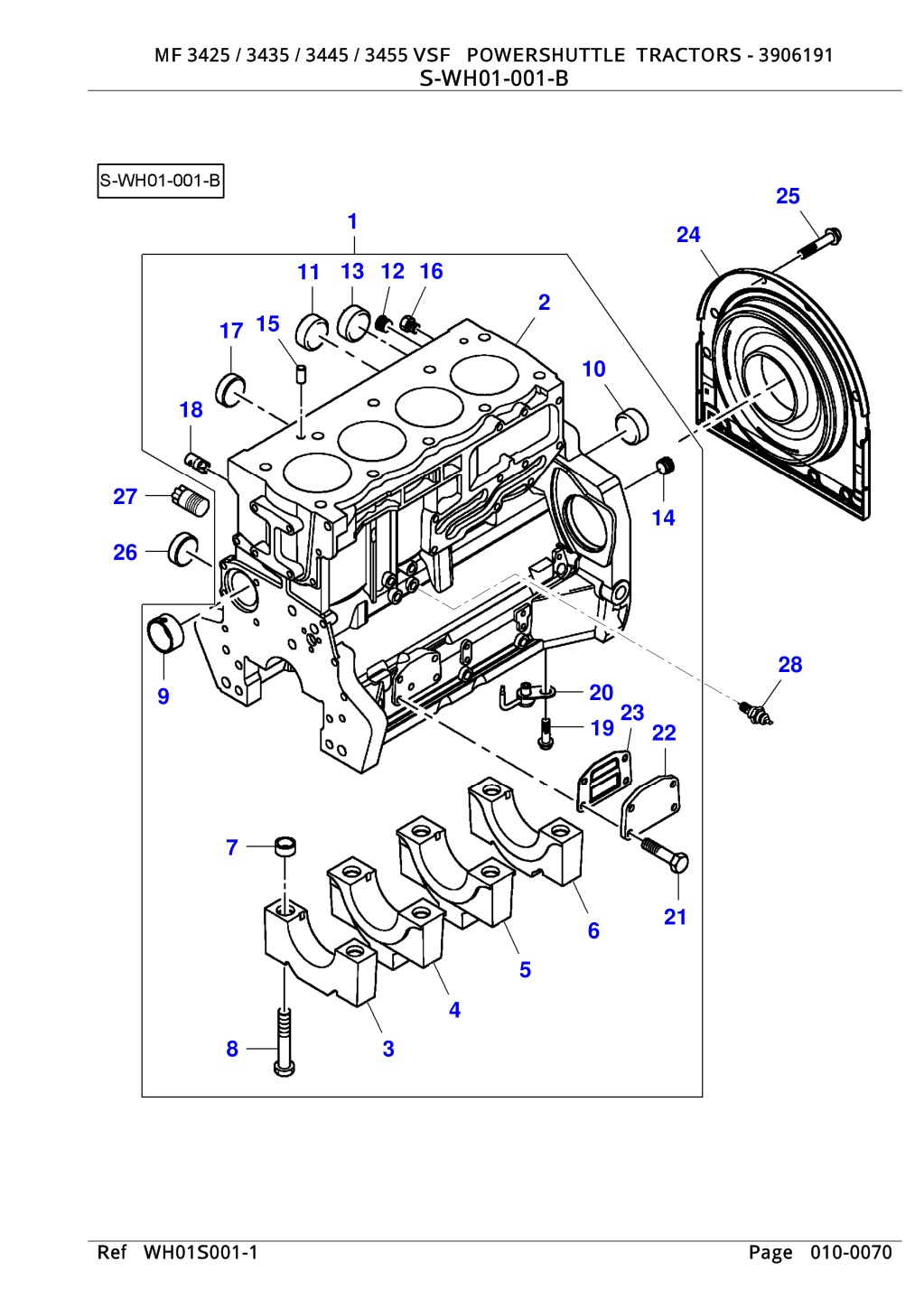

  5. MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 S-WH01-001-B S-WH01-001-B 25 1 24 13 12 16 11 2 15 17 10 18 27 14 26 28 20 19 9 23 22 7 21 6 5 4 8 3 Ref WH01S001-1 Ref WH01S001-1 Page Page 010-0070 010-0070

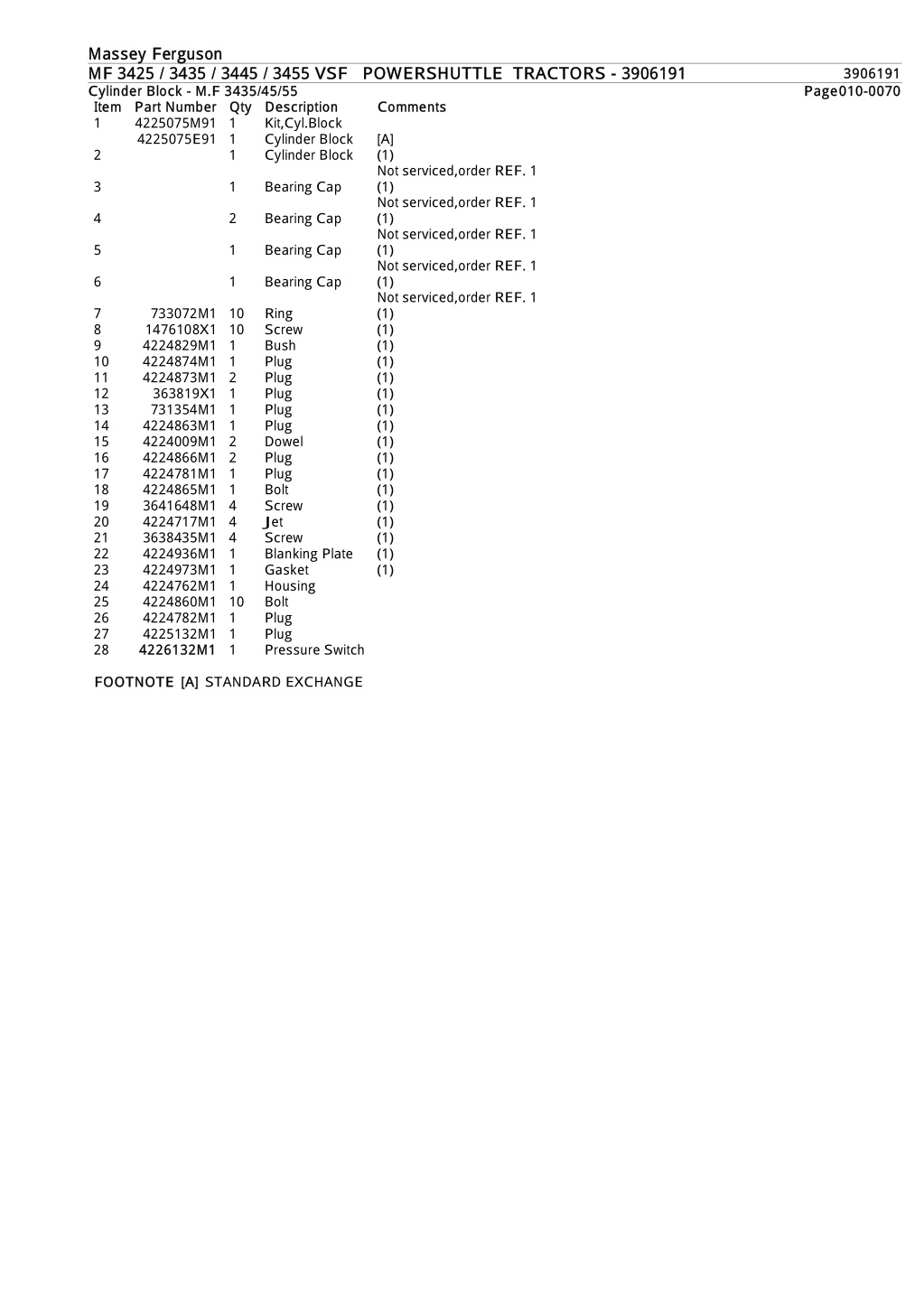

  6. Massey Ferguson Massey Ferguson MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 Cylinder Block - M.F 3435/45/55 Item Part Number Qty Description Comments Item Part Number Qty Description Comments 1 4225075M91 1 Kit,Cyl.Block 4225075E91 1 Cylinder Block [A] 2 1 Cylinder Block (1) Not serviced,order REF. 1 3 1 Bearing Cap (1) Not serviced,order REF. 1 4 2 Bearing Cap (1) Not serviced,order REF. 1 5 1 Bearing Cap (1) Not serviced,order REF. 1 6 1 Bearing Cap (1) Not serviced,order REF. 1 7 733072M1 10 Ring (1) 8 1476108X1 10 Screw (1) 9 4224829M1 1 Bush (1) 10 4224874M1 1 Plug (1) 11 4224873M1 2 Plug (1) 12 363819X1 1 Plug (1) 13 731354M1 1 Plug (1) 14 4224863M1 1 Plug (1) 15 4224009M1 2 Dowel (1) 16 4224866M1 2 Plug (1) 17 4224781M1 1 Plug (1) 18 4224865M1 1 Bolt (1) 19 3641648M1 4 Screw (1) 20 4224717M1 4 J et (1) 21 3638435M1 4 Screw (1) 22 4224936M1 1 Blanking Plate (1) 23 4224973M1 1 Gasket (1) 24 4224762M1 1 Housing 25 4224860M1 10 Bolt 26 4224782M1 1 Plug 27 4225132M1 1 Plug 28 4226132M1 4226132M1 1 Pressure Switch 3906191 3906191 Cylinder Block - M.F 3435/45/55 Page010-0070 Page010-0070 FOOTNOTE [A] FOOTNOTE [A] STANDARD EXCHANGE

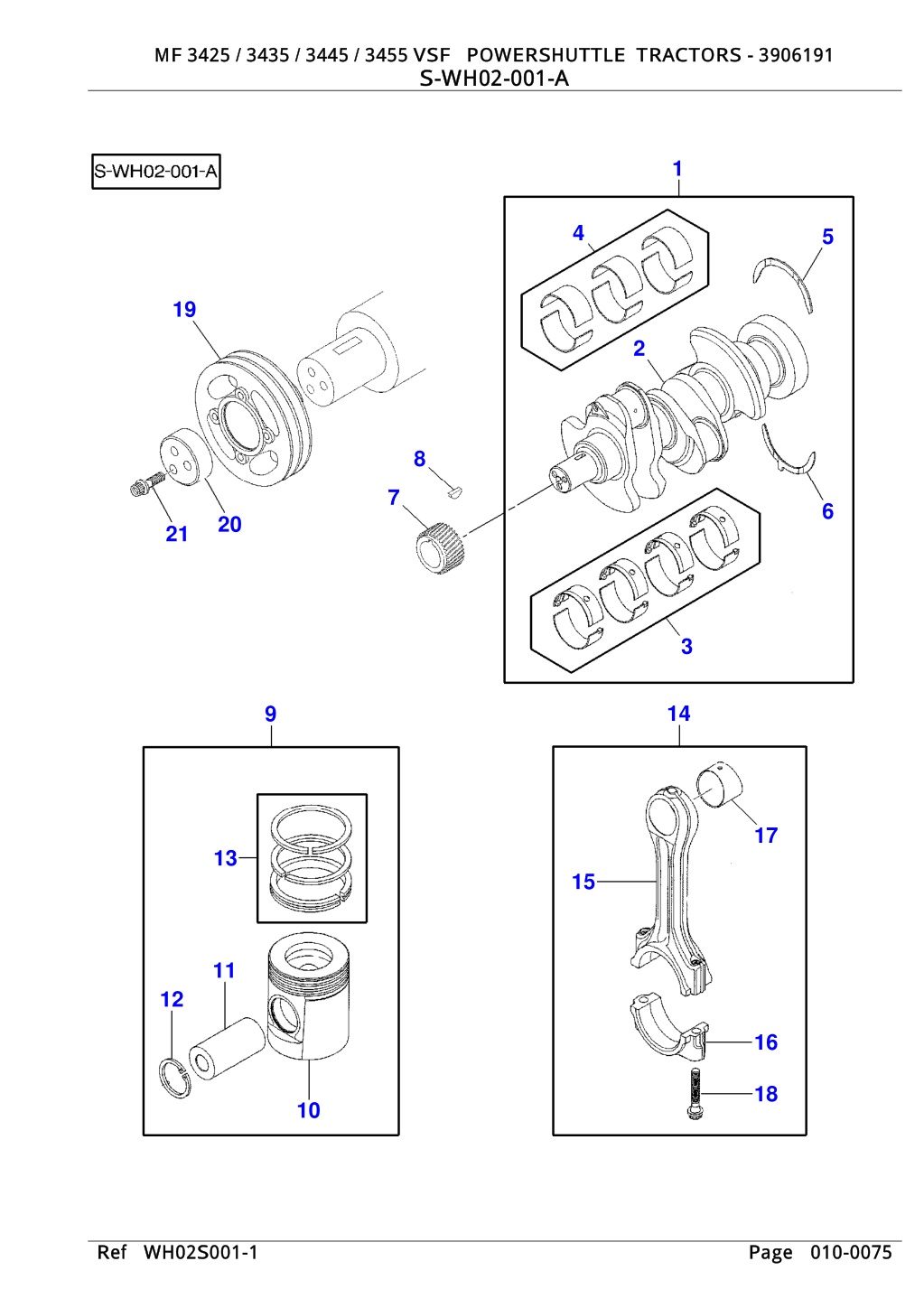

  7. MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 S-WH02-001-A S-WH02-001-A 1 4 5 19 2 8 7 6 20 21 3 14 9 17 13 15 11 12 16 18 10 Ref WH02S001-1 Ref WH02S001-1 Page Page 010-0075 010-0075

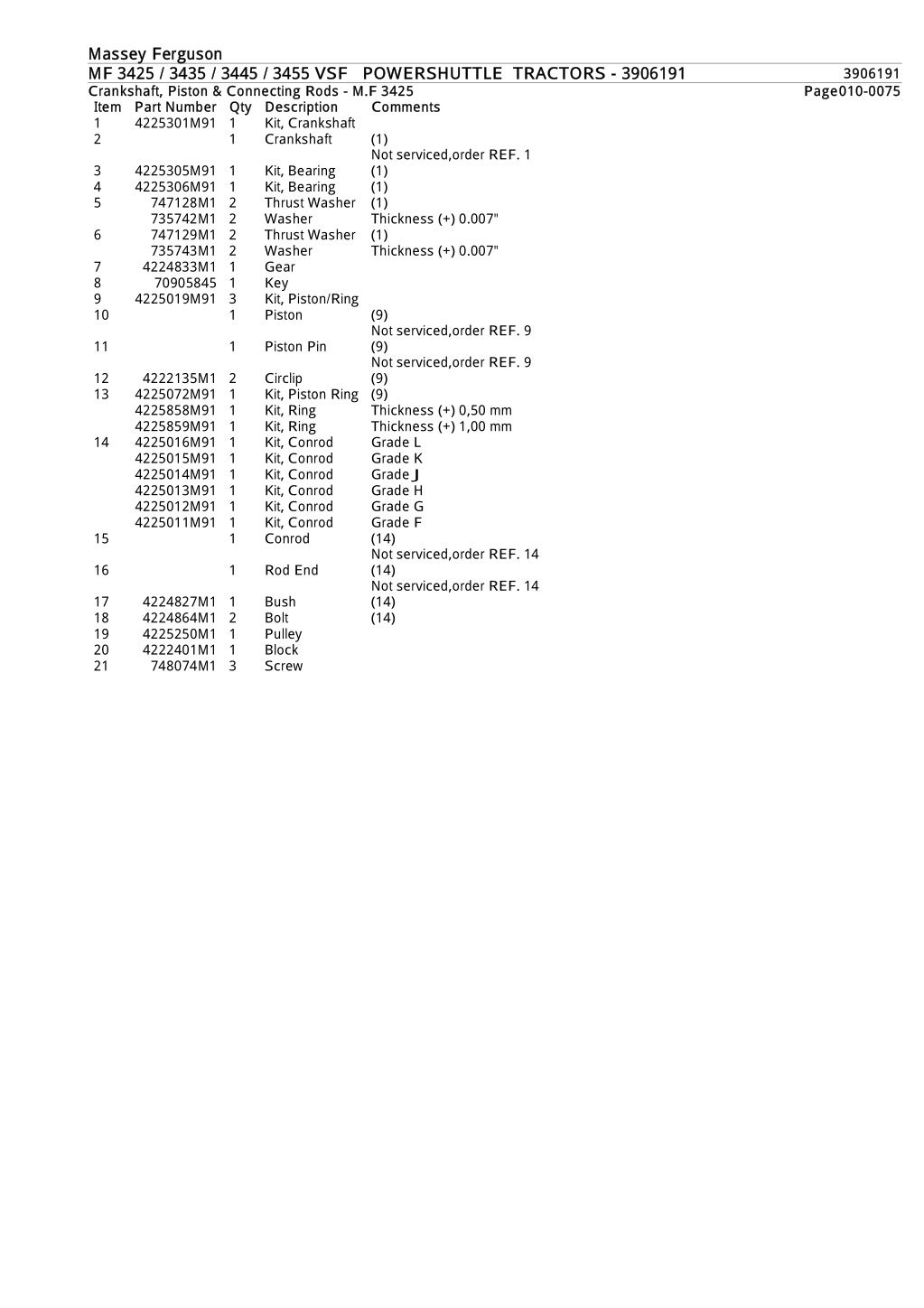

  8. Massey Ferguson Massey Ferguson MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 Crankshaft, Piston & Connecting Rods - M.F 3425 Item Part Number Qty Description Comments Item Part Number Qty Description Comments 1 4225301M91 1 Kit, Crankshaft 2 1 Crankshaft (1) Not serviced,order REF. 1 3 4225305M91 1 Kit, Bearing (1) 4 4225306M91 1 Kit, Bearing (1) 5 747128M1 2 Thrust Washer (1) 735742M1 2 Washer Thickness (+) 0.007" 6 747129M1 2 Thrust Washer (1) 735743M1 2 Washer Thickness (+) 0.007" 7 4224833M1 1 Gear 8 70905845 1 Key 9 4225019M91 3 Kit, Piston/Ring 10 1 Piston (9) Not serviced,order REF. 9 11 1 Piston Pin (9) Not serviced,order REF. 9 12 4222135M1 2 Circlip (9) 13 4225072M91 1 Kit, Piston Ring (9) 4225858M91 1 Kit, Ring Thickness (+) 0,50 mm 4225859M91 1 Kit, Ring Thickness (+) 1,00 mm 14 4225016M91 1 Kit, Conrod Grade L 4225015M91 1 Kit, Conrod Grade K 4225014M91 1 Kit, Conrod Grade J 4225013M91 1 Kit, Conrod Grade H 4225012M91 1 Kit, Conrod Grade G 4225011M91 1 Kit, Conrod Grade F 15 1 Conrod (14) Not serviced,order REF. 14 16 1 Rod End (14) Not serviced,order REF. 14 17 4224827M1 1 Bush (14) 18 4224864M1 2 Bolt (14) 19 4225250M1 1 Pulley 20 4222401M1 1 Block 21 748074M1 3 Screw 3906191 3906191 Crankshaft, Piston & Connecting Rods - M.F 3425 Page010-0075 Page010-0075

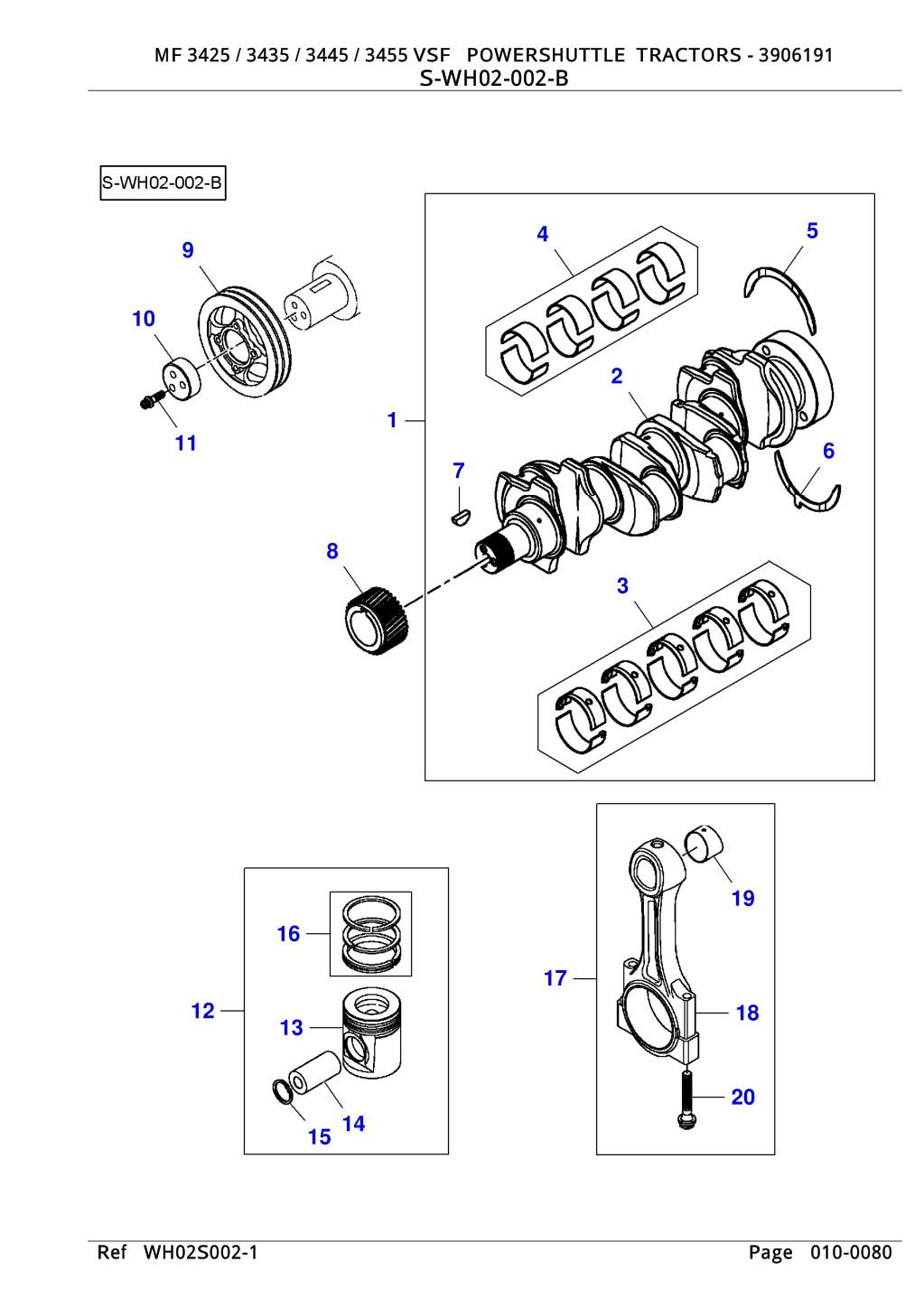

  9. MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 S-WH02-002-B S-WH02-002-B 5 4 9 10 2 1 11 6 7 8 3 19 16 17 12 18 13 20 14 15 Ref WH02S002-1 Ref WH02S002-1 Page Page 010-0080 010-0080

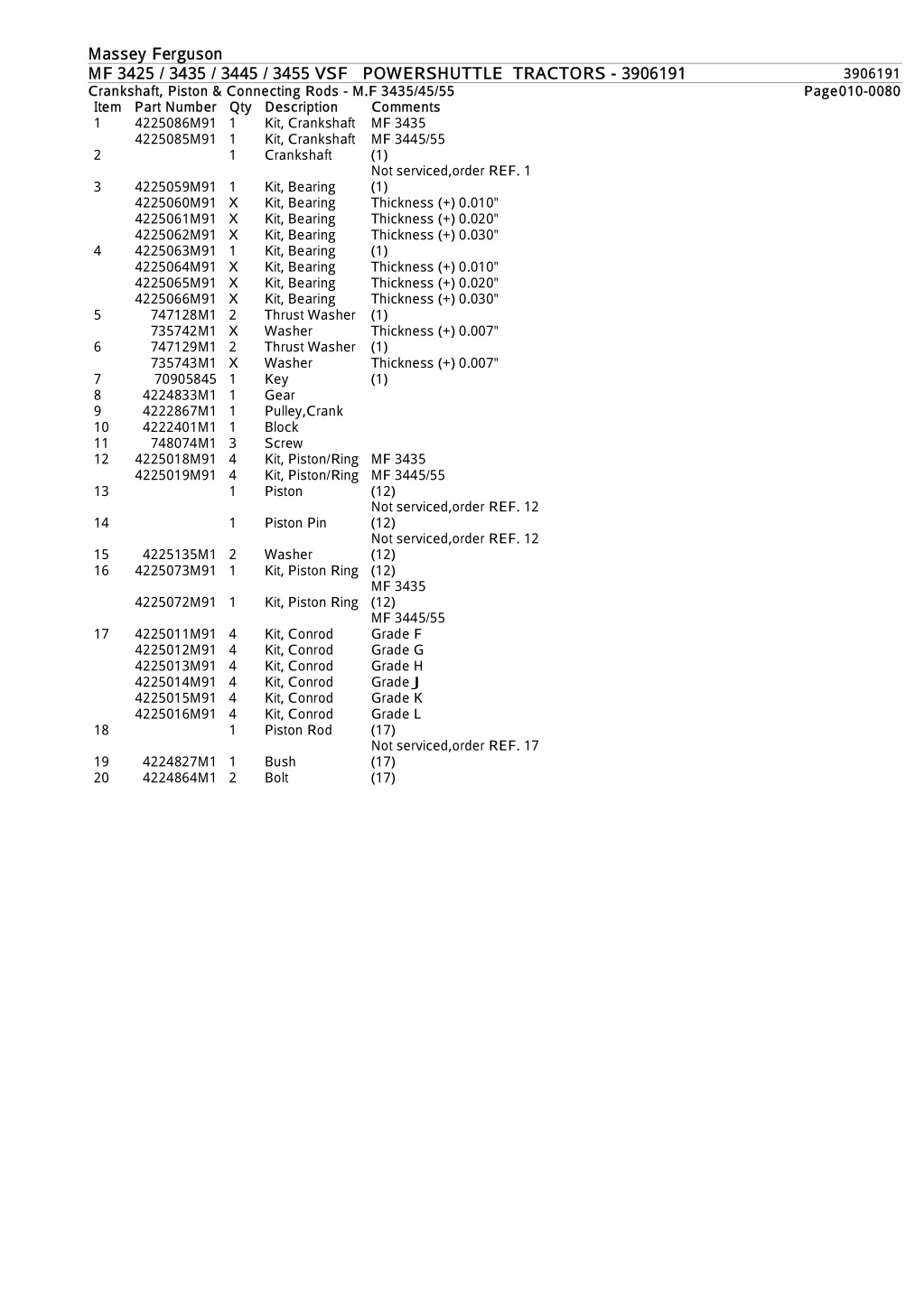

  10. Massey Ferguson Massey Ferguson MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 Crankshaft, Piston & Connecting Rods - M.F 3435/45/55 Item Part Number Qty Description Comments Item Part Number Qty Description Comments 1 4225086M91 1 Kit, Crankshaft MF 3435 4225085M91 1 Kit, Crankshaft MF 3445/55 2 1 Crankshaft (1) Not serviced,order REF. 1 3 4225059M91 1 Kit, Bearing (1) 4225060M91 X Kit, Bearing Thickness (+) 0.010" 4225061M91 X Kit, Bearing Thickness (+) 0.020" 4225062M91 X Kit, Bearing Thickness (+) 0.030" 4 4225063M91 1 Kit, Bearing (1) 4225064M91 X Kit, Bearing Thickness (+) 0.010" 4225065M91 X Kit, Bearing Thickness (+) 0.020" 4225066M91 X Kit, Bearing Thickness (+) 0.030" 5 747128M1 2 Thrust Washer (1) 735742M1 X Washer Thickness (+) 0.007" 6 747129M1 2 Thrust Washer (1) 735743M1 X Washer Thickness (+) 0.007" 7 70905845 1 Key (1) 8 4224833M1 1 Gear 9 4222867M1 1 Pulley,Crank 10 4222401M1 1 Block 11 748074M1 3 Screw 12 4225018M91 4 Kit, Piston/Ring MF 3435 4225019M91 4 Kit, Piston/Ring MF 3445/55 13 1 Piston (12) Not serviced,order REF. 12 14 1 Piston Pin (12) Not serviced,order REF. 12 15 4225135M1 2 Washer (12) 16 4225073M91 1 Kit, Piston Ring (12) MF 3435 4225072M91 1 Kit, Piston Ring (12) MF 3445/55 17 4225011M91 4 Kit, Conrod Grade F 4225012M91 4 Kit, Conrod Grade G 4225013M91 4 Kit, Conrod Grade H 4225014M91 4 Kit, Conrod Grade J 4225015M91 4 Kit, Conrod Grade K 4225016M91 4 Kit, Conrod Grade L 18 1 Piston Rod (17) Not serviced,order REF. 17 19 4224827M1 1 Bush (17) 20 4224864M1 2 Bolt (17) 3906191 3906191 Crankshaft, Piston & Connecting Rods - M.F 3435/45/55 Page010-0080 Page010-0080

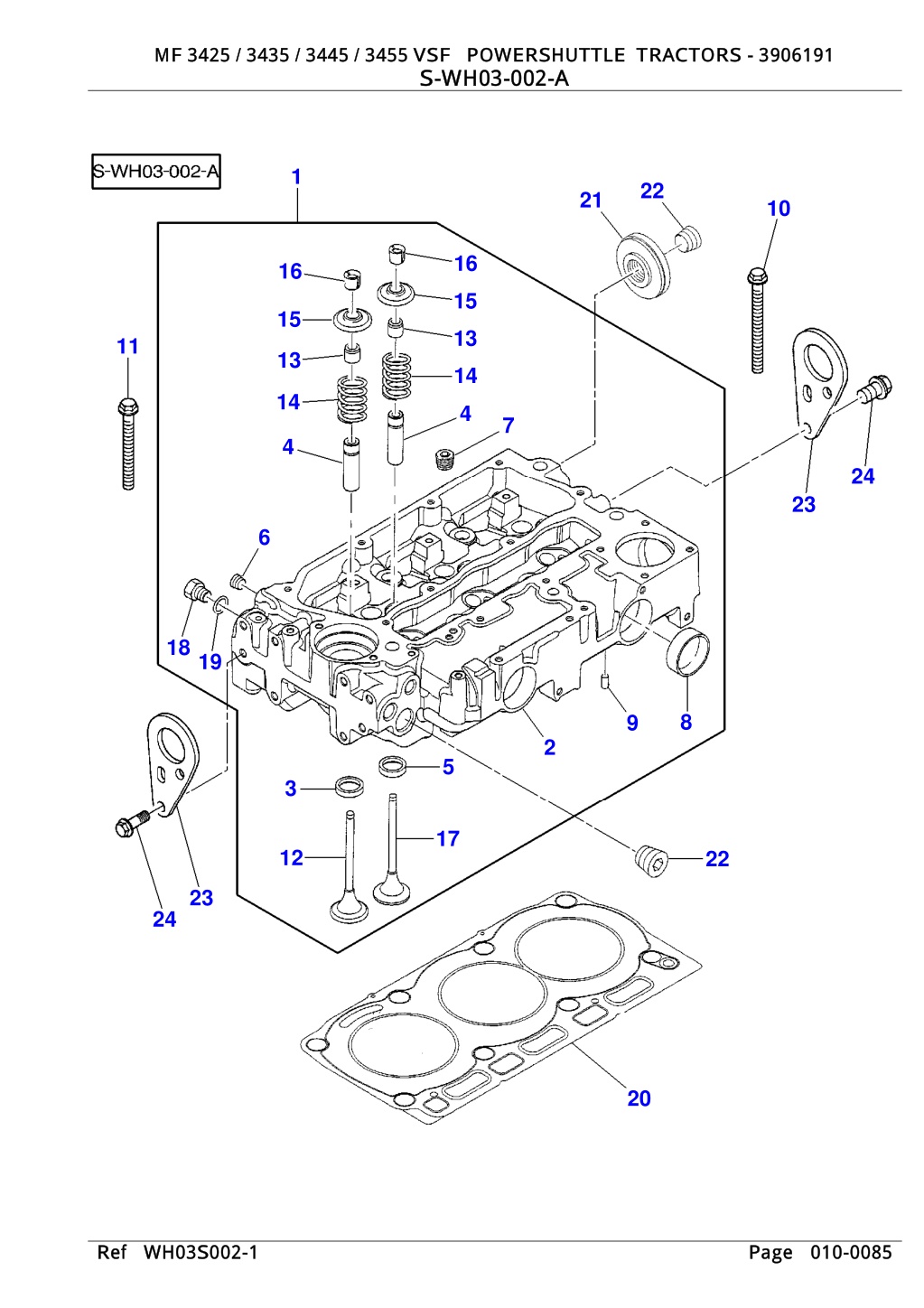

  11. MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 S-WH03-002-A S-WH03-002-A 1 22 21 10 16 16 15 15 13 11 13 14 14 4 7 4 24 23 6 1819 8 9 2 5 3 17 12 22 23 24 20 Ref WH03S002-1 Ref WH03S002-1 Page Page 010-0085 010-0085

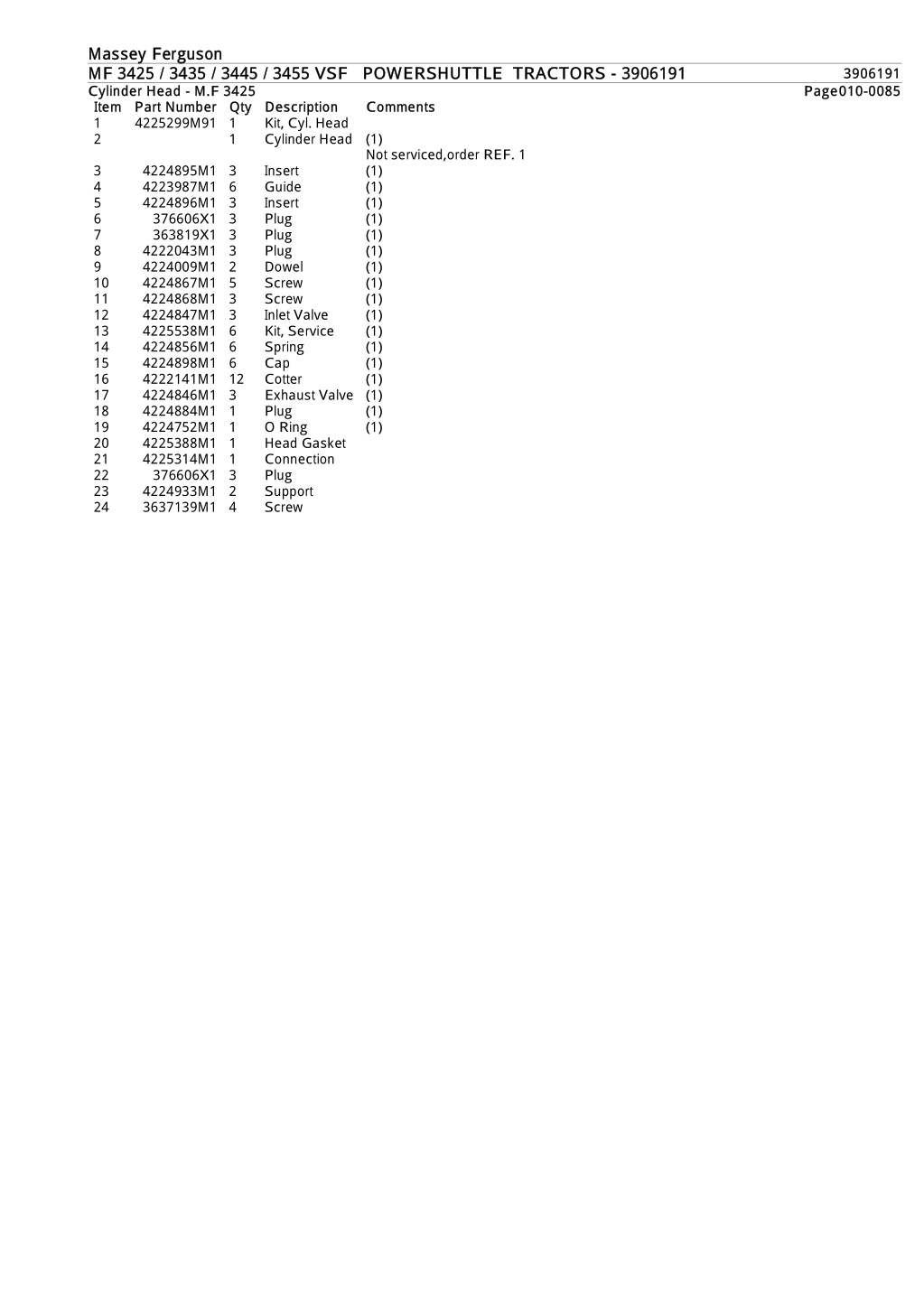

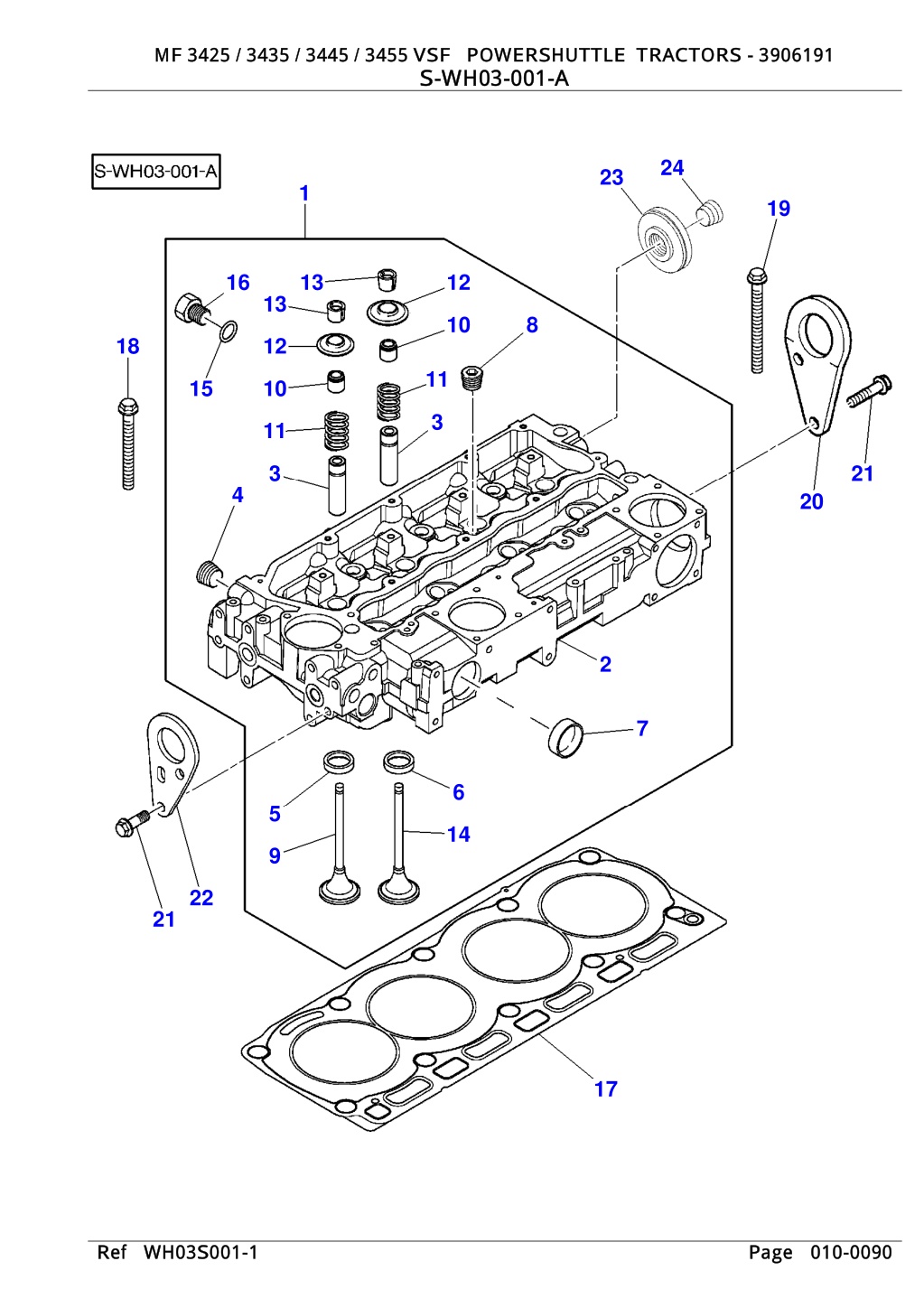

  12. Massey Ferguson Massey Ferguson MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 Cylinder Head - M.F 3425 Item Part Number Qty Description Comments Item Part Number Qty Description Comments 1 4225299M91 1 Kit, Cyl. Head 2 1 Cylinder Head (1) Not serviced,order REF. 1 3 4224895M1 3 Insert (1) 4 4223987M1 6 Guide (1) 5 4224896M1 3 Insert (1) 6 376606X1 3 Plug (1) 7 363819X1 3 Plug (1) 8 4222043M1 3 Plug (1) 9 4224009M1 2 Dowel (1) 10 4224867M1 5 Screw (1) 11 4224868M1 3 Screw (1) 12 4224847M1 3 Inlet Valve (1) 13 4225538M1 6 Kit, Service (1) 14 4224856M1 6 Spring (1) 15 4224898M1 6 Cap (1) 16 4222141M1 12 Cotter (1) 17 4224846M1 3 Exhaust Valve (1) 18 4224884M1 1 Plug (1) 19 4224752M1 1 O Ring (1) 20 4225388M1 1 Head Gasket 21 4225314M1 1 Connection 22 376606X1 3 Plug 23 4224933M1 2 Support 24 3637139M1 4 Screw 3906191 3906191 Cylinder Head - M.F 3425 Page010-0085 Page010-0085

  13. MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 S-WH03-001-A S-WH03-001-A 24 23 1 19 16 13 12 13 10 8 18 12 11 15 10 3 11 3 21 4 20 2 7 6 5 14 9 22 21 17 Ref WH03S001-1 Ref WH03S001-1 Page Page 010-0090 010-0090

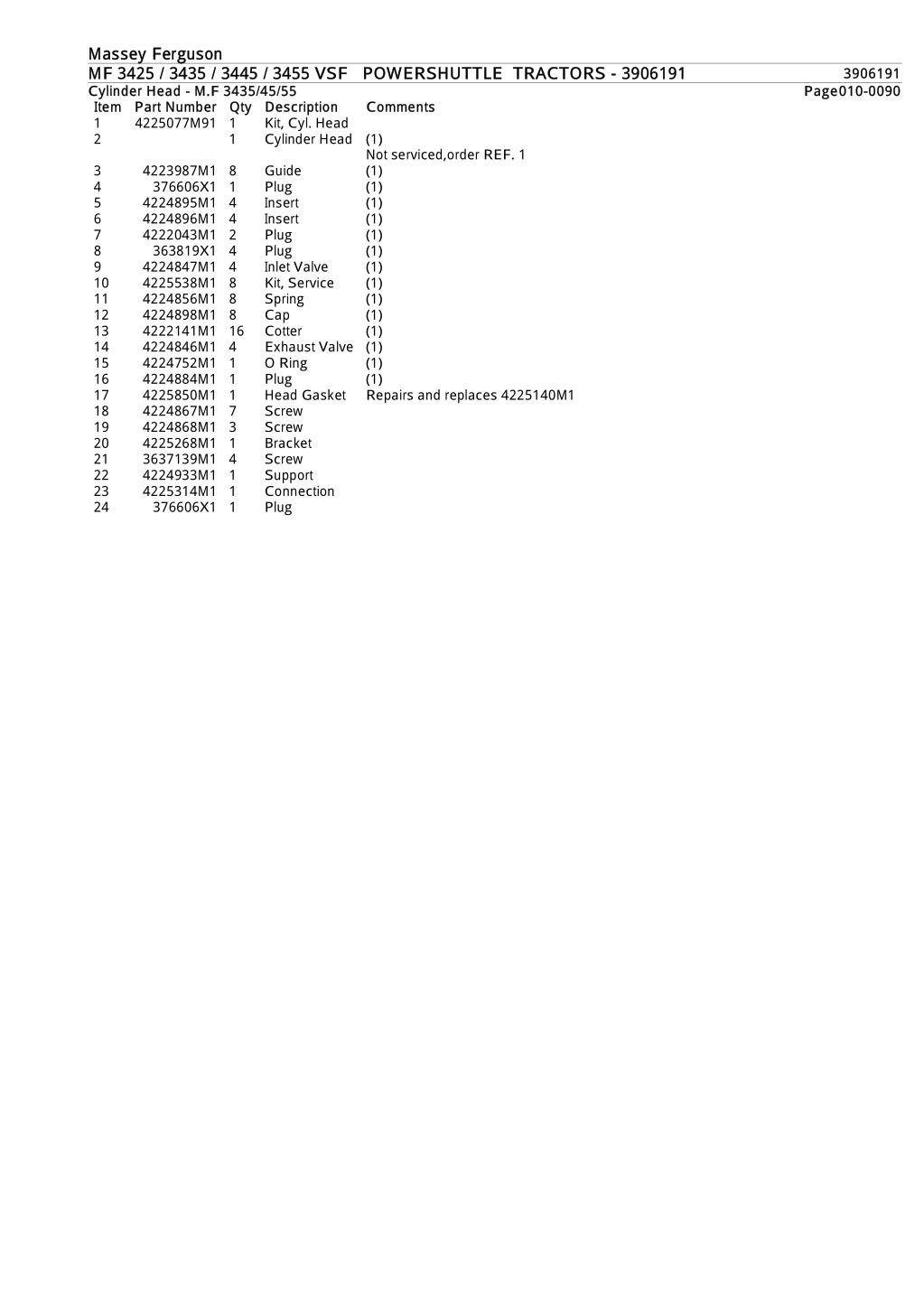

  14. Massey Ferguson Massey Ferguson MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 Cylinder Head - M.F 3435/45/55 Item Part Number Qty Description Comments Item Part Number Qty Description Comments 1 4225077M91 1 Kit, Cyl. Head 2 1 Cylinder Head (1) Not serviced,order REF. 1 3 4223987M1 8 Guide (1) 4 376606X1 1 Plug (1) 5 4224895M1 4 Insert (1) 6 4224896M1 4 Insert (1) 7 4222043M1 2 Plug (1) 8 363819X1 4 Plug (1) 9 4224847M1 4 Inlet Valve (1) 10 4225538M1 8 Kit, Service (1) 11 4224856M1 8 Spring (1) 12 4224898M1 8 Cap (1) 13 4222141M1 16 Cotter (1) 14 4224846M1 4 Exhaust Valve (1) 15 4224752M1 1 O Ring (1) 16 4224884M1 1 Plug (1) 17 4225850M1 1 Head Gasket Repairs and replaces 4225140M1 18 4224867M1 7 Screw 19 4224868M1 3 Screw 20 4225268M1 1 Bracket 21 3637139M1 4 Screw 22 4224933M1 1 Support 23 4225314M1 1 Connection 24 376606X1 1 Plug 3906191 3906191 Cylinder Head - M.F 3435/45/55 Page010-0090 Page010-0090

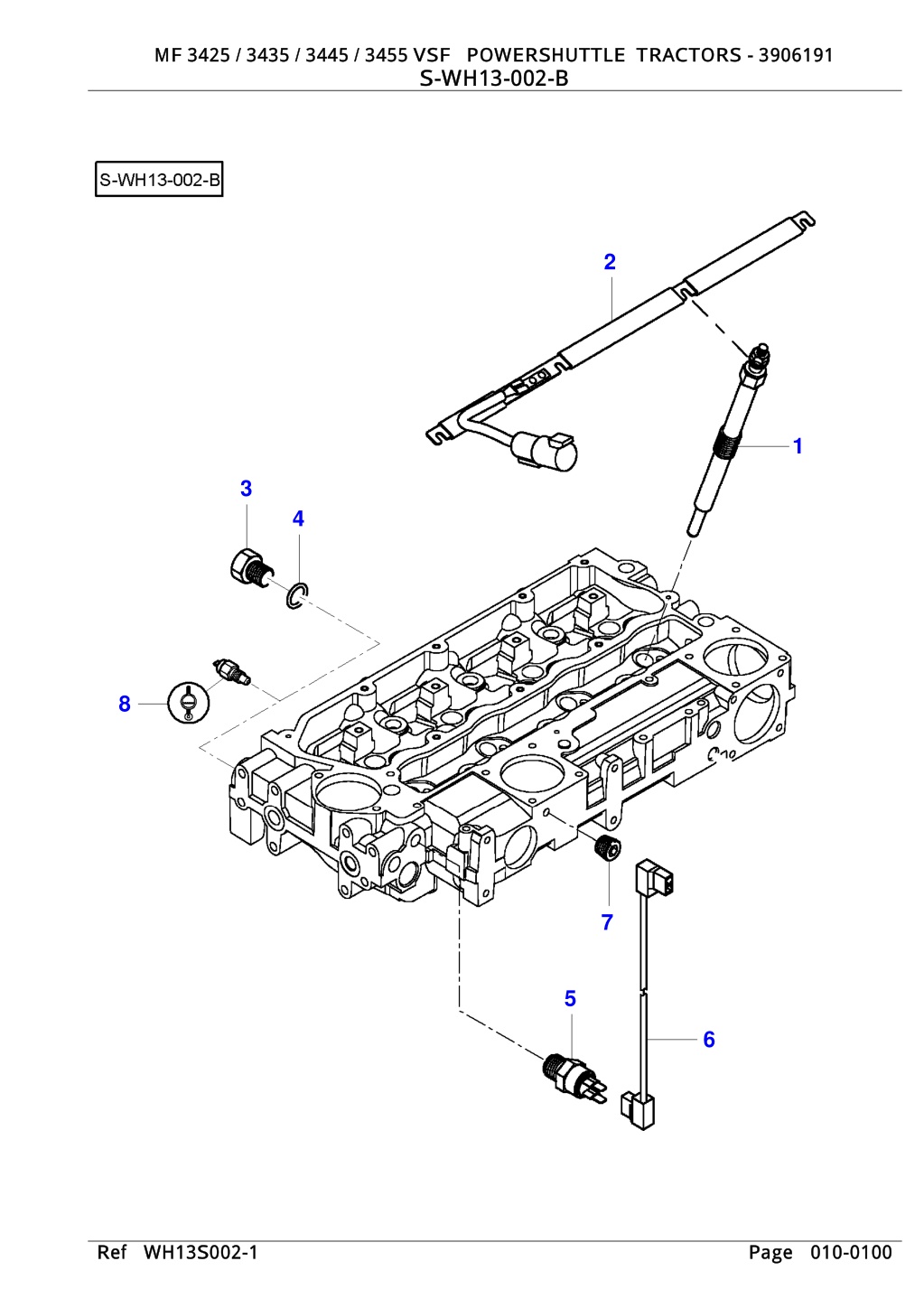

  15. MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 S-WH13-001-B S-WH13-001-B 4 5 6 7 8 3 2 1 11 12 10 9 Ref WH13S001-1 Ref WH13S001-1 Page Page 010-0095 010-0095

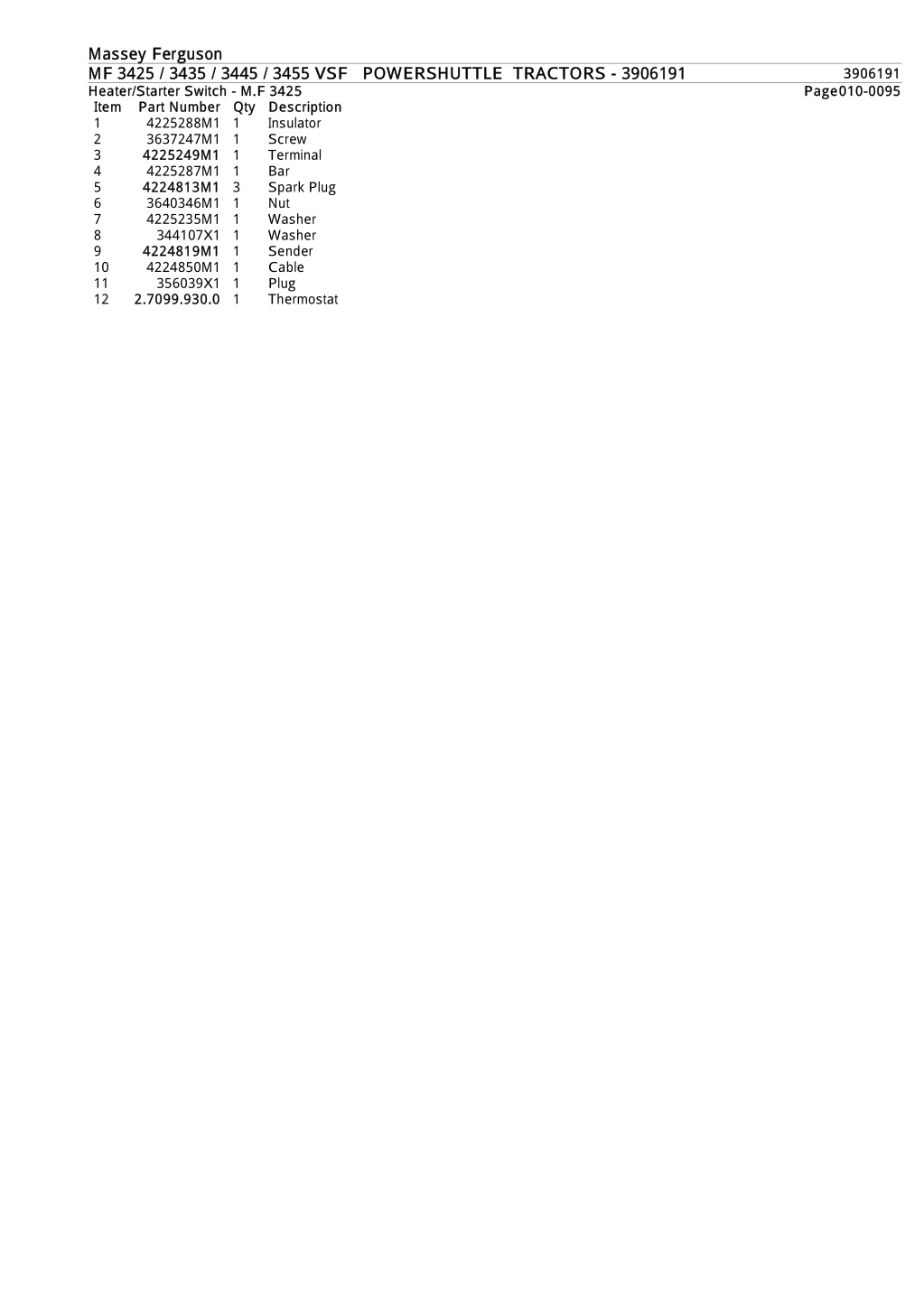

  16. Massey Ferguson Massey Ferguson MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 Heater/Starter Switch - M.F 3425 Item Part Number Qty Description Item Part Number Qty Description 1 4225288M1 1 Insulator 2 3637247M1 1 Screw 3 4225249M1 4225249M1 1 Terminal 4 4225287M1 1 Bar 5 4224813M1 4224813M1 3 Spark Plug 6 3640346M1 1 Nut 7 4225235M1 1 Washer 8 344107X1 1 Washer 9 4224819M1 4224819M1 1 Sender 10 4224850M1 1 Cable 11 356039X1 1 Plug 12 2.7099.930.0 2.7099.930.0 1 Thermostat 3906191 3906191 Heater/Starter Switch - M.F 3425 Page010-0095 Page010-0095

  17. MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 S-WH13-002-B S-WH13-002-B 2 1 3 4 8 7 5 6 Ref WH13S002-1 Ref WH13S002-1 Page Page 010-0100 010-0100

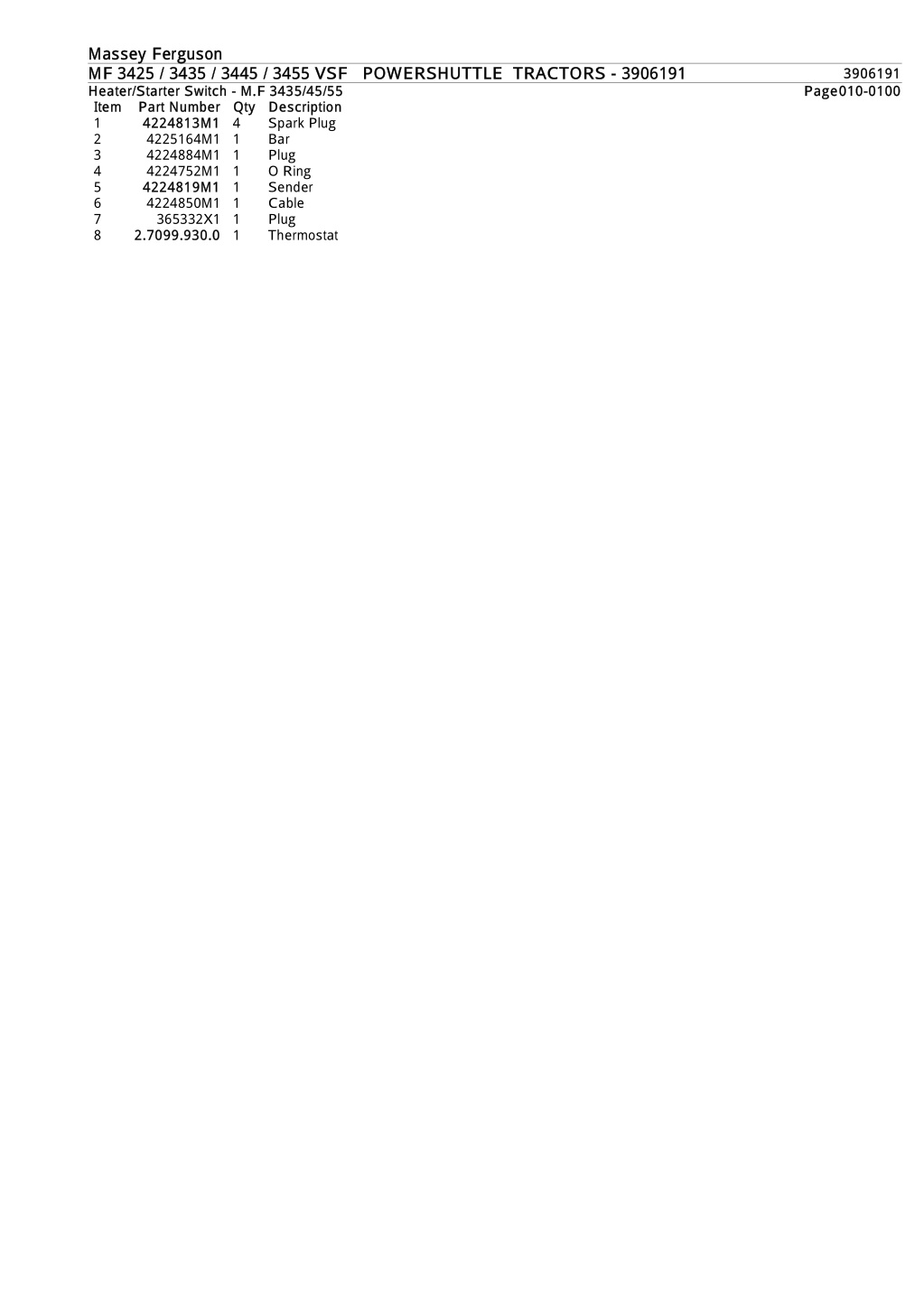

  18. Massey Ferguson Massey Ferguson MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 Heater/Starter Switch - M.F 3435/45/55 Item Part Number Qty Description Item Part Number Qty Description 1 4224813M1 4224813M1 4 Spark Plug 2 4225164M1 1 Bar 3 4224884M1 1 Plug 4 4224752M1 1 O Ring 5 4224819M1 4224819M1 1 Sender 6 4224850M1 1 Cable 7 365332X1 1 Plug 8 2.7099.930.0 2.7099.930.0 1 Thermostat 3906191 3906191 Heater/Starter Switch - M.F 3435/45/55 Page010-0100 Page010-0100

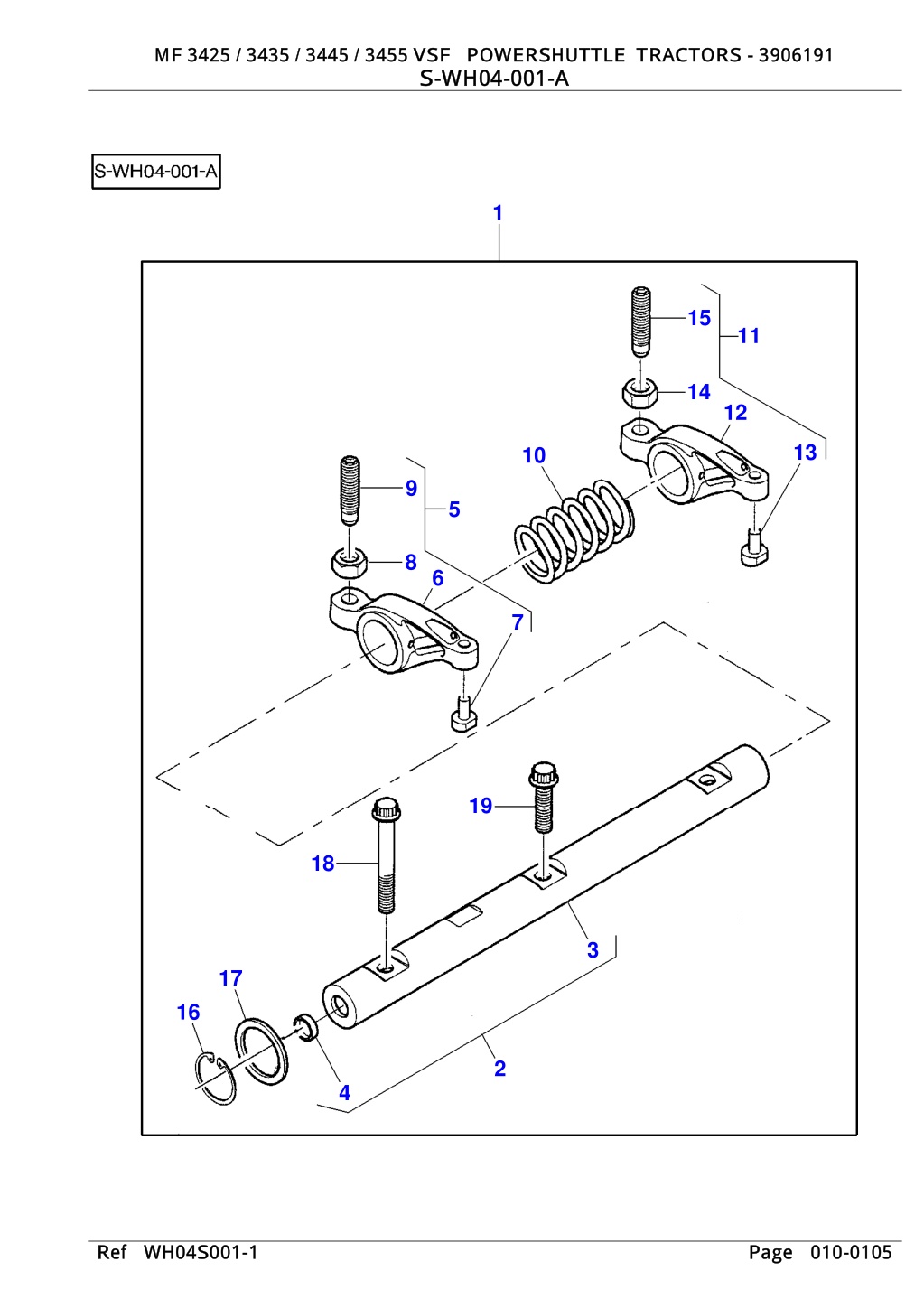

  19. MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 S-WH04-001-A S-WH04-001-A 1 15 11 14 12 13 10 9 5 8 6 7 19 18 3 17 16 2 4 Ref WH04S001-1 Ref WH04S001-1 Page Page 010-0105 010-0105

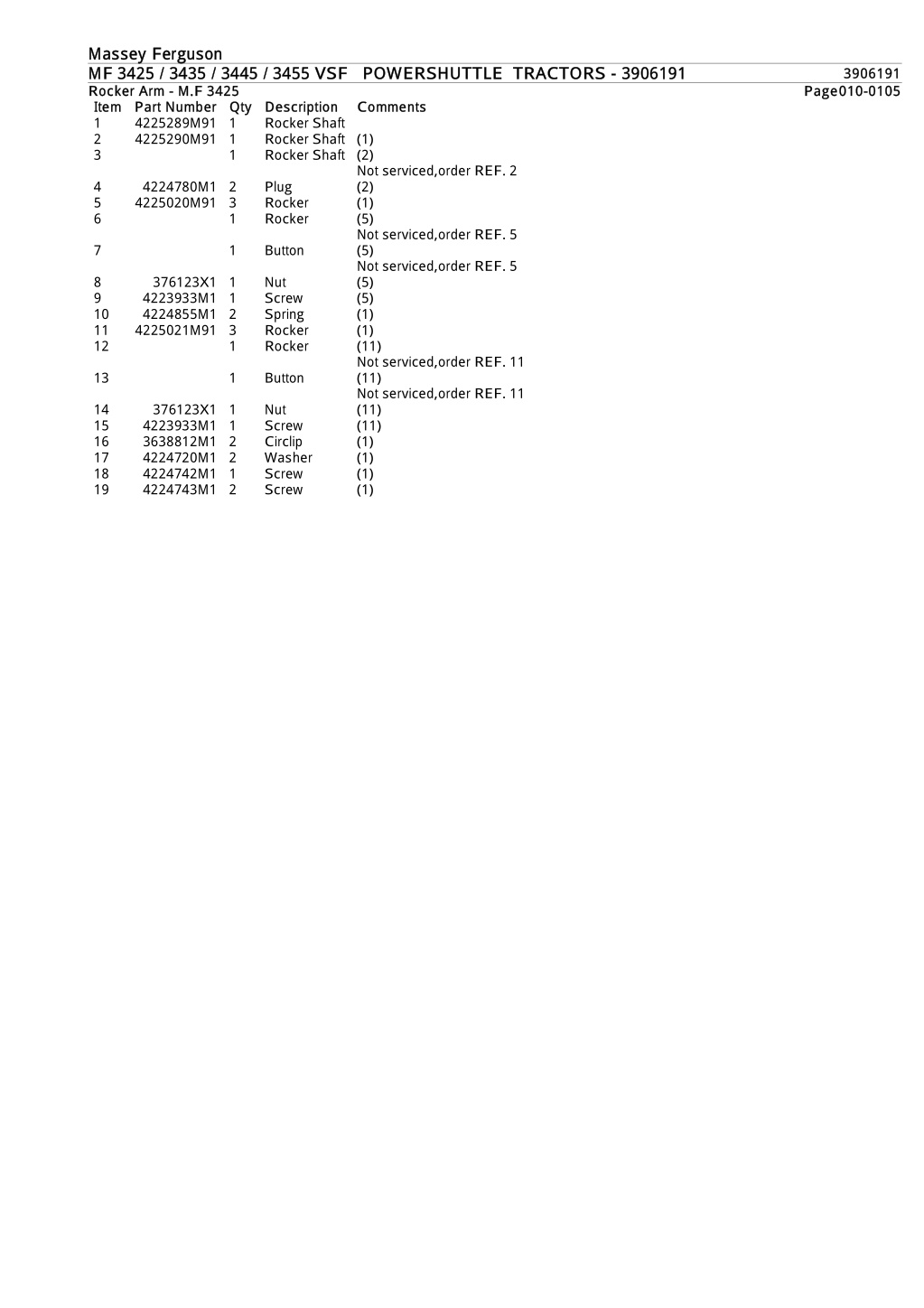

  20. Massey Ferguson Massey Ferguson MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 Rocker Arm - M.F 3425 Item Part Number Qty Description Comments Item Part Number Qty Description Comments 1 4225289M91 1 Rocker Shaft 2 4225290M91 1 Rocker Shaft (1) 3 1 Rocker Shaft (2) Not serviced,order REF. 2 4 4224780M1 2 Plug (2) 5 4225020M91 3 Rocker (1) 6 1 Rocker (5) Not serviced,order REF. 5 7 1 Button (5) Not serviced,order REF. 5 8 376123X1 1 Nut (5) 9 4223933M1 1 Screw (5) 10 4224855M1 2 Spring (1) 11 4225021M91 3 Rocker (1) 12 1 Rocker (11) Not serviced,order REF. 11 13 1 Button (11) Not serviced,order REF. 11 14 376123X1 1 Nut (11) 15 4223933M1 1 Screw (11) 16 3638812M1 2 Circlip (1) 17 4224720M1 2 Washer (1) 18 4224742M1 1 Screw (1) 19 4224743M1 2 Screw (1) 3906191 3906191 Rocker Arm - M.F 3425 Page010-0105 Page010-0105

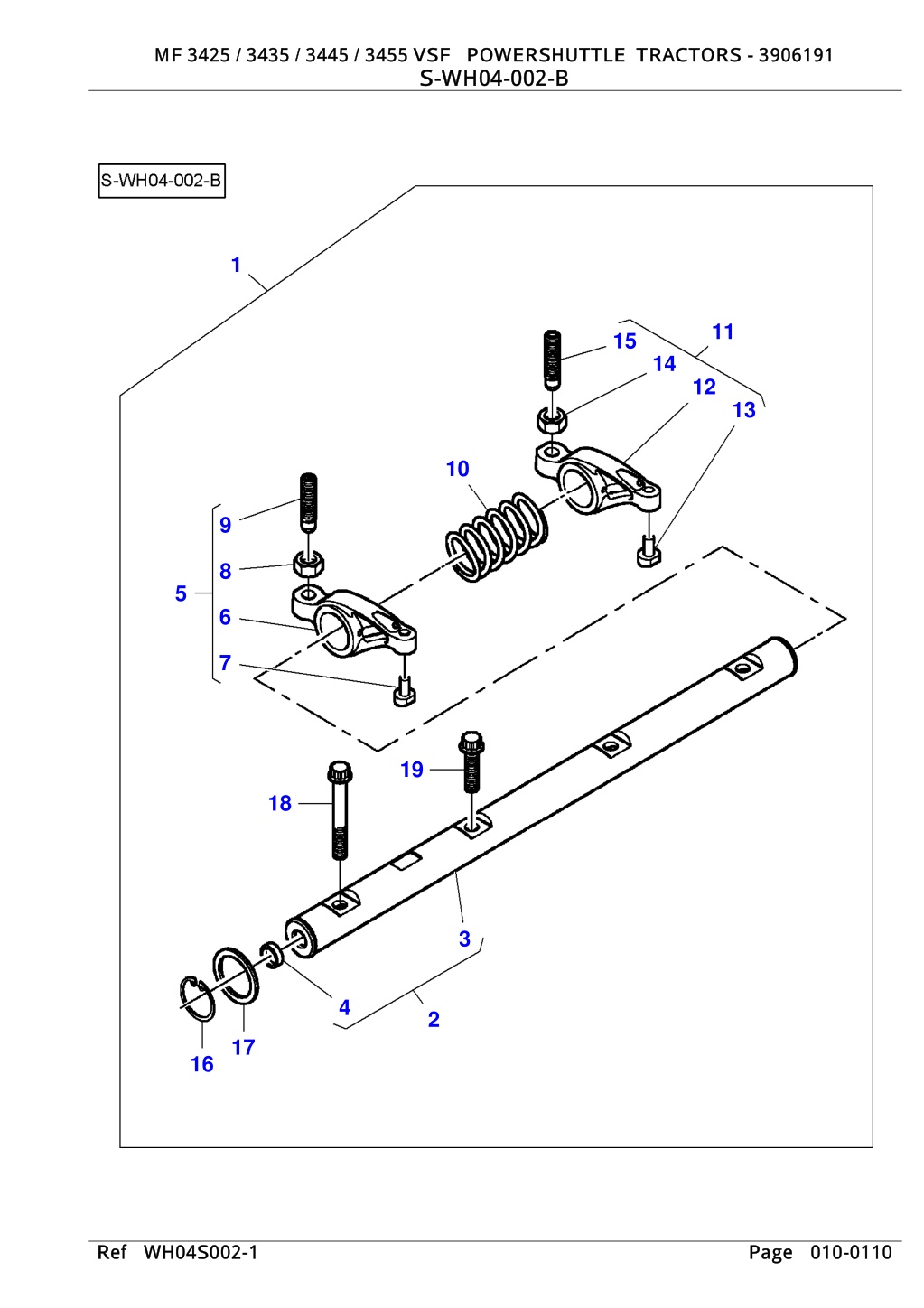

  21. MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 S-WH04-002-B S-WH04-002-B 1 11 15 14 12 13 10 9 8 5 6 7 19 18 3 4 2 17 16 Ref WH04S002-1 Ref WH04S002-1 Page Page 010-0110 010-0110

  22. Massey Ferguson Massey Ferguson MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 Rocker Arm - M.F 3435/45/55 Item Part Number Qty Description Comments Item Part Number Qty Description Comments 1 4225022M91 1 Rocker Shaft Ass 2 4225023M91 1 Rocker Shaft (1) 3 1 Rocker Shaft (2) Not serviced,order REF. 2 4 4224780M1 2 Plug (2) 5 4225020M91 4 Rocker (1) 6 1 Rocker (5) Not serviced,order REF. 5 7 1 Pad (5) Not serviced,order REF. 5 8 376123X1 1 Nut (5) 9 4223933M1 1 Screw (5) 10 4224855M1 3 Spring (1) 11 4225021M91 4 Rocker (1) 12 1 Rocker (11) Not serviced,order REF. 11 13 1 Pad (11) Not serviced,order REF. 11 14 376123X1 1 Nut (11) 15 4223933M1 1 Screw (11) 16 3638812M1 2 Circlip (1) 17 4224720M1 2 Washer (1) 18 4224742M1 1 Screw (1) 19 4224743M1 3 Screw (1) 3906191 3906191 Rocker Arm - M.F 3435/45/55 Page010-0110 Page010-0110

  23. Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL. NO WAITING NOTE: If there is no response to click on the link above, please download the PDF document first and then click on it.

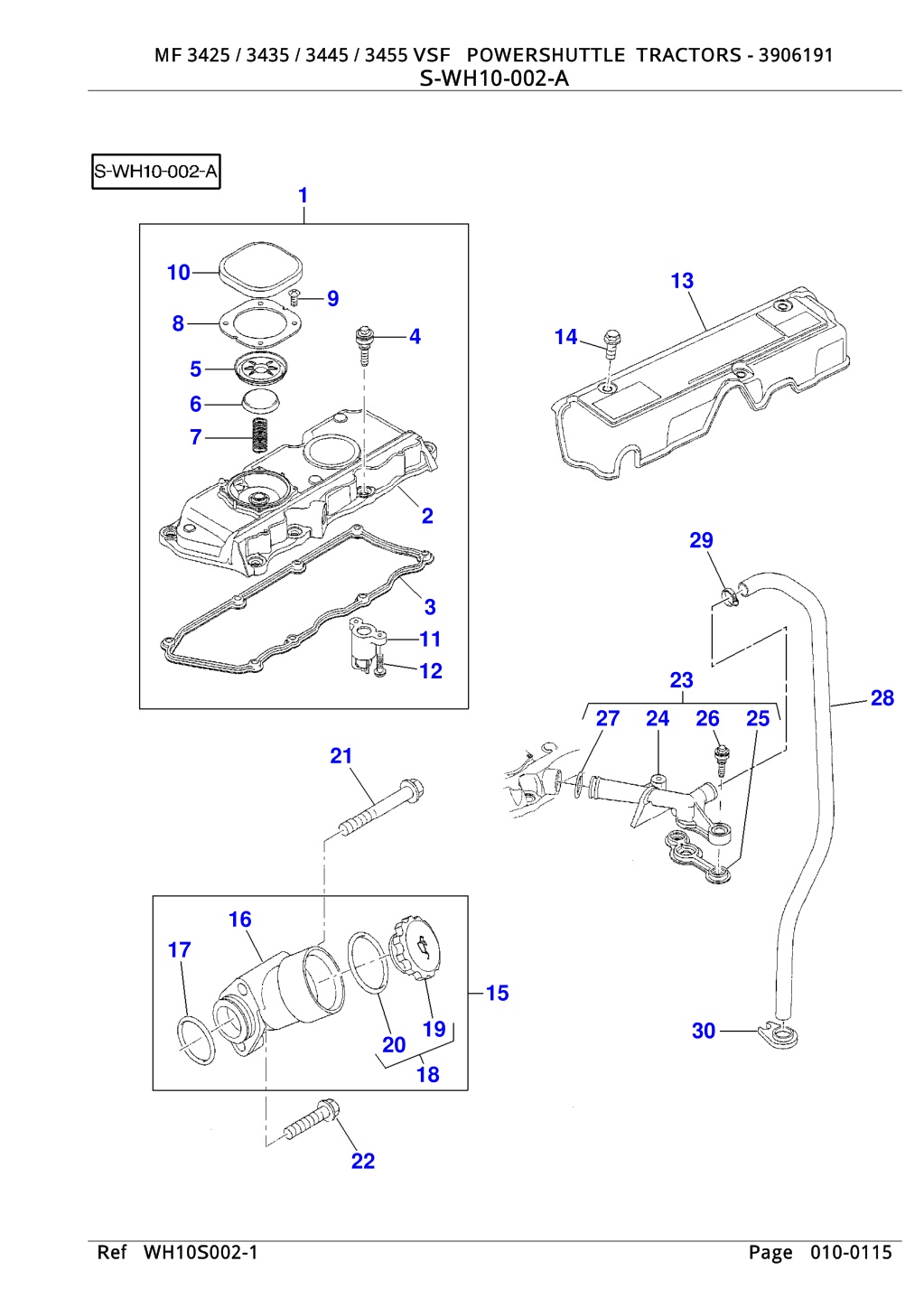

  24. MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 S-WH10-002-A S-WH10-002-A 1 10 13 9 8 4 14 5 6 7 2 29 3 11 12 23 28 27 24 26 25 21 16 17 15 19 30 20 18 22 Ref WH10S002-1 Ref WH10S002-1 Page Page 010-0115 010-0115

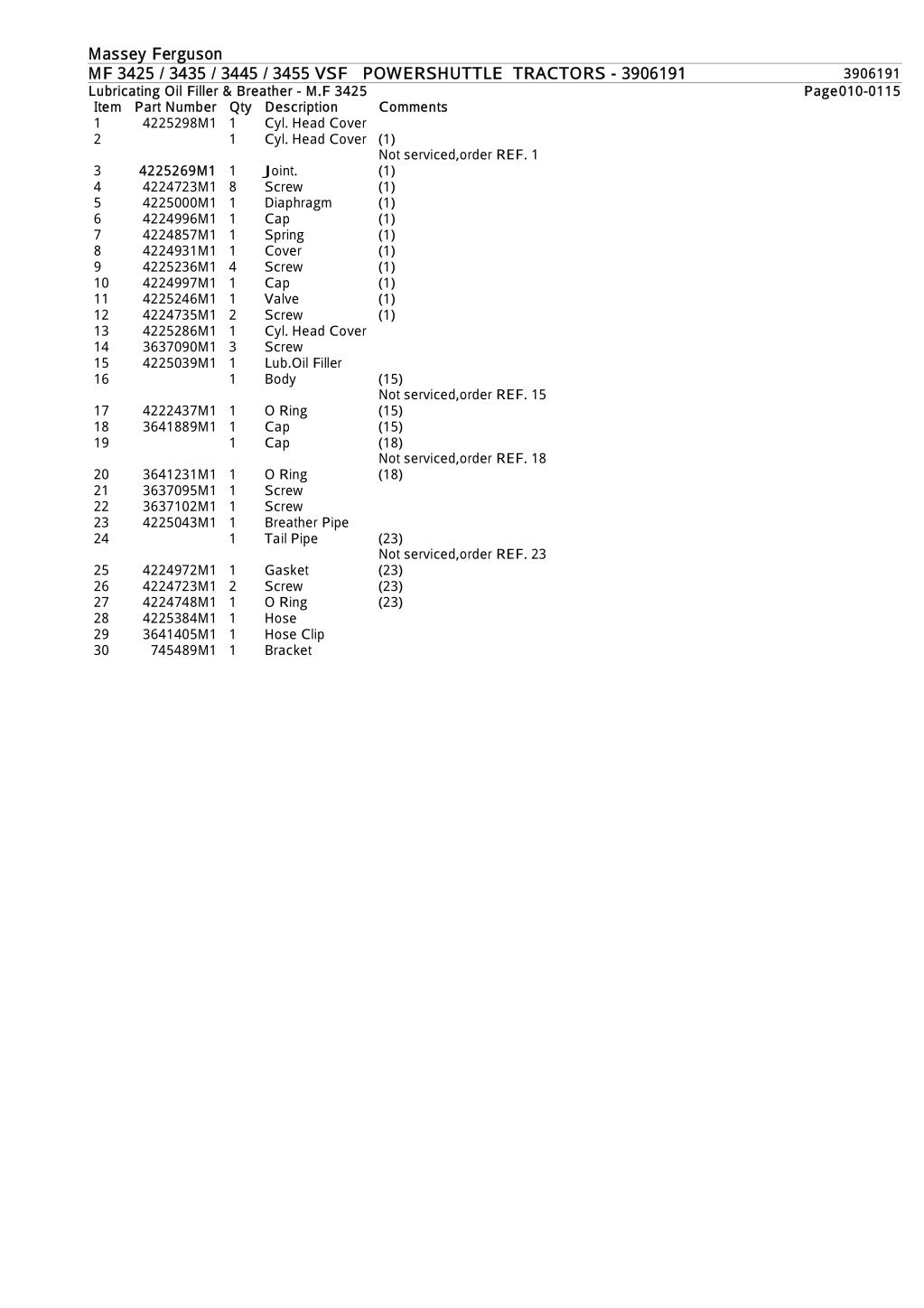

  25. Massey Ferguson Massey Ferguson MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 Lubricating Oil Filler & Breather - M.F 3425 Item Part Number Qty Description Comments Item Part Number Qty Description Comments 1 4225298M1 1 Cyl. Head Cover 2 1 Cyl. Head Cover (1) Not serviced,order REF. 1 3 4225269M1 4225269M1 1 J oint. (1) 4 4224723M1 8 Screw (1) 5 4225000M1 1 Diaphragm (1) 6 4224996M1 1 Cap (1) 7 4224857M1 1 Spring (1) 8 4224931M1 1 Cover (1) 9 4225236M1 4 Screw (1) 10 4224997M1 1 Cap (1) 11 4225246M1 1 Valve (1) 12 4224735M1 2 Screw (1) 13 4225286M1 1 Cyl. Head Cover 14 3637090M1 3 Screw 15 4225039M1 1 Lub.Oil Filler 16 1 Body (15) Not serviced,order REF. 15 17 4222437M1 1 O Ring (15) 18 3641889M1 1 Cap (15) 19 1 Cap (18) Not serviced,order REF. 18 20 3641231M1 1 O Ring (18) 21 3637095M1 1 Screw 22 3637102M1 1 Screw 23 4225043M1 1 Breather Pipe 24 1 Tail Pipe (23) Not serviced,order REF. 23 25 4224972M1 1 Gasket (23) 26 4224723M1 2 Screw (23) 27 4224748M1 1 O Ring (23) 28 4225384M1 1 Hose 29 3641405M1 1 Hose Clip 30 745489M1 1 Bracket 3906191 3906191 Lubricating Oil Filler & Breather - M.F 3425 Page010-0115 Page010-0115

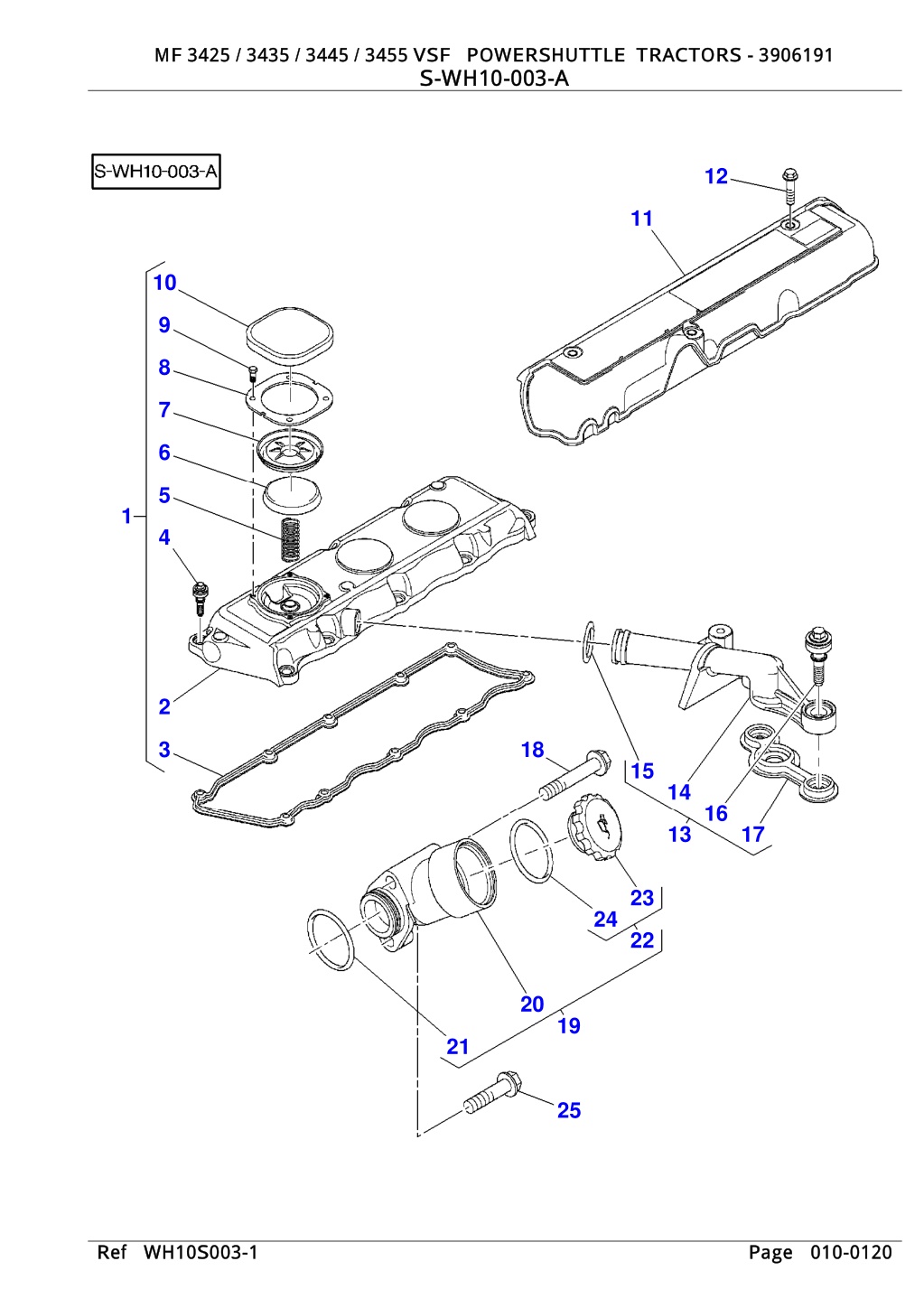

  26. MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 MF 3425 / 3435 / 3445 / 3455 VSF POWERSHUTTLE TRACTORS - 3906191 S-WH10-003-A S-WH10-003-A 12 11 10 9 8 7 6 5 1 4 2 3 18 15 14 16 13 17 23 24 22 20 19 21 25 Ref WH10S003-1 Ref WH10S003-1 Page Page 010-0120 010-0120
