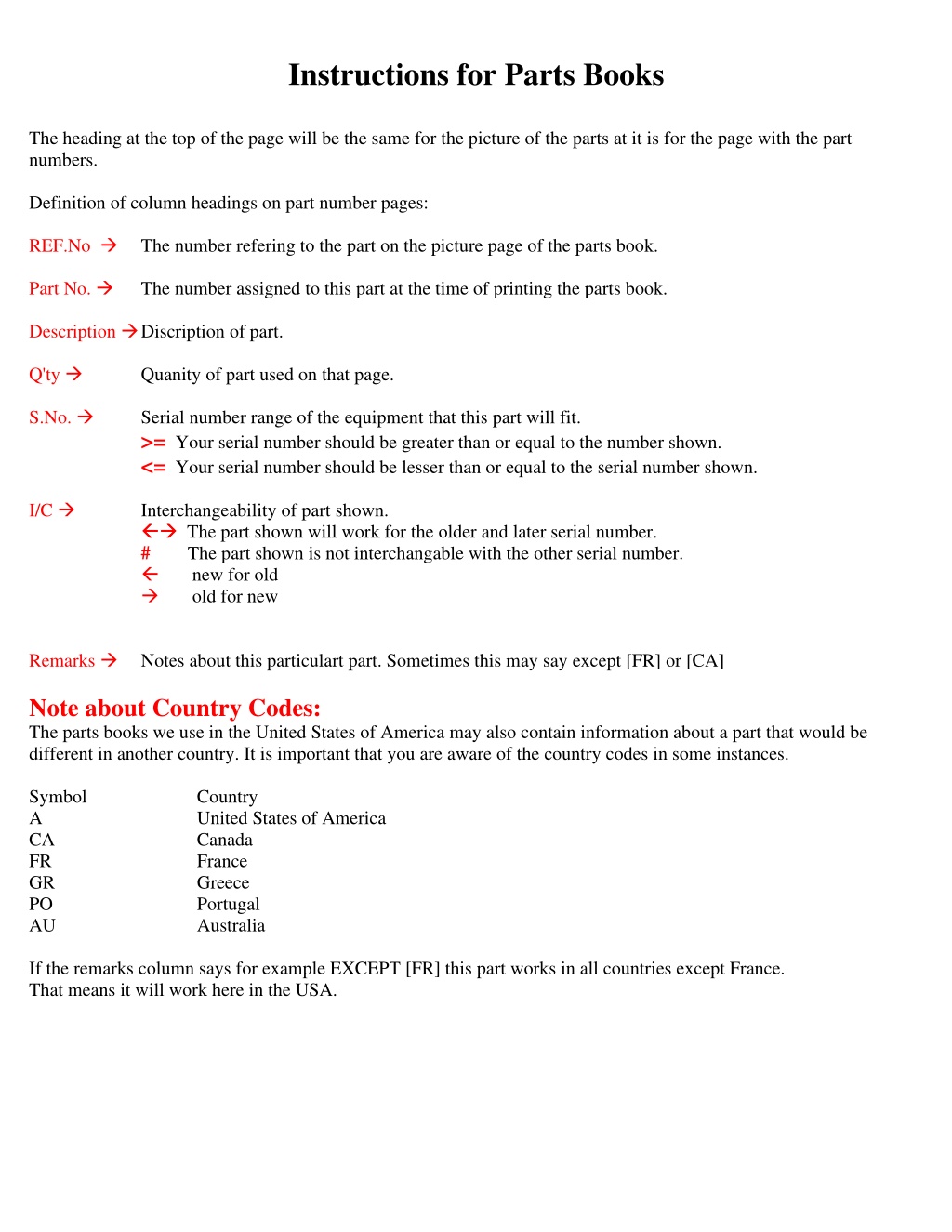

  1. Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No ? The number refering to the part on the picture page of the parts book. Part No. ? The number assigned to this part at the time of printing the parts book. Description ?Discription of part. Q'ty ? Quanity of part used on that page. S.No. ? Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C ? Interchangeability of part shown. ? ?? ? The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number. ? new for old ? old for new Remarks ? Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol A CA FR GR PO AU Country United States of America Canada France Greece Portugal Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

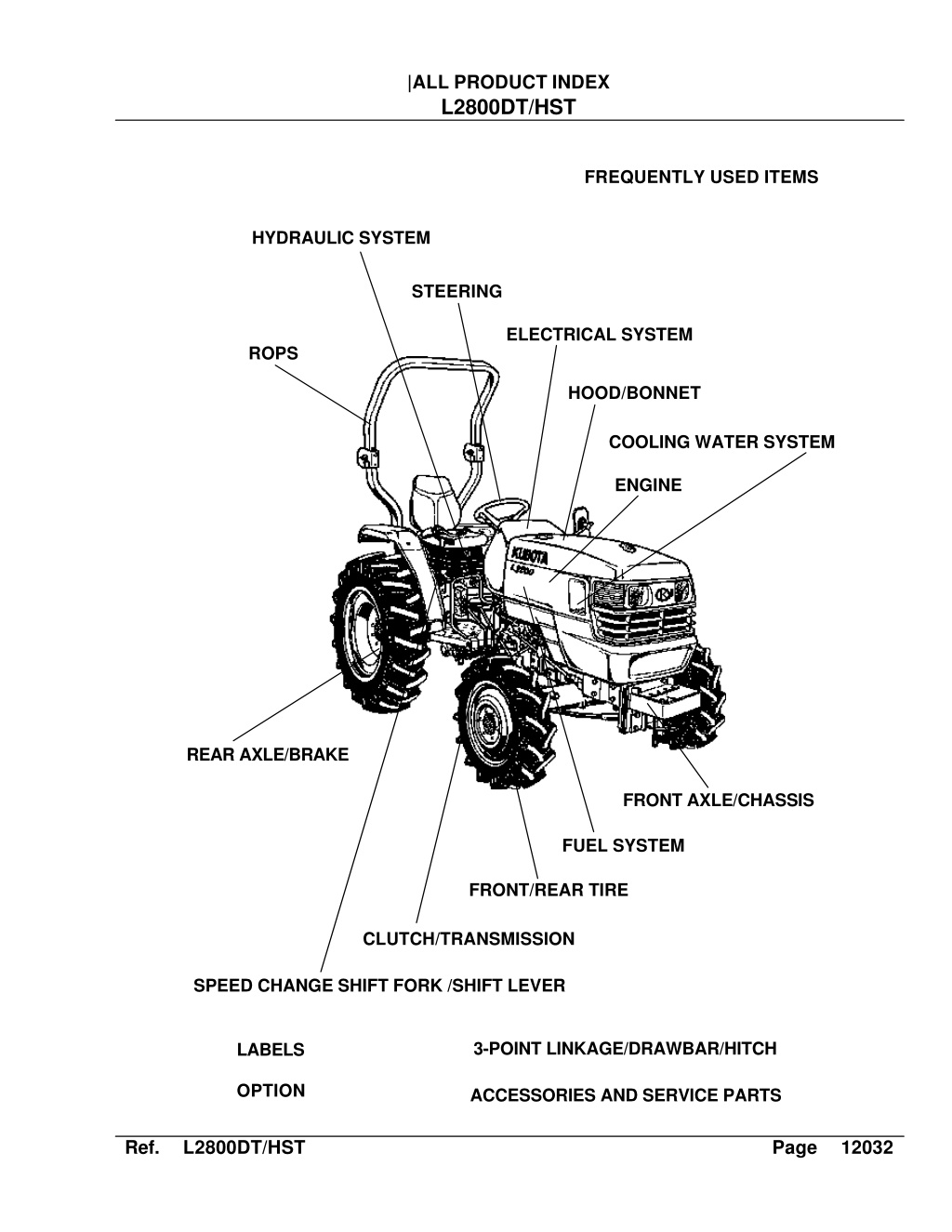

  2. |ALL PRODUCT INDEX L2800DT/HST FREQUENTLY USED ITEMS HYDRAULIC SYSTEM STEERING ELECTRICAL SYSTEM ROPS HOOD/BONNET COOLING WATER SYSTEM ENGINE REAR AXLE/BRAKE FRONT AXLE/CHASSIS FUEL SYSTEM FRONT/REAR TIRE CLUTCH/TRANSMISSION SPEED CHANGE SHIFT FORK /SHIFT LEVER 3-POINT LINKAGE/DRAWBAR/HITCH LABELS OPTION ACCESSORIES AND SERVICE PARTS Ref. L2800DT/HST Page 12032

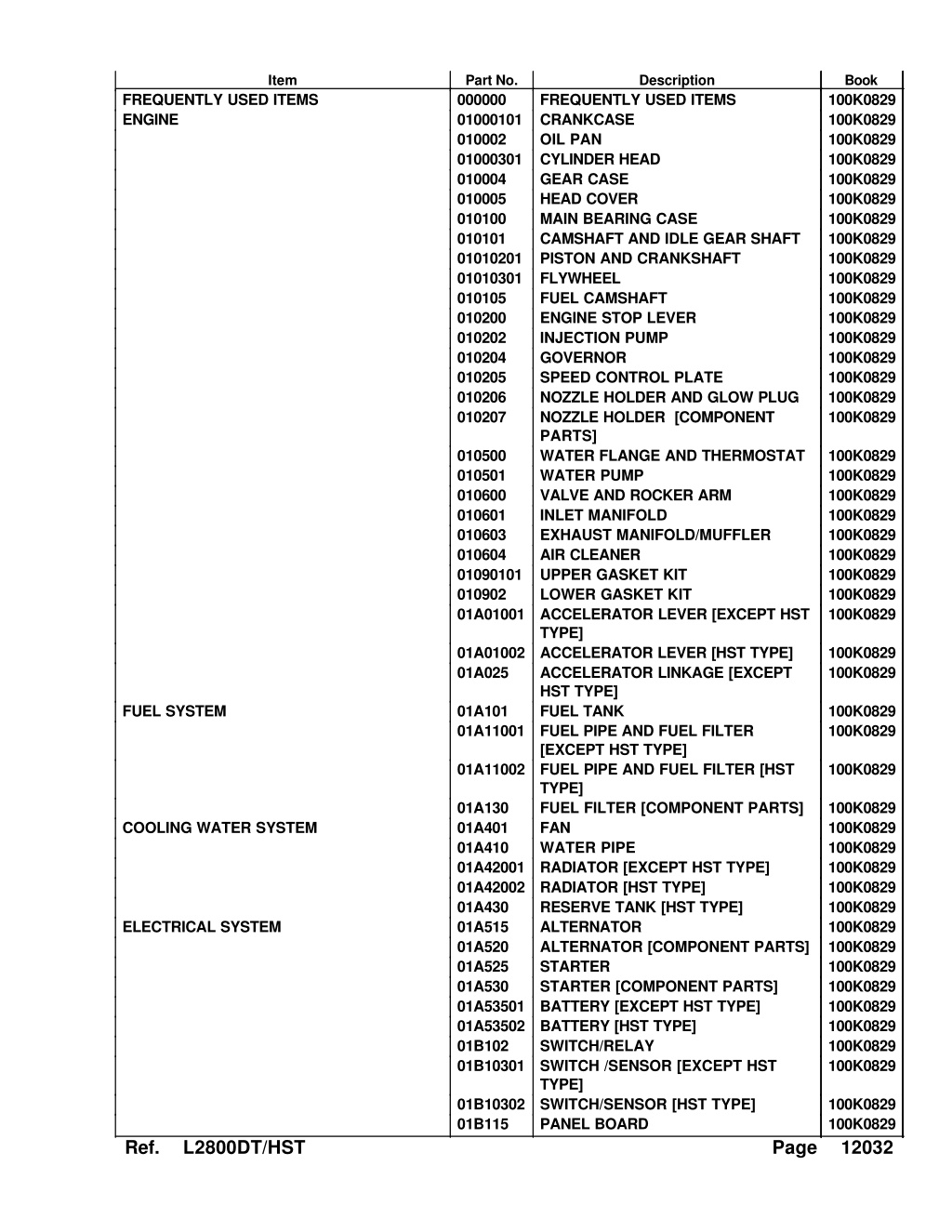

  3. Item Part No. 000000 01000101 010002 01000301 010004 010005 010100 010101 01010201 01010301 010105 010200 010202 010204 010205 010206 010207 Description Book 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 FREQUENTLY USED ITEMS ENGINE FREQUENTLY USED ITEMS CRANKCASE OIL PAN CYLINDER HEAD GEAR CASE HEAD COVER MAIN BEARING CASE CAMSHAFT AND IDLE GEAR SHAFT PISTON AND CRANKSHAFT FLYWHEEL FUEL CAMSHAFT ENGINE STOP LEVER INJECTION PUMP GOVERNOR SPEED CONTROL PLATE NOZZLE HOLDER AND GLOW PLUG NOZZLE HOLDER [COMPONENT PARTS] WATER FLANGE AND THERMOSTAT WATER PUMP VALVE AND ROCKER ARM INLET MANIFOLD EXHAUST MANIFOLD/MUFFLER AIR CLEANER UPPER GASKET KIT LOWER GASKET KIT ACCELERATOR LEVER [EXCEPT HST TYPE] ACCELERATOR LEVER [HST TYPE] ACCELERATOR LINKAGE [EXCEPT HST TYPE] FUEL TANK FUEL PIPE AND FUEL FILTER [EXCEPT HST TYPE] FUEL PIPE AND FUEL FILTER [HST TYPE] FUEL FILTER [COMPONENT PARTS] FAN WATER PIPE RADIATOR [EXCEPT HST TYPE] RADIATOR [HST TYPE] RESERVE TANK [HST TYPE] ALTERNATOR ALTERNATOR [COMPONENT PARTS] STARTER STARTER [COMPONENT PARTS] BATTERY [EXCEPT HST TYPE] BATTERY [HST TYPE] SWITCH/RELAY SWITCH /SENSOR [EXCEPT HST TYPE] SWITCH/SENSOR [HST TYPE] PANEL BOARD 010500 010501 010600 010601 010603 010604 01090101 010902 01A01001 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 01A01002 01A025 100K0829 100K0829 FUEL SYSTEM 01A101 01A11001 100K0829 100K0829 01A11002 100K0829 01A130 01A401 01A410 01A42001 01A42002 01A430 01A515 01A520 01A525 01A530 01A53501 01A53502 01B102 01B10301 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 COOLING WATER SYSTEM ELECTRICAL SYSTEM 01B10302 01B115 100K0829 100K0829 Ref. L2800DT/HST Page 12032

  4. Item Part No. 01B120 Description Book 100K0829 ELECTRICAL SYSTEM PANEL BOARD [COMPONENT PARTS] HEAD LIGHT [OLD TYPE] HEAD LIGHT [NEW TYPE] HAZARD LIGHT REAR LAMP ELECTRICAL WIRING [EXCEPT HST TYPE] ELECTRICAL WIRING [HST TYPE] CLUTCH CLUTCH LEVER [EXCEPT HST TYPE] CLUTCH LEVER [HST TYPE] CLUTCH PEDAL CLUTCH HOUSING [EXCEPT HST TYPE] CLUTCH HOUSING [HST TYPE] HST(INPUT SHAFT) [COMPONENT PARTS] [HST TYPE] HST(PUMP SHAFT) [COMPONENT PARTS] [HST TYPE] HST(MOTOR SHAFT) [COMPONENT PARTS] [HST TYPE] HST(VALVE) [COMPONENT PARTS] [HST TYPE] TRANSMISSION CASE [EXCEPT HST TYPE] TRANSMISSION CASE [HST TYPE] MAIN SHAFT [EXCEPT HST TYPE] COUNTERSHAFT [EXCEPT HST TYPE] REVERSE SHAFT [EXCEPT HST TYPE] RANGE GEAR SHAFT [EXCEPT HST TYPE] RANGE GEAR SHAFT [HST TYPE] SPIRAL BEVEL PINION [EXCEPT HST TYPE] SPIRAL BEVEL PINION [HST TYPE] REAR DIFFERENTIAL PTO COUNTERSHAFT [EXCEPT HST TYPE] PTO COUNTERSHAFT [HST TYPE] PTO COUNTERSHAFT [HST TYPE] [OLD TYPE] PTO COUNTERSHAFT [HST TYPE] [NEW TYPE] PTO SHAFT MAIN GEAR SHIFT FORK [EXCEPT HST TYPE] RANGE GEAR SHIFT FORK [EXCEPT HST TYPE] RANGE GEAR SHIFT FORK [HST TYPE] 01B30301 01B30302 01B311 01B312 01B50101 100K0829 100K0829 100K0829 100K0829 100K0829 01B50102 01C10101 01C20101 01C20103 01C301 01C40101 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 CLUTCH/TRANSMISSION 01C40103 01C40301 100K0829 100K0829 01C40302 100K0829 01C40303 100K0829 01C40304 100K0829 01C42002 100K0829 01C42003 01D10101 01D105 01D116 100K0829 100K0829 100K0829 100K0829 01D11701 100K0829 01D11702 01D12502 100K0829 100K0829 01D12503 01D12701 01D13002 100K0829 100K0829 100K0829 01D13005 01D13007 100K0829 100K0829 01D13008 100K0829 01D135 01D201 100K0829 100K0829 SPEED CHANGE SHIFT FORK /SHIFT LEVER 01D21701 100K0829 01D21702 100K0829 Ref. L2800DT/HST Page 12032

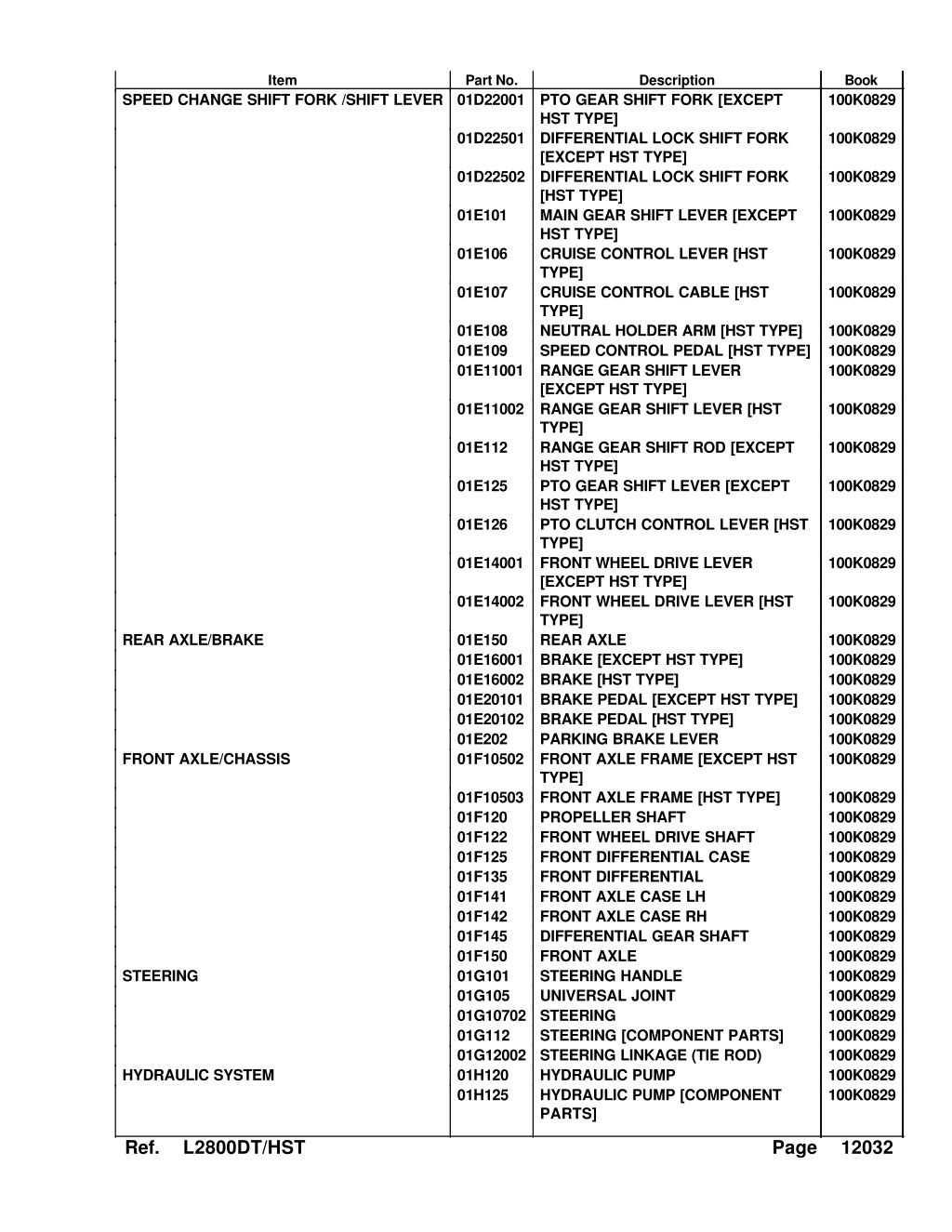

  5. Item Part No. 01D22001 Description Book 100K0829 SPEED CHANGE SHIFT FORK /SHIFT LEVER PTO GEAR SHIFT FORK [EXCEPT HST TYPE] DIFFERENTIAL LOCK SHIFT FORK [EXCEPT HST TYPE] DIFFERENTIAL LOCK SHIFT FORK [HST TYPE] MAIN GEAR SHIFT LEVER [EXCEPT HST TYPE] CRUISE CONTROL LEVER [HST TYPE] CRUISE CONTROL CABLE [HST TYPE] NEUTRAL HOLDER ARM [HST TYPE] SPEED CONTROL PEDAL [HST TYPE] RANGE GEAR SHIFT LEVER [EXCEPT HST TYPE] RANGE GEAR SHIFT LEVER [HST TYPE] RANGE GEAR SHIFT ROD [EXCEPT HST TYPE] PTO GEAR SHIFT LEVER [EXCEPT HST TYPE] PTO CLUTCH CONTROL LEVER [HST TYPE] FRONT WHEEL DRIVE LEVER [EXCEPT HST TYPE] FRONT WHEEL DRIVE LEVER [HST TYPE] REAR AXLE BRAKE [EXCEPT HST TYPE] BRAKE [HST TYPE] BRAKE PEDAL [EXCEPT HST TYPE] BRAKE PEDAL [HST TYPE] PARKING BRAKE LEVER FRONT AXLE FRAME [EXCEPT HST TYPE] FRONT AXLE FRAME [HST TYPE] PROPELLER SHAFT FRONT WHEEL DRIVE SHAFT FRONT DIFFERENTIAL CASE FRONT DIFFERENTIAL FRONT AXLE CASE LH FRONT AXLE CASE RH DIFFERENTIAL GEAR SHAFT FRONT AXLE STEERING HANDLE UNIVERSAL JOINT STEERING STEERING [COMPONENT PARTS] STEERING LINKAGE (TIE ROD) HYDRAULIC PUMP HYDRAULIC PUMP [COMPONENT PARTS] 01D22501 100K0829 01D22502 100K0829 01E101 100K0829 01E106 100K0829 01E107 100K0829 01E108 01E109 01E11001 100K0829 100K0829 100K0829 01E11002 100K0829 01E112 100K0829 01E125 100K0829 01E126 100K0829 01E14001 100K0829 01E14002 100K0829 REAR AXLE/BRAKE 01E150 01E16001 01E16002 01E20101 01E20102 01E202 01F10502 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 FRONT AXLE/CHASSIS 01F10503 01F120 01F122 01F125 01F135 01F141 01F142 01F145 01F150 01G101 01G105 01G10702 01G112 01G12002 01H120 01H125 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 STEERING HYDRAULIC SYSTEM Ref. L2800DT/HST Page 12032

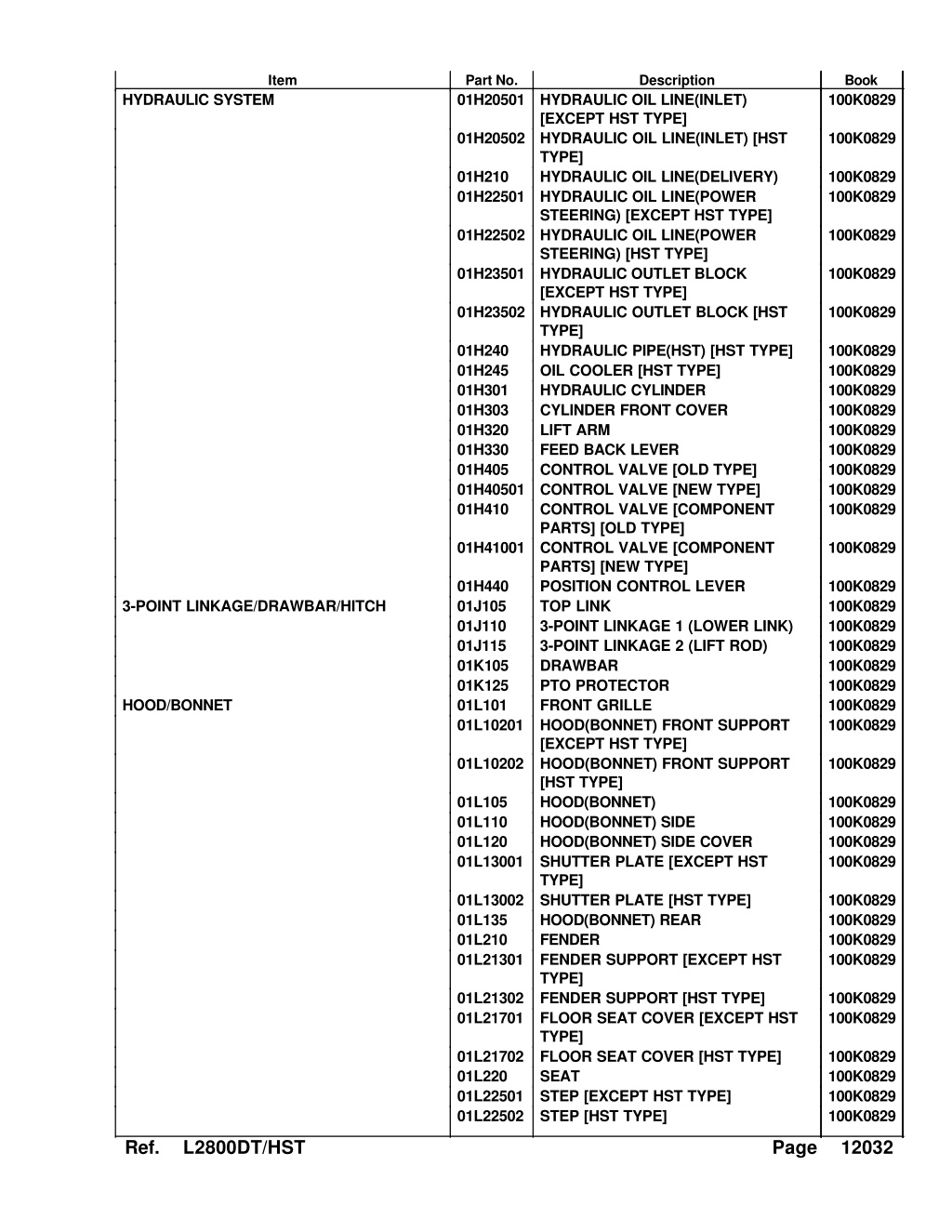

  6. Item Part No. 01H20501 Description Book 100K0829 HYDRAULIC SYSTEM HYDRAULIC OIL LINE(INLET) [EXCEPT HST TYPE] HYDRAULIC OIL LINE(INLET) [HST TYPE] HYDRAULIC OIL LINE(DELIVERY) HYDRAULIC OIL LINE(POWER STEERING) [EXCEPT HST TYPE] HYDRAULIC OIL LINE(POWER STEERING) [HST TYPE] HYDRAULIC OUTLET BLOCK [EXCEPT HST TYPE] HYDRAULIC OUTLET BLOCK [HST TYPE] HYDRAULIC PIPE(HST) [HST TYPE] OIL COOLER [HST TYPE] HYDRAULIC CYLINDER CYLINDER FRONT COVER LIFT ARM FEED BACK LEVER CONTROL VALVE [OLD TYPE] CONTROL VALVE [NEW TYPE] CONTROL VALVE [COMPONENT PARTS] [OLD TYPE] CONTROL VALVE [COMPONENT PARTS] [NEW TYPE] POSITION CONTROL LEVER TOP LINK 3-POINT LINKAGE 1 (LOWER LINK) 3-POINT LINKAGE 2 (LIFT ROD) DRAWBAR PTO PROTECTOR FRONT GRILLE HOOD(BONNET) FRONT SUPPORT [EXCEPT HST TYPE] HOOD(BONNET) FRONT SUPPORT [HST TYPE] HOOD(BONNET) HOOD(BONNET) SIDE HOOD(BONNET) SIDE COVER SHUTTER PLATE [EXCEPT HST TYPE] SHUTTER PLATE [HST TYPE] HOOD(BONNET) REAR FENDER FENDER SUPPORT [EXCEPT HST TYPE] FENDER SUPPORT [HST TYPE] FLOOR SEAT COVER [EXCEPT HST TYPE] FLOOR SEAT COVER [HST TYPE] SEAT STEP [EXCEPT HST TYPE] STEP [HST TYPE] 01H20502 100K0829 01H210 01H22501 100K0829 100K0829 01H22502 100K0829 01H23501 100K0829 01H23502 100K0829 01H240 01H245 01H301 01H303 01H320 01H330 01H405 01H40501 01H410 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 01H41001 100K0829 01H440 01J105 01J110 01J115 01K105 01K125 01L101 01L10201 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 3-POINT LINKAGE/DRAWBAR/HITCH HOOD/BONNET 01L10202 100K0829 01L105 01L110 01L120 01L13001 100K0829 100K0829 100K0829 100K0829 01L13002 01L135 01L210 01L21301 100K0829 100K0829 100K0829 100K0829 01L21302 01L21701 100K0829 100K0829 01L21702 01L220 01L22501 01L22502 100K0829 100K0829 100K0829 100K0829 Ref. L2800DT/HST Page 12032

  7. Item Part No. 01L30101 01L30102 01L501 01P10102 01P10104 01P10105 01P11001 01P11002 01P11003 01R10501 Description Book 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 100K0829 ROPS ROPS (RIGID TYPE) ROPS (FOLDABLE TYPE) SMV EMBLEM FRONT WHEEL (7-16) FRONT WHEEL (25*8.50-14) FRONT WHEEL (27*8.50-15) REAR WHEEL (11.2-24) REAR WHEEL (13.6-16) REAR WHEEL (15-19.5) LABEL 1 (FRONT) [EXCEPT HST TYPE] LABEL 1 (FRONT) [HST TYPE] LABEL 2 (REAR) [EXCEPT HST TYPE] LABEL 2 (REAR) [HST TYPE] ACCESSORIES AND SERVICE PARTS WORKING LIGHT KIT(W/G No.M9551) [OPTION] FRONT BUMPER(W/G No.MX8068) [OPTION] FRONT WEIGHT [OPTION] REAR WHEEL WEIGHT [OPTION] CONTROL VALVE (WITH DRAFT) [OPTION] CONTROL VALVE (WITH DRAFT) [COMPONENT PARTS] [OPTION] DRAFT CONTROL LEVER (WITH DRAFT) [OPTION] DRAFT CONTROL VALVE (WITH DRAFT) [COMPONENT PARTS] [OPTION] TOP LINK HOLDER (WITH DRAFT) [OPTION] STABILIZER(W/G No.L8430) [OPTION] SWINGING DRAWBAR [OPTION] T/M OIL EXTENSION PORT AND GAUGE KIT HOOD/BONNET FRONT/REAR TIRE LABELS 01R10502 01R11002 01R11003 01S105 01T105 100K0829 100K0829 100K0829 100K0829 100K0829 ACCESSORIES AND SERVICE PARTS OPTION 01T121 100K0829 01T122 01T123 01T127 100K0829 100K0829 100K0829 01T128 100K0829 01T135 100K0829 01T136 100K0829 01T140 100K0829 01T143 01T144 01T148 100K0829 100K0829 100K0829 Ref. L2800DT/HST Page 12032

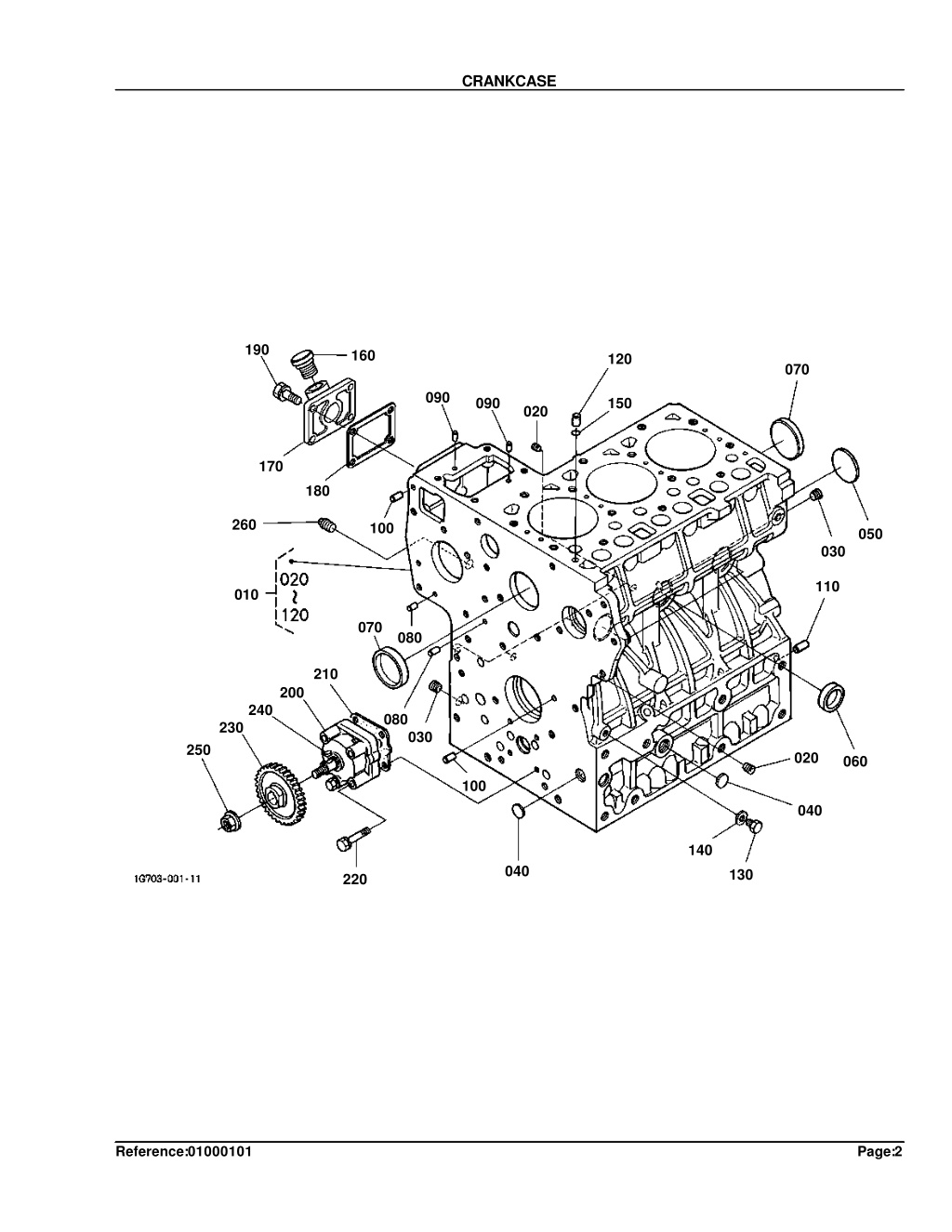

  8. CRANKCASE 190 160 120 070 090 090 150 020 170 180 260 100 050 030 110 010 070 080 210 200 240 080 230 030 250 020 060 100 040 140 040 130 220 Reference:01000101 Page:2

  9. CRANKCASE REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) 48.5 0.003 0.007 0.003 0.025 0.017 0.03 0.001 0.003 0.003 0.012 0.004 0.009 0.008 0.001 0.001 0.025 0.025 0.07 0.003 0.006 0.55 0.001 0.015 0.23 0.001 0.014 0.016 Weight (lb) 106.7 0.0066 0.0154 0.0066 0.055 0.0374 0.066 0.0022 0.0066 0.0066 0.0264 0.0088 0.0198 0.0176 0.0022 0.0022 0.055 0.055 0.154 0.0066 0.0132 1.21 0.0022 0.033 0.506 0.0022 0.0308 0.0352 010 020 030 040 050 060 070 080 090 100 110 120 130 130 140 150 160 160 170 180 190 200 210 220 230 240 250 260 1G703-01010 15521-96020 15521-96030 17391-96160 16271-96160 15221-03380 15221-03390 05012-00408 05012-00609 05012-00612 05012-01018 15221-33650 15221-33610 15469-33610 15021-33660 15221-33700 16427-33140 16427-33142 1A021-33110 1A021-51660 01023-50618 15471-35013 1A021-35150 01023-60650 19202-35660 05712-00410 15221-35682 06312-10020 COMP.CRANKCASE PLUG PLUG PLUG EXPANSION PLUG EXPANSION CAP SEALING CAP SEALING PIN STRAIGHT PIN STRAIGHT PIN STRAIGHT PIN STRAIGHT PIN PIPE PLUG PLUG GASKET O RING PLUG OIL FILLER PLUG OIL FILLER FLANGE OIL FILLER GASKET PUMP COVER BOLT ASSY PUMP OIL GASKET OIL PUMP BOLT GEAR OIL PUMP DRIVE KEY FEATHER NUT FLANGE PLUG 1 5 2 3 1 5 2 2 2 2 1 1 1 1 1 1 1 1 1 1 4 1 1 4 1 1 1 1 ↔ <=5C0845 >=5E0001 ← Reference:01000101 Page:2

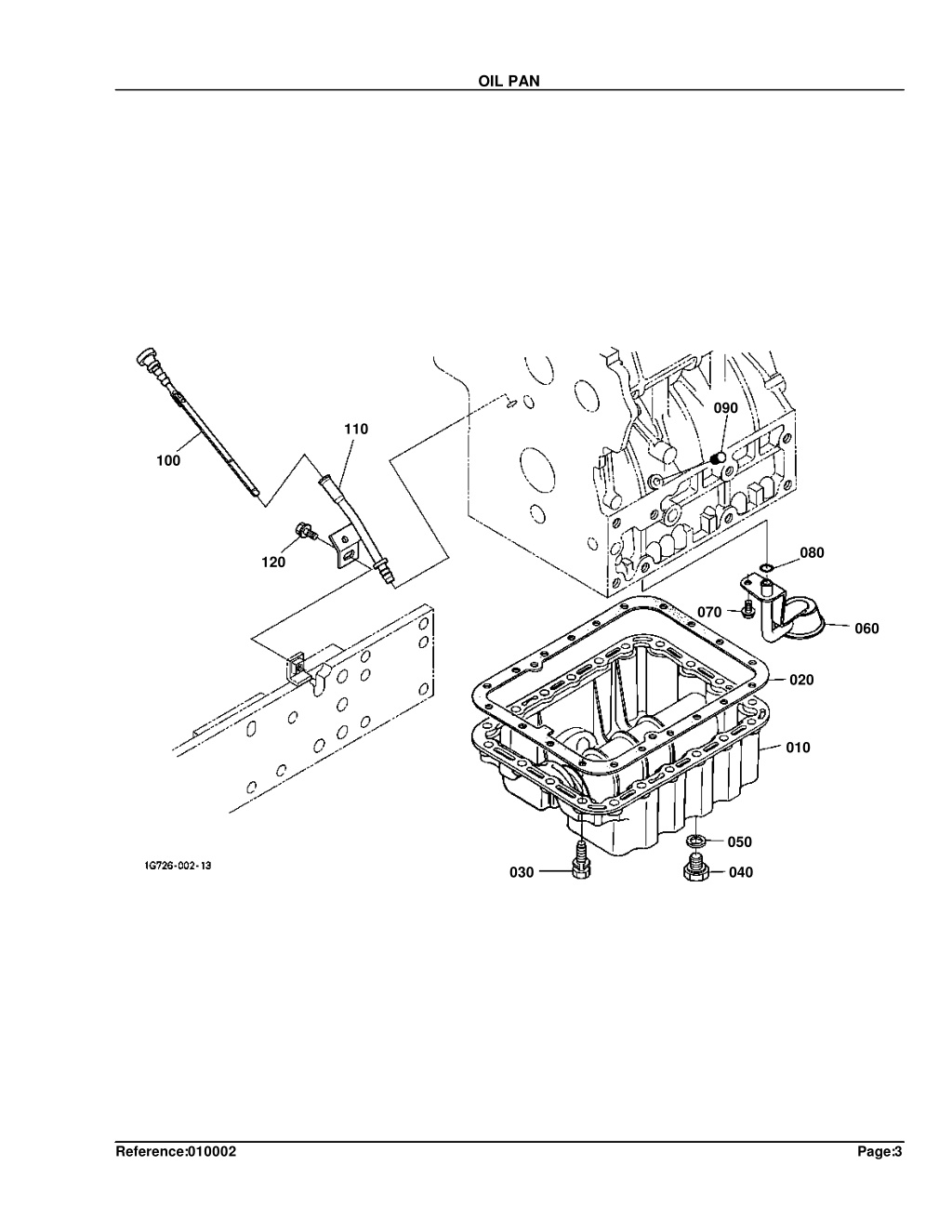

  10. OIL PAN 090 110 100 080 120 070 060 020 010 050 030 040 Reference:010002 Page:3

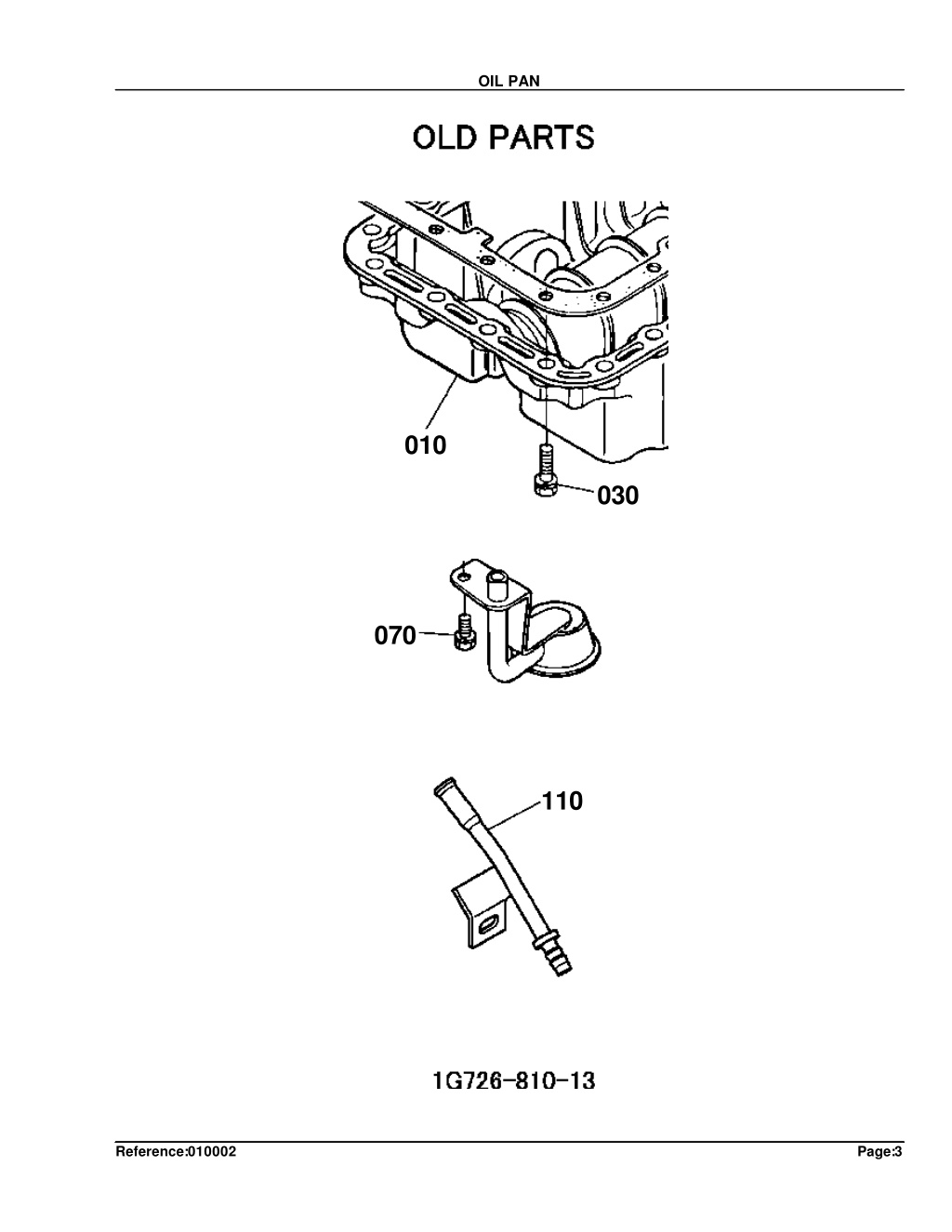

  11. OIL PAN 010 030 070 110 Reference:010002 Page:3

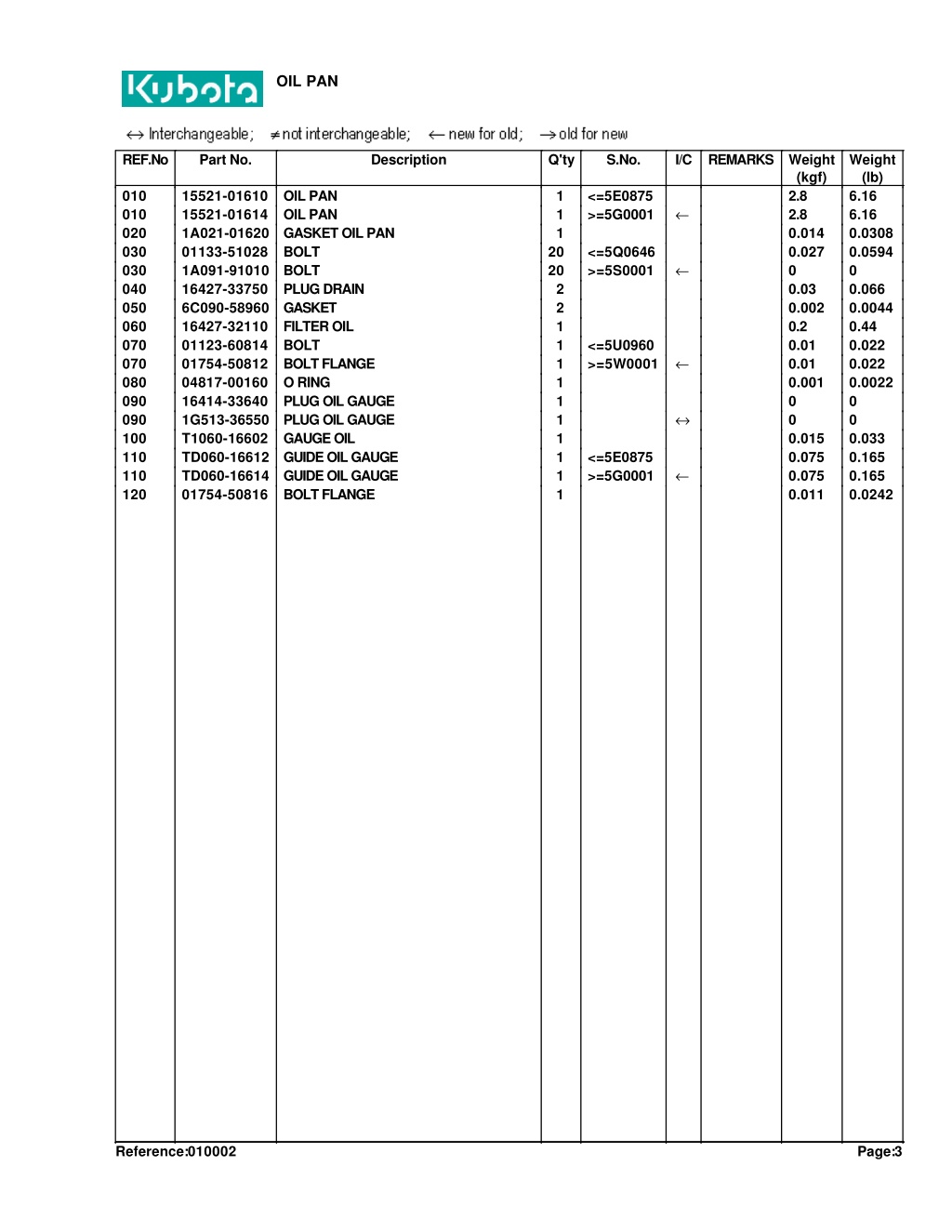

  12. OIL PAN REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) 2.8 2.8 0.014 0.027 0 0.03 0.002 0.2 0.01 0.01 0.001 0 0 0.015 0.075 0.075 0.011 Weight (lb) 6.16 6.16 0.0308 0.0594 0 0.066 0.0044 0.44 0.022 0.022 0.0022 0 0 0.033 0.165 0.165 0.0242 010 010 020 030 030 040 050 060 070 070 080 090 090 100 110 110 120 15521-01610 15521-01614 1A021-01620 01133-51028 1A091-91010 16427-33750 6C090-58960 16427-32110 01123-60814 01754-50812 04817-00160 16414-33640 1G513-36550 T1060-16602 TD060-16612 TD060-16614 01754-50816 OIL PAN OIL PAN GASKET OIL PAN BOLT BOLT PLUG DRAIN GASKET FILTER OIL BOLT BOLT FLANGE O RING PLUG OIL GAUGE PLUG OIL GAUGE GAUGE OIL GUIDE OIL GAUGE GUIDE OIL GAUGE BOLT FLANGE 1 1 1 <=5E0875 >=5G0001 ← 20 20 <=5Q0646 >=5S0001 ← 2 2 1 1 1 1 1 1 1 1 1 1 <=5U0960 >=5W0001 ← ↔ <=5E0875 >=5G0001 ← Reference:010002 Page:3

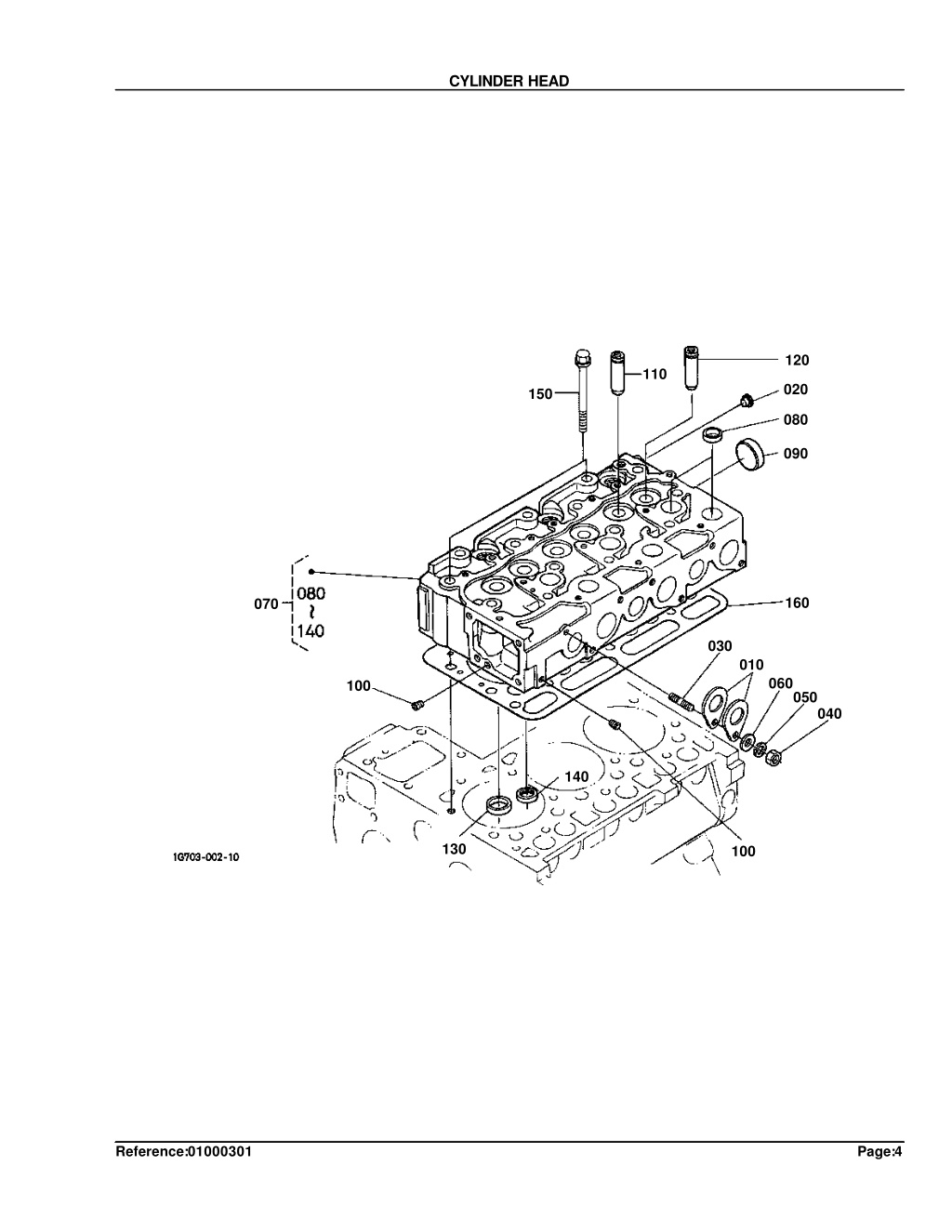

  13. CYLINDER HEAD 120 110 020 150 080 090 160 070 030 010 060 100 050 040 140 130 100 Reference:01000301 Page:4

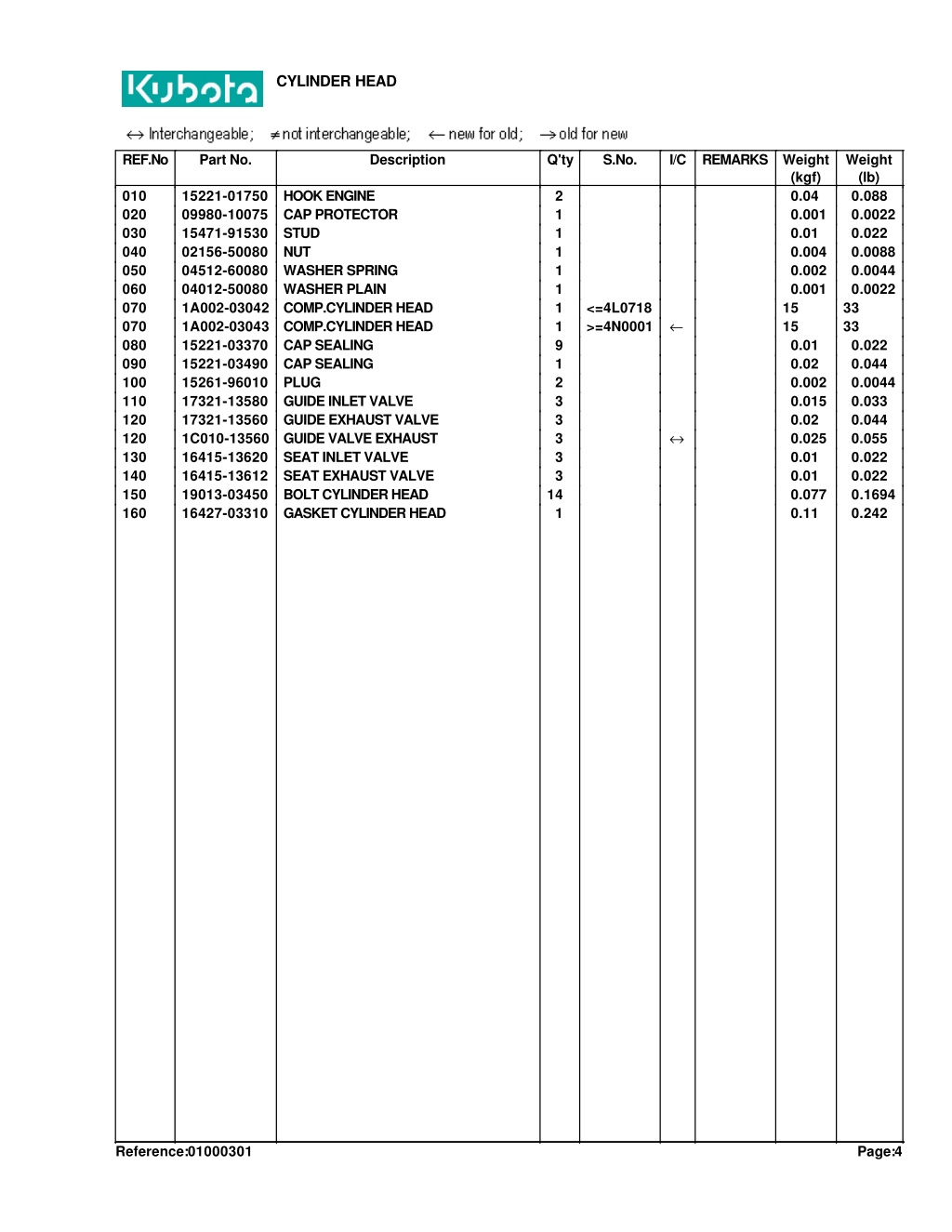

  14. CYLINDER HEAD REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) 0.04 0.001 0.01 0.004 0.002 0.001 15 15 0.01 0.02 0.002 0.015 0.02 0.025 0.01 0.01 0.077 0.11 Weight (lb) 0.088 0.0022 0.022 0.0088 0.0044 0.0022 33 33 0.022 0.044 0.0044 0.033 0.044 0.055 0.022 0.022 0.1694 0.242 010 020 030 040 050 060 070 070 080 090 100 110 120 120 130 140 150 160 15221-01750 09980-10075 15471-91530 02156-50080 04512-60080 04012-50080 1A002-03042 1A002-03043 15221-03370 15221-03490 15261-96010 17321-13580 17321-13560 1C010-13560 16415-13620 16415-13612 19013-03450 16427-03310 HOOK ENGINE CAP PROTECTOR STUD NUT WASHER SPRING WASHER PLAIN COMP.CYLINDER HEAD COMP.CYLINDER HEAD CAP SEALING CAP SEALING PLUG GUIDE INLET VALVE GUIDE EXHAUST VALVE GUIDE VALVE EXHAUST SEAT INLET VALVE SEAT EXHAUST VALVE BOLT CYLINDER HEAD GASKET CYLINDER HEAD 2 1 1 1 1 1 1 1 9 1 2 3 3 3 3 3 <=4L0718 >=4N0001 ← ↔ 14 1 Reference:01000301 Page:4

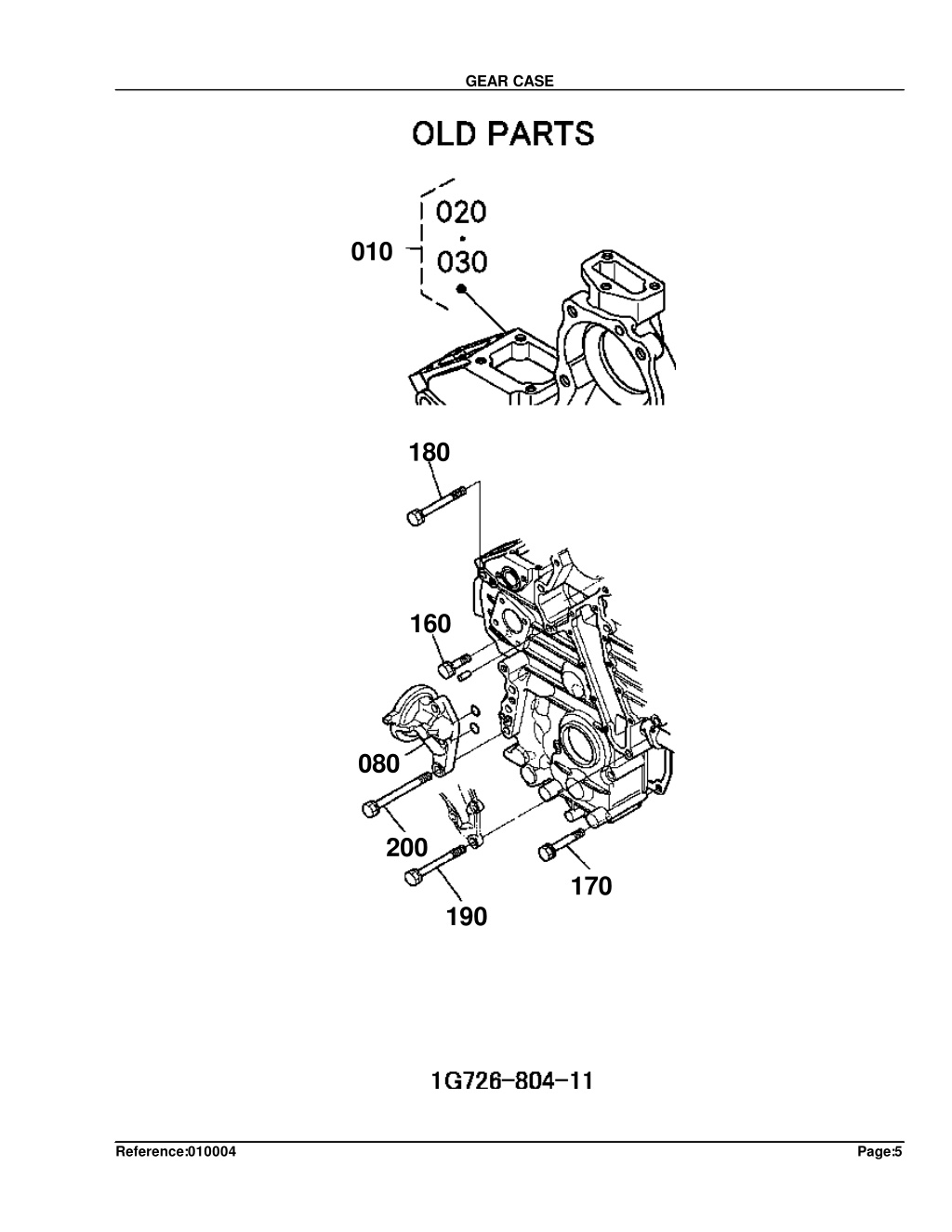

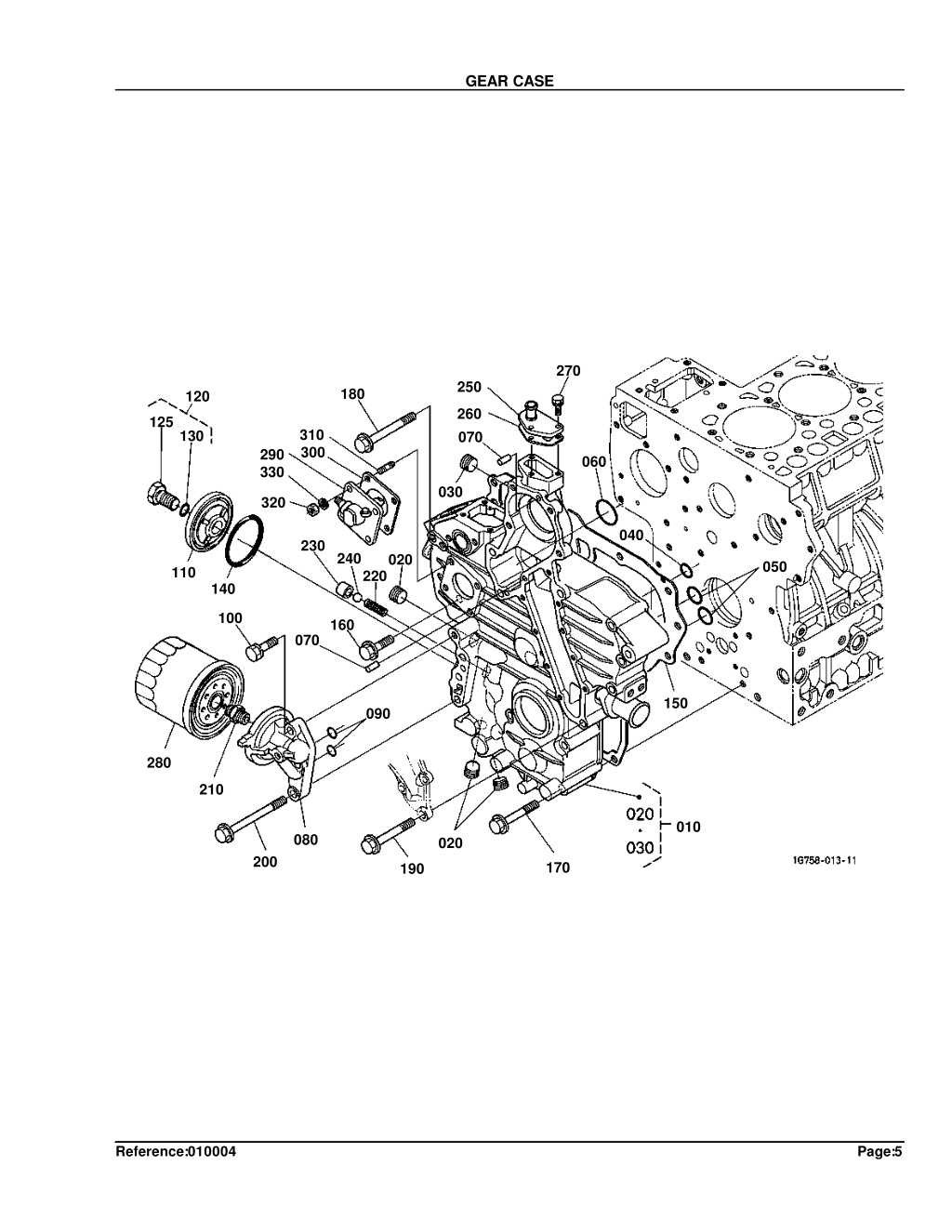

  15. GEAR CASE 270 250 180 120 260 125 310 130 070 300 290 330 060 030 320 040 230 240 020 050 110 220 140 100 160 070 150 090 280 210 010 080 020 200 170 190 Reference:010004 Page:5

  16. GEAR CASE 010 180 160 080 200 170 190 Reference:010004 Page:5

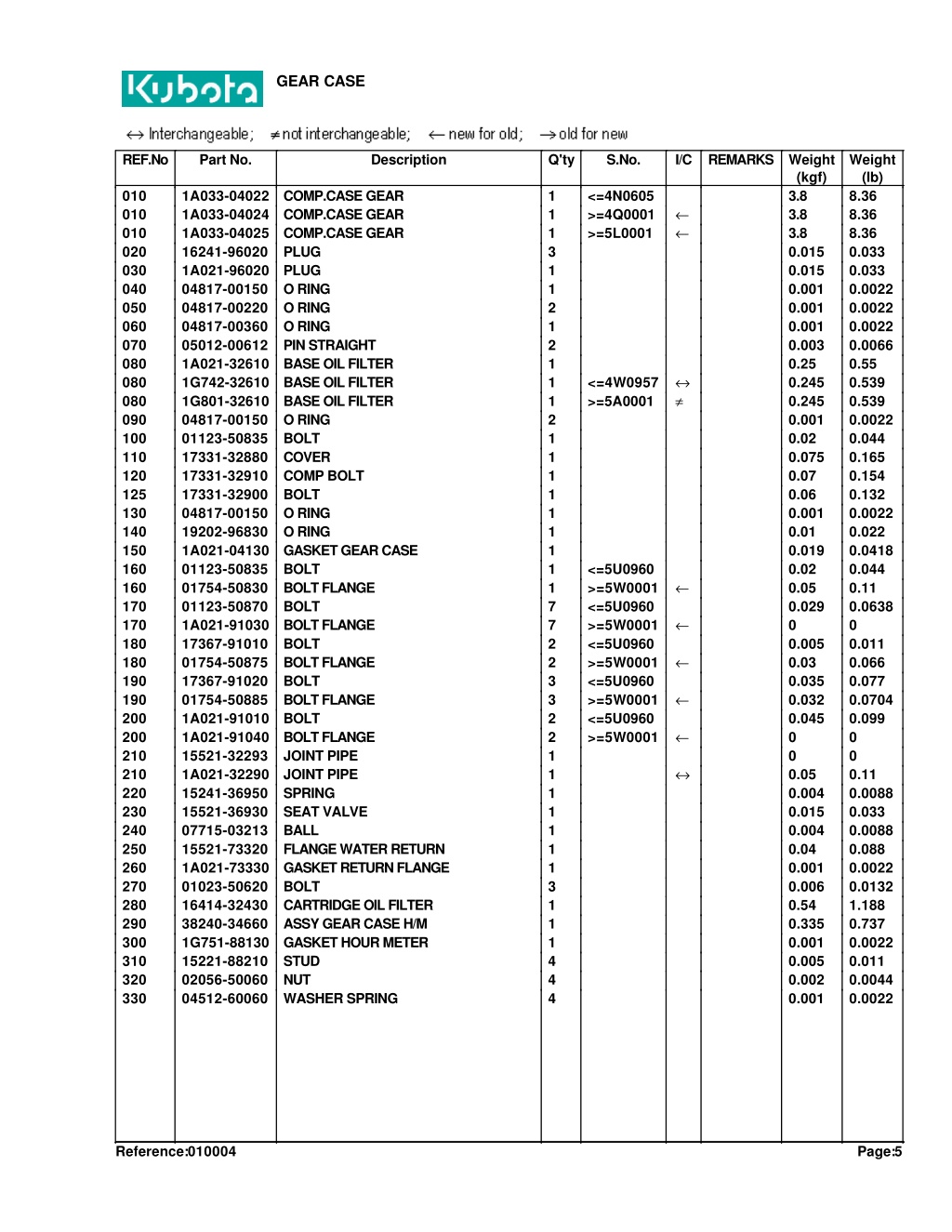

  17. GEAR CASE REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) 3.8 3.8 3.8 0.015 0.015 0.001 0.001 0.001 0.003 0.25 0.245 0.245 0.001 0.02 0.075 0.07 0.06 0.001 0.01 0.019 0.02 0.05 0.029 0 0.005 0.03 0.035 0.032 0.045 0 0 0.05 0.004 0.015 0.004 0.04 0.001 0.006 0.54 0.335 0.001 0.005 0.002 0.001 Weight (lb) 8.36 8.36 8.36 0.033 0.033 0.0022 0.0022 0.0022 0.0066 0.55 0.539 0.539 0.0022 0.044 0.165 0.154 0.132 0.0022 0.022 0.0418 0.044 0.11 0.0638 0 0.011 0.066 0.077 0.0704 0.099 0 0 0.11 0.0088 0.033 0.0088 0.088 0.0022 0.0132 1.188 0.737 0.0022 0.011 0.0044 0.0022 010 010 010 020 030 040 050 060 070 080 080 080 090 100 110 120 125 130 140 150 160 160 170 170 180 180 190 190 200 200 210 210 220 230 240 250 260 270 280 290 300 310 320 330 1A033-04022 1A033-04024 1A033-04025 16241-96020 1A021-96020 04817-00150 04817-00220 04817-00360 05012-00612 1A021-32610 1G742-32610 1G801-32610 04817-00150 01123-50835 17331-32880 17331-32910 17331-32900 04817-00150 19202-96830 1A021-04130 01123-50835 01754-50830 01123-50870 1A021-91030 17367-91010 01754-50875 17367-91020 01754-50885 1A021-91010 1A021-91040 15521-32293 1A021-32290 15241-36950 15521-36930 07715-03213 15521-73320 1A021-73330 01023-50620 16414-32430 38240-34660 1G751-88130 15221-88210 02056-50060 04512-60060 COMP.CASE GEAR COMP.CASE GEAR COMP.CASE GEAR PLUG PLUG O RING O RING O RING PIN STRAIGHT BASE OIL FILTER BASE OIL FILTER BASE OIL FILTER O RING BOLT COVER COMP BOLT BOLT O RING O RING GASKET GEAR CASE BOLT BOLT FLANGE BOLT BOLT FLANGE BOLT BOLT FLANGE BOLT BOLT FLANGE BOLT BOLT FLANGE JOINT PIPE JOINT PIPE SPRING SEAT VALVE BALL FLANGE WATER RETURN GASKET RETURN FLANGE BOLT CARTRIDGE OIL FILTER ASSY GEAR CASE H/M GASKET HOUR METER STUD NUT WASHER SPRING 1 1 1 3 1 1 2 1 2 1 1 1 2 1 1 1 1 1 1 1 1 1 7 7 2 2 3 3 2 2 1 1 1 1 1 1 1 3 1 1 1 4 4 4 <=4N0605 >=4Q0001 >=5L0001 ← ← ↔ ≠ <=4W0957 >=5A0001 <=5U0960 >=5W0001 <=5U0960 >=5W0001 <=5U0960 >=5W0001 <=5U0960 >=5W0001 <=5U0960 >=5W0001 ← ← ← ← ← ↔ Reference:010004 Page:5

  18. Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL. NO WAITING NOTE: If there is no response to click on the link above, please download the PDF document first and then click on it.

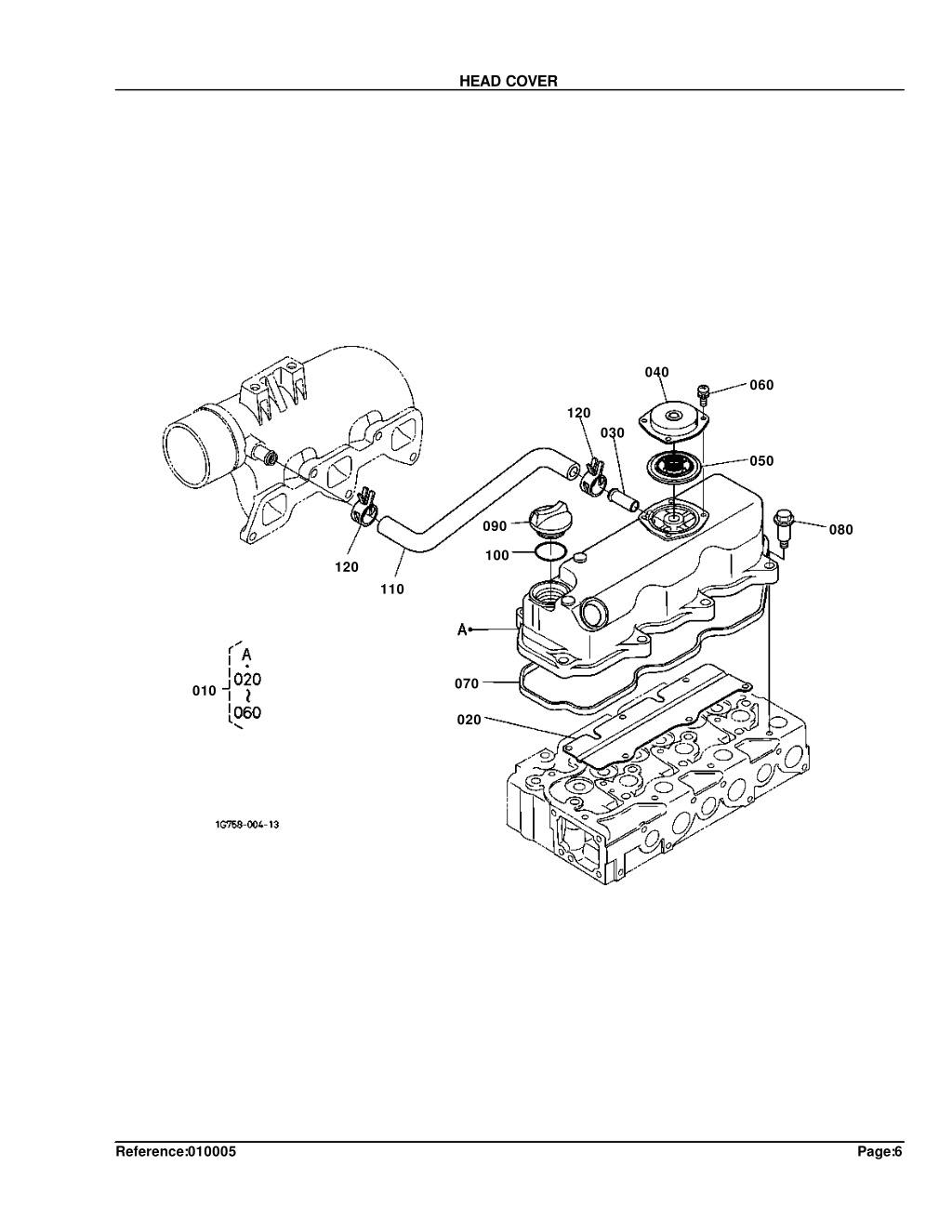

  19. HEAD COVER 040 060 120 030 050 090 080 100 120 110 070 010 020 Reference:010005 Page:6

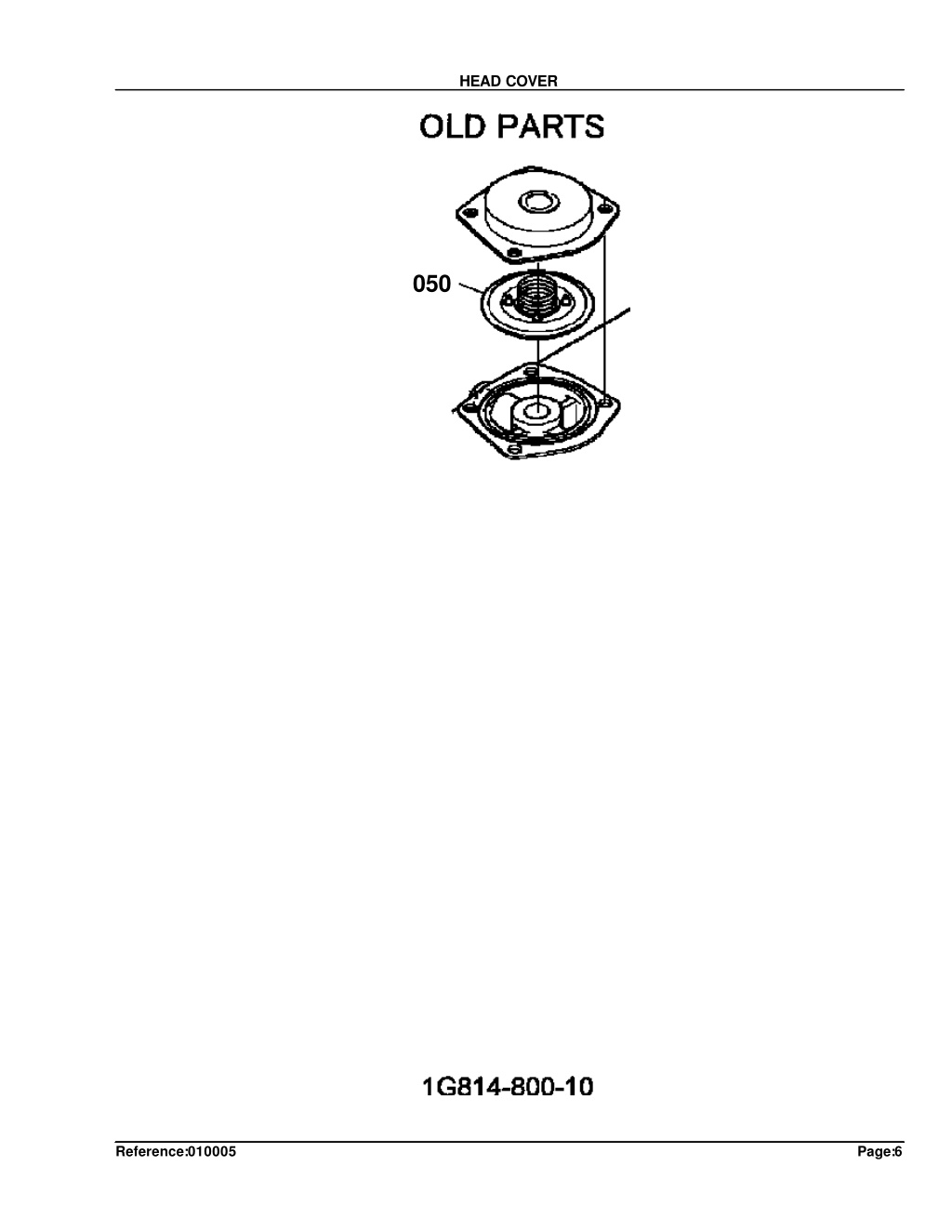

  20. HEAD COVER 050 Reference:010005 Page:6
