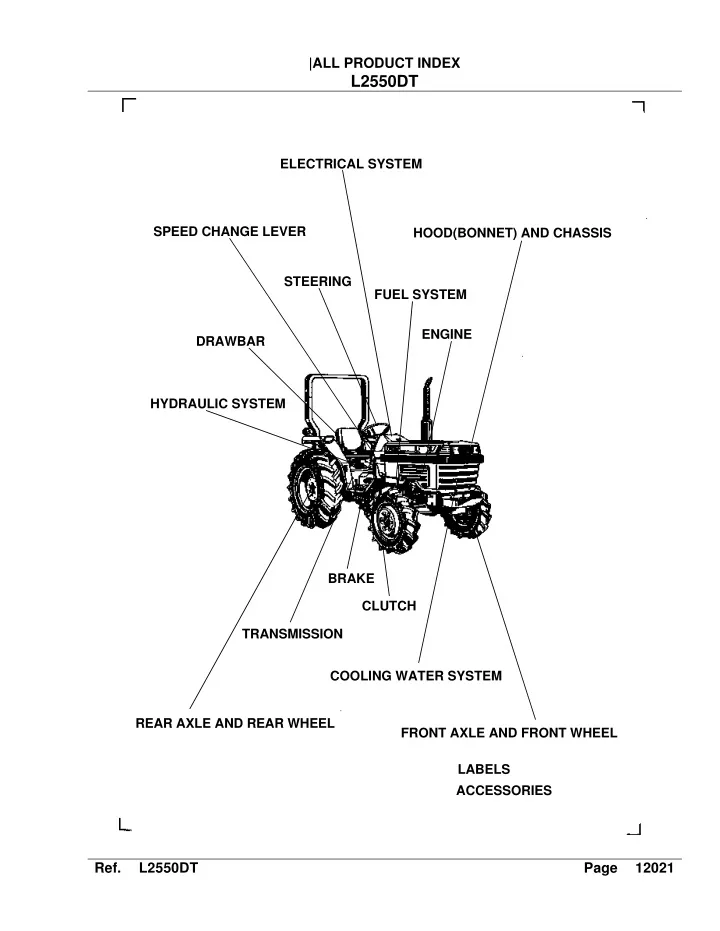

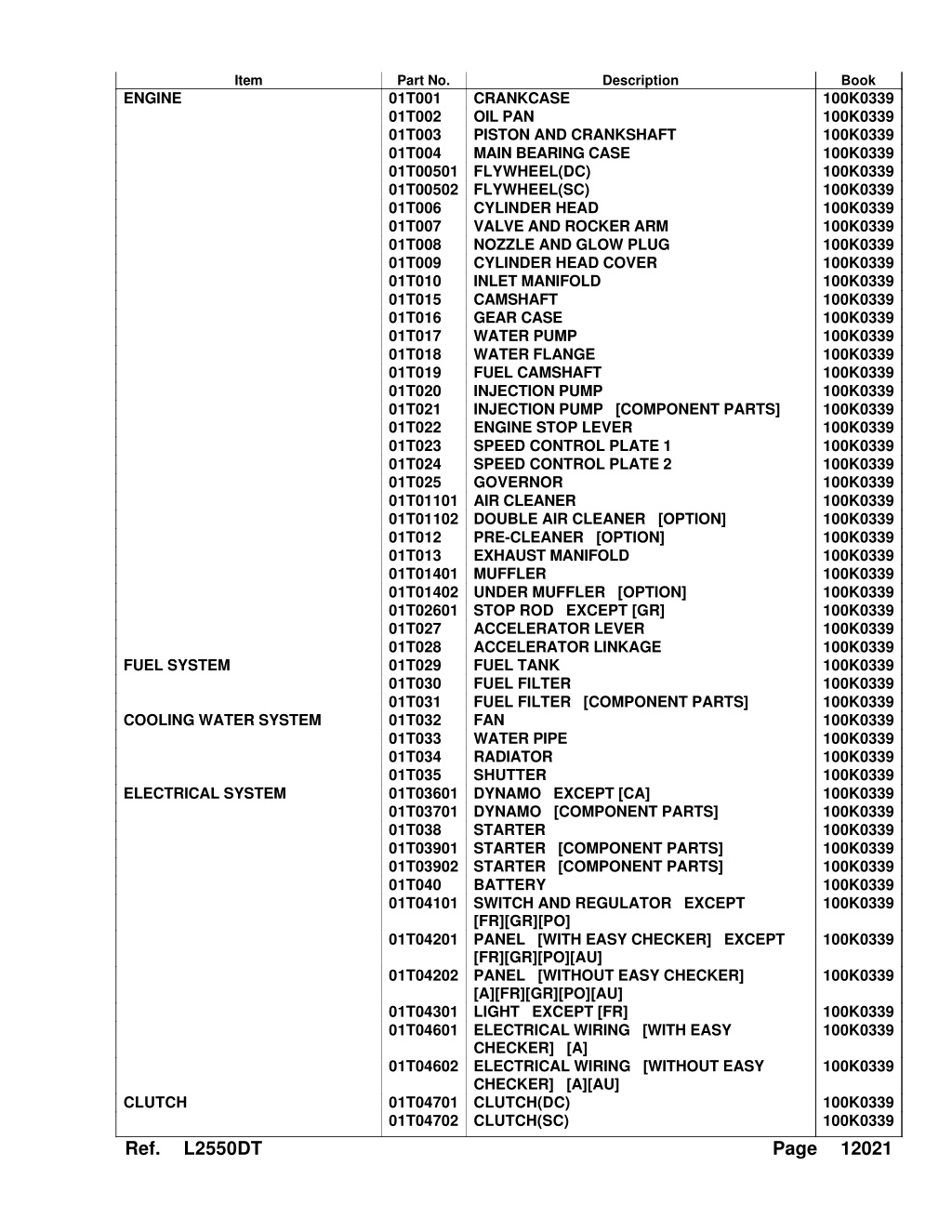

  1. |ALL PRODUCT INDEX L2550DT ELECTRICAL SYSTEM SPEED CHANGE LEVER HOOD(BONNET) AND CHASSIS STEERING FUEL SYSTEM ENGINE DRAWBAR HYDRAULIC SYSTEM BRAKE CLUTCH TRANSMISSION COOLING WATER SYSTEM REAR AXLE AND REAR WHEEL FRONT AXLE AND FRONT WHEEL LABELS ACCESSORIES Ref. L2550DT Page 12021

  2. Item Part No. 01T001 01T002 01T003 01T004 01T00501 01T00502 01T006 01T007 01T008 01T009 01T010 01T015 01T016 01T017 01T018 01T019 01T020 01T021 01T022 01T023 01T024 01T025 01T01101 01T01102 01T012 01T013 01T01401 01T01402 01T02601 01T027 01T028 01T029 01T030 01T031 01T032 01T033 01T034 01T035 01T03601 01T03701 01T038 01T03901 01T03902 01T040 01T04101 Description Book ENGINE CRANKCASE OIL PAN PISTON AND CRANKSHAFT MAIN BEARING CASE FLYWHEEL(DC) FLYWHEEL(SC) CYLINDER HEAD VALVE AND ROCKER ARM NOZZLE AND GLOW PLUG CYLINDER HEAD COVER INLET MANIFOLD CAMSHAFT GEAR CASE WATER PUMP WATER FLANGE FUEL CAMSHAFT INJECTION PUMP INJECTION PUMP [COMPONENT PARTS] ENGINE STOP LEVER SPEED CONTROL PLATE 1 SPEED CONTROL PLATE 2 GOVERNOR AIR CLEANER DOUBLE AIR CLEANER [OPTION] PRE-CLEANER [OPTION] EXHAUST MANIFOLD MUFFLER UNDER MUFFLER [OPTION] STOP ROD EXCEPT [GR] ACCELERATOR LEVER ACCELERATOR LINKAGE FUEL TANK FUEL FILTER FUEL FILTER [COMPONENT PARTS] FAN WATER PIPE RADIATOR SHUTTER DYNAMO EXCEPT [CA] DYNAMO [COMPONENT PARTS] STARTER STARTER [COMPONENT PARTS] STARTER [COMPONENT PARTS] BATTERY SWITCH AND REGULATOR EXCEPT [FR][GR][PO] PANEL [WITH EASY CHECKER] EXCEPT [FR][GR][PO][AU] PANEL [WITHOUT EASY CHECKER] [A][FR][GR][PO][AU] LIGHT EXCEPT [FR] ELECTRICAL WIRING [WITH EASY CHECKER] [A] ELECTRICAL WIRING [WITHOUT EASY CHECKER] [A][AU] CLUTCH(DC) CLUTCH(SC) 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 FUEL SYSTEM COOLING WATER SYSTEM ELECTRICAL SYSTEM 01T04201 100K0339 01T04202 100K0339 01T04301 01T04601 100K0339 100K0339 01T04602 100K0339 CLUTCH 01T04701 01T04702 100K0339 100K0339 Ref. L2550DT Page 12021

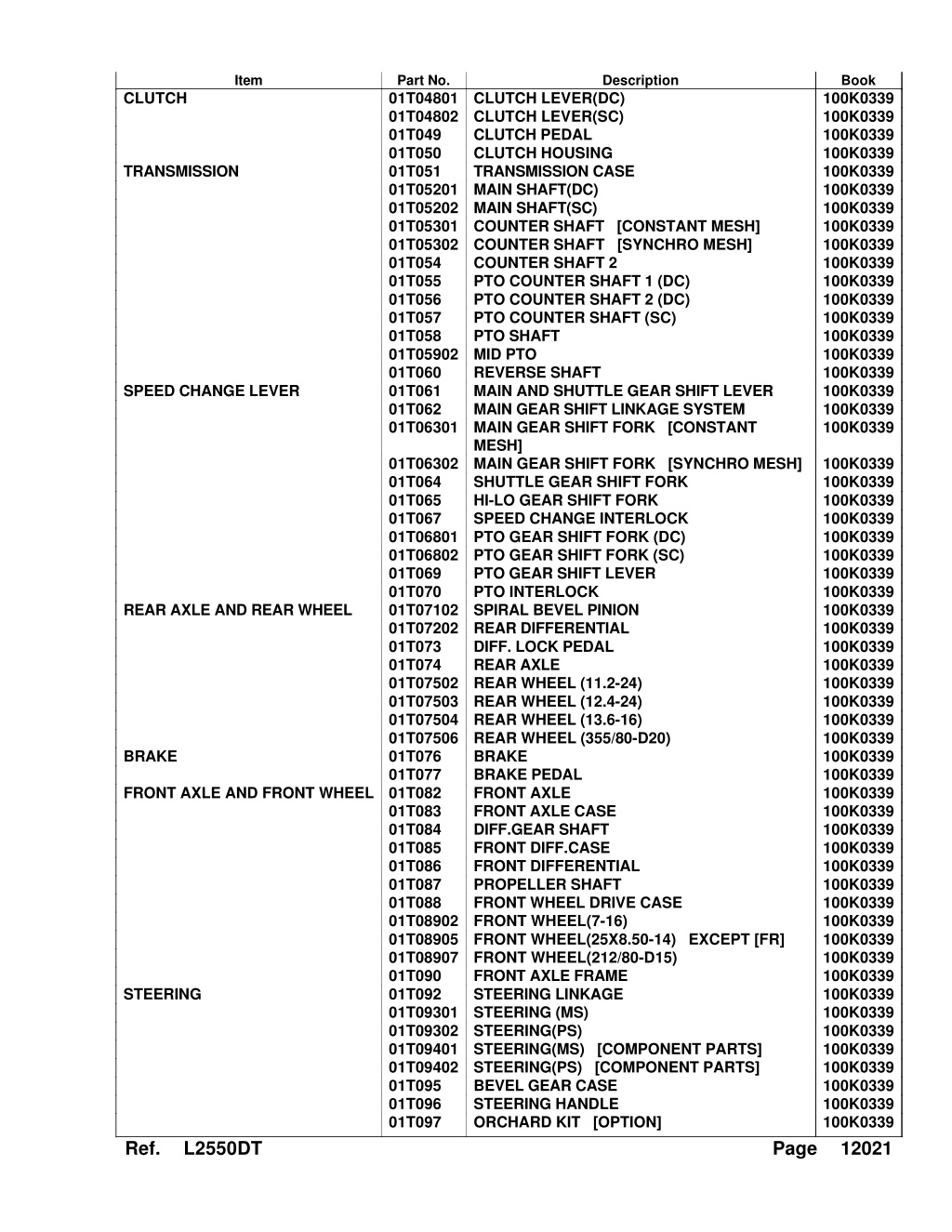

  3. Item Part No. 01T04801 01T04802 01T049 01T050 01T051 01T05201 01T05202 01T05301 01T05302 01T054 01T055 01T056 01T057 01T058 01T05902 01T060 01T061 01T062 01T06301 Description Book CLUTCH CLUTCH LEVER(DC) CLUTCH LEVER(SC) CLUTCH PEDAL CLUTCH HOUSING TRANSMISSION CASE MAIN SHAFT(DC) MAIN SHAFT(SC) COUNTER SHAFT [CONSTANT MESH] COUNTER SHAFT [SYNCHRO MESH] COUNTER SHAFT 2 PTO COUNTER SHAFT 1 (DC) PTO COUNTER SHAFT 2 (DC) PTO COUNTER SHAFT (SC) PTO SHAFT MID PTO REVERSE SHAFT MAIN AND SHUTTLE GEAR SHIFT LEVER MAIN GEAR SHIFT LINKAGE SYSTEM MAIN GEAR SHIFT FORK [CONSTANT MESH] MAIN GEAR SHIFT FORK [SYNCHRO MESH] SHUTTLE GEAR SHIFT FORK HI-LO GEAR SHIFT FORK SPEED CHANGE INTERLOCK PTO GEAR SHIFT FORK (DC) PTO GEAR SHIFT FORK (SC) PTO GEAR SHIFT LEVER PTO INTERLOCK SPIRAL BEVEL PINION REAR DIFFERENTIAL DIFF. LOCK PEDAL REAR AXLE REAR WHEEL (11.2-24) REAR WHEEL (12.4-24) REAR WHEEL (13.6-16) REAR WHEEL (355/80-D20) BRAKE BRAKE PEDAL FRONT AXLE FRONT AXLE CASE DIFF.GEAR SHAFT FRONT DIFF.CASE FRONT DIFFERENTIAL PROPELLER SHAFT FRONT WHEEL DRIVE CASE FRONT WHEEL(7-16) FRONT WHEEL(25X8.50-14) EXCEPT [FR] FRONT WHEEL(212/80-D15) FRONT AXLE FRAME STEERING LINKAGE STEERING (MS) STEERING(PS) STEERING(MS) [COMPONENT PARTS] STEERING(PS) [COMPONENT PARTS] BEVEL GEAR CASE STEERING HANDLE ORCHARD KIT [OPTION] 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 TRANSMISSION SPEED CHANGE LEVER 01T06302 01T064 01T065 01T067 01T06801 01T06802 01T069 01T070 01T07102 01T07202 01T073 01T074 01T07502 01T07503 01T07504 01T07506 01T076 01T077 01T082 01T083 01T084 01T085 01T086 01T087 01T088 01T08902 01T08905 01T08907 01T090 01T092 01T09301 01T09302 01T09401 01T09402 01T095 01T096 01T097 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 REAR AXLE AND REAR WHEEL BRAKE FRONT AXLE AND FRONT WHEEL STEERING Ref. L2550DT Page 12021

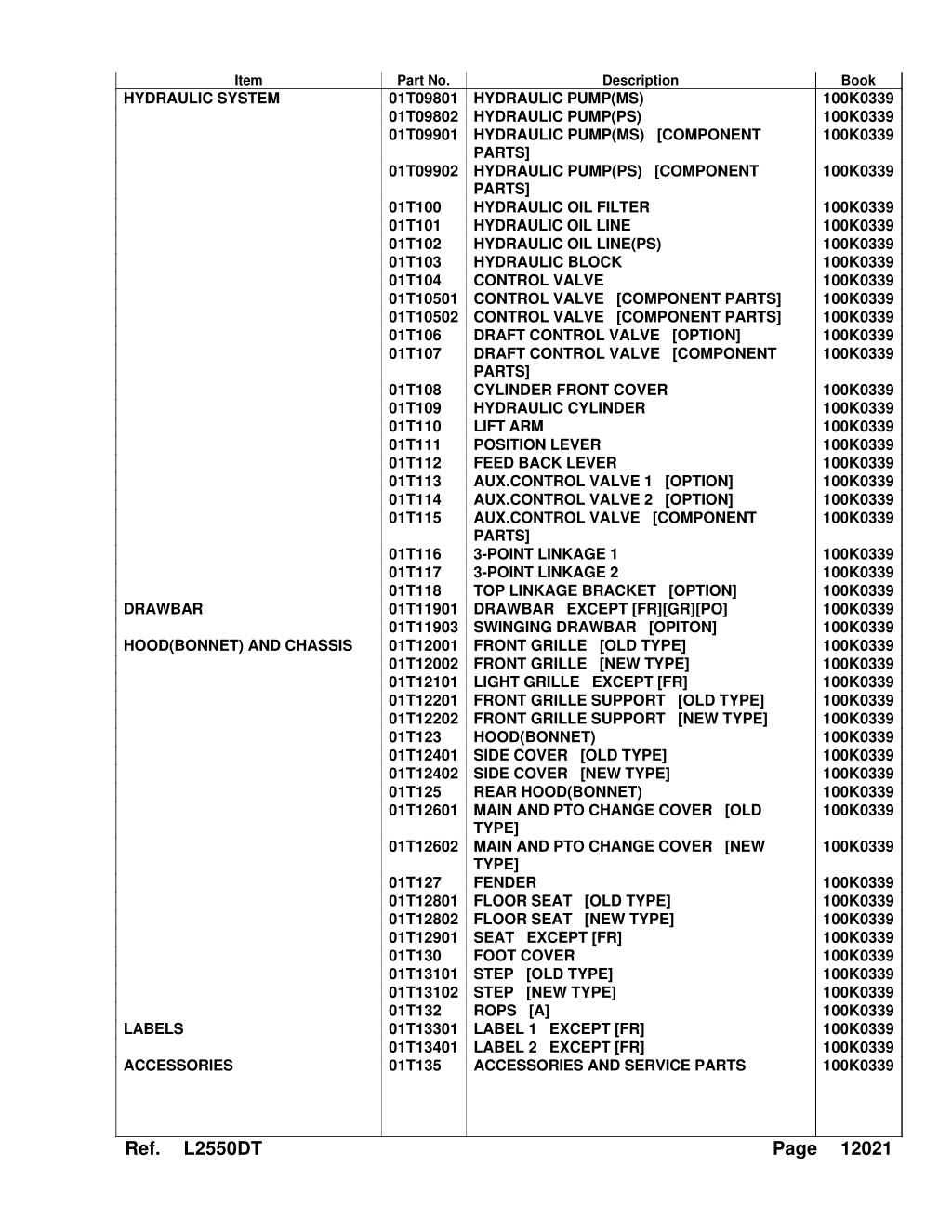

  4. Item Part No. 01T09801 01T09802 01T09901 Description Book HYDRAULIC SYSTEM HYDRAULIC PUMP(MS) HYDRAULIC PUMP(PS) HYDRAULIC PUMP(MS) [COMPONENT PARTS] HYDRAULIC PUMP(PS) [COMPONENT PARTS] HYDRAULIC OIL FILTER HYDRAULIC OIL LINE HYDRAULIC OIL LINE(PS) HYDRAULIC BLOCK CONTROL VALVE CONTROL VALVE [COMPONENT PARTS] CONTROL VALVE [COMPONENT PARTS] DRAFT CONTROL VALVE [OPTION] DRAFT CONTROL VALVE [COMPONENT PARTS] CYLINDER FRONT COVER HYDRAULIC CYLINDER LIFT ARM POSITION LEVER FEED BACK LEVER AUX.CONTROL VALVE 1 [OPTION] AUX.CONTROL VALVE 2 [OPTION] AUX.CONTROL VALVE [COMPONENT PARTS] 3-POINT LINKAGE 1 3-POINT LINKAGE 2 TOP LINKAGE BRACKET [OPTION] DRAWBAR EXCEPT [FR][GR][PO] SWINGING DRAWBAR [OPITON] FRONT GRILLE [OLD TYPE] FRONT GRILLE [NEW TYPE] LIGHT GRILLE EXCEPT [FR] FRONT GRILLE SUPPORT [OLD TYPE] FRONT GRILLE SUPPORT [NEW TYPE] HOOD(BONNET) SIDE COVER [OLD TYPE] SIDE COVER [NEW TYPE] REAR HOOD(BONNET) MAIN AND PTO CHANGE COVER [OLD TYPE] MAIN AND PTO CHANGE COVER [NEW TYPE] FENDER FLOOR SEAT [OLD TYPE] FLOOR SEAT [NEW TYPE] SEAT EXCEPT [FR] FOOT COVER STEP [OLD TYPE] STEP [NEW TYPE] ROPS [A] LABEL 1 EXCEPT [FR] LABEL 2 EXCEPT [FR] ACCESSORIES AND SERVICE PARTS 100K0339 100K0339 100K0339 01T09902 100K0339 01T100 01T101 01T102 01T103 01T104 01T10501 01T10502 01T106 01T107 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 01T108 01T109 01T110 01T111 01T112 01T113 01T114 01T115 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 01T116 01T117 01T118 01T11901 01T11903 01T12001 01T12002 01T12101 01T12201 01T12202 01T123 01T12401 01T12402 01T125 01T12601 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 DRAWBAR HOOD(BONNET) AND CHASSIS 01T12602 100K0339 01T127 01T12801 01T12802 01T12901 01T130 01T13101 01T13102 01T132 01T13301 01T13401 01T135 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 100K0339 LABELS ACCESSORIES Ref. L2550DT Page 12021

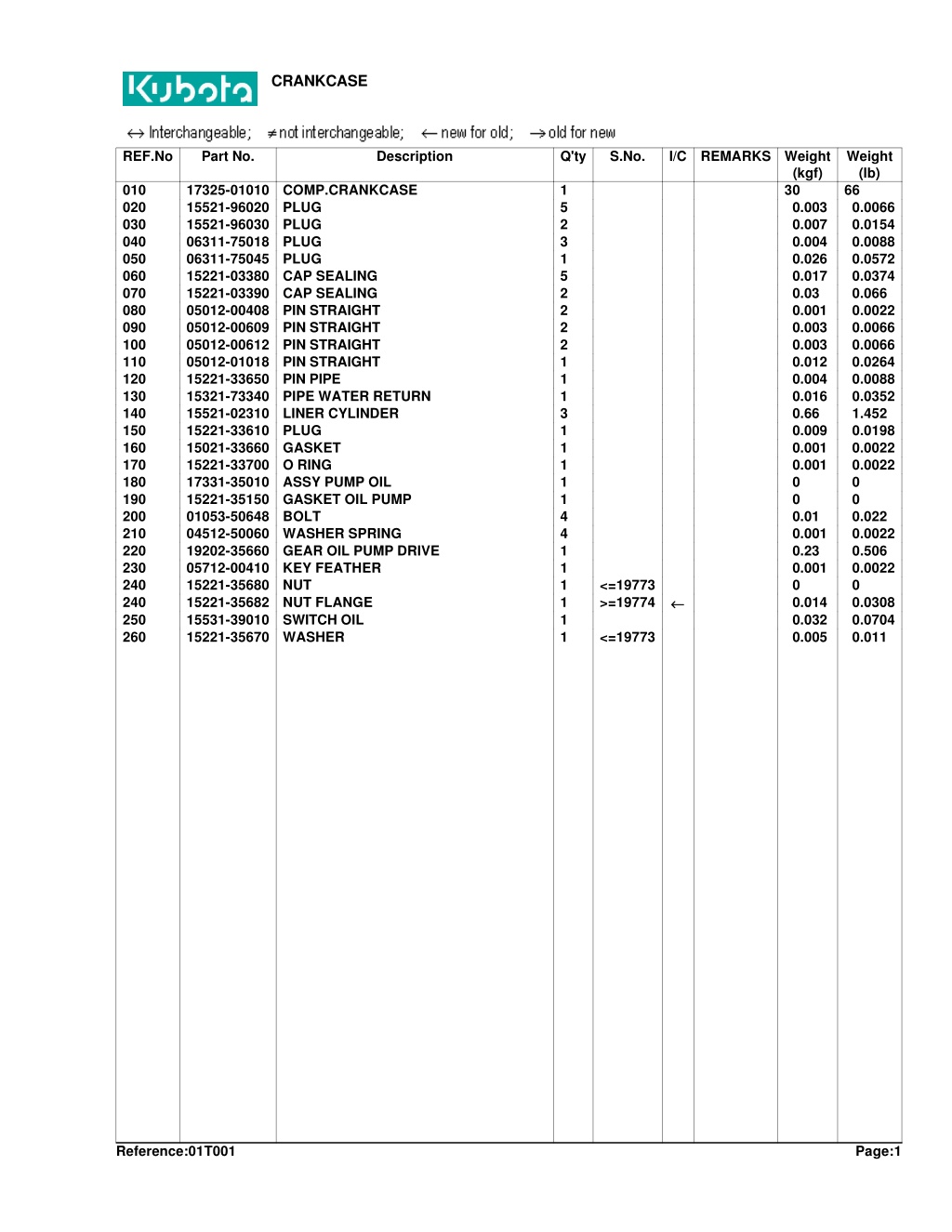

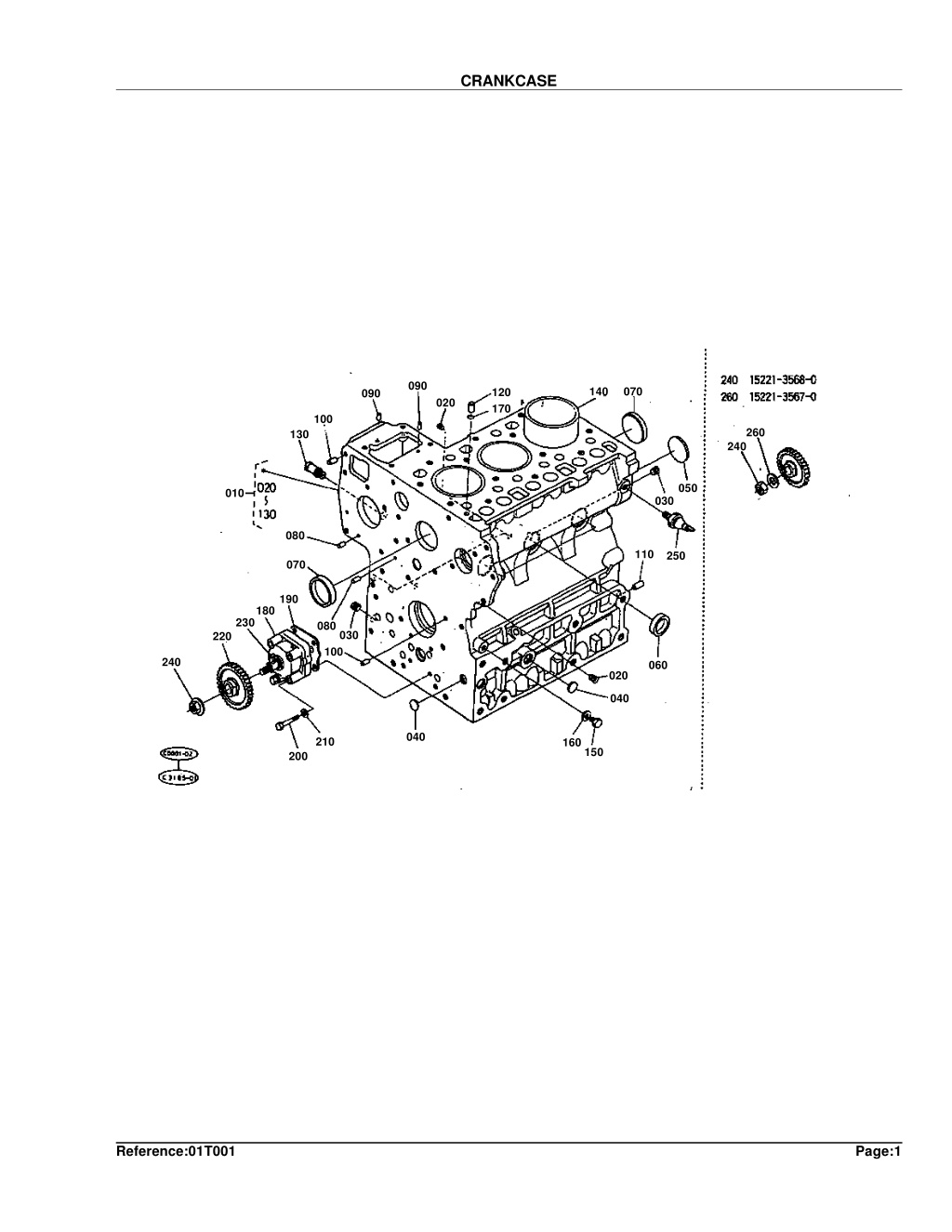

  5. CRANKCASE 090 140 070 120 170 090 020 100 260 130 240 050 010 030 080 110 250 070 190 180 230 080 030 220 100 240 060 020 040 040 210 160 150 200 Reference:01T001 Page:1

  6. CRANKCASE REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) 30 0.003 0.007 0.004 0.026 0.017 0.03 0.001 0.003 0.003 0.012 0.004 0.016 0.66 0.009 0.001 0.001 0 0 0.01 0.001 0.23 0.001 0 0.014 0.032 0.005 Weight (lb) 66 0.0066 0.0154 0.0088 0.0572 0.0374 0.066 0.0022 0.0066 0.0066 0.0264 0.0088 0.0352 1.452 0.0198 0.0022 0.0022 0 0 0.022 0.0022 0.506 0.0022 0 0.0308 0.0704 0.011 010 020 030 040 050 060 070 080 090 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 240 250 260 17325-01010 15521-96020 15521-96030 06311-75018 06311-75045 15221-03380 15221-03390 05012-00408 05012-00609 05012-00612 05012-01018 15221-33650 15321-73340 15521-02310 15221-33610 15021-33660 15221-33700 17331-35010 15221-35150 01053-50648 04512-50060 19202-35660 05712-00410 15221-35680 15221-35682 15531-39010 15221-35670 COMP.CRANKCASE PLUG PLUG PLUG PLUG CAP SEALING CAP SEALING PIN STRAIGHT PIN STRAIGHT PIN STRAIGHT PIN STRAIGHT PIN PIPE PIPE WATER RETURN LINER CYLINDER PLUG GASKET O RING ASSY PUMP OIL GASKET OIL PUMP BOLT WASHER SPRING GEAR OIL PUMP DRIVE KEY FEATHER NUT NUT FLANGE SWITCH OIL WASHER 1 5 2 3 1 5 2 2 2 2 1 1 1 3 1 1 1 1 1 4 4 1 1 1 1 1 1 <=19773 >=19774 ← ← <=19773 Reference:01T001 Page:1

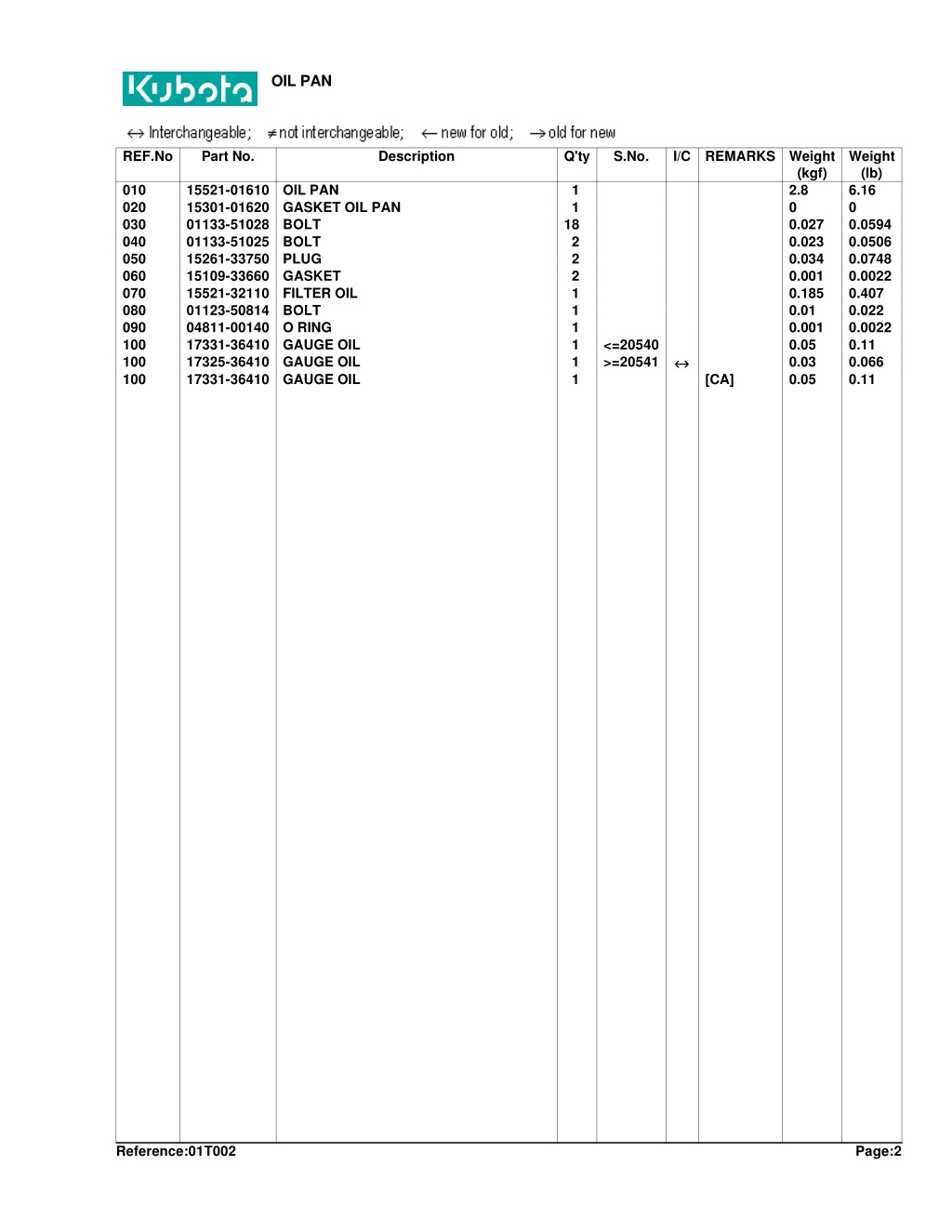

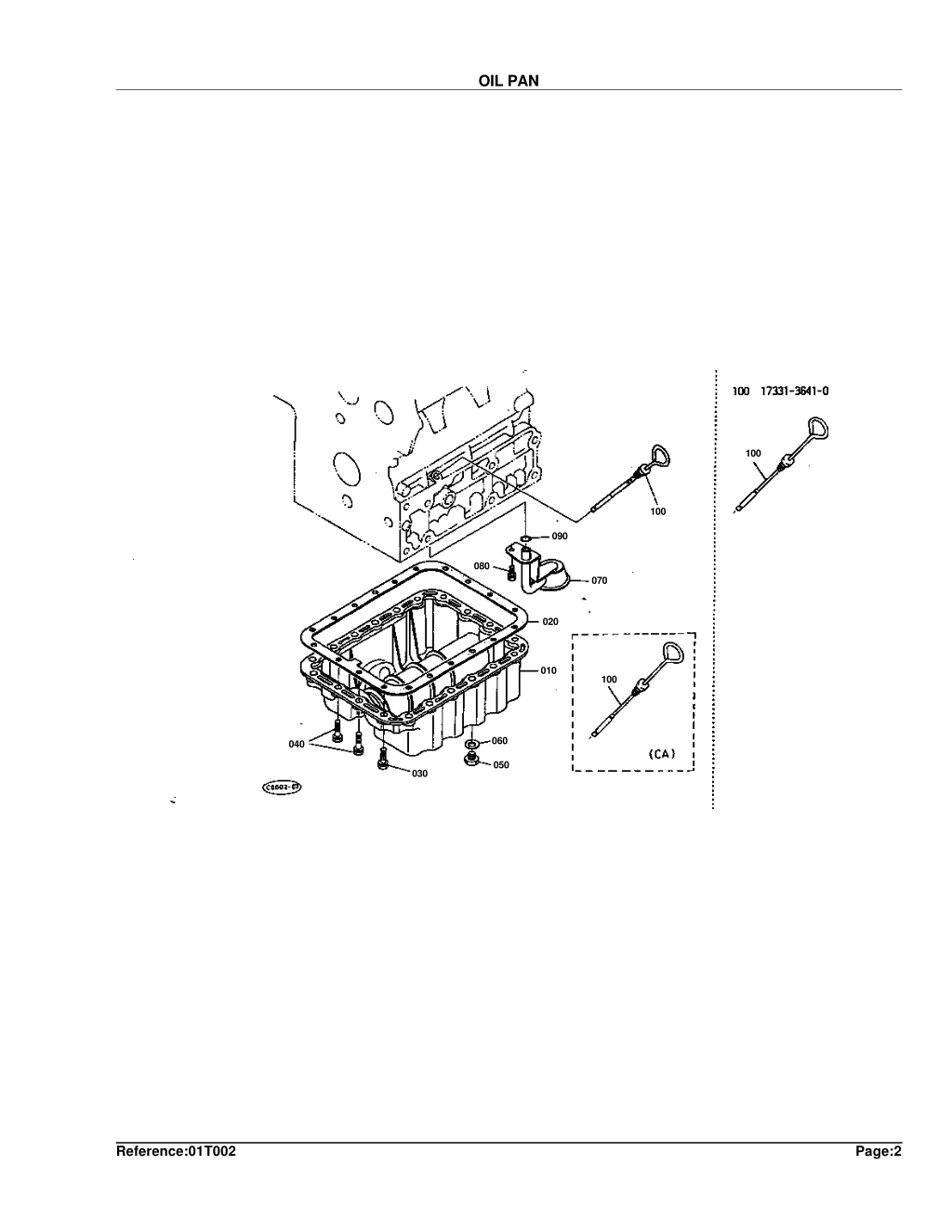

  7. OIL PAN 100 100 090 080 070 020 010 100 060 040 050 030 Reference:01T002 Page:2

  8. OIL PAN REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) 2.8 0 0.027 0.023 0.034 0.001 0.185 0.01 0.001 0.05 0.03 0.05 Weight (lb) 6.16 0 0.0594 0.0506 0.0748 0.0022 0.407 0.022 0.0022 0.11 0.066 0.11 010 020 030 040 050 060 070 080 090 100 100 100 15521-01610 15301-01620 01133-51028 01133-51025 15261-33750 15109-33660 15521-32110 01123-50814 04811-00140 17331-36410 17325-36410 17331-36410 OIL PAN GASKET OIL PAN BOLT BOLT PLUG GASKET FILTER OIL BOLT O RING GAUGE OIL GAUGE OIL GAUGE OIL 1 1 18 2 2 2 1 1 1 1 1 1 <=20540 >=20541 ↔ ↔ [CA] Reference:01T002 Page:2

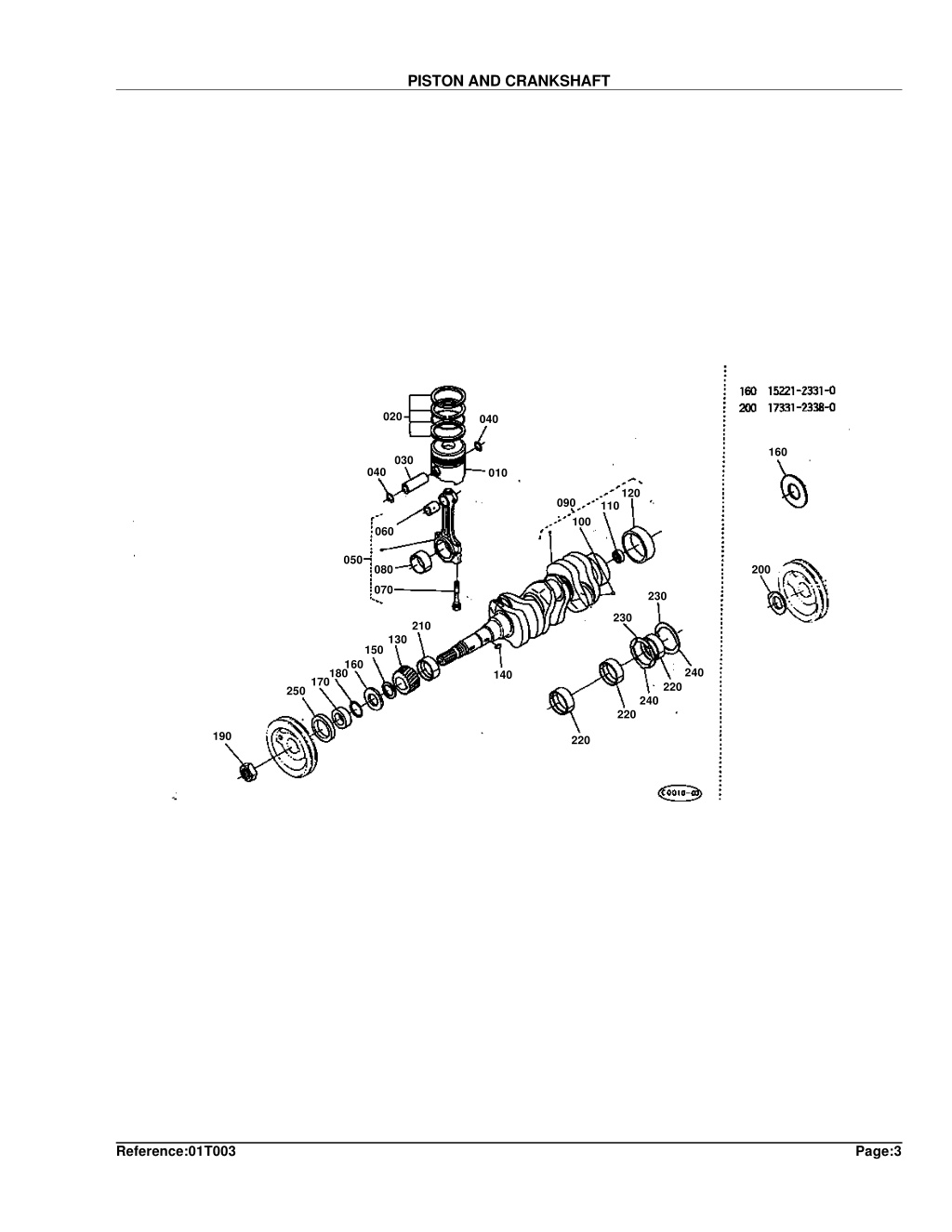

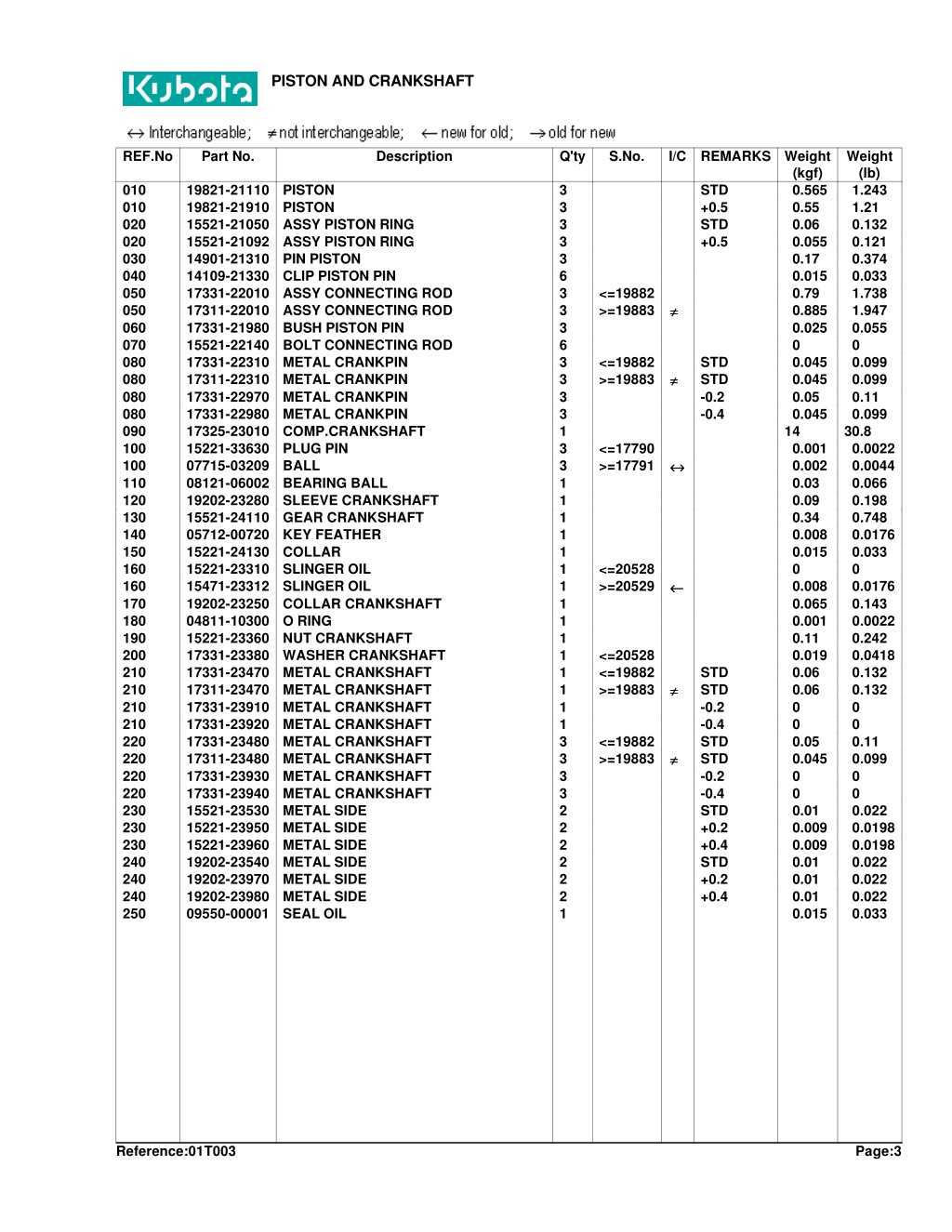

  9. PISTON AND CRANKSHAFT 020 040 160 030 040 010 120 090 110 100 060 050 080 200 070 230 230 210 130 150 160 240 170180 140 220 250 240 220 190 220 Reference:01T003 Page:3

  10. PISTON AND CRANKSHAFT REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) 0.565 0.55 0.06 0.055 0.17 0.015 0.79 0.885 0.025 0 0.045 0.045 0.05 0.045 14 0.001 0.002 0.03 0.09 0.34 0.008 0.015 0 0.008 0.065 0.001 0.11 0.019 0.06 0.06 0 0 0.05 0.045 0 0 0.01 0.009 0.009 0.01 0.01 0.01 0.015 Weight (lb) 1.243 1.21 0.132 0.121 0.374 0.033 1.738 1.947 0.055 0 0.099 0.099 0.11 0.099 30.8 0.0022 0.0044 0.066 0.198 0.748 0.0176 0.033 0 0.0176 0.143 0.0022 0.242 0.0418 0.132 0.132 0 0 0.11 0.099 0 0 0.022 0.0198 0.0198 0.022 0.022 0.022 0.033 010 010 020 020 030 040 050 050 060 070 080 080 080 080 090 100 100 110 120 130 140 150 160 160 170 180 190 200 210 210 210 210 220 220 220 220 230 230 230 240 240 240 250 19821-21110 19821-21910 15521-21050 15521-21092 14901-21310 14109-21330 17331-22010 17311-22010 17331-21980 15521-22140 17331-22310 17311-22310 17331-22970 17331-22980 17325-23010 15221-33630 07715-03209 08121-06002 19202-23280 15521-24110 05712-00720 15221-24130 15221-23310 15471-23312 19202-23250 04811-10300 15221-23360 17331-23380 17331-23470 17311-23470 17331-23910 17331-23920 17331-23480 17311-23480 17331-23930 17331-23940 15521-23530 15221-23950 15221-23960 19202-23540 19202-23970 19202-23980 09550-00001 PISTON PISTON ASSY PISTON RING ASSY PISTON RING PIN PISTON CLIP PISTON PIN ASSY CONNECTING ROD ASSY CONNECTING ROD BUSH PISTON PIN BOLT CONNECTING ROD METAL CRANKPIN METAL CRANKPIN METAL CRANKPIN METAL CRANKPIN COMP.CRANKSHAFT PLUG PIN BALL BEARING BALL SLEEVE CRANKSHAFT GEAR CRANKSHAFT KEY FEATHER COLLAR SLINGER OIL SLINGER OIL COLLAR CRANKSHAFT O RING NUT CRANKSHAFT WASHER CRANKSHAFT METAL CRANKSHAFT METAL CRANKSHAFT METAL CRANKSHAFT METAL CRANKSHAFT METAL CRANKSHAFT METAL CRANKSHAFT METAL CRANKSHAFT METAL CRANKSHAFT METAL SIDE METAL SIDE METAL SIDE METAL SIDE METAL SIDE METAL SIDE SEAL OIL 3 3 3 3 3 6 3 3 3 6 3 3 3 3 1 3 3 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 3 3 3 3 2 2 2 2 2 2 1 STD +0.5 STD +0.5 <=19882 >=19883 ≠ ≠ <=19882 >=19883 STD STD -0.2 -0.4 ≠ ≠ <=17790 >=17791 ↔ ↔ <=20528 >=20529 ← ← <=20528 <=19882 >=19883 STD STD -0.2 -0.4 STD STD -0.2 -0.4 STD +0.2 +0.4 STD +0.2 +0.4 ≠ ≠ <=19882 >=19883 ≠ ≠ Reference:01T003 Page:3

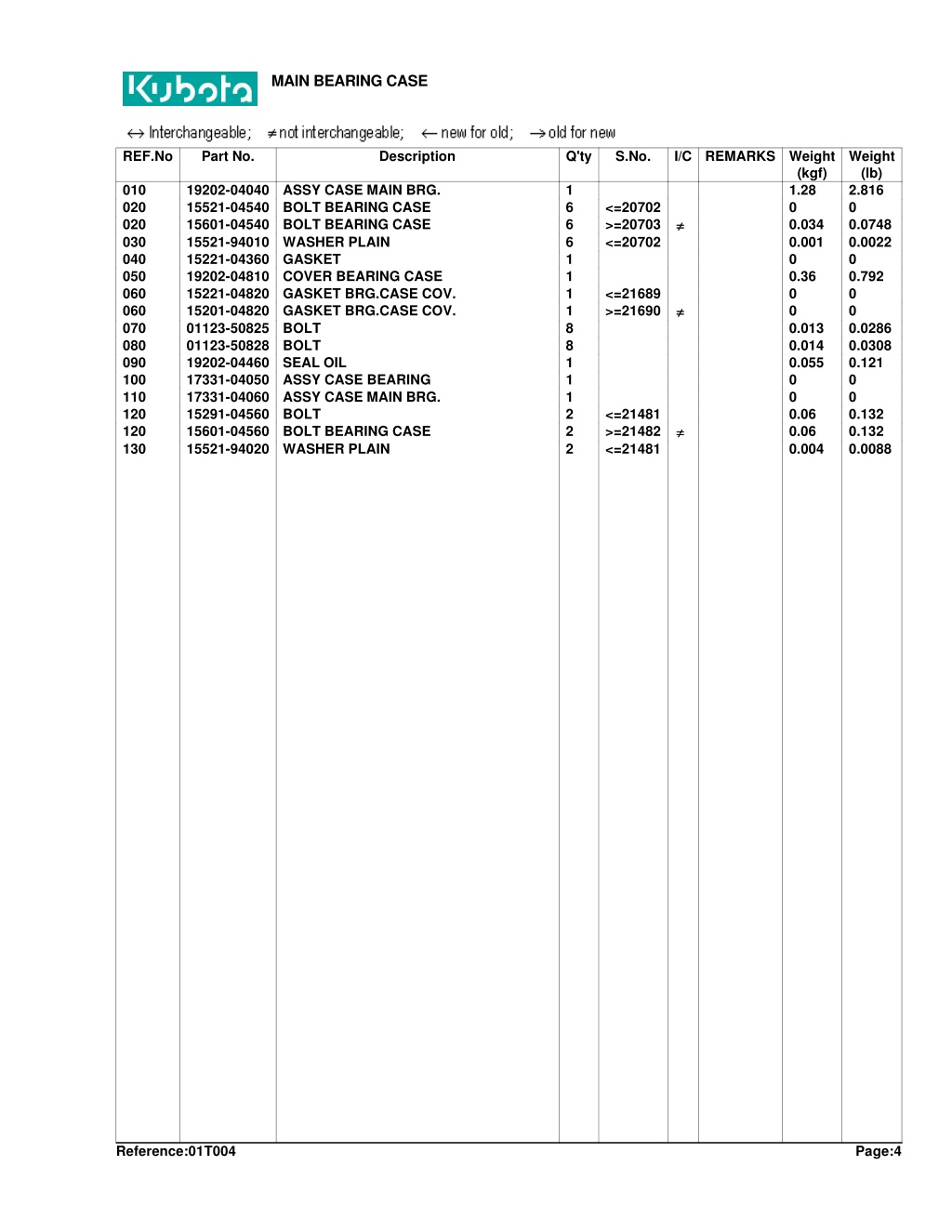

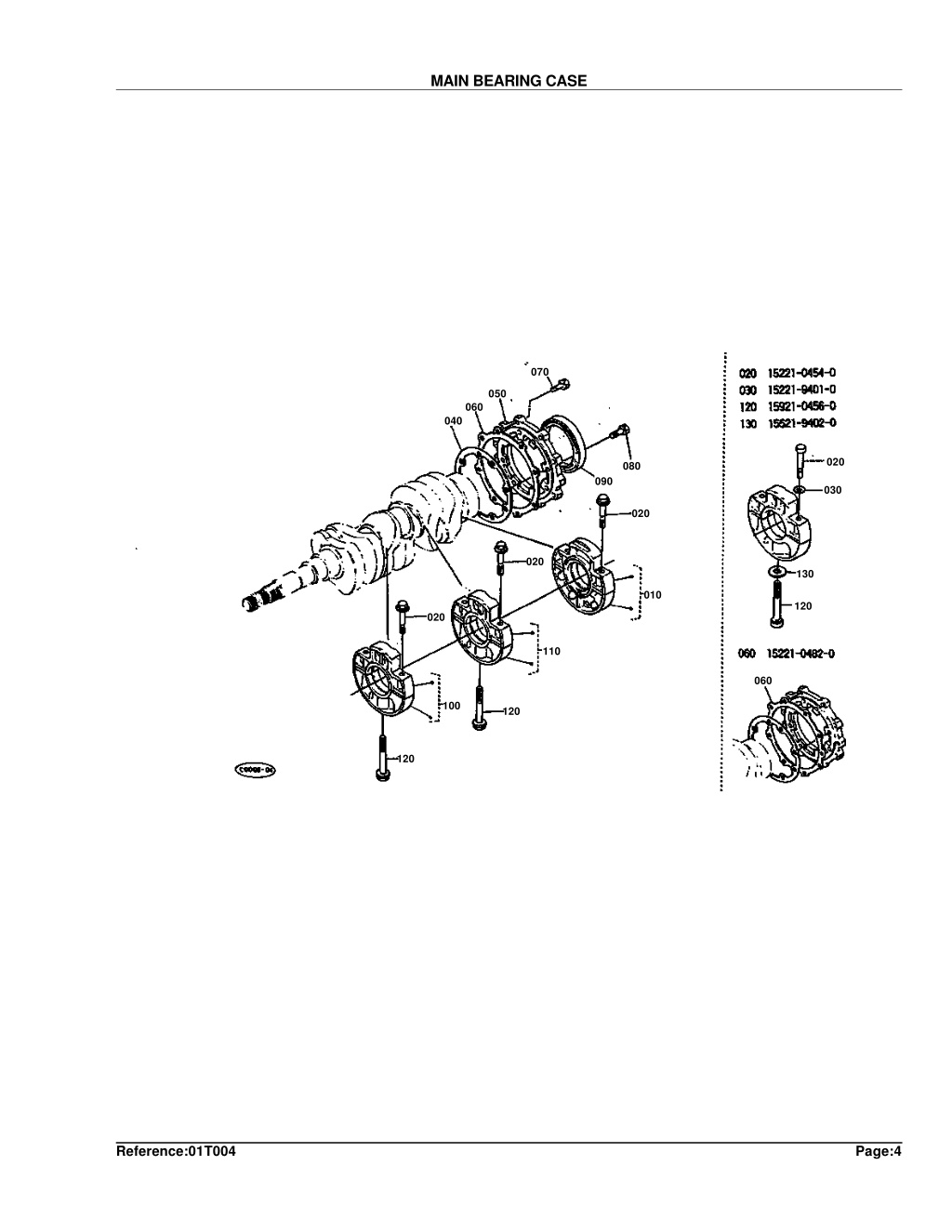

  11. MAIN BEARING CASE 070 050 060 040 020 080 090 030 020 020 130 010 120 020 110 060 100 120 120 Reference:01T004 Page:4

  12. MAIN BEARING CASE REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) 1.28 0 0.034 0.001 0 0.36 0 0 0.013 0.014 0.055 0 0 0.06 0.06 0.004 Weight (lb) 2.816 0 0.0748 0.0022 0 0.792 0 0 0.0286 0.0308 0.121 0 0 0.132 0.132 0.0088 010 020 020 030 040 050 060 060 070 080 090 100 110 120 120 130 19202-04040 15521-04540 15601-04540 15521-94010 15221-04360 19202-04810 15221-04820 15201-04820 01123-50825 01123-50828 19202-04460 17331-04050 17331-04060 15291-04560 15601-04560 15521-94020 ASSY CASE MAIN BRG. BOLT BEARING CASE BOLT BEARING CASE WASHER PLAIN GASKET COVER BEARING CASE GASKET BRG.CASE COV. GASKET BRG.CASE COV. BOLT BOLT SEAL OIL ASSY CASE BEARING ASSY CASE MAIN BRG. BOLT BOLT BEARING CASE WASHER PLAIN 1 6 6 6 1 1 1 1 8 8 1 1 1 2 2 2 <=20702 >=20703 <=20702 ≠ ≠ <=21689 >=21690 ≠ ≠ <=21481 >=21482 <=21481 ≠ ≠ Reference:01T004 Page:4

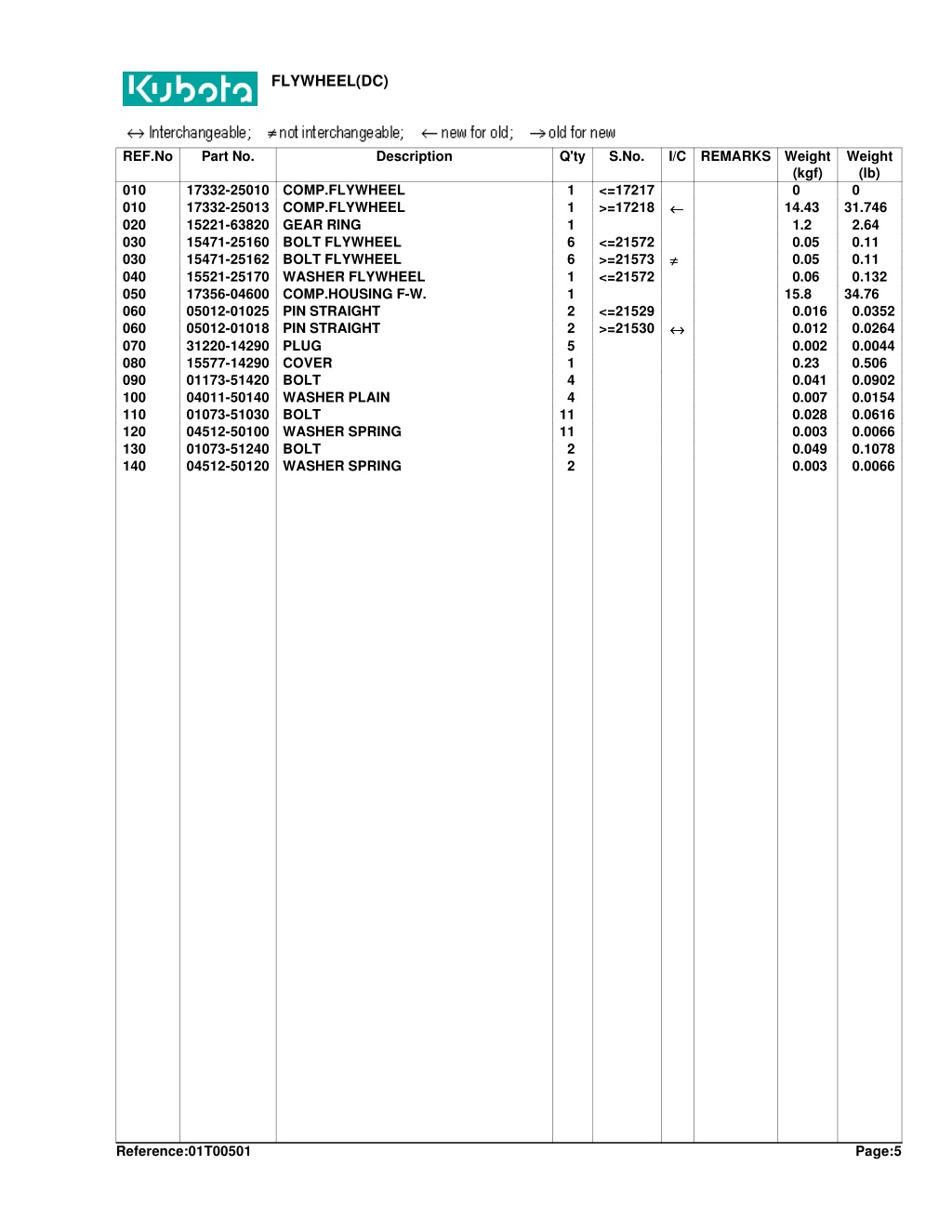

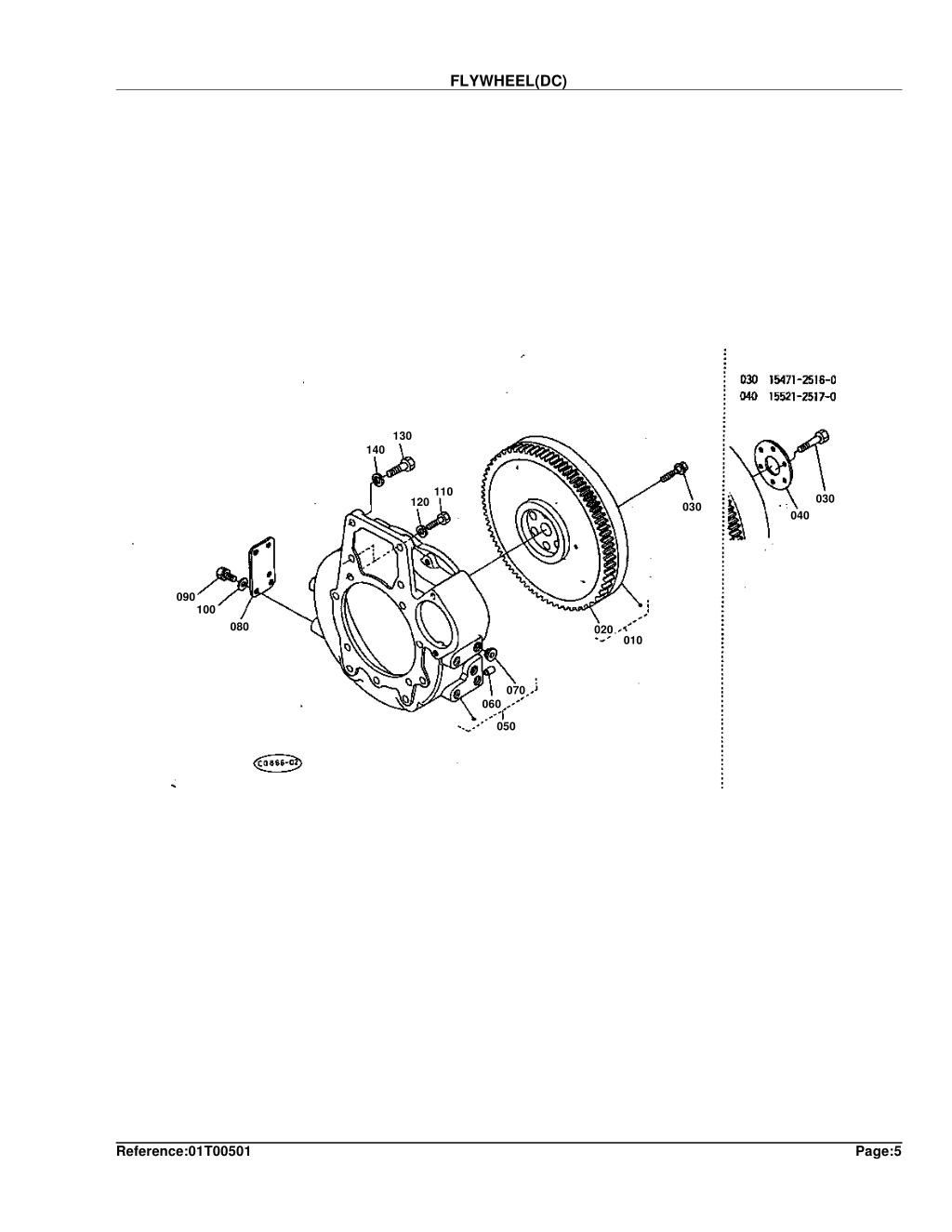

  13. FLYWHEEL(DC) 130 140 110 030 120 030 040 090 100 080 020 010 070 060 050 Reference:01T00501 Page:5

  14. FLYWHEEL(DC) REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) 0 14.43 1.2 0.05 0.05 0.06 15.8 0.016 0.012 0.002 0.23 0.041 0.007 0.028 0.003 0.049 0.003 Weight (lb) 0 31.746 2.64 0.11 0.11 0.132 34.76 0.0352 0.0264 0.0044 0.506 0.0902 0.0154 0.0616 0.0066 0.1078 0.0066 010 010 020 030 030 040 050 060 060 070 080 090 100 110 120 130 140 17332-25010 17332-25013 15221-63820 15471-25160 15471-25162 15521-25170 17356-04600 05012-01025 05012-01018 31220-14290 15577-14290 01173-51420 04011-50140 01073-51030 04512-50100 01073-51240 04512-50120 COMP.FLYWHEEL COMP.FLYWHEEL GEAR RING BOLT FLYWHEEL BOLT FLYWHEEL WASHER FLYWHEEL COMP.HOUSING F-W. PIN STRAIGHT PIN STRAIGHT PLUG COVER BOLT WASHER PLAIN BOLT WASHER SPRING BOLT WASHER SPRING 1 1 1 6 6 1 1 2 2 5 1 4 4 <=17217 >=17218 ← ← <=21572 >=21573 <=21572 ≠ ≠ <=21529 >=21530 ↔ ↔ 11 11 2 2 Reference:01T00501 Page:5

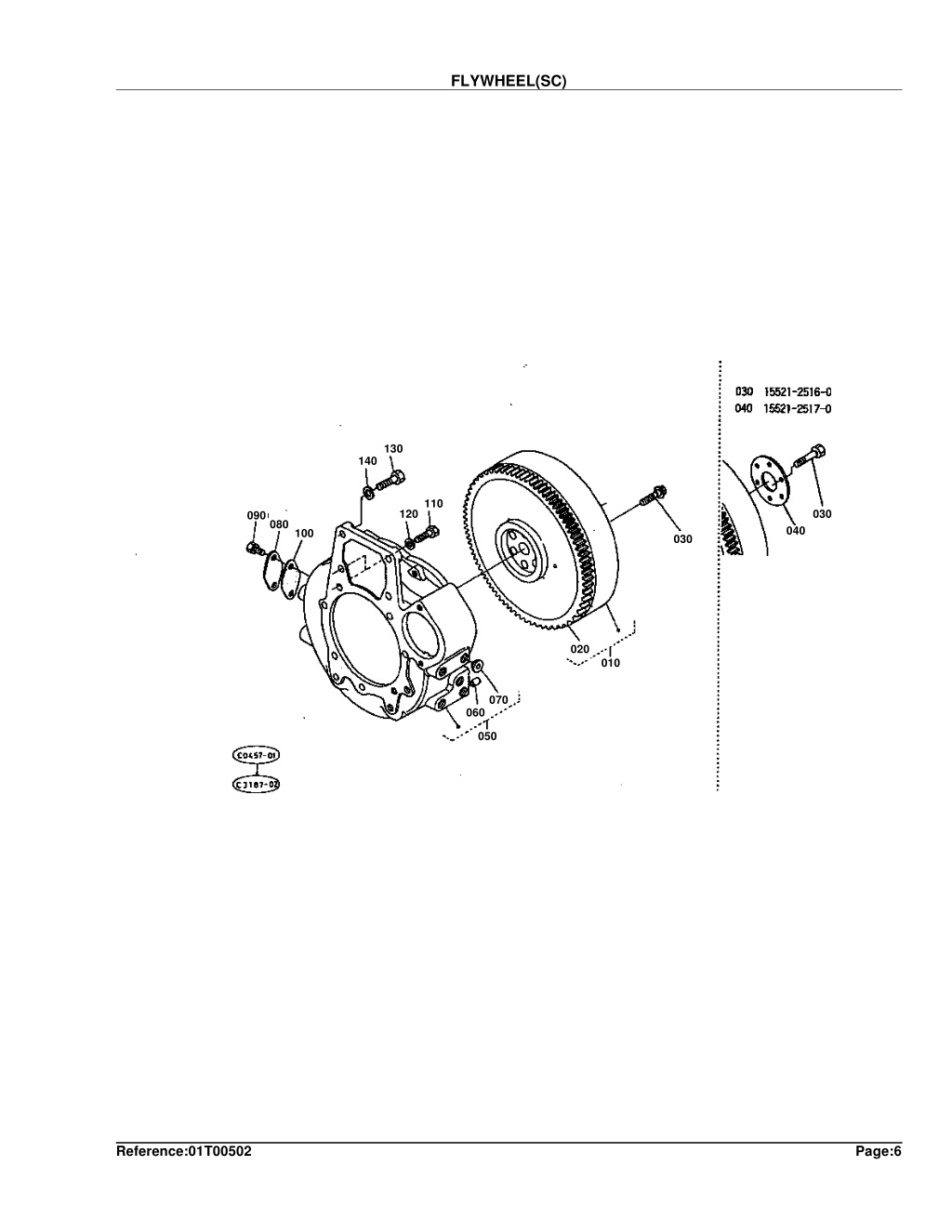

  15. FLYWHEEL(SC) 130 140 110 120 030 090 080 040 100 030 020 010 070 060 050 Reference:01T00502 Page:6

  16. FLYWHEEL(SC) REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) 0 27 1.2 0.06 0.05 0.06 16 0.016 0.012 0.002 0.035 0.011 0.005 0.028 0.003 0.049 0.003 Weight (lb) 0 59.4 2.64 0.132 0.11 0.132 35.2 0.0352 0.0264 0.0044 0.077 0.0242 0.011 0.0616 0.0066 0.1078 0.0066 010 010 020 030 030 040 050 060 060 070 080 090 100 110 120 130 140 17331-25010 17331-25013 15221-63820 15521-25160 15521-25162 15521-25170 17355-04600 05012-01025 05012-01018 31220-14290 15521-04680 01123-50816 15521-04790 01073-51030 04512-50100 01073-51240 04512-50120 COMP.FLYWHEEL COMP.FLYWHEEL GEAR RING BOLT FLYWHEEL BOLT FLYWHEEL WASHER FLYWHEEL COMP.HOUSING F-W. PIN STRAIGHT PIN STRAIGHT PLUG COVER BOLT PACKING COVER BOLT WASHER SPRING BOLT WASHER SPRING 1 1 1 6 6 1 1 2 2 <=17217 >=17218 ← ← <=21574 >=21575 <=21574 ≠ ≠ <=21529 >=21530 ↔ ↔ 10 1 2 1 11 11 2 2 Reference:01T00502 Page:6

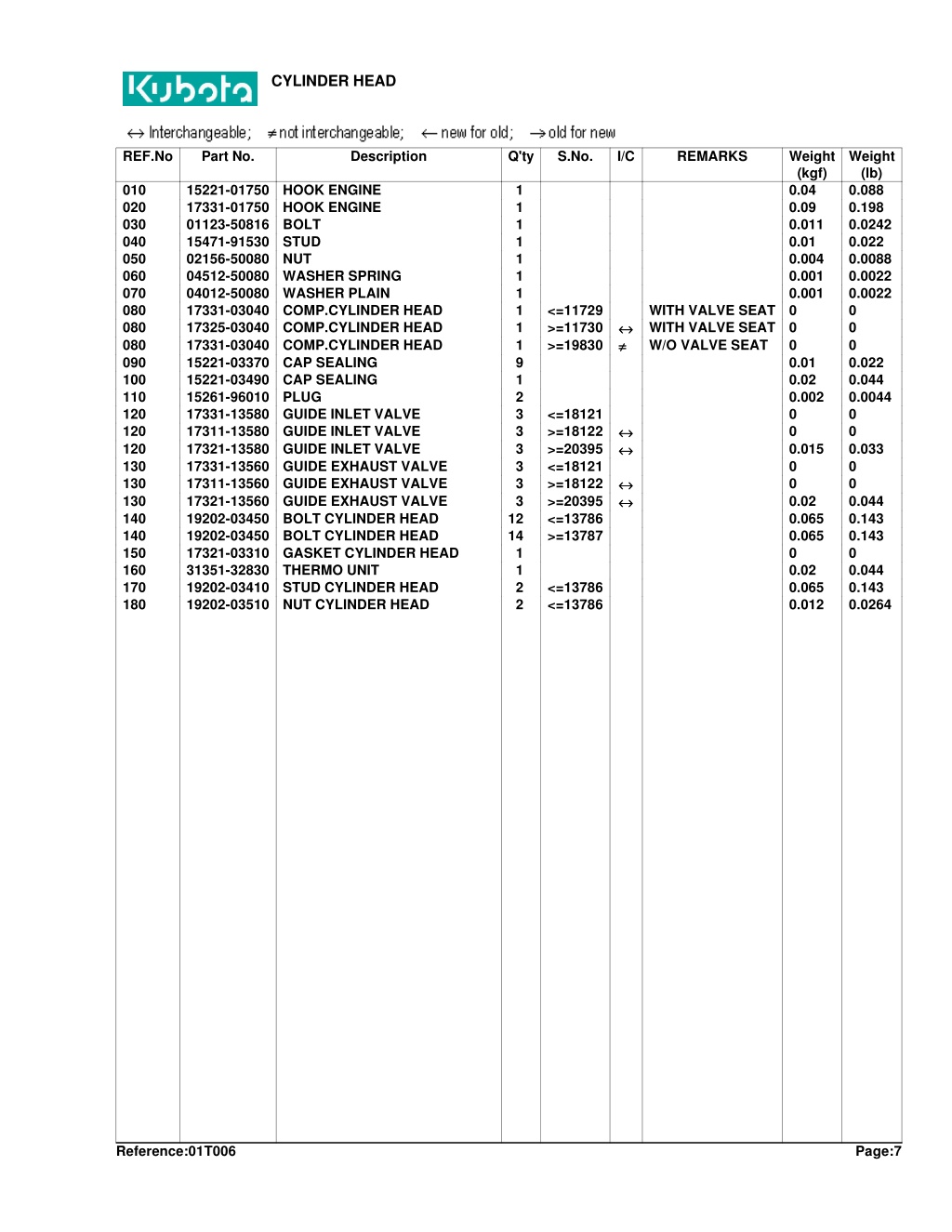

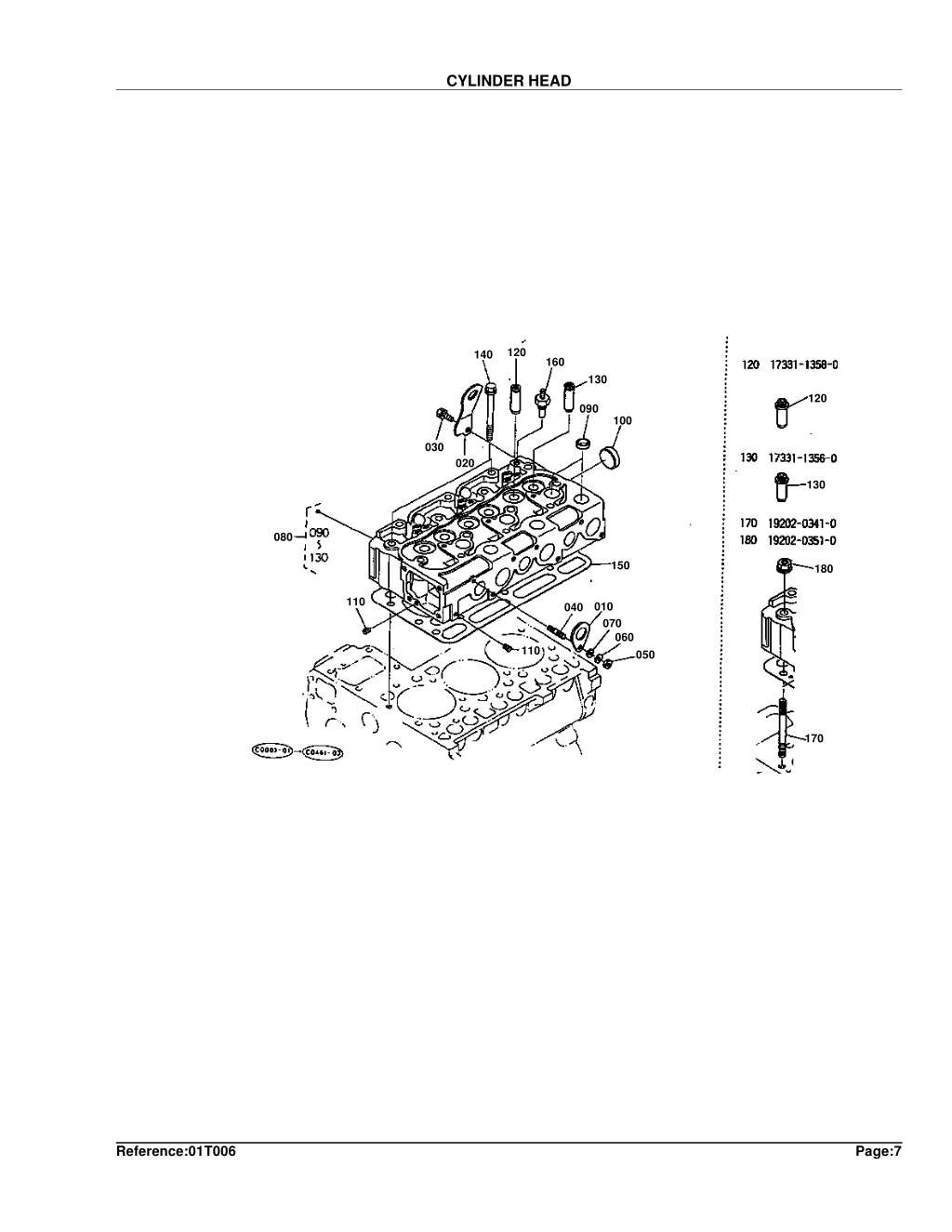

  17. CYLINDER HEAD 120 140 160 130 120 090 100 030 020 130 080 150 180 110 010 070 040 060 110 050 170 Reference:01T006 Page:7

  18. CYLINDER HEAD REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) 0.04 0.09 0.011 0.01 0.004 0.001 0.001 0 0 0 0.01 0.02 0.002 0 0 0.015 0 0 0.02 0.065 0.065 0 0.02 0.065 0.012 Weight (lb) 0.088 0.198 0.0242 0.022 0.0088 0.0022 0.0022 0 0 0 0.022 0.044 0.0044 0 0 0.033 0 0 0.044 0.143 0.143 0 0.044 0.143 0.0264 010 020 030 040 050 060 070 080 080 080 090 100 110 120 120 120 130 130 130 140 140 150 160 170 180 15221-01750 17331-01750 01123-50816 15471-91530 02156-50080 04512-50080 04012-50080 17331-03040 17325-03040 17331-03040 15221-03370 15221-03490 15261-96010 17331-13580 17311-13580 17321-13580 17331-13560 17311-13560 17321-13560 19202-03450 19202-03450 17321-03310 31351-32830 19202-03410 19202-03510 HOOK ENGINE HOOK ENGINE BOLT STUD NUT WASHER SPRING WASHER PLAIN COMP.CYLINDER HEAD COMP.CYLINDER HEAD COMP.CYLINDER HEAD CAP SEALING CAP SEALING PLUG GUIDE INLET VALVE GUIDE INLET VALVE GUIDE INLET VALVE GUIDE EXHAUST VALVE GUIDE EXHAUST VALVE GUIDE EXHAUST VALVE BOLT CYLINDER HEAD BOLT CYLINDER HEAD GASKET CYLINDER HEAD THERMO UNIT STUD CYLINDER HEAD NUT CYLINDER HEAD 1 1 1 1 1 1 1 1 1 1 9 1 2 3 3 3 3 3 3 <=11729 >=11730 >=19830 WITH VALVE SEAT WITH VALVE SEAT W/O VALVE SEAT ↔ ↔ ≠ ≠ <=18121 >=18122 >=20395 <=18121 >=18122 >=20395 <=13786 >=13787 ↔ ↔ ↔ ↔ ↔ ↔ ↔ ↔ 12 14 1 1 2 2 <=13786 <=13786 Reference:01T006 Page:7

  19. Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL. NO WAITING NOTE: If there is no response to click on the link above, please download the PDF document first and then click on it.

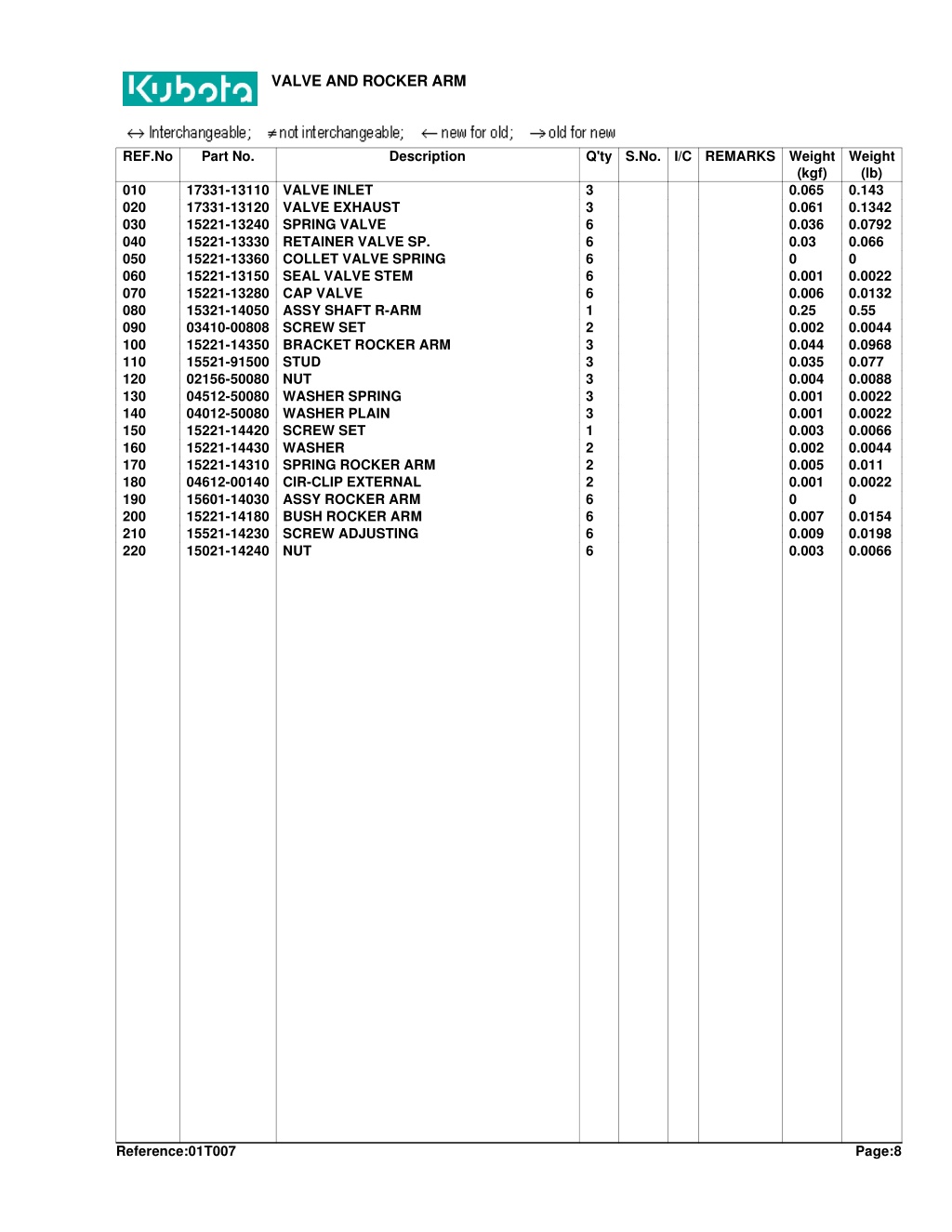

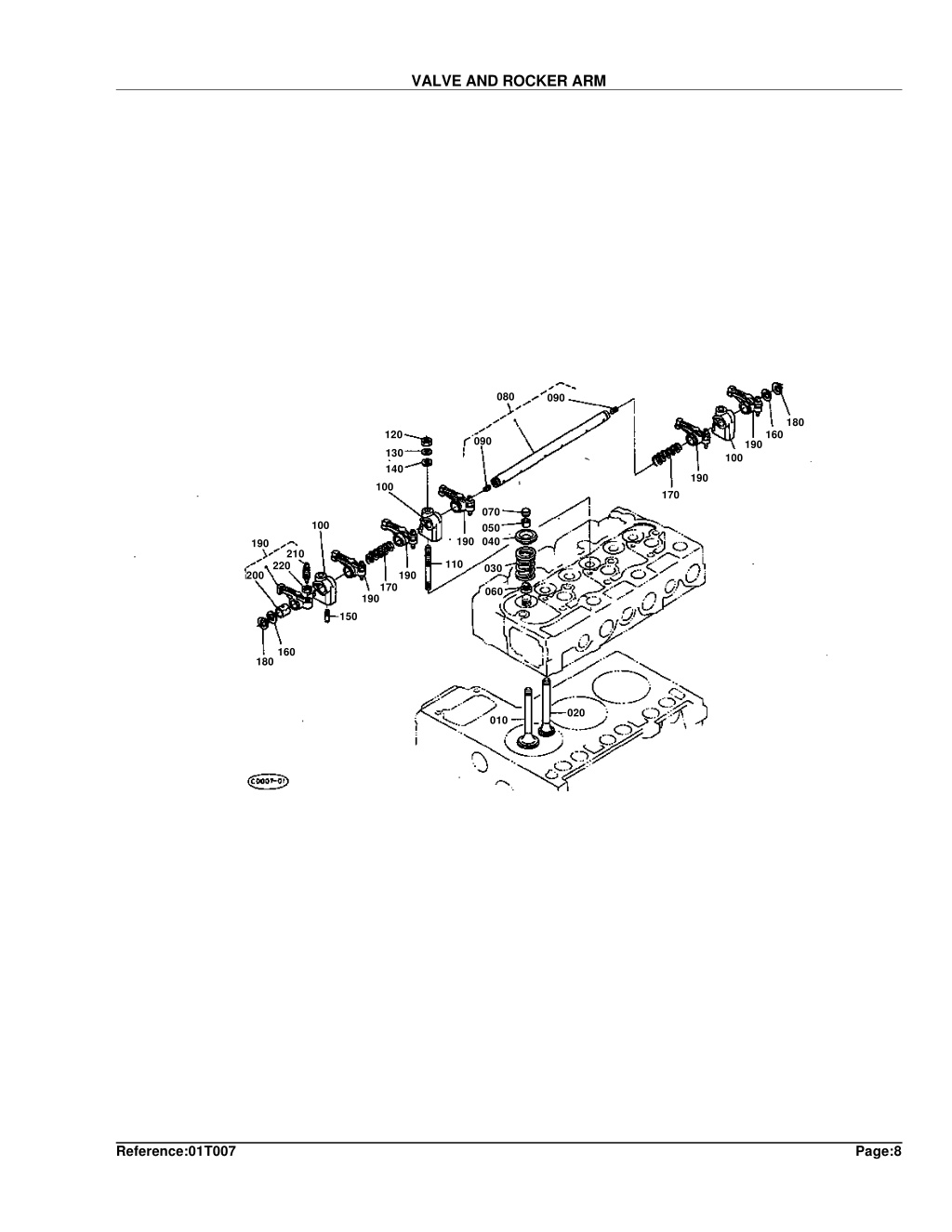

  20. VALVE AND ROCKER ARM 080 090 180 120 160 090 190 130 140 100 190 100 170 070 100 050 190 040 190 210 110 220 030 200 190 170 060 190 150 160 180 020 010 Reference:01T007 Page:8

  21. VALVE AND ROCKER ARM REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) 0.065 0.061 0.036 0.03 0 0.001 0.006 0.25 0.002 0.044 0.035 0.004 0.001 0.001 0.003 0.002 0.005 0.001 0 0.007 0.009 0.003 Weight (lb) 0.143 0.1342 0.0792 0.066 0 0.0022 0.0132 0.55 0.0044 0.0968 0.077 0.0088 0.0022 0.0022 0.0066 0.0044 0.011 0.0022 0 0.0154 0.0198 0.0066 010 020 030 040 050 060 070 080 090 100 110 120 130 140 150 160 170 180 190 200 210 220 17331-13110 17331-13120 15221-13240 15221-13330 15221-13360 15221-13150 15221-13280 15321-14050 03410-00808 15221-14350 15521-91500 02156-50080 04512-50080 04012-50080 15221-14420 15221-14430 15221-14310 04612-00140 15601-14030 15221-14180 15521-14230 15021-14240 VALVE INLET VALVE EXHAUST SPRING VALVE RETAINER VALVE SP. COLLET VALVE SPRING SEAL VALVE STEM CAP VALVE ASSY SHAFT R-ARM SCREW SET BRACKET ROCKER ARM STUD NUT WASHER SPRING WASHER PLAIN SCREW SET WASHER SPRING ROCKER ARM CIR-CLIP EXTERNAL ASSY ROCKER ARM BUSH ROCKER ARM SCREW ADJUSTING NUT 3 3 6 6 6 6 6 1 2 3 3 3 3 3 1 2 2 2 6 6 6 6 Reference:01T007 Page:8

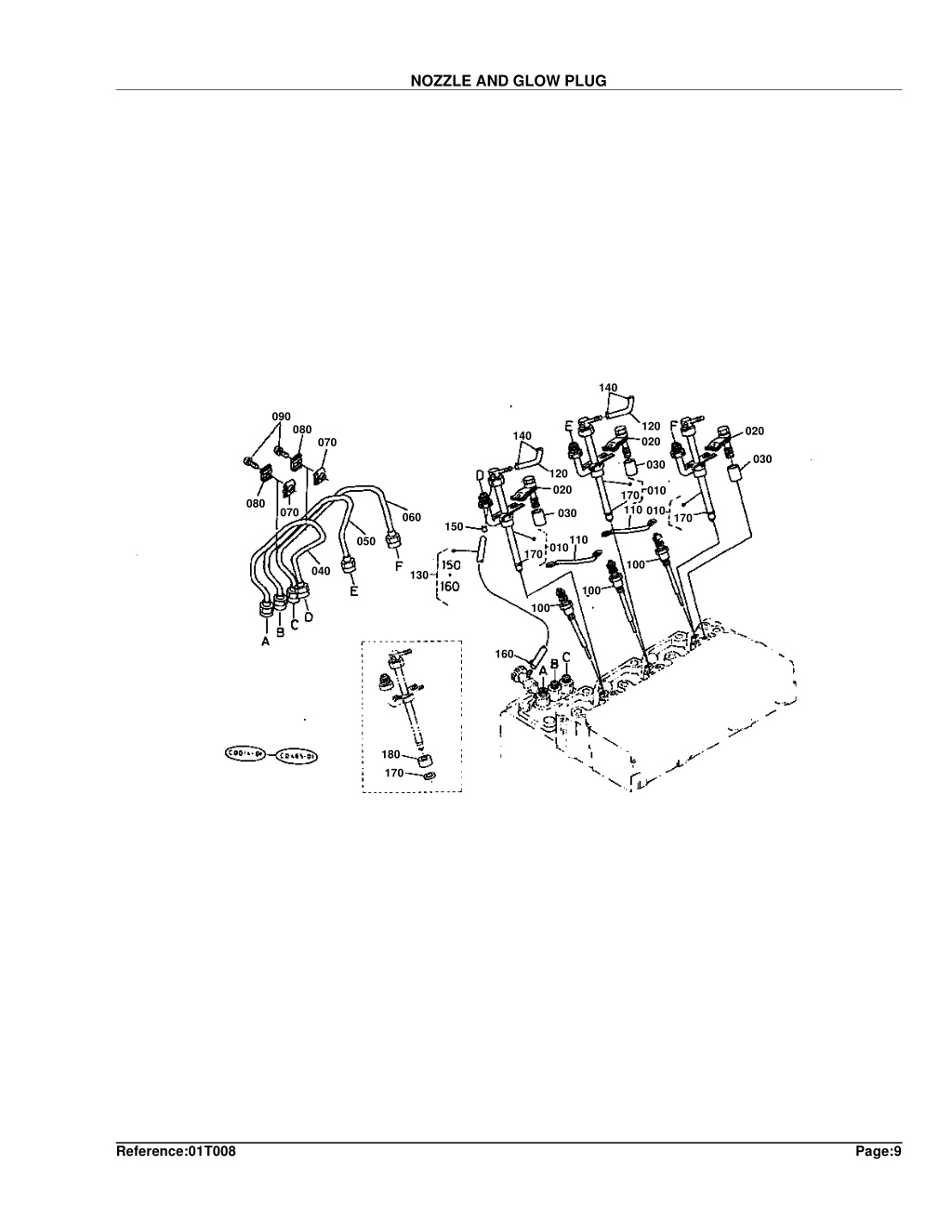

  22. NOZZLE AND GLOW PLUG 140 090 120 080 020 140 020 070 030 030 120 020 010 170 080 110 010 070 030 060 170 150 110 050 010 170 100 040 130 100 100 160 180 170 Reference:01T008 Page:9
