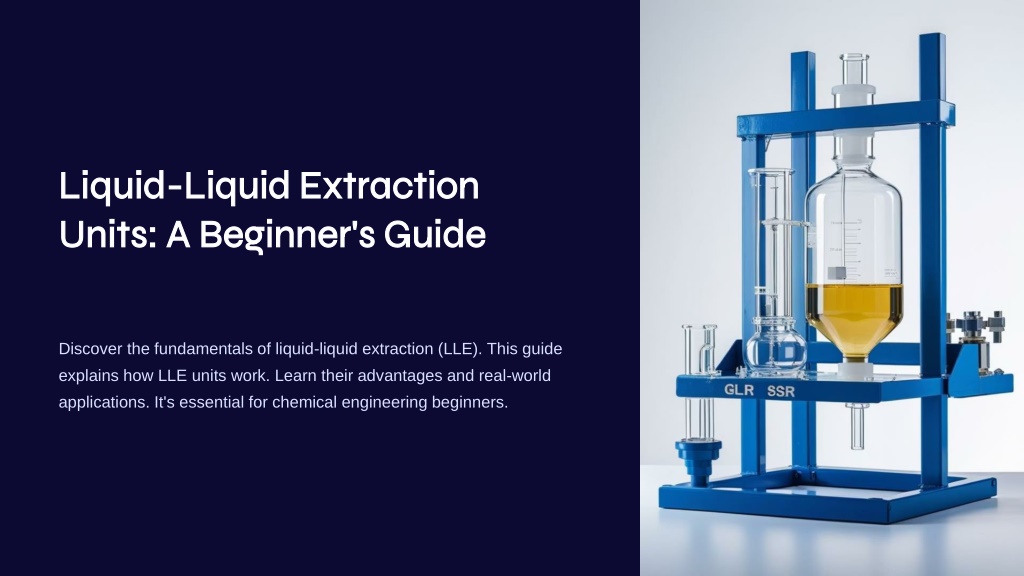

  1. Liquid-Liquid Extraction Units: A Beginner's Guide Discover the fundamentals of liquid-liquid extraction (LLE). This guide explains how LLE units work. Learn their advantages and real-world applications. It's essential for chemical engineering beginners.

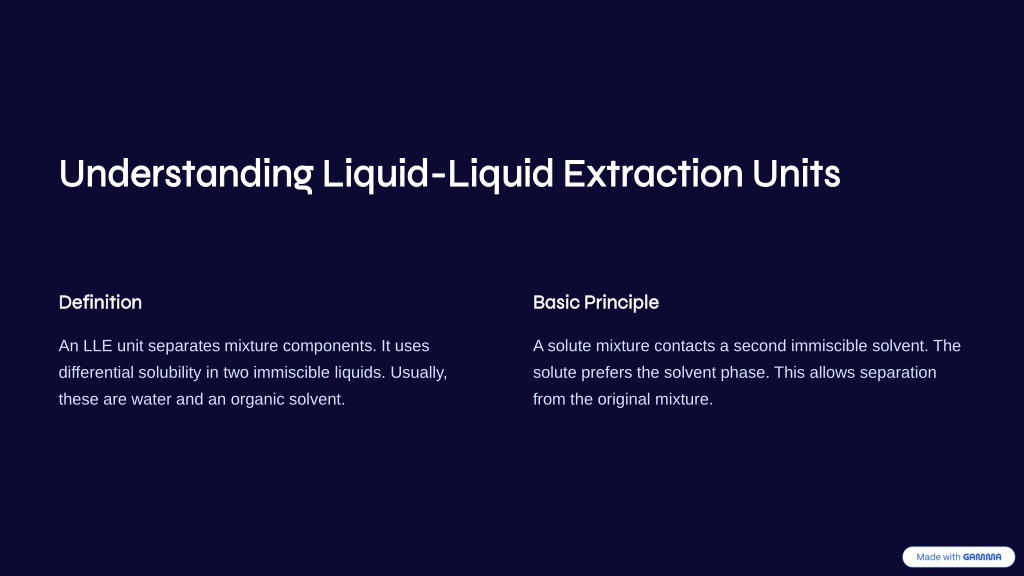

  2. Understanding Liquid-Liquid Extraction Units Definition Basic Principle An LLE unit separates mixture components. It uses differential solubility in two immiscible liquids. Usually, these are water and an organic solvent. A solute mixture contacts a second immiscible solvent. The solute prefers the solvent phase. This allows separation from the original mixture.

  3. How the Process Works Mixing The mixture and solvent combine. They achieve intimate contact. Settling Phases separate due to density differences. The solute partitions. Separation The desired component is extracted. It remains in the solvent phase.

  4. Key Components of an LLE Unit Mixer Settler/Separator Pumps Brings the two liquids into close contact. Ensures efficient mass transfer. Allows liquid phases to separate. Based on density differences. Moves liquids through the system. Maintains continuous flow. Control System Monitors and controls operational parameters. Ensures optimal performance.

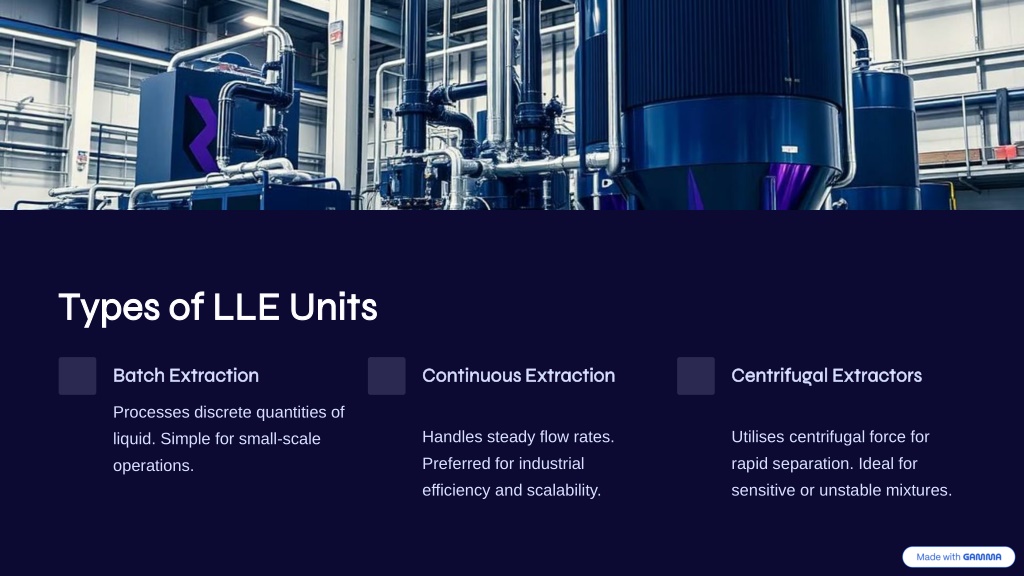

  5. Types of LLE Units Batch Extraction Continuous Extraction Centrifugal Extractors Processes discrete quantities of liquid. Simple for small-scale operations. Handles steady flow rates. Preferred for industrial efficiency and scalability. Utilises centrifugal force for rapid separation. Ideal for sensitive or unstable mixtures.

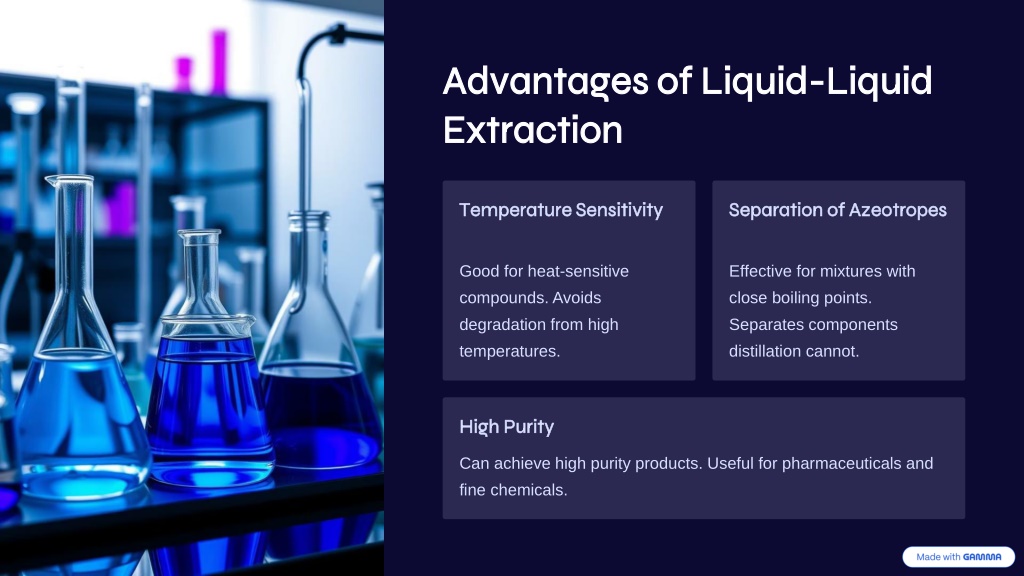

  6. Advantages of Liquid-Liquid Extraction Temperature Sensitivity Separation of Azeotropes Good for heat-sensitive compounds. Avoids degradation from high temperatures. Effective for mixtures with close boiling points. Separates components distillation cannot. High Purity Can achieve high purity products. Useful for pharmaceuticals and fine chemicals.

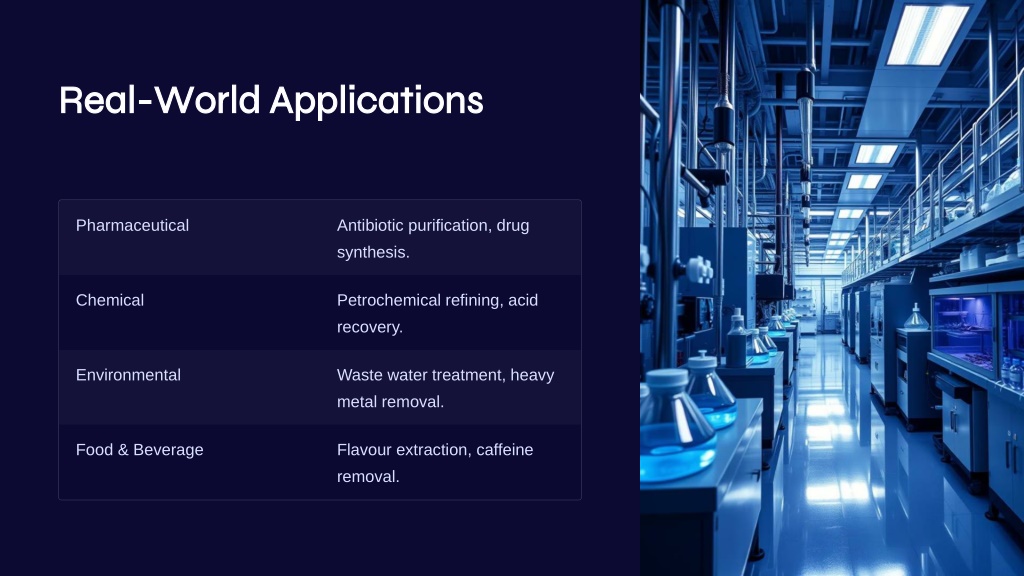

  7. Real-World Applications Pharmaceutical Antibiotic purification, drug synthesis. Chemical Petrochemical refining, acid recovery. Environmental Waste water treatment, heavy metal removal. Food & Beverage Flavour extraction, caffeine removal.

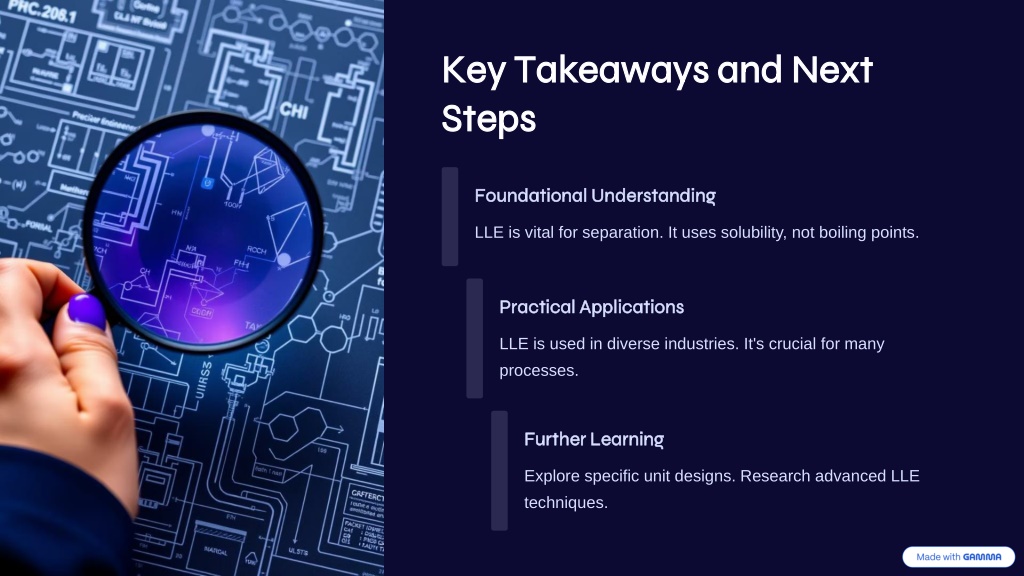

  8. Key Takeaways and Next Steps Foundational Understanding LLE is vital for separation. It uses solubility, not boiling points. Practical Applications LLE is used in diverse industries. It's crucial for many processes. Further Learning Explore specific unit designs. Research advanced LLE techniques.

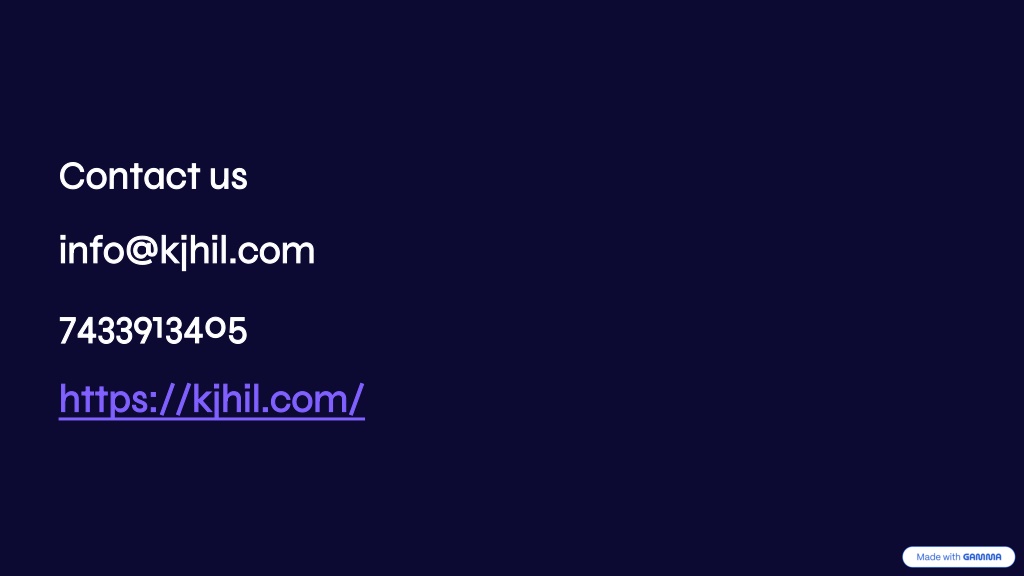

  9. Contact us info@kjhil.com 7433913405 https://kjhil.com/
