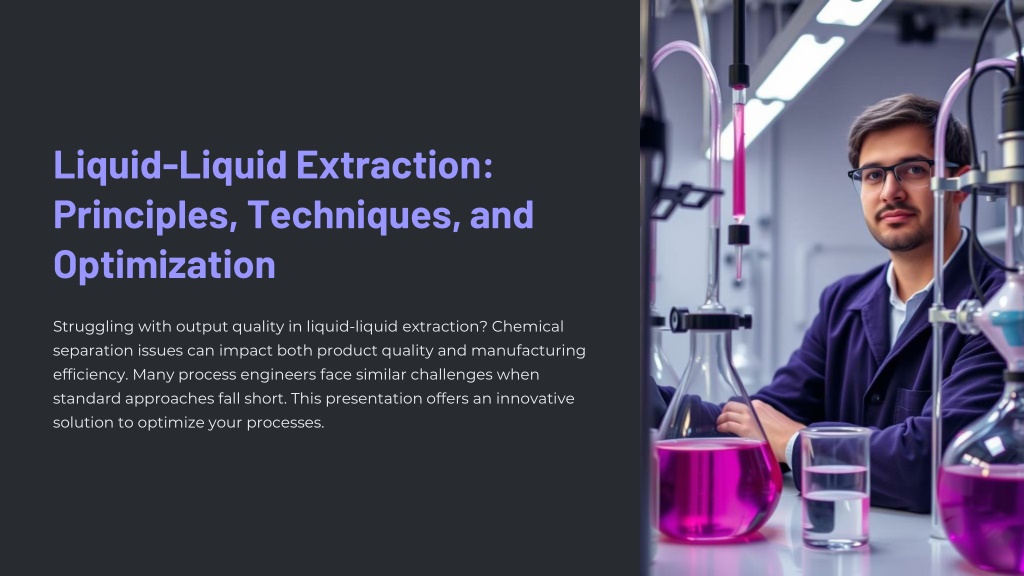

Liquid-Liquid Extraction: Principles, Techniques, and Optimization Struggling with output quality in liquid-liquid extraction? Chemical separation issues can impact both product quality and manufacturing efficiency. Many process engineers face similar challenges when standard approaches fall short. This presentation offers an innovative solution to optimize your processes.

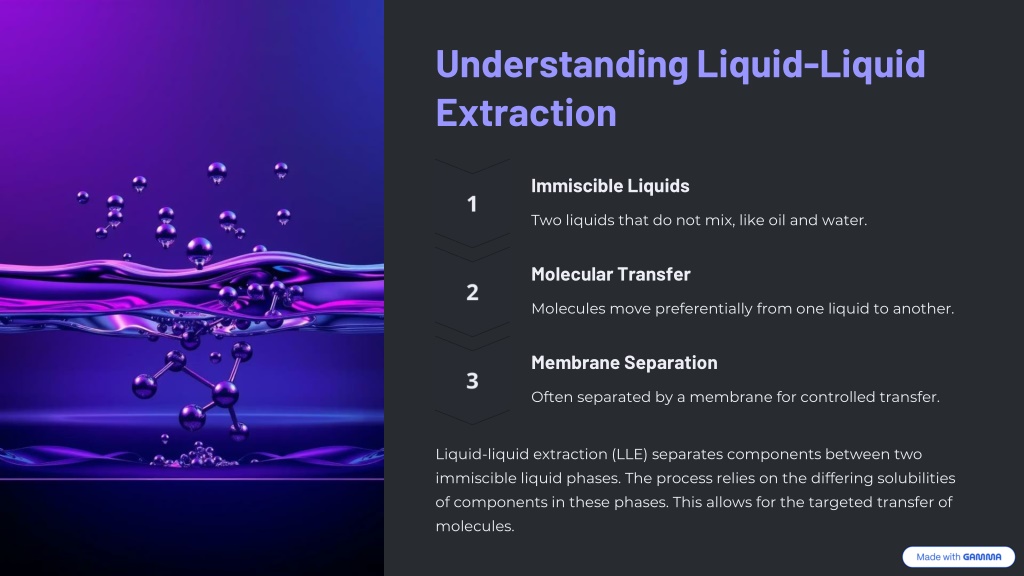

Understanding Liquid-Liquid Extraction Immiscible Liquids Two liquids that do not mix, like oil and water. Molecular Transfer Molecules move preferentially from one liquid to another. Membrane Separation Often separated by a membrane for controlled transfer. Liquid-liquid extraction (LLE) separates components between two immiscible liquid phases. The process relies on the differing solubilities of components in these phases. This allows for the targeted transfer of molecules.

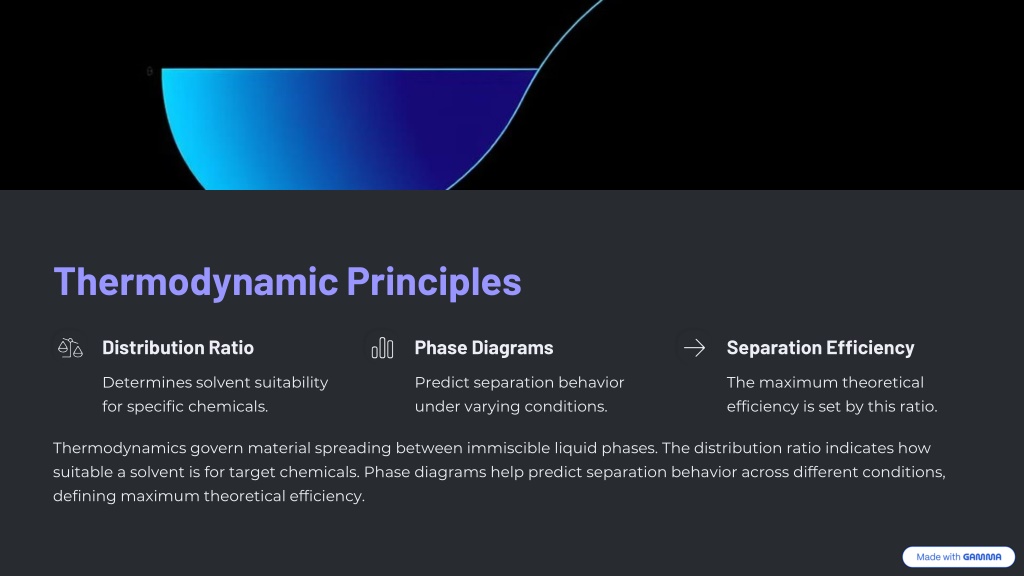

Thermodynamic Principles Distribution Ratio Phase Diagrams Separation Efficiency Determines solvent suitability for specific chemicals. Predict separation behavior under varying conditions. The maximum theoretical efficiency is set by this ratio. Thermodynamics govern material spreading between immiscible liquid phases. The distribution ratio indicates how suitable a solvent is for target chemicals. Phase diagrams help predict separation behavior across different conditions, defining maximum theoretical efficiency.

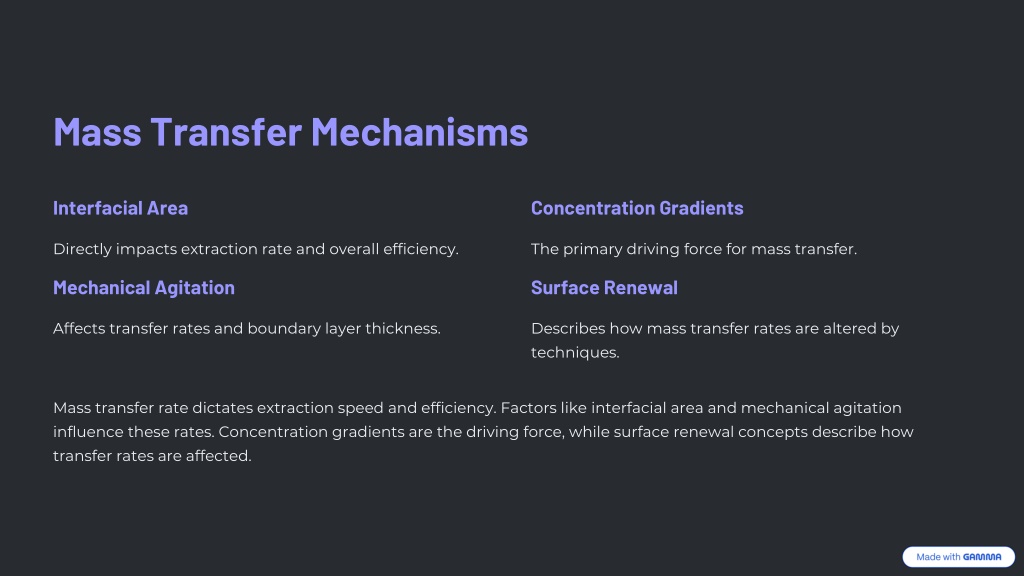

Mass Transfer Mechanisms Interfacial Area Concentration Gradients Directly impacts extraction rate and overall efficiency. The primary driving force for mass transfer. Mechanical Agitation Surface Renewal Affects transfer rates and boundary layer thickness. Describes how mass transfer rates are altered by techniques. Mass transfer rate dictates extraction speed and efficiency. Factors like interfacial area and mechanical agitation influence these rates. Concentration gradients are the driving force, while surface renewal concepts describe how transfer rates are affected.

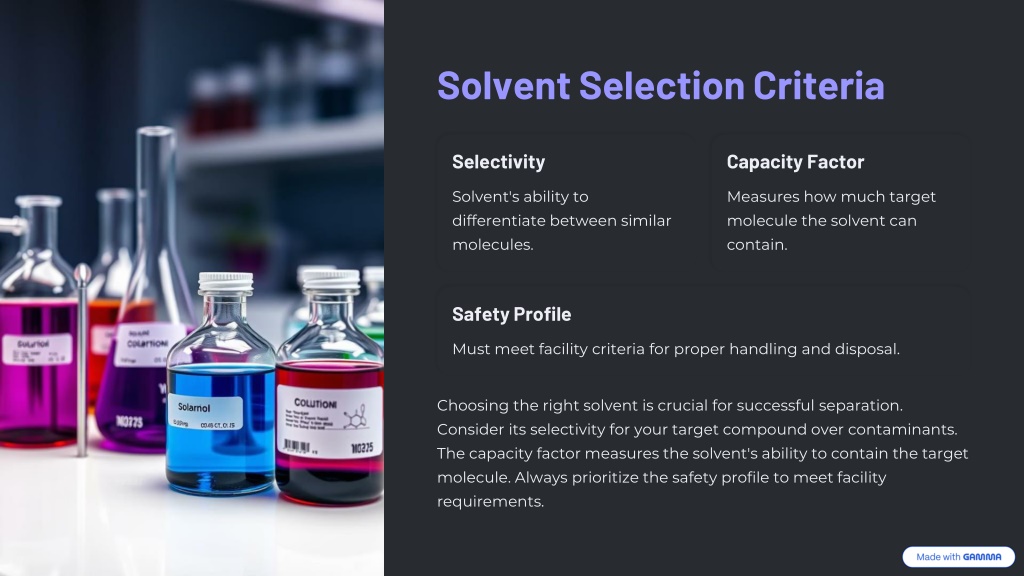

Solvent Selection Criteria Selectivity Capacity Factor Solvent's ability to differentiate between similar molecules. Measures how much target molecule the solvent can contain. Safety Profile Must meet facility criteria for proper handling and disposal. Choosing the right solvent is crucial for successful separation. Consider its selectivity for your target compound over contaminants. The capacity factor measures the solvent's ability to contain the target molecule. Always prioritize the safety profile to meet facility requirements.

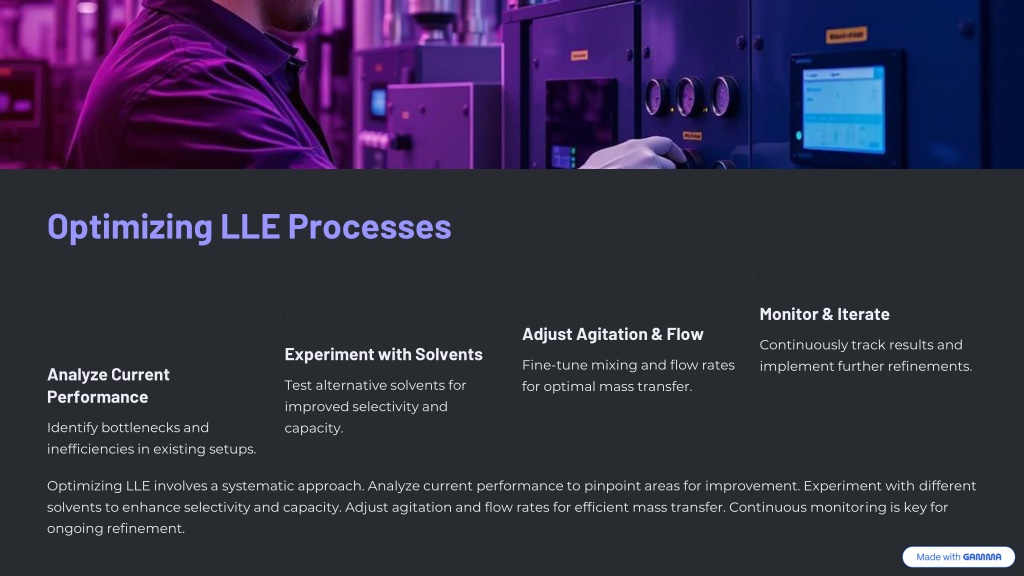

Optimizing LLE Processes Monitor & Iterate Adjust Agitation & Flow Continuously track results and implement further refinements. Experiment with Solvents Fine-tune mixing and flow rates for optimal mass transfer. Analyze Current Performance Test alternative solvents for improved selectivity and capacity. Identify bottlenecks and inefficiencies in existing setups. Optimizing LLE involves a systematic approach. Analyze current performance to pinpoint areas for improvement. Experiment with different solvents to enhance selectivity and capacity. Adjust agitation and flow rates for efficient mass transfer. Continuous monitoring is key for ongoing refinement.

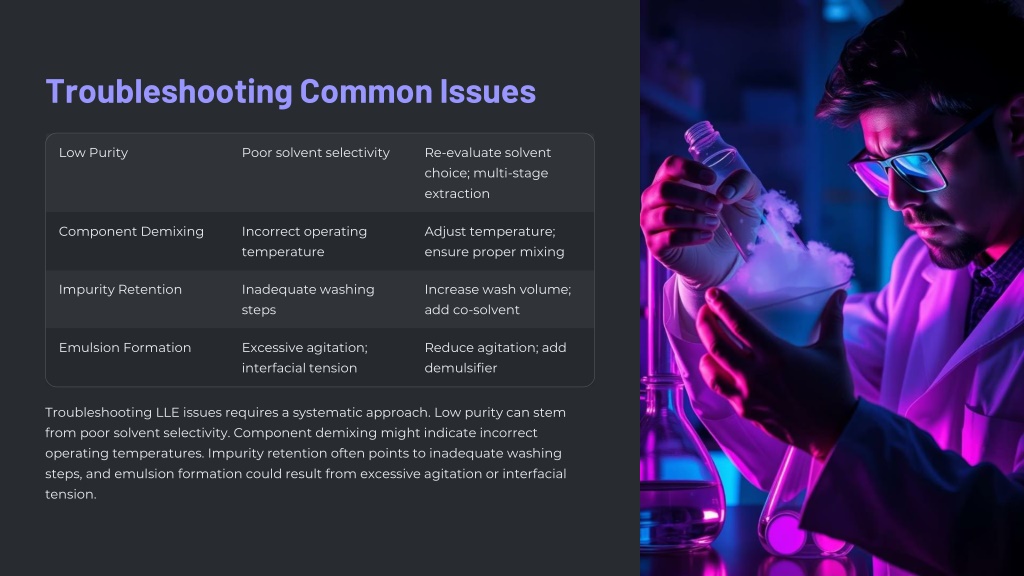

Troubleshooting Common Issues Low Purity Poor solvent selectivity Re-evaluate solvent choice; multi-stage extraction Component Demixing Incorrect operating temperature Adjust temperature; ensure proper mixing Impurity Retention Inadequate washing steps Increase wash volume; add co-solvent Emulsion Formation Excessive agitation; interfacial tension Reduce agitation; add demulsifier Troubleshooting LLE issues requires a systematic approach. Low purity can stem from poor solvent selectivity. Component demixing might indicate incorrect operating temperatures. Impurity retention often points to inadequate washing steps, and emulsion formation could result from excessive agitation or interfacial tension.

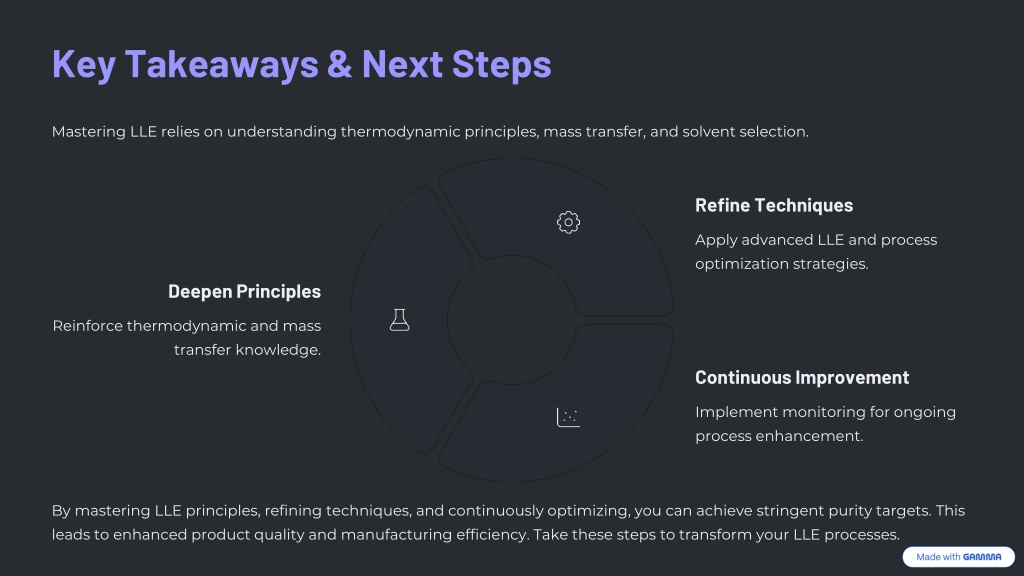

Key Takeaways & Next Steps Mastering LLE relies on understanding thermodynamic principles, mass transfer, and solvent selection. Refine Techniques Apply advanced LLE and process optimization strategies. Deepen Principles Reinforce thermodynamic and mass transfer knowledge. Continuous Improvement Implement monitoring for ongoing process enhancement. By mastering LLE principles, refining techniques, and continuously optimizing, you can achieve stringent purity targets. This leads to enhanced product quality and manufacturing efficiency. Take these steps to transform your LLE processes.
