ventricular conduction disturbances n.
Download
Skip this Video
Loading SlideShow in 5 Seconds..
Ventricular Conduction Disturbances PowerPoint Presentation
Download Presentation
Ventricular Conduction Disturbances

Loading in 2 Seconds...

play fullscreen
1 / 30

Ventricular Conduction Disturbances - PowerPoint PPT Presentation


  • 338 Views
  • Uploaded on

Ventricular Conduction Disturbances. Chapter 7. Bundle Branches. Normal conduction speed through the bundles is about 0.1 seconds. Bundle Branch Block. Consider a blocked or slowed branch or bundle. Right. Left. Right Bundle Branch Block. First Phase will be normal. Second Phase -

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Ventricular Conduction Disturbances' - kizzy


Download Now An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
bundle branches
Bundle Branches
  • Normal conduction speed through the bundles is about 0.1 seconds
bundle branch block
Bundle Branch Block
  • Consider a blocked or slowed branch or bundle

Right

Left

right bundle branch block
Right Bundle Branch Block

First Phase will be normal

Second Phase -

Normal

Third Phase -

?

After the left ventricle has completely depolarized, the right ventricle continues to depolarize

right bundle branch block1
Right Bundle Branch Block

1.

2.

3.

1. r wave in V1

q wave in V6

2. S wave in V1

R wave in V6

3. R’ wave in V1

S wave in V6

right bundle branch block criteria
Right Bundle Branch Block Criteria
  • V1 or V2 = rSR’ - “M” or rabbit ear shape
  • V5 or V6 = qRS
  • Large R waves
  • Right chest leads: T wave inversion (“secondary changes” since they reflect a delay in depolarization not an actual change in depolarization).
  • Complete RBBB: QRS > 0.12 sec.
  • Incomplete RBBB: QRS = 0.10 to 0.12 sec.
right bundle branch block2
Right Bundle Branch Block

V1 = rSR’

V6 = qRS

right bundle branch block3
Right Bundle Branch Block

V2 = rSR’

V6 = qRS

right bundle branch block4
Right Bundle Branch Block
  • Clinical Significance
    • Healthy heart
    • Organic heart disease
      • atrial septal defect
      • pulmonary disease
      • valvular lesions
    • degenerative changes in conduction system
    • chronic coronary artery disease
    • pulmonary embolism
    • after bypass graft surgery
  • Permanent or transient
  • RBBB by itself requires no treatment
left bundle branch block
Left Bundle Branch Block
  • RBBB affects mainly the terminal phase of depolarization
  • LBBB affects the early and terminal phases of depolarization
    • Septum is depolarized from right to left (rather than left to right)
    • Depolarization of the left ventricle takes longer
left bundle branch block1
Left Bundle Branch Block

1. r wave in V1

R wave in V6

2. S wave in V1

R wave in V6

left bundle branch block2
Left Bundle Branch Block
  • Loss of septal R in V1 and septal Q in V6.
  • Wide QRS
    • Negative in V1
    • Positive in V6
left bundle branch block criteria
Left Bundle Branch Block Criteria
  • Wide QRS complex
    • V1 = QS (or rS) and may have a “W” shape to it.
    • V6 = R or notched R showing a “M” shape or rabbit ears
  • Secondary T wave inversion
    • Secondary if in lead with tall R waves
    • Primary if in right precordial leads
left bundle branch block4
Left Bundle Branch Block
  • Causes
    • long standing hypertension
    • valvular lesion
    • cardiomyopathy
    • coronary artery disease
  • Precursor
    • Advanced CAD
    • Valvular heart disease
    • Hypertensive heart disease
    • Cardiomyopathy

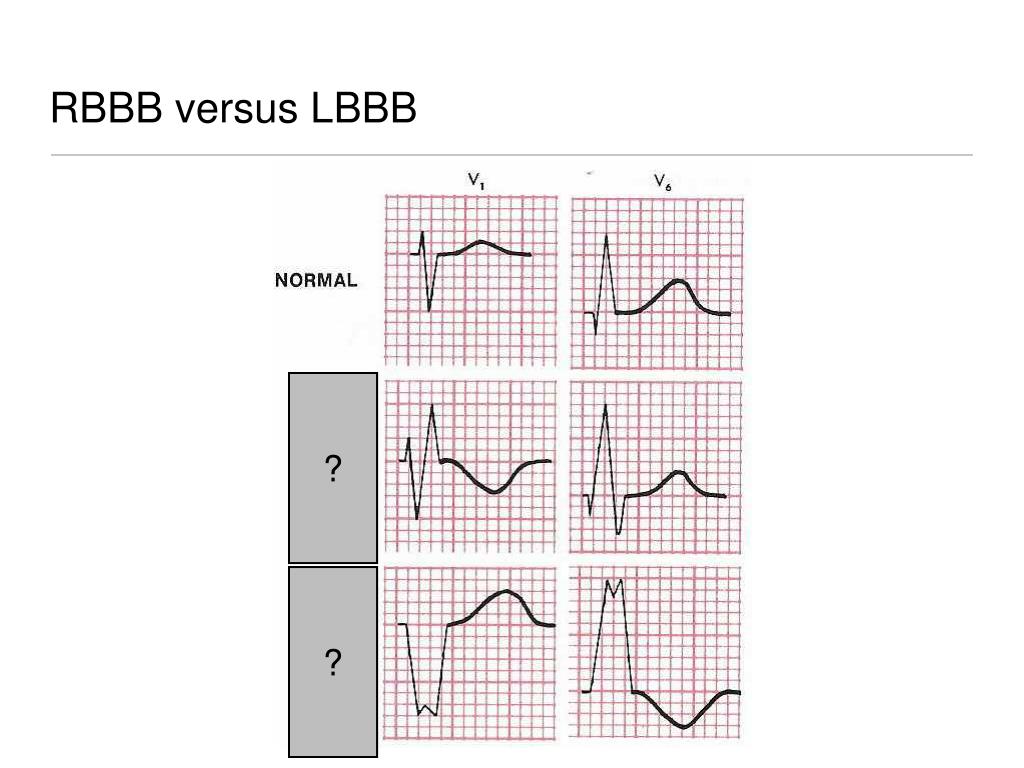

rate related exercise induced bundle branch blocks
Rate-Related (Exercise-Induced) Bundle Branch Blocks
  • Ischemia or other factors during exercise may produce BBB not seen at rest
    • Rate-limited bundle branch block
    • Exercise induced bundle branch block
incomplete bundle branch blocks
Incomplete Bundle Branch Blocks
  • RBBB or LBBB where QRS is between .10 and .12 with same QRS features
    • Incomplete RBBB normal variant
    • Incomplete LBBB a progression of LVH
intraventricular delay or intraventricular conduction defect
Intraventricular Delay or Intraventricular Conduction Defect

General term for wide QRS complexes that are not typical of RBBB or LBBB

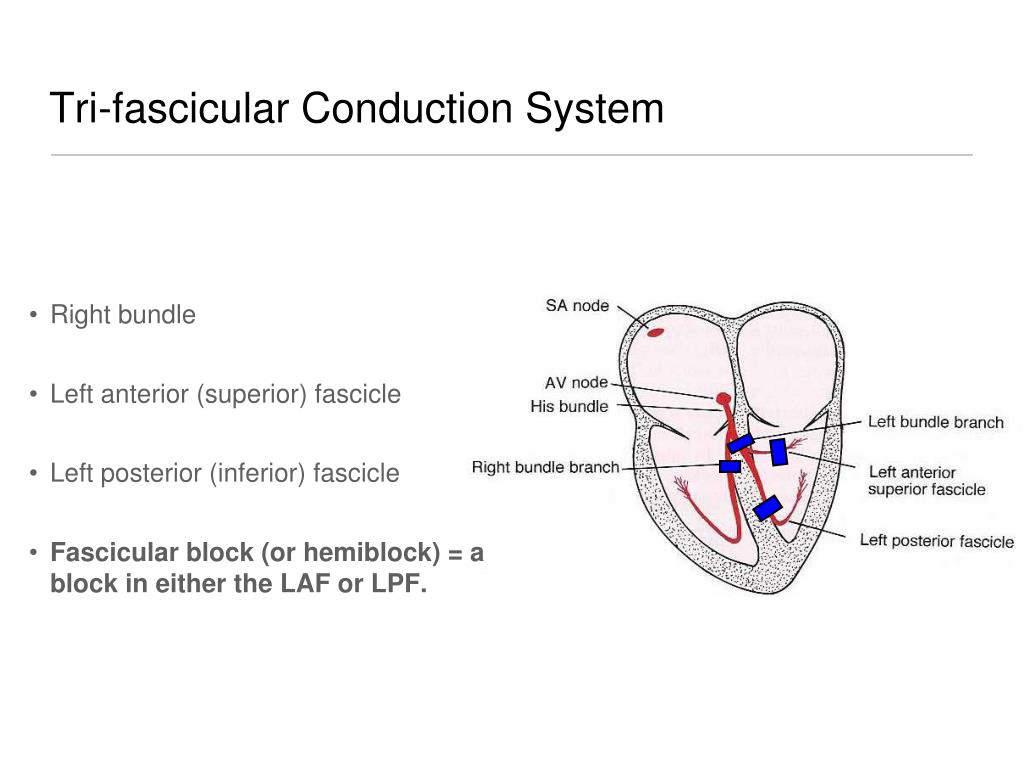

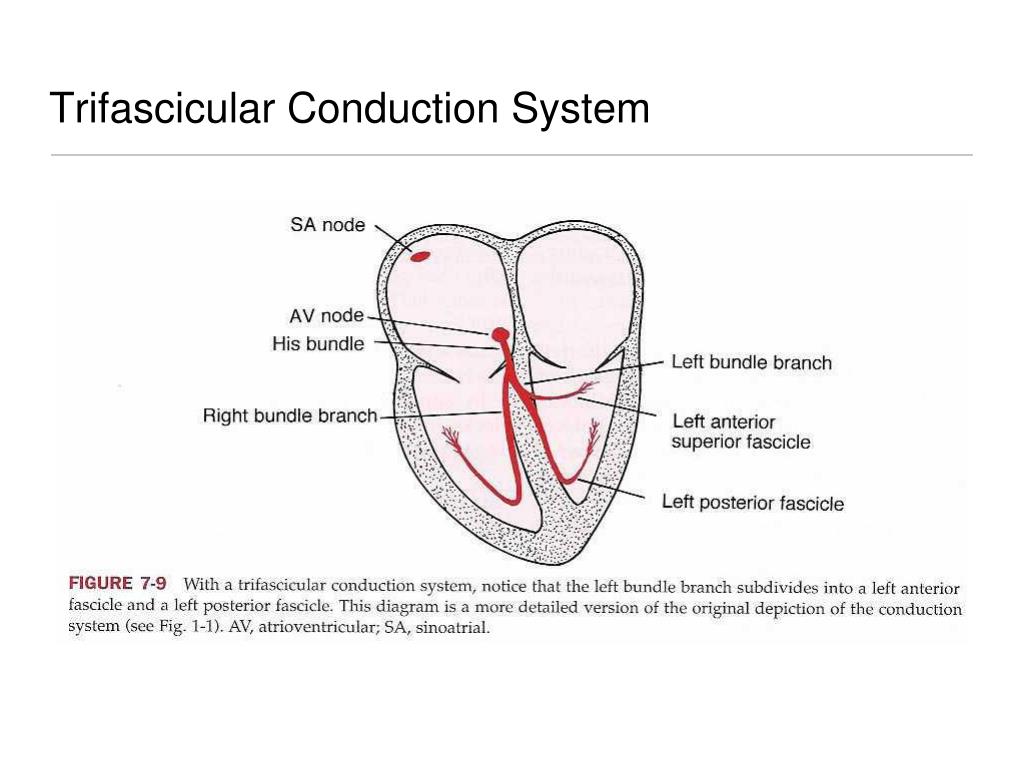

tri fascicular conduction system
Tri-fascicular Conduction System
  • Right bundle
  • Left anterior (superior) fascicle
  • Left posterior (inferior) fascicle
  • Fascicular block (or hemiblock) = a block in either the LAF or LPF.
fascicular blocks

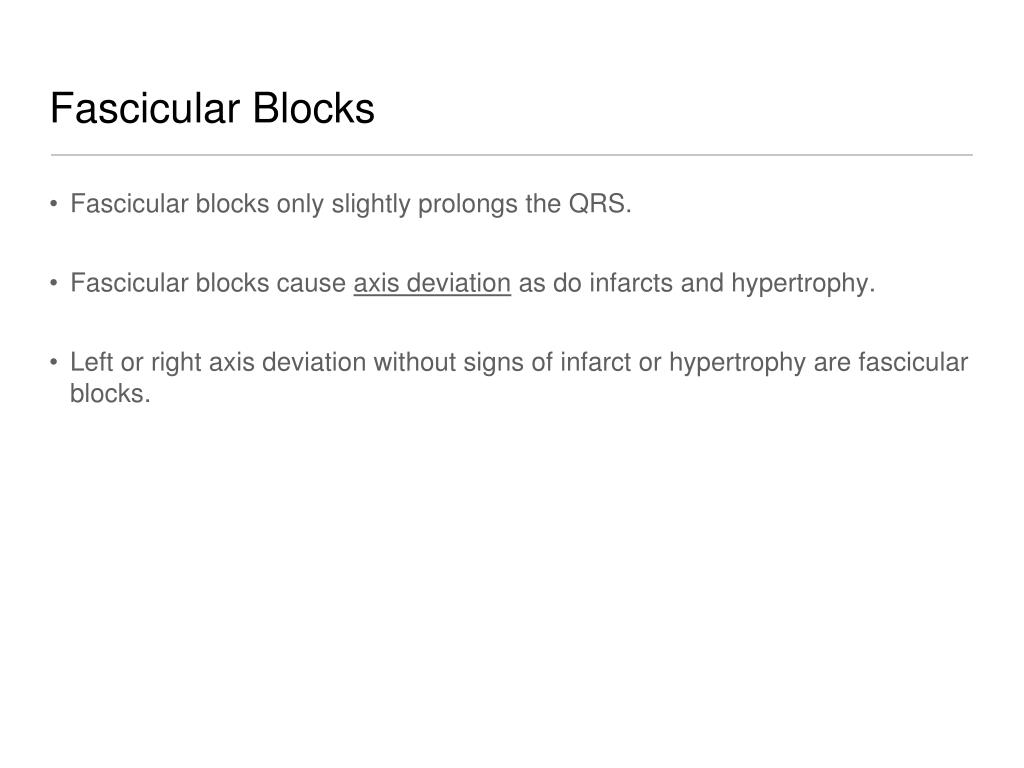

Fascicular Blocks
  • Fascicular blocks only slightly prolongs the QRS.
  • Fascicular blocks cause axis deviation as do infarcts and hypertrophy.
  • Left or right axis deviation without signs of infarct or hypertrophy are fascicular blocks.
left anterior fascicular block
Left Anterior Fascicular Block
  • Limb leads
  • QRS less width less than 0.12 sec.
  • QRS axis = Left axis deviation (-45° or more)
  • if S wave in aVF is greater than R wave in lead I
  • small Q wave in lead I, aVL, or V6
left posterior fascicular block

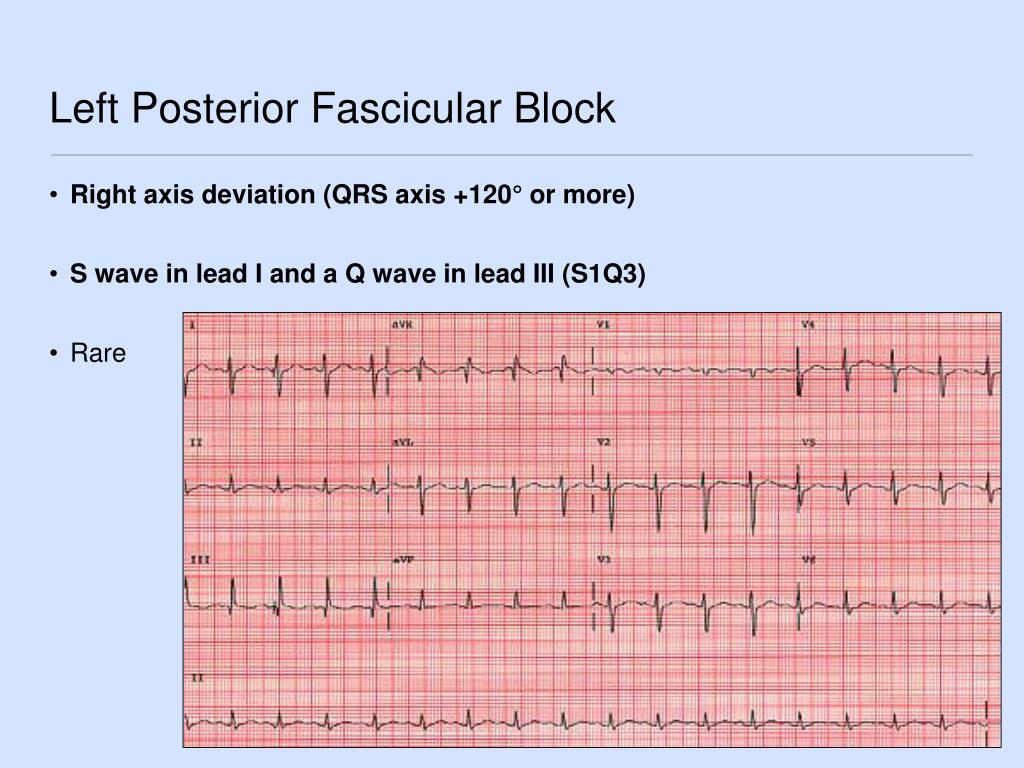

Left Posterior Fascicular Block
  • Right axis deviation (QRS axis +120° or more)
  • S wave in lead I and a Q wave in lead III (S1Q3)
  • Rare
bifascicular block
Bifascicular Block
  • Two of the three fascicles are blocked.
  • Most common is RBBB with left anterior fascicular block.
summary

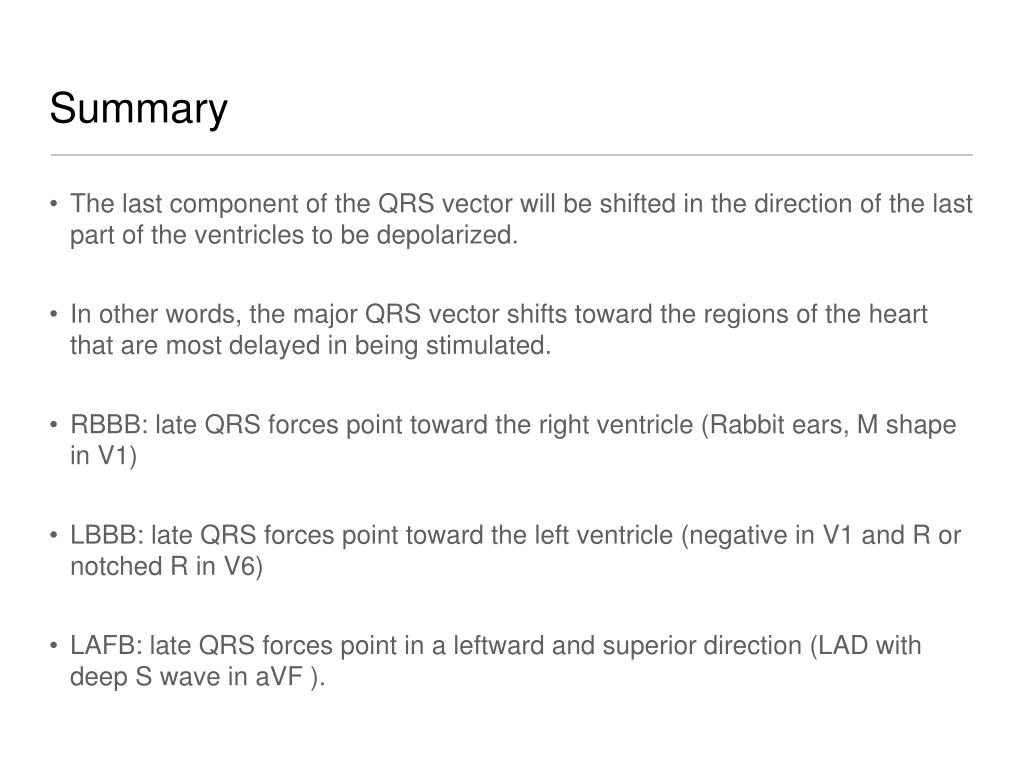

Summary
  • The last component of the QRS vector will be shifted in the direction of the last part of the ventricles to be depolarized.
  • In other words, the major QRS vector shifts toward the regions of the heart that are most delayed in being stimulated.
  • RBBB: late QRS forces point toward the right ventricle (Rabbit ears, M shape in V1)
  • LBBB: late QRS forces point toward the left ventricle (negative in V1 and R or notched R in V6)
  • LAFB: late QRS forces point in a leftward and superior direction (LAD with deep S wave in aVF ).
hypertrophy in the presence of bundle branch block
Hypertrophy In The Presence of Bundle Branch Block
  • RVH and RBBB
    • RAD is typically seen; also look for RAE and its peaked P waves.
    • RBBB with RAD indicates RVH is likely present, too.
  • LVH and RBB
    • usual criteria can be used but also look for LAE
