  1. DC circuits Physics 122 Lecture X

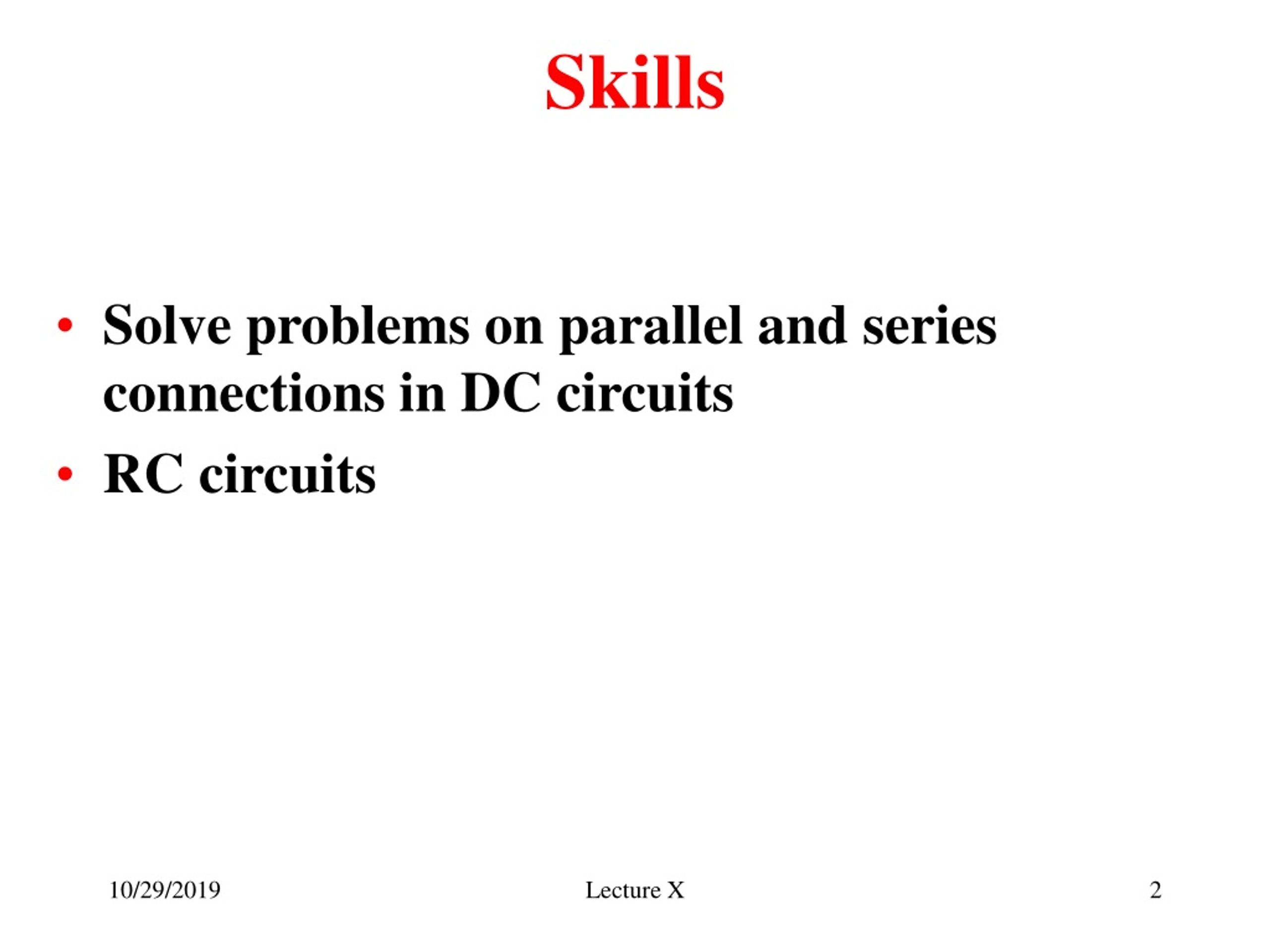

  2. Skills • Solve problems on parallel and series connections in DC circuits • RC circuits Lecture X

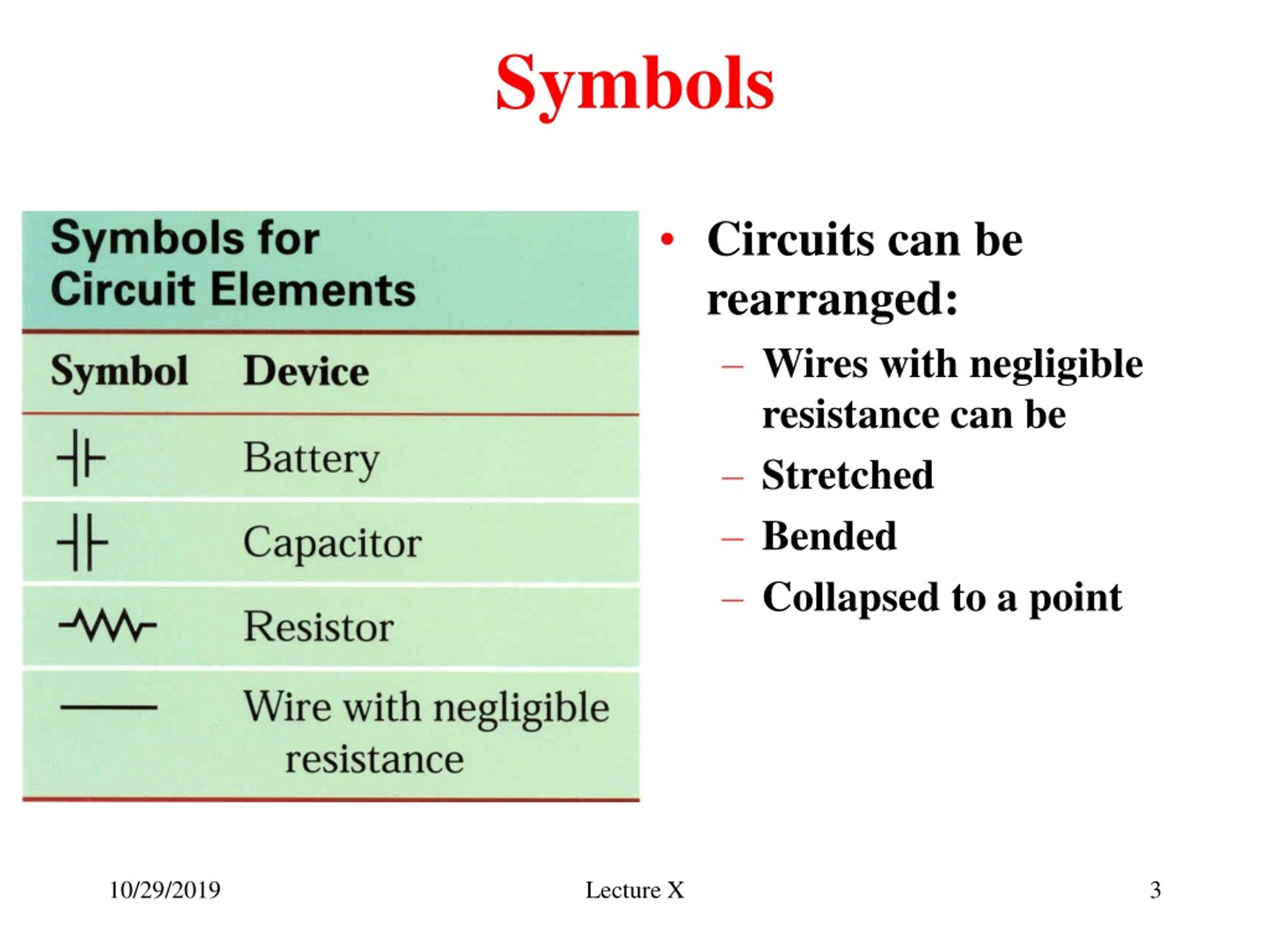

  3. Symbols • Circuits can be rearranged: • Wires with negligible resistance can be • Stretched • Bended • Collapsed to a point Lecture X

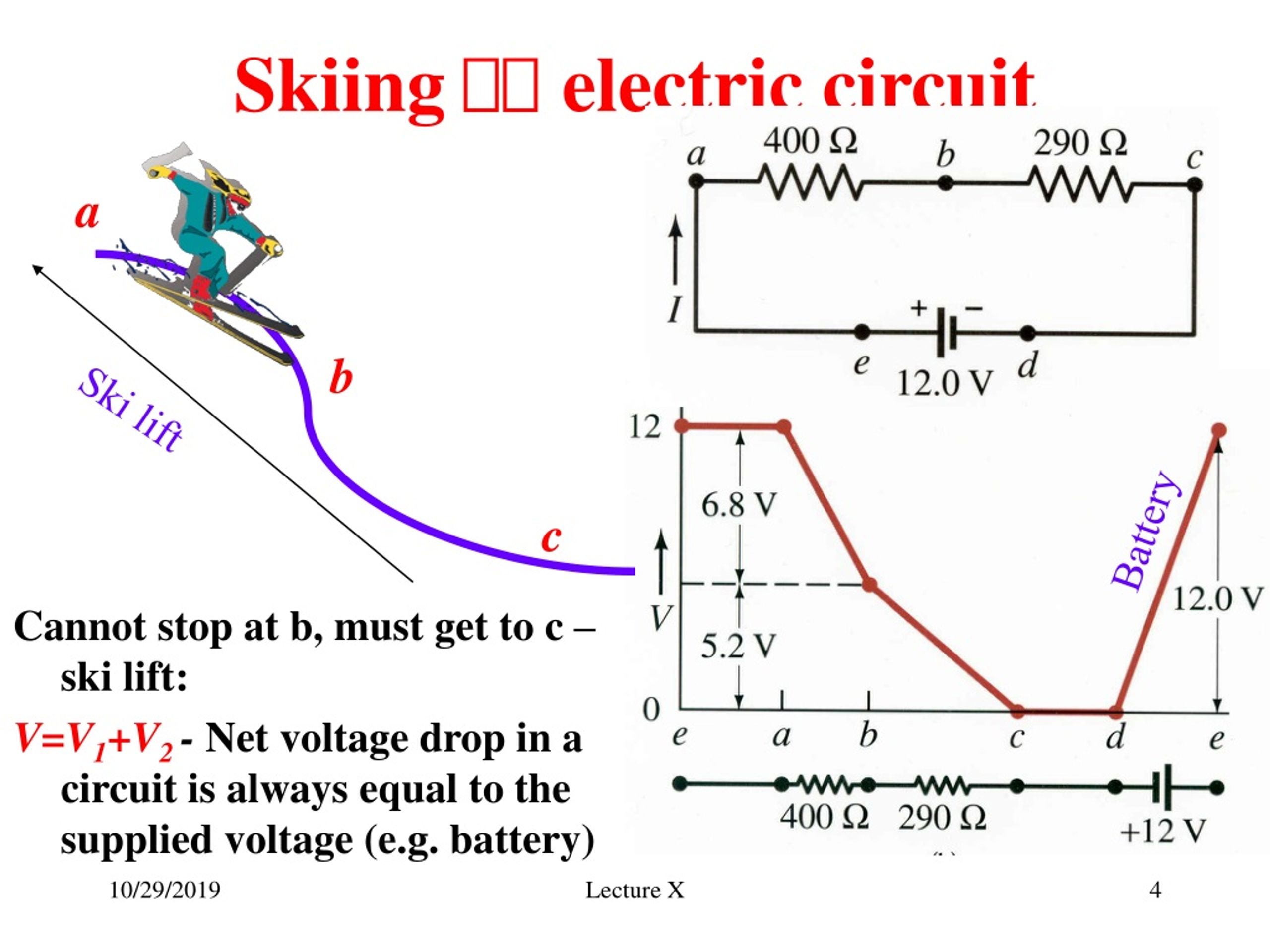

  4. Skiing  electric circuit a Cannot stop at b, must get to c – ski lift: V=V1+V2- Net voltage drop in a circuit is always equal to the supplied voltage (e.g. battery) b Ski lift c Battery Lecture X

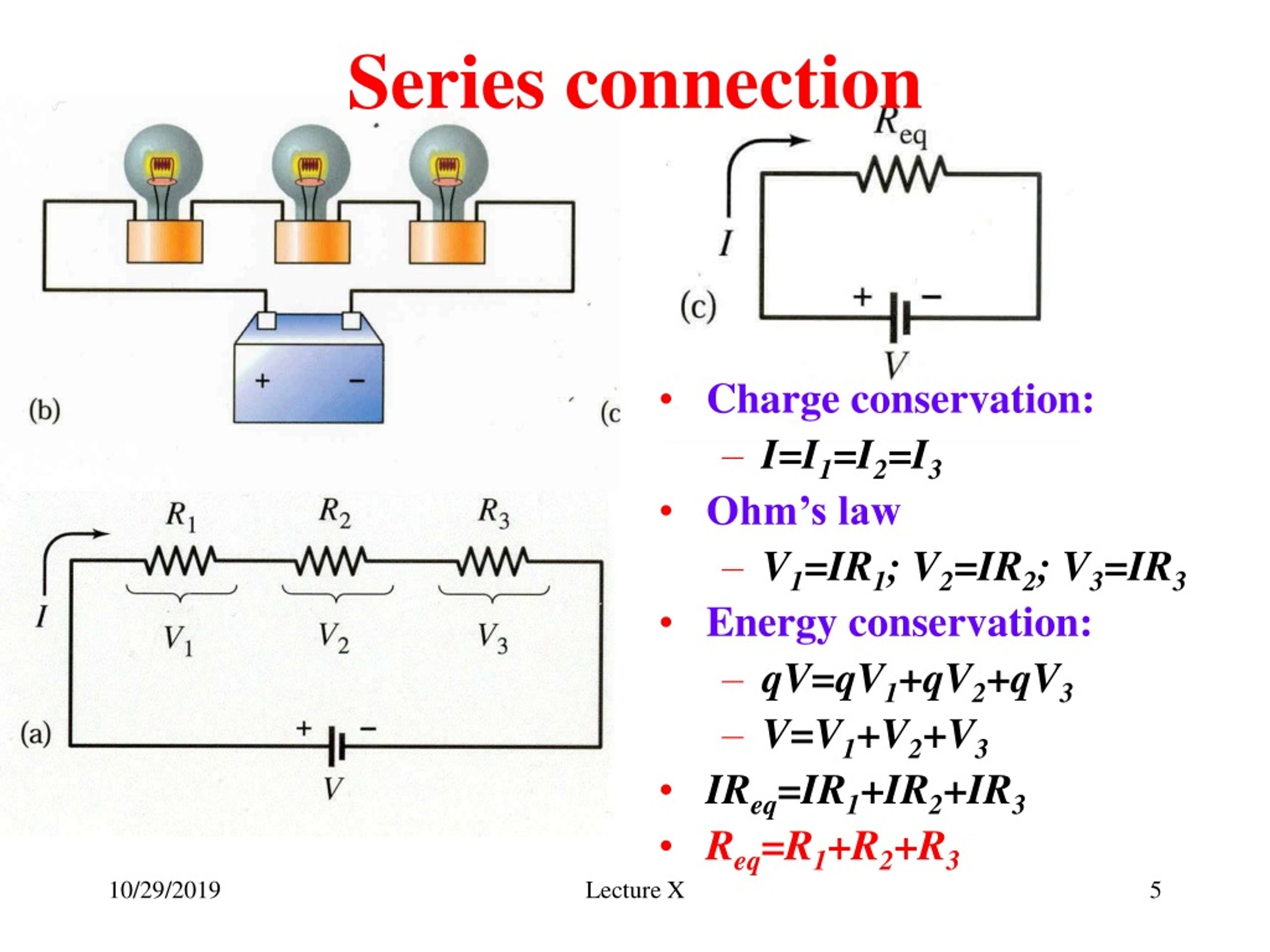

  5. Series connection • Charge conservation: • I=I1=I2=I3 • Ohm’s law • V1=IR1; V2=IR2; V3=IR3 • Energy conservation: • qV=qV1+qV2+qV3 • V=V1+V2+V3 • IReq=IR1+IR2+IR3 • Req=R1+R2+R3 Lecture X

  6. Parallel connection • Charge conservation:I=I1+I2+I3 • Energy conservation: V=V1=V2=V3 • Ohm’s law: I1=V/R1; I2=V/R2; I3=V/R3 Lecture X

  7. R1=R2=R3=R Req=3R R1=R2=R3=R Req=R/3 Series vs parallel - Req > Equivalent resistance is larger in series connection. Lecture X

  8. R1=R2=R3=R Req=3R I=V/(3R) I1=I2=I3=I=V/(3R) R1=R2=R3=R Req=R/3 I=3V/R I1=I2=I3=I/3=V/R Series vs parallel - I < < Total current and individual currents are smaller in series connection. Lecture X

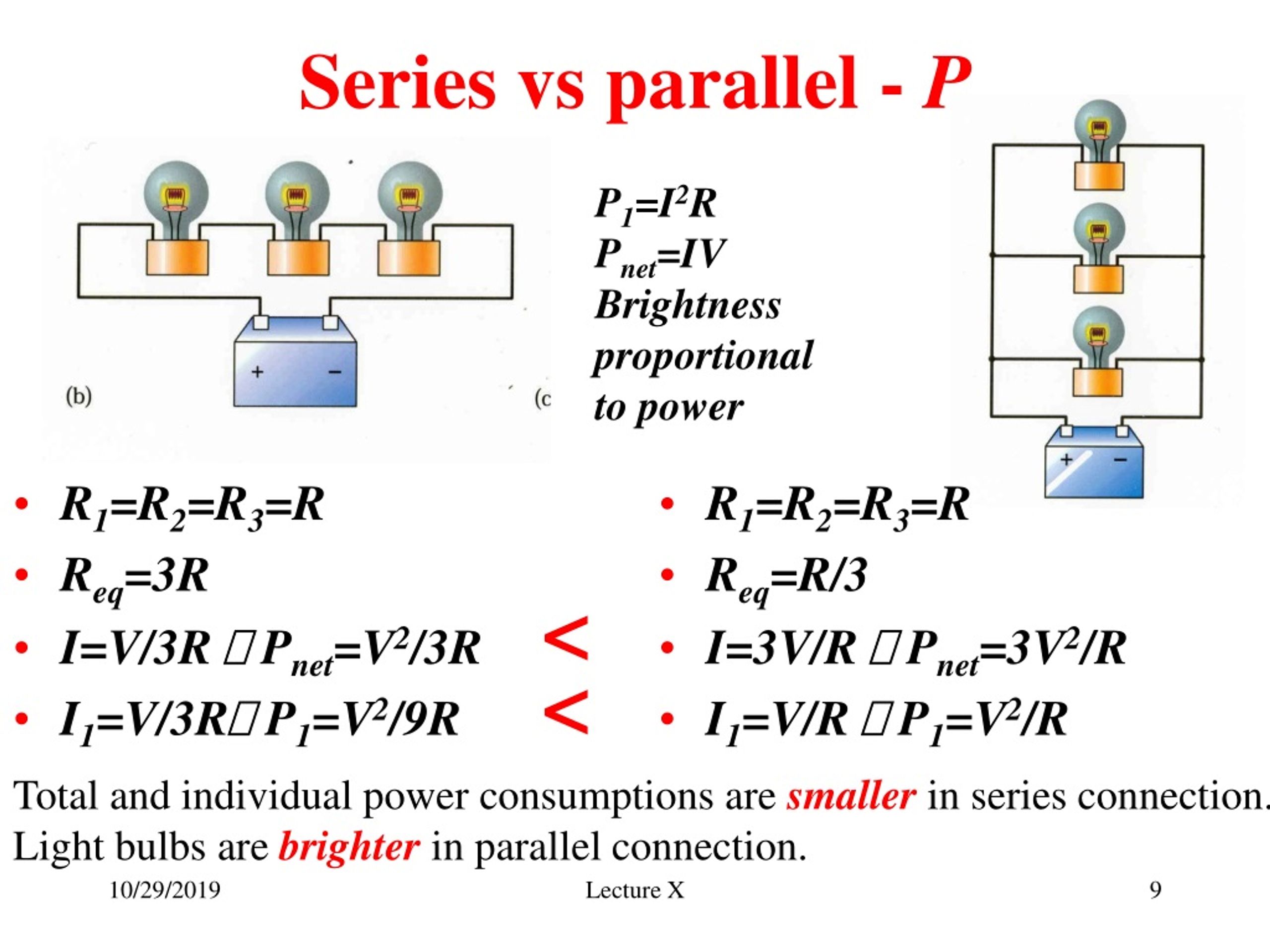

  9. R1=R2=R3=R Req=3R I=V/3R  Pnet=V2/3R I1=V/3R P1=V2/9R R1=R2=R3=R Req=R/3 I=3V/R  Pnet=3V2/R I1=V/R  P1=V2/R Series vs parallel - P P1=I2R Pnet=IV Brightness proportional to power < < Total and individual power consumptions are smaller in series connection. Light bulbs are brighter in parallel connection. Lecture X

  10. DC circuits • Series connection • I=I1=I2=I3 • V=V1+V2+V3 • Req=R1+R2+R3 • Parallel connection • I=I1+I2+I3 • V=V1=V2=V3 Lecture X

  11. Capacitor connections No DC current through capacitor, Just store charge. • Parallel connection: • Same voltage – V1=V2=V3=V • Different charges: • Q1=C1V Q2=C2V Q3=C3V • Q=Q1+Q2+Q3=V(C1+C2+C3) • Ceq=C1+C2+C3 • Series connection: • Same charge (QA=0  -Q1+Q2=0) • Different voltages V=V1+V2+V3 Lecture X

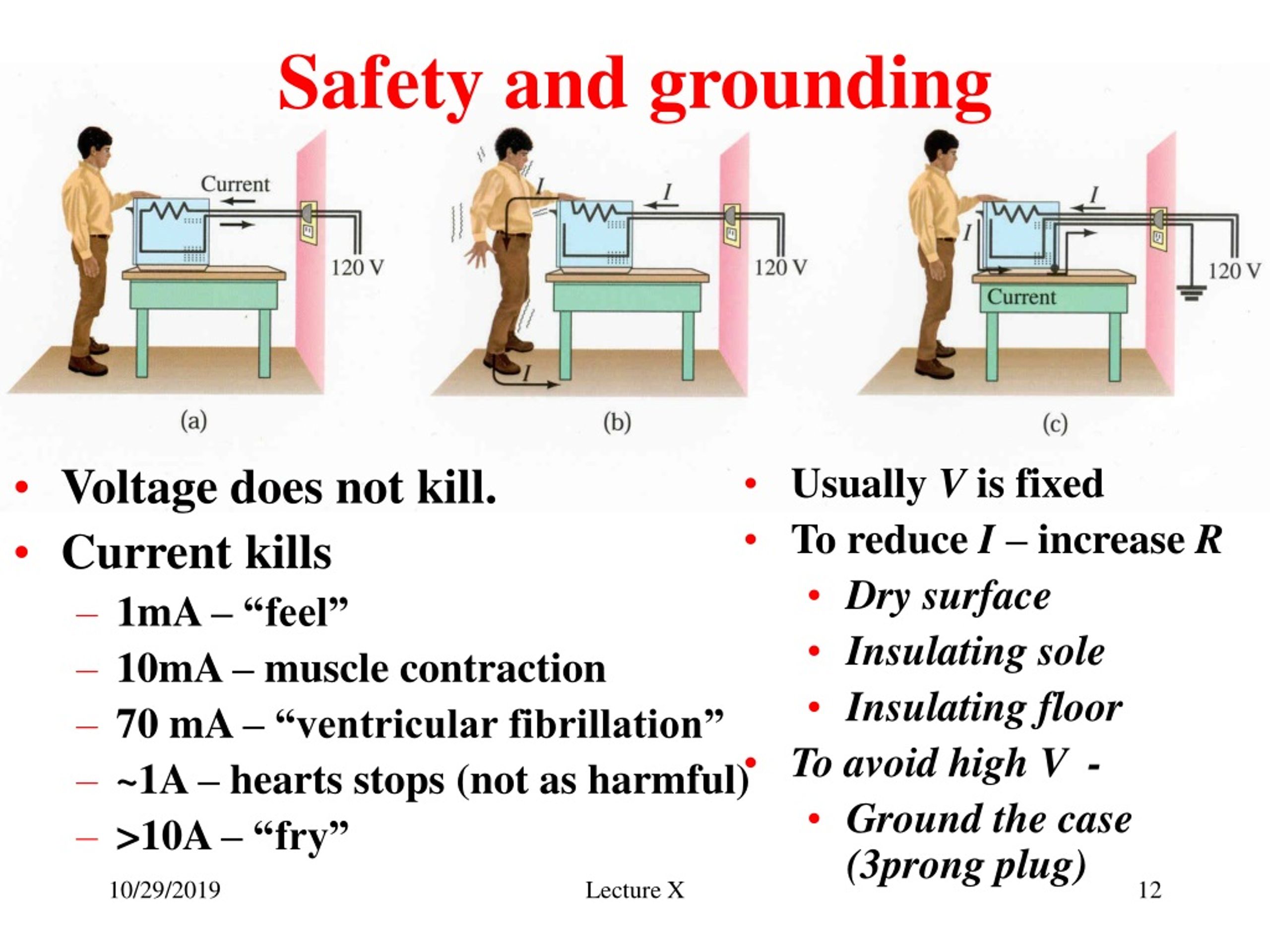

  12. Safety and grounding • Voltage does not kill. • Current kills • 1mA – “feel” • 10mA – muscle contraction • 70 mA – “ventricular fibrillation” • ~1A – hearts stops (not as harmful) • >10A – “fry” • Usually V is fixed • To reduce I – increase R • Dry surface • Insulating sole • Insulating floor • To avoid high V - • Ground the case (3prong plug) Lecture X

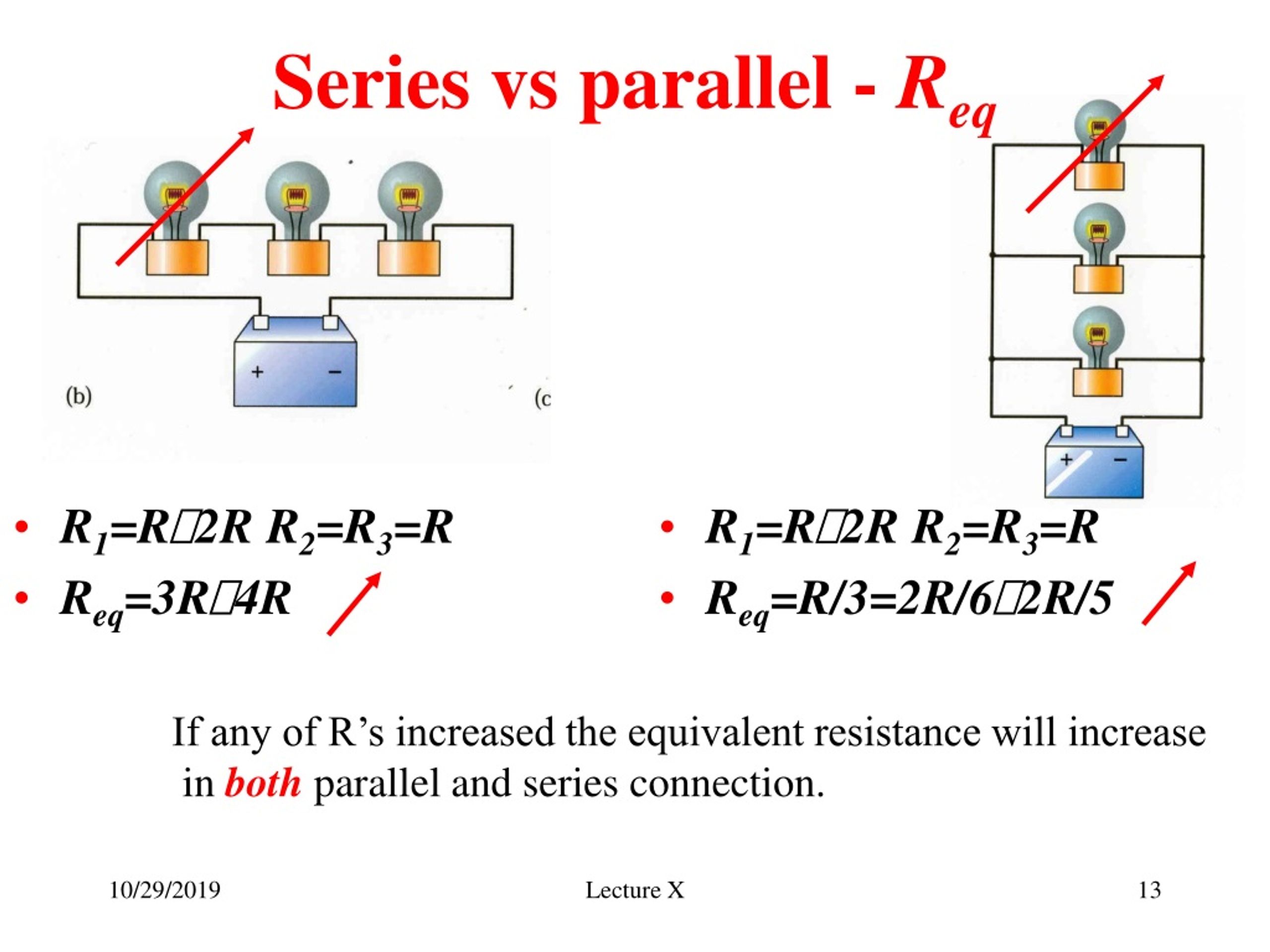

  13. R1=R2R R2=R3=R Req=3R4R R1=R2R R2=R3=R Req=R/3=2R/62R/5 Series vs parallel - Req If any of R’s increased the equivalent resistance will increase in both parallel and series connection. Lecture X

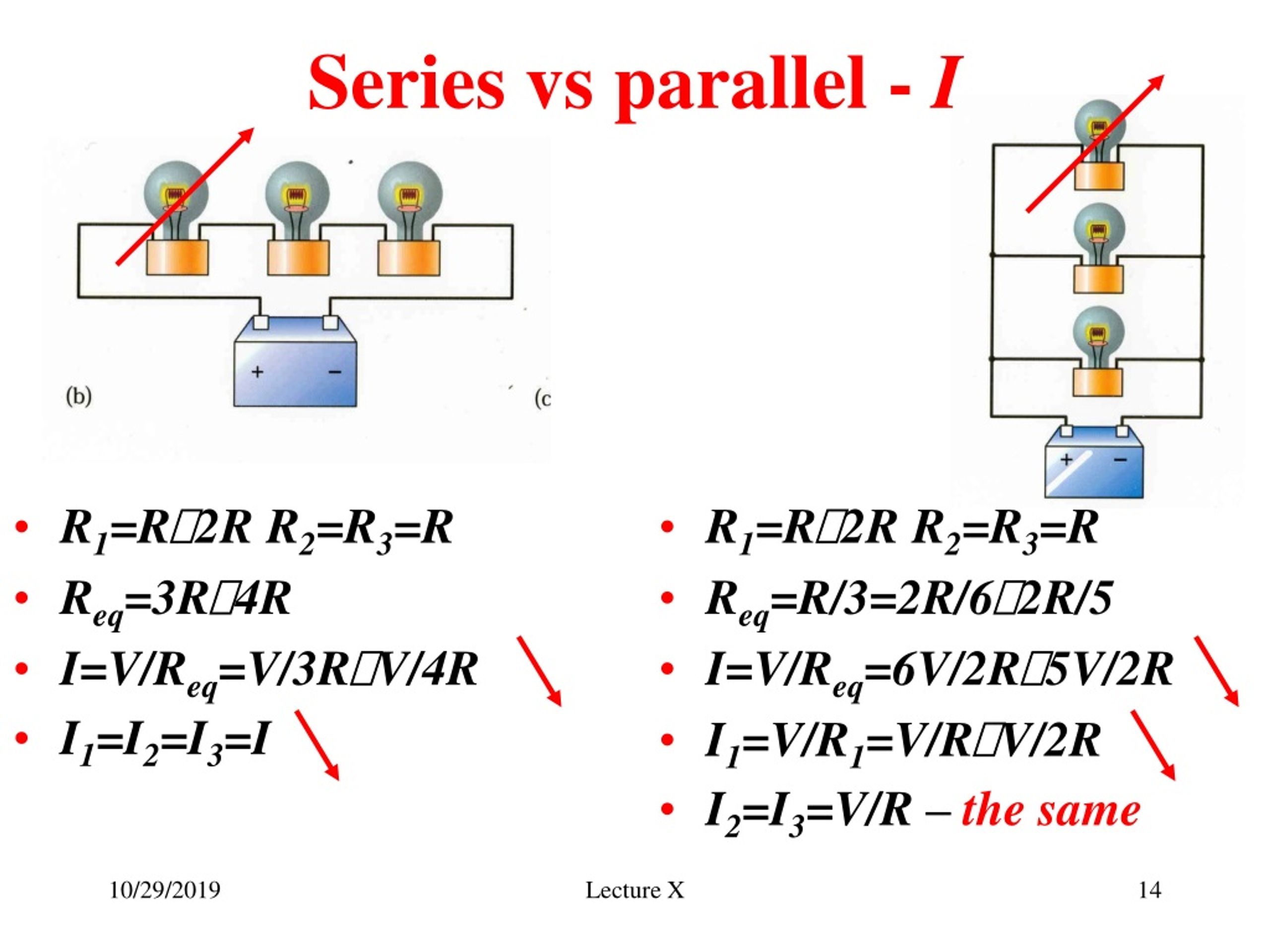

  14. R1=R2R R2=R3=R Req=3R4R I=V/Req=V/3RV/4R I1=I2=I3=I R1=R2R R2=R3=R Req=R/3=2R/62R/5 I=V/Req=6V/2R5V/2R I1=V/R1=V/RV/2R I2=I3=V/R – the same Series vs parallel - I Lecture X

  15. Test problem • For resistors connected in series, which of the following will be the same for each of the resistors? • A The current through. • B The potential difference across. • C The resistance of. • D The power dissipated by. Lecture X

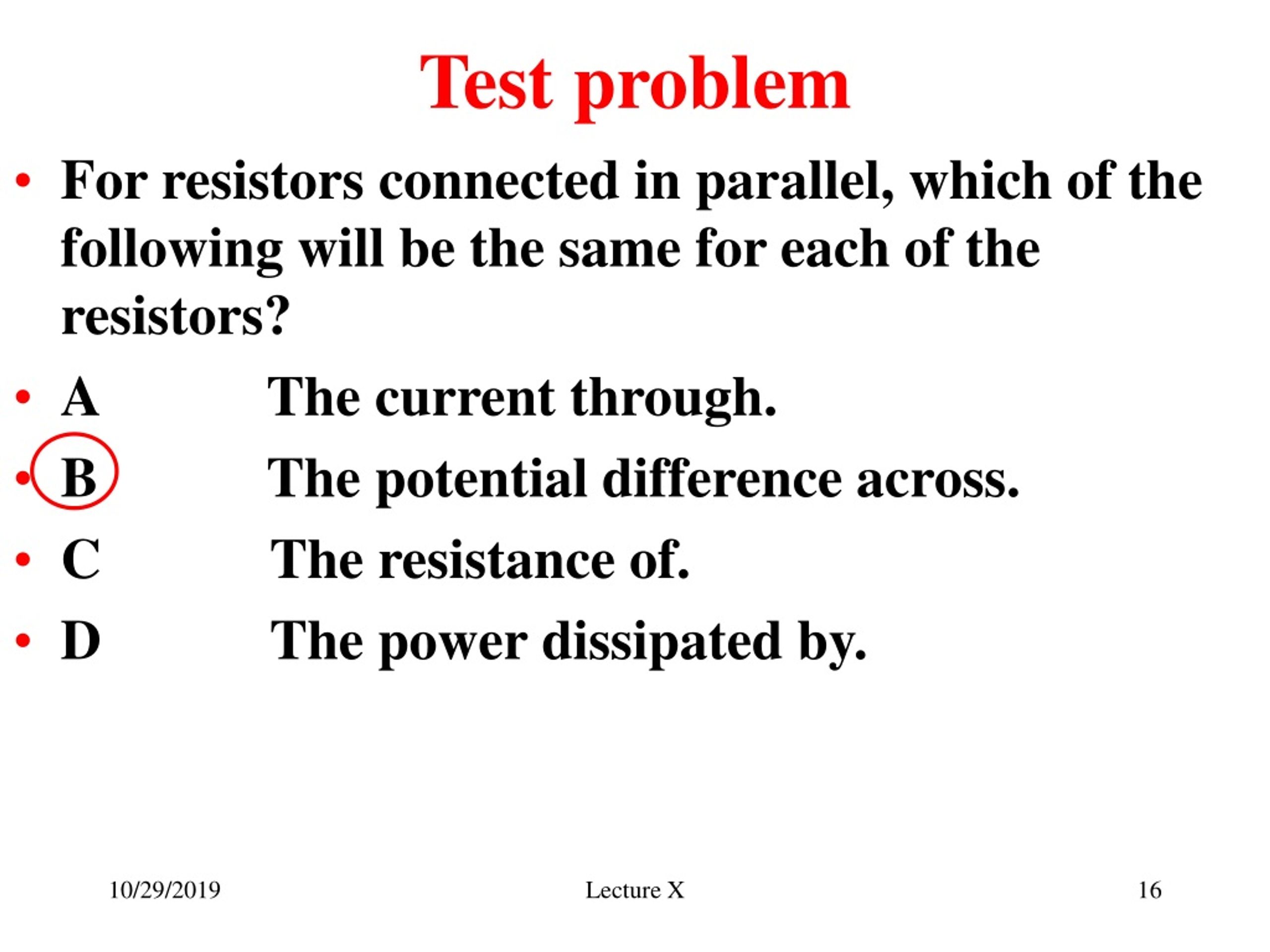

  16. Test problem • For resistors connected in parallel, which of the following will be the same for each of the resistors? • A The current through. • B The potential difference across. • C The resistance of. • D The power dissipated by. Lecture X

  17. RC circuit • RC circuit contains at least one capacitor (C ) and at least one resistor (R ). +Q C -Q Lecture X
