fixed radiological x ray pm

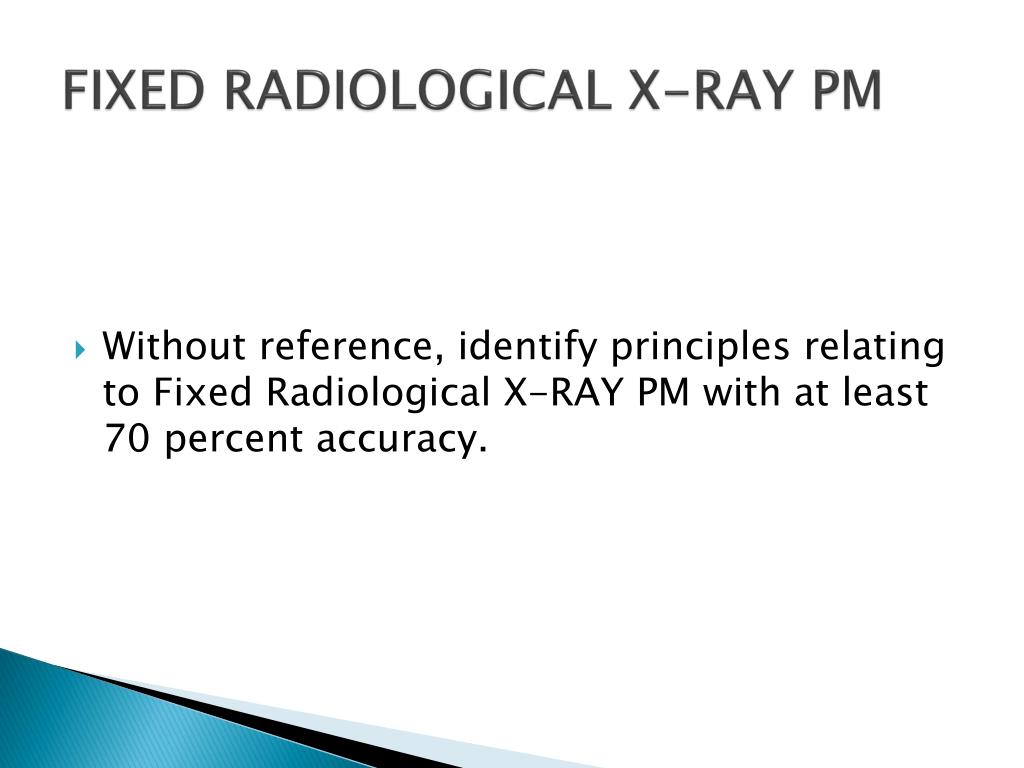

FIXED RADIOLOGICAL X-RAY PM
  • Without reference, identify principles relating to Fixed Radiological X-RAY PM with at least 70 percent accuracy.
fixed radiological x ray pm1
FIXED RADIOLOGICAL X-RAY PM
  • Introduction
    • Preventive maintenance consists of procedures that minimize equipment failures
    • A conscientiously conducted visual inspection frequently reveals potential malfunctions before they cause equipment failure
    • Preventive maintenance is most effective when it is performed according to a schedule
  • Generator Maintenance
    • Semi-annual inspection
      • Conduct a thorough visual and hands-on inspection of the generator and accessories
      • Inspect unit for damage, excessive rust to critical parts, bearing tracks and races etc. and excessively worn components
      • Inspect
      • All electrical cables
        • Cords
        • Connectors
        • And fittings for tightness
fixed radiological x ray pm2
FIXED RADIOLOGICAL X-RAY PM
    • Check for breaks in insulation, abrasions and other damage to cables and connectors
    • Thoroughly inspect all high voltage cables and their connections to the x-ray tubes and high voltage transformer
    • Ensure all connections are firmly seated and that there are no signs of arcing
    • Examine the high voltage transformer for indications of oil leakage
    • Examine all exterior painted surfaces for corrosion and ensure all name plates and warning labels are present, legible and securely mounted
    • Test all front panel controls and meters for proper operation and replace any burnt out lamps
  • Annual Inspection
    • Perform the semi-annual Inspection and ensure that the main circuit breaker is turned off
    • Disconnect the high voltage cables from the high voltage transformer and x-ray tubes
    • Clean the terminals and repack the x-ray tube ends with dielectric silicone grease
    • Repack the transformer ends with dielectric oil until it spills over
    • Check the oil level in the high voltage transformer and add dielectric oil to within 1 inch of the top cover (if necessary)
fixed radiological x ray pm3
FIXED RADIOLOGICAL X-RAY PM
  • Table Maintenance (Semi-Annual)
    • Check all nuts and bolts, screws, rivets and other fasteners for tightness, tighten and replace as necessary
    • Inspect all electrical cables, cords, connectors and fittings for tightness
    • Check for breaks in the insulation, abrasions and other damage to cables and connectors
    • Examine all exterior painted or plated surfaces for evidence of deterioration, chipping and corrosion
    • Ensure all name plates and warning labels are present, legible and securely mounted
    • Counterweight cables should be inspected no less than every six months
      • Cable failures can cause serious injuries to patients and operators
      • Worn or damaged cables cannot be repaired
      • Inspect cables for evidence of rust or corrosion
      • Examine both ends of cables for evidence of kinking
      • Inspect for broken strands by running a soft cloth or towel along the entire length of both cables including attachment points.
fixed radiological x ray pm4
FIXED RADIOLOGICAL X-RAY PM
  • Broken Strands are Evident if the Cloth Snags at Any Location Along the Cable
    • Cables must be immediately replaced if there is any evidence of broken or frayed strands, kinks, corrosion or weakness in any mechanical fitting
    • If the table has motion capabilities an operational check out should be performed IAW manufacturer's literature
    • All raceways and bearings should be lubricated every six months using a light grade of machine oil such as WD-40
fixed radiological x ray pm5
FIXED RADIOLOGICAL X-RAY PM
  • Tubestand Maintenance (Semi-Annual)
    • Perform a general inspection of entire assembly noting any worn or damaged parts
    • The exterior of the tubestand should be wiped down with a mild soapy solution and clean, dry cloths to get rid of dust and foreign materials
    • Check all hardware for adequate tightness and adjust or replace as necessary
    • Power should be applied to the tubestand and each function should be checked IAW manufacturer's literature
      • All travel features should be checked for smooth operation and proper movement
      • All locking and/or braking mechanisms should be checked for proper operation
    • Inspect all pulleys and repack with lubricant
    • All bearings and bearing raceways should be inspected and lubricated using a light grade of machine oil such as WD-40
    • Inspect all cables for fraying, corrosion and excessive wear, replace as necessary
fixed radiological x ray pm7
FIXED RADIOLOGICAL X-RAY PM
  • First X-Ray Taken
  • First X-Ray Machine
