Masonry

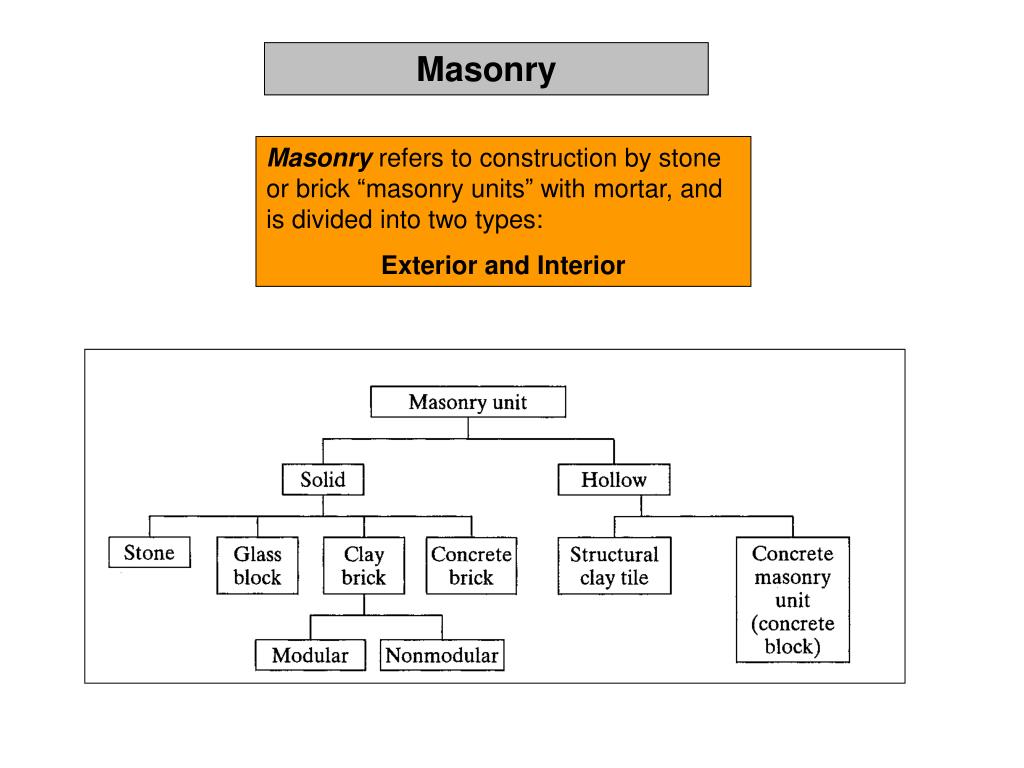

1. Masonry Masonry refers to construction by stone or brick “masonry units” with mortar, and is divided into two types: Exterior and Interior

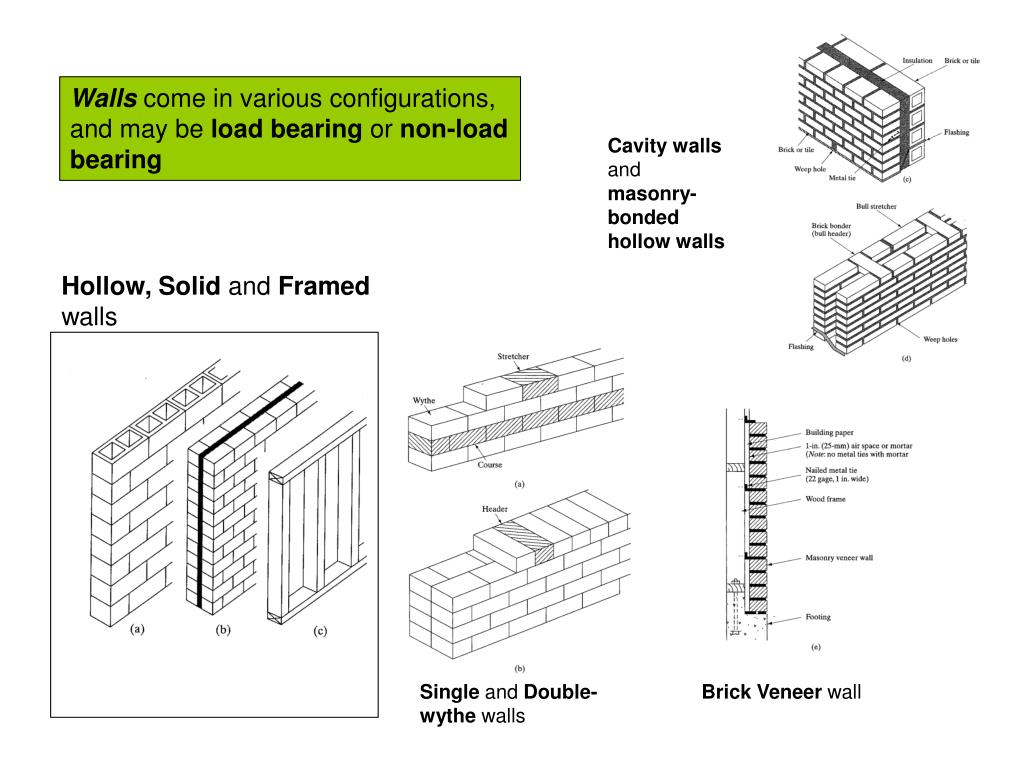

2. Walls come in various configurations, and may be load bearing or non-load bearing Cavity walls and masonry-bonded hollow walls Hollow, Solid and Framed walls Single and Double-wythe walls Brick Veneerwall

3. A hollow masonry unit is defined as having a net cross-sectional area in every plane, parallel to the bearing surface, less than 75 percent of the gross cross-sectional area in the same plane

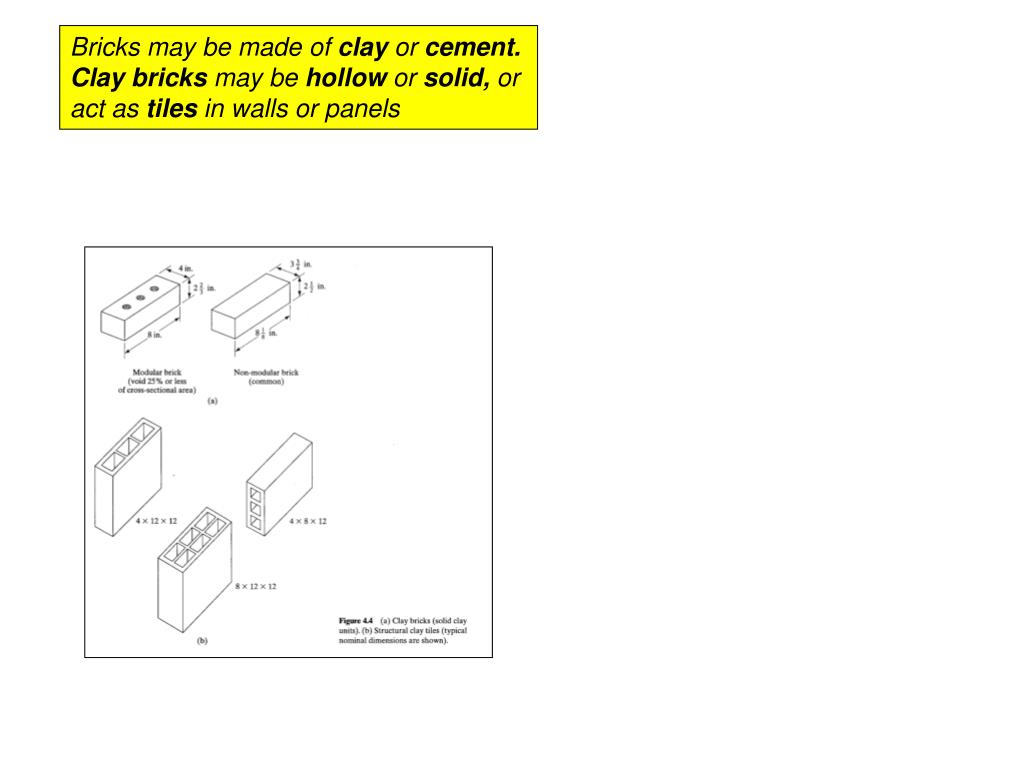

4. Bricks may be made of clay or cement. Clay bricks may be hollow or solid, or act as tiles in walls or panels

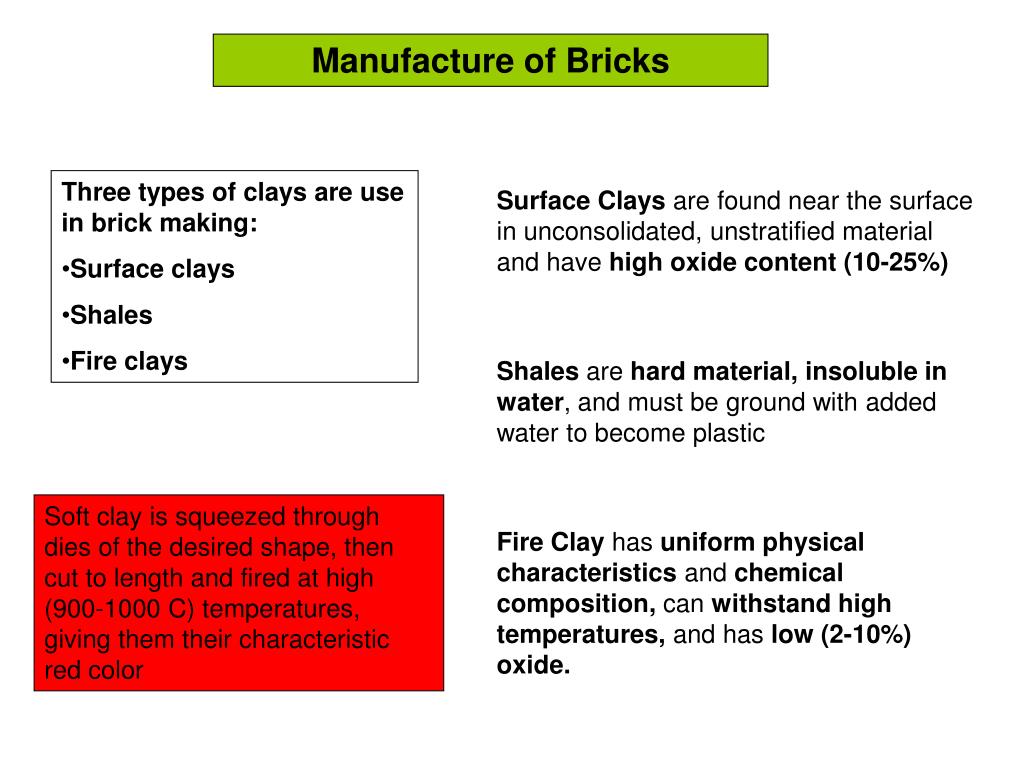

5. Manufacture of Bricks • Three types of clays are use in brick making: • Surface clays • Shales • Fire clays Surface Clays are found near the surface in unconsolidated, unstratified material and have high oxide content (10-25%) Shales are hard material, insoluble in water, and must be ground with added water to become plastic Soft clay is squeezed through dies of the desired shape, then cut to length and fired at high (900-1000 C) temperatures, giving them their characteristic red color Fire Clay has uniform physical characteristics and chemical composition, can withstand high temperatures, and has low (2-10%) oxide.

6. Bricks are formed in three different ways: • Stiff-mud process • Soft-mud process • Dry press process The moist bricks are dried at temperatures of 110-300 F for 24-48 hrs. After drying, they are baked in kilns at temperatures up to 2400 F for 40-150 hours. After firing, bricks go through a cooling cycle lasting up to 72 hours In the stiff-mud process, a continuous band of clay is forced through a die and cut into bricks The soft-mud process is best for clays containing too much water; ground clay is hydraulically pressed into a mold The dry press process is best for clays having little plasticity

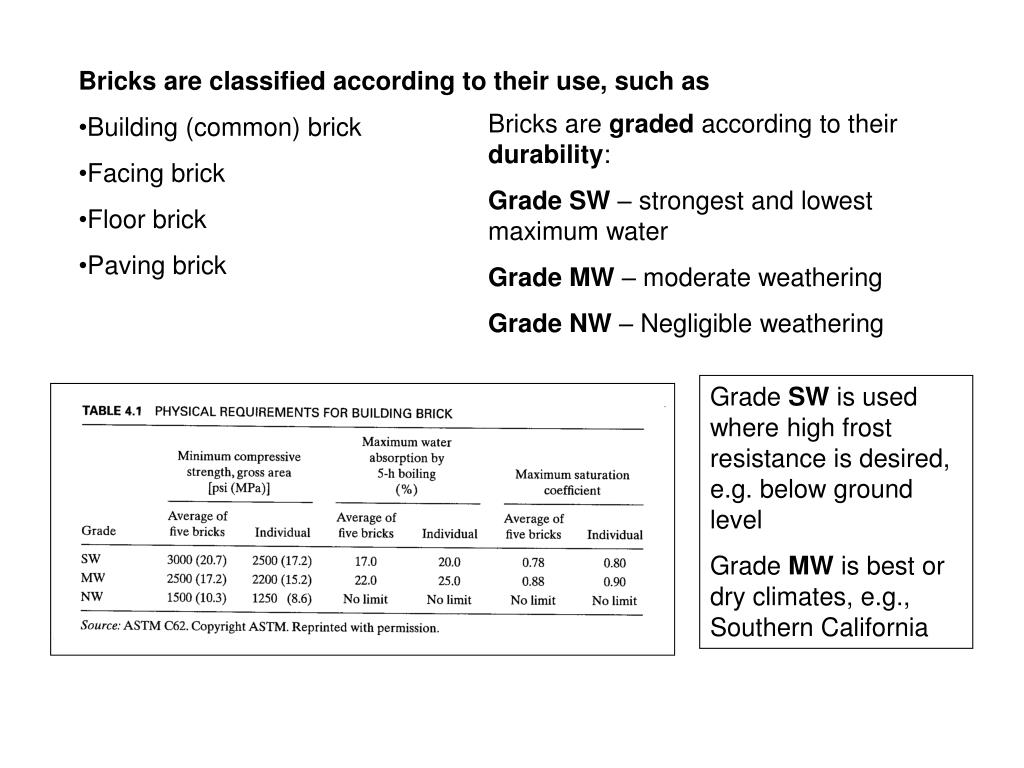

7. Bricks are classified according to their use, such as • Building (common) brick • Facing brick • Floor brick • Paving brick Bricks are graded according to their durability: Grade SW – strongest and lowest maximum water Grade MW – moderate weathering Grade NW – Negligible weathering Grade SW is used where high frost resistance is desired, e.g. below ground level Grade MW is best or dry climates, e.g., Southern California

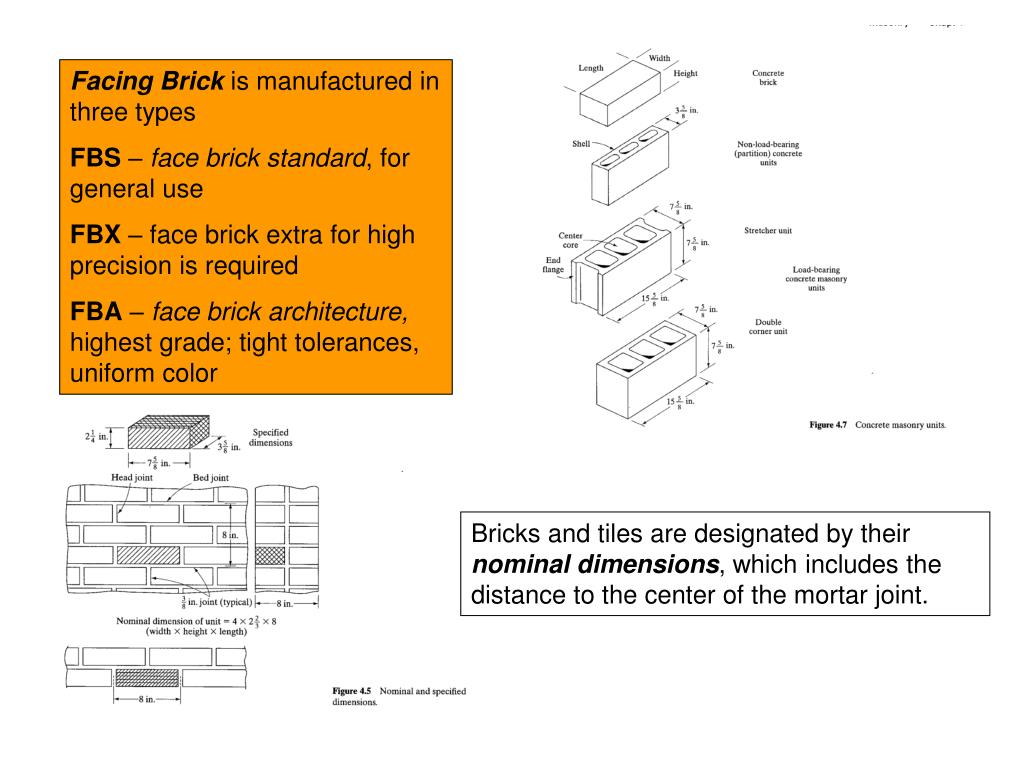

8. Facing Brick is manufactured in three types FBS – face brick standard, for general use FBX – face brick extra for high precision is required FBA – face brick architecture, highest grade; tight tolerances, uniform color Bricks and tiles are designated by their nominal dimensions, which includes the distance to the center of the mortar joint.

9. Mechanical testing of Masonry Units • Important Mechanical Properties of Brick: • Compressive Strength • Modulus of Rupture • Modulus of Elasticity • Absorption • Thermal Conductivity • Fire Resistance • Important Physical Properties of Brick: • Color • Texture • Size • Density

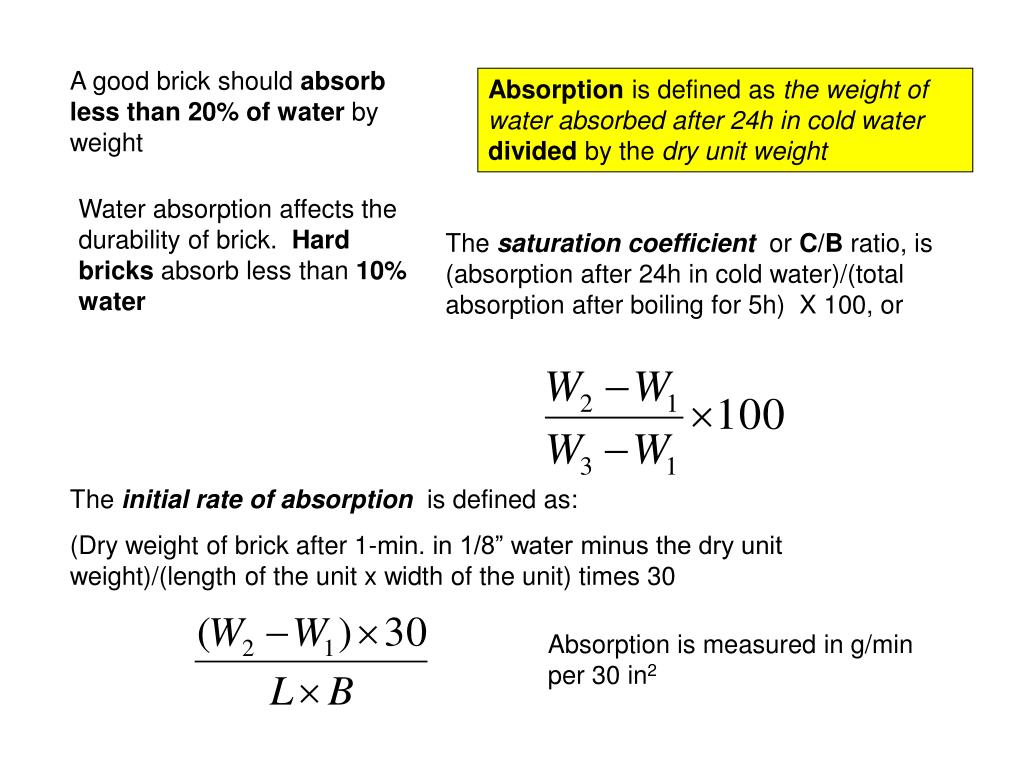

10. A good brick should absorb less than 20% of water by weight Absorption is defined as the weight of water absorbed after 24h in cold waterdivided by the dry unit weight Water absorption affects the durability of brick. Hard bricks absorb less than 10% water The saturation coefficient or C/B ratio, is (absorption after 24h in cold water)/(total absorption after boiling for 5h) X 100, or The initial rate of absorption is defined as: (Dry weight of brick after 1-min. in 1/8” water minus the dry unit weight)/(length of the unit x width of the unit) times 30 Absorption is measured in g/min per 30 in2

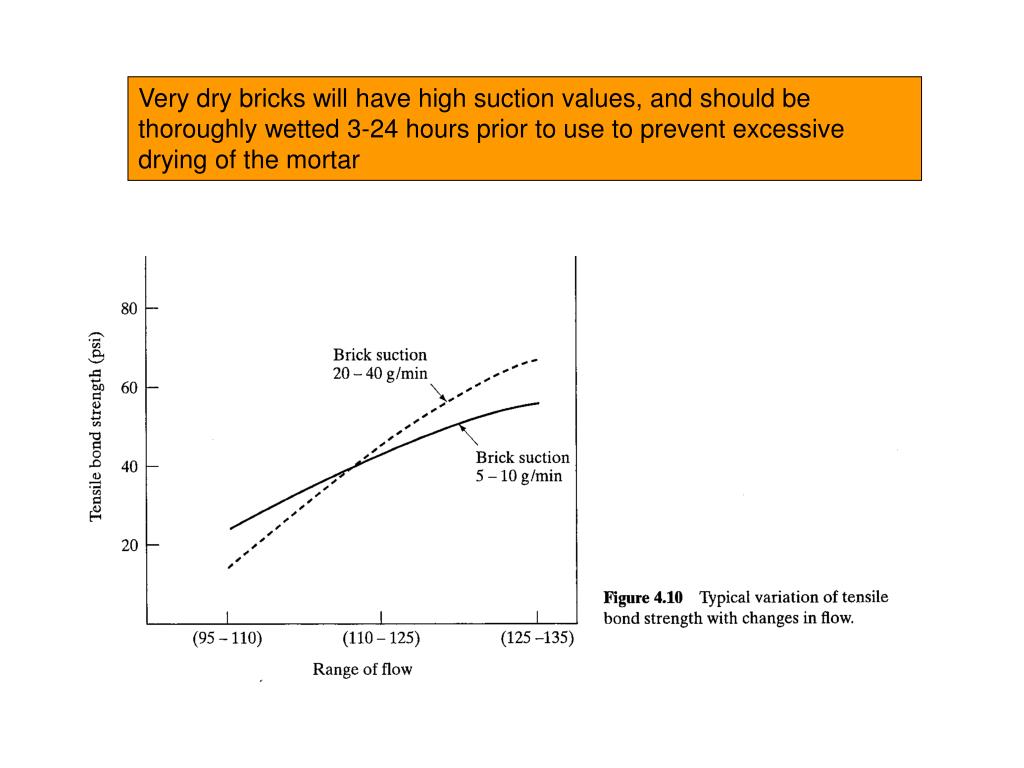

11. Very dry bricks will have high suction values, and should be thoroughly wetted 3-24 hours prior to use to prevent excessive drying of the mortar

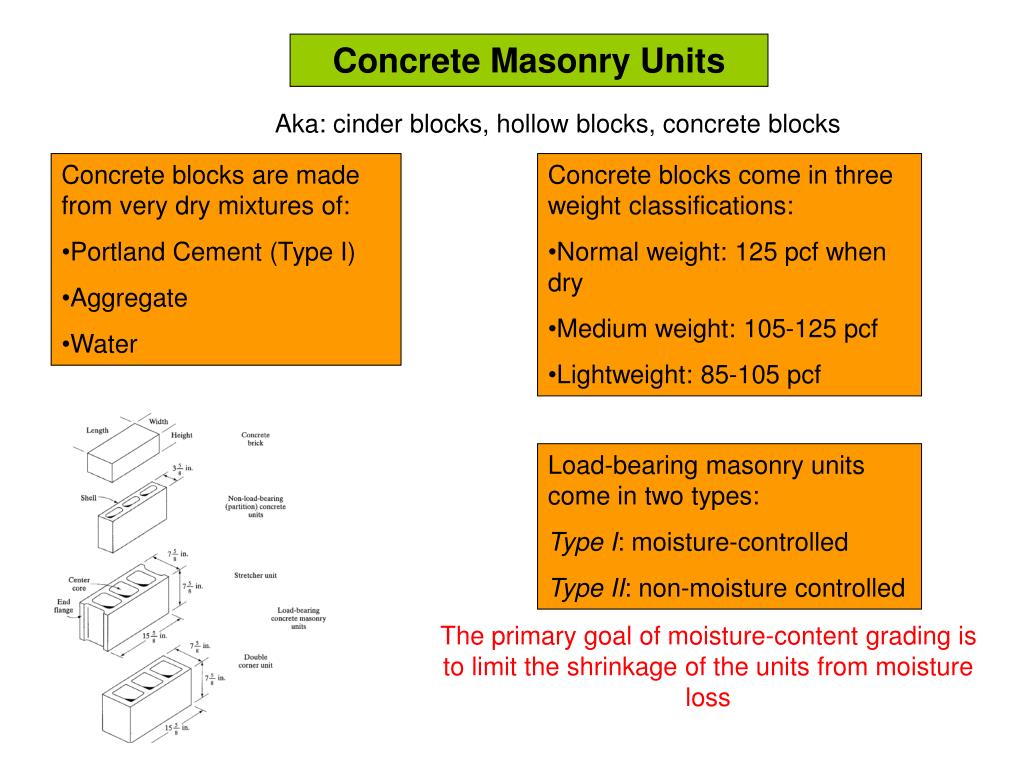

12. Concrete Masonry Units Aka: cinder blocks, hollow blocks, concrete blocks • Concrete blocks are made from very dry mixtures of: • Portland Cement (Type I) • Aggregate • Water • Concrete blocks come in three weight classifications: • Normal weight: 125 pcf when dry • Medium weight: 105-125 pcf • Lightweight: 85-105 pcf Load-bearing masonry units come in two types: Type I: moisture-controlled Type II: non-moisture controlled The primary goal of moisture-content grading is to limit the shrinkage of the units from moisture loss

13. Water Absorption and Shrinkage • Water absorption of a unit is frequently taken as a measure of its durability. • Total absorption is measured following a 24 hour period of immersion. • Linear shrinkage is the change in length of a unit from a wet to a dry condition, and is limited to 0.065%. • The amount of shrinkage depends on the moisture content in the units and the humidity. The greater the moisture content, the higher the shrinkage when drying. Since shrinkage increases with moisture content, blocks should not be wet prior to placement.

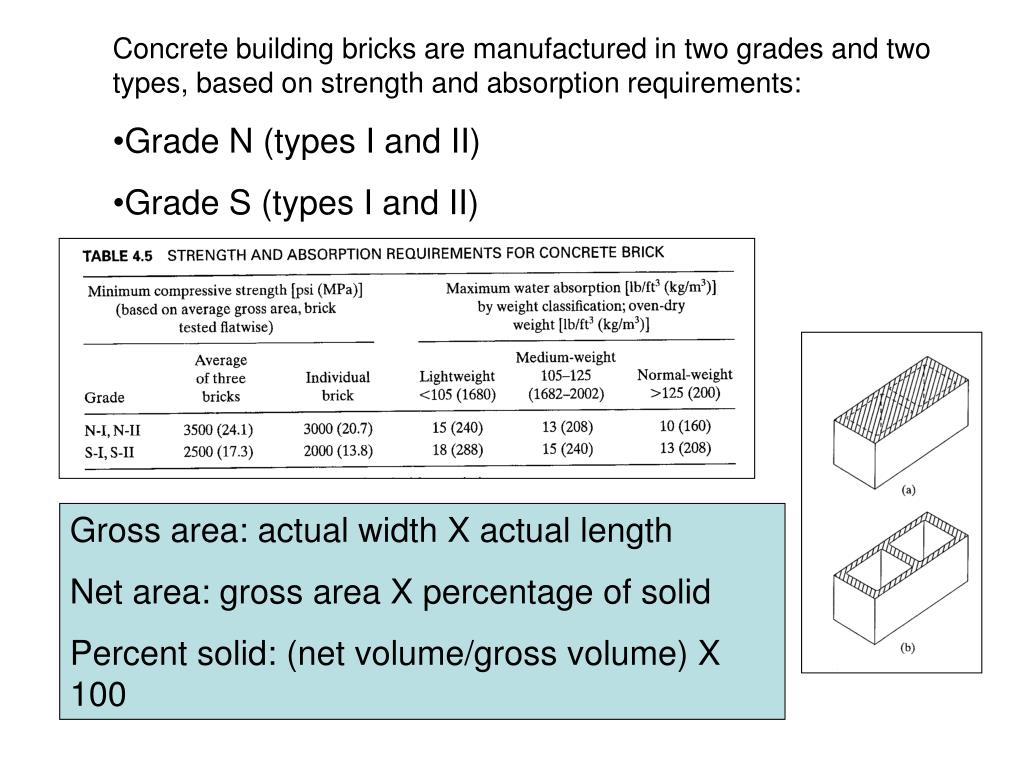

15. Concrete building bricks are manufactured in two grades and two types, based on strength and absorption requirements: • Grade N (types I and II) • Grade S (types I and II) Gross area: actual width X actual length Net area: gross area X percentage of solid Percent solid: (net volume/gross volume) X 100

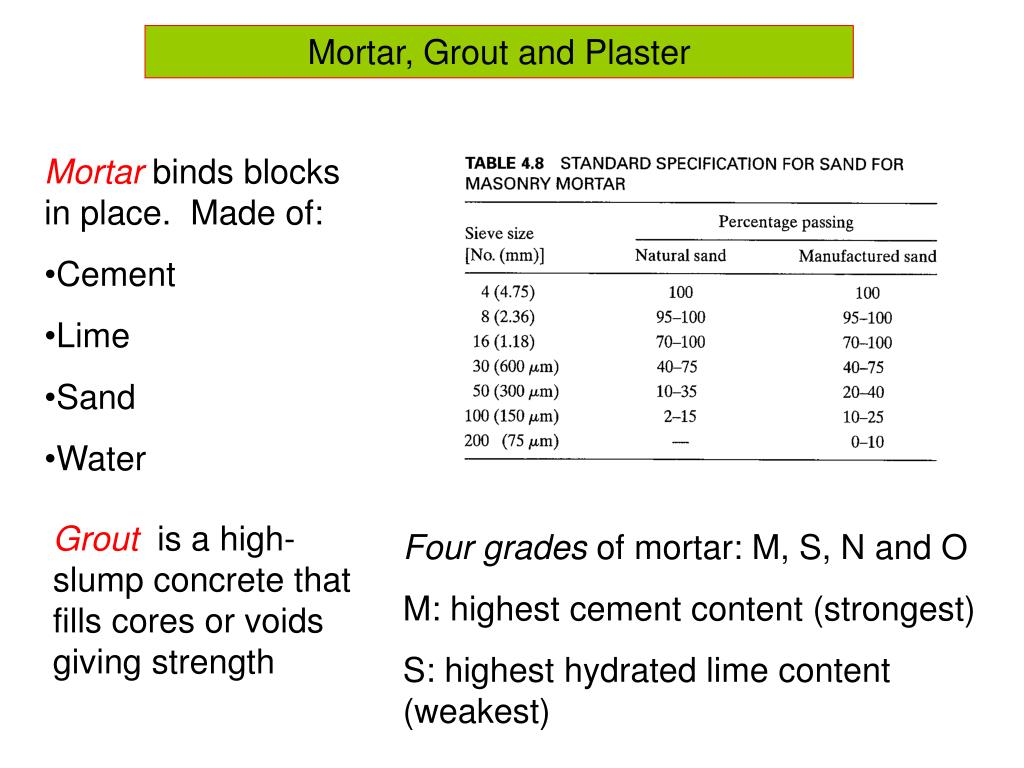

16. Mortar, Grout and Plaster • Mortar binds blocks in place. Made of: • Cement • Lime • Sand • Water Grout is a high-slump concrete that fills cores or voids giving strength Four grades of mortar: M, S, N and O M: highest cement content (strongest) S: highest hydrated lime content (weakest)

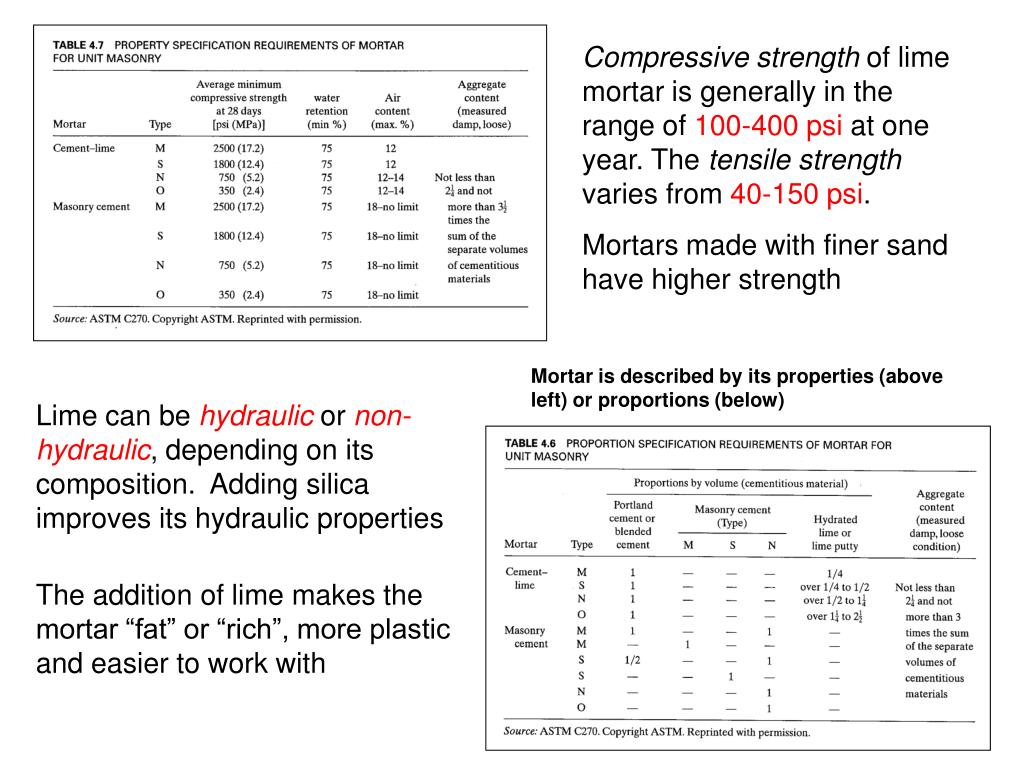

17. Compressive strength of lime mortar is generally in the range of 100-400 psi at one year. The tensile strength varies from 40-150 psi. Mortars made with finer sand have higher strength Mortar is described by its properties (above left) or proportions (below) Lime can be hydraulic or non-hydraulic, depending on its composition. Adding silica improves its hydraulic properties The addition of lime makes the mortar “fat” or “rich”, more plastic and easier to work with

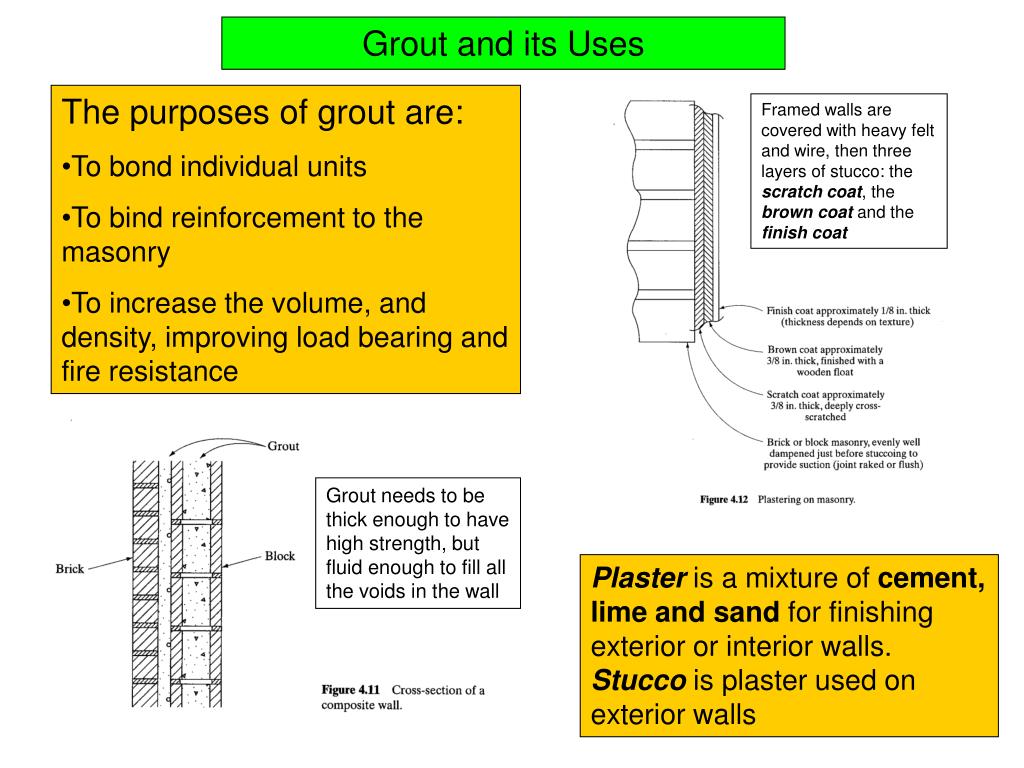

18. Grout and its Uses • The purposes of grout are: • To bond individual units • To bind reinforcement to the masonry • To increase the volume, and density, improving load bearing and fire resistance Framed walls are covered with heavy felt and wire, then three layers of stucco: the scratch coat, the brown coat and the finish coat Grout needs to be thick enough to have high strength, but fluid enough to fill all the voids in the wall Plaster is a mixture of cement, lime and sand for finishing exterior or interior walls. Stuccois plaster used on exterior walls

19. Properties of Masonry • Important properties of masonry are: • Density • Compressive strength • Flexural strength • Modulus of elasticity • Durability • Thermal conductivity • Compressive strength depends on: • The strength of the units • The mortar mix proportions • Grouting • Workmanship • Type of bond Compressive strength of walls can be predicted from the strengths of the masonry prisms (right), two or more units bonded with mortar with or without grout. Strength decreases with increasing height.

20. Compressive strength of masonry walls based on unit strength and type of mortar

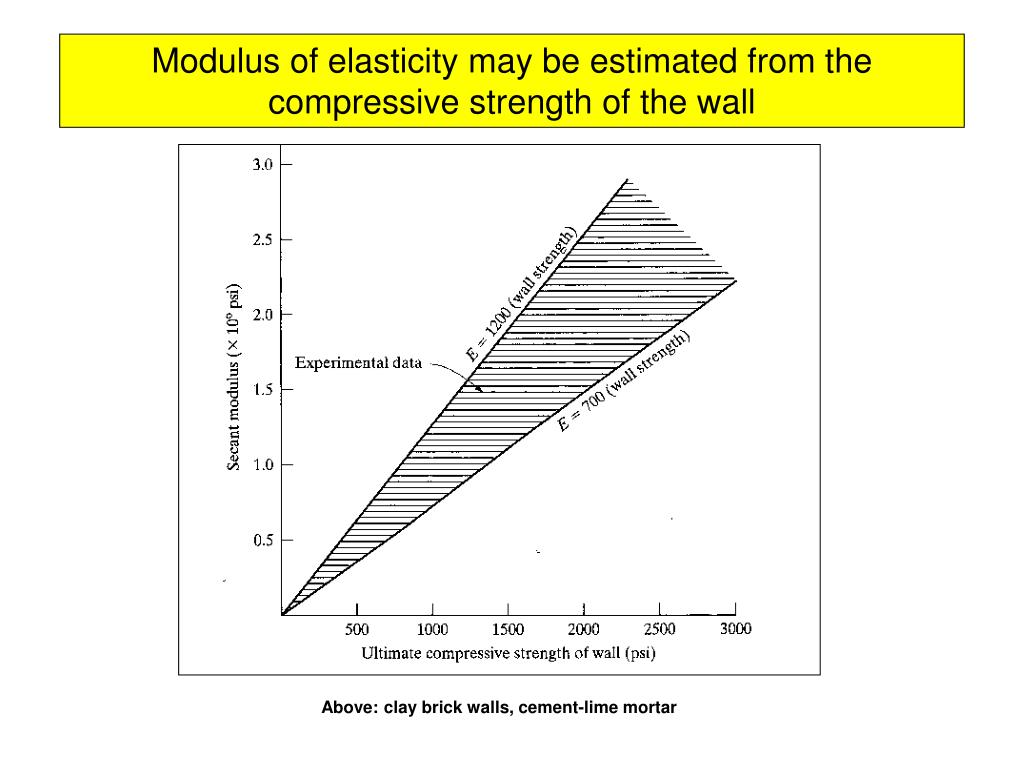

21. Modulus of elasticity may be estimated from the compressive strength of the wall Above: clay brick walls, cement-lime mortar

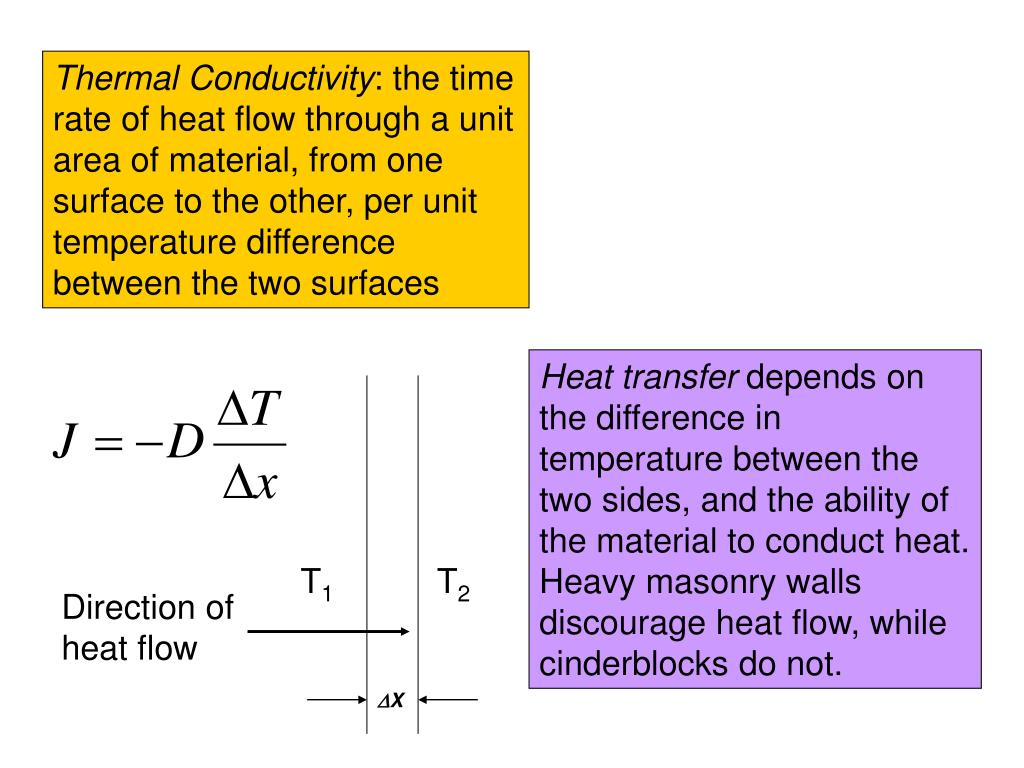

22. Thermal Conductivity: the time rate of heat flow through a unit area of material, from one surface to the other, per unit temperature difference between the two surfaces Heat transfer depends on the difference in temperature between the two sides, and the ability of the material to conduct heat. Heavy masonry walls discourage heat flow, while cinderblocks do not. T1 T2 Direction of heat flow DX

23. Reinforced Masonry

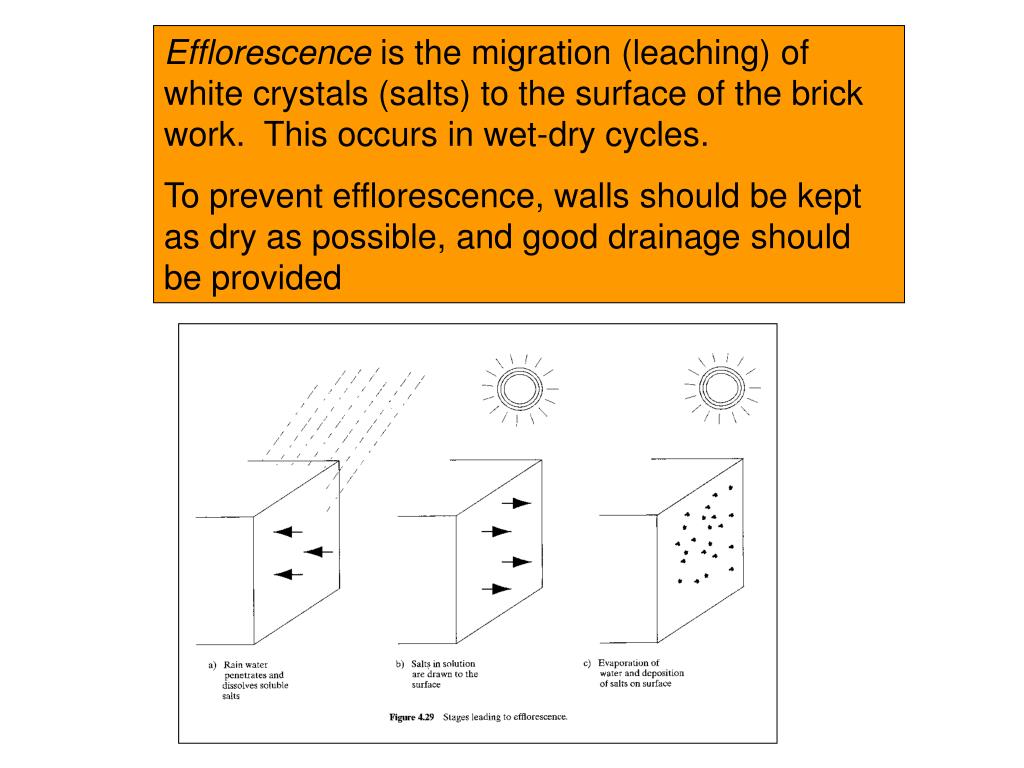

24. Efflorescence is the migration (leaching) of white crystals (salts) to the surface of the brick work. This occurs in wet-dry cycles. To prevent efflorescence, walls should be kept as dry as possible, and good drainage should be provided

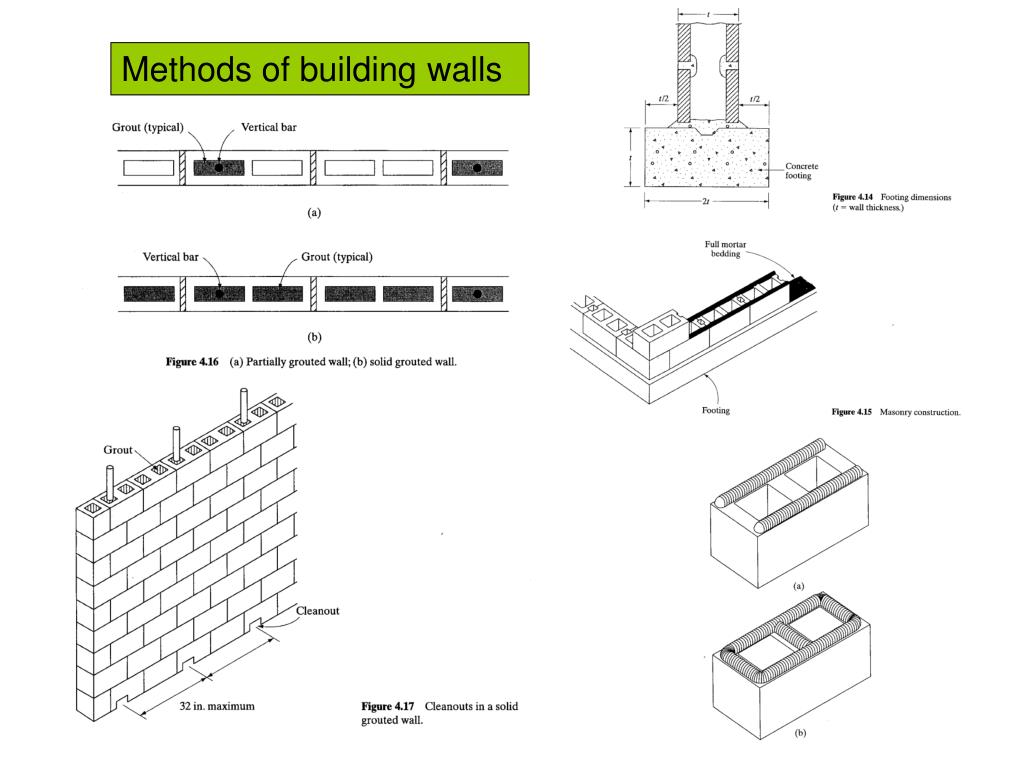

25. Methods of building walls

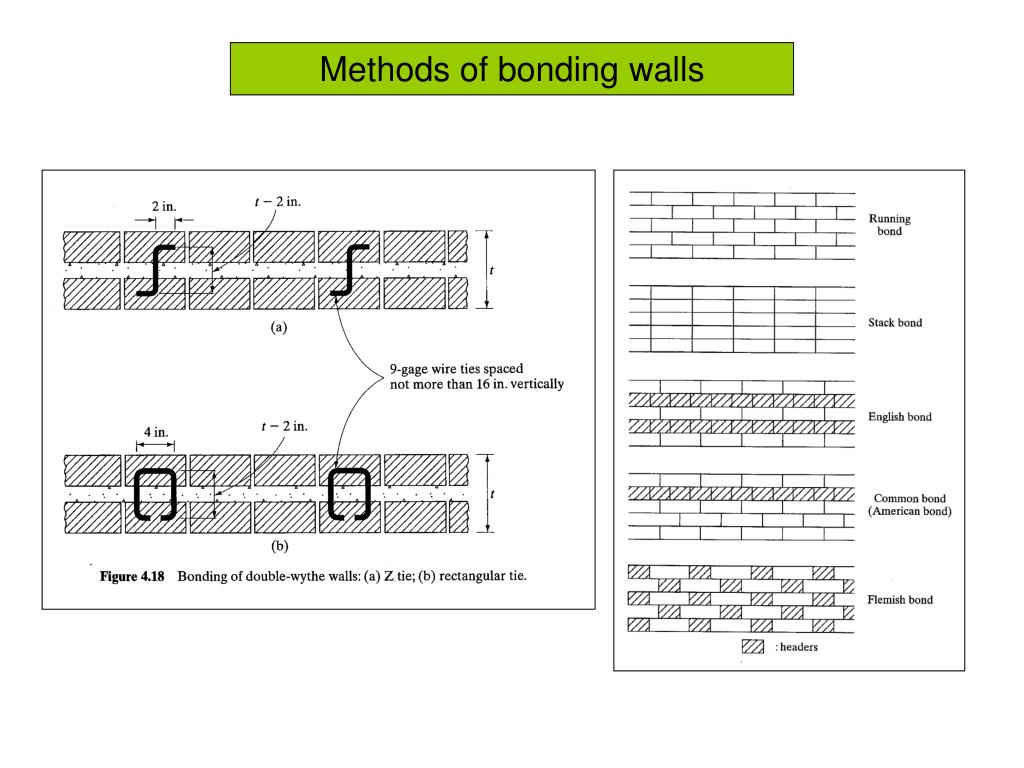

26. Methods of bonding walls

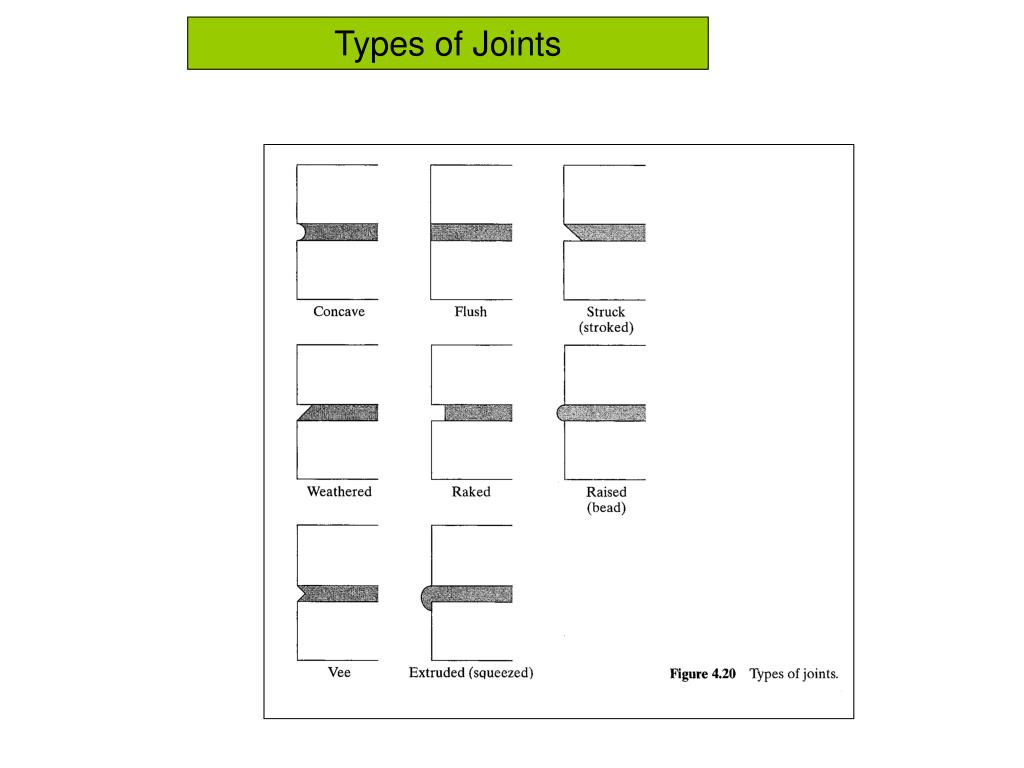

27. Types of Joints
