  1. Magazine文章心得 學號:643430007 姓名:蘇彥文

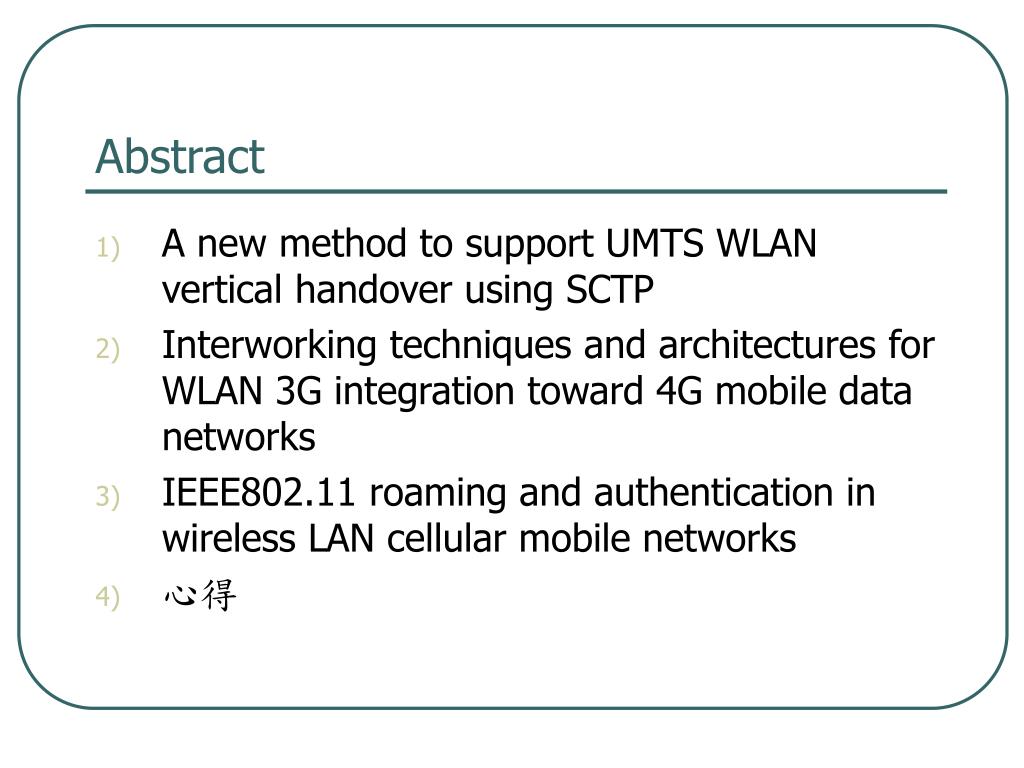

  2. Abstract • A new method to support UMTS WLAN vertical handover using SCTP • Interworking techniques and architectures for WLAN 3G integration toward 4G mobile data networks • IEEE802.11 roaming and authentication in wireless LAN cellular mobile networks • 心得

  3. Magazine 1 • A new method to support UMTS WLAN vertical handover using SCTP

  4. Note Abstract • UMTS networks and WLANs • Third-generation cellular networks • UMTS/WLAN vertical handover problem • Overview of Mobile SCTP • VERTICAL HANDOVER PROCEDURES

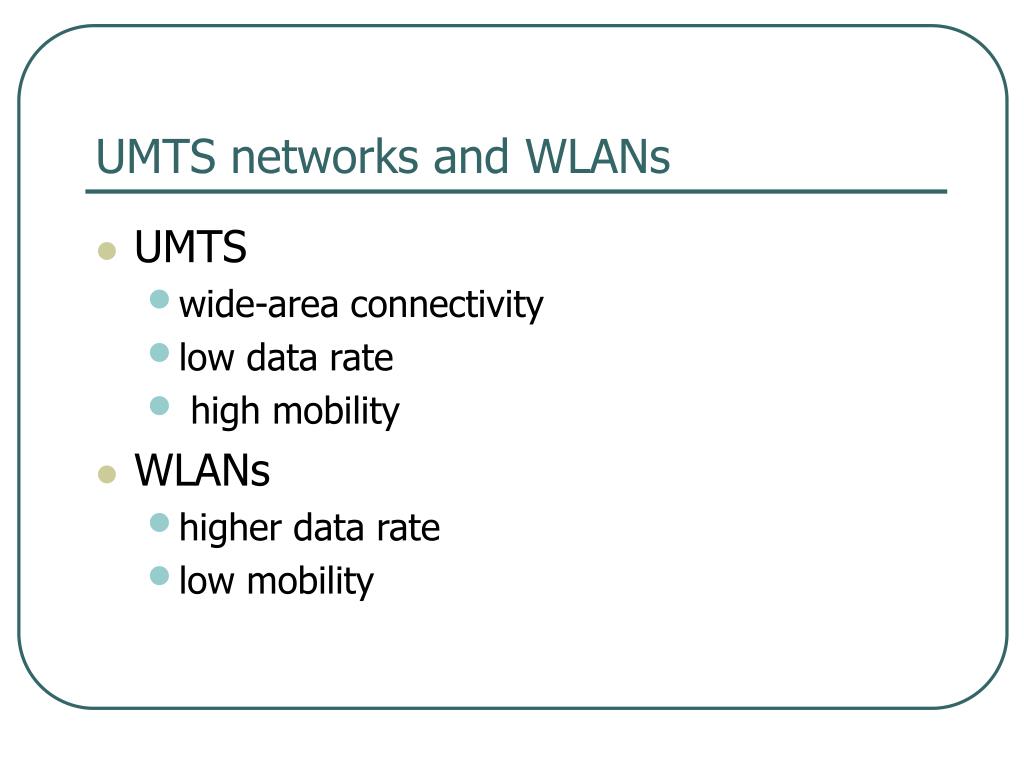

  5. UMTS networks and WLANs • UMTS • wide-area connectivity • low data rate • high mobility • WLANs • higher data rate • low mobility

  6. Third-generation cellular networks • Both UMTS and WLANs • WLAN offer higher bandwidth • Mobile users accessing the Internet via UMTS/WLAN are free to move • Handover between UMTS and WLANs • MIP from IETF • provides transparent support for host mobility • routing architecture of mobile host • Difficult to maintain the continuity between UMTS and WLAN • Point of this article

  7. UMTS/WLAN vertical handover problem • UMTS/WLAN verti­cal handover support via two types of SCTP • single-homing asymmetric config­uration • dual-homing symmetric configu­ration • Inte­grated UMTS/WLAN network architecture • tightly coupled solutions :connect UMTS and WLAN • loose coupling solutions :separate out UMTS and WLAN • loose coupling offers several advantages over tight coupling

  8. Overview of Mobile SCTP (1) • Originally for VoIP of 3GPP • Reliability • Multi-homing • established over multiple interfaces identified by multiple IP addresses • An SCTP association between two hosts, say, A and B, is defined as • {[a set of IP addresses at A] + [Port-A]} + {[a set of IP addresses at B] + [Port-B]}.

  9. Overview of Mobile SCTP (2) • base version of SCTP cannot be used directly to support UMTS/ WLAN vertical handover • Fortunately, the recently proposed DAR extension for SCTP enables the endpoints to add, delete, or change the IP addresses during an active SCTP association using address configuration (ASCONF) messages. • basis of mSCTP

  10. Overview of Mobile SCTP (3) • mSCTP • Using for supporting UMTS/WLAN vertical handover • capabilities to add, delete, and change the IP addresses dynamically during an active SCTP association

  11. Overview of Mobile SCTP (4) • mSCTP Protocol architecture

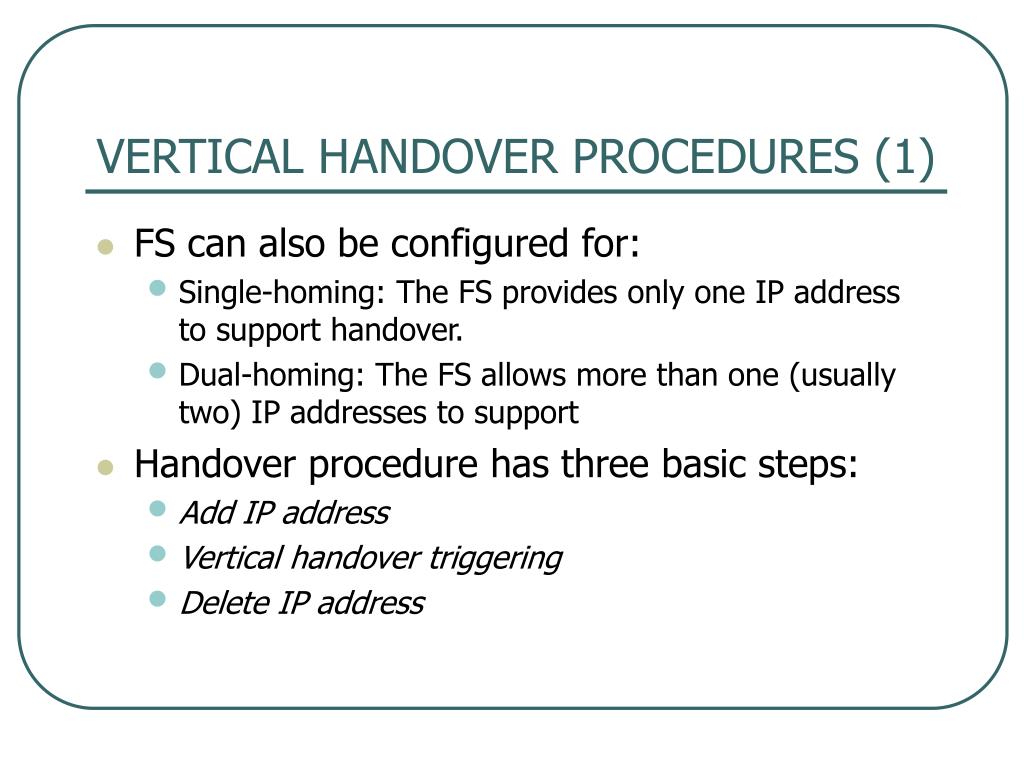

  12. VERTICAL HANDOVER PROCEDURES (1) • FS can also be configured for: • Single-homing: The FS provides only one IP address to support handover. • Dual-homing: The FS allows more than one (usually two) IP addresses to support • Handover procedure has three basic steps: • Add IP address • Vertical handover triggering • Delete IP address

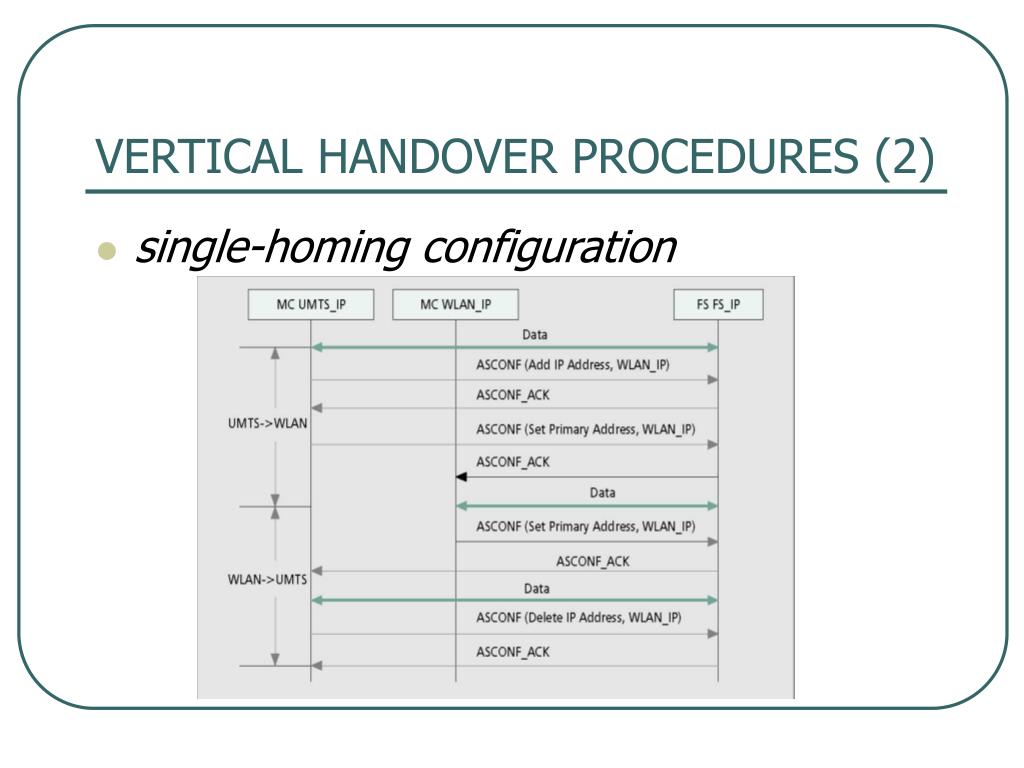

  13. VERTICAL HANDOVER PROCEDURES (2) • single-homing configuration

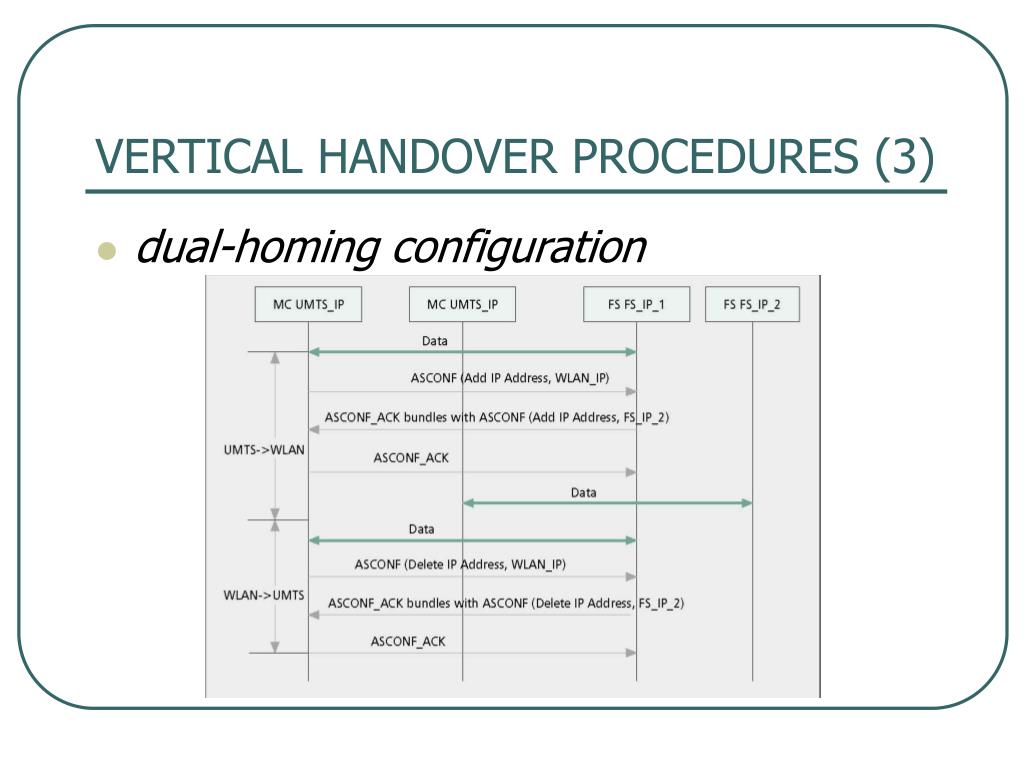

  14. VERTICAL HANDOVER PROCEDURES (3) • dual-homing configuration

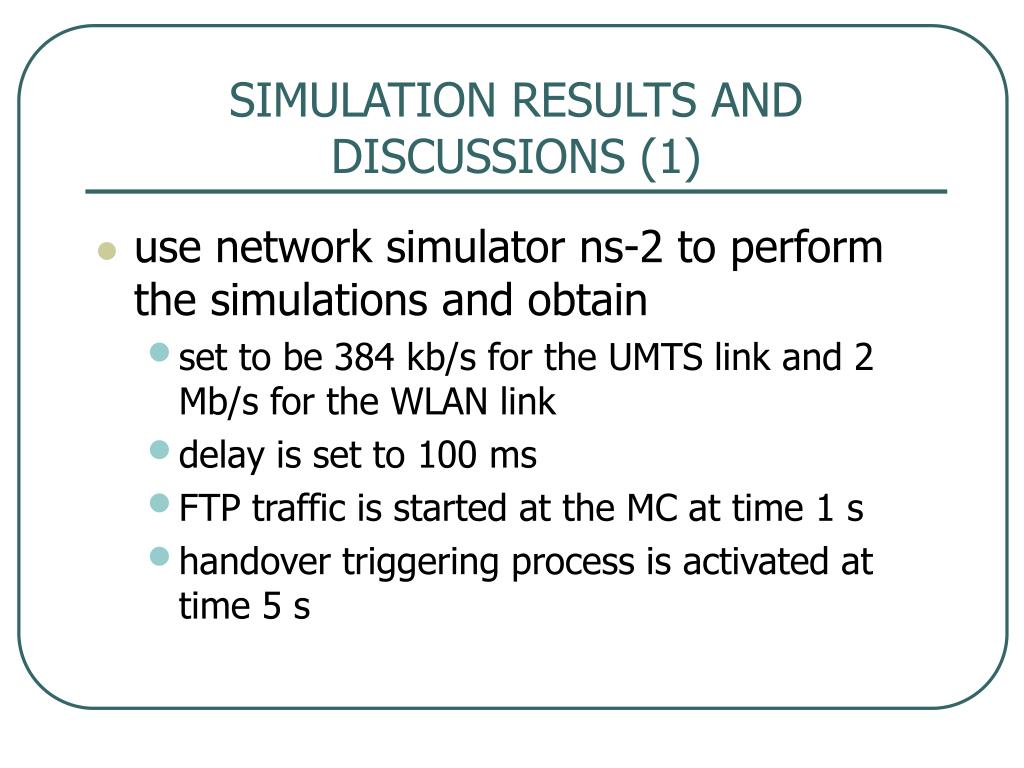

  15. SIMULATION RESULTS AND DISCUSSIONS (1) • use network simulator ns-2 to perform the simulations and obtain • set to be 384 kb/s for the UMTS link and 2 Mb/s for the WLAN link • delay is set to 100 ms • FTP traffic is started at the MC at time 1 s • handover triggering process is acti­vated at time 5 s

  16. SIMULATION RESULTS AND DISCUSSIONS (2) • simulation results • UMTS-to-WLAN handover delay is 533 ms

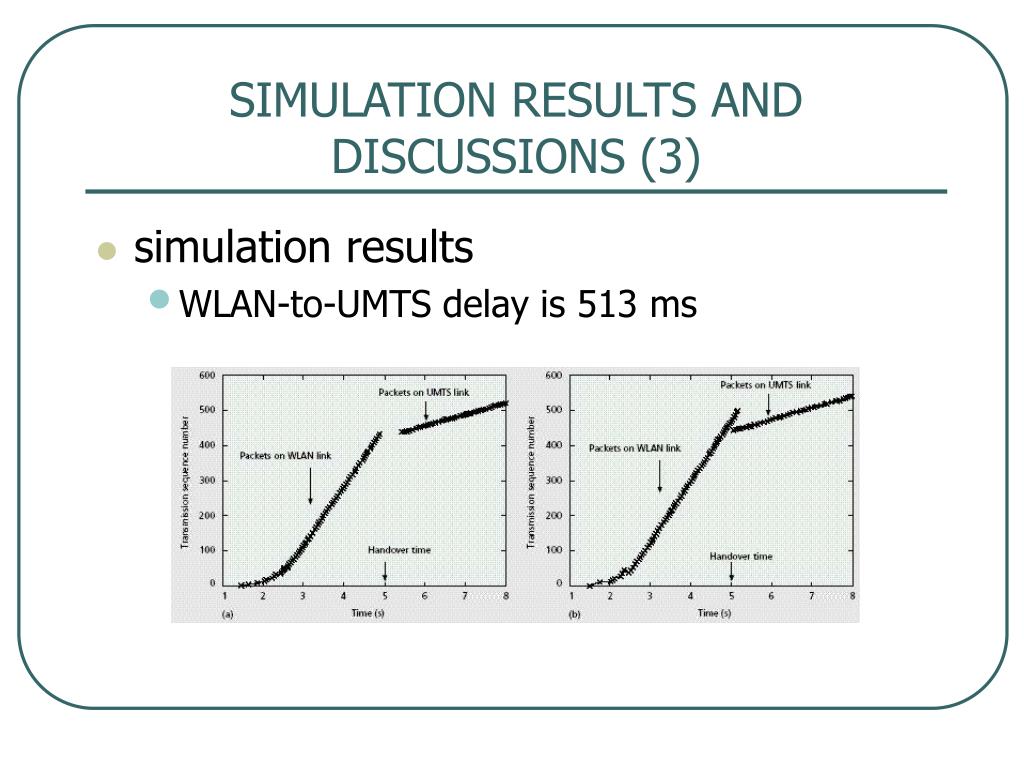

  17. SIMULATION RESULTS AND DISCUSSIONS (3) • simulation results • WLAN-to-UMTS delay is 513 ms

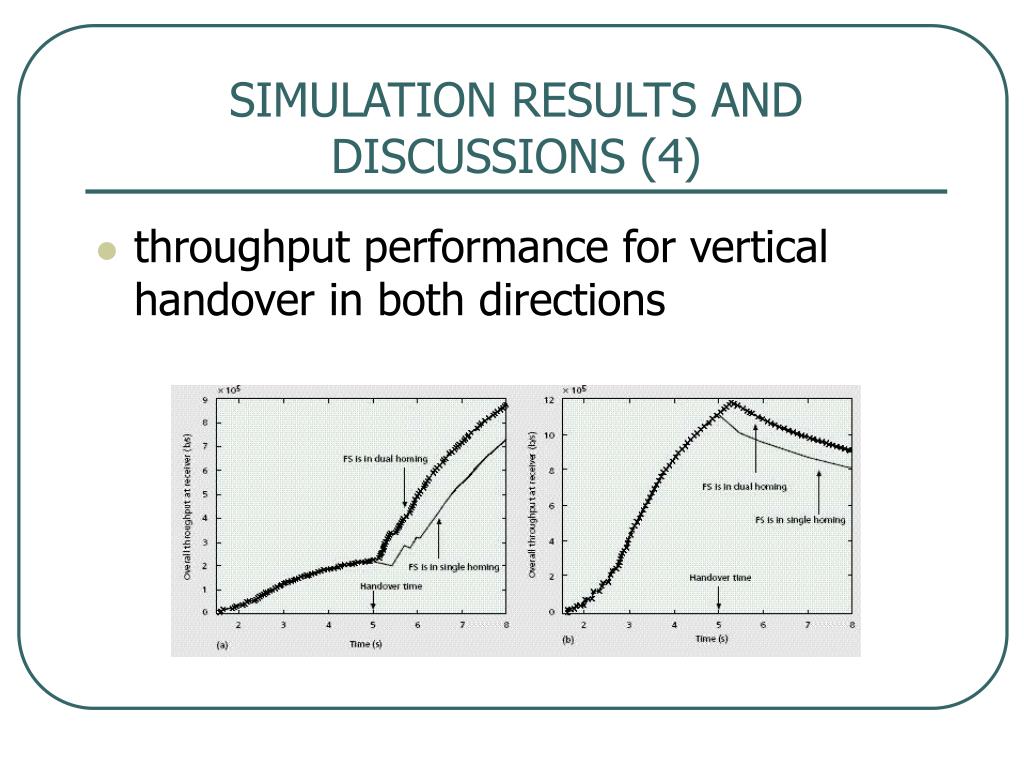

  18. SIMULATION RESULTS AND DISCUSSIONS (4) • throughput performance for vertical handover in both directions

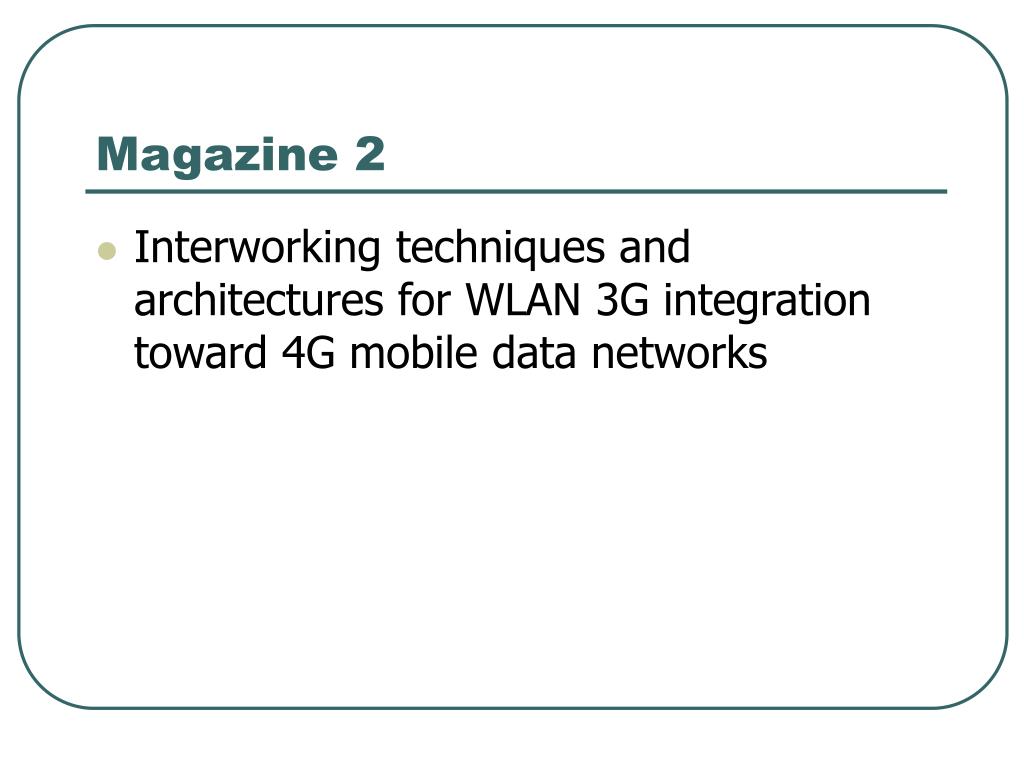

  19. Magazine 2 • Interworking techniques and architectures for WLAN 3G integration toward 4G mobile data networks

  20. Note Abstract • WLAN/3G inter­working function • INTERWORKING MODEL AND REQUIREMENTS • NETWORK SELECTION • INTERWORKING SCENARIOS • 3G-Based Access Control and Charging • REFERENCE POINTS • Access to 3G Packet-Switched Services • REFERENCE POINTS • CONCLUSIONS

  21. WLAN/3G inter­working function • WLAN/3G inter­working techniques and architectures can support • Authentication • Authorization • Accounting • WLAN sharing • Consis­tent service provisioning

  22. INTERWORKING MODEL AND REQUIREMENTS (1) • high-level WLAN/3G interworking model.

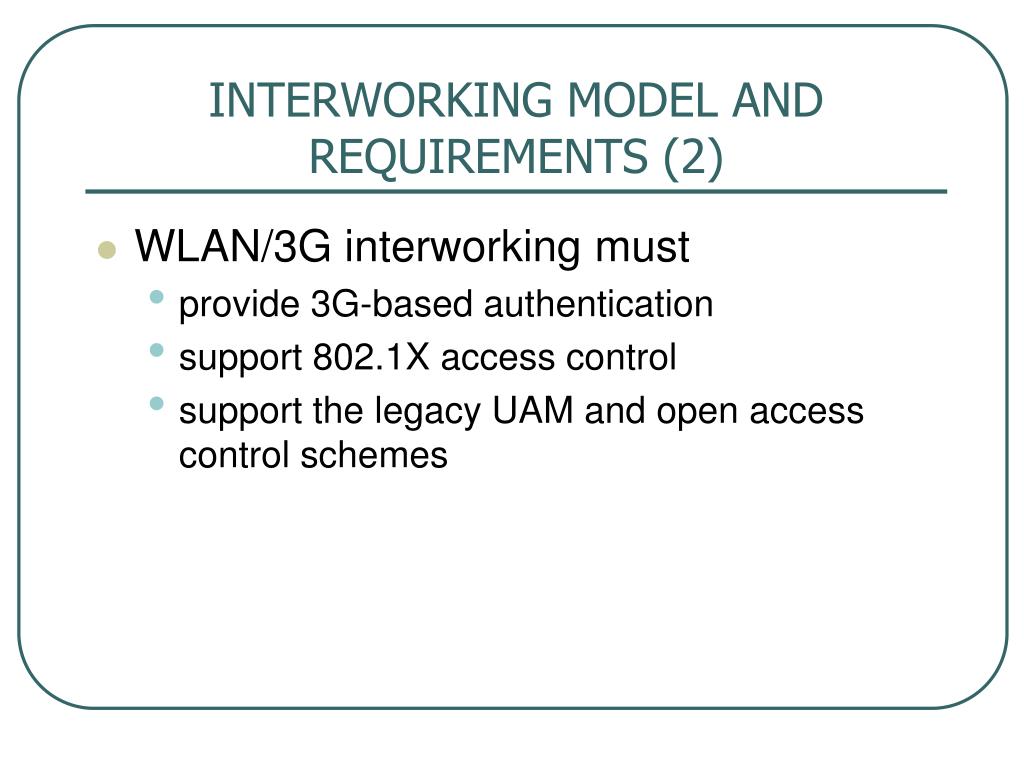

  23. INTERWORKING MODEL AND REQUIREMENTS (2) • WLAN/3G interworking must • provide 3G-based authentication • support 802.1X access control • support the legacy UAM and open access control schemes

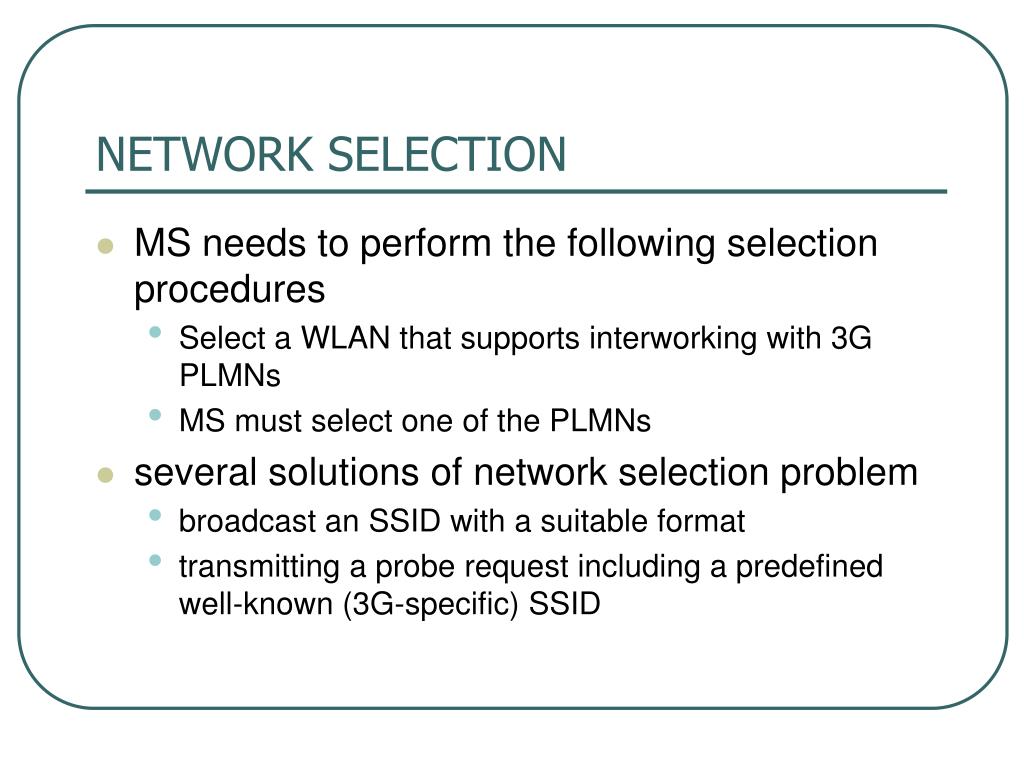

  24. NETWORK SELECTION • MS needs to perform the following selection proce­dures • Select a WLAN that supports interworking with 3G PLMNs • MS must select one of the PLMNs • several solutions of network selection problem • broadcast an SSID with a suitable format • transmitting a probe request including a predefined well-known (3G-specific) SSID

  25. INTERWORKING SCENARIOS (1) • Scenario 1 — Common Billing and Customer Care • Scenario 2 — 3G-Based Access Control and Charging • Scenario 3 — Access to 3G Packet-Switched Services • Scenario 4 — Access to 3G Packet-Switched-Based Ser­vices with Service Continuity • Scenario 5 — Access to 3G Packet-Switched-Based Ser­vices with Seamless Service Continuity • Scenario 6 — Access to 3G Circuit-Switched-Based Ser­vices with Seamless Mobility

  26. INTERWORKING SCENARIOS (1)

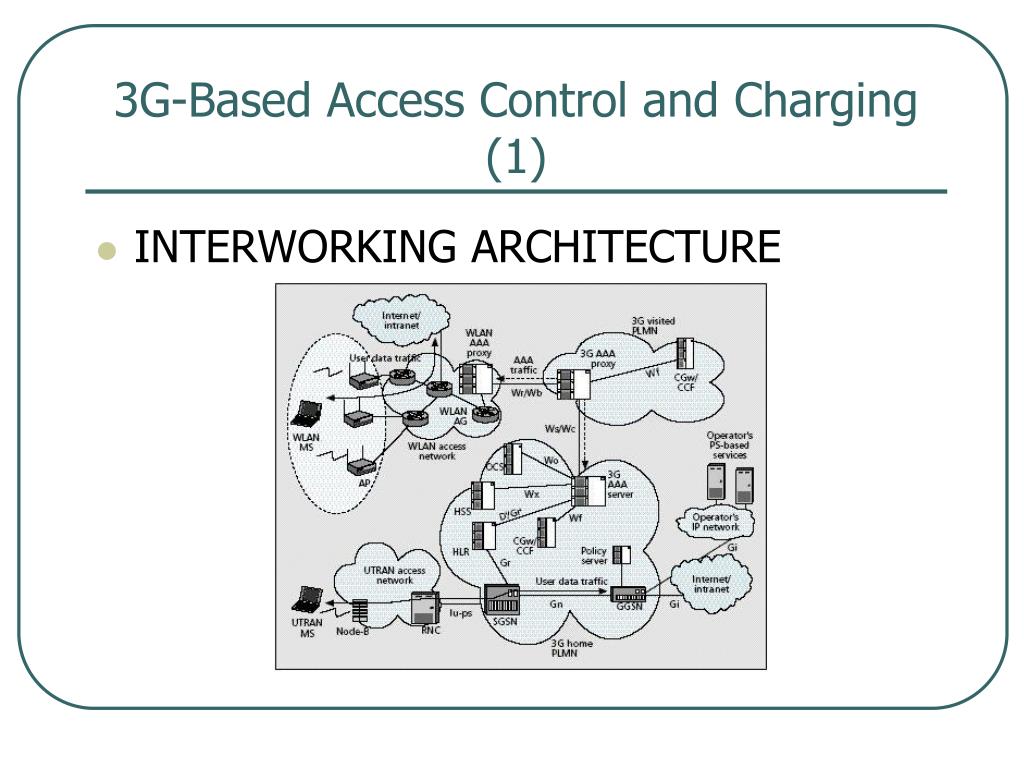

  27. 3G-Based Access Control and Charging (1) • INTERWORKING ARCHITECTURE

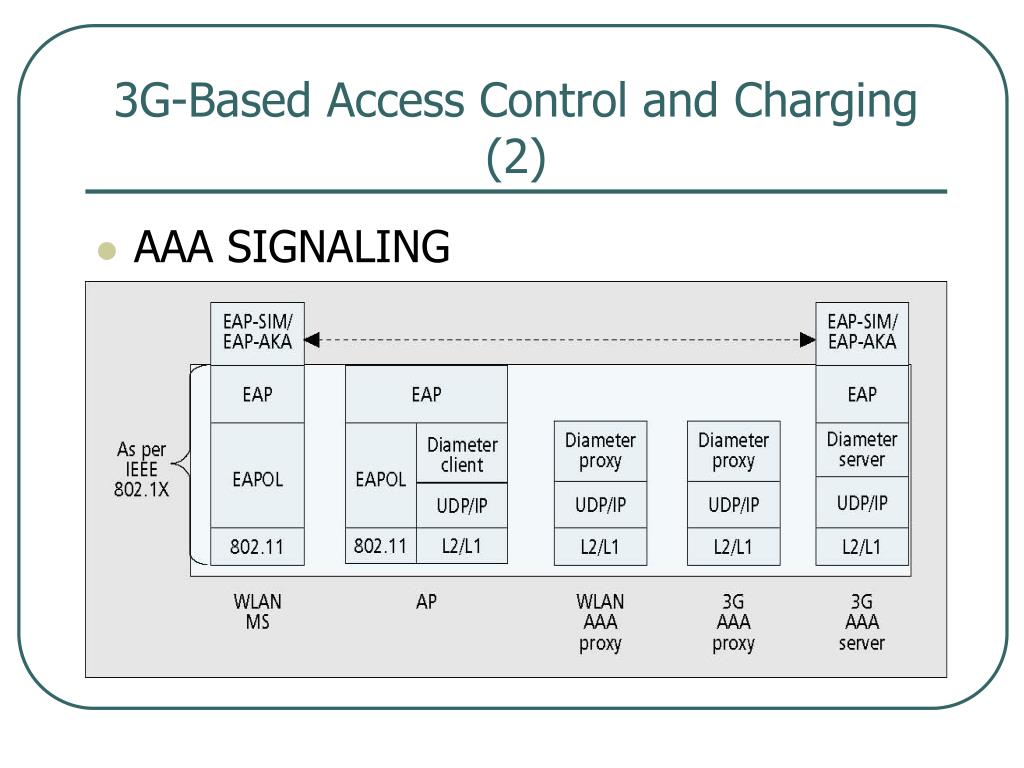

  28. 3G-Based Access Control and Charging (2) • AAA SIGNALING

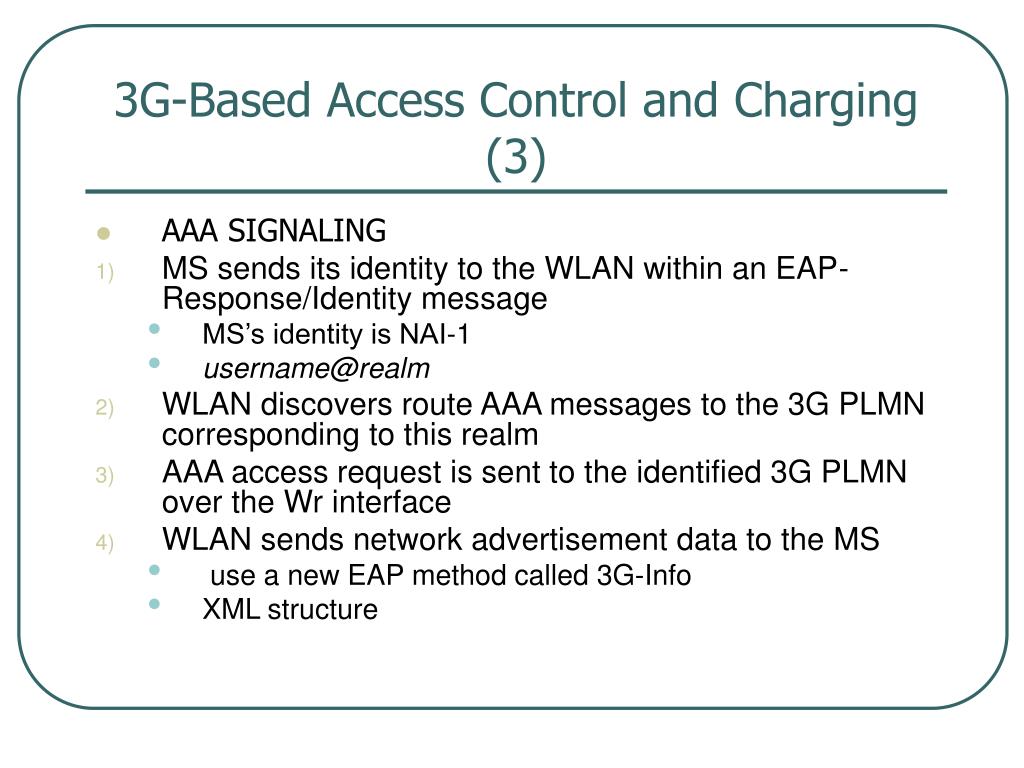

  29. 3G-Based Access Control and Charging (3) • AAA SIGNALING • MS sends its identity to the WLAN within an EAP-Response/Identity mes­sage • MS’s identity is NAI-1 • username@realm • WLAN discovers route AAA messages to the 3G PLMN corresponding to this realm • AAA access request is sent to the identified 3G PLMN over the Wr interface • WLAN sends network advertisement data to the MS • use a new EAP method called 3G-Info • XML structure

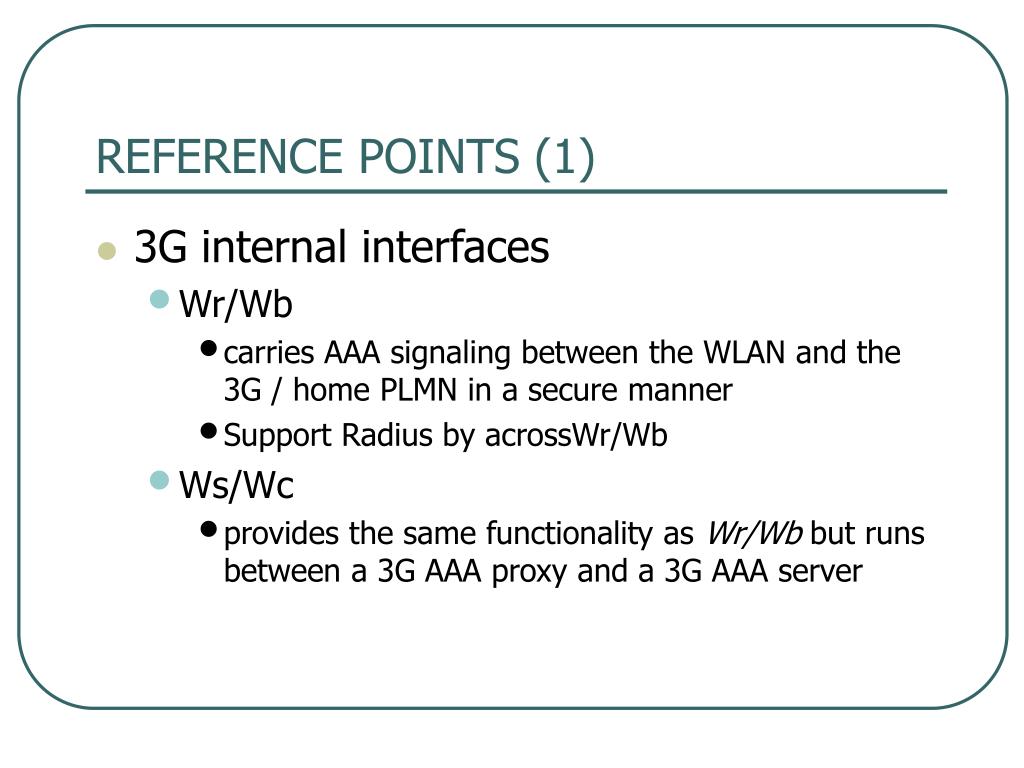

  30. REFERENCE POINTS (1) • 3G internal interfaces • Wr/Wb • carries AAA signaling between the WLAN and the 3G / home PLMN in a secure manner • Support Radius by acrossWr/Wb • Ws/Wc • provides the same functionality as Wr/Wb but runs between a 3G AAA proxy and a 3G AAA server

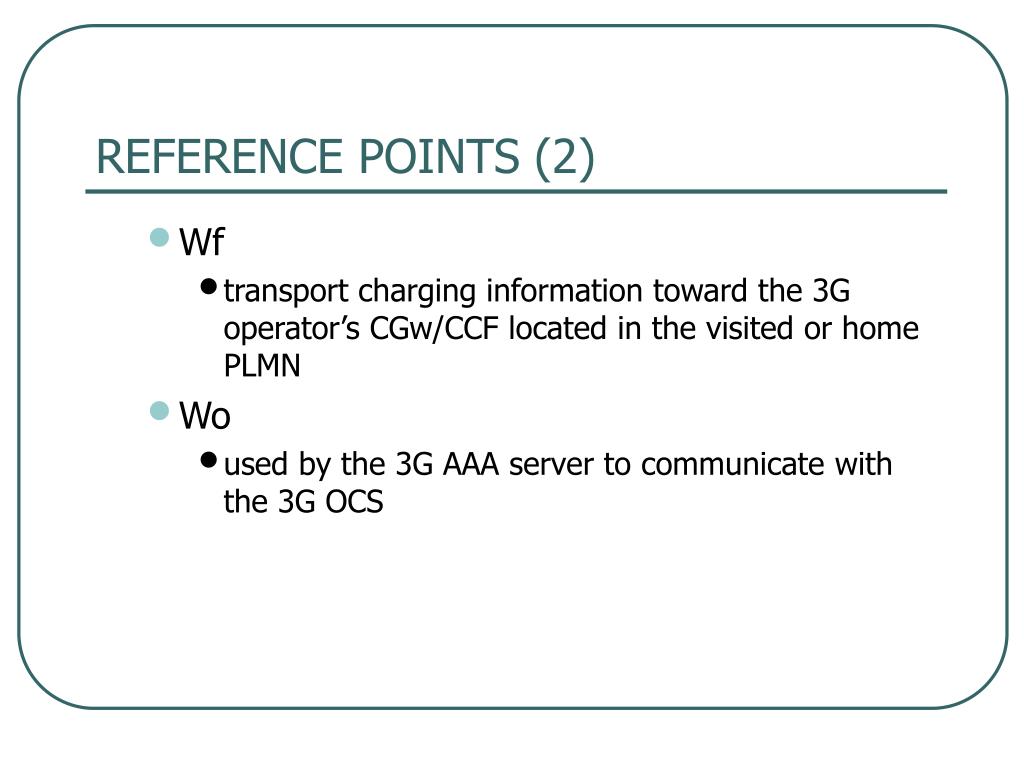

  31. REFERENCE POINTS (2) • Wf • transport charging information toward the 3G operator’s CGw/CCF located in the visited or home PLMN • Wo • used by the 3G AAA server to communicate with the 3G OCS

  32. REFERENCE POINTS (3) • Wx • between the 3G AAA server and the HSS • used primarily for accessing the WLAN subscription profiles of the users • D/Gr • used for exchanging subscription information between the 3G AAA server and the HLR by means of the MAP protocol

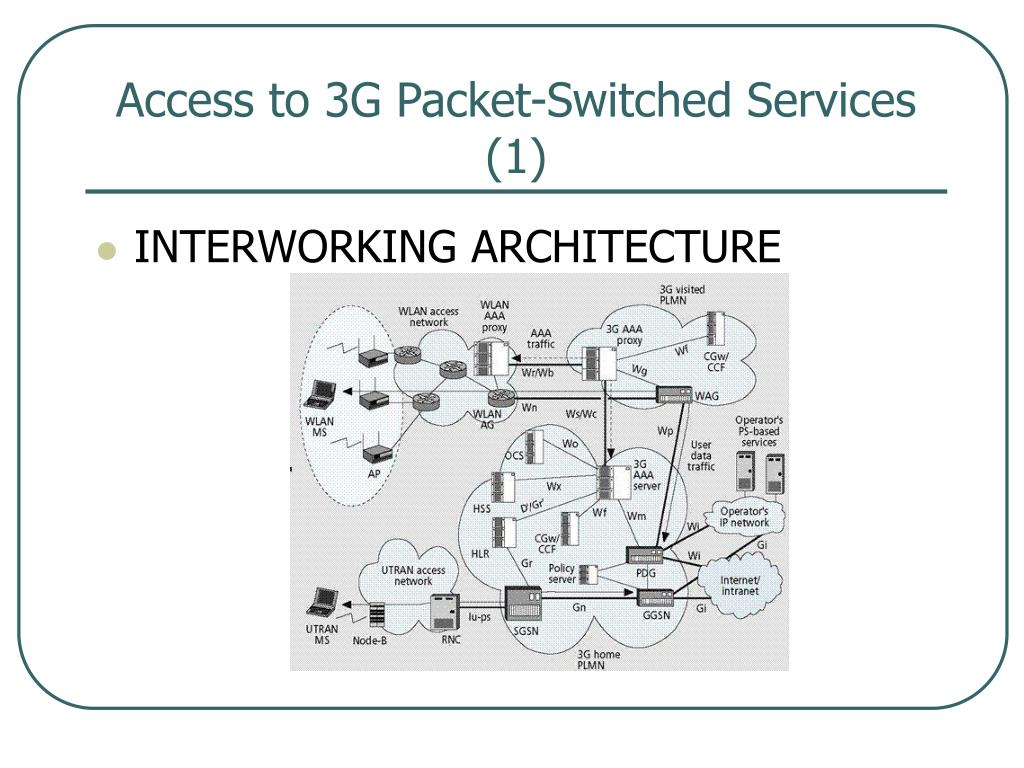

  33. Access to 3G Packet-Switched Services (1) • INTERWORKING ARCHITECTURE

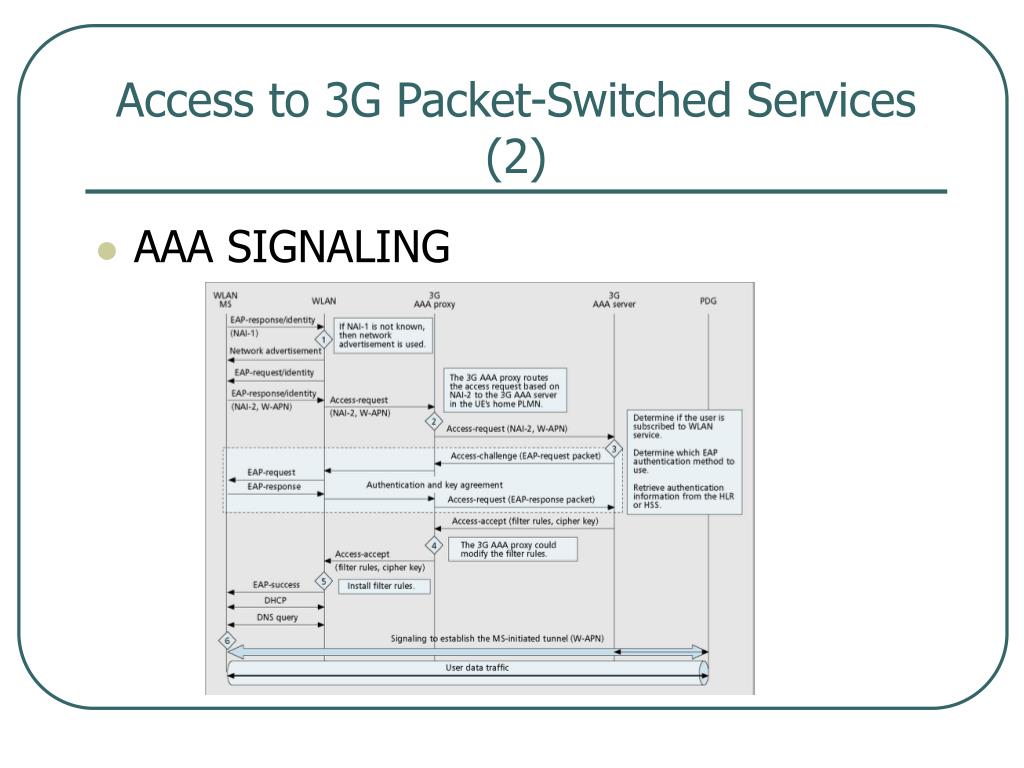

  34. Access to 3G Packet-Switched Services (2) • AAA SIGNALING

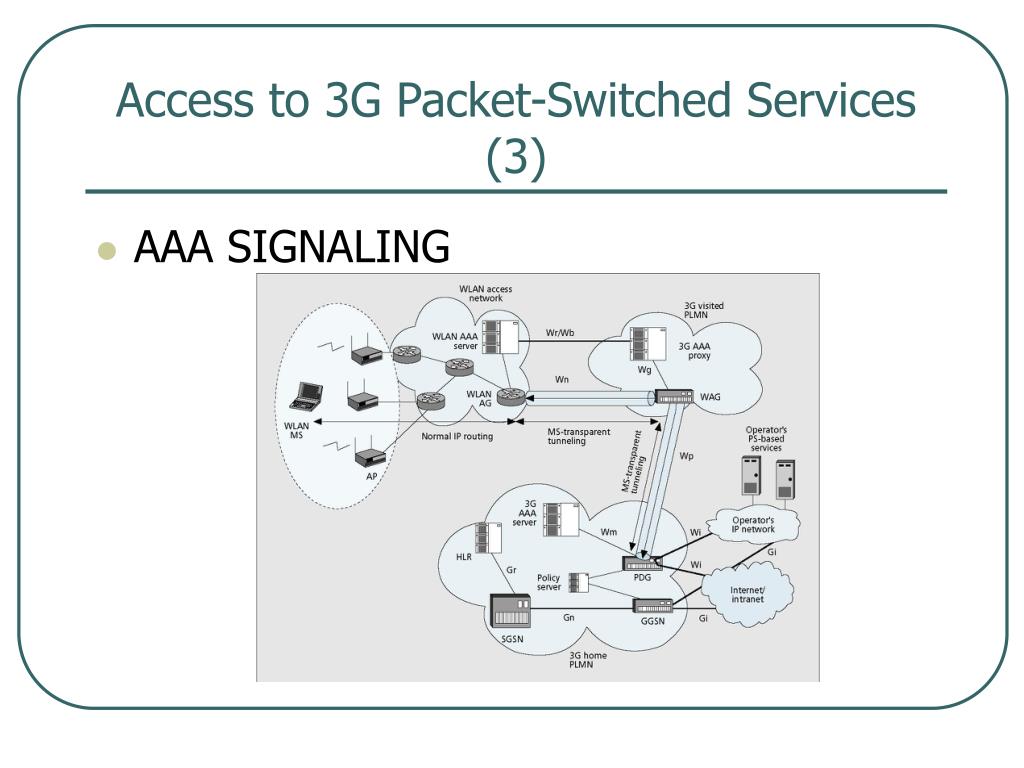

  35. Access to 3G Packet-Switched Services (3) • AAA SIGNALING

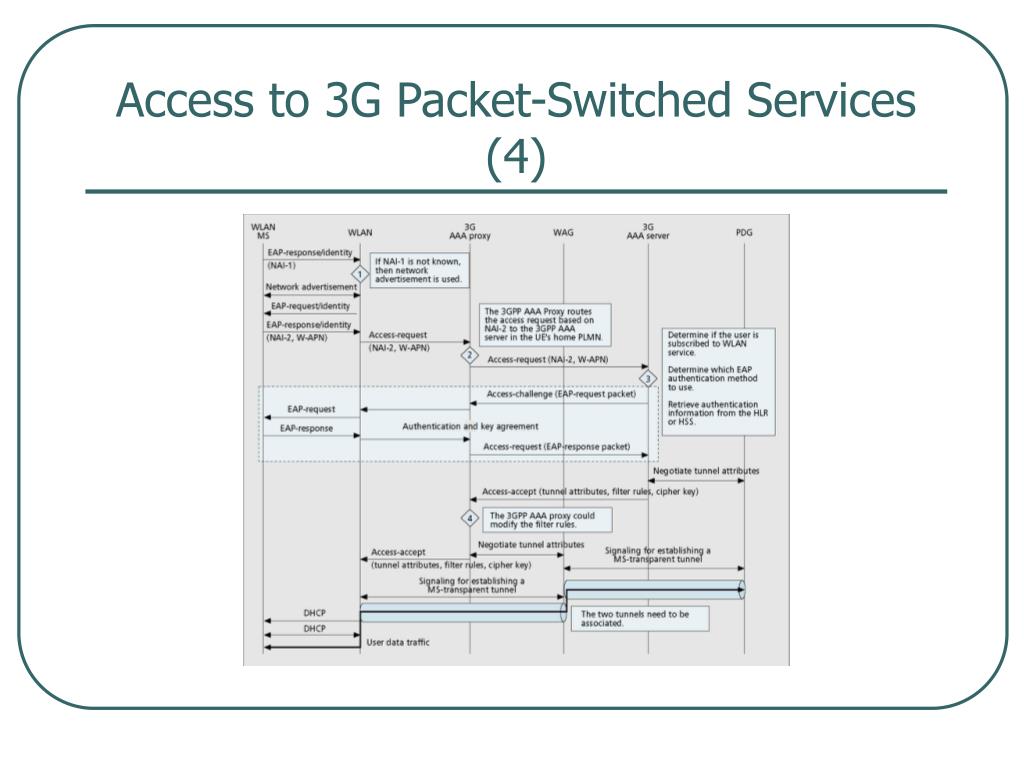

  36. Access to 3G Packet-Switched Services (4)

  37. REFERENCE POINTS (1) • several additional interfaces • Wn • used for transporting tunneled user data between the WLAN and the WAG • Wm • located between the 3G AAA serv­er and PDG • used to enable the 3G AAA server to retrieve tunneling attributes and an MS’s IP configuration parameters from/via the PDG

  38. REFERENCE POINTS (2) • Wi • provided via the Wi interface based on IP • Wg • used by the 3G AAA proxy to deliver routing policy enforce­ment information to the WAG • Wp • transports tunneled user data traffic between the WAG and the PDG

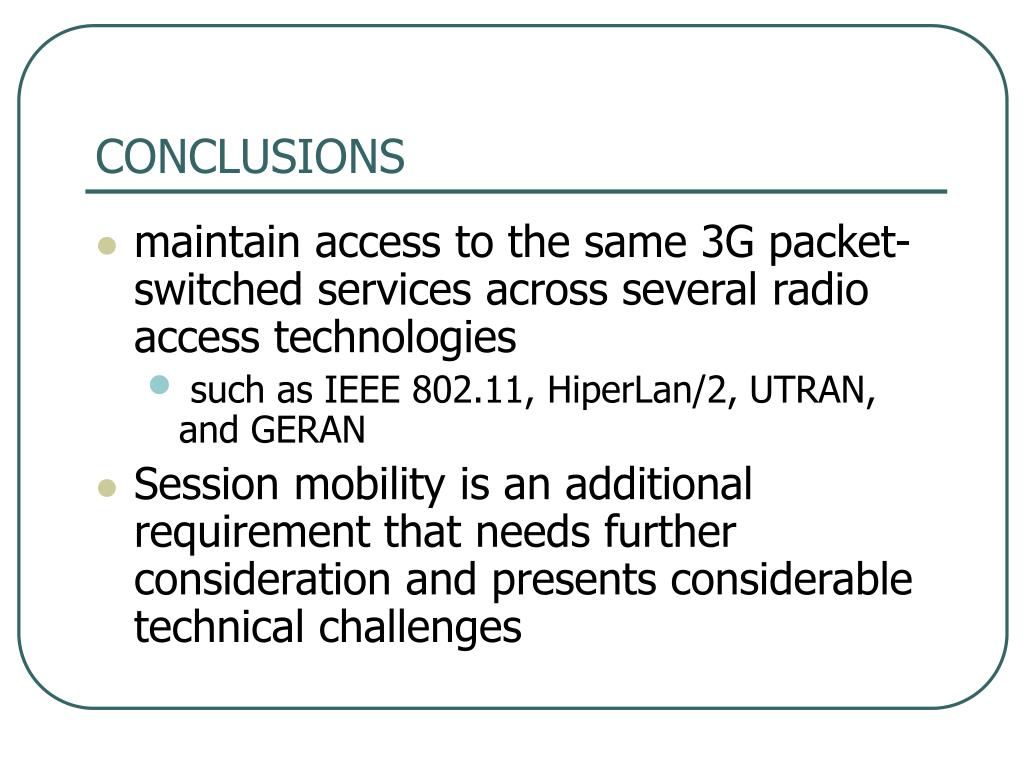

  39. CONCLUSIONS • maintain access to the same 3G packet-switched services across several radio access technologies • such as IEEE 802.11, HiperLan/2, UTRAN, and GERAN • Ses­sion mobility is an additional requirement that needs further consideration and presents consid­erable technical challenges

  40. Magazine 3 • IEEE802.11 roaming and authentication in wireless LAN cellular mobile networks

  41. Note Abstract • Integrate wireless LAN service • IEEE 802.11 WIRELESS LAN ROAMING • RADIUS PROXY • IEEE 802.11 HORIZONTAL ROAMING • MOBILE IP HANDOFF PERFORMANCE IMPROVEMENT • WIRELESS TRANSMISSION PRIVACY • SECURITY ANALYSIS • AUTHENTICATION AND KEY NEGOTIATION DEMONSTRATION • SUMMARY

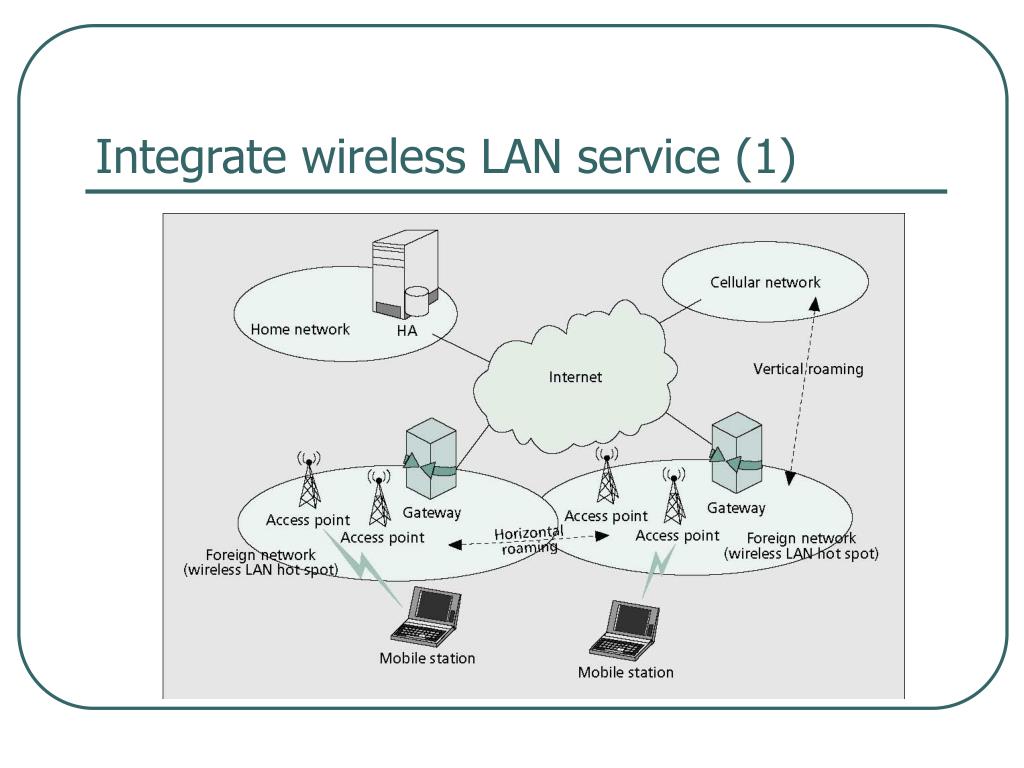

  42. Integrate wireless LAN service (1)

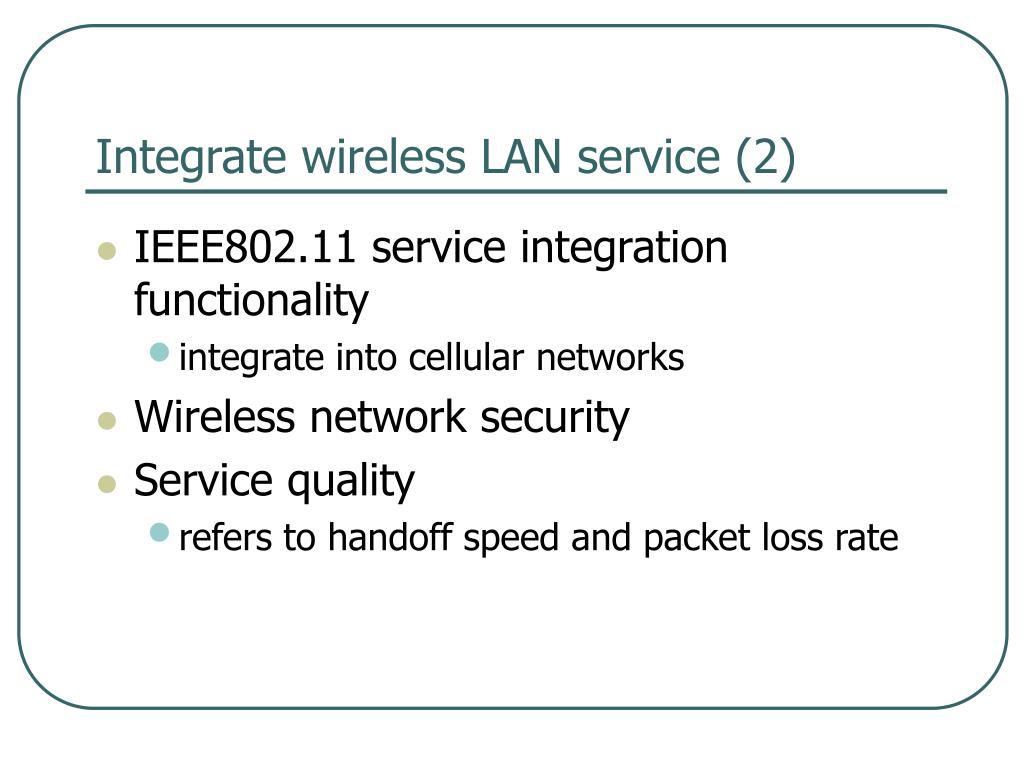

  43. Integrate wireless LAN service (2) • IEEE802.11 service integration functionality • integrate into cellular networks • Wireless network security • Service quality • refers to handoff speed and packet loss rate

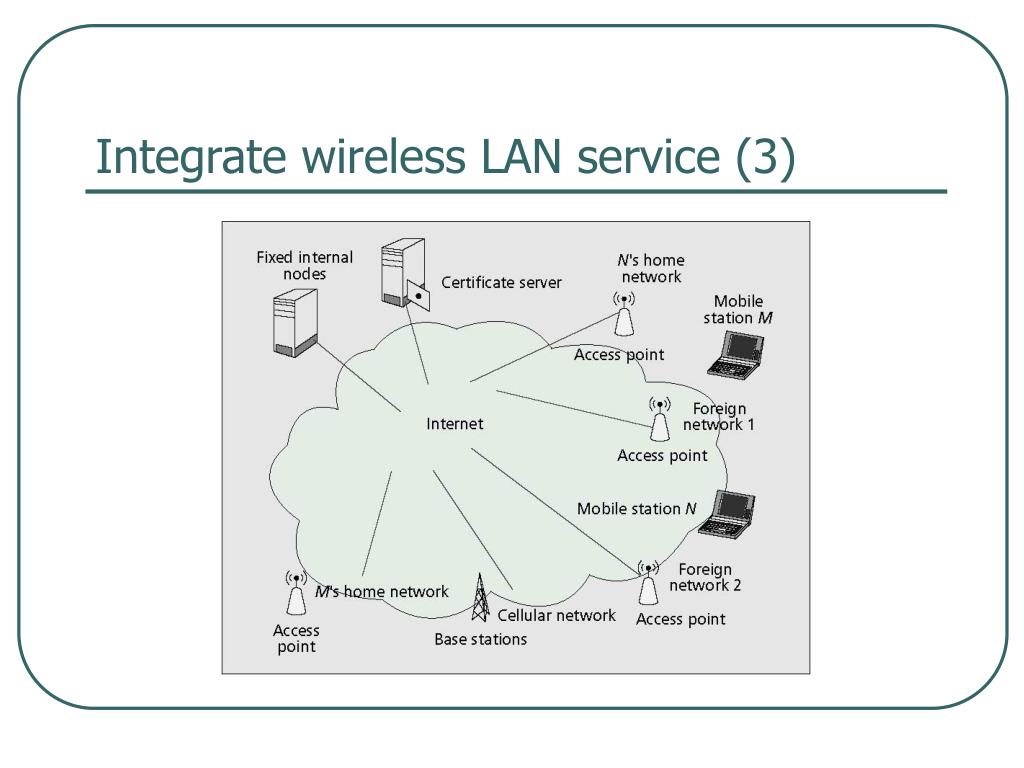

  44. Integrate wireless LAN service (3)

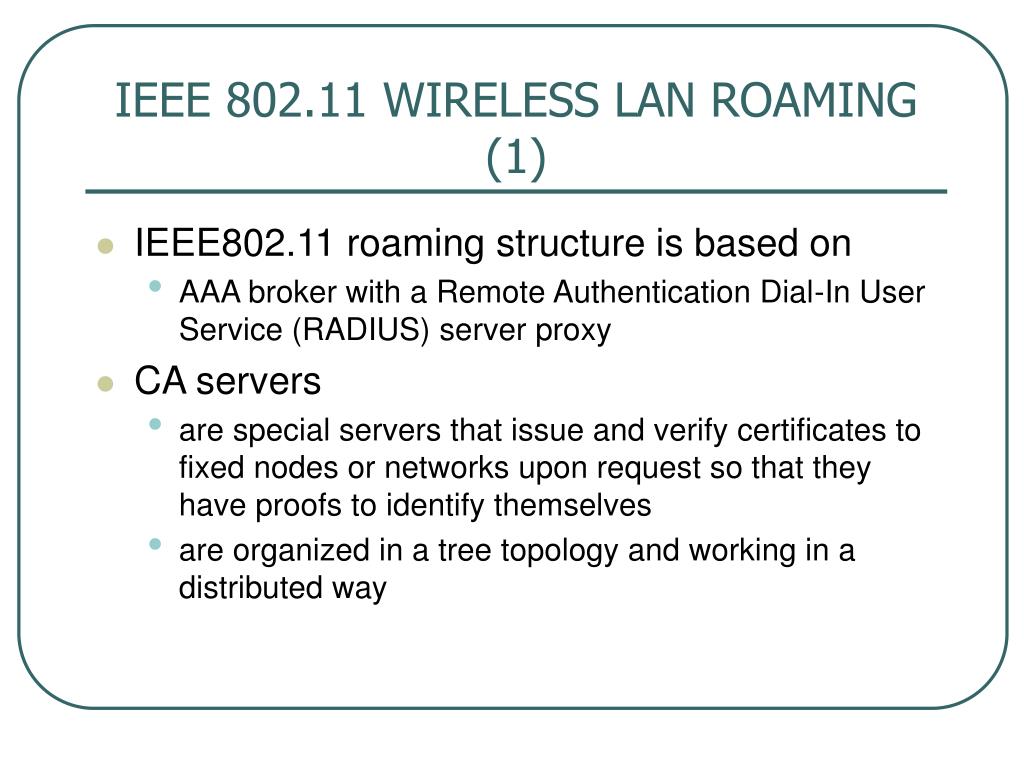

  45. IEEE 802.11 WIRELESS LAN ROAMING (1) • IEEE802.11 roaming structure is based on • AAA broker with a Remote Authentication Dial-In User Service (RADIUS) server proxy • CA servers • are special servers that issue and verify certificates to fixed nodes or net­works upon request so that they have proofs to identify themselves • are organized in a tree topology and working in a distributed way

  46. IEEE 802.11 WIRELESS LAN ROAMING (2)

  47. RADIUS PROXY • RADIUS server retrieves • remote server’s domain from the user’s request • includes the network access identifier • identifier@domain_name

  48. IEEE 802.11 HORIZONTAL ROAMING (1) • Each network domain is interconnected by AAABs • In order to provide IP mobility • for­eign agent (FA) is placed into the NAS • The architecture is able to process two hor­izontal roaming scenarios • The current IEEE802.11 device connects to the network via the NAS • Seamless roaming

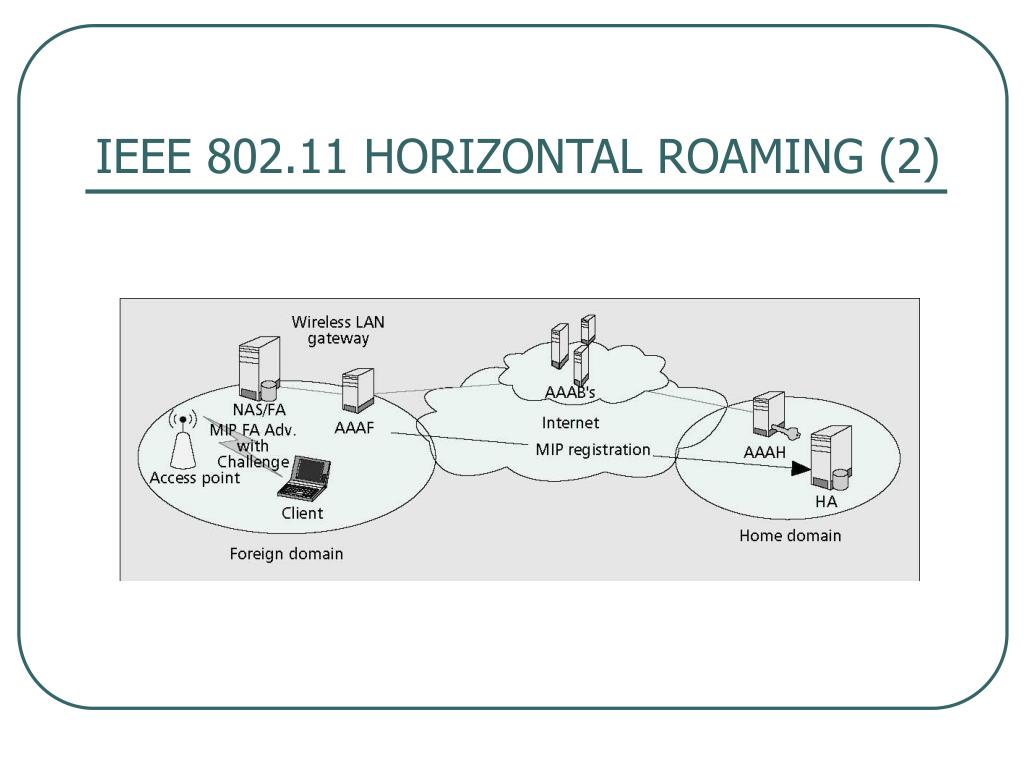

  49. IEEE 802.11 HORIZONTAL ROAMING (2)

  50. IEEE 802.11 HORIZONTAL ROAMING (3)
