AirBand Glove System

The AirBand Glove System emulates musical instruments through natural gestures, offering extensibility, cost-effectiveness, and consumer electronics & HCI research applications. It features an embedded system and computer control for intuitive operation and MIDI output.

kirima
Download Presentation

AirBand Glove System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. AirBand Glove System March 10, 2009 ECE 4007 L03 Aaron Kane Roth Fralick Jason Zutty

  2. AirBand • Emulates playing musical instruments through natural gestures. • Shows the potential of an extensible system. • Costs significantly less than current market. • Uses in consumer electronics and HCI research.

  3. Design Goals • Extensible architecture. • Standard MIDI output. • Intuitive operation. • Marketable product.

  4. Data Glove • Baseball batting glove. • Induction based sensors. • Coils consist of magnet wire. • Coils on inside of hand. • 3 coils per finger. Figure from [1]

  5. Sensor Positions Figure edited from [1]

  6. Embedded System • PCB connected to glove wrist. • Atmel ATMega1284P microprocessor. • Crystal Oscillator creates generator signal. • Time division modulated measurements across fingers. • Digital signal Outputs.

  7. Embedded System Block Diagram

  8. Computer Control System • MATLAB based application • EIA-485 over Ethernet. • Outputs standard MIDI signal. • User level API for added functionality.

  9. Computer System Flowchart

  10. Demonstration • System emulating bass guitar. • 4 strings, 4 fingers. • Moderate tempo baseline. • System output to Yamaha MU100 tone generator.

  11. Testing • Verifying correctness of output. • Ensure negligible interference in sensors.

  12. Design Issues • Sensor orientation and positioning. • Testing different methods against needs. • MATLAB “real-time” MIDI output.

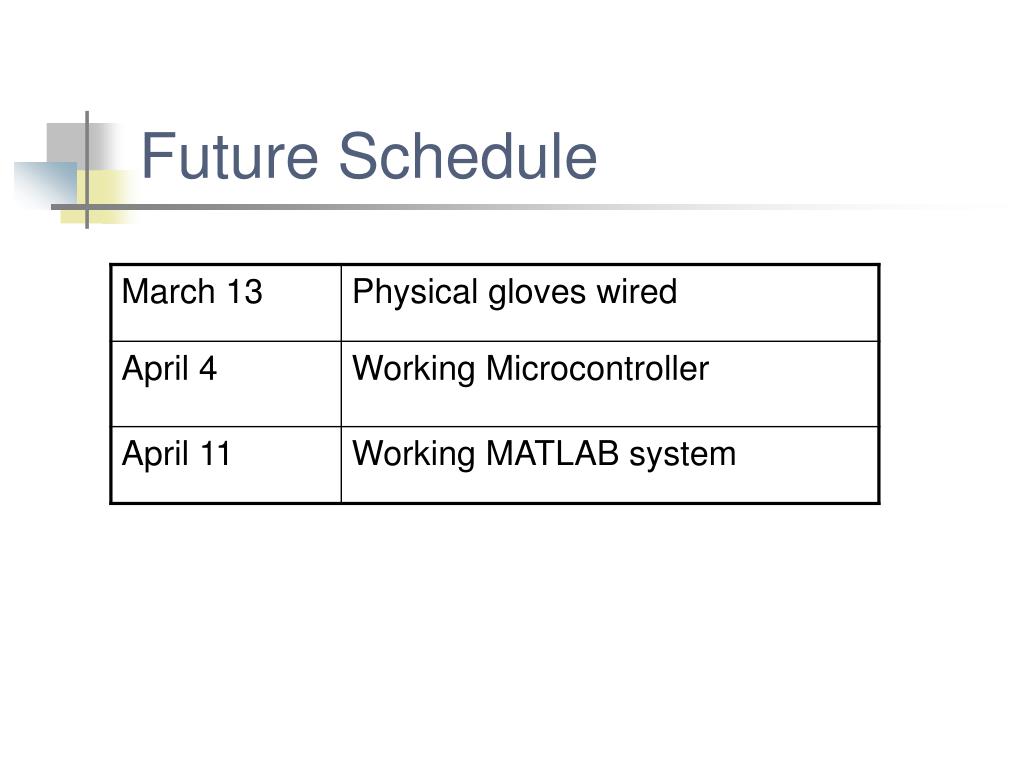

  13. Future Schedule

  14. Cost Analysis • Based on 10,000 Units over 5 years • 3 design engineers + other staff and overhead yields a total non-recost of 31.13. • Parts cost $103.60. • Overall cost per unit around $430. • Sell at $500. • Earn about 700,000 profit.

  15. Current Status • Important parts obtained. • Programming Microcontroller. • Constructing glove. • Designing MATLAB system.

  16. Resources [1] Development of a data glove with reducing sensors based on magnetic induction Chin-Shyurng Fahn; Herman Sun; Industrial Electronics, IEEE Transactions on Volume 52,  Issue 2,  April 2005 Page(s):585 - 594

  17. Questions?
