  1. SECTION 1 Introducing Adams/Car

  2. Introducing Adams/Car • This module discusses the advantages of using Adams/Car, as well as the organization of the basic files.

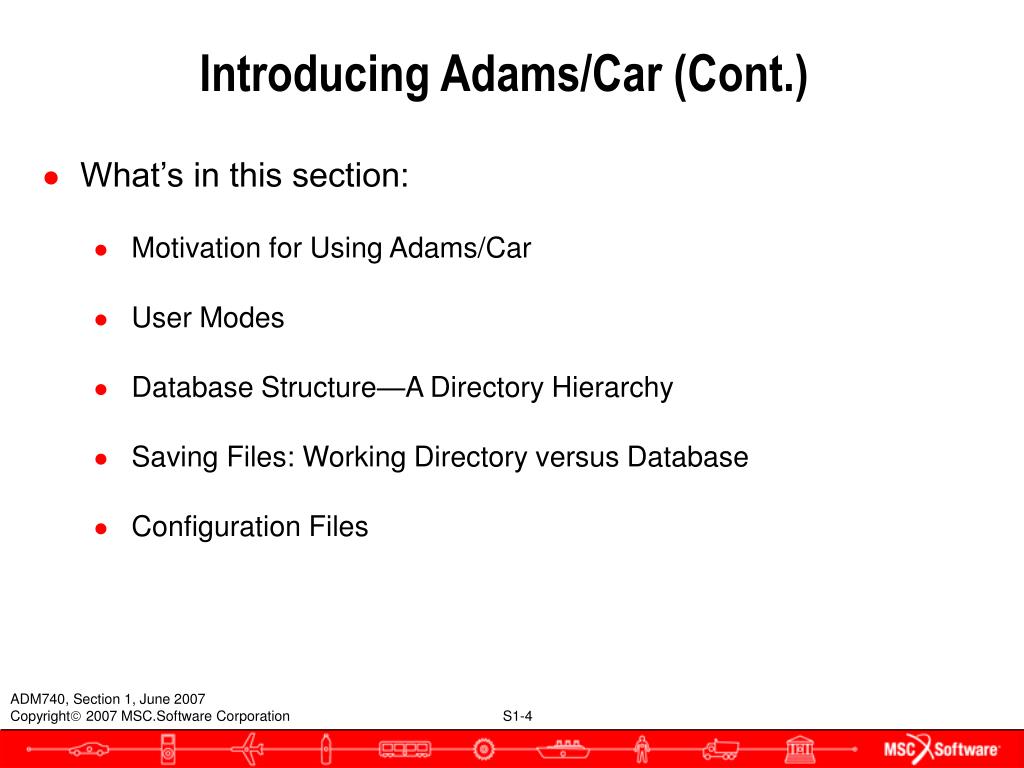

  3. Introducing Adams/Car (Cont.) • What’s in this section: • Motivation for Using Adams/Car • User Modes • Database Structure—A Directory Hierarchy • Saving Files: Working Directory versus Database • Configuration Files

  4. Engine Advanced Engineering Test lab Suppliers Chassis engineering Body engineering Driveline Motivation for Using Adams/Car • Bridges departments by sharing models and data • Facilitates quick subsystem changes • Templates

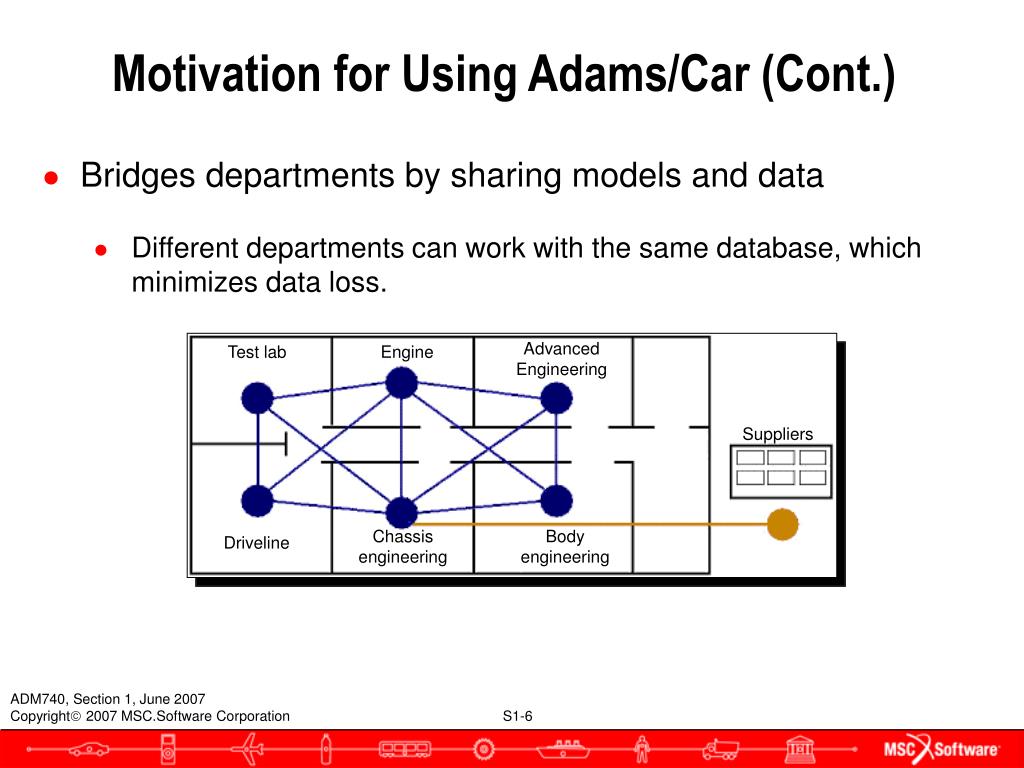

  5. Advanced Engineering Test lab Engine Suppliers Chassis engineering Body engineering Driveline Motivation for Using Adams/Car (Cont.) • Bridges departments by sharing models and data • Different departments can work with the same database, which minimizes data loss.

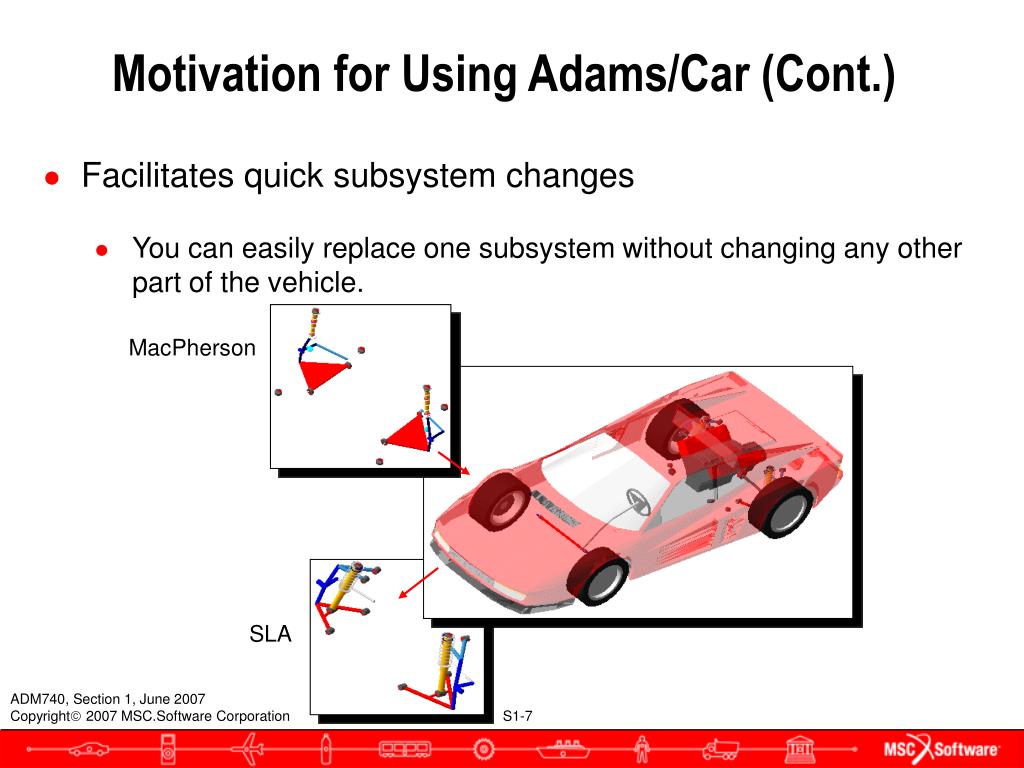

  6. MacPherson SLA Motivation for Using Adams/Car (Cont.) • Facilitates quick subsystem changes • You can easily replace one subsystem without changing any other part of the vehicle.

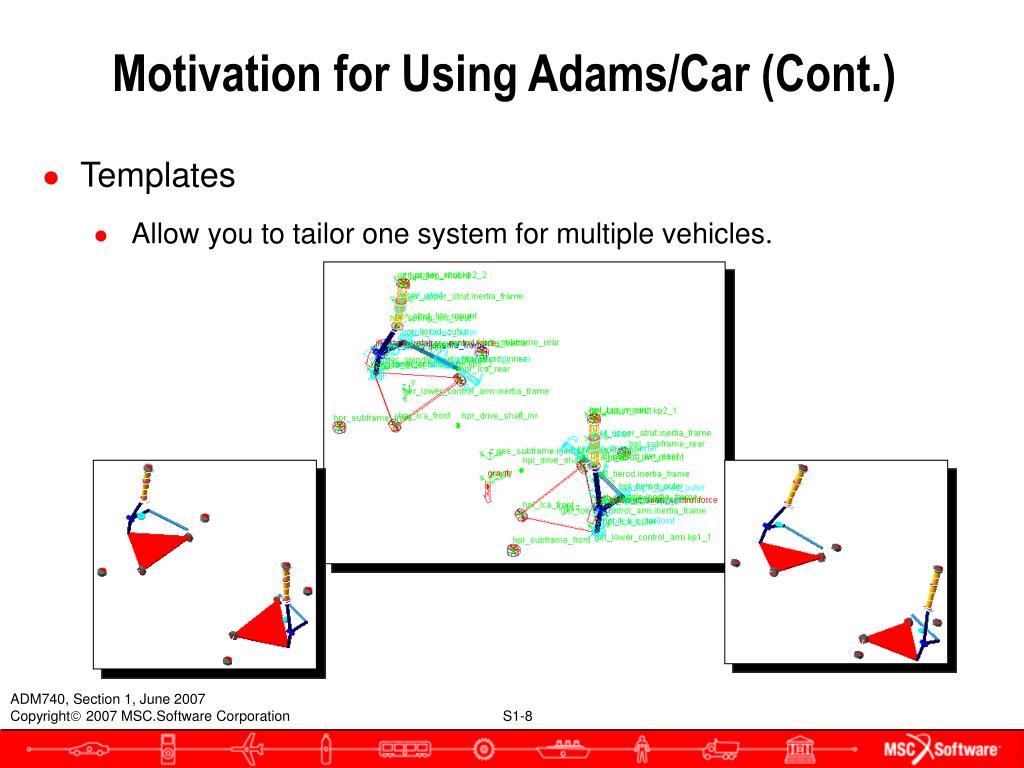

  7. Motivation for Using Adams/Car (Cont.) • Templates • Allow you to tailor one system for multiple vehicles.

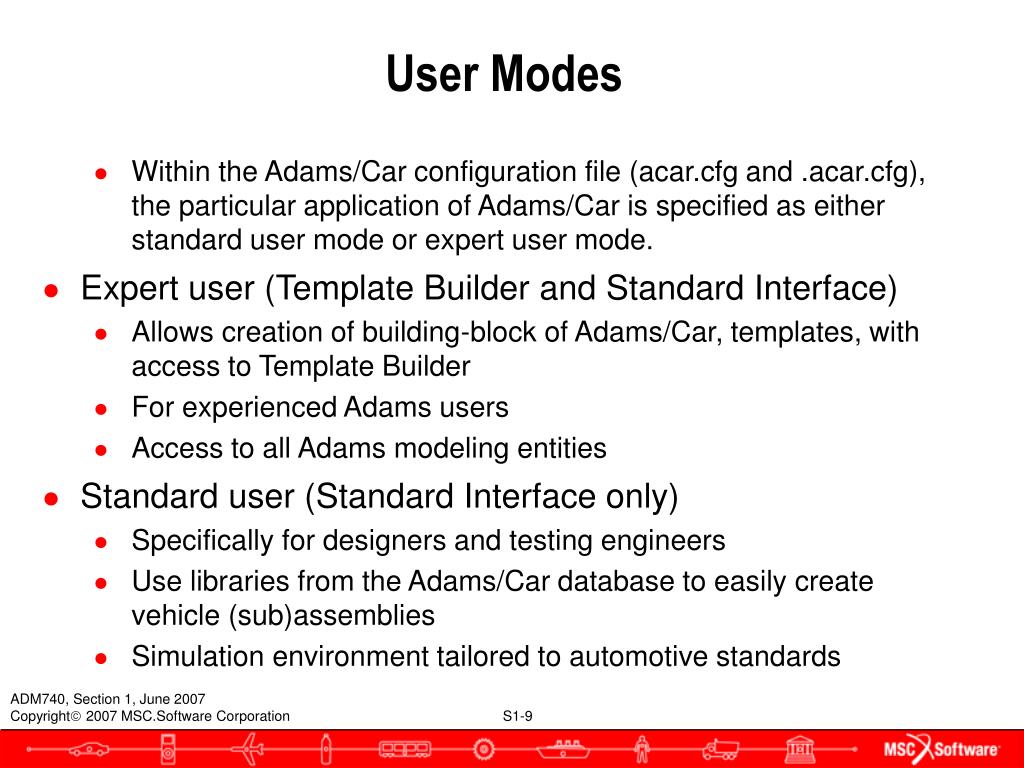

  8. User Modes • Within the Adams/Car configuration file (acar.cfg and .acar.cfg), the particular application of Adams/Car is specified as either standard user mode or expert user mode. • Expert user (Template Builder and Standard Interface) • Allows creation of building-block of Adams/Car, templates, with access to Template Builder • For experienced Adams users • Access to all Adams modeling entities • Standard user (Standard Interface only) • Specifically for designers and testing engineers • Use libraries from the Adams/Car database to easily create vehicle (sub)assemblies • Simulation environment tailored to automotive standards

  9. Database Structure—A Directory Hierarchy • A database is a collection of tables (directories) stored on the hard drive. The top directory, which has the extension .cdb, stores a number of tables (directories). Each table is a placeholder for model information. • Three types of databases: • Shared - Common to all users, provided by MSC.Software with example files • Private - User workspace (created by Adams/Car in your $HOME directory) • User - User/site specific

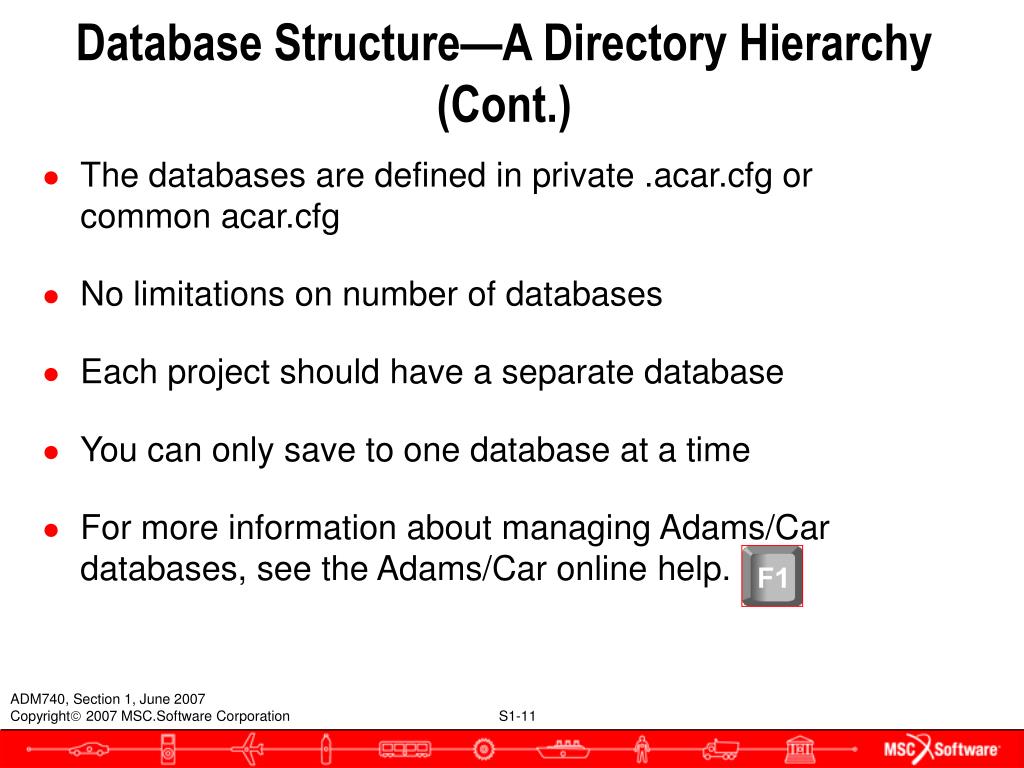

  10. Database Structure—A Directory Hierarchy (Cont.) • The databases are defined in private .acar.cfg or common acar.cfg • No limitations on number of databases • Each project should have a separate database • You can only save to one database at a time • For more information about managing Adams/Car databases, see the Adams/Car online help.

  11. Saving Files: Working Directory Versus Database • Adams/Car divides your suspension or full-vehicle model into subsystems and components so you can manage the data more easily. It saves these components into an Adams/Car database. The ultimate goal is to build .adm files and produce results, which are stored in the working directory. • You can set up the database that stores the components that build up the model, and so on, using the database management tools (Tools  Database Management). • Adams/Car saves your .adm, .acf, and results to your working directory (File  Select Directory).

  12. Configuration Files • Configuration files contain information that Adams/Car reads during startup to correctly initialize the session: • User mode (expert versus standard) • Personal databases and tables • Default property files • Default writable database • Database search order • Orientation of global reference frame • Other preferences

  13. Configuration Files (Cont.) For more information about configuration files, see the Adams/Car online help.

  14. Configuration Files (Cont.) • Shared versus private configuration files • Adams/Car uses two configuration files: • Shared configuration file (acar.cfg) - Is a common file that sets up default parameters (read first). Can be a specially created site-specific file. This file is located in the <adams_install>/acar directory (where <adams_install> is the path to your Adams installation directory). • Private configuration file (.acar.cfg - note the period at the front) - Is a private file that also sets up parameters, but takes precedence over the common acar.cfg file (read second). The private configuration file is located in the HOME directory (environment variable). • Having both configuration files allows users on a network to work from default parameters and to customize their own workstations with the private .acar.cfg file.

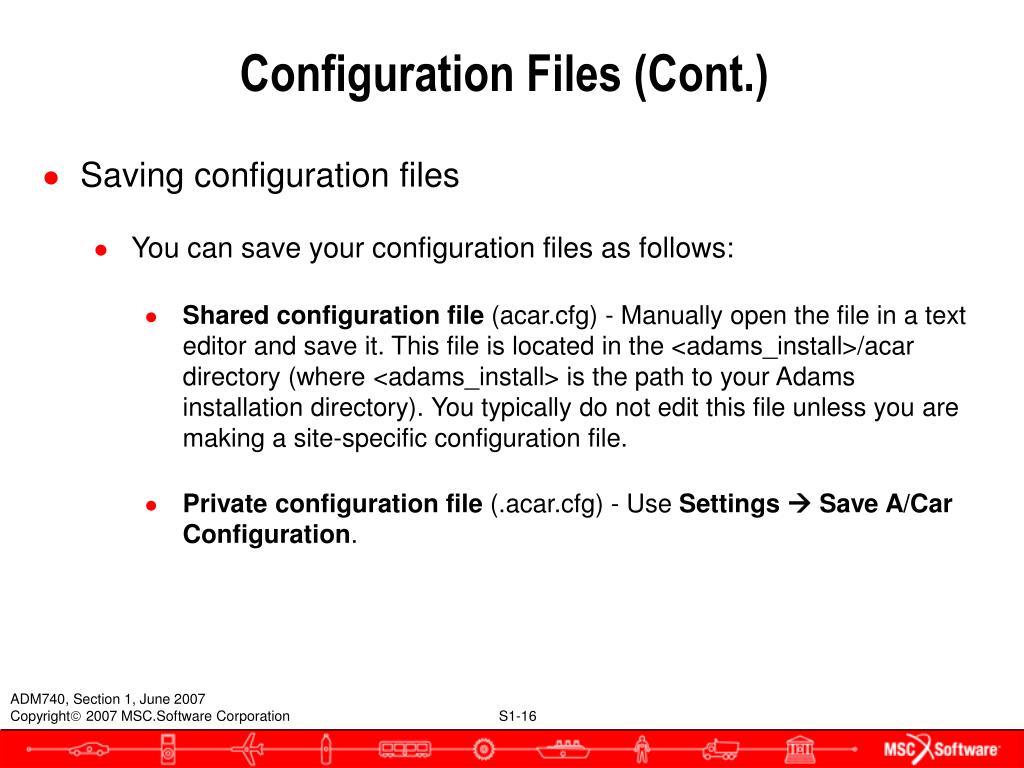

  15. Configuration Files (Cont.) • Saving configuration files • You can save your configuration files as follows: • Shared configuration file (acar.cfg) - Manually open the file in a text editor and save it. This file is located in the <adams_install>/acar directory (where <adams_install> is the path to your Adams installation directory). You typically do not edit this file unless you are making a site-specific configuration file. • Private configuration file (.acar.cfg) - Use Settings  Save A/Car Configuration.
