modeling and analysis topics
Modeling and Analysis Topics
  • Modeling for MSS (a critical component)
  • Static and dynamic models
  • Treating certainty, uncertainty, and risk
  • Influence diagrams (in the posted PDF file)
  • MSS modeling in spreadsheets
  • Decision analysis of a few alternatives (with decision tables and decision trees)
  • Optimization via mathematical programming
  • Heuristic programming
  • Simulation
  • Model base management
dss modeling
DSS Modeling
  • A key element in most DSS
  • Leads to reduced cost and increased revenue
    • DuPont Simulates Rail Transportation System and Avoids Costly Capital Expenses
    • Procter & Gamble uses several DSS models collectively to support strategic decisions
      • Locating distribution centers, assignment of DCs to warehouses/customers, forecasting demand, scheduling production per product type, etc.
    • Fiat, Pillowtex (…operational efficiency)…
  • Used optimization models to redesign its distribution system
  • Several models used:
    • Generating model (algorithm) to estimate transportation costs
    • Demand forecasting model (statistics based)
    • Distribution center location model
    • Linear programming transportation model to determine best shipping
    • Financial and risk simulation model that also considers some qualitative factors
    • GIS for a user interface
  • Some built in the DSS some external and some accessed as needed
  • 500 employees involved over the course of a year

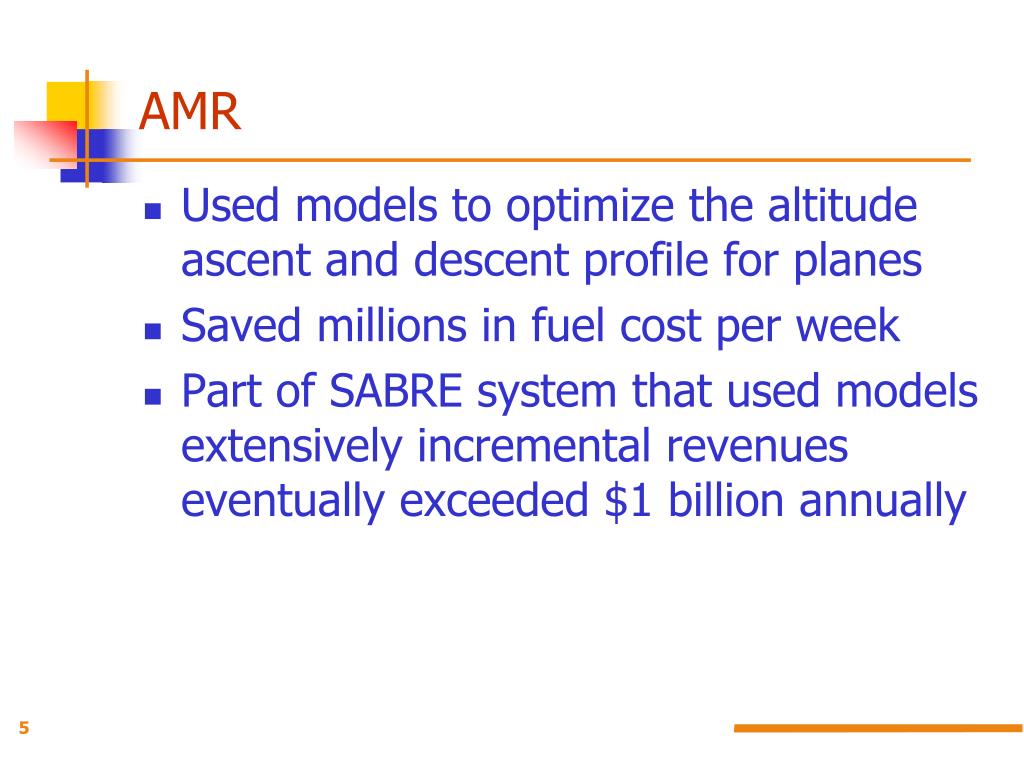

  • Used models to optimize the altitude ascent and descent profile for planes
  • Saved millions in fuel cost per week
  • Part of SABRE system that used models extensively incremental revenues eventually exceeded $1 billion annually
major modeling issues

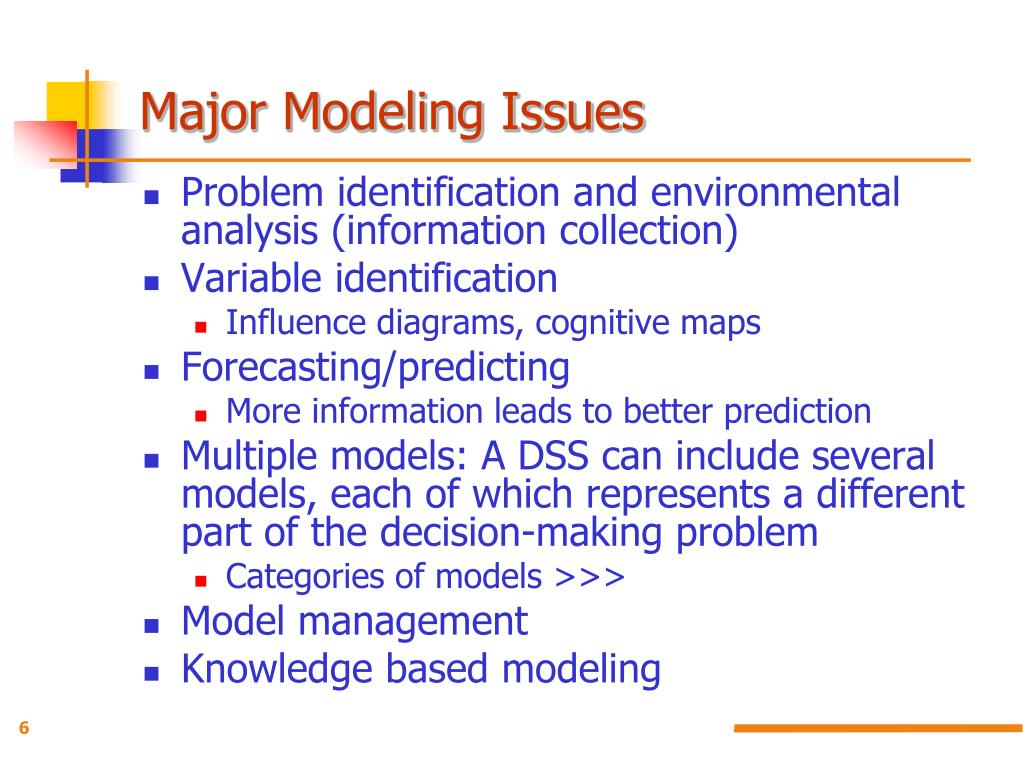

Major Modeling Issues
  • Problem identification and environmental analysis (information collection)
  • Variable identification
    • Influence diagrams, cognitive maps
  • Forecasting/predicting
    • More information leads to better prediction
  • Multiple models: A DSS can include several models, each of which represents a different part of the decision-making problem
    • Categories of models >>>
  • Model management
  • Knowledge based modeling
influence diagrams

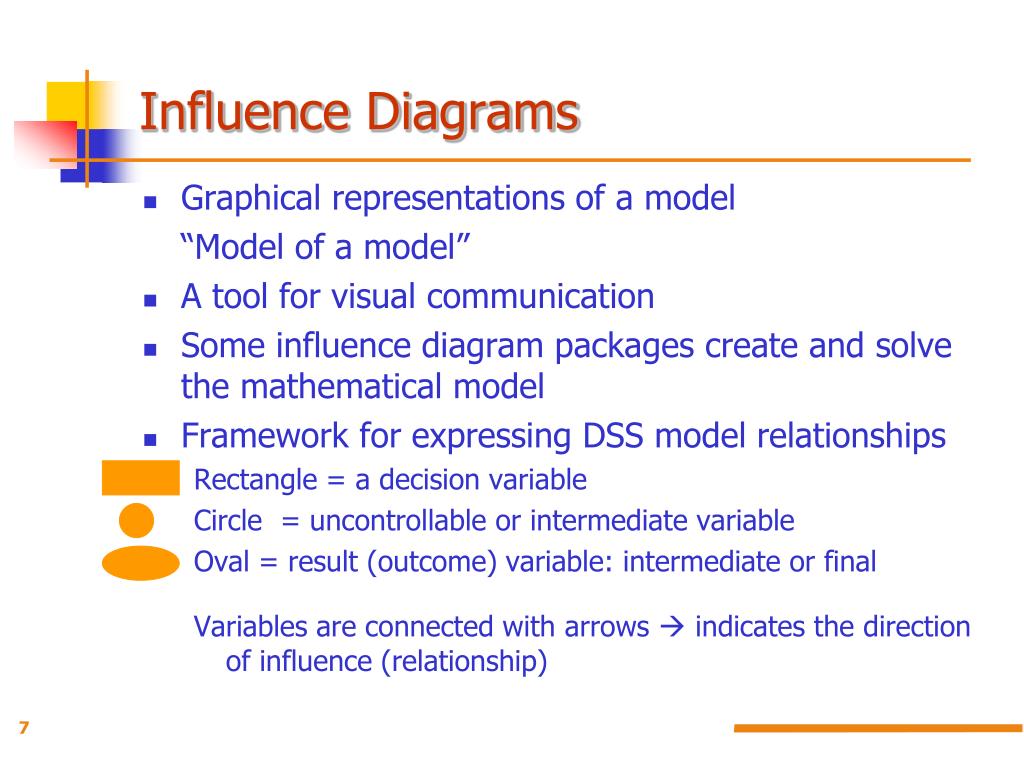

Influence Diagrams

Graphical representations of a model

“Model of a model”

A tool for visual communication

Some influence diagram packages create and solve the mathematical model

Framework for expressing DSS model relationships

Rectangle = a decision variable

Circle = uncontrollable or intermediate variable

Oval = result (outcome) variable: intermediate or final

Variables are connected with arrows  indicates the direction of influence (relationship)

influence diagrams relationships

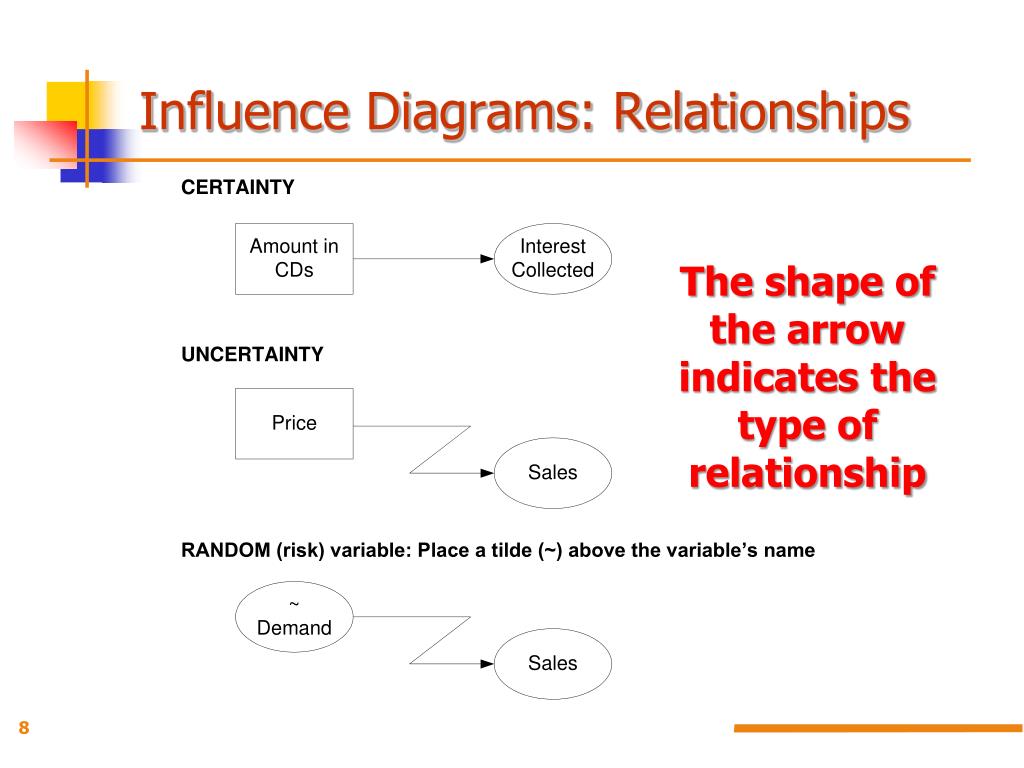

Influence Diagrams: Relationships

The shape of the arrow indicates the type of relationship

influence diagrams example
Influence Diagrams: Example

An influence diagram for the profit model

Profit = Income – Expense

Income = UnitsSold * UnitPrice

UnitsSold = 0.5 * Advertisement Expense

Expenses = UnitsCost * UnitSold + FixedCost

influence diagrams software

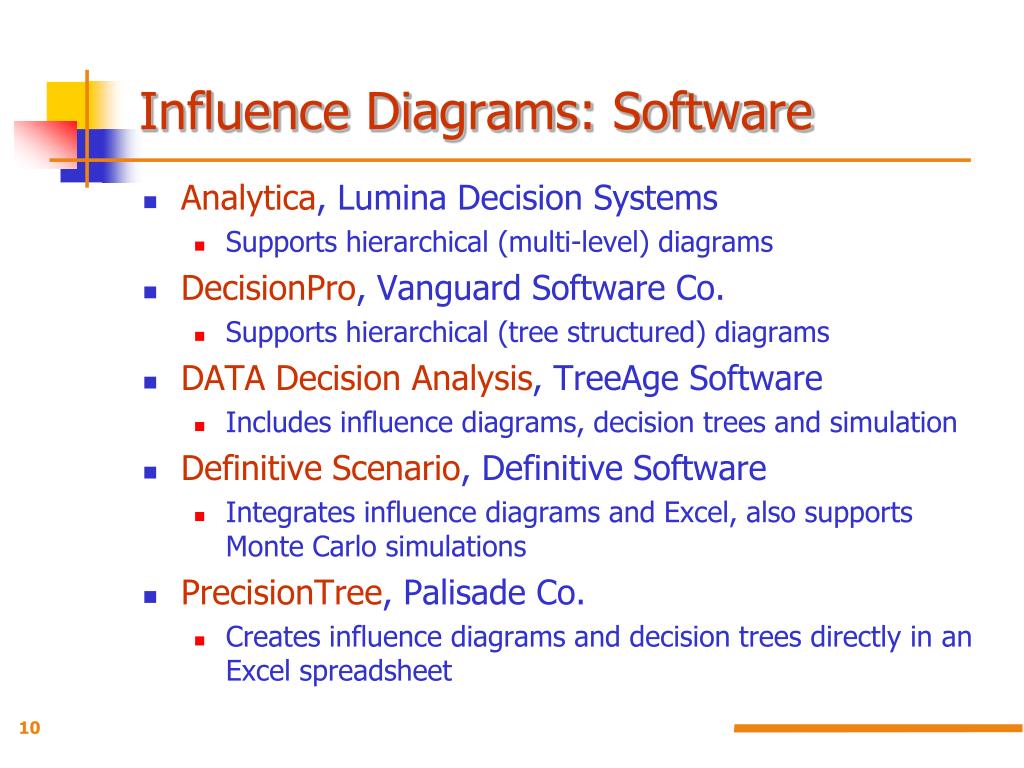

Influence Diagrams: Software

Analytica, Lumina Decision Systems

Supports hierarchical (multi-level) diagrams

DecisionPro, Vanguard Software Co.

Supports hierarchical (tree structured) diagrams

DATADecision Analysis, TreeAge Software

Includes influence diagrams, decision trees and simulation

Definitive Scenario, Definitive Software

Integrates influence diagrams and Excel, also supports Monte Carlo simulations

PrecisionTree, Palisade Co.

Creates influence diagrams and decision trees directly in an Excel spreadsheet

static and dynamic models
Static and Dynamic Models
  • Static Analysis
    • Single snapshot of the situation
    • Single interval
    • Steady state
  • Dynamic Analysis
    • Dynamic models
    • Evaluate scenarios that change over time
    • Time dependent
    • Represents trends and patterns over time
    • More realistic: Extends static models
mathematical models
Mathematical Models
  • 4 basic components
    • Result variables
      • Reflect the level of effectiveness of a system
    • Decision variables
      • Alternative courses of action
    • Uncontrollable variables
      • constraints
    • Intermediate result variables
      • Intermediate outcomes
  • Mathematical relationships link the components together
decision making treating certainty uncertainty and risk
Decision Making:Treating Certainty, Uncertainty and Risk
  • Certainty Models
    • Assume complete knowledge
    • All potential outcomes are known
    • May yield optimal solution
  • Uncertainty
    • Several outcomes for each decision
    • Probability of each outcome is unknown
    • Knowledge would lead to less uncertainty
  • Risk analysis (probabilistic decision making)
    • Probability of each of several outcomes occurring
    • Level of uncertainty => Risk (expected value)
dss modeling with spreadsheets
DSS Modeling with Spreadsheets
  • Spreadsheet: most popular end-user modeling tool
  • Flexible and easy to use
  • Powerful functions
    • Add-in functions and solvers
  • Programmability (via macros)
  • What-if analysis
  • Goal seeking
  • Simple database management
  • Seamless integration of model and data
  • Incorporates both static and dynamic models
  • Examples: Microsoft Excel, Lotus 1-2-3
Excel spreadsheet - Dynamic model example: Simple loan calculation of monthly payments and effects of prepayment
decision analysis a few alternatives
Decision Analysis: A Few Alternatives

Single Goal Situations

Decision tables

    • Multiple criteria decision analysis
    • Features include decision variables (alternatives), uncontrollable variables, result variables
  • Decision trees
    • Graphical representation of relationships
    • Multiple criteria approach
    • Demonstrates complex relationships
    • Cumbersome, if many alternatives exists
decision tables

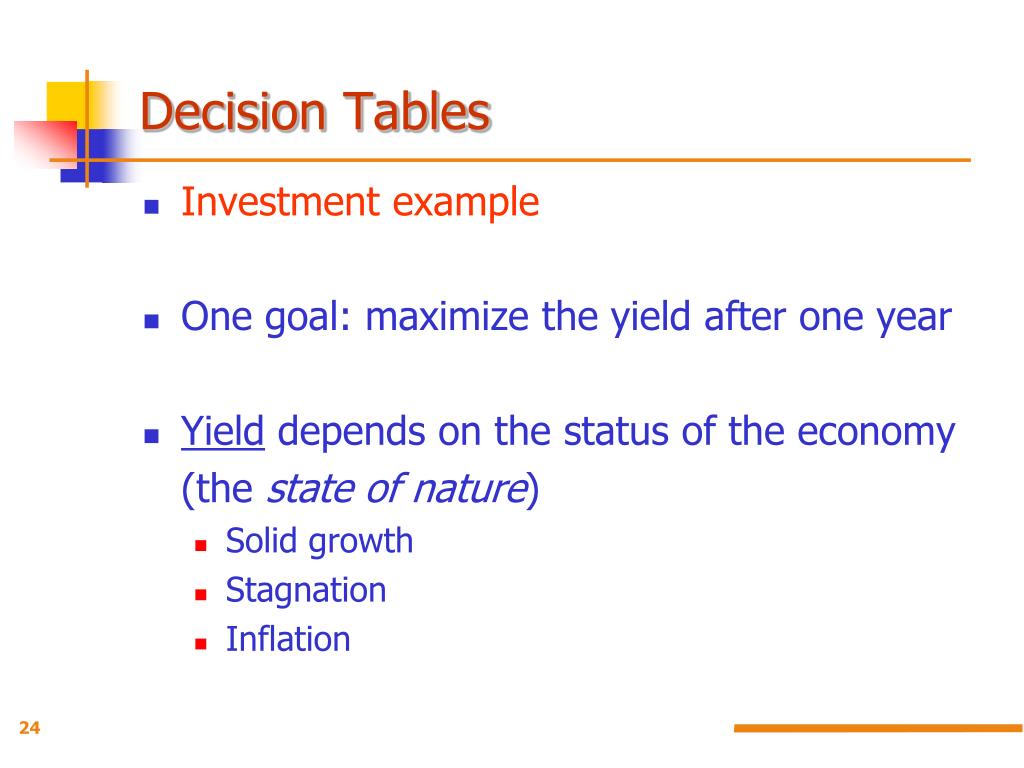

Decision Tables
  • Investment example
  • One goal: maximize the yield after one year
  • Yield depends on the status of the economy

(the state of nature)

    • Solid growth
    • Stagnation
    • Inflation
investment example possible situations
Investment Example: Possible Situations

1. If solid growth in the economy, bonds yield 12%; stocks 15%; time deposits 6.5%

2. If stagnation, bonds yield 6%; stocks 3%; time deposits 6.5%

3. If inflation, bonds yield 3%; stocks lose 2%; time deposits yield 6.5%

investment example decision table

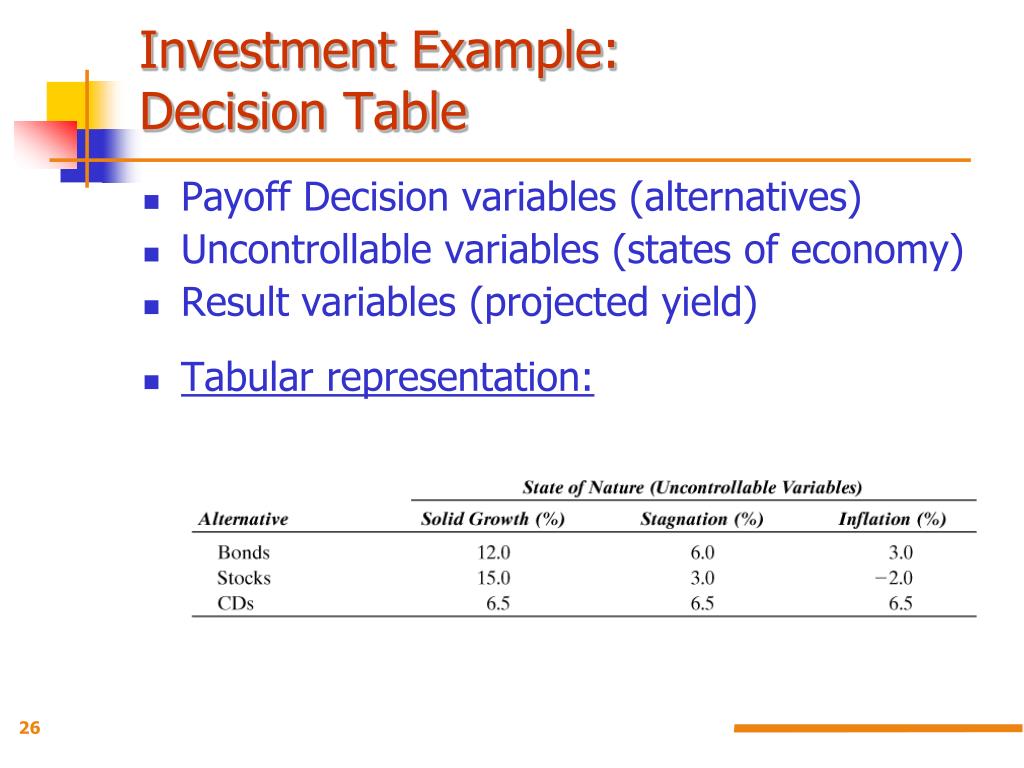

Investment Example: Decision Table
  • Payoff Decision variables (alternatives)
  • Uncontrollable variables (states of economy)
  • Result variables (projected yield)
  • Tabular representation:
investment example treating uncertainty
Investment Example: Treating Uncertainty
  • Optimistic approach
  • Pessimistic approach
  • Treating Risk:
    • Use known probabilities
    • Risk analysis: compute expected values
decision analysis a few alternatives28

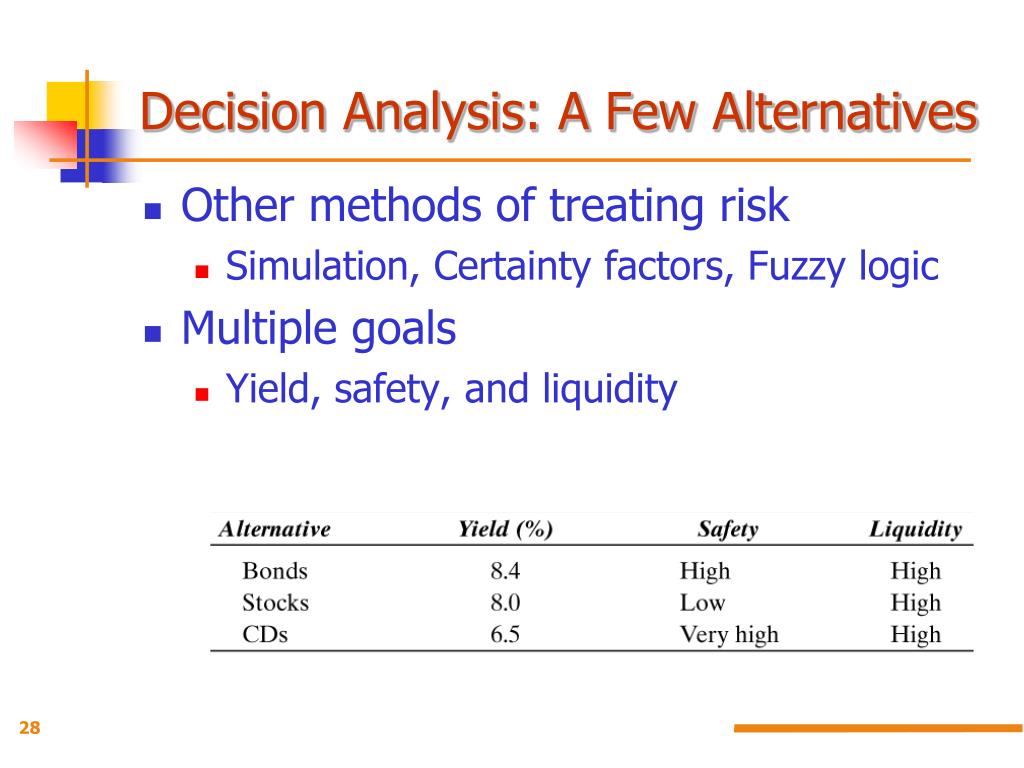

Decision Analysis: A Few Alternatives
  • Other methods of treating risk
    • Simulation, Certainty factors, Fuzzy logic
  • Multiple goals
    • Yield, safety, and liquidity
dss mathematical models

Independent Variables

Dependent Variables

DSS Mathematical Models
  • Non-Quantitative Models (Qualitative)
    • Captures symbolic relationships between decision variables, uncontrollable variables and result variables
  • Quantitative Models: Mathematically links decision variables, uncontrollable variables, and result variables
    • Decision variables describe alternative choices.
    • Uncontrollable variables are outside decision-maker’s control
    • Result variables are dependent on chosen combination of decision variables and uncontrollable variables











optimization via mathematical programming

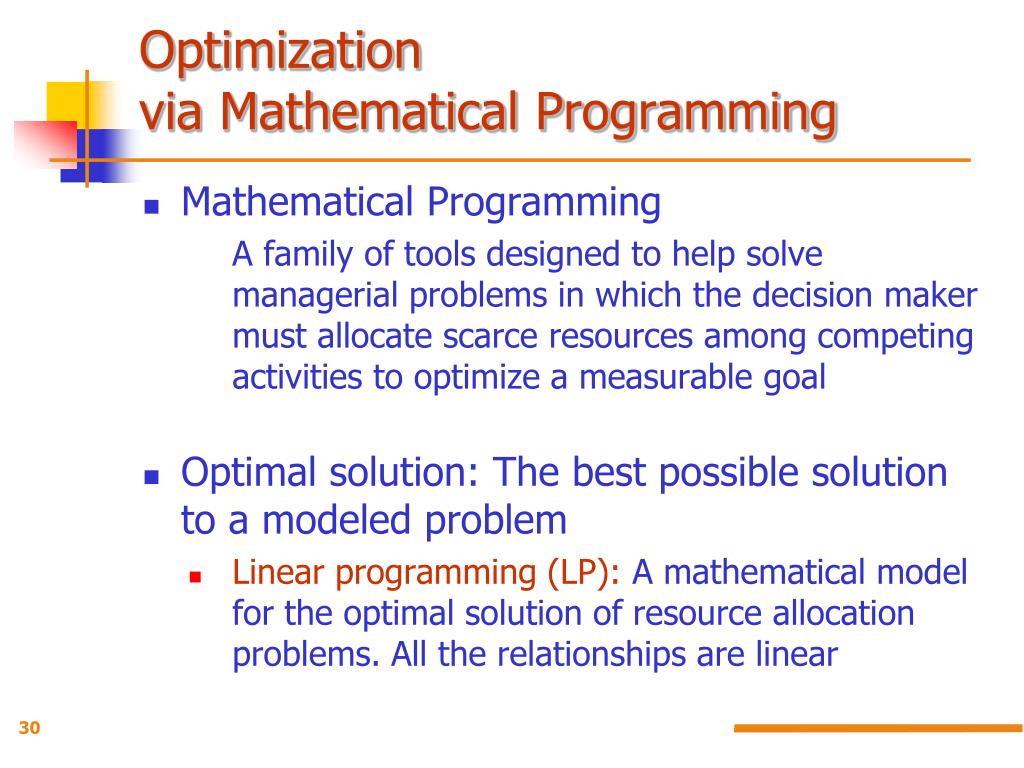

Optimization via Mathematical Programming
  • Mathematical Programming

A family of tools designed to help solve managerial problems in which the decision maker must allocate scarce resources among competing activities to optimize a measurable goal

  • Optimal solution: The best possible solution to a modeled problem
    • Linear programming (LP): A mathematical model for the optimal solution of resource allocation problems. All the relationships are linear
lp problem characteristics
LP Problem Characteristics

1. Limited quantity of economic resources

2. Resources are used in the production of products or services

3. Two or more ways (solutions, programs) to use the resources

4. Each activity (product or service) yields a return in terms of the goal

5. Allocation is usually restricted by constraints

linear programming steps
Linear Programming Steps
  • 1. Identify the …
    • Decision variables
    • Objective function
    • Objective function coefficients
    • Constraints
      • Capacities / Demands
  • 2. Represent the model
    • LINDO: Write mathematical formulation
    • EXCEL: Input data into specific cells in Excel
  • 3. Run the model and observe the results


lp example
LP Example

The Product-Mix Linear Programming Model

  • MBI Corporation
  • Decision: How many computers to build next month?
  • Two types of mainframe computers: CC7 and CC8
  • Constraints: Labor limits, Materials limit, Marketing lower limitsCC7CC8RelLimitLabor (days) 300 500 <= 200,000 /mo Materials ($) 10,000 15,000 <= 8,000,000 /mo Units 1 >= 100 Units 1 >= 200 Profit ($) 8,000 12,000 Max Objective: Maximize Total Profit / Month
lp solution35
LP Solution
  • Decision Variables:

X1: unit of CC-7

X2: unit of CC-8

  • Objective Function:

Maximize Z (profit)


  • Subject To

300X1 + 500X2 200K

10000X1 + 15000X2  8000K

X1  100

X2  200

sensitivity what if and goal seeking analysis
Sensitivity, What-if, and Goal Seeking Analysis
  • Sensitivity
    • Assesses impact of change in inputs on outputs
    • Eliminates or reduces variables
    • Can be automatic or trial and error
  • What-if
    • Assesses solutions based on changes in variables or assumptions (scenario analysis)
  • Goal seeking
    • Backwards approach, starts with goal
    • Determines values of inputs needed to achieve goal
    • Example is break-even point determination
heuristic programming

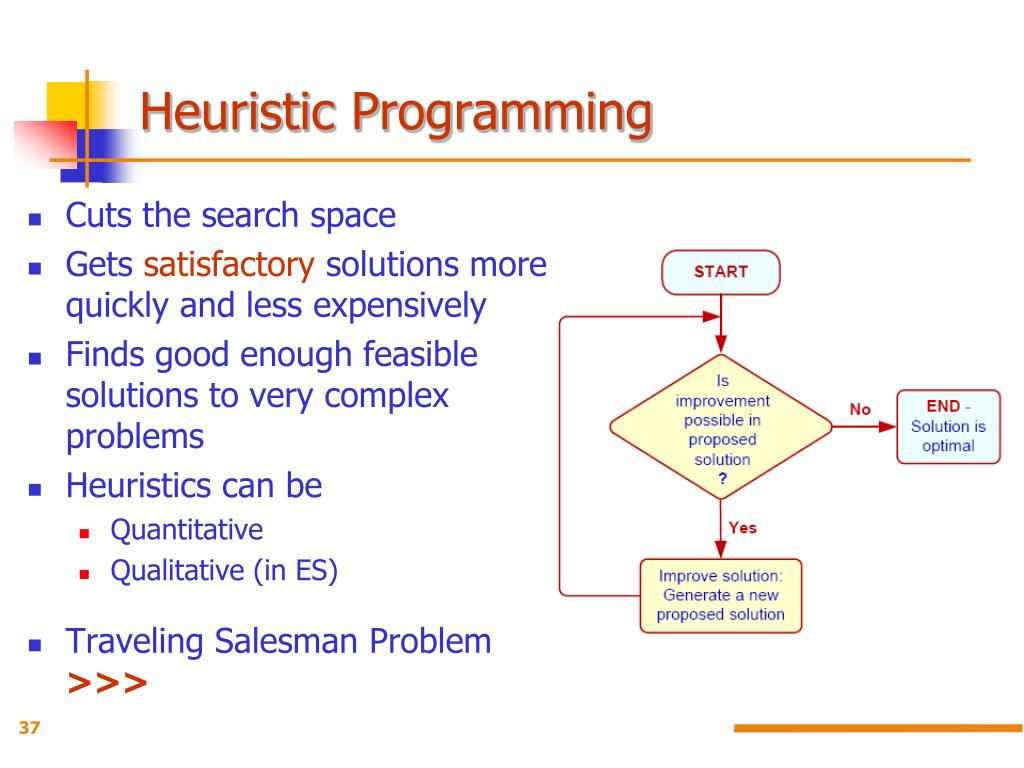

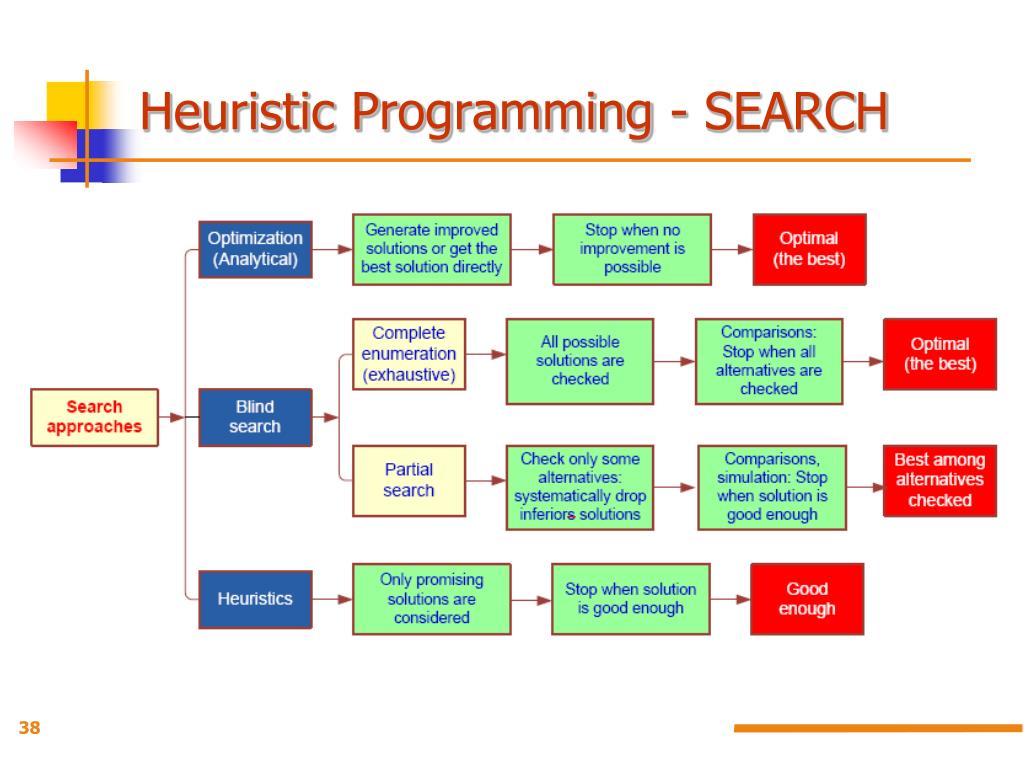

Heuristic Programming
  • Cuts the search space
  • Gets satisfactory solutions more quickly and less expensively
  • Finds good enough feasible solutions to very complex problems
  • Heuristics can be
    • Quantitative
    • Qualitative (in ES)
  • Traveling Salesman Problem >>>
traveling salesman problem
Traveling Salesman Problem
  • What is it?
    • A traveling salesman must visit customers in several cities, visiting each city only once, across the country. Goal: Find the shortest possible route
    • Total number of unique routes (TNUR):

TNUR = (1/2) (Number of Cities – 1)!

Number of CitiesTNUR

5 12

6 60

9 20,160

20 1.22 1018

when to use heuristics
When to Use Heuristics

When to Use Heuristics

  • Inexact or limited input data
  • Complex reality
  • Reliable, exact algorithm not available
  • Computation time excessive
  • For making quick decisions

Limitations of Heuristics

  • Cannot guarantee an optimal solution
  • Technique for conducting experiments with a computer on a comprehensive model of the behavior of a system
  • Frequently used in DSS tools
major characteristics of simulation
Major Characteristics of Simulation
  • Imitates reality and capture its richness
  • Technique for conducting experiments
  • Descriptive, not normative tool
  • Often to “solve” very complex problems

Simulation is normally used only when a problem is too complex to be treated using numerical optimization techniques


advantages of simulation

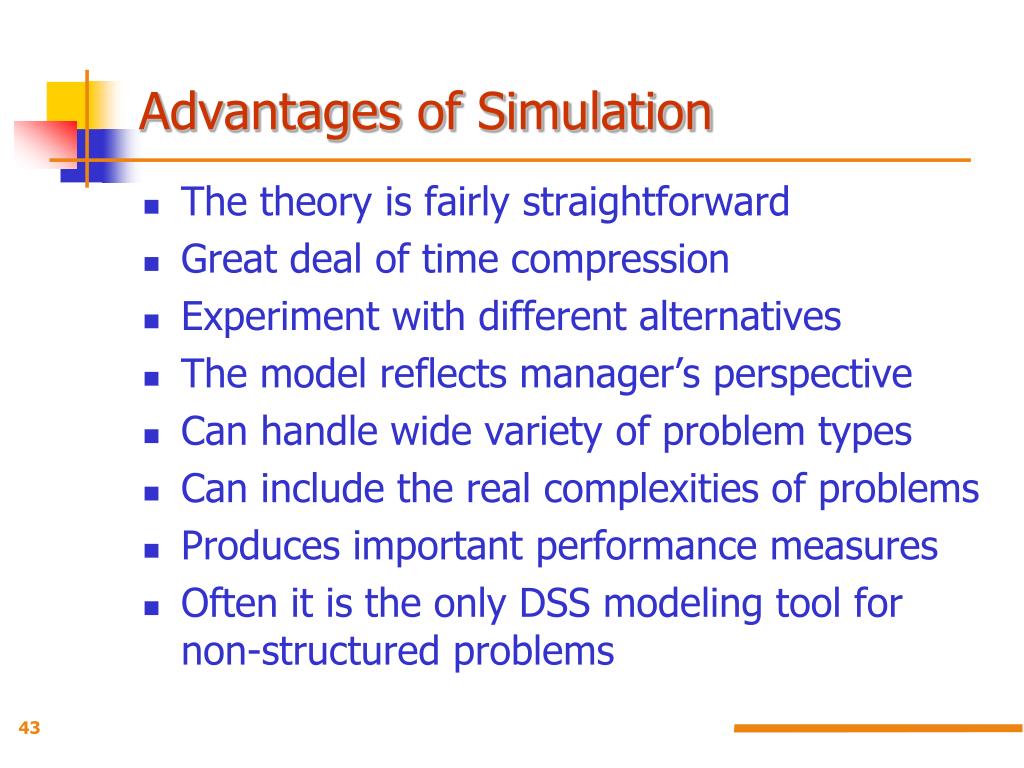

Advantages of Simulation
  • The theory is fairly straightforward
  • Great deal of time compression
  • Experiment with different alternatives
  • The model reflects manager’s perspective
  • Can handle wide variety of problem types
  • Can include the real complexities of problems
  • Produces important performance measures
  • Often it is the only DSS modeling tool for non-structured problems
limitations of simulation

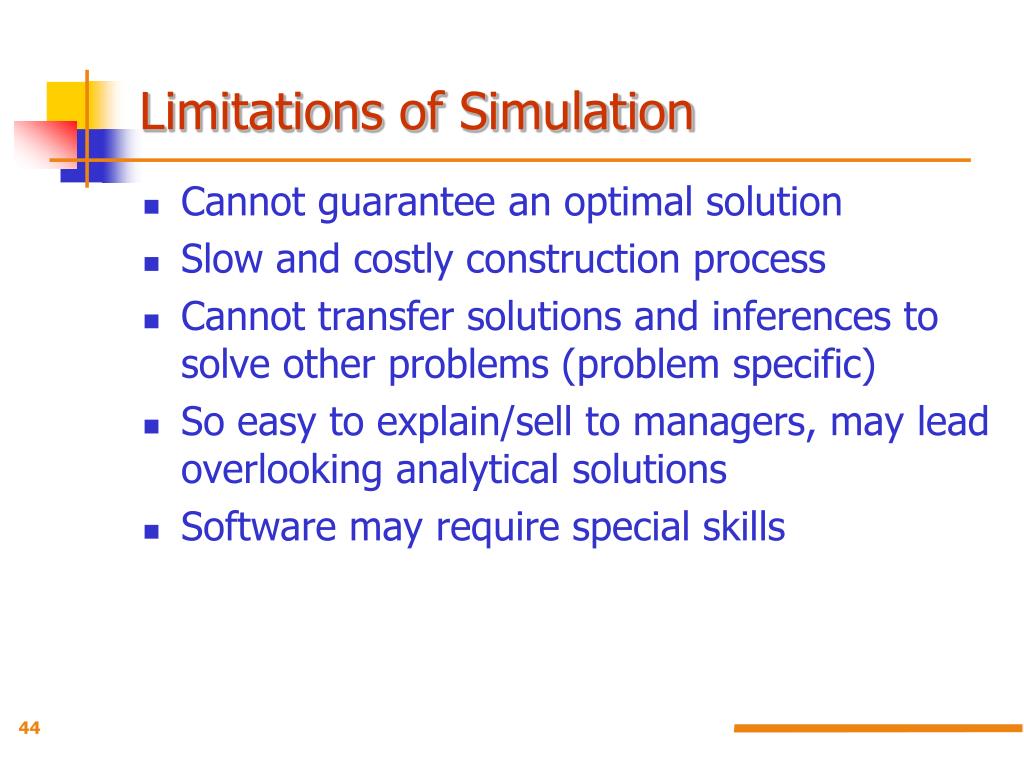

Limitations of Simulation
  • Cannot guarantee an optimal solution
  • Slow and costly construction process
  • Cannot transfer solutions and inferences to solve other problems (problem specific)
  • So easy to explain/sell to managers, may lead overlooking analytical solutions
  • Software may require special skills
simulation methodology
Simulation Methodology
  • Model real system and conduct repetitive experiments.
  • Steps:

1. Define problem 5. Conduct experiments

2. Construct simulation model 6. Evaluate results

3. Test and validate model 7. Implement solution

4. Design experiments

simulation types
Simulation Types
  • Stochastic vs. Deterministic Simulation
    • In stochastic simulations: We use distributions (Discrete or Continuous probability distributions)
  • Time-dependent vs. Time-independent Simulation
    • Time independent stochastic simulation via Monte Carlo technique (X = A + B)
  • Discrete event vs. Continuous simulation
  • Simulation Implementation
    • Visual simulation
visual interactive modeling vim visual interactive simulation vis
Visual Interactive Modeling (VIM) / Visual Interactive Simulation (VIS)
  • Visual interactive modeling (VIM)

Also called

    • Visual interactive problem solving
    • Visual interactive modeling
    • Visual interactive simulation
  • Uses computer graphics to present the impact of different management decisions
  • Often integrated with GIS
  • Users perform sensitivity analysis
  • Static or a dynamic (animation) systems
model base management

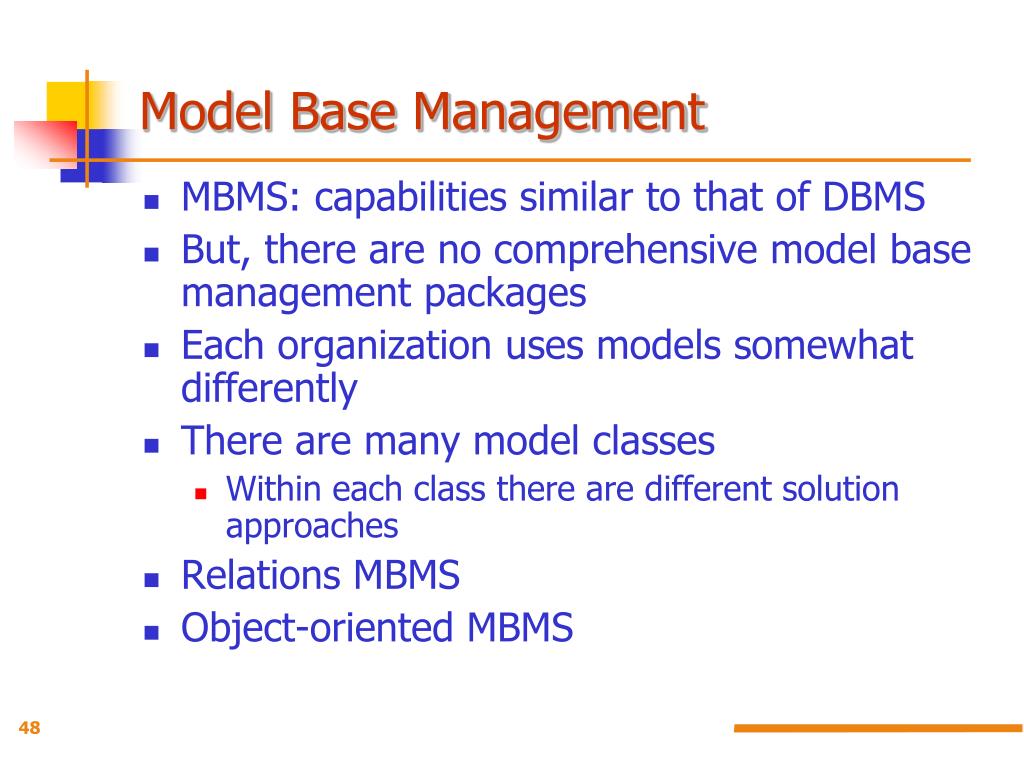

Model Base Management
  • MBMS: capabilities similar to that of DBMS
  • But, there are no comprehensive model base management packages
  • Each organization uses models somewhat differently
  • There are many model classes
    • Within each class there are different solution approaches
  • Relations MBMS
  • Object-oriented MBMS
