1 / 37

Energy Efficiency Standards & Commercial HVAC Product Design Review

Understanding the SEER, EER, and HSPF standards for HVAC products less than 65,000 Btuh, as well as the upcoming changes in Federal standards. Detailed review of light commercial HVAC unit designs and launch roadmap.

kirby-terrell
Download Presentation

Energy Efficiency Standards & Commercial HVAC Product Design Review

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

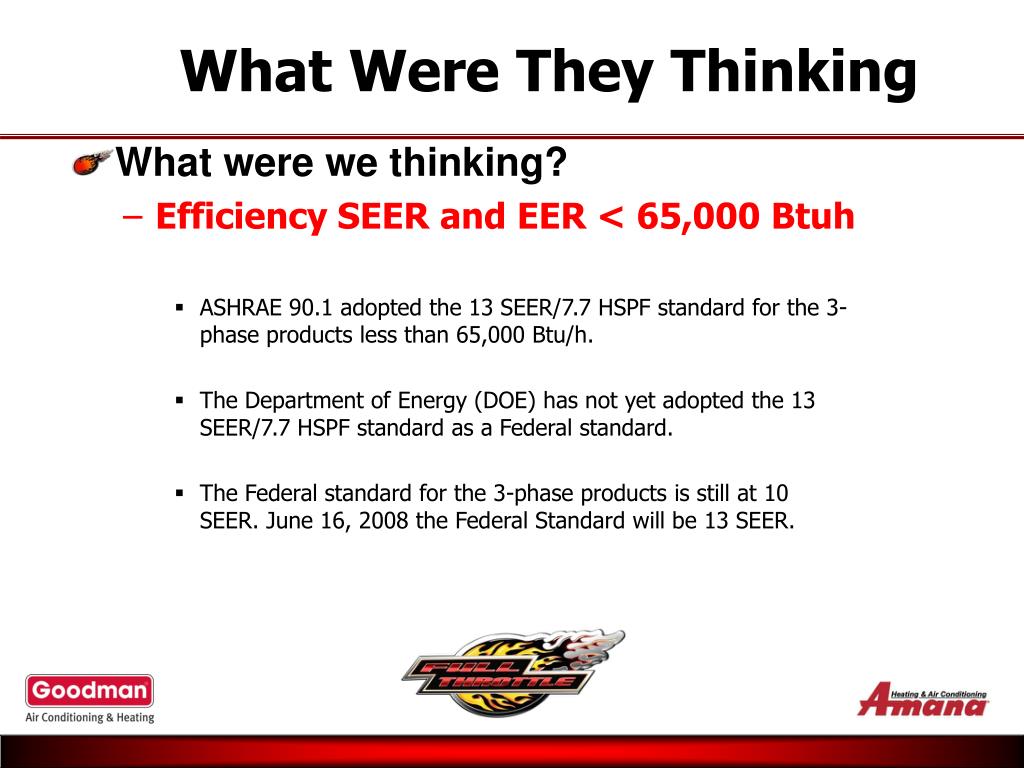

  1. What Were They Thinking • What were we thinking? • Efficiency SEER and EER < 65,000 Btuh • ASHRAE 90.1 adopted the 13 SEER/7.7 HSPF standard for the 3-phase products less than 65,000 Btu/h. • The Department of Energy (DOE) has not yet adopted the 13 SEER/7.7 HSPF standard as a Federal standard. • The Federal standard for the 3-phase products is still at 10 SEER. June 16, 2008 the Federal Standard will be 13 SEER.

  2. What Were They Thinking • What were we thinking? • Efficiency SEER and EER < 65,000 Btuh 3, 4 & 5 Ton Units = 13 SEER 11.3 EER 7.7 HSPF

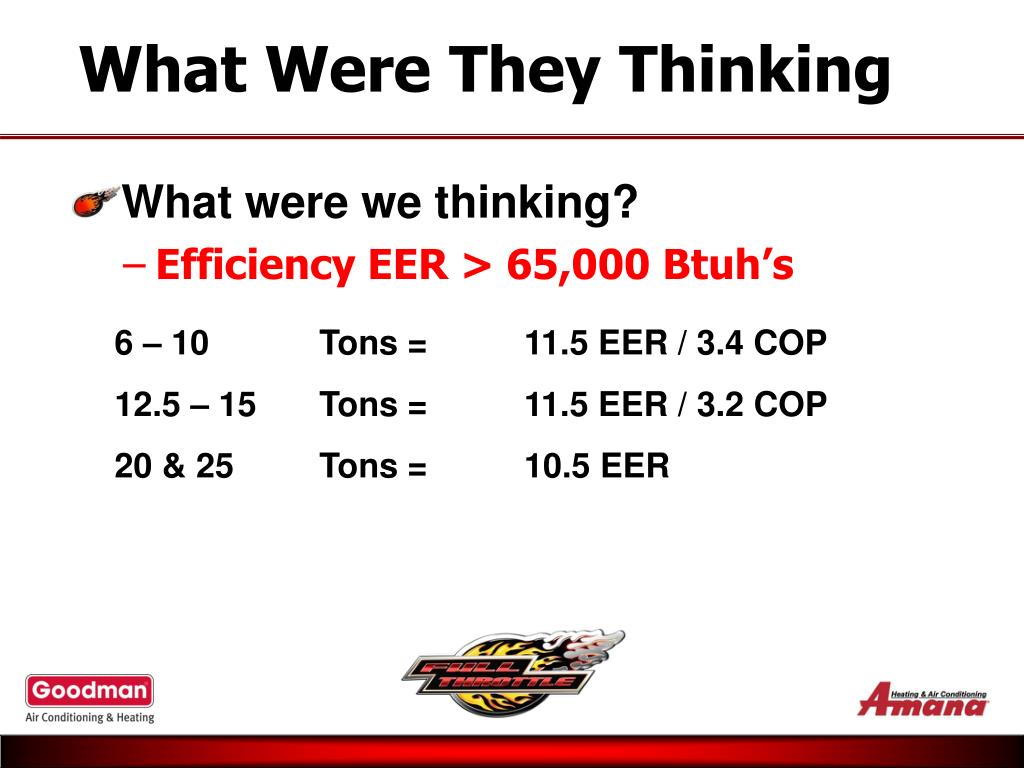

  3. What Were They Thinking • What were we thinking? • Efficiency EER > 65,000 Btuh’s 6 – 10 Tons = 11.5 EER / 3.4 COP 12.5 – 15 Tons = 11.5 EER / 3.2 COP 20 & 25 Tons = 10.5 EER

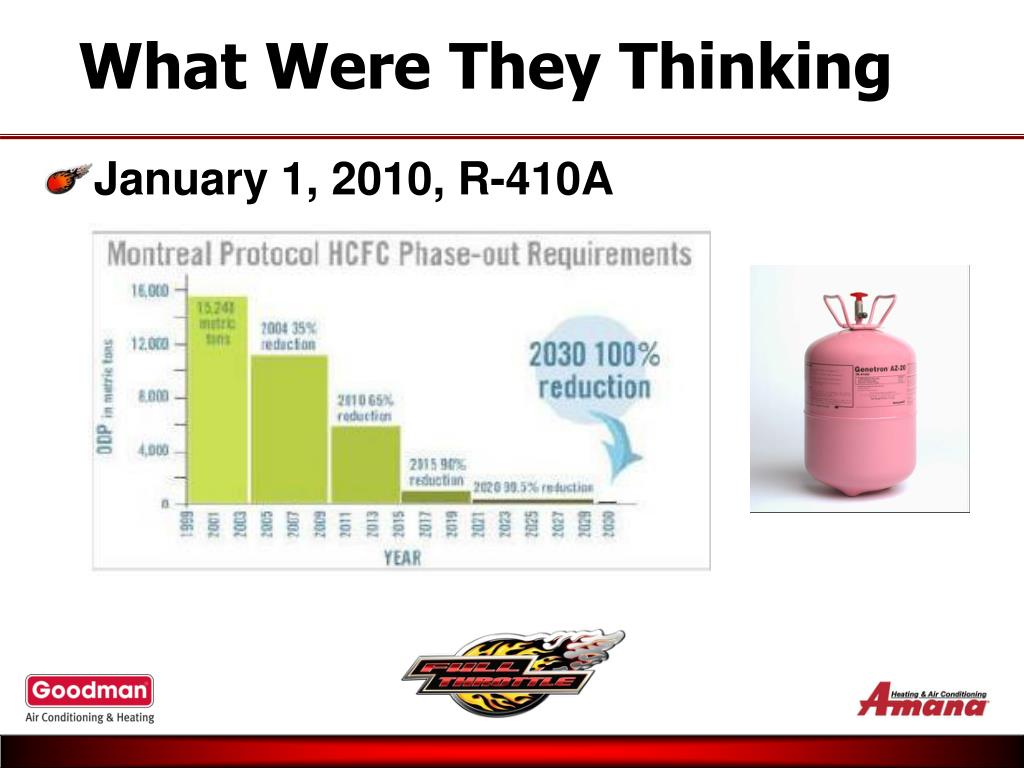

  4. What Were They Thinking • January 1, 2010, R-410A

  5. Light Commercial Products • G/E and AC 3 -25 Tons • Heat Pump 3 – 15 Tons • Fully Convertible • 208v 1 & 3 Phase • 460 v 3 Phase • 575 v 3 Phase

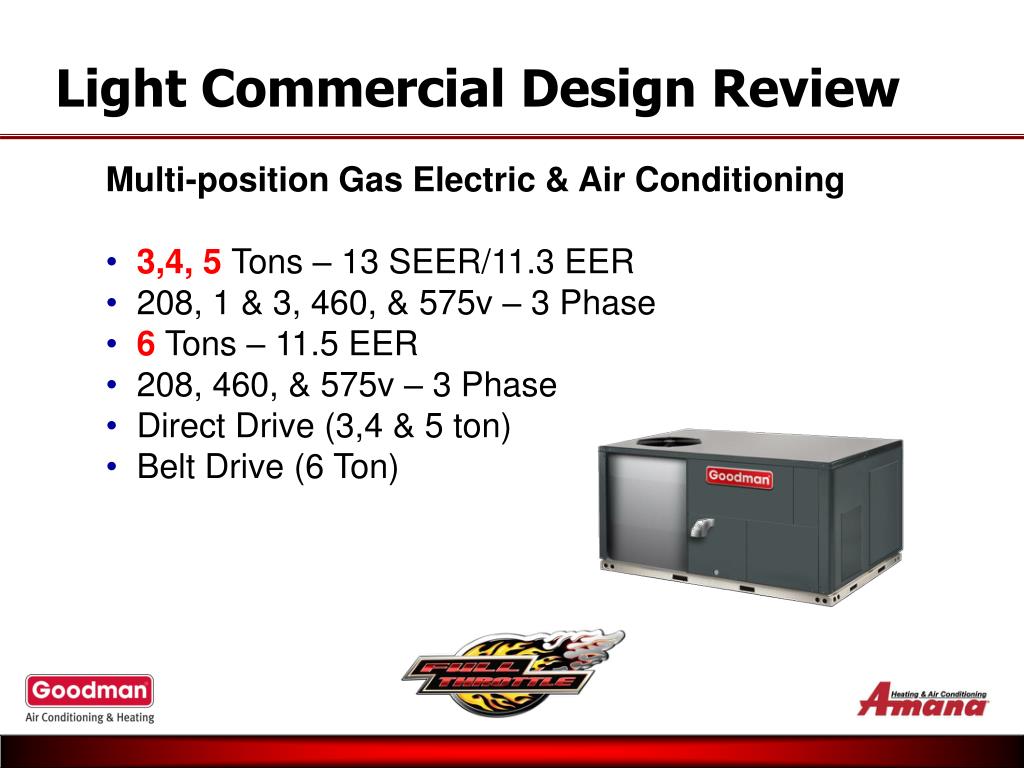

  6. Light Commercial Design Review • Multi-position Gas Electric & Air Conditioning • 3,4, 5 Tons – 13 SEER/11.3 EER • 208, 1 & 3, 460, & 575v – 3 Phase • 6 Tons – 11.5 EER • 208, 460, & 575v – 3 Phase • Direct Drive (3,4 & 5 ton) • Belt Drive (6 Ton)

  7. Light Commercial Design Review • Multi-position Gas Electric & Air Conditioning • 7.5, 8.5,10,12.5 & 15 Tons - 11.5 EER • 208, 460, & 575 - 3 phase • Two-stage Cooling • Two-stage Heating • Belt Drive

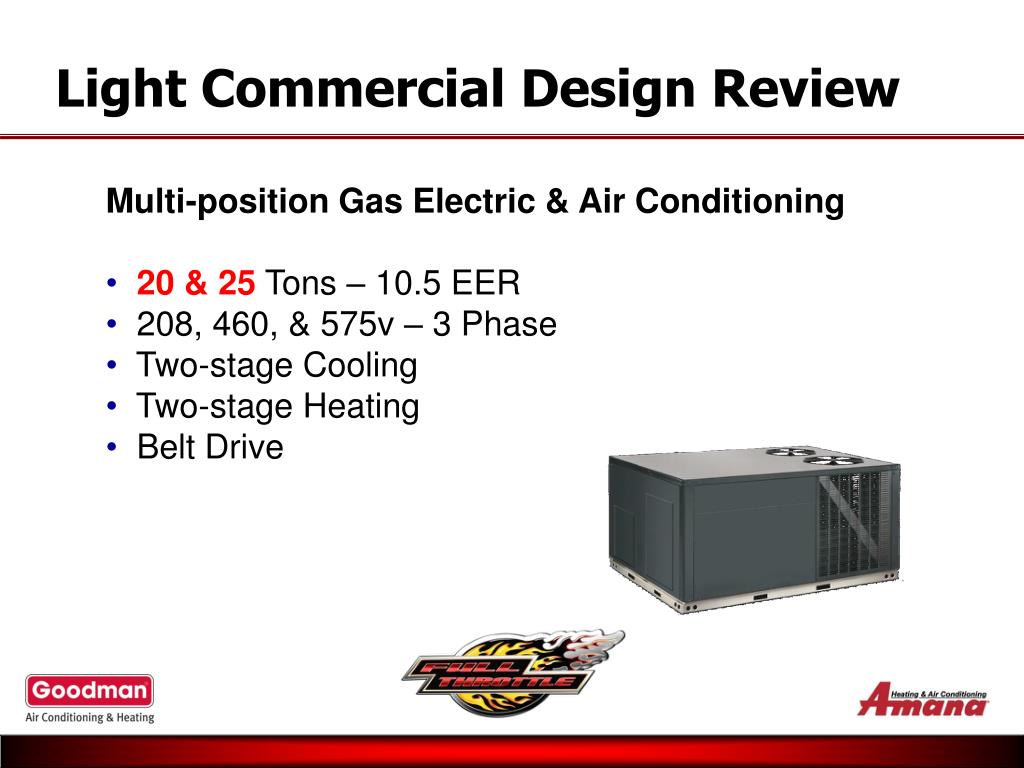

  8. Light Commercial Design Review • Multi-position Gas Electric & Air Conditioning • 20 & 25 Tons – 10.5 EER • 208, 460, & 575v – 3 Phase • Two-stage Cooling • Two-stage Heating • Belt Drive

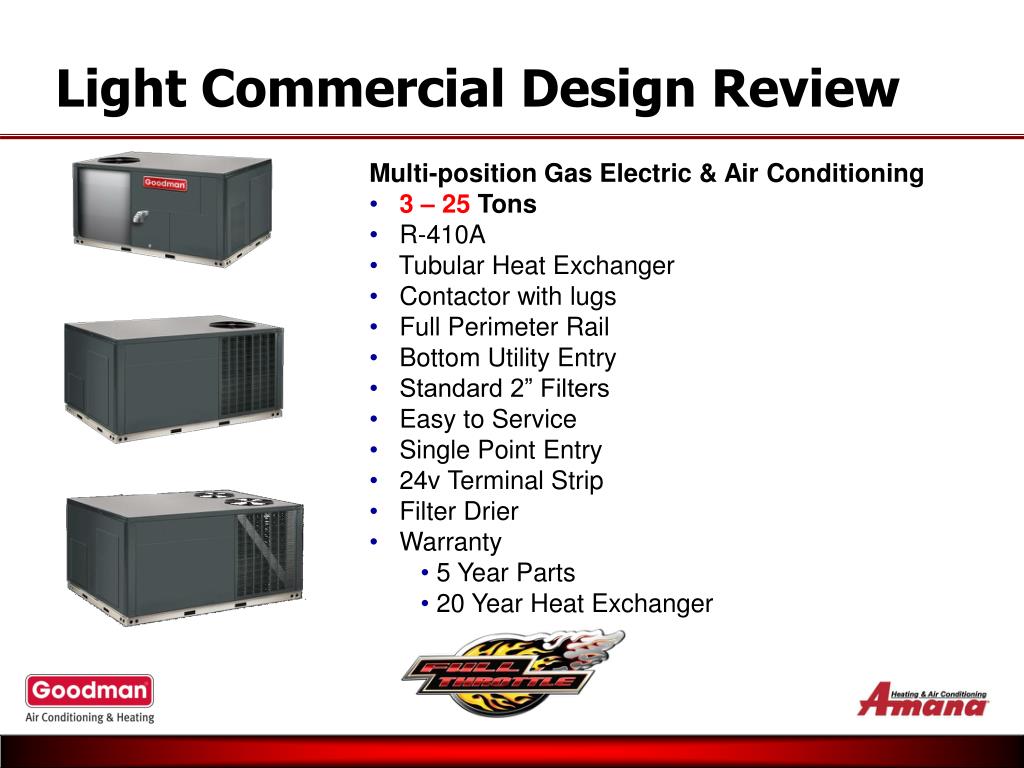

  9. Light Commercial Design Review • Multi-position Gas Electric & Air Conditioning • 3 – 25 Tons • R-410A • Tubular Heat Exchanger • Contactor with lugs • Full Perimeter Rail • Bottom Utility Entry • Standard 2” Filters • Easy to Service • Single Point Entry • 24v Terminal Strip • Filter Drier • Warranty • 5 Year Parts • 20 Year Heat Exchanger

  10. Light Commercial Design Review • Multi-position Heat Pump • 3,4, 5 Tons - 13 SEER/11.3 EER, 7.7 HSPF • 208v 1 & 3, 460v & 575v – 3 Phase • 6 Tons – 11.5 EER, 3.4 COP • 208, 460 & 575v – 3 Phase • Direct Drive (3,4 & 5 ton) • Belt Drive (6 Ton)

  11. Light Commercial Design Review • Multi-position Heat Pump • 7.5, 8.5 & 10 Tons – 11.5 EER/3.4 COP • 208, 460, & 575 - 3 phase • Two-stage cooling • Belt Drive

  12. Light Commercial Design Review • Multi-position Heat Pump • 12.5 & 15 Tons – 11.5 EER/3.2 COP • 208, 460, & 575v – 3 Phase • Two-stage Cooling • Belt Drive

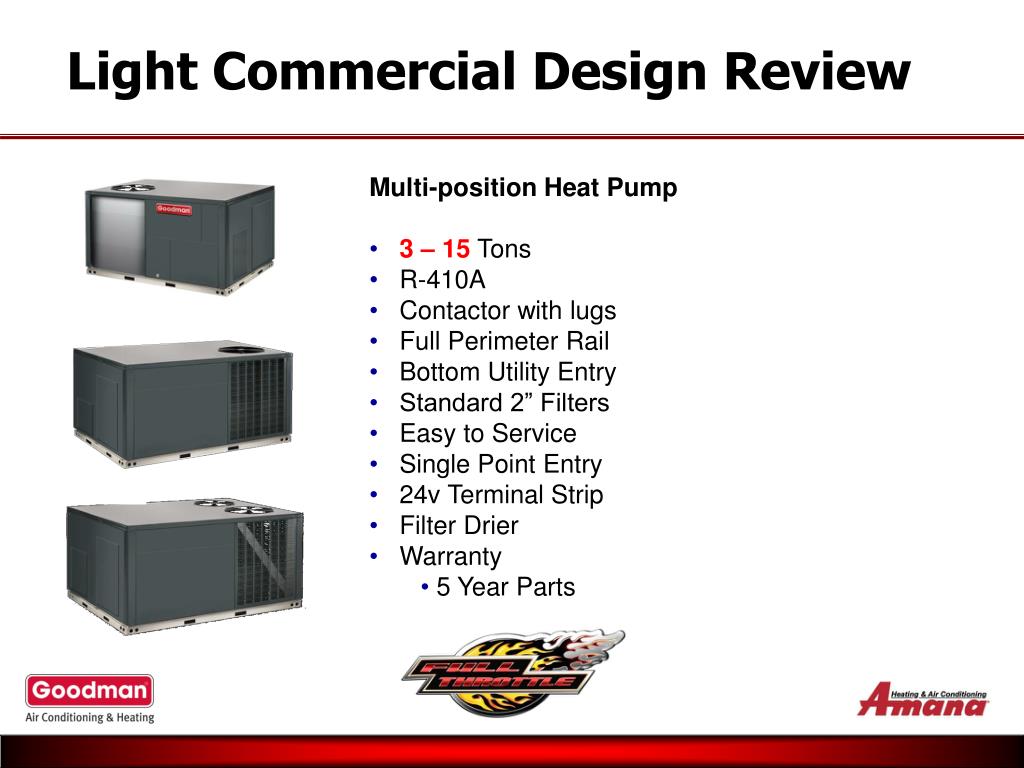

  13. Light Commercial Design Review • Multi-position Heat Pump • 3 – 15 Tons • R-410A • Contactor with lugs • Full Perimeter Rail • Bottom Utility Entry • Standard 2” Filters • Easy to Service • Single Point Entry • 24v Terminal Strip • Filter Drier • Warranty • 5 Year Parts

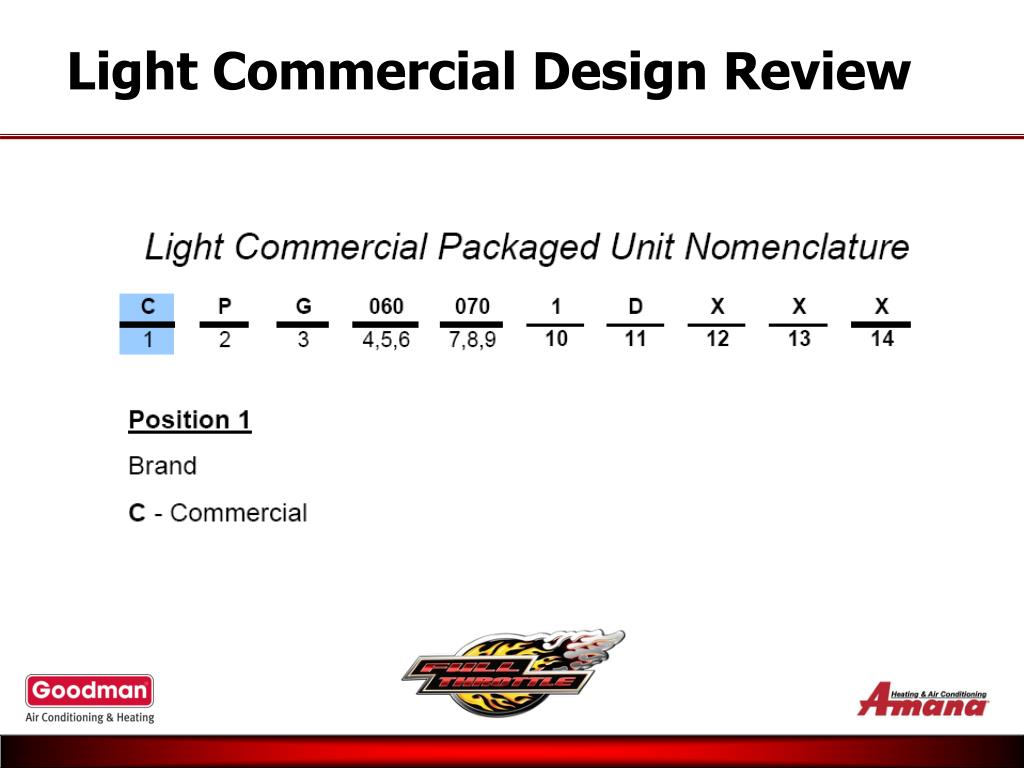

  14. Light Commercial Design Review

  15. Light Commercial Design Review

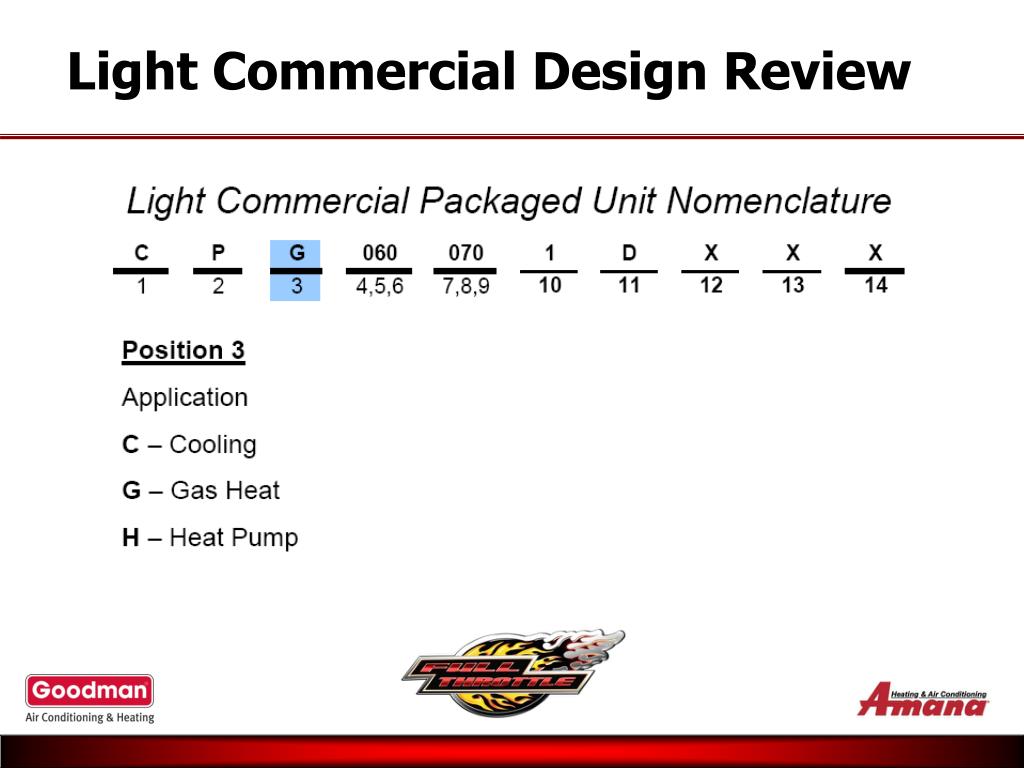

  16. Light Commercial Design Review

  17. Packaged Unit Accessories • Accessories

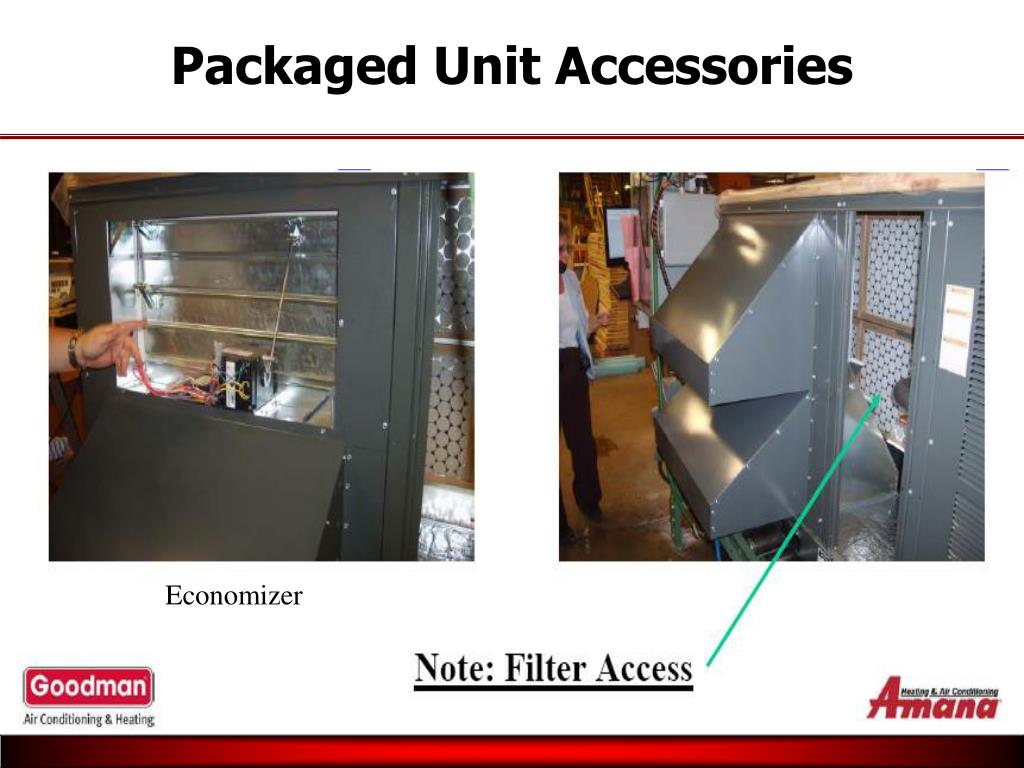

  18. Packaged Unit Accessories Economizer

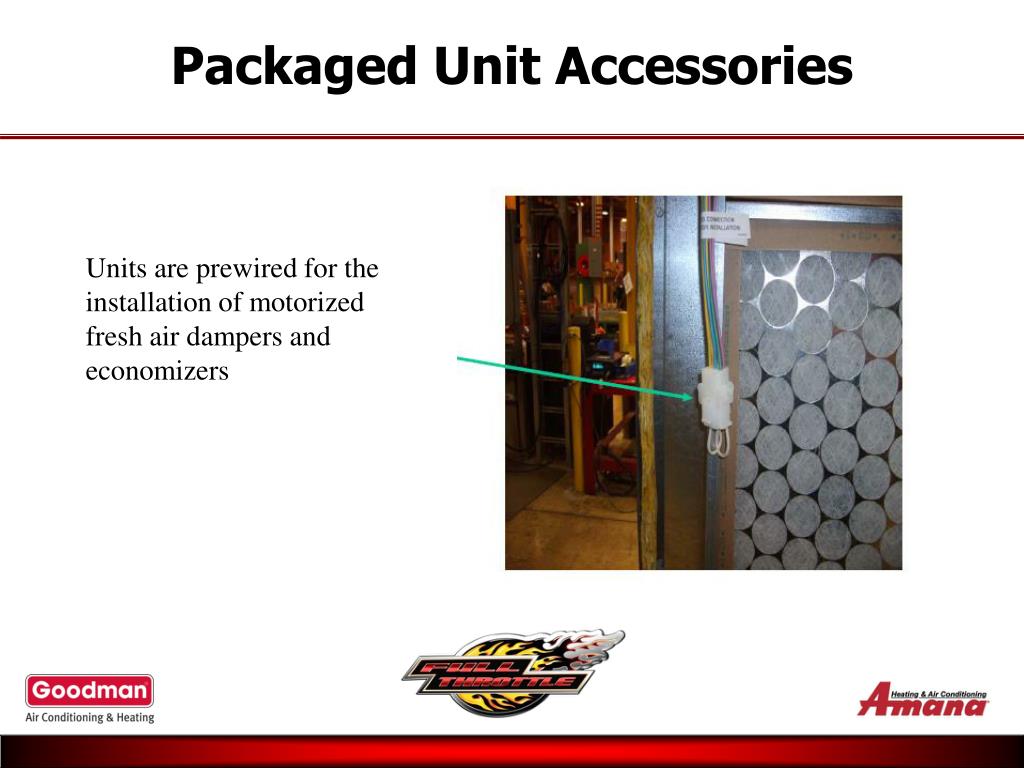

  19. Packaged Unit Accessories Units are prewired for the installation of motorized fresh air dampers and economizers

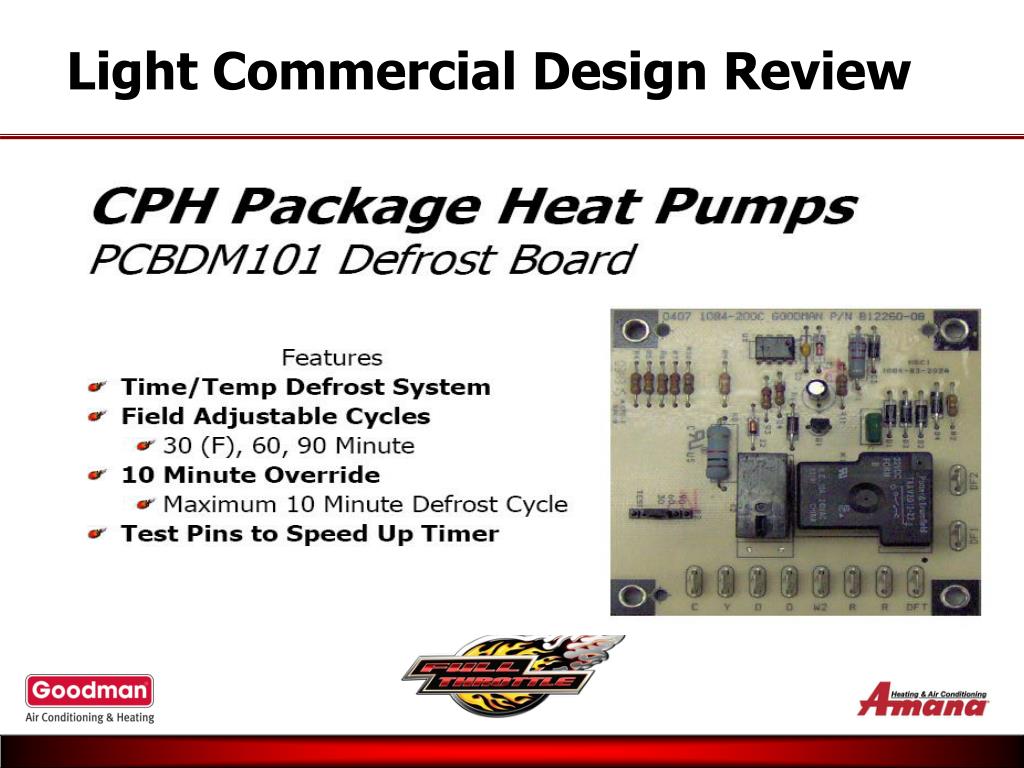

  20. Light Commercial Design Review

  21. Light Commercial Design Review

  22. Light Commercial Design Review

  23. Launch RVP RVP Launch • 5 • HP • AC • GE • 3,7.5, 4, 10 • HP • AC • GE • 15, 20 & 25 • HP (15) • AC • GE • 6, 8.5 & 12.5 • HP • AC • GE Product Launch Roadmap January December 2008 Product Launches Product Design Period January April/May Sept - Dec May-Aug

More Related
