CYLINDER 24-4201-225. MAJOR ASSY. NOSE LANDING GEAR. THE ITEM IS FITTED IN NOSE LANDING GEAR SHOCK STRUT. THE FUNCTION OF THE COMPONENT IS TO ACCOMMODATE NOSE SHOCK ABSORBER AND PROVIDE ATTACHMENT OF NLG LEVER AND CONNECTED ACCESSORIES. WORKING TEMPERATURE - 40°C TO 80°C

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'NOSE LANDING GEAR' - kirby-cardenas


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide1

CYLINDER

24-4201-225

MAJOR ASSY

NOSE LANDING GEAR

slide2

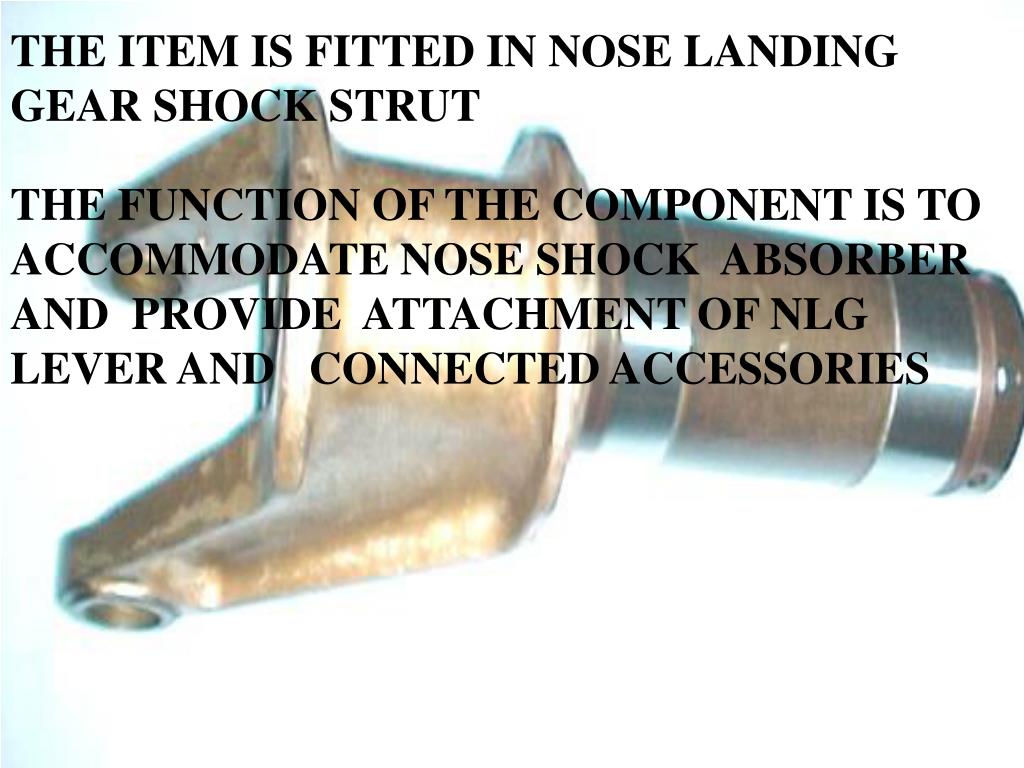

THE ITEM IS FITTED IN NOSE LANDING GEAR SHOCK STRUT

THE FUNCTION OF THE COMPONENT IS TO ACCOMMODATE NOSE SHOCK ABSORBER AND PROVIDE ATTACHMENT OF NLG LEVER AND CONNECTED ACCESSORIES

slide3

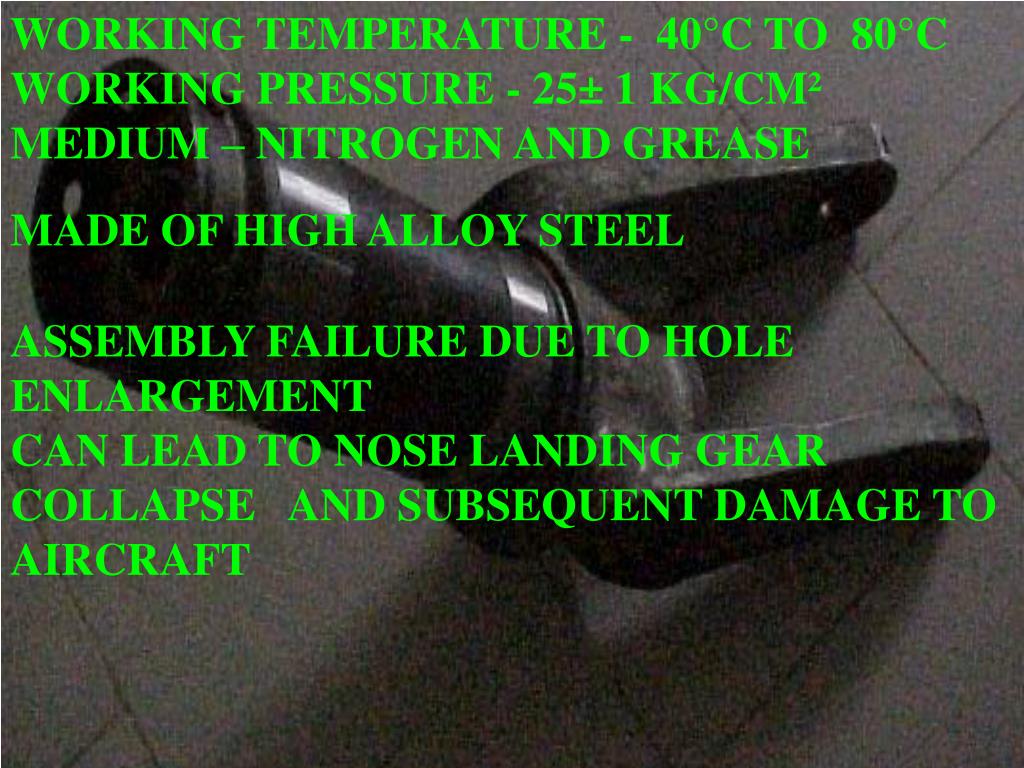

WORKING TEMPERATURE - 40°C TO 80°C

WORKING PRESSURE - 25± 1 KG/CM²

MEDIUM – NITROGEN AND GREASE

MADE OF HIGH ALLOY STEEL

ASSEMBLY FAILURE DUE TO HOLE ENLARGEMENT

CAN LEAD TO NOSE LANDING GEAR COLLAPSE AND SUBSEQUENT DAMAGE TO AIRCRAFT

slide4

THE ASSEMBLY IS COMPLEX IN DESIGN, CRITICAL IN FUNCTION AND REQUIRES MANUFACTURING BY HOT FORGING METHOD

THE REQUIREMENT FOR FIVE YEARS IS 60
