soi cmos eecs 277a

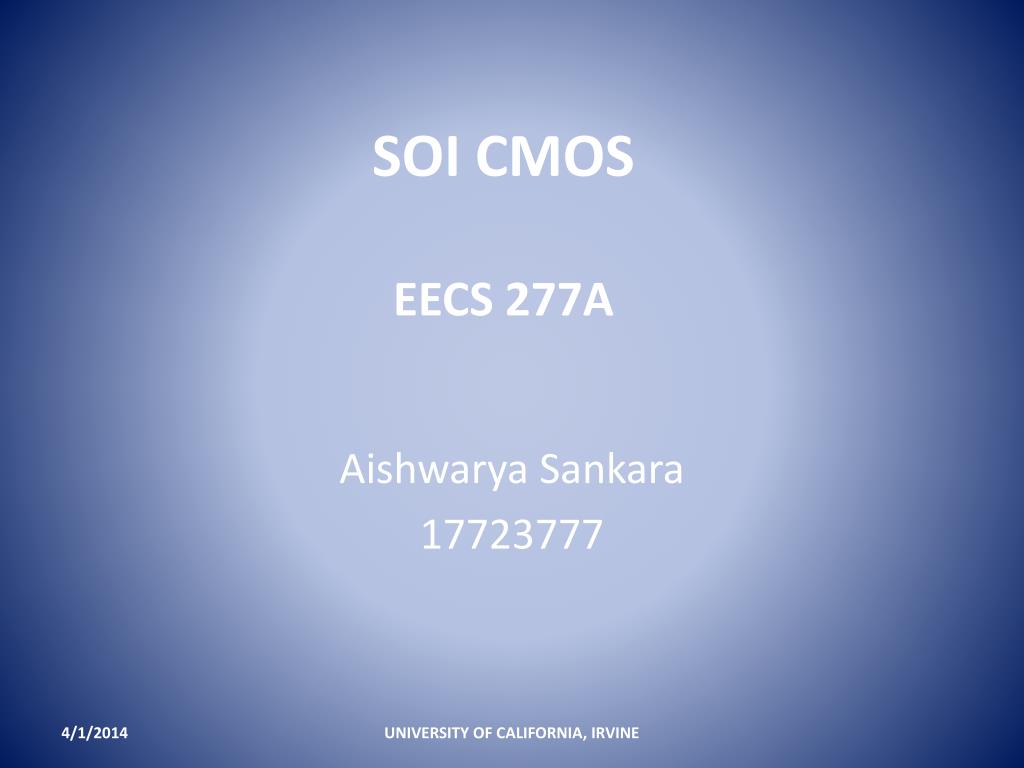

SOI CMOSEECS 277A

Aishwarya Sankara

17723777

UNIVERSITY OF CALIFORNIA, IRVINE

today

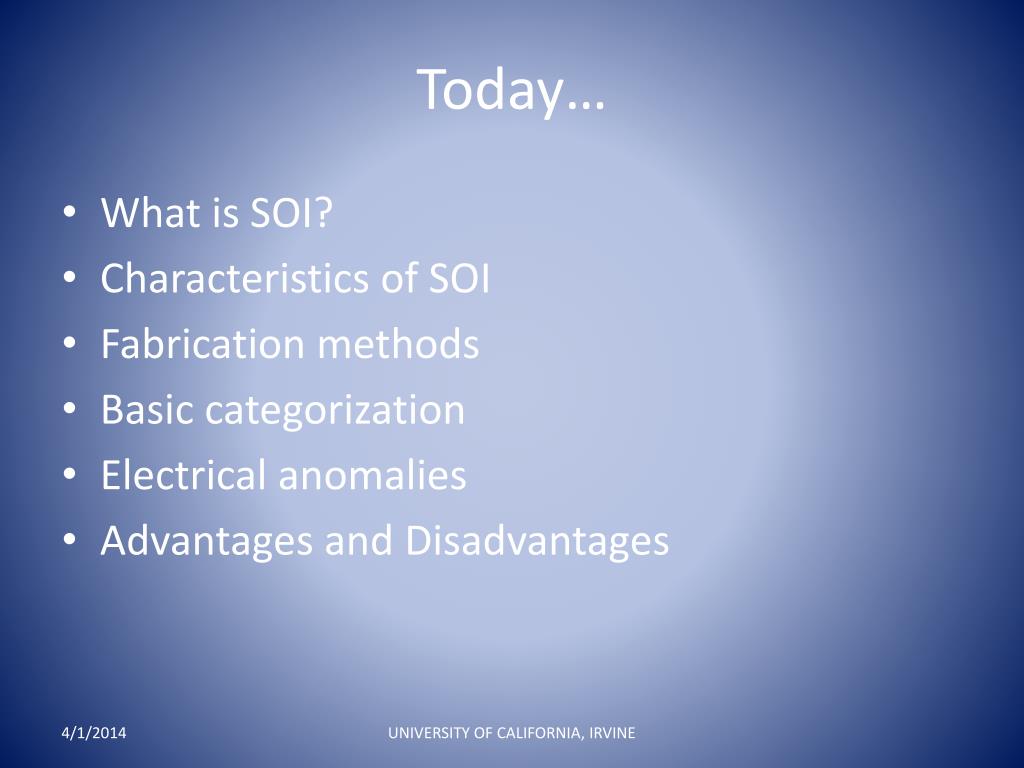

Today…
  • What is SOI?
  • Characteristics of SOI
  • Fabrication methods
  • Basic categorization
  • Electrical anomalies
  • Advantages and Disadvantages

UNIVERSITY OF CALIFORNIA, IRVINE

what is soi

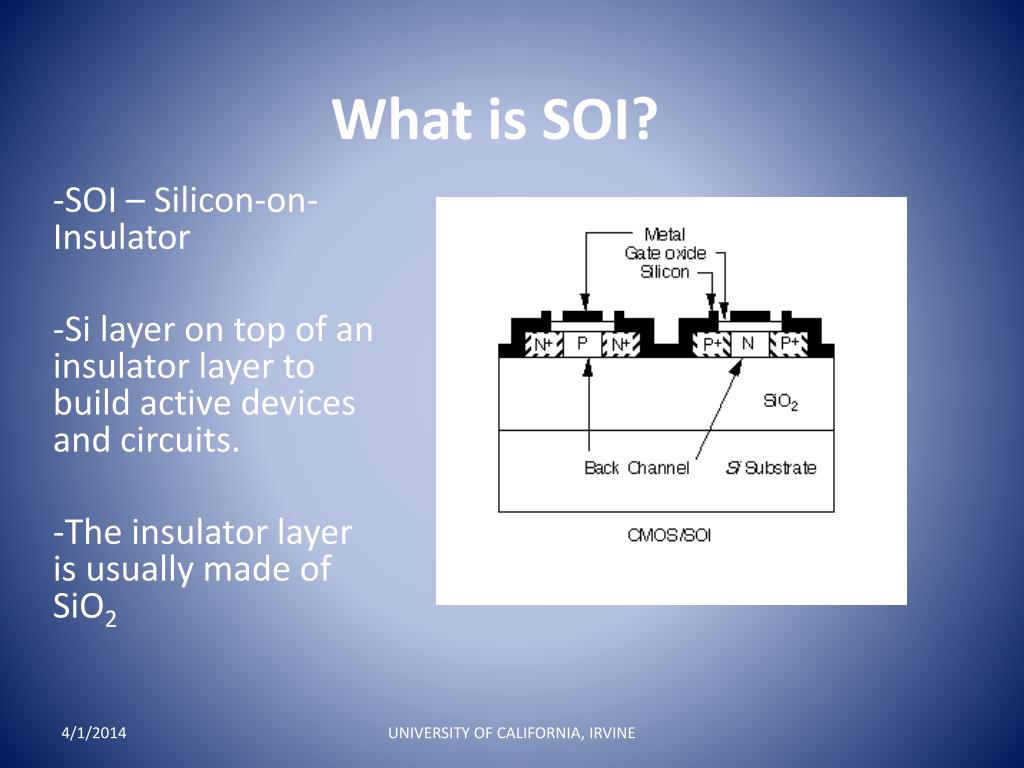

What is SOI?

SOI – Silicon-on-Insulator

Si layer on top of an insulator layer to build active devices and circuits.

The insulator layer is usually made of SiO2

UNIVERSITY OF CALIFORNIA, IRVINE

characteristics

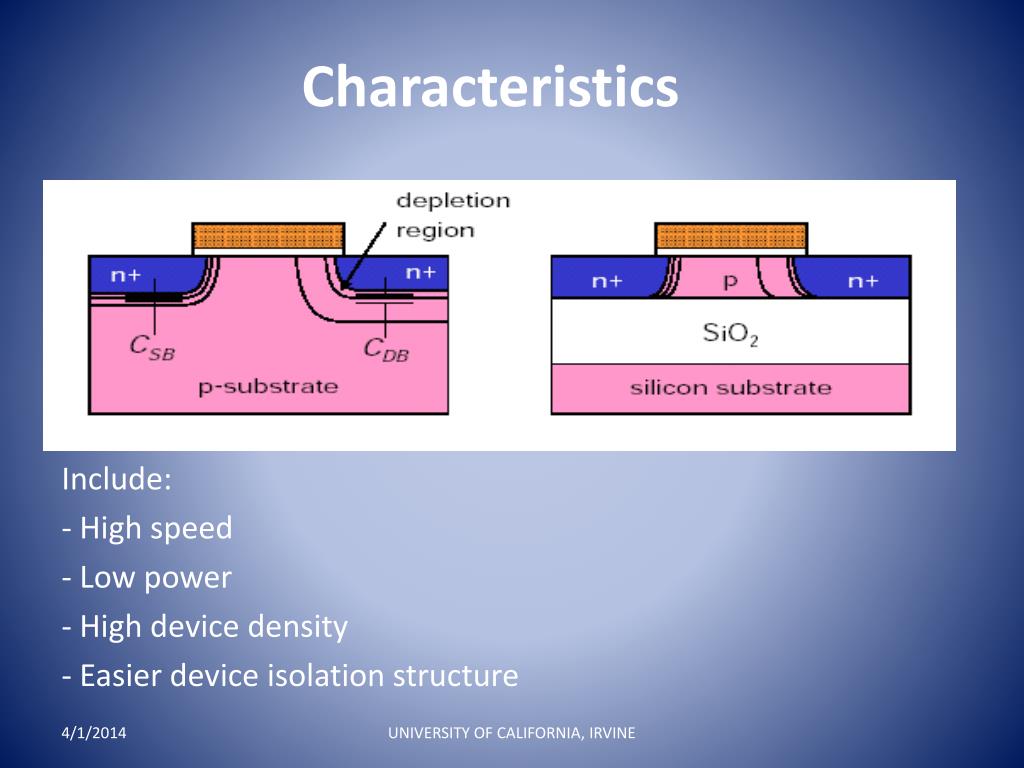

Characteristics

Include:

High speed

Low power

High device density

Easier device isolation structure

UNIVERSITY OF CALIFORNIA, IRVINE

soi fabrication processes

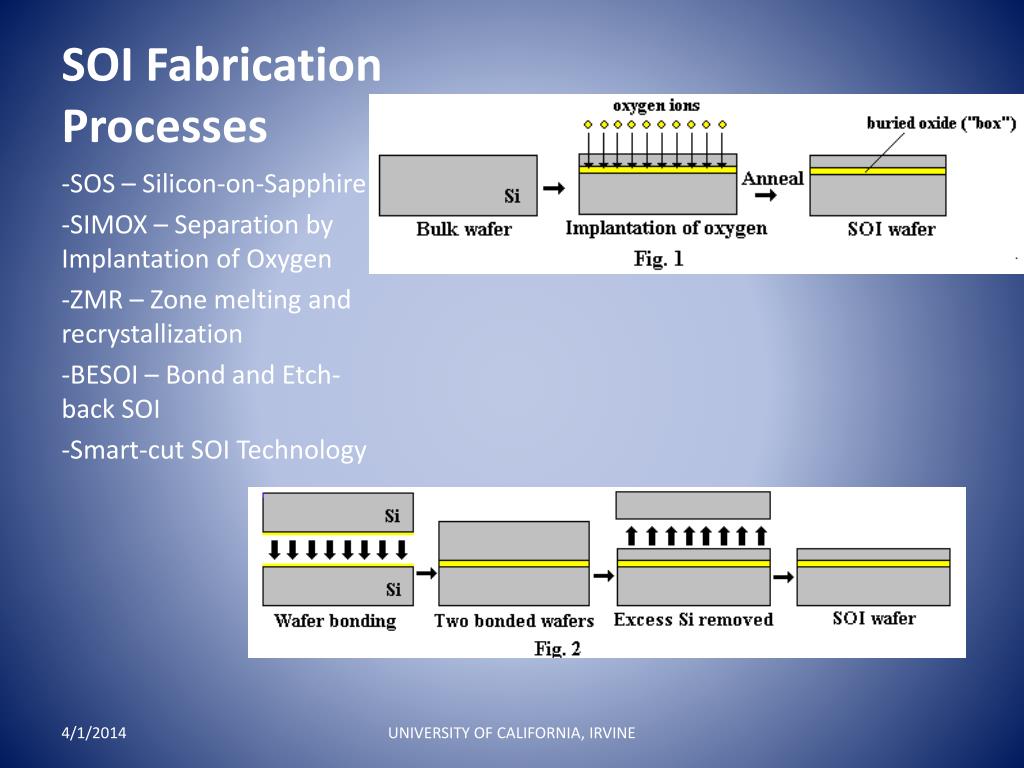

SOI Fabrication Processes

SOS – Silicon-on-Sapphire

SIMOX – Separation by Implantation of Oxygen

ZMR – Zone melting and recrystallization

BESOI – Bond and Etch-back SOI

Smart-cut SOI Technology

UNIVERSITY OF CALIFORNIA, IRVINE

categorization

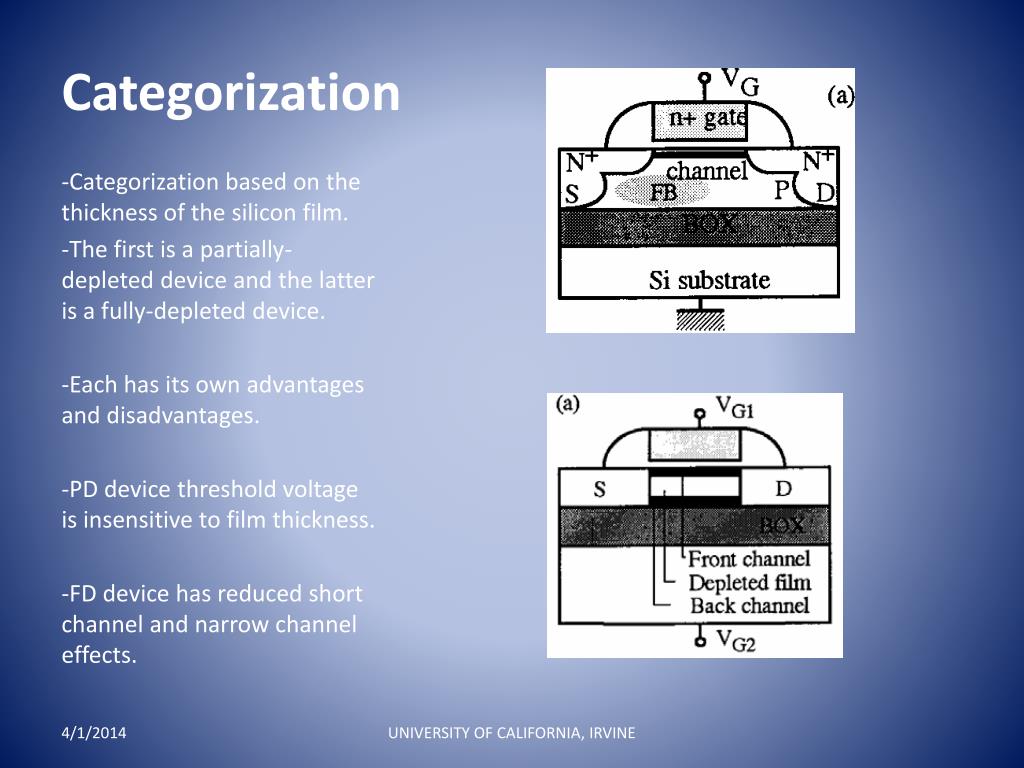

Categorization

Categorization based on the thickness of the silicon film.

The first is a partially-depleted device and the latter is a fully-depleted device.

Each has its own advantages and disadvantages.

PD device threshold voltage is insensitive to film thickness.

FD device has reduced short channel and narrow channel effects.

UNIVERSITY OF CALIFORNIA, IRVINE

electrical anomalies
Electrical anomalies

Floating-body effect:

Usually seen in Partially-Depleted devices.

As shown in figure, the MOS structure is accompanied by a parasitic bipolar device in parallel.

The base of this device is ‘floating’.

UNIVERSITY OF CALIFORNIA, IRVINE

electrical anomalies8
Electrical anomalies

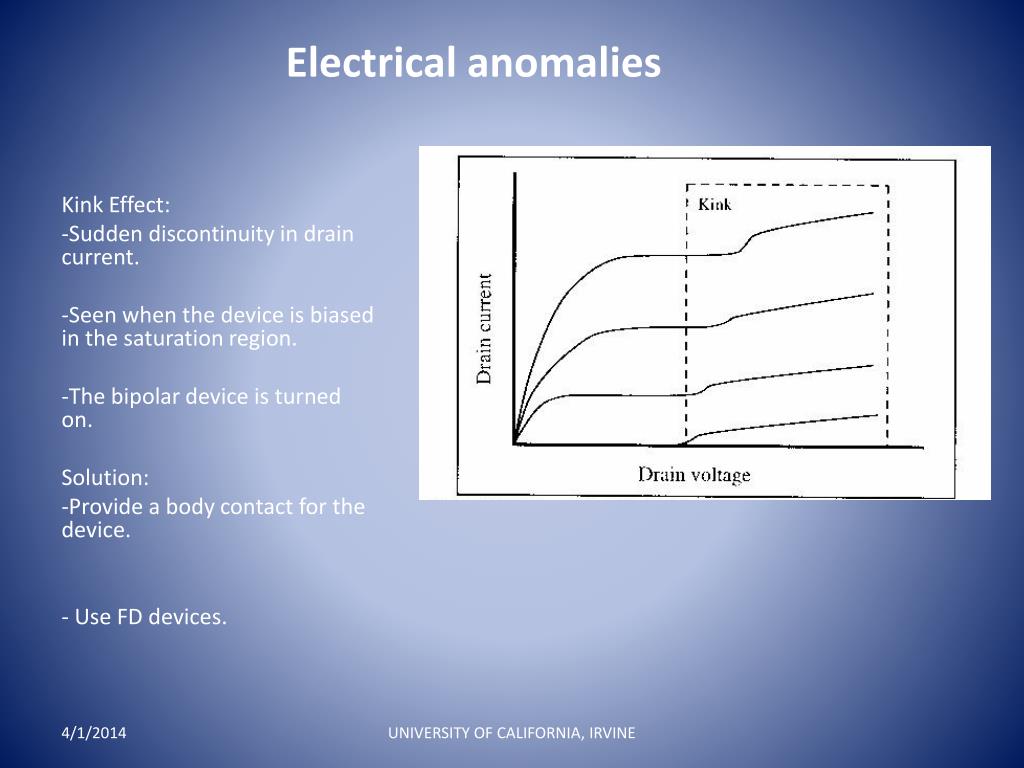

Kink Effect:

Sudden discontinuity in drain current.

Seen when the device is biased in the saturation region.

The bipolar device is turned on.

Solution:

-Provide a body contact for the device.

- Use FD devices.

UNIVERSITY OF CALIFORNIA, IRVINE

electrical anomalies9
Electrical anomalies

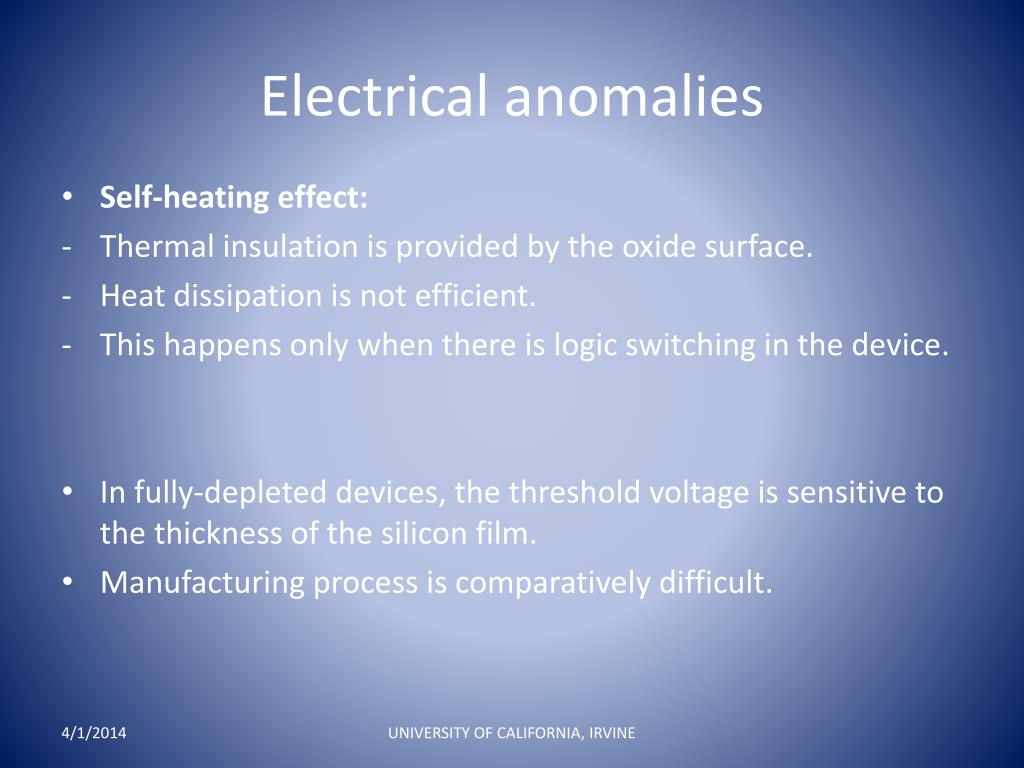

  • Self-heating effect:
  • Thermal insulation is provided by the oxide surface.
  • Heat dissipation is not efficient.
  • This happens only when there is logic switching in the device.
  • In fully-depleted devices, the threshold voltage is sensitive to the thickness of the silicon film.
  • Manufacturing process is comparatively difficult.

UNIVERSITY OF CALIFORNIA, IRVINE

advantages of soi

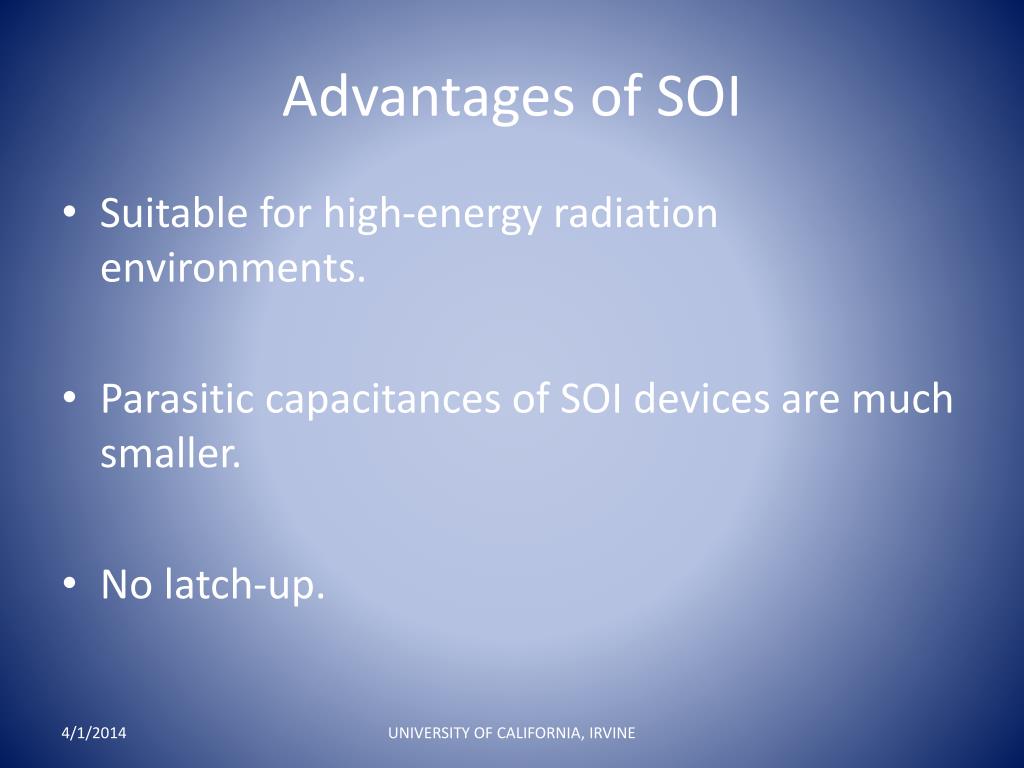

Advantages of SOI
  • Suitable for high-energy radiation environments.
  • Parasitic capacitances of SOI devices are much smaller.
  • No latch-up.

UNIVERSITY OF CALIFORNIA, IRVINE

advantages

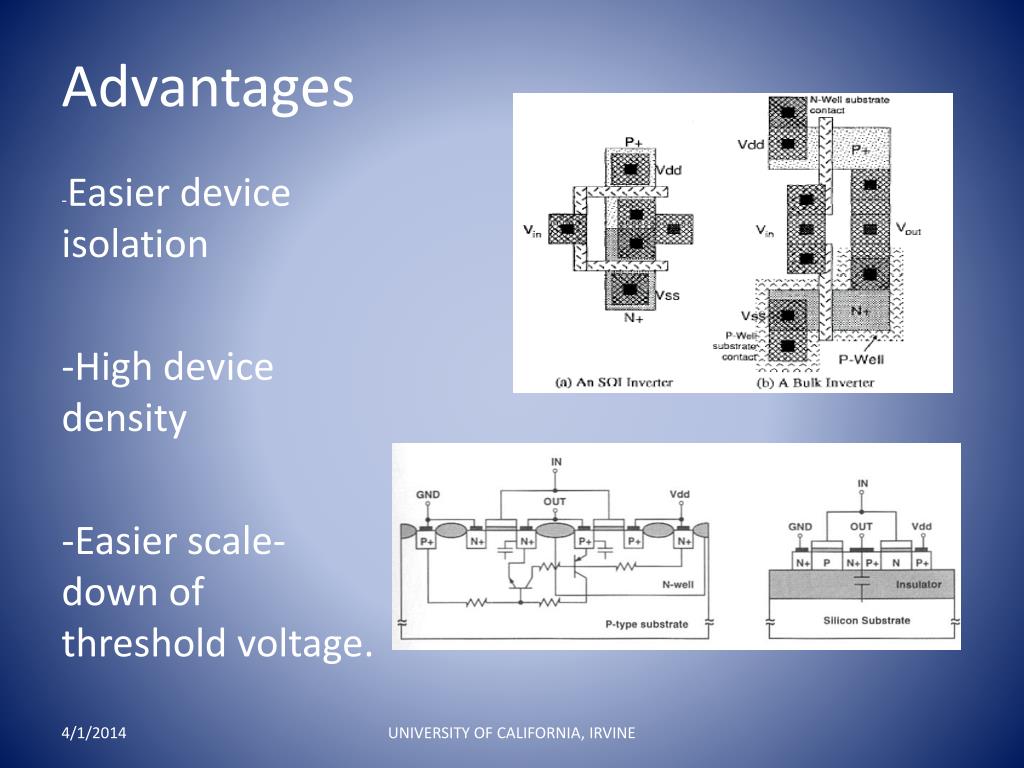

Advantages

-Easier device isolation

-High device density

-Easier scale-down of threshold voltage.

UNIVERSITY OF CALIFORNIA, IRVINE

uses in digital and analog circuits

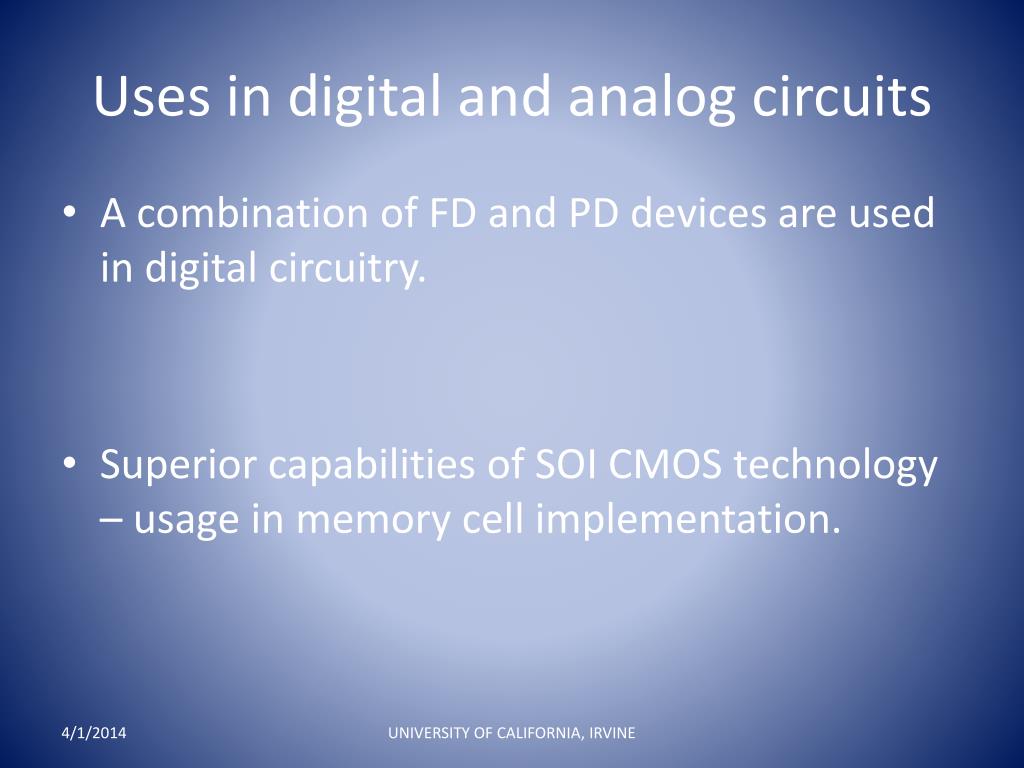

Uses in digital and analog circuits
  • A combination of FD and PD devices are used in digital circuitry.
  • Superior capabilities of SOI CMOS technology – usage in memory cell implementation.

UNIVERSITY OF CALIFORNIA, IRVINE

uses in digital and analog circuits13

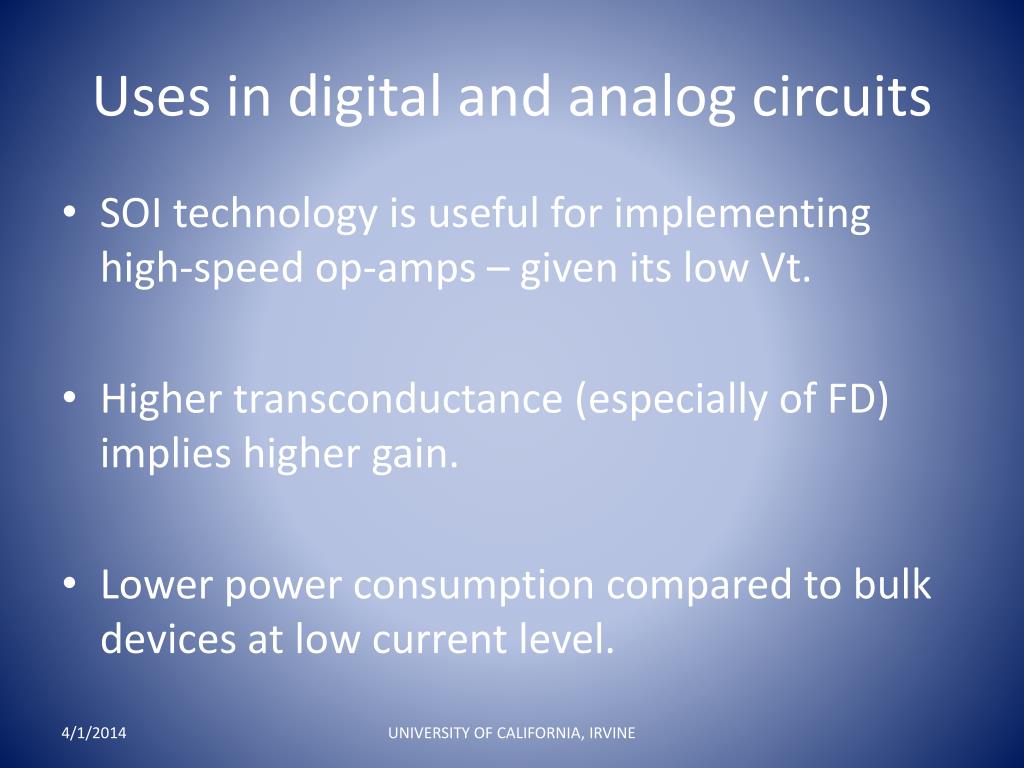

Uses in digital and analog circuits
  • SOI technology is useful for implementing high-speed op-amps – given its low Vt.
  • Higher transconductance (especially of FD) implies higher gain.
  • Lower power consumption compared to bulk devices at low current level.

UNIVERSITY OF CALIFORNIA, IRVINE

disadvantages

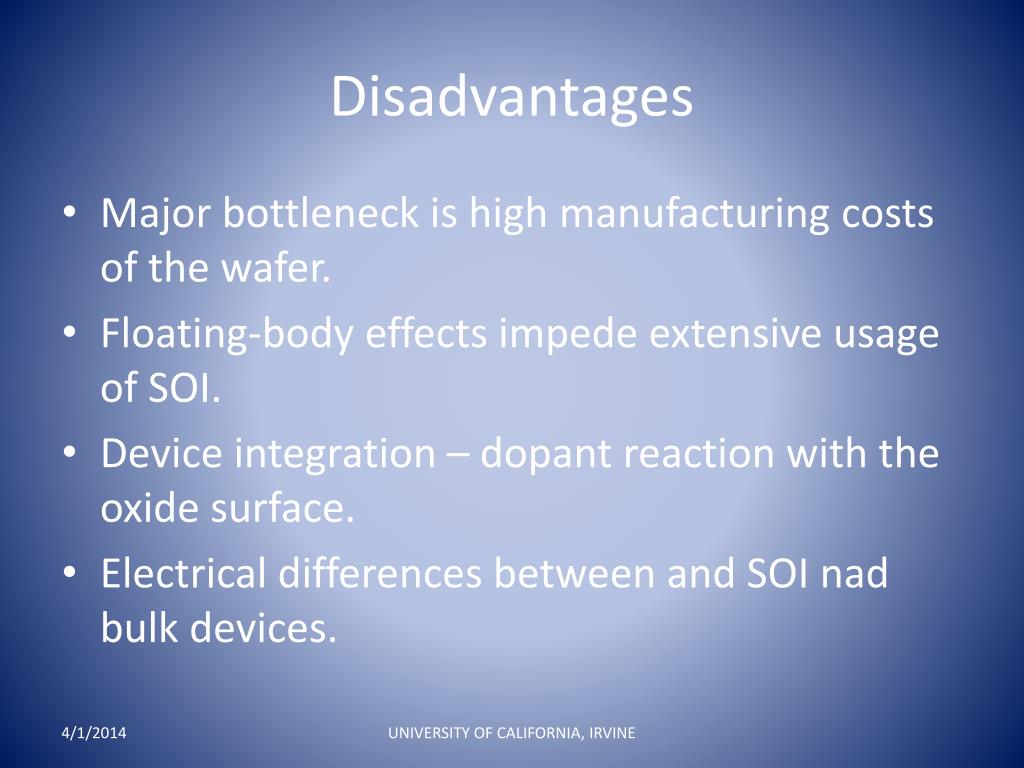

Disadvantages
  • Major bottleneck is high manufacturing costs of the wafer.
  • Floating-body effects impede extensive usage of SOI.
  • Device integration – dopant reaction with the oxide surface.
  • Electrical differences between and SOI nad bulk devices.

UNIVERSITY OF CALIFORNIA, IRVINE

conclusion
Conclusion
  • Due to its characteristics, SOI is fast becoming a standard in IC fabrication.
  • Several companies have taken up SOI manufacturing.
  • High-volume production of SOI is yet to become common.

UNIVERSITY OF CALIFORNIA, IRVINE

references
References
  • J. Kuo, Low- Voltage SOI CMOS VLSI Devices and Circuits. New York, John Wiley, Sept 2001.
  • J.Kuo, CMOS VLSI Engineering(SOI). Kluwer Academic Publishers, 1998.
  • Vivian Ma, SOI VS CMOS. University of Toronto.
  • www.google.com
  • www.chips.ibm.com

THANK YOU!
