  1. P13026: Portable Ventilator Team Leader: Daniel Fenton Kennedy Kong Marie Revekant David Engell Eric Welch Derek Zielinski Chris Freeman Melissa Harrison Ryan Muckel Roberto Castillo Zavala

  2. Overview • Project Summary • Customer Needs • Engineering Specifications • Market Comparison • HOQ/ QFD Relationship Diagram • System Block Diagram • Functional Decomposition • Component Breakdown • PUGH Matrix’s • Risk Assessment • Benchmarking • Market • EMT Products • Proposed Packaging Designs

  3. Project Summary

  4. Project Scope Who: Customer Jeff Gutterman Roman Press Team Composition 3 Mechanical Engineers 2 Electrical Engineers 2 Computer Engineers 1 Industrial Engineer 1 Industrial Designer 1 Business Guru Faculty Mentor Edward Hanzlik What: Project Objective: Redesign the Mediresp III update technical components and packaging to be contemporary. When: How much: Market Release: 2015 (18 – 24 months) Budget: $1000

  5. Current Product- Mediresp III • Provide positive pressure ventilation • 4modes: • CMV (constant mandatory ventilation) • Assist • CPR • Manual • Large and heavy • 2-4 hour battery life • FDA approval • Patented • Contains BVM backup

  6. Proposed Redesign • Updates: • Electronic controls (decrease size/more options) • Smaller pump • Reliable and smaller battery • Additions: • Ability to monitor and record vitals • Pulse oximeter feedback • Voice alerts/instructions • Carbon dioxide sensor

  7. Customer needs

  8. Engineering Specifications

  9. Market Comparison

  10. HOQ/ QFD Relationship Diagram

  11. System Block Diagram

  12. Functional Decomposition

  13. Top Level Functions

  14. Provide Power Functions

  15. Assist User Functions

  16. Circulate Air Functions

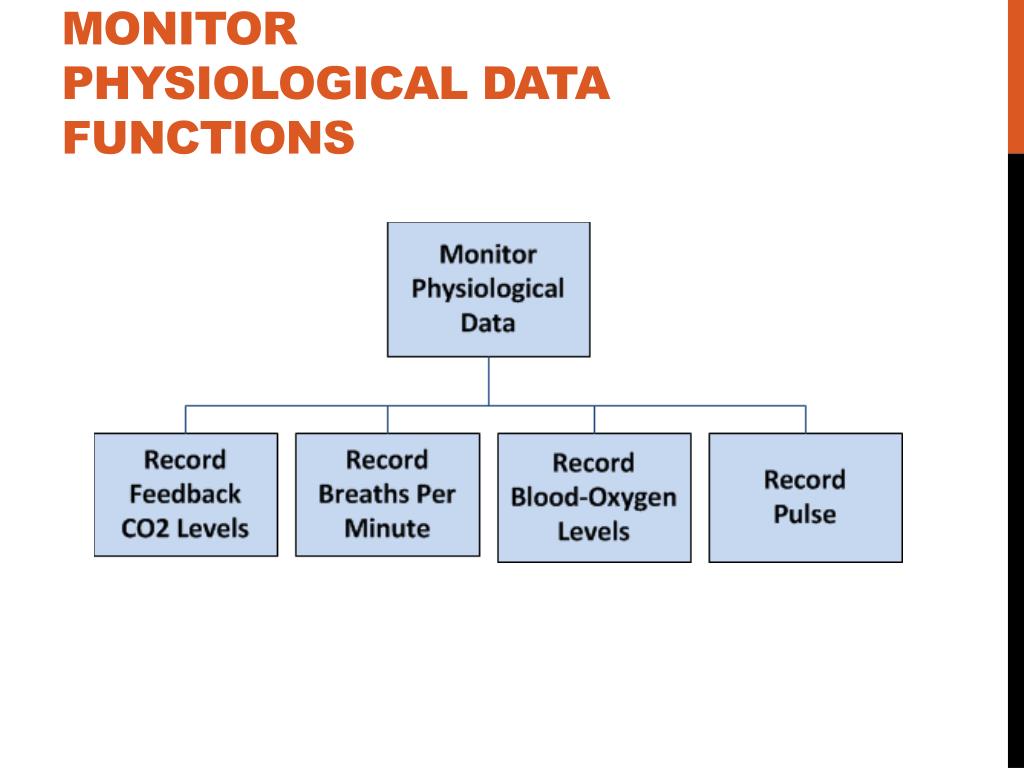

  17. Monitor physiological Data Functions

  18. Component Breakdown

  19. Battery PUGH Matrix

  20. Housing PUGH Matrix

  21. Mass Flow sensor Pugh matrix

  22. Pressure sensor Pugh matrix

  23. Co2 sensor pugh matrix

  24. Pump pugh matrix

  25. Control system pugh matrix

  26. Control Pugh Matrix

  27. User interface pugh Matrix

  28. Risk Assessment

  29. Benchmarking

  30. Customers • First Responders: • EMT, Firefighters • Hospitals • Home Care • Cancer and respiratory problem patients • Nursing Home • Individual Volunteers assisting in response activities

  31. Customer Psychographics • Customers wants to transport a critical ill or injured patient in an array of situations in compliance with the ABCs of intensive care and collecting and sharing data efficiently. • The situations could be defined as: • Safe intra-hospital transport • From the hospital to home care • From an accident location the closest medical center

  32. Market Trends • Market for portable ventilator: • 2009: $1.2 billion • 2016: $2.5 billion • Categories of markets: • Alternate care • Critical care • Home Care • Transport

  33. Portable Ventilator Market Leaders

  34. Other Participants

  35. CAREvent by O-Two Medical Technologies In. Pneupac® paraPA by Smiths Medical Autovent 4000 W/CPAP by Progressive MEd

  36. Current Ventilators for emt’s Cont’d

  37. Current Ventilators for emt’s Cont’d Impact 745 Eagle Unit-Vent Eagle by Impact MCV100 by Allied Healthcare Products Inc.

  38. Current Ventilators for emt’s Cont’d

  39. Proposed Packaging Designs

  40. Questions
