  1. Using Landsat Satellite Imagery to Calculate a Vegetation Index in ArcGIS. Eric Rafn and Bill Kramber Idaho Department of Water Resources October 20th 2011

  2. Presentation Overview. • What is NDVI? • NDVI uses. • ET calculation. • NDVI tool. • Download free Landsat imagery.

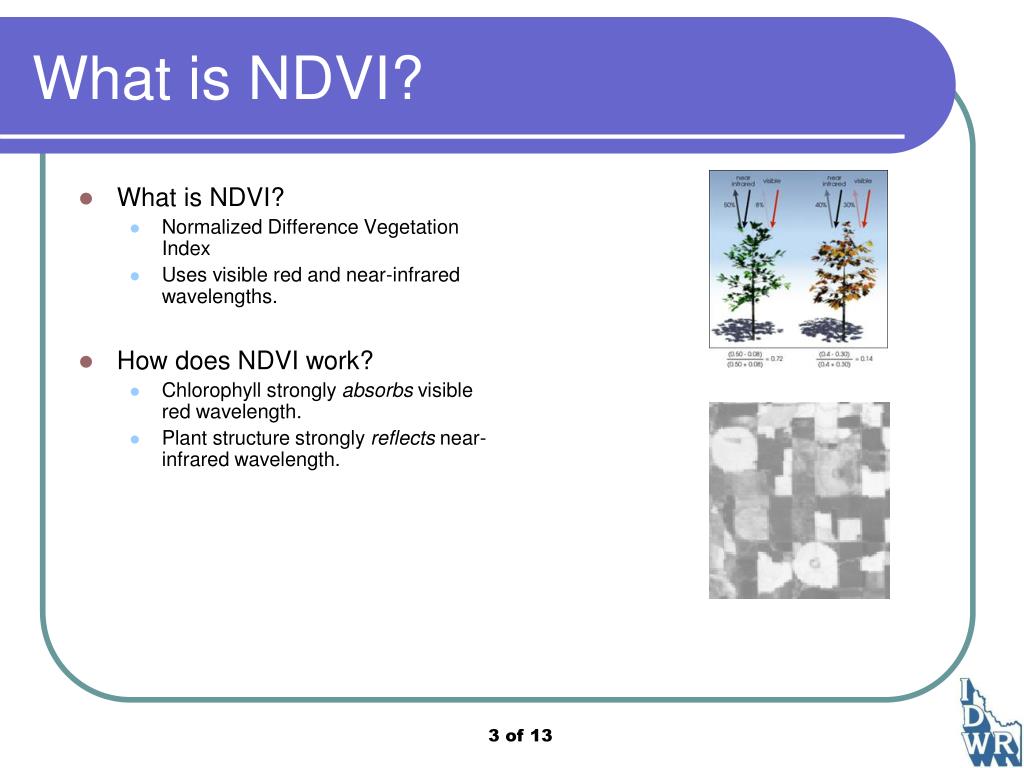

  3. What is NDVI? • What is NDVI? • Normalized Difference Vegetation Index • Uses visible red and near-infrared wavelengths. • How does NDVI work? • Chlorophyll strongly absorbs visible red wavelength. • Plant structure strongly reflects near-infrared wavelength.

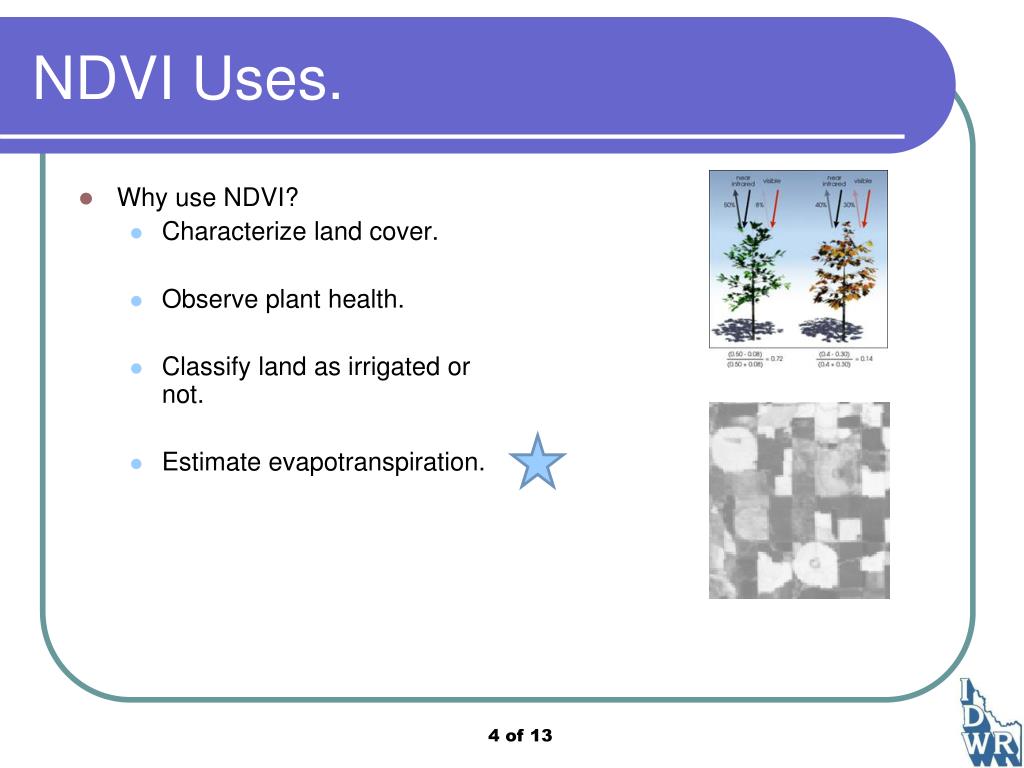

  4. NDVI Uses. • Why use NDVI? • Characterize land cover. • Observe plant health. • Classify land as irrigated or not. • Estimate evapotranspiration.

  5. ET Calculation. • Crop coefficient (Kc) = fraction of climatic demand of the atmosphere that is actually used to evaporate and transpire water. • Kc calculated using NDVI is a: • valid, • rapid, and • low cost method to calculate ET when energy balance methods are not available (i.e. SEBAL and METRIC). • Large spatial area. • Full season irrigation. For example: Kc = 1.1875 * NDVI + 0.05

  6. ET calculation, cont’d. • Reference ET (ETref) = an index of climatic demand. • Meteorological data needed to calculate ETref. • ETcrop = ETref * Kc

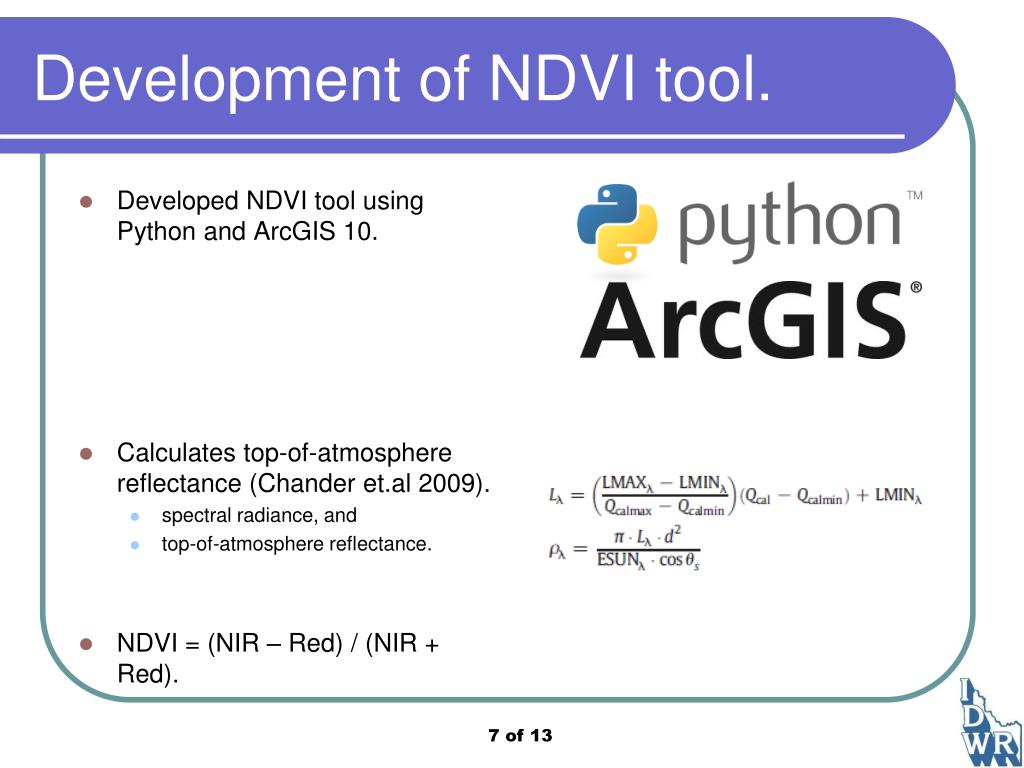

  7. Development of NDVI tool. • Developed NDVI tool using Python and ArcGIS 10. • Calculates top-of-atmosphere reflectance (Chander et.al 2009). • spectral radiance, and • top-of-atmosphere reflectance. • NDVI = (NIR – Red) / (NIR + Red).

  8. NDVI tool. • Inputs. • Landsat band 4 and band 3. • Metadata • satellite name, • date, • sun elevation, • value ranges (LMIN and LMAX, Qcalmin and Qcalmax). (Note: downloaded satellite imagery only. Also, ArcGIS 10, ArcInfo license level, and Spatial Analyst extension are required.)

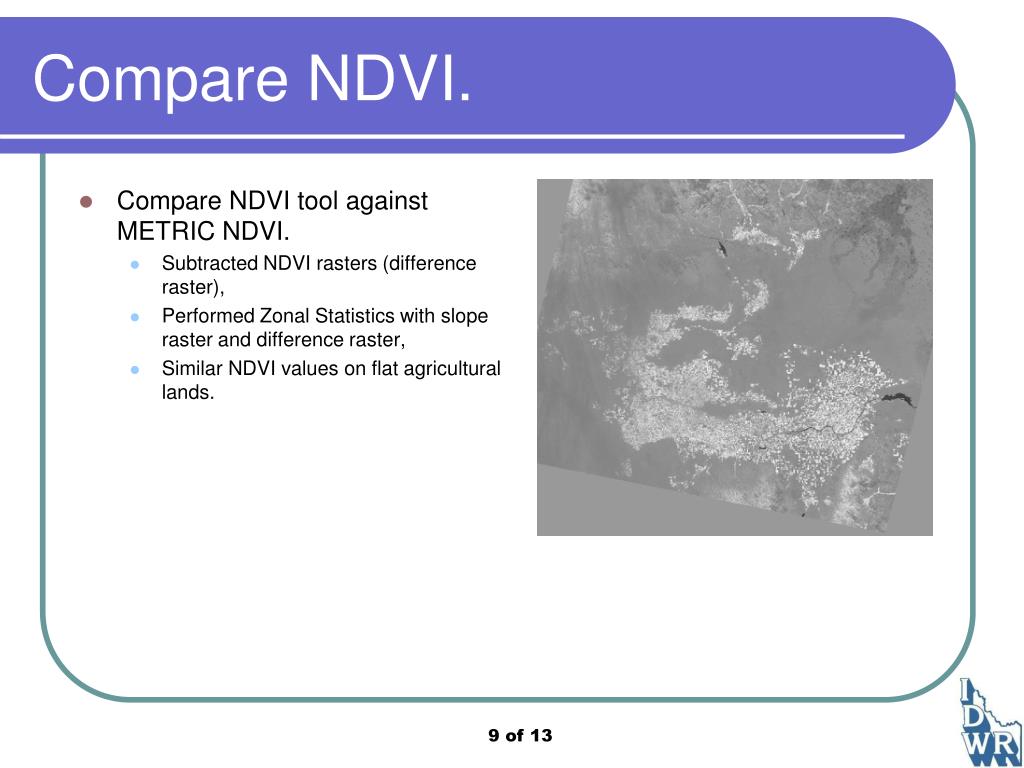

  9. Compare NDVI. • Compare NDVI tool against METRIC NDVI. • Subtracted NDVI rasters (difference raster), • Performed Zonal Statistics with slope raster and difference raster, • Similar NDVI values on flat agricultural lands.

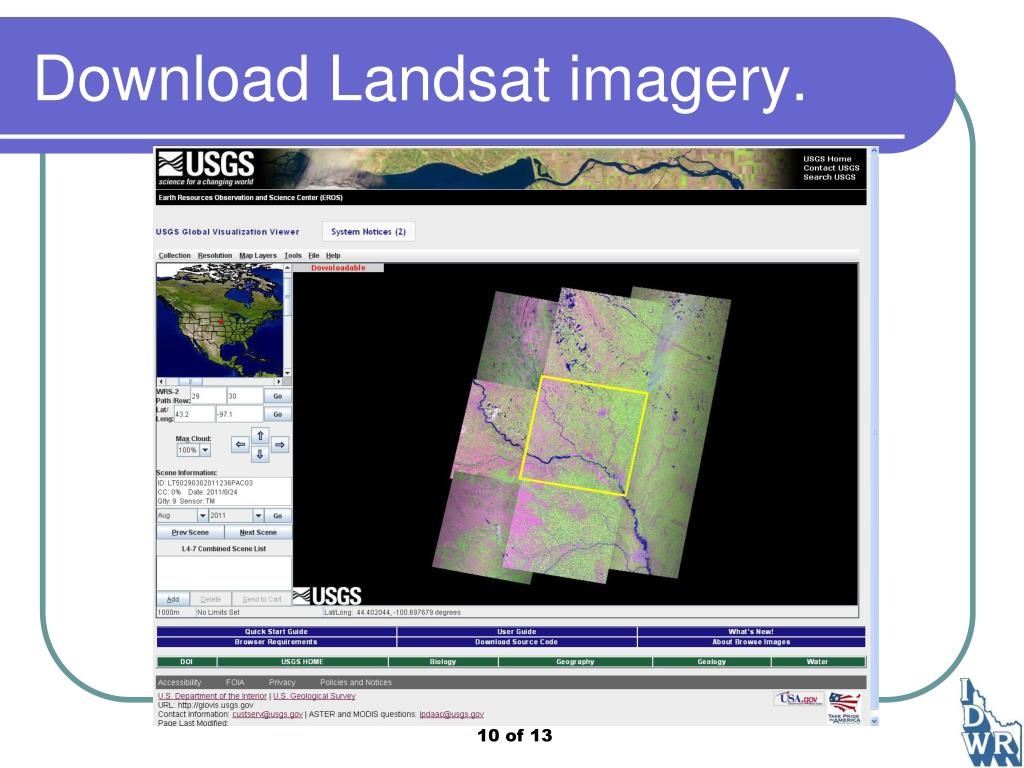

  10. Download Landsat imagery.

  11. Download Landsat imagery, cont’d. • USGS Global Visualization Viewer (recommended website). • Simple. • User-friendly. • USGS EarthExplorer (alternative website). • Detailed search. • Download. • No processing - Some satellite scenes are ready for immediate download. • Pre-processing - Some satellite scenes require a free order submission and download (~1-3 days).

  12. Download Landsat imagery, cont’d. • Unzip the downloaded file. • Unzip twice (*.tar.gz & *.tar). • Contains Landsat bands and metadata file. • Obtain and add ArcToolbox • Obtain “z_NDVI.tbx” and “How To” document.

  13. Thank You! Eric.Rafn@idwr.idaho.gov
