work zone traffic management

Work Zone Traffic Management

Tom Notbohm

Peter Amakobe Atepe

Marie Treazise

WisDOT Bureau of Highway Operations

Contractor – Engineer Conference

January 21, 2009

work zone traffic management2

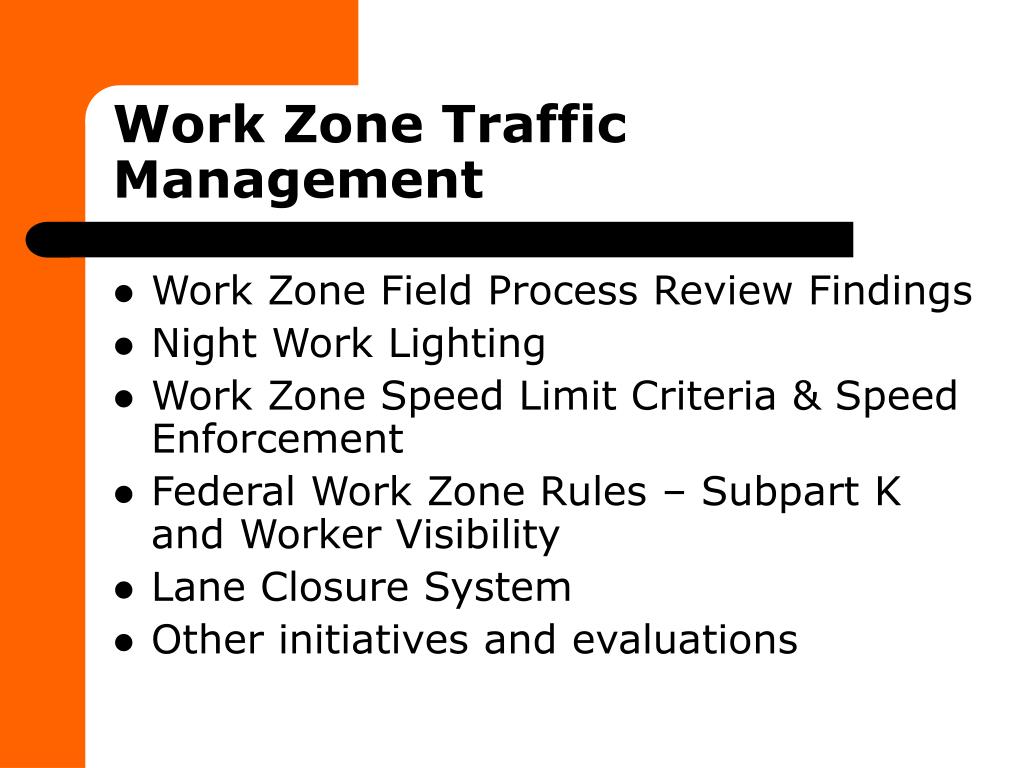

Work Zone Traffic Management
  • Work Zone Field Process Review Findings
  • Night Work Lighting
  • Work Zone Speed Limit Criteria & Speed Enforcement
  • Federal Work Zone Rules – Subpart K and Worker Visibility
  • Lane Closure System
  • Other initiatives and evaluations
traffic control field reviews

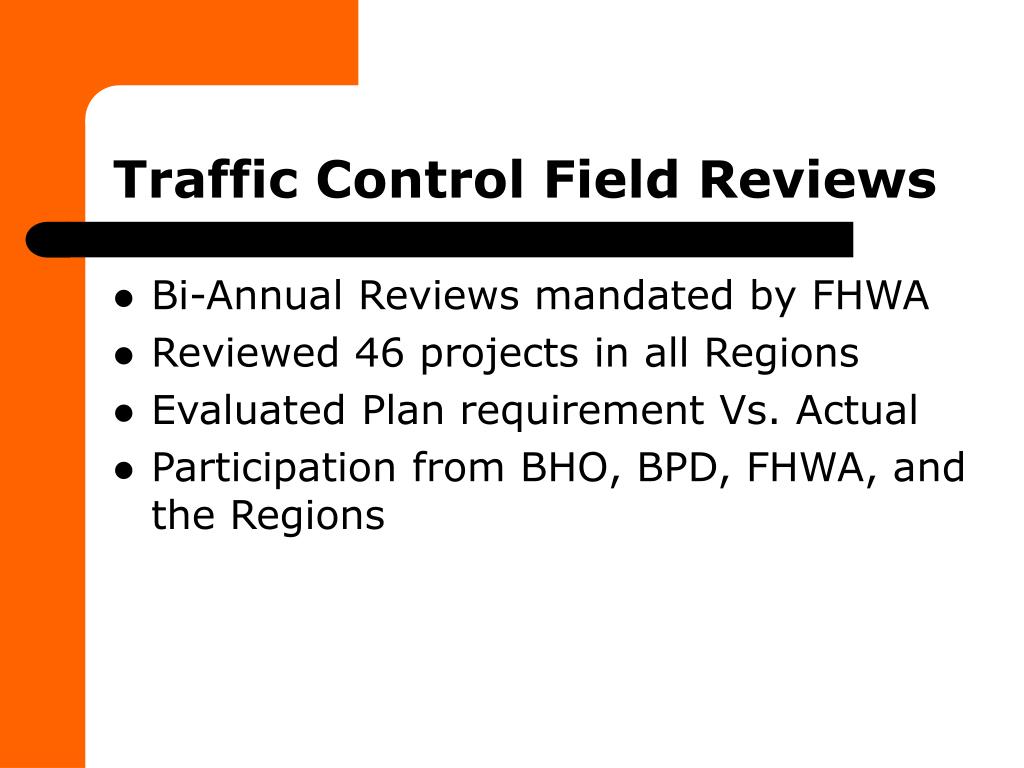

Traffic Control Field Reviews
  • Bi-Annual Reviews mandated by FHWA
  • Reviewed 46 projects in all Regions
  • Evaluated Plan requirement Vs. Actual
  • Participation from BHO, BPD, FHWA, and the Regions
traffic control field reviews4

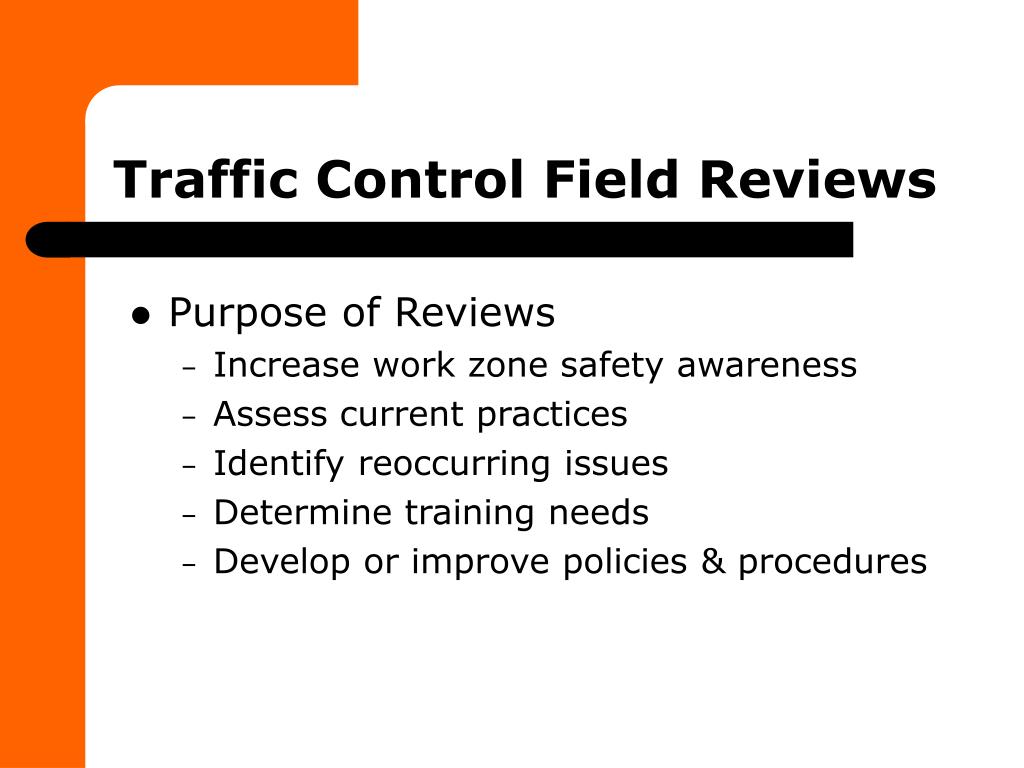

Traffic Control Field Reviews
  • Purpose of Reviews
    • Increase work zone safety awareness
    • Assess current practices
    • Identify reoccurring issues
    • Determine training needs
    • Develop or improve policies & procedures
traffic control field reviews5

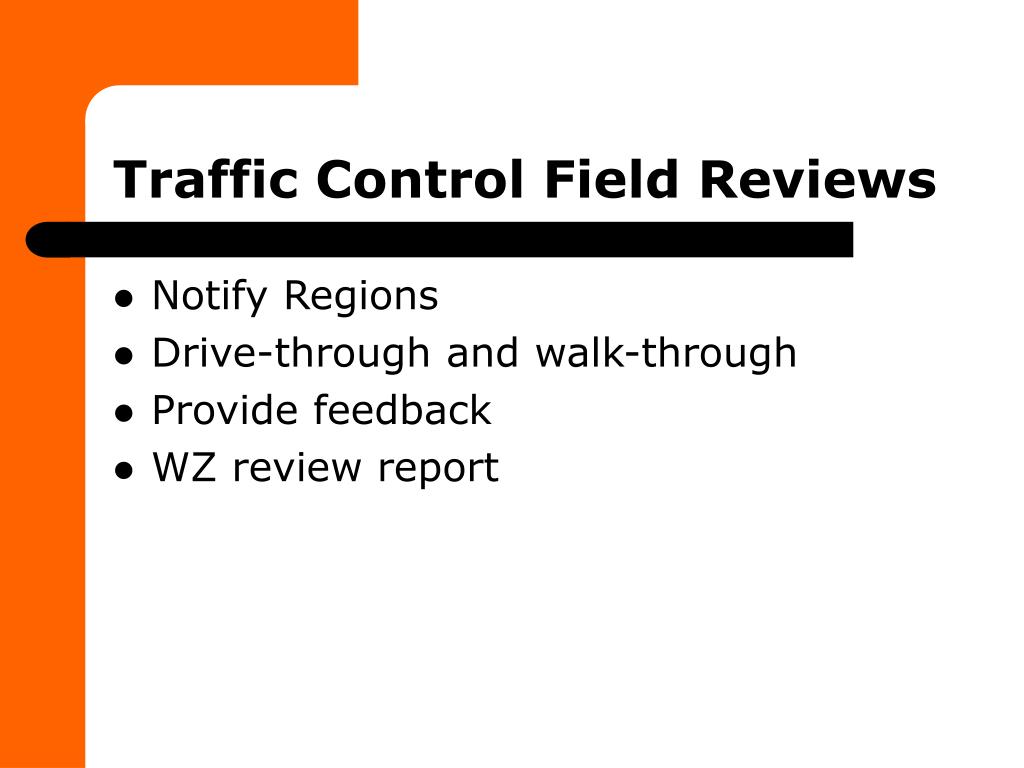

Traffic Control Field Reviews
  • Notify Regions
  • Drive-through and walk-through
  • Provide feedback
  • WZ review report
traffic control field reviews6
Traffic Control Field Reviews

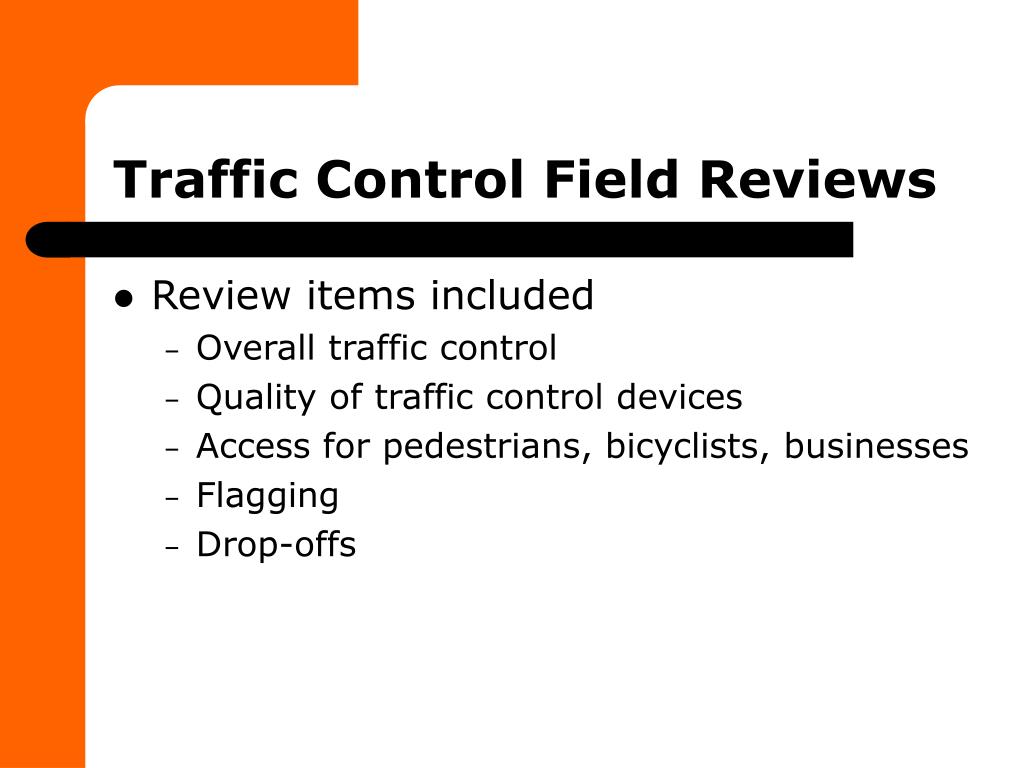

  • Review items included
    • Overall traffic control
    • Quality of traffic control devices
    • Access for pedestrians, bicyclists, businesses
    • Flagging

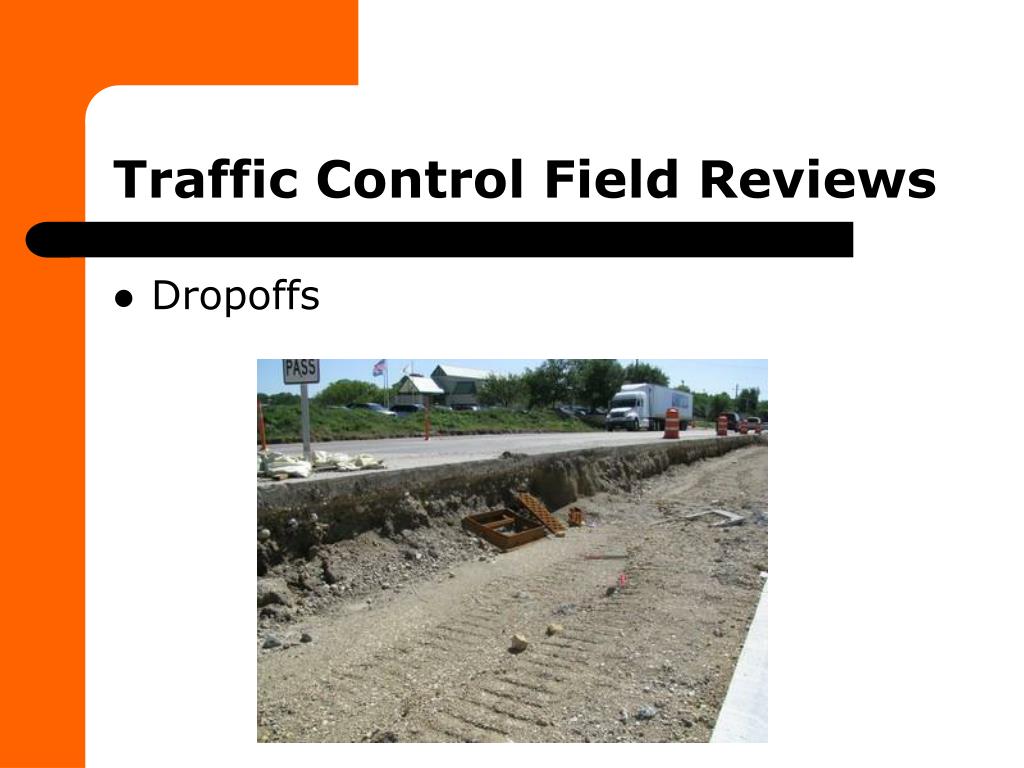

    • Drop-offs
traffic control field reviews7

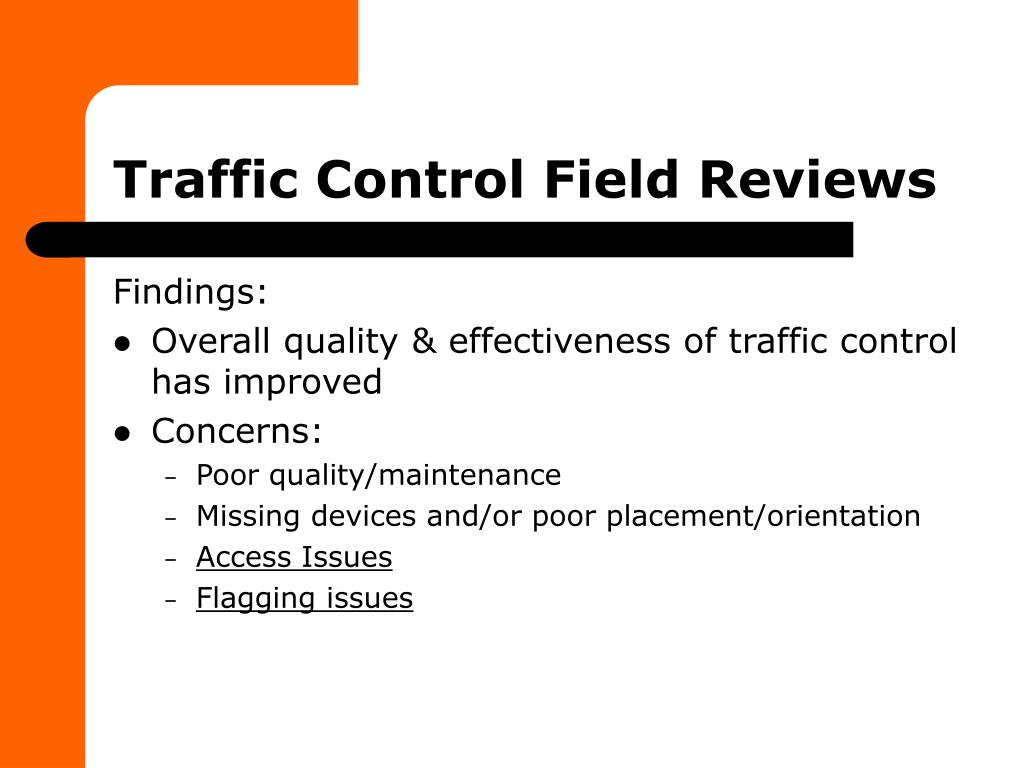

Traffic Control Field Reviews

Findings:

  • Overall quality & effectiveness of traffic control has improved
  • Concerns:
    • Poor quality/maintenance
    • Missing devices and/or poor placement/orientation

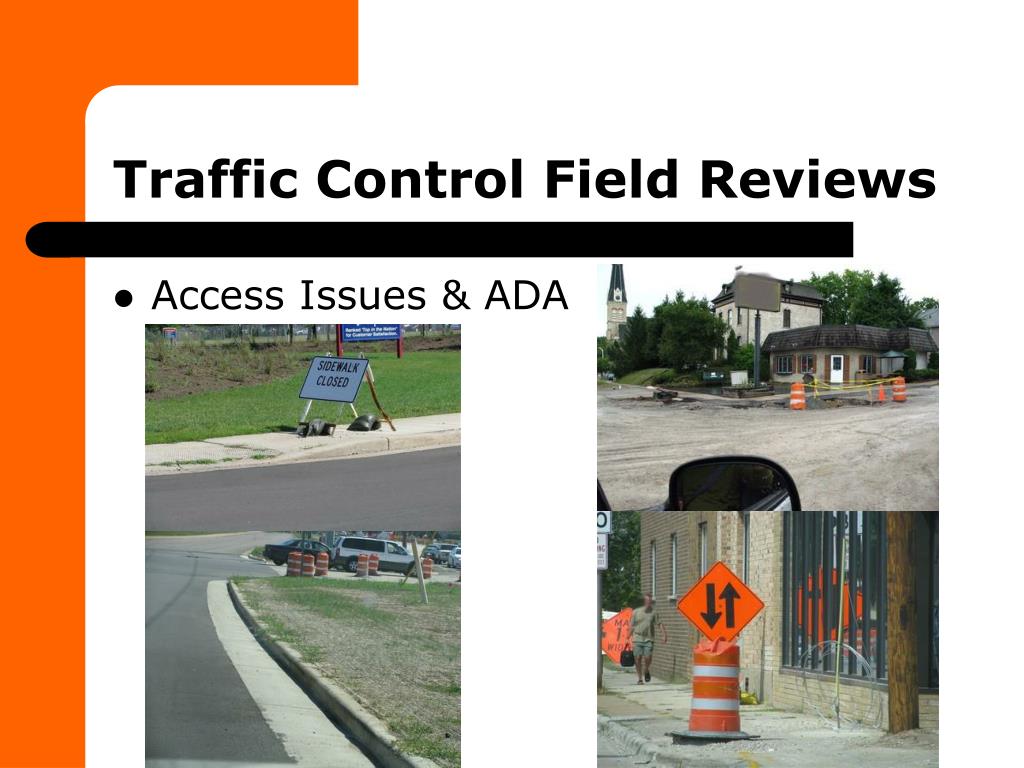

    • Access Issues
    • Flagging issues
traffic control field reviews8

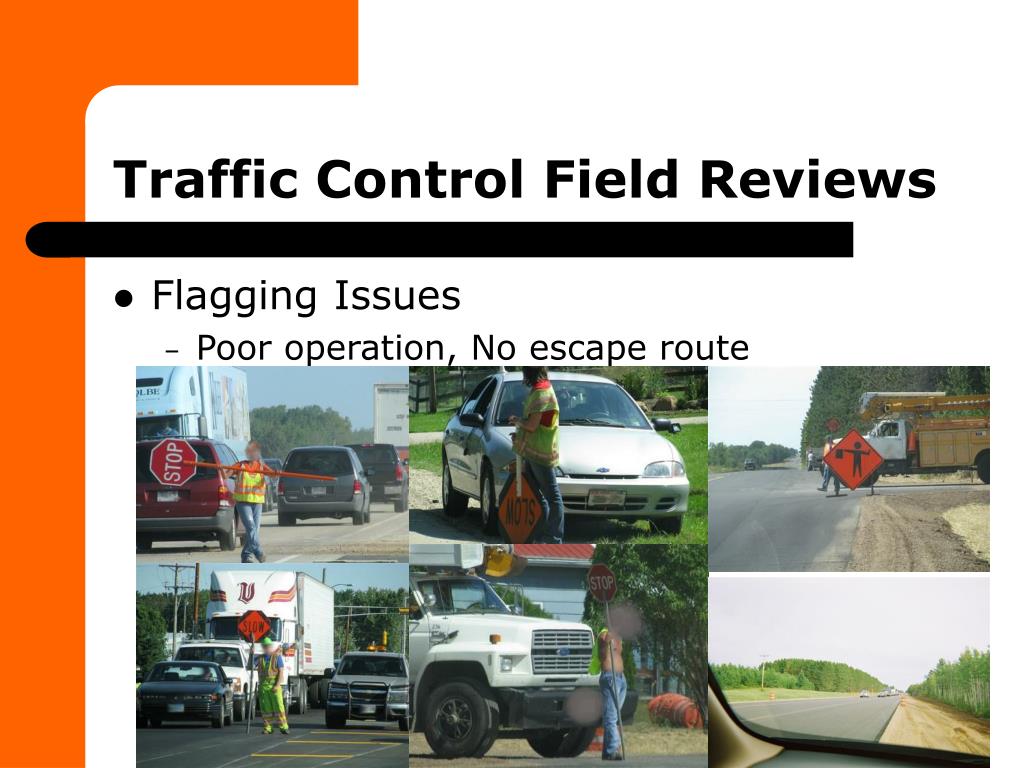

Traffic Control Field Reviews
  • Flagging Issues
    • Poor operation, No escape route
traffic control field reviews12
Traffic Control Field Reviews

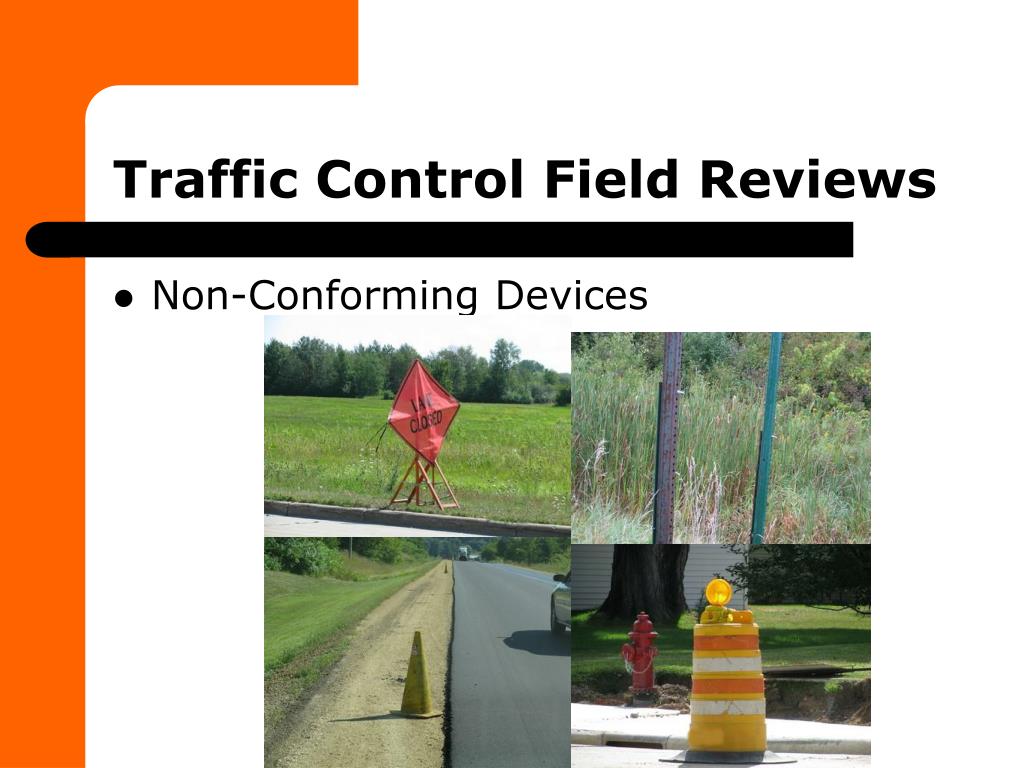

  • Non-Conforming Devices
traffic control field reviews13

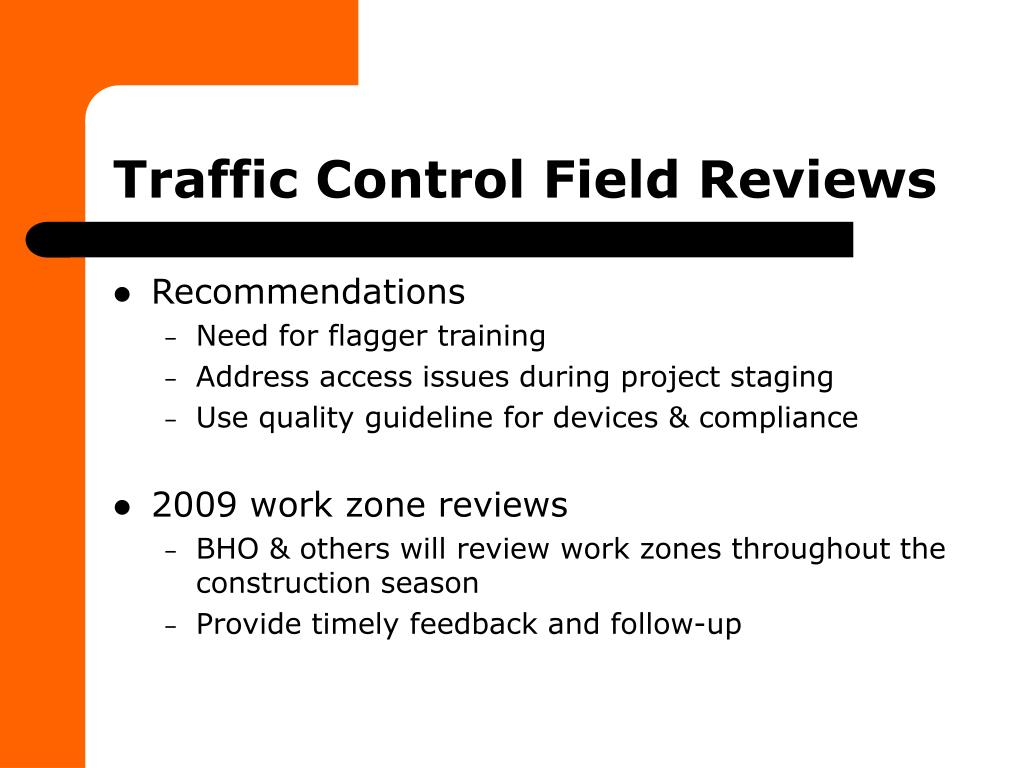

Traffic Control Field Reviews
  • Recommendations
    • Need for flagger training
    • Address access issues during project staging
    • Use quality guideline for devices & compliance
  • 2009 work zone reviews
    • BHO & others will review work zones throughout the construction season
    • Provide timely feedback and follow-up
night work lighting

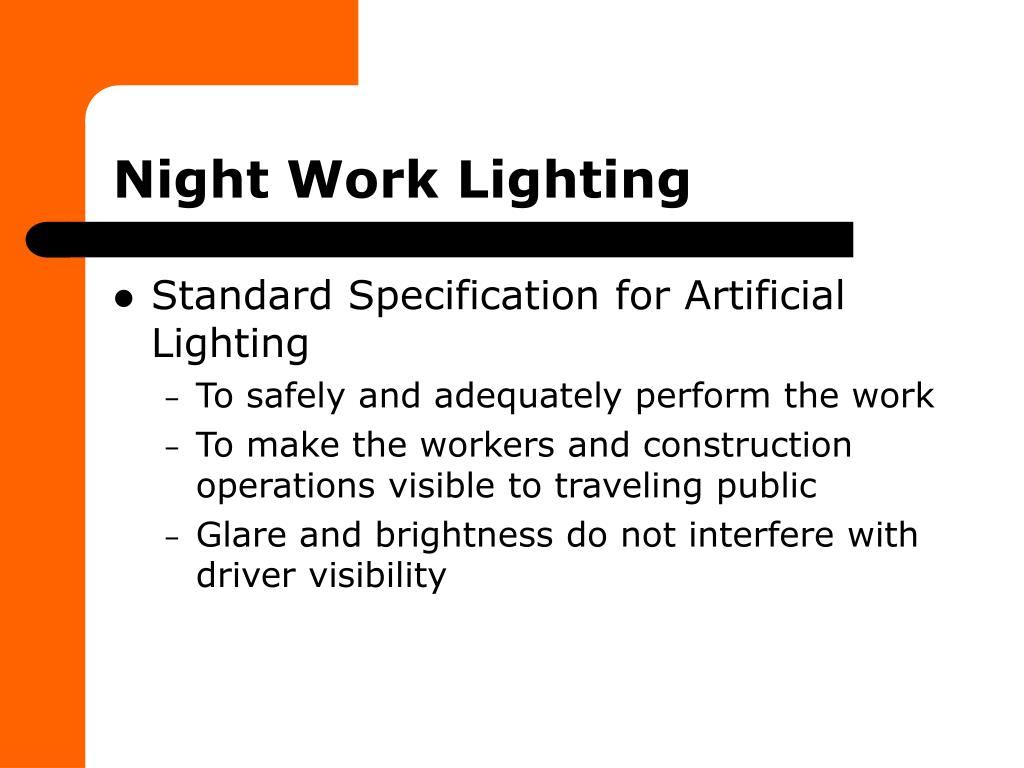

Night Work Lighting
  • Standard Specification for Artificial Lighting
    • To safely and adequately perform the work
    • To make the workers and construction operations visible to traveling public
    • Glare and brightness do not interfere with driver visibility
night work lighting15
Night Work Lighting
  • Working to develop a pilot Special Provision
    • Lighting layout (light placement, mounting height)
    • Glare control
    • Light level and uniformity
    • Aiming of fixtures
work zone traffic management16

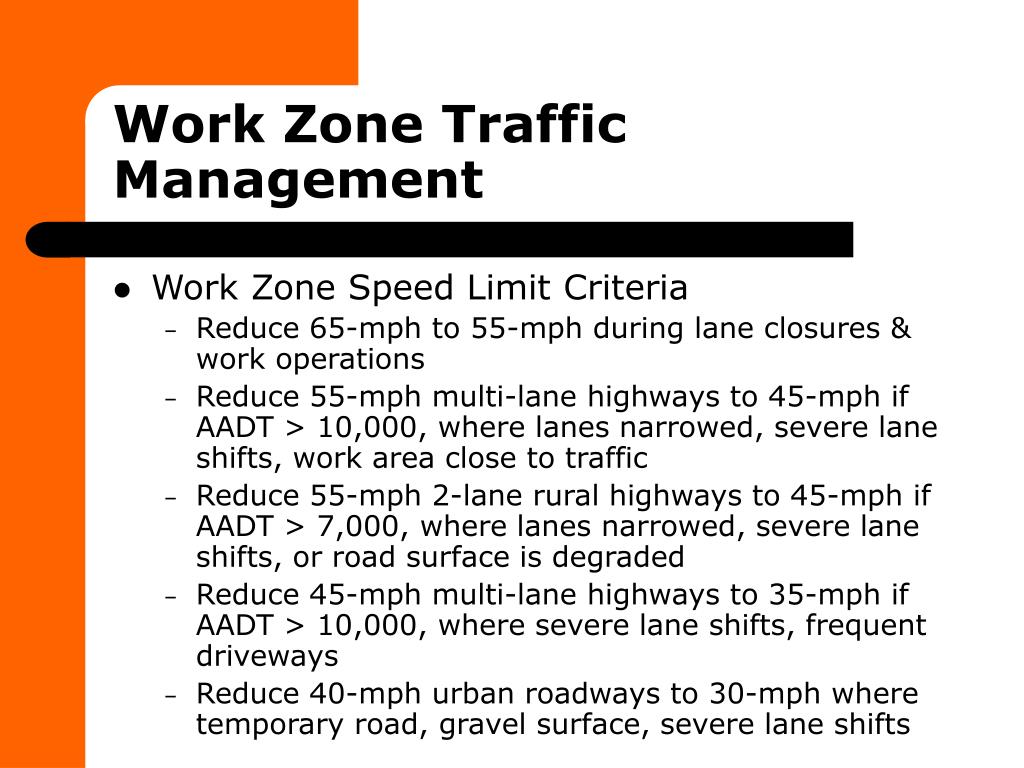

Work Zone Traffic Management
  • Work Zone Speed Limit Criteria
    • Reduce 65-mph to 55-mph during lane closures & work operations
    • Reduce 55-mph multi-lane highways to 45-mph if AADT > 10,000, where lanes narrowed, severe lane shifts, work area close to traffic
    • Reduce 55-mph 2-lane rural highways to 45-mph if AADT > 7,000, where lanes narrowed, severe lane shifts, or road surface is degraded
    • Reduce 45-mph multi-lane highways to 35-mph if AADT > 10,000, where severe lane shifts, frequent driveways
    • Reduce 40-mph urban roadways to 30-mph where temporary road, gravel surface, severe lane shifts
work zone traffic management17
Work Zone Traffic Management

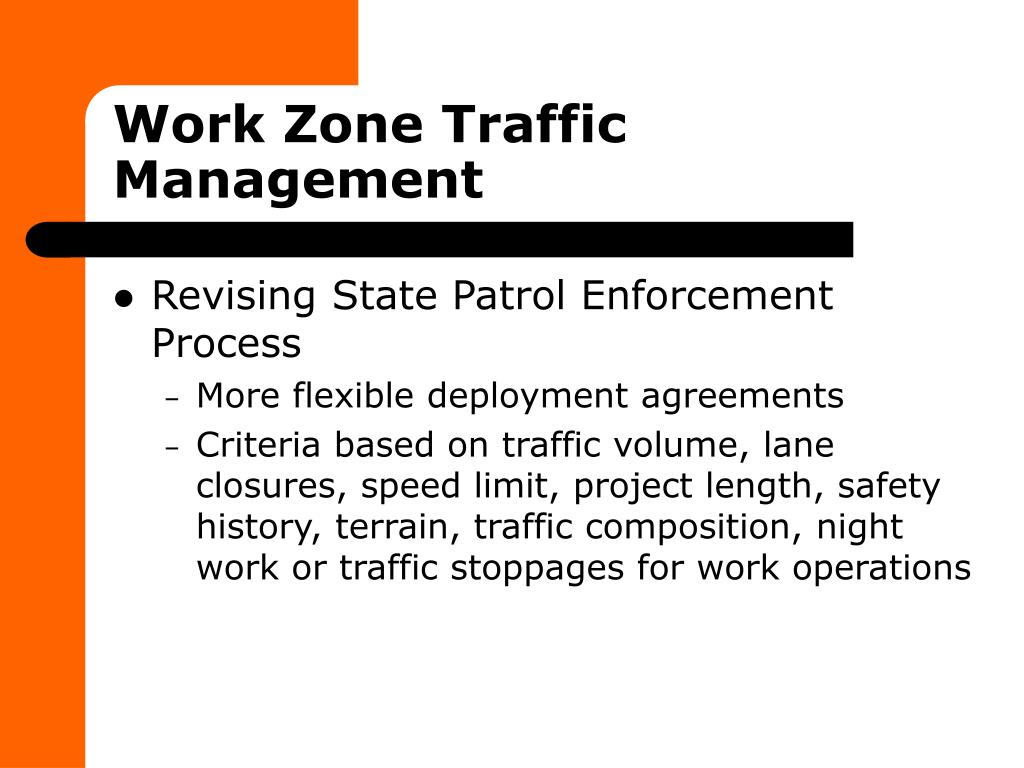

  • Revising State Patrol Enforcement Process
    • More flexible deployment agreements
    • Criteria based on traffic volume, lane closures, speed limit, project length, safety history, terrain, traffic composition, night work or traffic stoppages for work operations
federal work zone rule subpart k

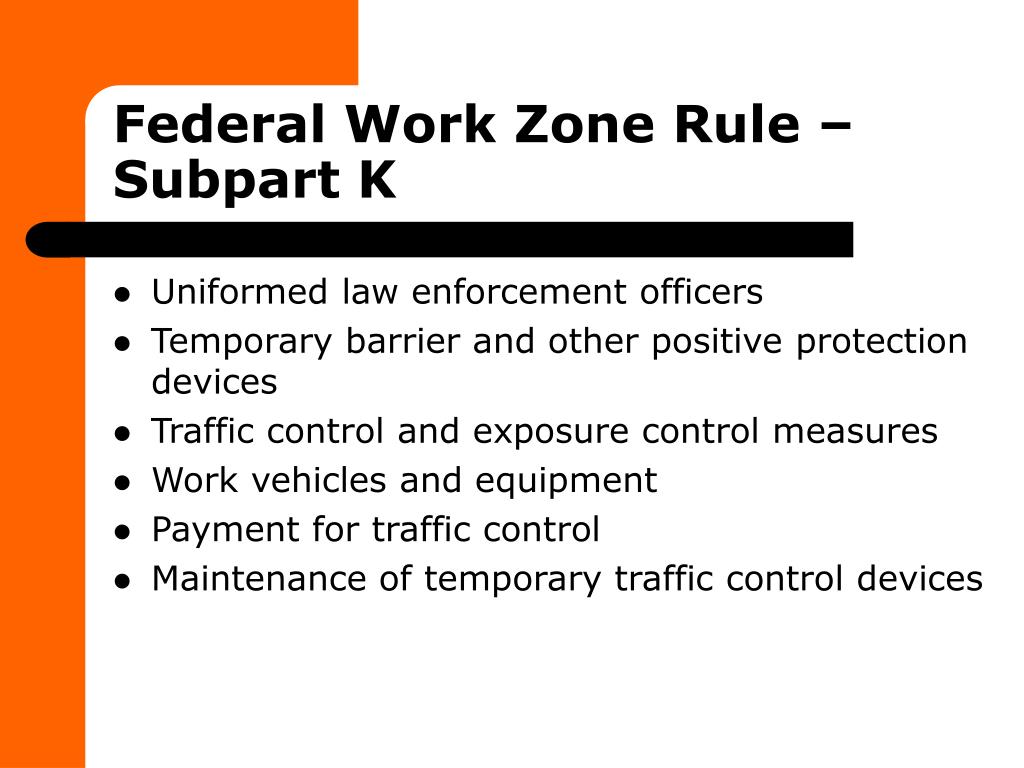

Federal Work Zone Rule – Subpart K
  • Uniformed law enforcement officers
  • Temporary barrier and other positive protection devices
  • Traffic control and exposure control measures
  • Work vehicles and equipment
  • Payment for traffic control
  • Maintenance of temporary traffic control devices
federal work zone rule subpart k19

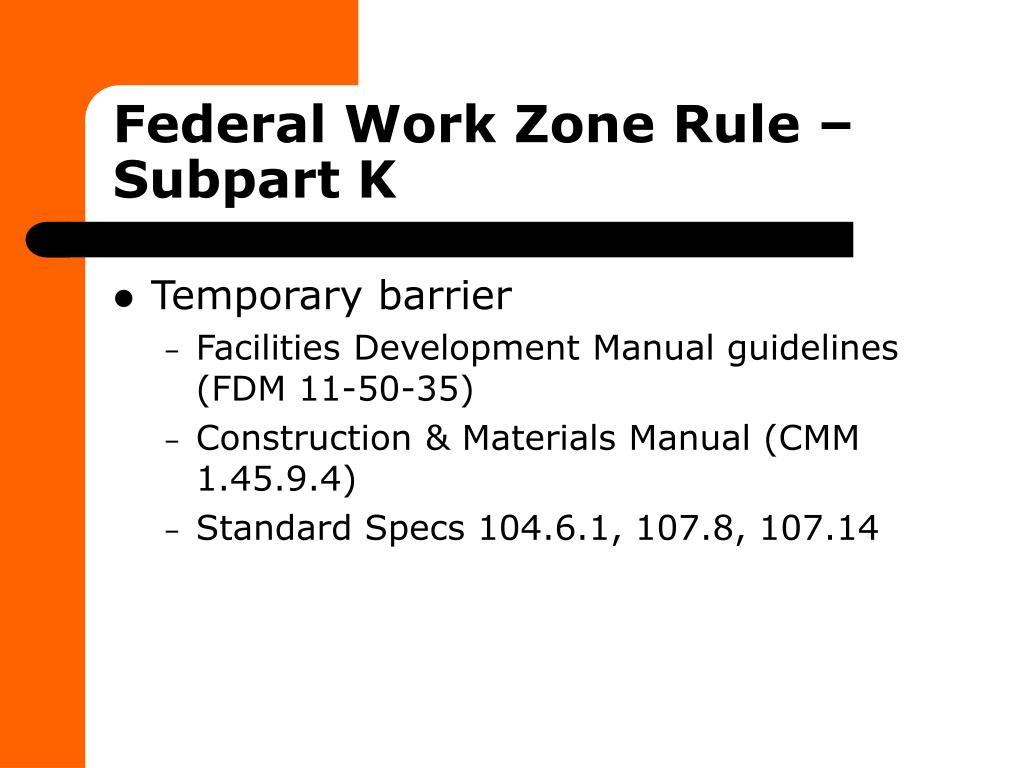

Federal Work Zone Rule – Subpart K
  • Temporary barrier
    • Facilities Development Manual guidelines (FDM 11-50-35)
    • Construction & Materials Manual (CMM 1.45.9.4)
    • Standard Specs 104.6.1, 107.8, 107.14
federal work zone rule subpart k20

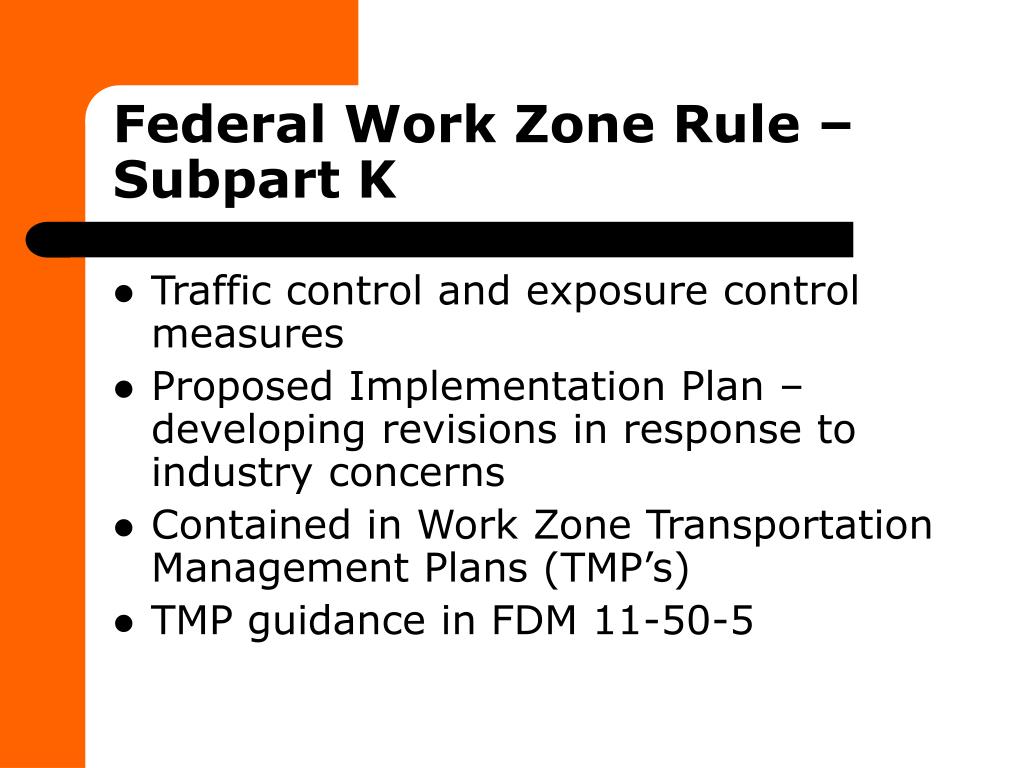

Federal Work Zone Rule – Subpart K
  • Traffic control and exposure control measures
  • Proposed Implementation Plan – developing revisions in response to industry concerns
  • Contained in Work Zone Transportation Management Plans (TMP’s)
  • TMP guidance in FDM 11-50-5
federal work zone rule subpart k21
Federal Work Zone Rule – Subpart K

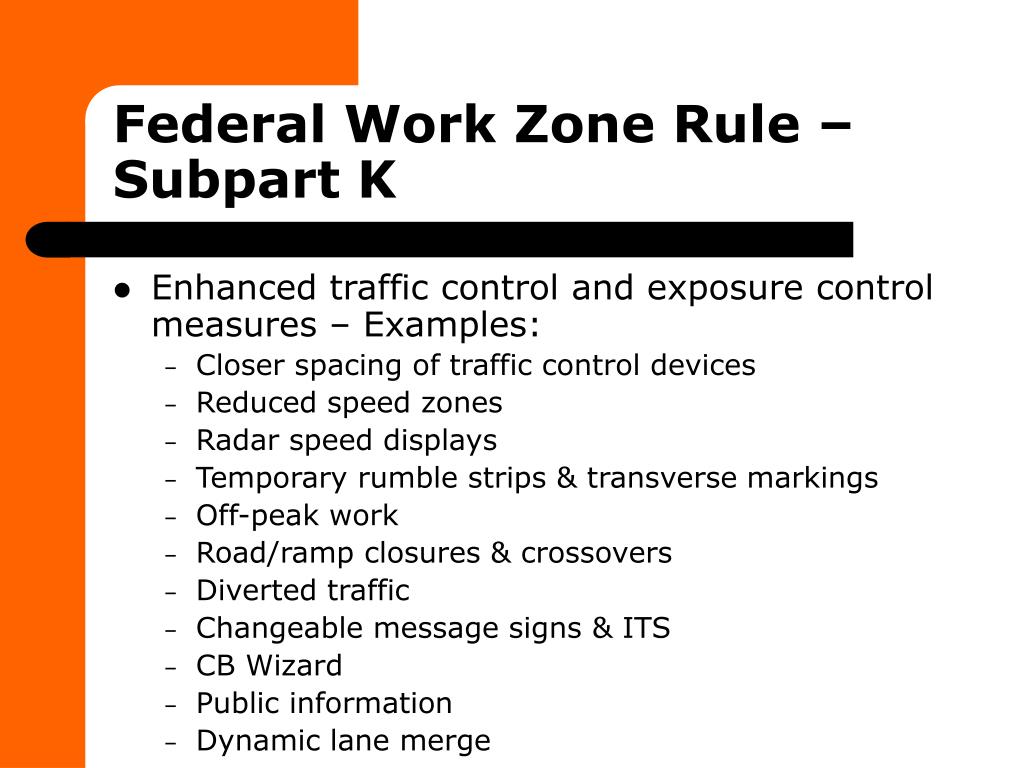

  • Enhanced traffic control and exposure control measures – Examples:
    • Closer spacing of traffic control devices
    • Reduced speed zones
    • Radar speed displays
    • Temporary rumble strips & transverse markings
    • Off-peak work
    • Road/ramp closures & crossovers
    • Diverted traffic
    • Changeable message signs & ITS
    • CB Wizard
    • Public information
    • Dynamic lane merge
enhanced traffic control measures23
Enhanced Traffic Control Measures

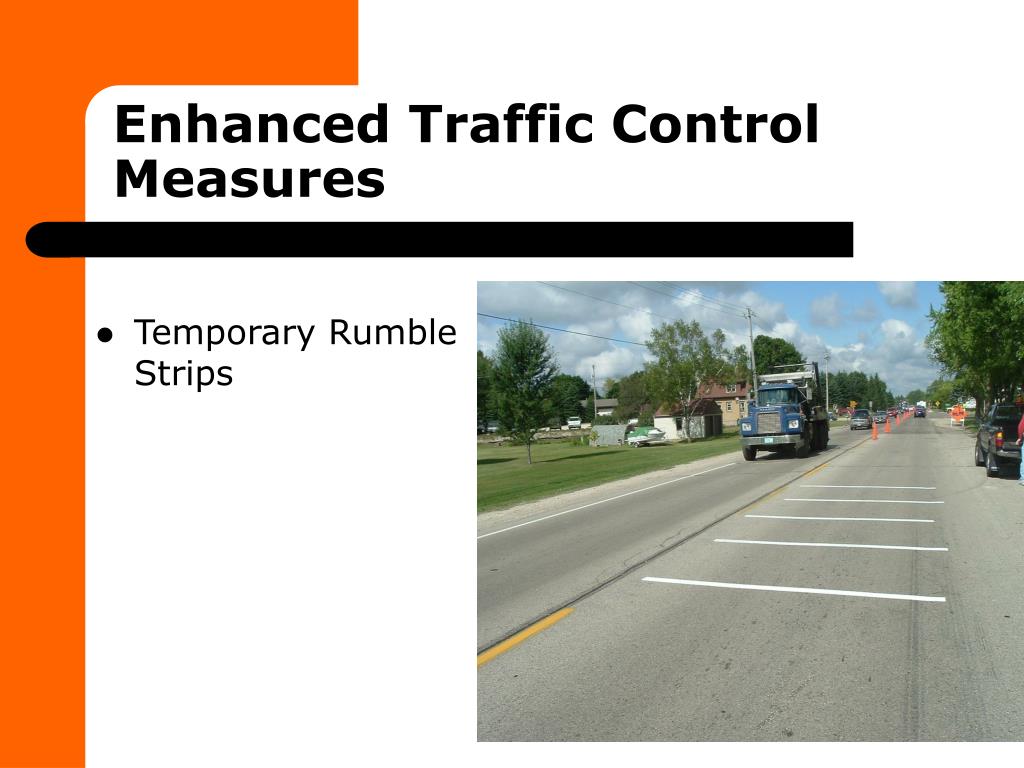

  • Temporary Rumble Strips
enhanced traffic control measures24

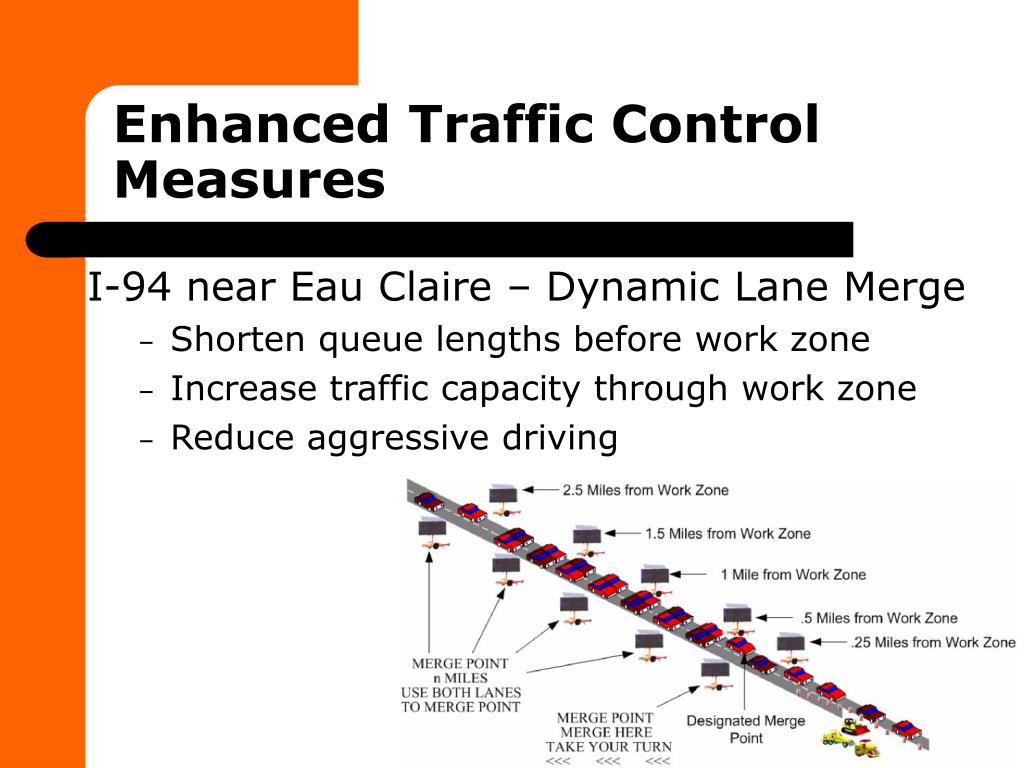

Enhanced Traffic Control Measures

I-94 near Eau Claire – Dynamic Lane Merge

  • Shorten queue lengths before work zone
  • Increase traffic capacity through work zone
  • Reduce aggressive driving
enhanced traffic control measures25

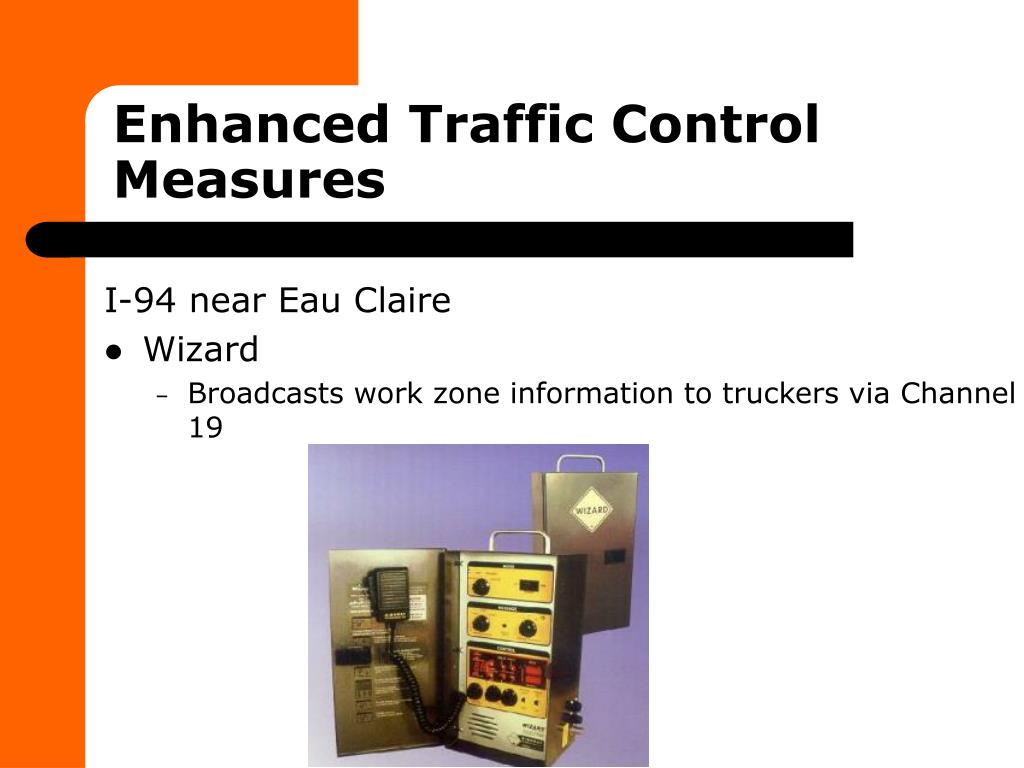

Enhanced Traffic Control Measures

I-94 near Eau Claire

  • Wizard
    • Broadcasts work zone information to truckers via Channel 19
federal work zone rule subpart k26
Federal Work Zone Rule – Subpart K

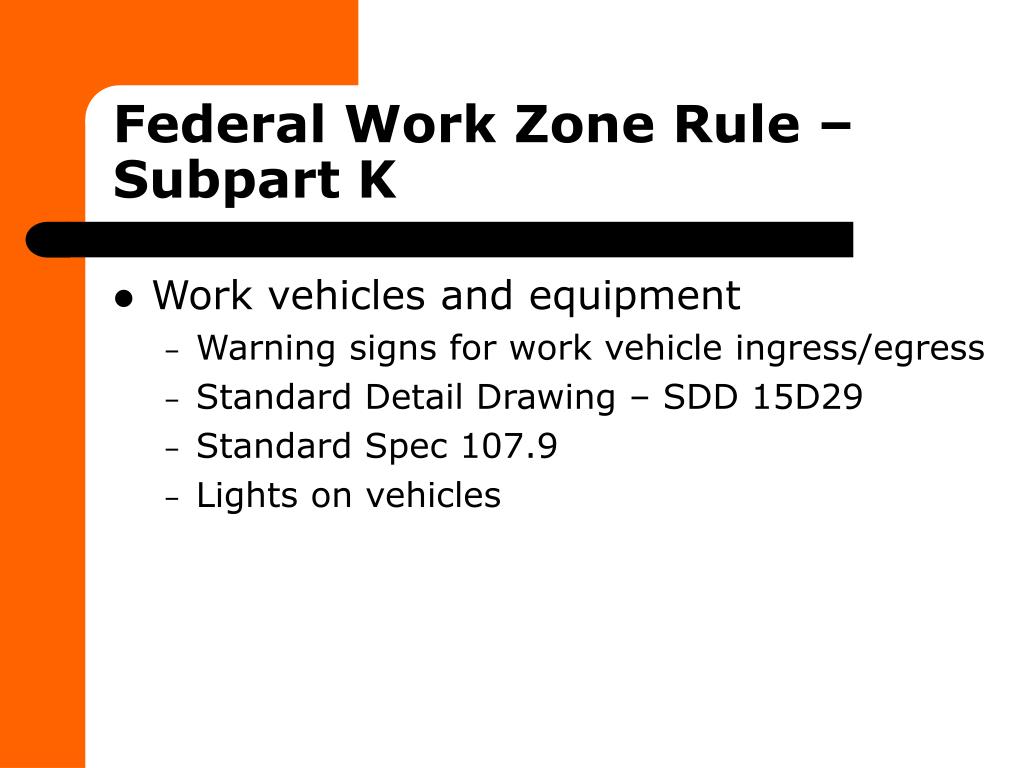

  • Work vehicles and equipment
    • Warning signs for work vehicle ingress/egress
    • Standard Detail Drawing – SDD 15D29
    • Standard Spec 107.9
    • Lights on vehicles
federal work zone rule subpart k27
Federal Work Zone Rule – Subpart K

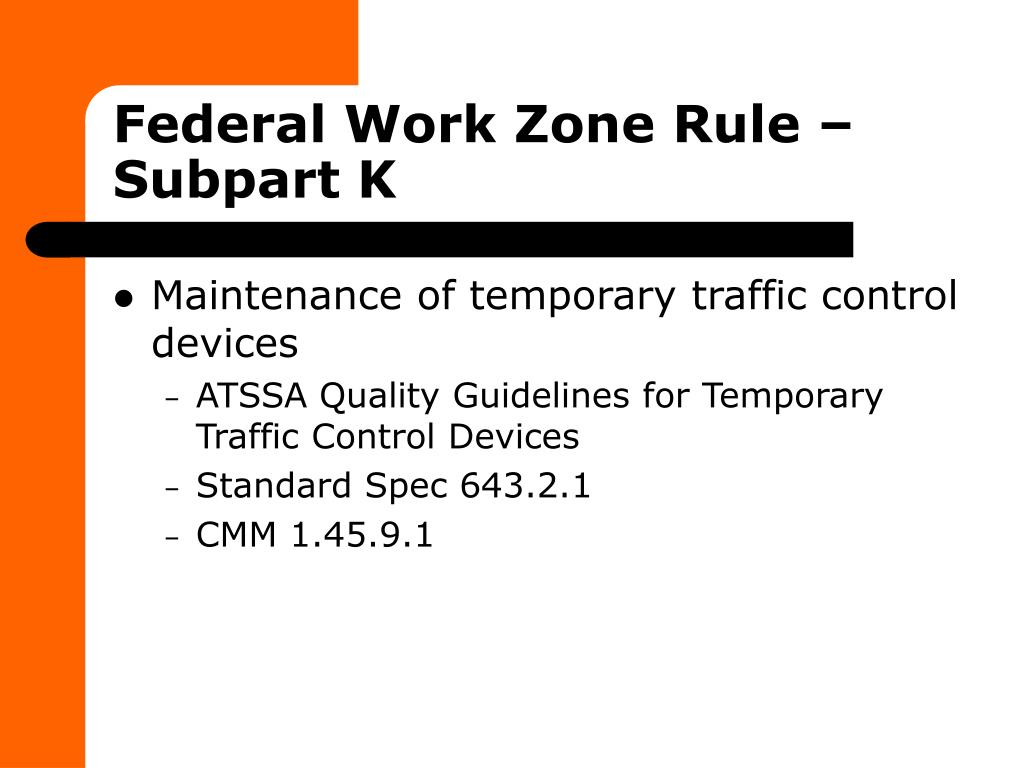

  • Maintenance of temporary traffic control devices
    • ATSSA Quality Guidelines for Temporary Traffic Control Devices
    • Standard Spec 643.2.1
    • CMM 1.45.9.1

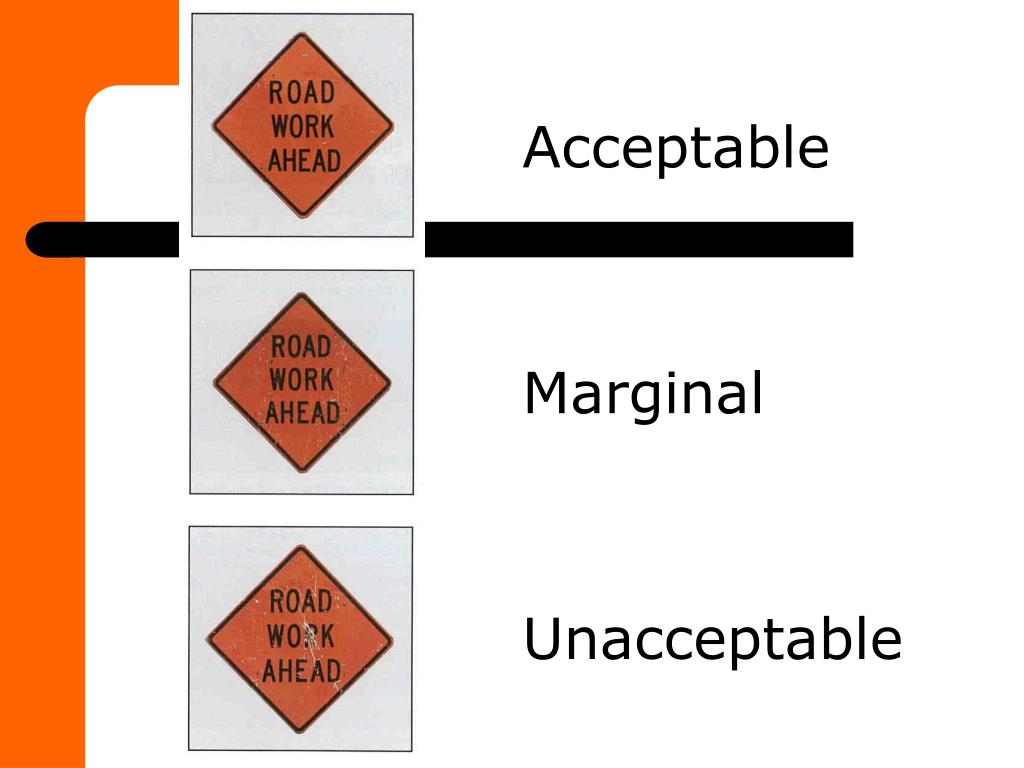

slide28
Acceptable

Marginal

Unacceptable

federal worker visibility rule
Federal Worker Visibility Rule
  • All workers exposed to traffic or construction equipment required to wear high-visibility safety apparel
  • ANSI/ISEA 107-2004 Class 2 or 3 requirements
lane closures

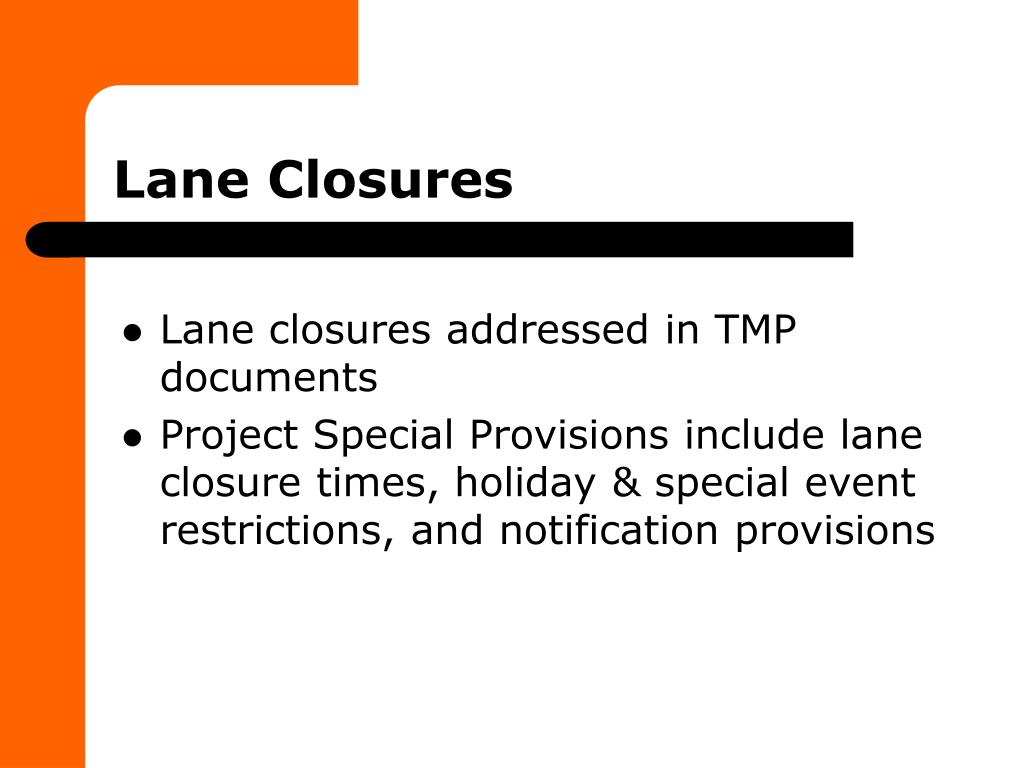

Lane Closures
  • Lane closures addressed in TMP documents
  • Project Special Provisions include lane closure times, holiday & special event restrictions, and notification provisions
wisconsin lane closure planning system lcs
Wisconsin Lane Closure Planning System (LCS)
  • Web-based system for tracking closures and restrictions on freeways, expressways and other state highways
  • Developed by UW Traffic Operations and Safety Lab under direction of Statewide Traffic Operations Center
  • Single source of WisDOT roadway & lane closure information for:
    • All let projects
    • Any planned closures/restrictions on Corridors 2030 roadways
    • Major special events
    • Emergency closures resulting from incidents
wisconsin lane closure planning system lcs32
Wisconsin Lane Closure Planning System (LCS)
  • Specific, accurate information needed
    • Provides traveler information to 511 system
    • Used to determine issuance of Oversize & Overweight Vehicle permits
  • Timeframes:
    • 14 days – Project start, full roadway closure, or restriction of width, height, weight
    • 7 days – System ramp closure
    • 3 days – Lane and service ramp closure
