Engineering Tutorial: Volume Forging & Extrusion

Learn about extrusion technology, types, materials, methods, and construction of extrusion tools for hot and cold extrusion processes. Understand forward, backward, combined, side, and radial extrusion techniques in engineering.

kinsey
Download Presentation

Engineering Tutorial: Volume Forging & Extrusion

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

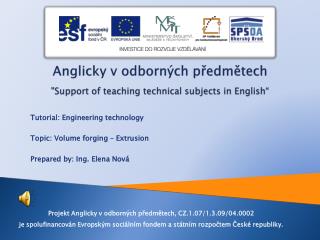

  1. Anglicky v odborných předmětech"Support ofteachingtechnicalsubjects in English“ Tutorial: Engineering technology Topic: Volumeforging – Extrusion Prepared by: Ing. Elena Nová Projekt Anglicky v odborných předmětech, CZ.1.07/1.3.09/04.0002 je spolufinancován Evropským sociálním fondem a státním rozpočtem České republiky.

  2. Volume forging – Extrusion

  3. Volume forging – Extrusion • Extrusion is a technology which can be used at higher, medium and cold temperatures. Forged material is moved in directions determined by the tool’s construction- extrusion die. • Product is called • extrusion punch.

  4. Volume forging – Extrusion Extrusion technology: Metals with low forging strength as is aluminum and its alloys can be extruded in one operation. Steel and other metals use more operations.

  5. Volume forging – Extrusion • It is necessary to treat the material by straitening and cutting before actual extrusion. After that follows surface cleaning and phosphate. • Extrusion die consists of extrusion punch and extrusion die. • Lubricant for extrusion at higher temperatures is glass. • Cold extrusion uses oil.

  6. Volume forging – Extrusion • Extrusion is divided: • Hot extrusion • Is used for full and hollow profiles with difficult cross sections which cannot be made by rolling. Cold extrusion • Is used for thin walled products, cartridges, tubes, spray cans. • Production is very economic.

  7. Volume forging – Extrusion • Extrusion is divided according to direction on: • Forward • Backward • Combined • Sidewise • Radial

  8. Volume forging – Extrusion At forward (direct) extrusion is material moving in the same direction as extrusion punch. It is used for forging pivots, bolts, bushes, products with constant cross section. • Princip dopředného protlačování(1, 3 – die, 2, 4 - punch, a, – punch, • b – wiper, c – die, d– ejector)

  9. Volume forging – Extrusion • At backwards extrusion, material moves in opposite direction. It is used for manufacturing of hollow extrusions where wall thickness is very thin compared to its diameter. • Princip zpětného protlačování • 1, 3  – die, 2, 4 - punch, • a, – punch, b – wiper, c – die, • d - ejector

  10. Volume forging – Extrusion • Combined (compounded) extrusion • Very stressed, profiled products are made in this manner. Principle of combined extrusion 1, 3 – die, 2, 4 - punch, a, – punch, b – wiper, c – die, d – ejector)

  11. Volume forging – Extrusion • Side and radial extrusion • At side extrusion is material moving perpendicularly to direction of extrusion punch. • Radial extrusion is a forging where material and tool parts are moving in radial direction to axis of extruded product. • Principle of side (left and middle) and radial extrusion

  12. Volume forging – Extrusion • Hydrostatic extrusion, semi-finished product is inserted in liquid of very high pressure. By the all-dimensional tension is material ductility increased.

  13. Answer the questions: • What kinds of extrusion do you know? • Divide extrusions in accordance to flow direction. • Describe construction of extrusion tool. • What material and method do we use for cold extrusion? • What material and method do we use for hot extrusion?

  14. Translate: • Translate and describe:

  15. Used literature • http://www.ksp.tul.cz/cz/kpt/obsah/vyuka/skripta_tkp/sekce/04.htm
