    Presentation Transcript
    1. More Pedia Cardio slides

    2. TRICUSPID ATRESIA 1. Atretic (missing) tricuspid valve 2. Hypoplastic right ventricle3. Ventricular septal defect4. Atrial septal defect 5. Pulmonary Stenosis

    3. Truncus Arteriosus 1. Pulmonary arteries arise from aorta 2. Truncal valve, occasionally quadracuspid, stenotic and/or insufficient; overrides the ventricular septal defect 3. Ventricular septal defect, large

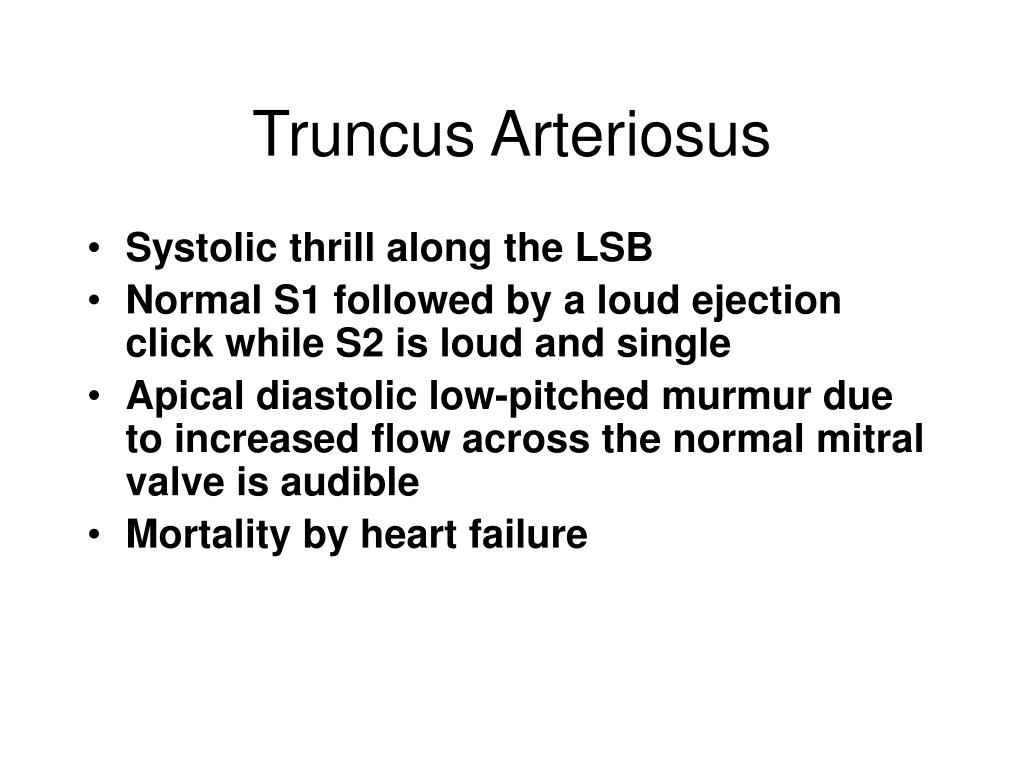

    4. Truncus Arteriosus • Systolic thrill along the LSB • Normal S1 followed by a loud ejection click while S2 is loud and single • Apical diastolic low-pitched murmur due to increased flow across the normal mitral valve is audible • Mortality by heart failure

    5. Total Anomalous PulmonaryVenous Return > All 4 pulmonary veins drain to the RA > RV volume overload

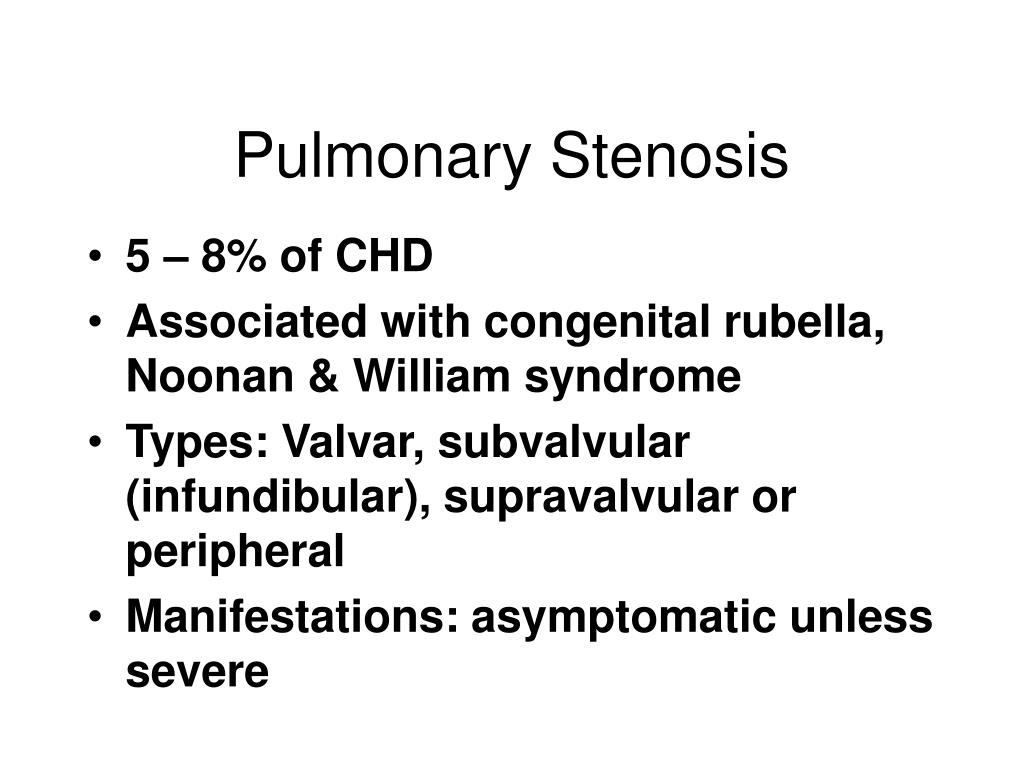

    6. Pulmonary Stenosis 5 – 8% of CHD Associated with congenital rubella, Noonan & William syndrome Types: Valvar, subvalvular (infundibular), supravalvular or peripheral Manifestations: asymptomatic unless severe

    7. Pulmonary Stenosis • Hemodynamics: RV pressure overload • Physical examination • RV tap • Ejection click • Systolic thrill • Systolic ejection murmur at the LUSB with radiation to the back; soft P2

    8. Pulmonary Stenosis • ECG • RAD • RBBB if mild • RVH (Pure R & upright T in V1) • CXR • Normal or RV cardiomegaly • Normal or dilated MPA (post-stenotic dilatation)

    9. Pulmonary Stenosis • Natural History: • Asymptomatic; progression unlikely • Easy fatigability & CHF if severe > Chest pain, syncope, sudden death > Arrhythmias > Infective endocarditis

    10. Pulmonary Stenosis • Management: • Interventional catheterization • Balloon valvuloplasty > Surgical • Valvotomy (Brock’s procedure)

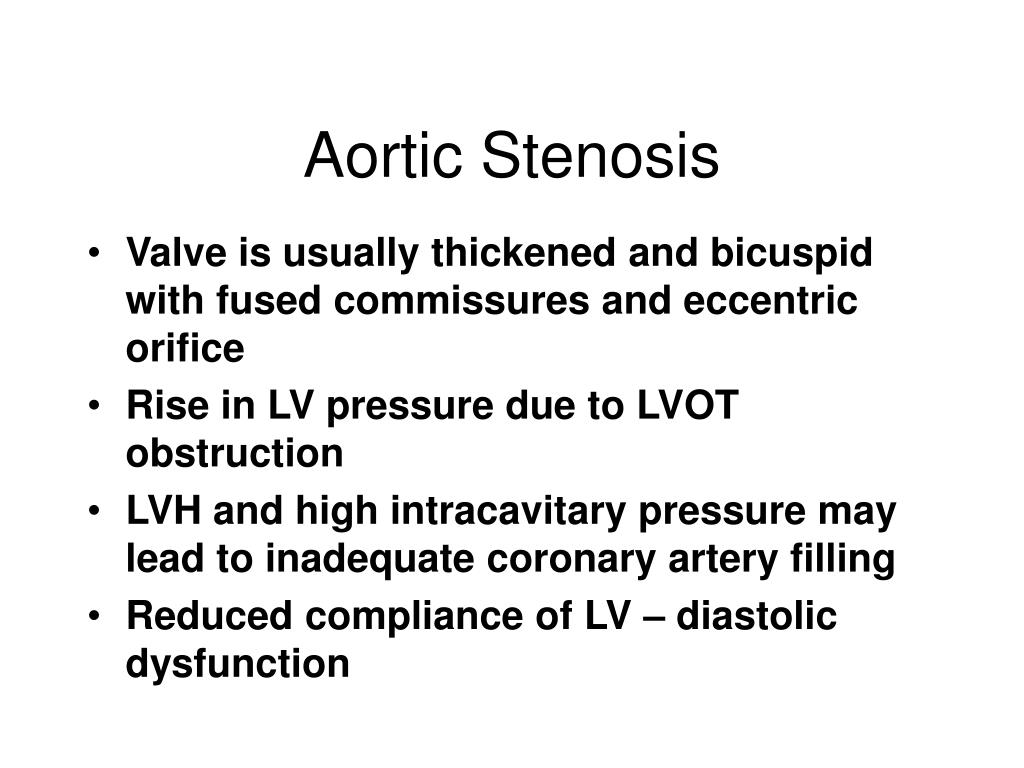

    11. Aortic Stenosis Valve is usually thickened and bicuspid with fused commissures and eccentric orifice Rise in LV pressure due to LVOT obstruction LVH and high intracavitary pressure may lead to inadequate coronary artery filling Reduced compliance of LV – diastolic dysfunction

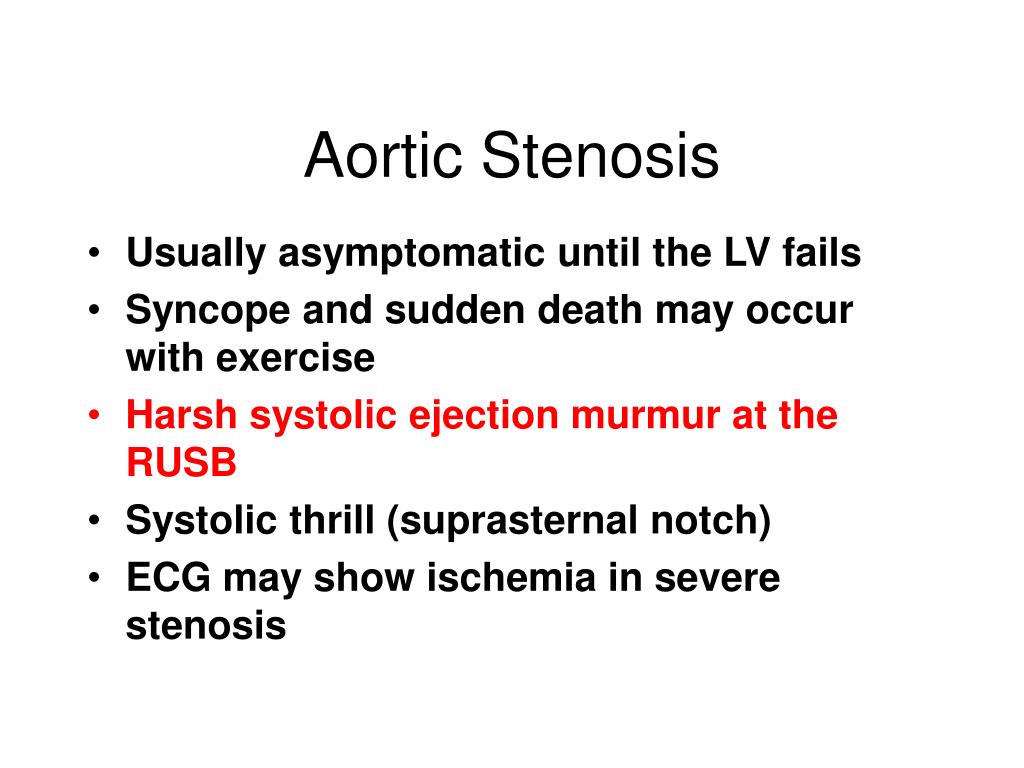

    12. Aortic Stenosis Usually asymptomatic until the LV fails Syncope and sudden death may occur with exercise Harsh systolic ejection murmur at the RUSB Systolic thrill (suprasternal notch) ECG may show ischemia in severe stenosis

    13. Aortic Stenosis • Management: • SBE prophylaxis • Avoidance of competitive sports in all except mild case • Balloon valvoplasty • Surgical open valvotomy • Aortic valve replacement

    14. Coarctation of the Aorta More common in boys Obstruction in the descending aorta just opposite the ligamentum arteriosum (after left subclavian artery) Aortic valve is bicuspid in more than 50% Pressure build-up in the proximal aorta and LV --- hypertension in the upper extremity

    15. Coarctation of the Aorta CHF in infancy if severe Most children are asymptomatic Weak, delayed or absent femoral pulses Blood pressure higher in the arms than legs LVH may be seen in CXR or ECG Rib notching may be seen on CXR if collaterals have formed (usually children > 5y)

    16. Coarctation of the Aorta SBE prophylaxis Anti-hypertensive tx Balloon angioplasty/stent placement in selected cases (usually recurrent CoA and adolescent/adult) Surgical repair – treatment of choice

    17. Systolic Ejection Murmurs

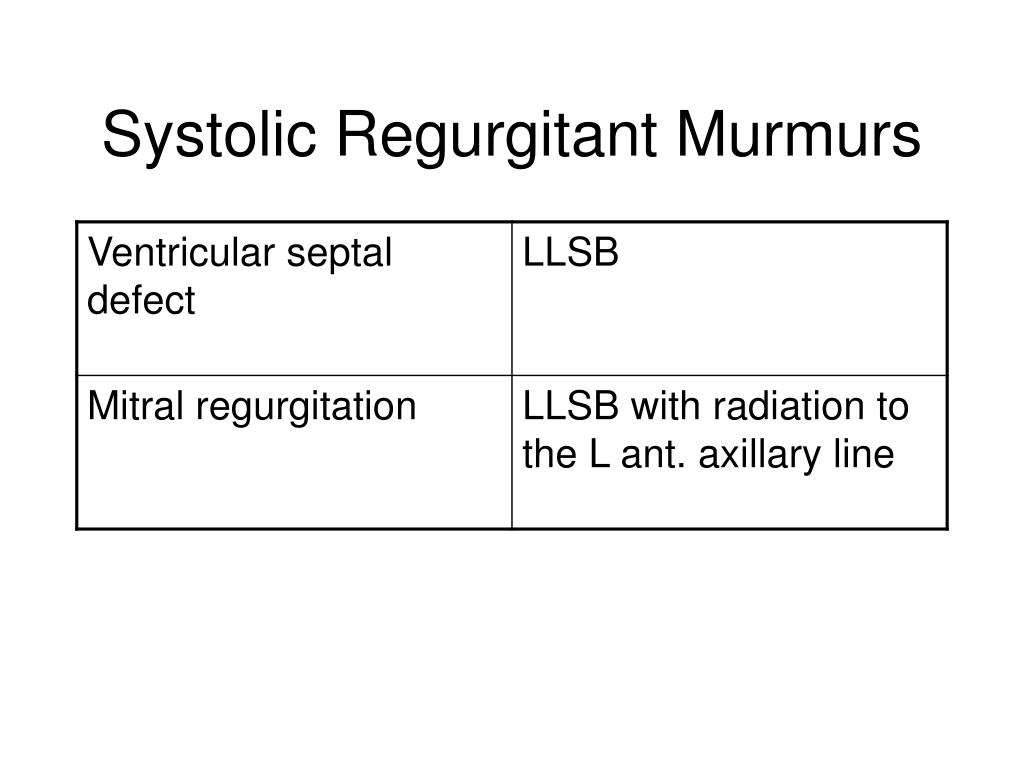

    18. Systolic Regurgitant Murmurs

    19. Chest x ray findings in CHD:
