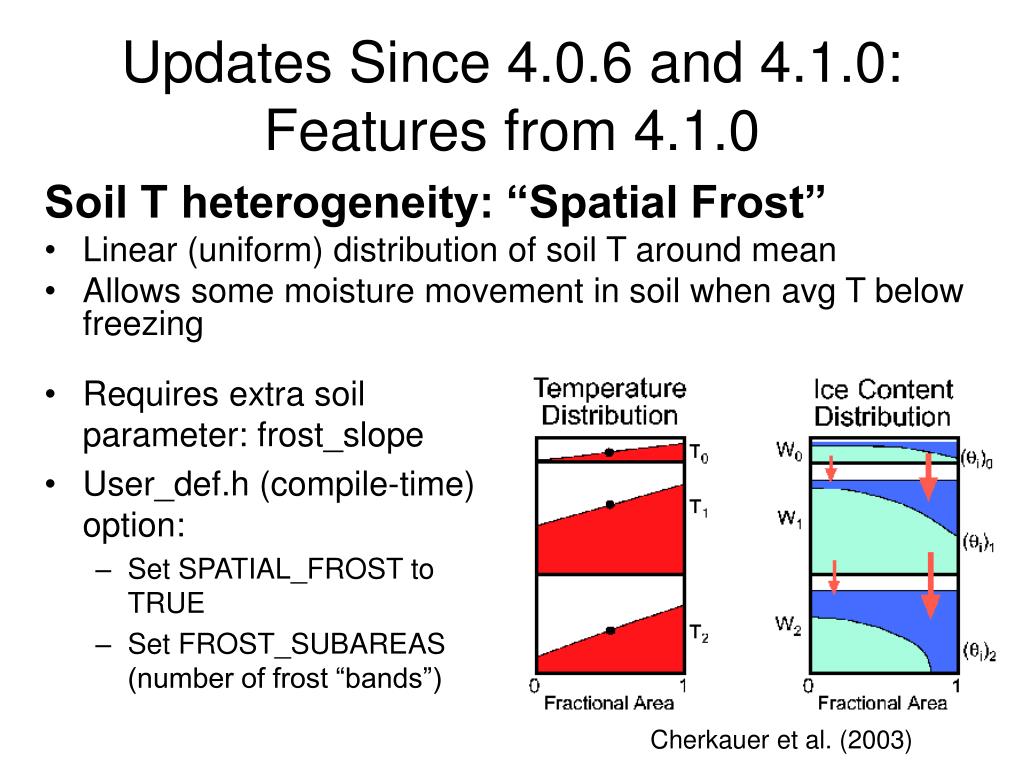

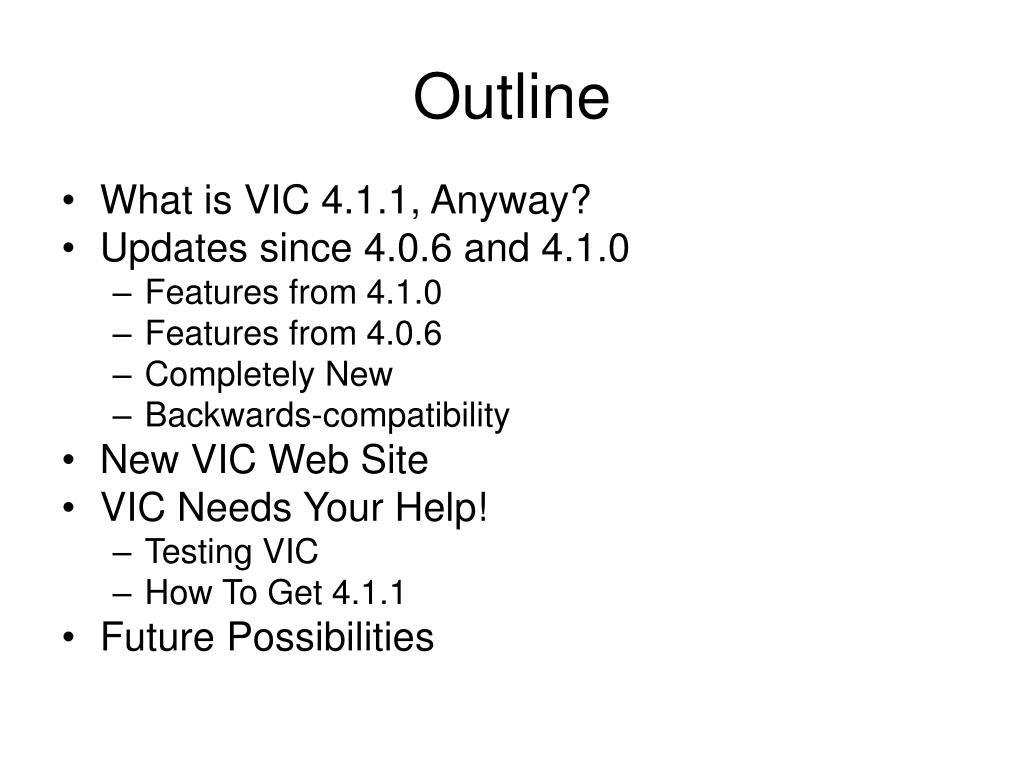

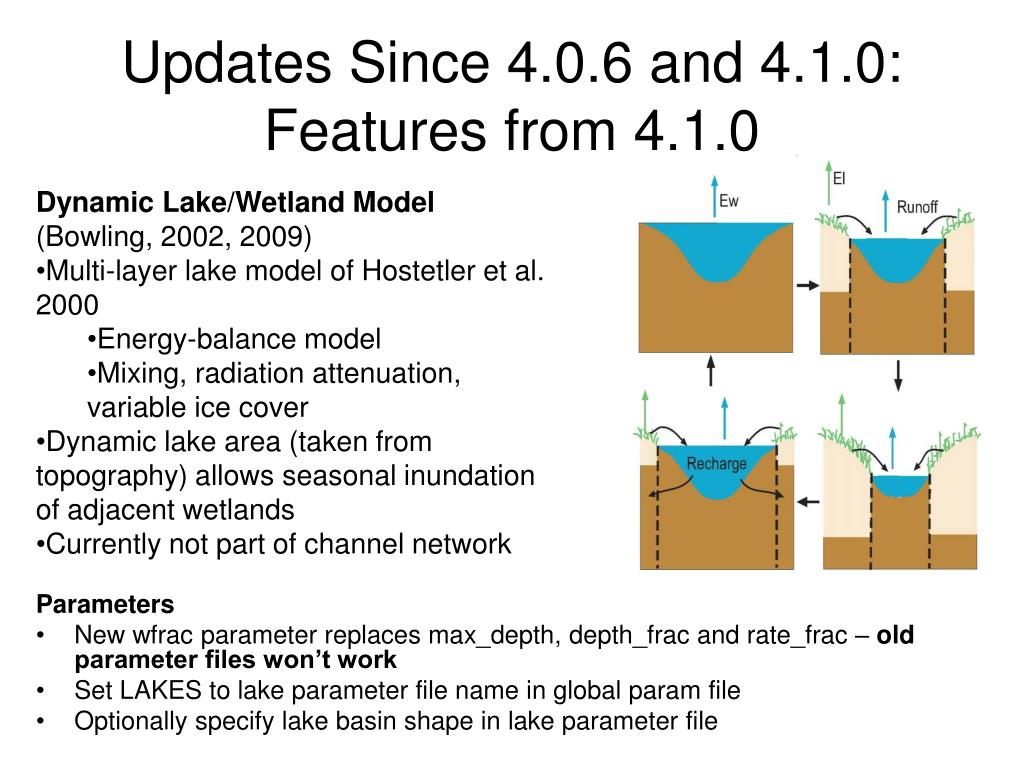

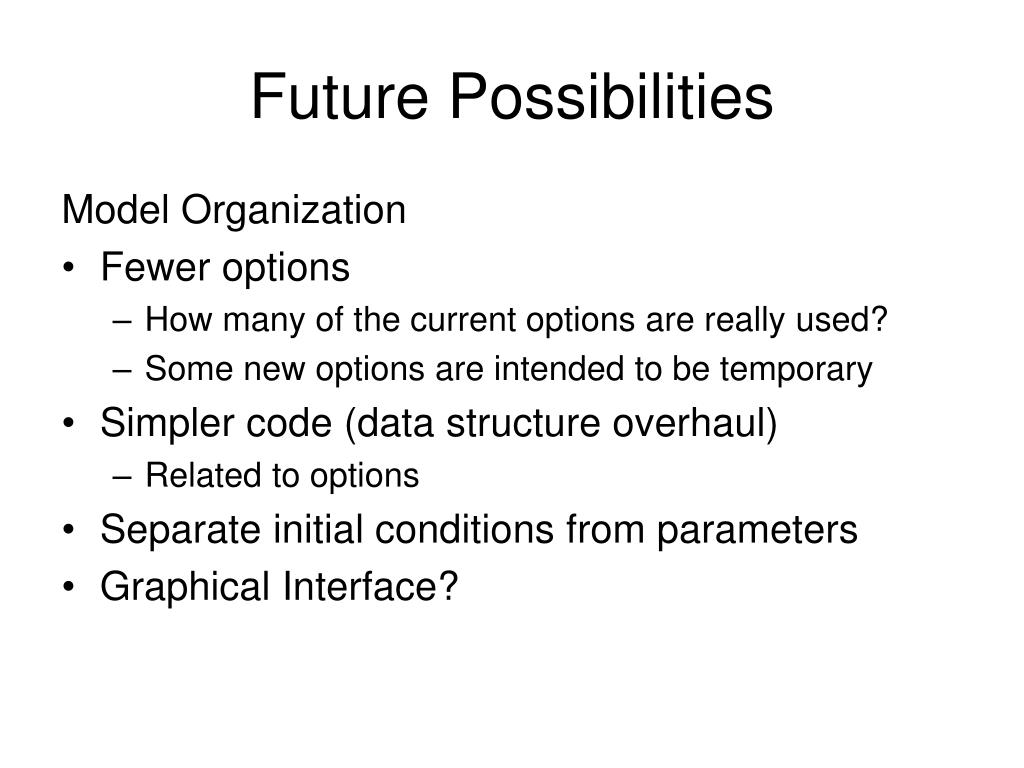

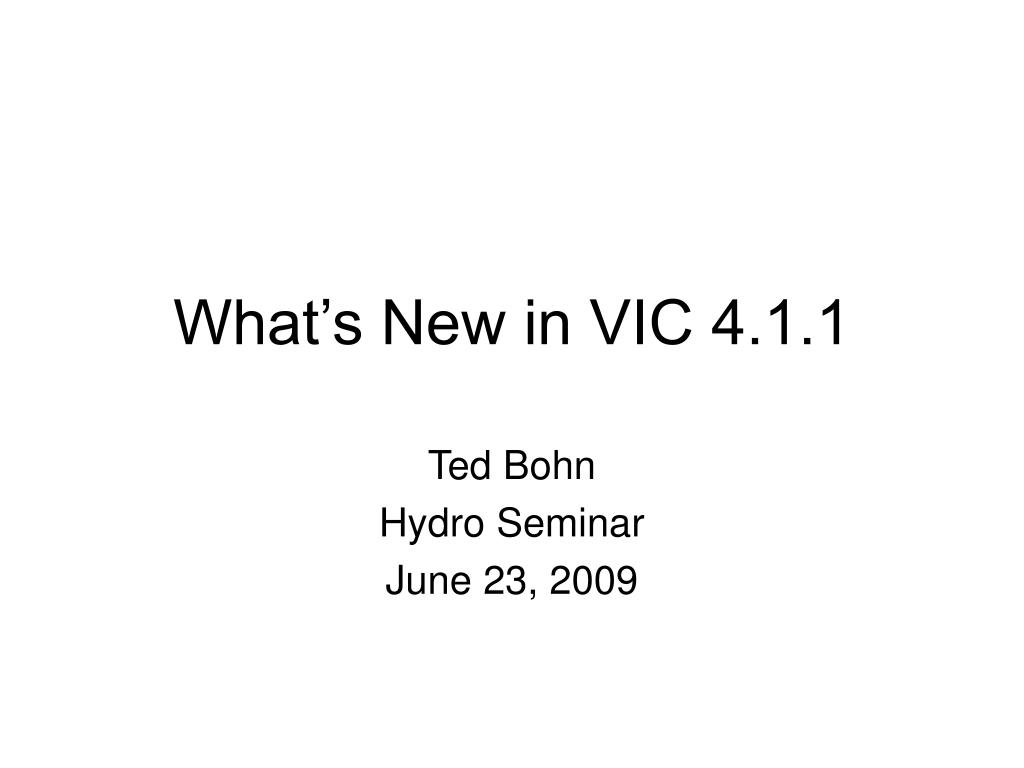

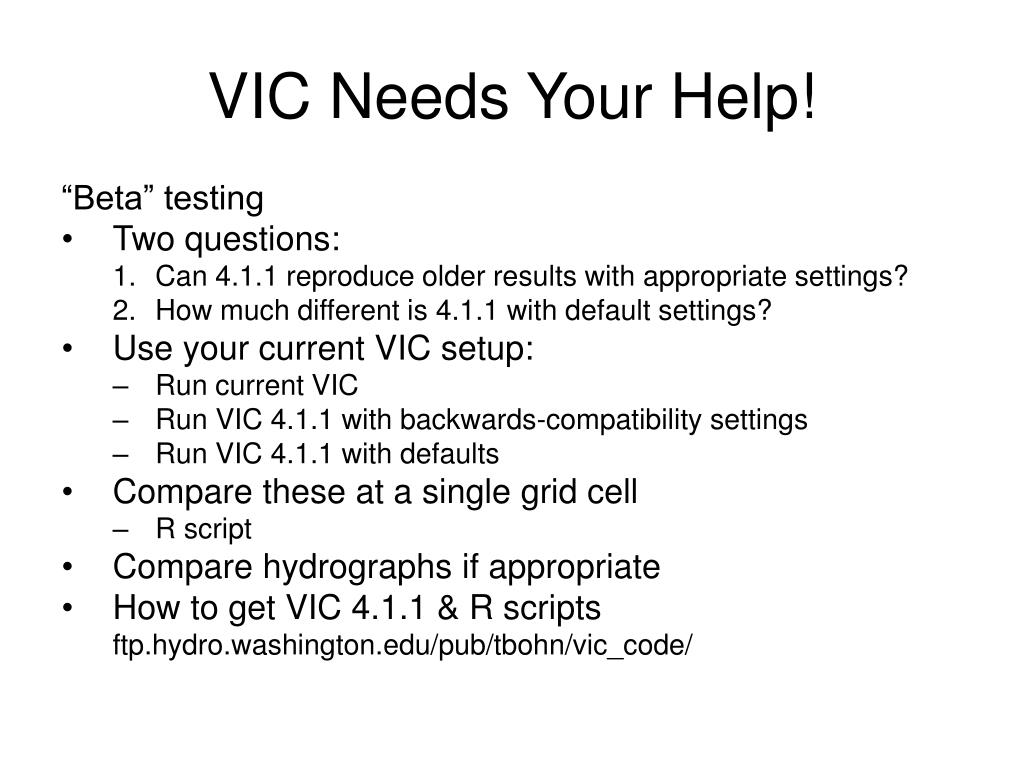

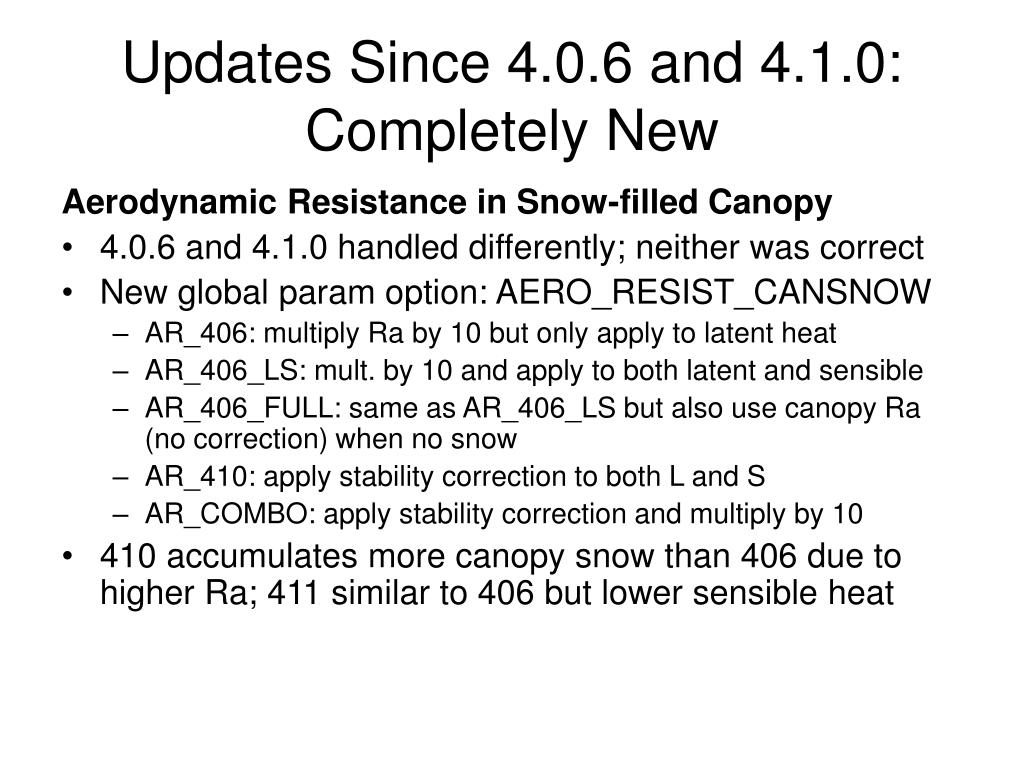

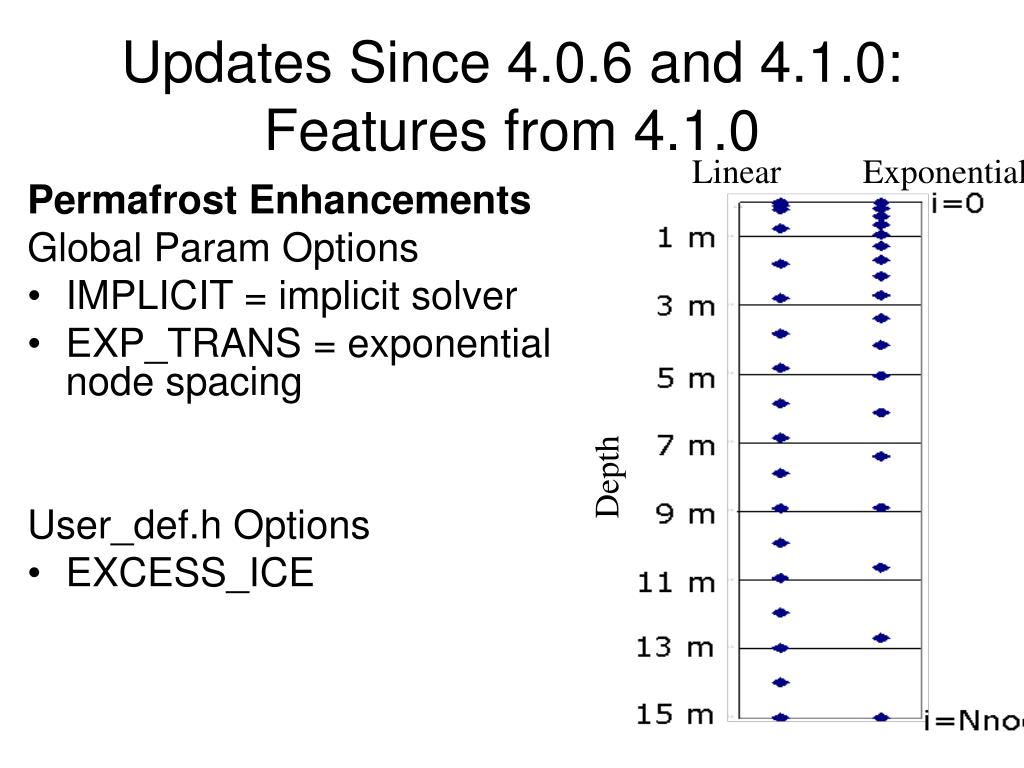

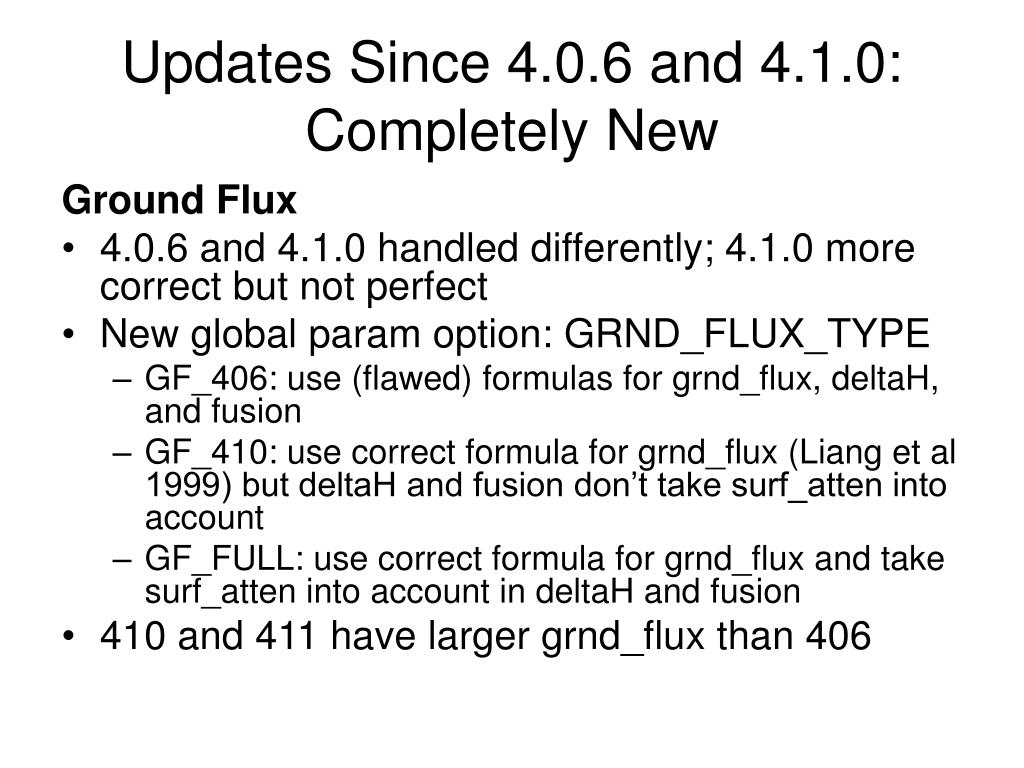

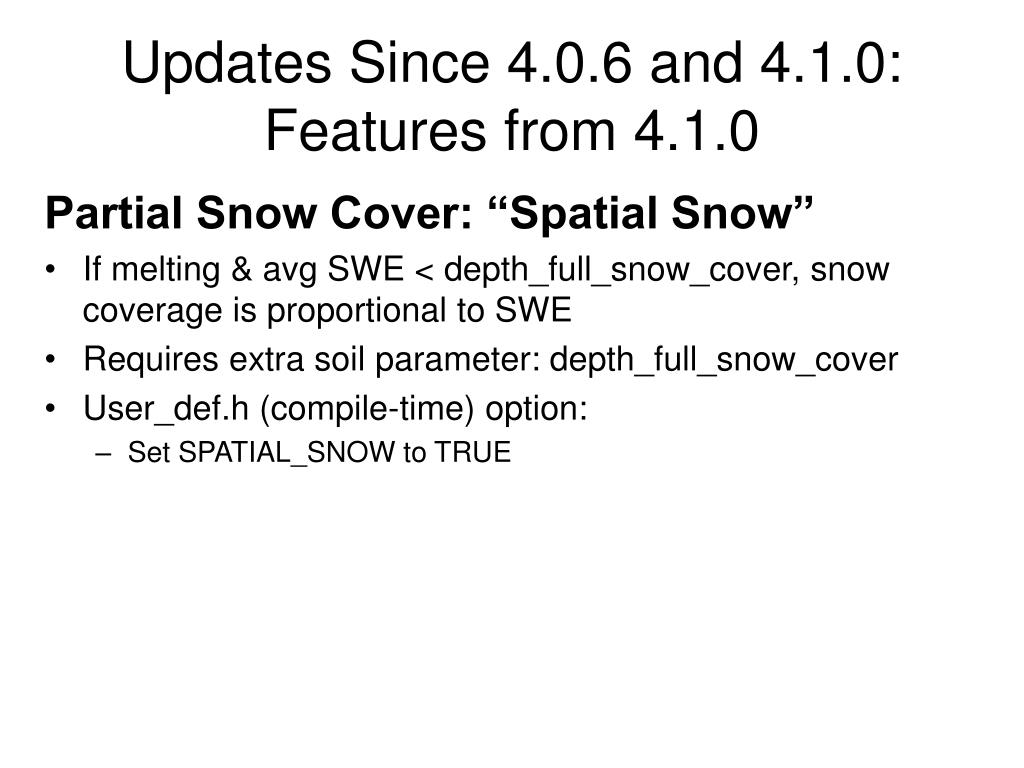

**What’s New in VIC 4.1.1**Ted Bohn Hydro Seminar June 23, 2009**Outline**• What is VIC 4.1.1, Anyway? • Updates since 4.0.6 and 4.1.0 • Features from 4.1.0 • Features from 4.0.6 • Completely New • Backwards-compatibility • New VIC Web Site • VIC Needs Your Help! • Testing VIC • How To Get 4.1.1 • Future Possibilities**What is VIC 4.1.1, Anyway?**• Successor to both 4.0.6 and 4.1.0 • 4.0.6 and 4.1.0 are not compatible • Some of 4.1.0’s new features broke some of the older features • 4.1.1 has “best” of both versions • 4.1.1 can (mostly) reproduce results of 4.0.6 and 4.1.0 • 4.1.1 has further improvements**VIC Model Versions**• 4.1.0_x Branch • Lake/wetland model • Blowing snow • Canopy energy balance • No treeline computation • 410-style aero_resist • Inconsistent aero_resist reporting • Grnd_flux correct • deltaH & fusion incorrect • 4.0.x Branch • No lake model • No blowing snow • No permafrost • No canopy energy balance • Treeline computation • 406-style aero_resist • Inconsistent aero_resist reporting • Grnd_flux & deltaH incorrect 4.0.3 • 4.1.0_r4 • Lakes v.1 • 24h water balance errors • Flexible output config • Output aggregation • 4.0.6 • Flexible output config • Output aggregation • 4.1.0_r5 • Lakes v.2 • Fixed 24h water balance • Permafrost Enhancements • 4.1.1 • Treeline computation • Lakes v.2 • Blowing snow • Canopy energy balance • Permafrost Enhancements • 406-style aero_resist • Consistent aero_resist reporting • Frozen soil bug fixes • Correct grnd_flux, deltaH, and fusion • Air pressure lapsing option • Snow pack improvements • 4.1.2 • Under development**Updates Since 4.0.6 and 4.1.0:Features from 4.1.0**• Dynamic Lake/Wetland Model (Bowling, 2002, 2009) • Multi-layer lake model of Hostetler et al. 2000 • Energy-balance model • Mixing, radiation attenuation, variable ice cover • Dynamic lake area (taken from topography) allows seasonal inundation of adjacent wetlands • Currently not part of channel network Parameters • New wfrac parameter replaces max_depth, depth_frac and rate_frac – old parameter files won’t work • Set LAKES to lake parameter file name in global param file • Optionally specify lake basin shape in lake parameter file**Linear**Exponential Depth Updates Since 4.0.6 and 4.1.0:Features from 4.1.0 Permafrost Enhancements Global Param Options • IMPLICIT = implicit solver • EXP_TRANS = exponential node spacing User_def.h Options • EXCESS_ICE**Excess Ground Ice and Subsidence Algorithm:**• excess ice is the concentration of ice in excess of what the soil can hold were it unfrozen – we define it as n’-n, where n’ is the expanded soil porosity, and n is the unfrozen soil porosity • as excess ice in a soil layer melts (see example at left), the ground subsides • for the below runs, we utilize 8 soil layers, ranging in thickness from 0.1 to 0.6 m**Updates Since 4.0.6 and 4.1.0:Features from 4.1.0**Soil T heterogeneity: “Spatial Frost” • Linear (uniform) distribution of soil T around mean • Allows some moisture movement in soil when avg T below freezing • Requires extra soil parameter: frost_slope • User_def.h (compile-time) option: • Set SPATIAL_FROST to TRUE • Set FROST_SUBAREAS (number of frost “bands”) Cherkauer et al. (2003)**Updates Since 4.0.6 and 4.1.0:Features from 4.1.0**Partial Snow Cover: “Spatial Snow” • If melting & avg SWE < depth_full_snow_cover, snow coverage is proportional to SWE • Requires extra soil parameter: depth_full_snow_cover • User_def.h (compile-time) option: • Set SPATIAL_SNOW to TRUE**Updates Since 4.0.6 and 4.1.0:Features from 4.1.0**Canopy Energy Balance • Separate canopy temperature • Radiative fluxes between canopy and ground/snowpack surface • Can iterate between surface and canopy solutions for total balance: • Set CLOSE_ENERGY to TRUE in user_def.h (compile-time option) Blowing Snow • Blowing snow sublimation • Set BLOWING to TRUE in global param file**Updates Since 4.0.6 and 4.1.0:Features from 4.0.6**24h water balance mode • Snow step was broken in 4.1.0 – now is fixed Treeline Computation • Use in conjunction with snow/elevation bands • Uses avg July T of forcings to determine which bands are above treeline • Above treeline, replaces any overstory veg tiles with non-overstory veg cover • Otherwise, runaway snowpack (“glaciers”) • Set COMPUTE_TREELINE to a veg class ID number in global param file (ID number of non-overstory class) • JulyAvgT can be supplied in soil file instead of computed from forcings: • Set JULY_TAVG_SUPPLIED to TRUE in global param file**Updates Since 4.0.6 and 4.1.0:Completely New**Potential ET • 6 Types of PET can now be output: OUT_PET_SATSOIL Saturated Soil OUT_PET_H2OSURF Water Surface (smooth/shallow) OUT_PET_SHORT Short Reference Crop OUT_PET_TALL Tall Reference Crop OUT_PET_NATVEG Natural Vegetation, no soil moisture limitation OUT_PET_VEGNOCR Natural Veg. with Rc = 0**SatSoil > H2OSurf**(rougher) VegNoCR is usually highest Trans is near NatVeg when soil is wet Trans declines as soil dries ECan + Trans > Most PETs**Updates Since 4.0.6 and 4.1.0:Completely New**T instability handling • In past, soil T solution often failed to converge in arctic climates • Jenny Adam’s permafrost enhancements solved most problems • Just in case, we now have better error handling: CONTINUEONERROR in global param file • FALSE: VIC exits completely when a grid cell encounters T failure • TRUE: VIC moves to next grid cell when T failure occurs • TFALLBACK: use previous timestep’s T value and continue with current grid cell • Applies to surface and canopy T solutions as well • NOTE: by the time the solution fails to converge, T values may have been unreasonable for days or weeks**How effective is the TFALLBACK option?**Arctic location, 15 Nodes, Linear distribution, Dp=4m, Constant Tb, explicit scheme Original TFALLBACK By the time convergence failure occurs, it’s too late**Problem actually occurred much earlier – “cold nose”**at 2nd deepest node Implicit scheme also fails…**Other options…**Deepening Dp to 20m fixes problem Node spacing appears to be an issue But constant Tb at 4m is unrealistic here**Other options…**Dp = 20m Exponential Node Distrib NOFLUX bottom boundary Explicit scheme Effect on surface T is small Effect at depth is large Implicit scheme may be more accurate/stable, but takes > 10 times longer! Note: node depths are different from linear case, except for T0 and T14**Updates Since 4.0.6 and 4.1.0:Completely New**Aerodynamic Resistance in Snow-filled Canopy • 4.0.6 and 4.1.0 handled differently; neither was correct • New global param option: AERO_RESIST_CANSNOW • AR_406: multiply Ra by 10 but only apply to latent heat • AR_406_LS: mult. by 10 and apply to both latent and sensible • AR_406_FULL: same as AR_406_LS but also use canopy Ra (no correction) when no snow • AR_410: apply stability correction to both L and S • AR_COMBO: apply stability correction and multiply by 10 • 410 accumulates more canopy snow than 406 due to higher Ra; 411 similar to 406 but lower sensible heat**Updates Since 4.0.6 and 4.1.0:Completely New**Ground Flux • 4.0.6 and 4.1.0 handled differently; 4.1.0 more correct but not perfect • New global param option: GRND_FLUX_TYPE • GF_406: use (flawed) formulas for grnd_flux, deltaH, and fusion • GF_410: use correct formula for grnd_flux (Liang et al 1999) but deltaH and fusion don’t take surf_atten into account • GF_FULL: use correct formula for grnd_flux and take surf_atten into account in deltaH and fusion • 410 and 411 have larger grnd_flux than 406**Updates Since 4.0.6 and 4.1.0:Completely New**Snow Albedo • New global param file option: SNOW_ALBEDO • USACE (default): previous algorithm, from US Army Corps; prescribed date of beginning of melt season (optimized for US) • SUN1999: melt condition = function of cold content only (applicable globally) Snow Density • New global param file option: SNOW_DENSITY • DENS_BRAS (default): previous algorithm, taken from Bras (1992) • DENS_SNTHRM: algorithm taken from SNTHRM model • No computations depend on snow density, but good for validation of model results against observations**Updates Since 4.0.6 and 4.1.0:Completely New**Pressure Lapsing • Previously, when P and density computed during forcing disaggregation, set to constant 400m-elevation values • P and density were lapsed to cell or band elevation for canopy evap & transpiration calculations • But sensible heat used un-lapsed values • Cold bias at high elevations, warm bias at low elevations • Magnitude of effect unknown • New global param option: PLAPSE • FALSE: previous behavior • TRUE (default): lapse pressure to grid cell average elevation**Updates Since 4.0.6 and 4.1.0:Backwards Compatibility**Compatibility with 4.1.0 • Global Param Options (run-time) AERO_RESIST_CANSNOW AR_410 GRND_FLUX_TYPE GF_410 COMPUTE_TREELINE FALSE (or omit) JULY_TAVG_SUPPLIED FALSE (or omit) MIN_LIQ FALSE (or omit) PLAPSE FALSE**Updates Since 4.0.6 and 4.1.0:Backwards Compatibility**Compatibility with 4.0.6 • Global Param Options (run-time) AERO_RESIST_CANSNOW AR_406 GRND_FLUX_TYPE GF_406 IMPLICIT FALSE (or omit) EXP_TRANS FALSE (or omit) EQUAL_AREA FALSE (or omit) LAKES FALSE (or omit) LAKE_PROFILE FALSE (or omit) BLOWING FALSE (or omit) MIN_LIQ FALSE (or omit) PLAPSE FALSE SNOW_ALBEDO USACE (or omit) SNOW_DENSITY DENS_BRAS (or omit) • User_def.h Options (compile-time) CLOSE_ENERGY FALSE SPATIAL_FROST FALSE SPATIAL_SNOW FALSE EXCESS_ICE FALSE**New Web Site**www.hydro.washington.edu/Lettenmaier/Models/VIC/new/ • Under Construction • Up-to-date Documentation • Consolidation / Reorganization • Easier Navigation • Suggestions?**VIC Needs Your Help!**“Beta” testing • Two questions: • Can 4.1.1 reproduce older results with appropriate settings? • How much different is 4.1.1 with default settings? • Use your current VIC setup: • Run current VIC • Run VIC 4.1.1 with backwards-compatibility settings • Run VIC 4.1.1 with defaults • Compare these at a single grid cell • R script • Compare hydrographs if appropriate • How to get VIC 4.1.1 & R scripts ftp.hydro.washington.edu/pub/tbohn/vic_code/**Future Possibilities**Model Physics • Wind profile • VPD biases • Enthalpy formulation • Distributed Water Table • Carbon • Lakes with channel inflows • “Image” mode**Future Possibilities**Model Organization • Fewer options • How many of the current options are really used? • Some new options are intended to be temporary • Simpler code (data structure overhaul) • Related to options • Separate initial conditions from parameters • Graphical Interface?
