  1. Using Commercially Available Imagery and Terrain Data with STKPart 1 Sean Boyer

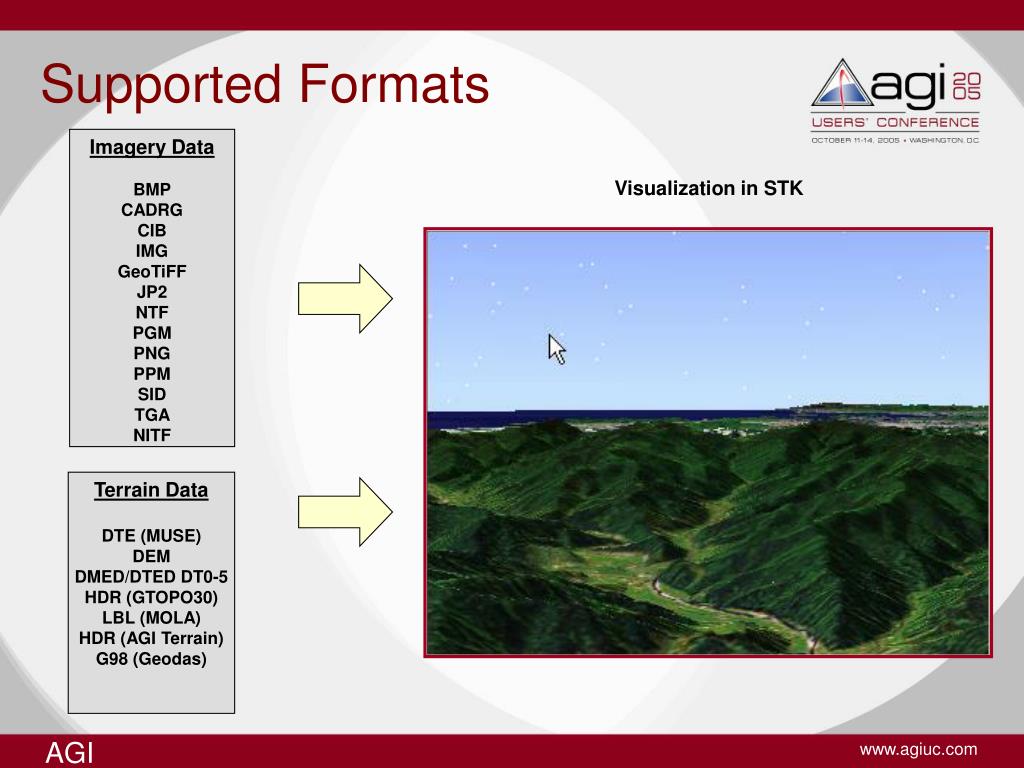

  2. Supported Formats Imagery Data BMP CADRG CIB IMG GeoTiFF JP2 NTF PGM PNG PPM SID TGA NITF Visualization in STK Terrain Data DTE (MUSE) DEM DMED/DTED DT0-5 HDR (GTOPO30) LBL (MOLA) HDR (AGI Terrain) G98 (Geodas)

  3. Commercial Data • Commercial Satellite imagery, some providers are:

  4. AGI Data

  5. Public Domain & Government Data

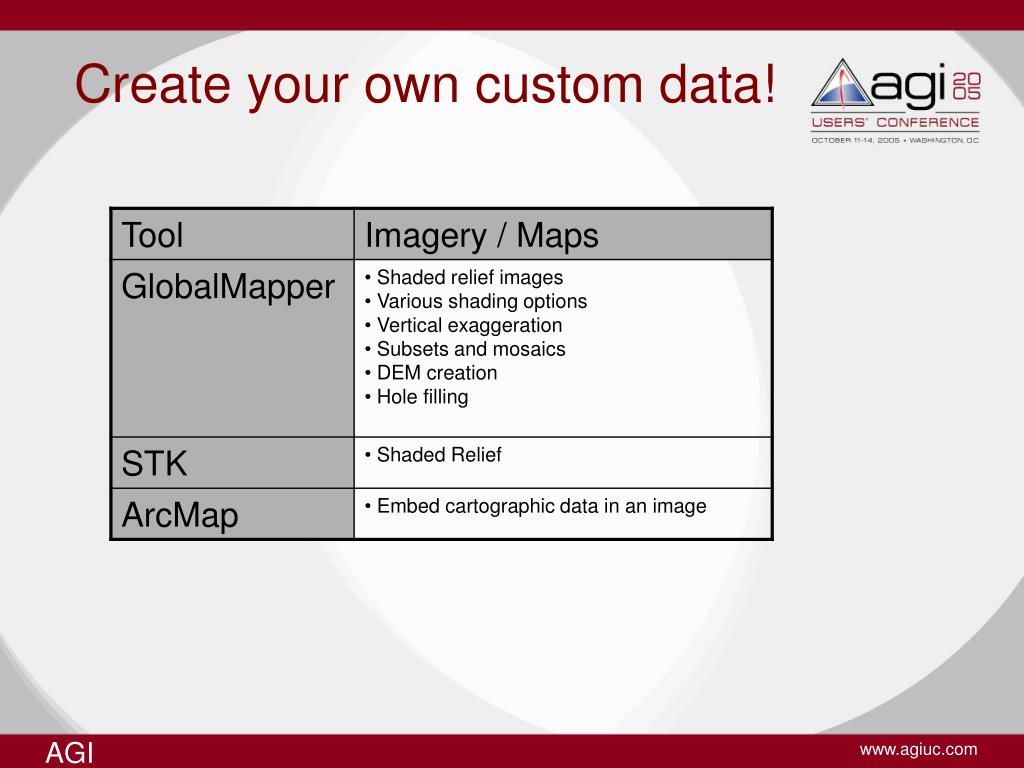

  6. Create your own custom data!

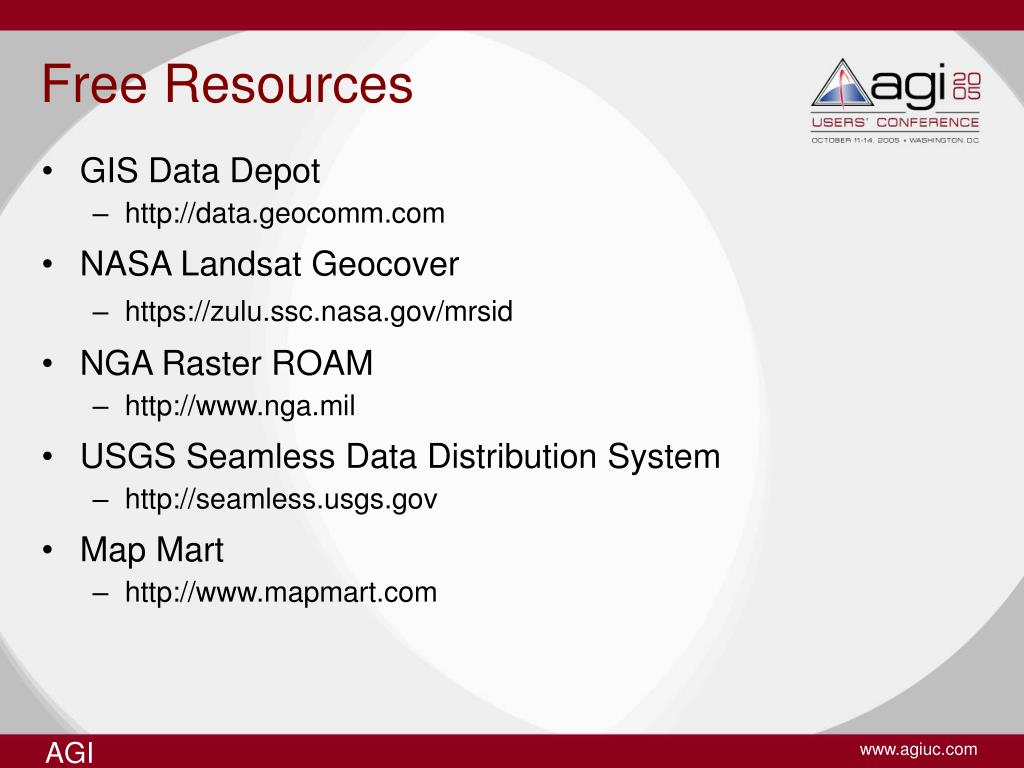

  7. Free Resources • GIS Data Depot • http://data.geocomm.com • NASA Landsat Geocover • https://zulu.ssc.nasa.gov/mrsid • NGA Raster ROAM • http://www.nga.mil • USGS Seamless Data Distribution System • http://seamless.usgs.gov • Map Mart • http://www.mapmart.com

  8. Ordering checklist • What data format is required? • Geographic extent of your aoi? • What resolution? • What level of correction? • How many concurrent users? • When is the data needed? • Projection or horizontal datum?

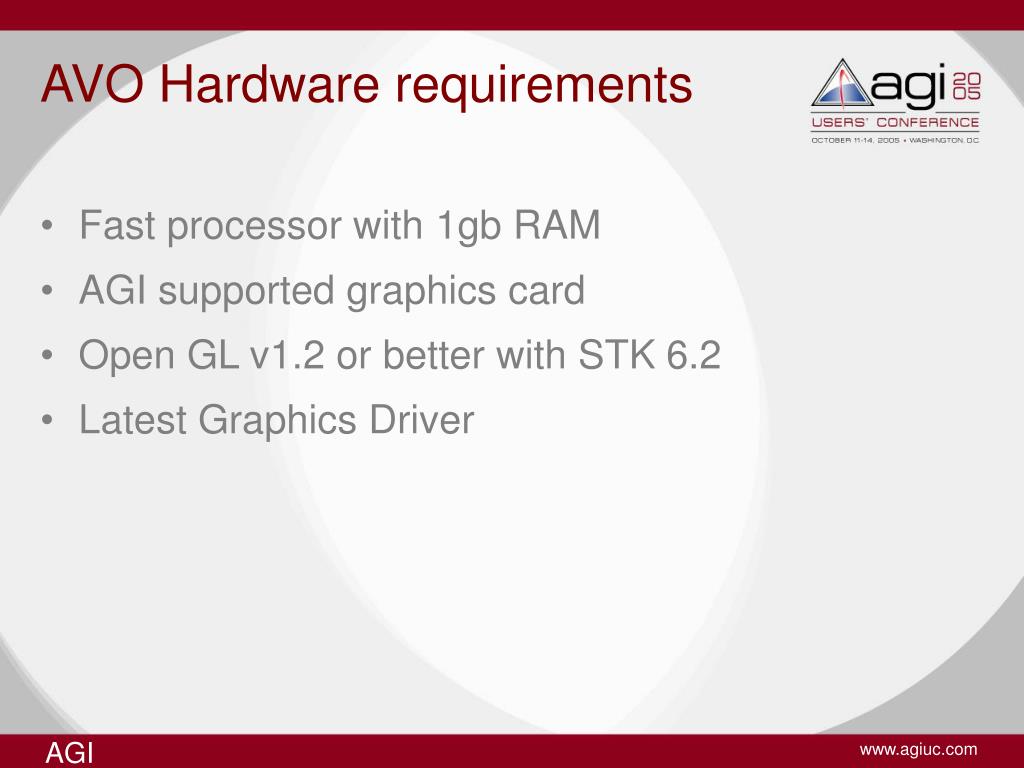

  9. AVO Hardware requirements • Fast processor with 1gb RAM • AGI supported graphics card • Open GL v1.2 or better with STK 6.2 • Latest Graphics Driver

  10. Using Commercially Available Imagery and Terrain Data with STKPart 2 Sean Boyer

  11. Importing Imagery & Terrain Imagery Data BMP CADRG CIB IMG JP2 NTF PGM PNG PPM SID TGA TIF • Chunk Image • Converter • single images • multiple images • terrain region .PDTTX 3D Imagery Visualization .PDTT Terrain Data DTE (MUSE) DEM HDR (GTOPO30) DMED LBL HDR (AGI Terrain) G98 DTED DT0-5 Terrain Converter 3D Terrain Visualization Load Terraininto STK

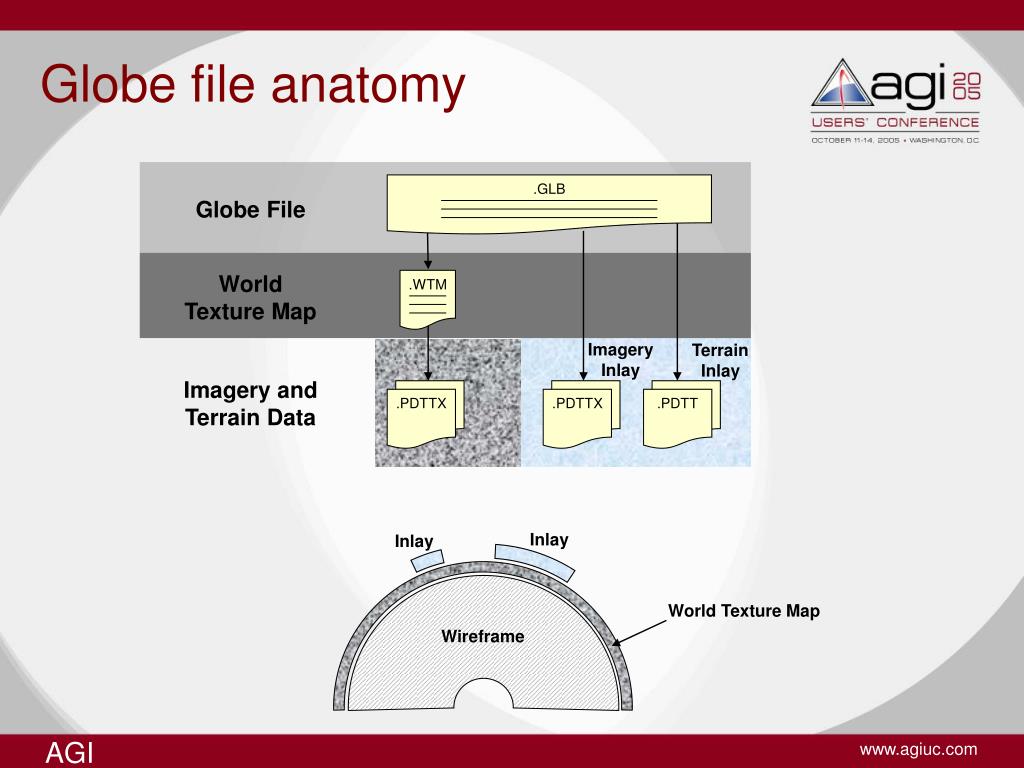

  12. .WTM .GLB Globe file anatomy Globe File World Texture Map Imagery Inlay Terrain Inlay Imagery and Terrain Data .PDTTX .PDTTX .PDTT Inlay Inlay World Texture Map Wireframe

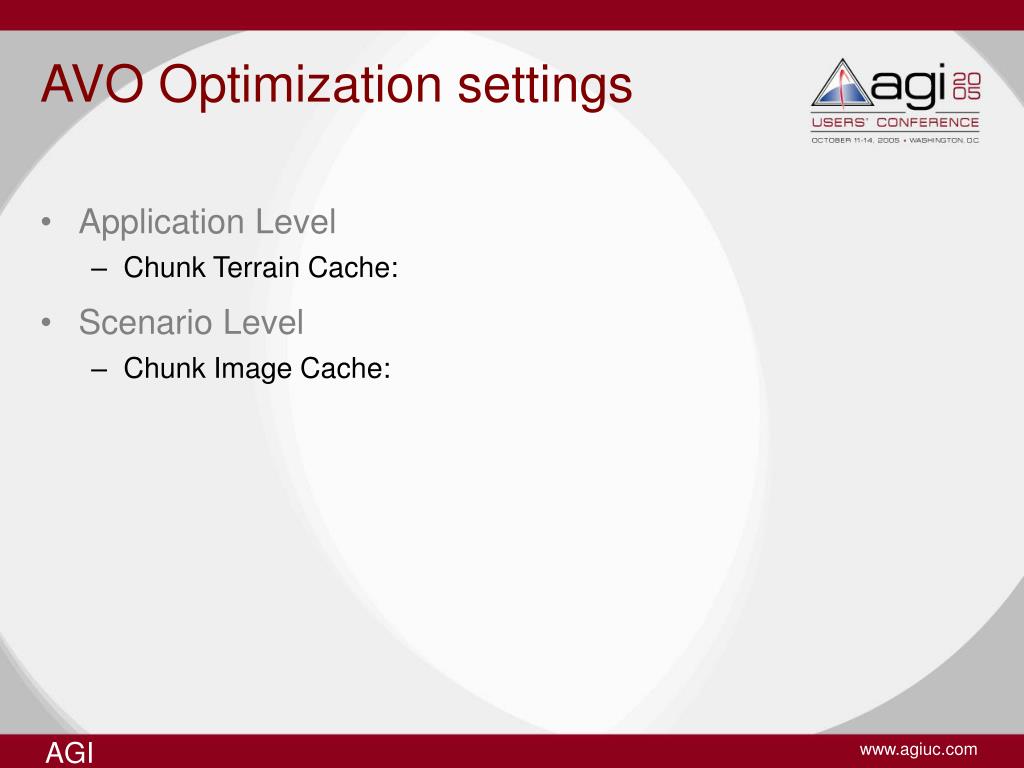

  13. AVO Optimization settings • Application Level • Chunk Terrain Cache: • Scenario Level • Chunk Image Cache:
